indicator KIA Sorento 2006 1.G Owner's Guide

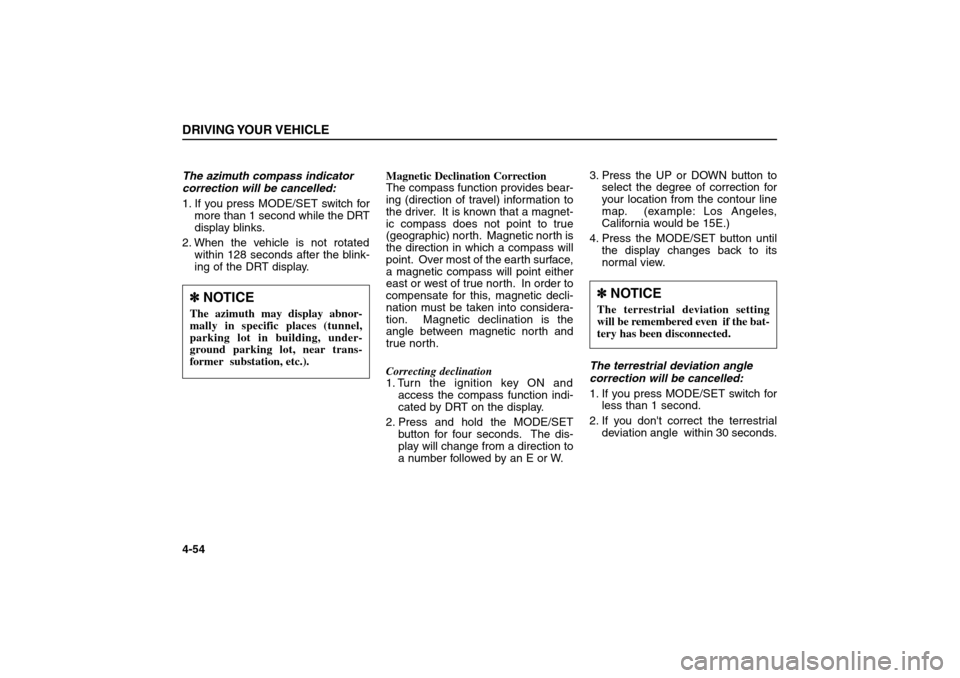

The azimuth compass indicator
correction will be cancelled:
1. If you press MODE/SET switch for
more than 1 second while the DRT
display blinks.
2. When the vehicle is not rotated
within 128 seconds after the blink-
ing of the DRT display.Magnetic Declination Correction
The compass function provides bear-
ing (direction of travel) information to
the driver. It is known that a magnet-
ic compass does not point to true
(geographic) north. Magnetic north is
the direction in which a compass will
point. Over most of the earth surface,
a magnetic compass will point either
east or west of true north. In order to
compensate for this, magnetic decli-
nation must be taken into considera-
tion. Magnetic declination is the
angle between magnetic north and
true north.
Correcting declination
1. Turn the ignition key ON and
access the compass function indi-
cated by DRT on the display.
2. Press and hold the MODE/SET
button for four seconds. The dis-
play will change from a direction to
a number followed by an E or W.3. Press the UP or DOWN button to
select the degree of correction for
your location from the contour line
map. (example: Los Angeles,
California would be 15E.)
4. Press the MODE/SET button until
the display changes back to its
normal view.
The terrestrial deviation angle
correction will be cancelled:
1. If you press MODE/SET switch for
less than 1 second.
2. If you don't correct the terrestrial
deviation angle within 30 seconds.DRIVING YOUR VEHICLE4-54✽ ✽
NOTICEThe azimuth may display abnor-
mally in specific places (tunnel,
parking lot in building, under-
ground parking lot, near trans-
former substation, etc.).
✽ ✽
NOTICEThe terrestrial deviation setting
will be remembered even if the bat-
tery has been disconnected.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 54

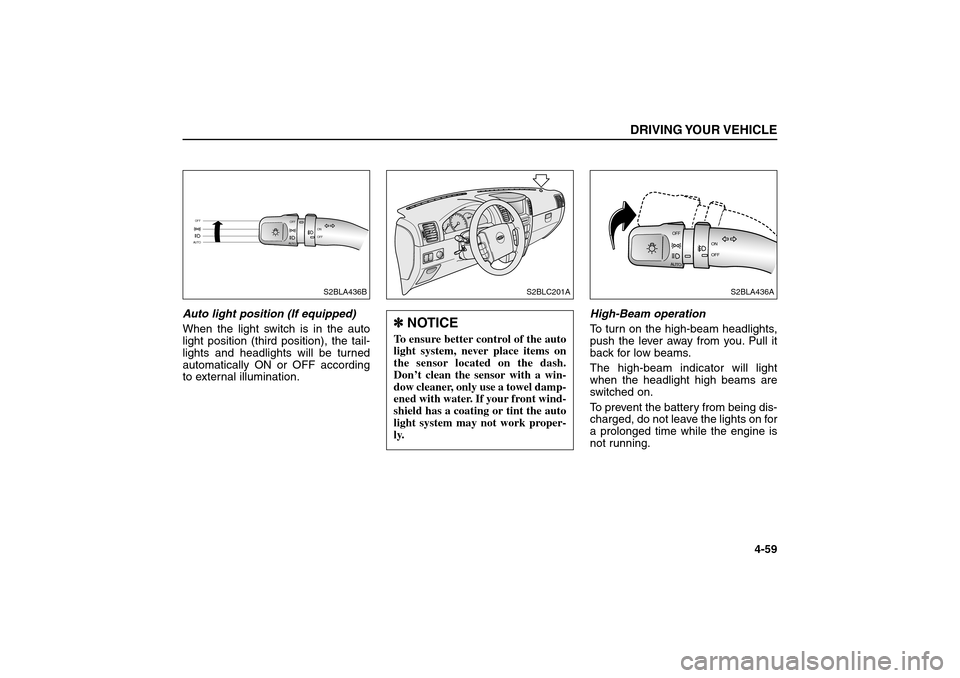

Auto light position (If equipped)
When the light switch is in the auto
light position (third position), the tail-
lights and headlights will be turned
automatically ON or OFF according
to external illumination.High-Beam operation
To turn on the high-beam headlights,
push the lever away from you. Pull it
back for low beams.
The high-beam indicator will light
when the headlight high beams are
switched on.
To prevent the battery from being dis-
charged, do not leave the lights on for
a prolonged time while the engine is
not running.
DRIVING YOUR VEHICLE
4-59
A
U
T
OOFF
OFFON
AUTOOFF
S2BLA436B
S2BLC201A
A
U
TOOFF
OFFON
S2BLA436A
✽ ✽
NOTICETo ensure better control of the auto
light system, never place items on
the sensor located on the dash.
Don’t clean the sensor with a win-
dow cleaner, only use a towel damp-
ened with water. If your front wind-
shield has a coating or tint the auto
light system may not work proper-
ly.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 59

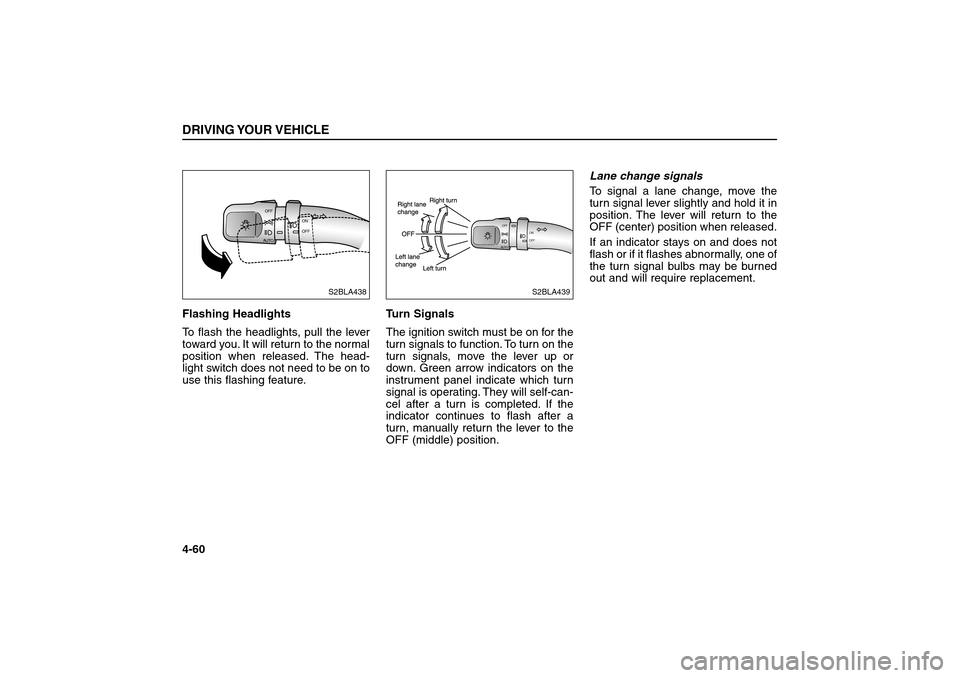

Flashing Headlights
To flash the headlights, pull the lever
toward you. It will return to the normal
position when released. The head-
light switch does not need to be on to
use this flashing feature.Turn Signals
The ignition switch must be on for the
turn signals to function. To turn on the
turn signals, move the lever up or
down. Green arrow indicators on the
instrument panel indicate which turn
signal is operating. They will self-can-
cel after a turn is completed. If the
indicator continues to flash after a
turn, manually return the lever to the
OFF (middle) position.Lane change signals
To signal a lane change, move the
turn signal lever slightly and hold it in
position. The lever will return to the
OFF (center) position when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.DRIVING YOUR VEHICLE4-60
AUTOOFF
OFFON
S2BLA438
A
U
T
OOFF
OFFONS2BLA439
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 60

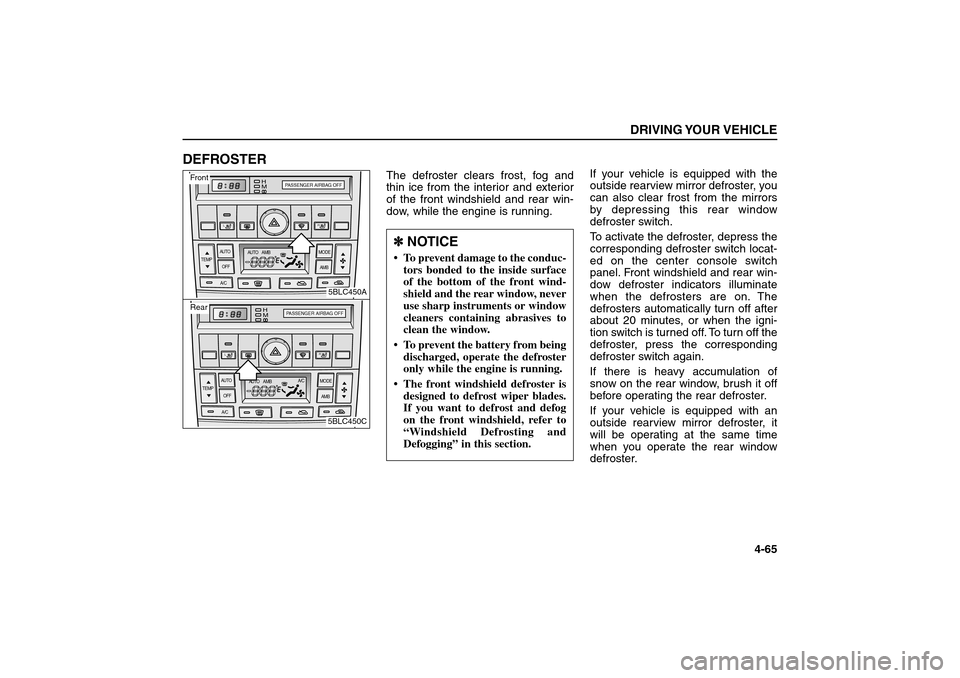

DEFROSTER
The defroster clears frost, fog and
thin ice from the interior and exterior
of the front windshield and rear win-
dow, while the engine is running.If your vehicle is equipped with the
outside rearview mirror defroster, you
can also clear frost from the mirrors
by depressing this rear window
defroster switch.
To activate the defroster, depress the
corresponding defroster switch locat-
ed on the center console switch
panel. Front windshield and rear win-
dow defroster indicators illuminate
when the defrosters are on. The
defrosters automatically turn off after
about 20 minutes, or when the igni-
tion switch is turned off. To turn off the
defroster, press the corresponding
defroster switch again.
If there is heavy accumulation of
snow on the rear window, brush it off
before operating the rear defroster.
If your vehicle is equipped with an
outside rearview mirror defroster, it
will be operating at the same time
when you operate the rear window
defroster.
DRIVING YOUR VEHICLE
4-65
AUTO
AUTO AMB
OFF TEMPMODE
AMB
A/C
A/C
L
R
H
M
PASSENGER AIRBAG OFF
5BLC450A
AU TO
AUTO AMB
OFF TEMPMODE
AMB
A/C
A/C
L
R
H
M
PASSENGER AIRBAG OFF
5BLC450C
FrontRear
✽ ✽
NOTICE To prevent damage to the conduc-
tors bonded to the inside surface
of the bottom of the front wind-
shield and the rear window, never
use sharp instruments or window
cleaners containing abrasives to
clean the window.
 To prevent the battery from being
discharged, operate the defroster
only while the engine is running.
 The front windshield defroster is
designed to defrost wiper blades.
If you want to defrost and defog
on the front windshield, refer to
“Windshield Defrosting and
Defogging” in this section.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 65

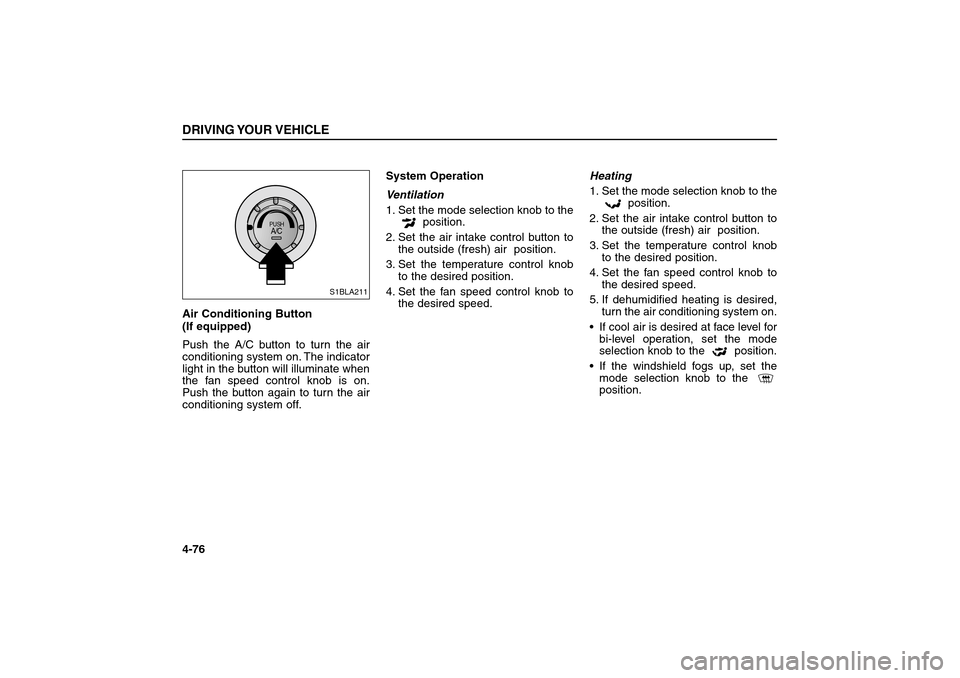

Air Conditioning Button
(If equipped)
Push the A/C button to turn the air
conditioning system on. The indicator
light in the button will illuminate when
the fan speed control knob is on.
Push the button again to turn the air
conditioning system off.System Operation
Ventilation
1. Set the mode selection knob to the
position.
2. Set the air intake control button to
the outside (fresh) air position.
3. Set the temperature control knob
to the desired position.
4. Set the fan speed control knob to
the desired speed.Heating
1. Set the mode selection knob to the
position.
2. Set the air intake control button to
the outside (fresh) air position.
3. Set the temperature control knob
to the desired position.
4. Set the fan speed control knob to
the desired speed.
5. If dehumidified heating is desired,
turn the air conditioning system on.
If cool air is desired at face level for
bi-level operation, set the mode
selection knob to the position.
If the windshield fogs up, set the
mode selection knob to the
position.DRIVING YOUR VEHICLE4-76
PUSHA/C
S1BLA211
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 76

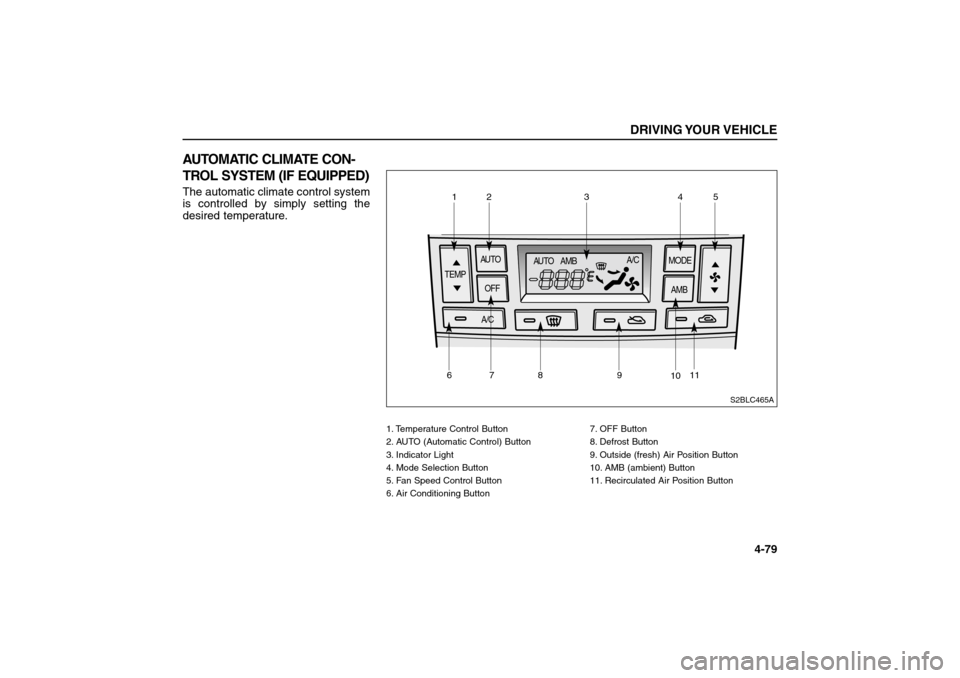

AUTOMATIC CLIMATE CON-
TROL SYSTEM (IF EQUIPPED)The automatic climate control system
is controlled by simply setting the
desired temperature.
DRIVING YOUR VEHICLE
4-79
AUTO
AUTO AMB
OFF TEMPMODE
AMB
A/C
A/C
L
R
S2BLC465A
1. Temperature Control Button
2. AUTO (Automatic Control) Button
3. Indicator Light
4. Mode Selection Button
5. Fan Speed Control Button
6. Air Conditioning Button7. OFF Button
8. Defrost Button
9. Outside (fresh) Air Position Button
10. AMB (ambient) Button
11. Recirculated Air Position Button
16
7
8
9
10
11
2
3
4
5
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 79

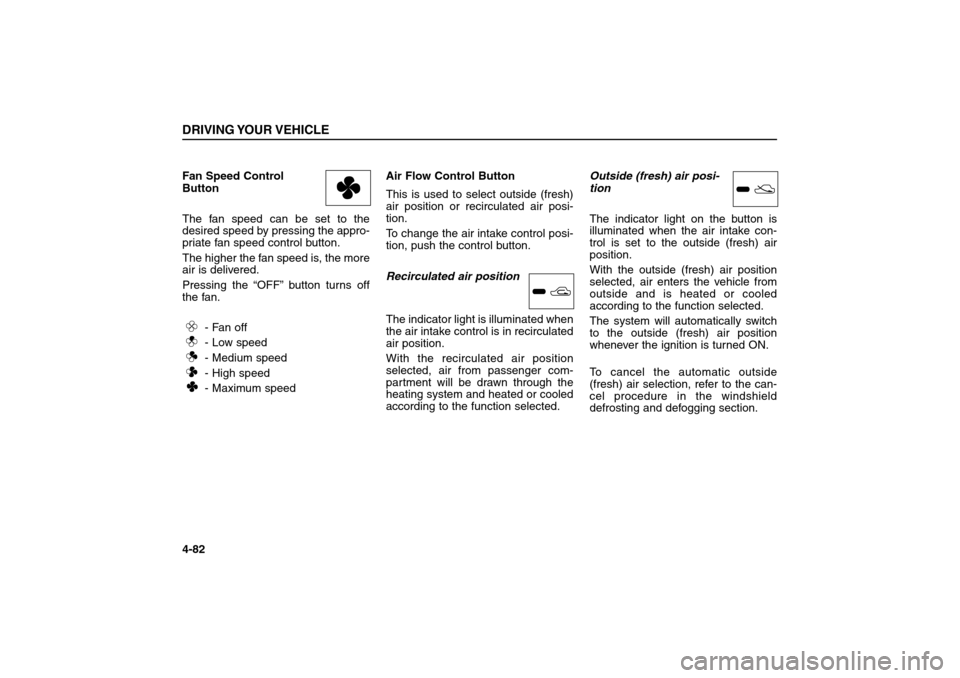

Fan Speed Control
Button
The fan speed can be set to the
desired speed by pressing the appro-
priate fan speed control button.
The higher the fan speed is, the more
air is delivered.
Pressing the “OFF”button turns off
the fan.
- Fan off
- Low speed
- Medium speed
- High speed
- Maximum speed Air Flow Control Button
This is used to select outside (fresh)
air position or recirculated air posi-
tion.
To change the air intake control posi-
tion, push the control button.
Recirculated air position
The indicator light is illuminated when
the air intake control is in recirculated
air position.
With the recirculated air position
selected, air from passenger com-
partment will be drawn through the
heating system and heated or cooled
according to the function selected.Outside (fresh) air posi-
tion
The indicator light on the button is
illuminated when the air intake con-
trol is set to the outside (fresh) air
position.
With the outside (fresh) air position
selected, air enters the vehicle from
outside and is heated or cooled
according to the function selected.
The system will automatically switch
to the outside (fresh) air position
whenever the ignition is turned ON.
To cancel the automatic outside
(fresh) air selection, refer to the can-
cel procedure in the windshield
defrosting and defogging section.DRIVING YOUR VEHICLE4-82
BL-ENG (CAN)-4.qxd 7/28/05 5:56 PM Page 82

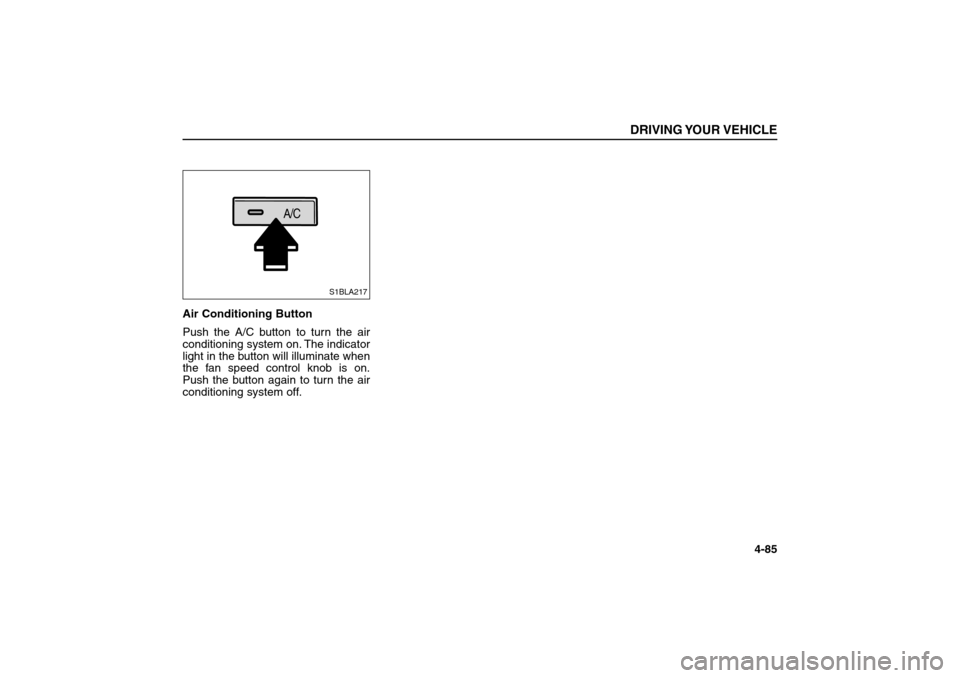

Air Conditioning Button
Push the A/C button to turn the air
conditioning system on. The indicator
light in the button will illuminate when
the fan speed control knob is on.
Push the button again to turn the air
conditioning system off.
DRIVING YOUR VEHICLE
4-85
A/C
S1BLA217
BL-ENG (CAN)-4.qxd 7/28/05 5:56 PM Page 85

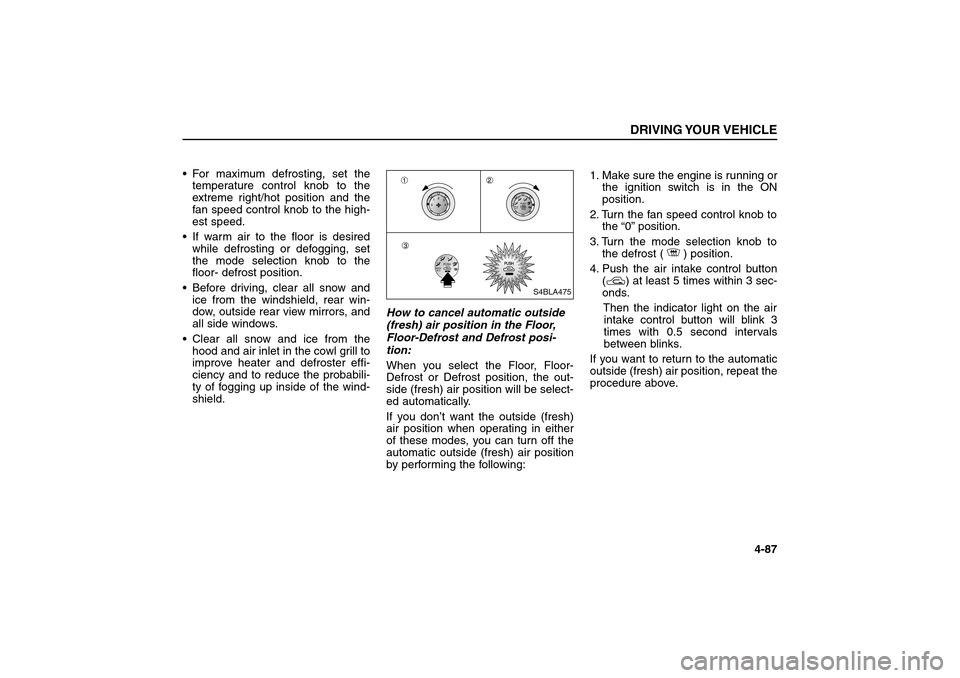

For maximum defrosting, set the
temperature control knob to the
extreme right/hot position and the
fan speed control knob to the high-
est speed.
If warm air to the floor is desired
while defrosting or defogging, set
the mode selection knob to the
floor- defrost position.
Before driving, clear all snow and
ice from the windshield, rear win-
dow, outside rear view mirrors, and
all side windows.
Clear all snow and ice from the
hood and air inlet in the cowl grill to
improve heater and defroster effi-
ciency and to reduce the probabili-
ty of fogging up inside of the wind-
shield.How to cancel automatic outside
(fresh) air position in the Floor,
Floor-Defrost and Defrost posi-
tion:
When you select the Floor, Floor-
Defrost or Defrost position, the out-
side (fresh) air position will be select-
ed automatically.
If you don’t want the outside (fresh)
air position when operating in either
of these modes, you can turn off the
automatic outside (fresh) air position
by performing the following:1. Make sure the engine is running or
the ignition switch is in the ON
position.
2. Turn the fan speed control knob to
the “0”position.
3. Turn the mode selection knob to
the defrost ( ) position.
4. Push the air intake control button
( ) at least 5 times within 3 sec-
onds.
Then the indicator light on the air
intake control button will blink 3
times with 0.5 second intervals
between blinks.
If you want to return to the automatic
outside (fresh) air position, repeat the
procedure above.
DRIVING YOUR VEHICLE
4-87
PUSHMAX
A/C
PUSHMAX
A/C
S4BLA475
BL-ENG (CAN)-4.qxd 7/28/05 5:56 PM Page 87

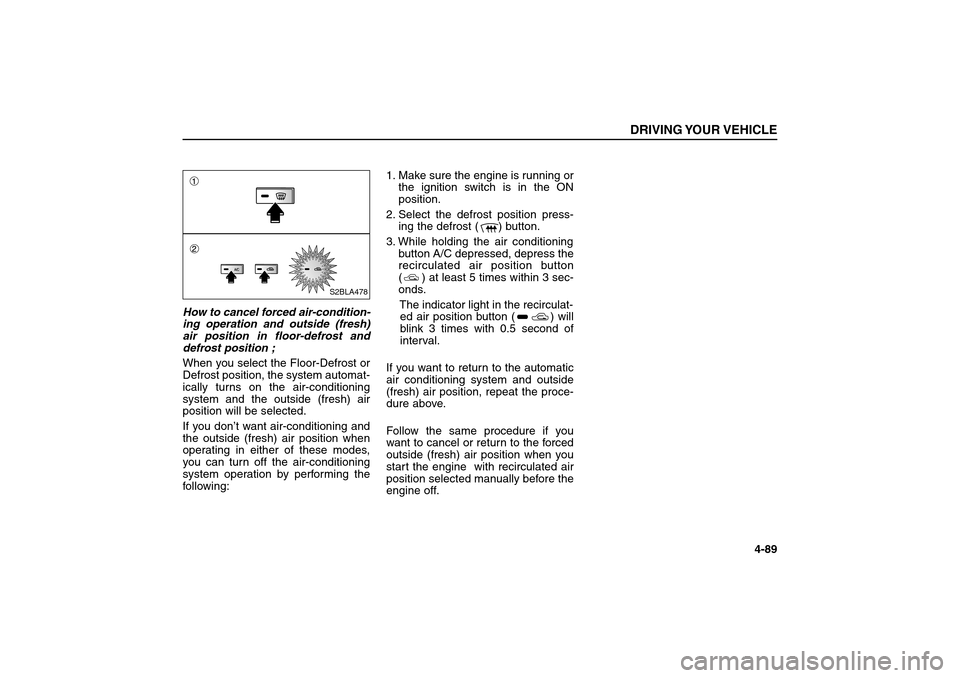

How to cancel forced air-condition-
ing operation and outside (fresh)
air position in floor-defrost and
defrost position ;
When you select the Floor-Defrost or
Defrost position, the system automat-
ically turns on the air-conditioning
system and the outside (fresh) air
position will be selected.
If you don’t want air-conditioning and
the outside (fresh) air position when
operating in either of these modes,
you can turn off the air-conditioning
system operation by performing the
following:1. Make sure the engine is running or
the ignition switch is in the ON
position.
2. Select the defrost position press-
ing the defrost ( ) button.
3. While holding the air conditioning
button A/C depressed, depress the
recirculated air position button
( ) at least 5 times within 3 sec-
onds.
The indicator light in the recirculat-
ed air position button ( ) will
blink 3 times with 0.5 second of
interval.
If you want to return to the automatic
air conditioning system and outside
(fresh) air position, repeat the proce-
dure above.
Follow the same procedure if you
want to cancel or return to the forced
outside (fresh) air position when you
start the engine with recirculated air
position selected manually before the
engine off.
DRIVING YOUR VEHICLE
4-89
S2BLA478
BL-ENG (CAN)-4.qxd 7/28/05 5:56 PM Page 89
