DRIVING YOUR VEHICLE
4-41
ABS
CHECK
4WD
LOW
H
C
F
E
BRAKE
0 1 234567
8
0
0 10 203040506070
80
90
100
110
120
130
20406080100120
140
160
180
200
220
1000rpm
CRUISE
km/hMPH
IMMO
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Warning and indicator lights
6. Tripmeter / Odometer
7. Trip meter reset button
8. Fuel gauge
1
2
3
2
4
5
6
7
8
5
5BLD401
INSTRUMENT CLUSTER (MANUAL TRANSMISSION)
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 41

DRIVING YOUR VEHICLE4-42
ABS
CHECK
O/D
OFF4WD
LOW
PN R
D
2
L
H
C
F
E
BRAKE
0 1 234567
8
0
0 10 203040506070
80
90
100
110
120
130
20406080100120
140
160
180
200
220
1000rpm
CRUISE
km/hMPH
IMMO
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Warning and indicator lights
6. Tripmeter / Odometer
7. Trip meter reset button
8. Shift position indicator
9. Fuel gauge
1
2
3
2
4
5BLD402/5BLD403
INSTRUMENT CLUSTER (AUTOMATIC TRANSMISSION)
5
6
7
9
8
5
30-40LEiA5SR1
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 42

WARNINGS AND INDICA-
TORSWarning Lights / Audible Indicators
Checking operation
All warning lights are checked by
turning the ignition switch ON (do not
start the engine). Any light that does
not illuminate should be checked by
an Authorized Kia Dealer.
After starting the engine, check to
make sure that all warning lights are
off. If any are still on, this indicates a
situation that needs attention. When
releasing the parking brake, the
brake system warning light should go
off. The fuel warning light will stay on
if the fuel level is low.Anti-Lock Brake System
(ABS) Warning Light
This light illuminates when you start
the engine. The light will go off if the
ABS system is operating normally.
Also, this light illuminates if the key is
turned to ON and goes off in 2-3 sec-
onds if the system is operating nor-
mally.
O/D OFF Indicator
(A/T:30-40LEi)
This indicator comes on when the
O/D system is deactivated.Engine Oil Pressure
Warning
This warning light indicates the
engine oil pressure is low.
If the warning light illuminates while
driving:
1. Drive safely to the side of the road
and stop.
2. With the engine off, check the
engine oil level. If the level is low,
add oil as required.
If the warning light remains on after
adding oil or if oil is not available, call
an Authorized Kia Dealer.
DRIVING YOUR VEHICLE
4-45
ABSO/D
OFF
✽ ✽
NOTICEIf the engine is not stopped immedi-
ately, severe damage could result.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 45

Charging System Warning
This warning light indicates a mal-
function of either the generator or
electrical charging system.
If the warning light comes on while
the vehicle is in motion:
1. Drive to the nearest safe location.
2. With the engine off, check the gen-
erator drive belt for looseness or
breakage.
3. If the belt is adjusted properly, a
problem exists somewhere in the
electrical charging system. Have
an Authorized Kia Dealer correct
the problem as soon as possible.Safety Belt Warning
Type A
As a reminder to the driver and pas-
senger, safety belt warning light will
illuminate for approximately 6 sec-
onds each time you turn the ignition
switch ON regardless of belt fasten-
ing.
Type B
As a reminder to the driver and pas-
senger, safety belt warning light will
blink for approximately 6 seconds
each time you turn the ignition switch
ON regardless of belt fastening.
If the driver's safety belt is unfastened
after the ignition switch is ON, the
safety belt warning light will blink for
approximately 6 seconds.Shift Pattern
Indicators
(A/T: 30-40LEi)
The individual indicators illuminate to
show the shift lever selection.
Shift Pattern
Indicators
(A/T: A5SR1)
The individual indicators illuminate to
show the shift lever selection.DRIVING YOUR VEHICLE4-46
P
R
N
D2
L
P
R
N
D
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 46

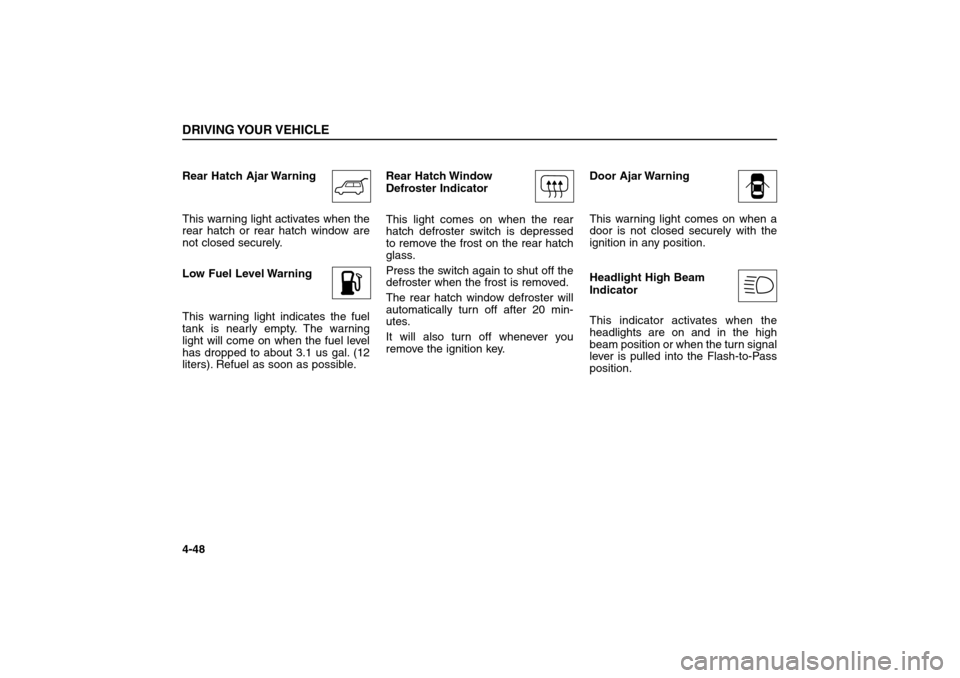

Rear Hatch Ajar Warning
This warning light activates when the
rear hatch or rear hatch window are
not closed securely.
Low Fuel Level Warning
This warning light indicates the fuel
tank is nearly empty. The warning
light will come on when the fuel level
has dropped to about 3.1 us gal. (12
liters). Refuel as soon as possible.Rear Hatch Window
Defroster Indicator
This light comes on when the rear
hatch defroster switch is depressed
to remove the frost on the rear hatch
glass.
Press the switch again to shut off the
defroster when the frost is removed.
The rear hatch window defroster will
automatically turn off after 20 min-
utes.
It will also turn off whenever you
remove the ignition key.Door Ajar Warning
This warning light comes on when a
door is not closed securely with the
ignition in any position.
Headlight High Beam
Indicator
This indicator activates when the
headlights are on and in the high
beam position or when the turn signal
lever is pulled into the Flash-to-Pass
position.DRIVING YOUR VEHICLE4-48
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 48

Immobilizer Indicator
When you turn the ignition key to the
ON position, if the IMMO indicator
goes off after blinking 6 times, this
indicates that the immobilizer system
is normal. However, if the IMMO indi-
cator remains on continuously after
blinking 6 times, this indicates that
the immobilizer system is out of order
and you cannot start the engine with-
out the limp home procedure. Refer
to the “Limp home procedure”on
page 3-4.Malfunction Indicator
The CHECK ENGINE or malfunction
indicator light is installed in your vehi-
cle’s instrument panel and responds
to signals from the vehicle’s On
Board Diagnostic (OBD -II) System.
The OBD-II System monitors the per-
formance of the vehicle’s Emission
Control System (ECS), which is
designed to reduce the amount of air
pollutants in engine exhaust to the
levels required by government regu-
lations.
When you first start the engine, the
check engine light will illuminate
briefly as a system check to confirm
that the OBD-II System is operating
properly. As the engine starts, this
light turns off. However, if at any time
the OBD-II system detects a faulty
signal or determines that the ECS is
not performing to specification, the
CHECK ENGINE light will illuminate
continuously or flash.Continuously ON :
If the CHECK ENGINE light comes
ON while driving and illuminates con-
tinuously, a potential problem has
been discovered in the ECS or one of
the exhaust system components.
Generally, the vehicle will continue to
be driveable but it should be checked
by an authorized Kia dealer as soon
as possible. This condition is unlikely
to lead to engine damage unless a
decrease in vehicle power or poor
running conditions is immediately
apparent.
Note that the CHECK ENGINE light
will illuminate for a problem like a
loose or missing gas cap, but will not
illuminate as a result of low engine oil
or coolant, low automatic transaxle
fluid or engine overheating. The driv-
er will be alerted to these conditions
by other indicators on the instrument
panel
DRIVING YOUR VEHICLE
4-49
CHECK
IMMO
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 49

Air Bag Warning
This warning light will blink for
approximately 6 seconds each time
you turn the ignition switch to the ON
position.
If this indicator does not do this or if it
illuminates while the vehicle is being
driven, see an Authorized Kia Dealer
for immediate service.
Auto Cruise Indicator
The indicator light illuminates when
the cruise control system is activated.
Front fog light indicator
(if equipped)
This light comes on when the front
fog lights are ON.4WD Indicator Light
(If equipped)
(Part Time 4WD Only)
When the key is turned to the “ON”
position, the 4WD indicator light will
come on and then go off in a few sec-
onds.
The 4WD indicator light will illuminate
when the transfer shift knob is set to
4HI position (Part time 4WD only).
4WD LOW Indicator Light
(If equipped)
When the key is turned to the “ON”
position, the 4WD Low indicator will
come on and then go off in a few sec-
onds. The 4WD Low indicator light
comes on when the transfer shift
knob is set to 4WD low position.
Part-time 4WD : 4LO position
Full-time 4WD : Low position
DRIVING YOUR VEHICLE4-50
CRUISE
4WD
LOW
CAUTION
 Prolonged driving with the On
Board Diagnostic System
Malfunction Indicator Light
( ) illuminated may cause
damage to the emission con-
trol systems which could
effect driveability and/or fuel
economy.
 If the On Board Diagnostic
System Malfunction Indicator
Light ( ) illuninates, poten-
tial catalytic converter dam-
age is possible which could
result in loss of engine power.
Have the On Board Diagnostic
System inspected as soon as
possible by an authorized Kia
dealer.
CHECK
CHECK
✽ ✽
NOTICEA loose fuel filler cap may cause the
On Board Diagnostic System
Malfunction Indicator Light ( )
in the instrument panel to illumi-
nate unnecessarily. Always make
sure that the fuel filler cap is tight.
CHECK
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 50

Low Washer Fluid Level
Warning Indicator
This warning light indicates the wash-
er fluid reservoir is near empty. Refill
the washer fluid as soon as possible.
Parking Start Warning Chime
(If equipped)
If you drive over 10 km/h with the
parking brake applied, the parking
start warning chime will sound.
Door Ajar Warning Chime
If a door is opened while driving the
vehicle more than 5 km/h, the warn-
ing chime will sound.Safety Belt Warning Chime
Type A
If the driver's safety belt is not fas-
tened when the ignition key is turned
ON, the safety belt warning chime will
sound for approximately 6 seconds.
At this time, if the safety belt is fas-
tened, the chime will stop at once.
Type B
If the driver's safety belt is not fas-
tened when the ignition key is turned
ON or if it is unfastened after the key
is ON, the safety belt warning chime
will sound for approximately 6 sec-
onds. At this time, if the safety belt is
fastened, the chime will stop at once.
Key Reminder Warning Chime
If the front door is opened and the
ignition key is left with the ignition
switch in “LOCK”or “ACC”position,
the key reminder warning chime will
sound. This is to prevent you from
locking your keys in the vehicle.
DRIVING YOUR VEHICLE
4-51
CAUTION
If the 4WD indicator light ()
blinks (full-time 4WD) or 4WD
indicator light () and 4WD
LOW indicator light ()illumi-
nate at the same time (part time
4WD), this indicates that there
is a malfunction in the 4WD sys-
tem. If this occurs, have your
vehicle checked by an
Authorized Kia Dealer as soon
as possible.
4WD
LOW
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 51

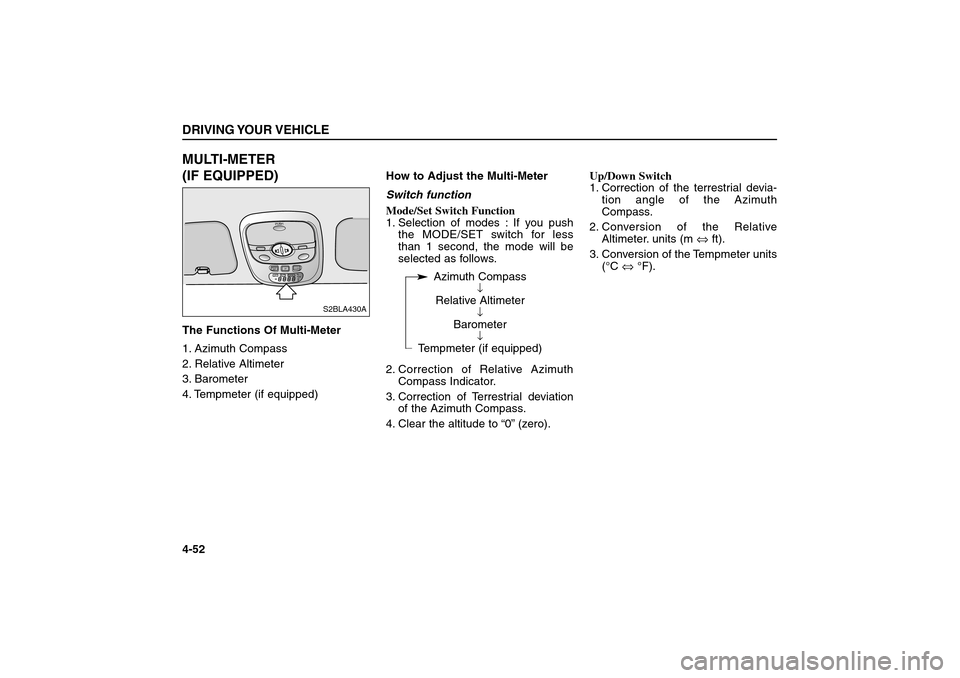

MULTI-METER
(IF EQUIPPED)The Functions Of Multi-Meter
1. Azimuth Compass
2. Relative Altimeter
3. Barometer
4. Tempmeter (if equipped)How to Adjust the Multi-Meter
Switch function
Mode/Set Switch Function
1. Selection of modes : If you push
the MODE/SET switch for less
than 1 second, the mode will be
selected as follows.
2. Correction of Relative Azimuth
Compass Indicator.
3. Correction of Terrestrial deviation
of the Azimuth Compass.
4. Clear the altitude to “0”(zero).Up/Down Switch
1. Correction of the terrestrial devia-
tion angle of the Azimuth
Compass.
2. Conversion of the Relative
Altimeter. units (m ⇔ft).
3. Conversion of the Tempmeter units
(°C ⇔°F).DRIVING YOUR VEHICLE4-52
DRT ALTI BARO
E
hpa
m
ft
P
U
S
HMODE
/SETUPDOWN
S2BLA430A
Azimuth Compass
↓
Relative Altimeter
↓
Barometer
↓
Tempmeter (if equipped)
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 52

Electric Azimuth Compass
It displays azimuth according to the
vehicle’s driving direction.
The indication is displayed only when
the vehicle is in motion.Correcting Azimuth Indicator
Position correction should be per-
formed if the displayed direction of
the vehicle differs from the actual
direction of the vehicle, or if the bat-
tery has been disconnected.1. Start the vehicle and access the
compass function indicated by
DRT on the display. Press the
MODE/SET button until the DRT
display begins to blink on and off.
2. Slowly (about 3 mph) and carefully
drive the vehicle in a complete 360
degree circle, within 128 seconds
(about two minutes).
3. After completing the circle drive,
the DRT display will stop blinking
and the error correction will be
complete.
DRIVING YOUR VEHICLE
4-53
DRT ALTI BARO
E
hpa
m
ft
PUSHMODE
/SETUPDOWN
DRT
S2BLA431
✽ ✽
NOTICEIf new vehicle is first driven or if the
battery has been disconnected, cor-
rect the azimuth indicator before
driving.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 53
