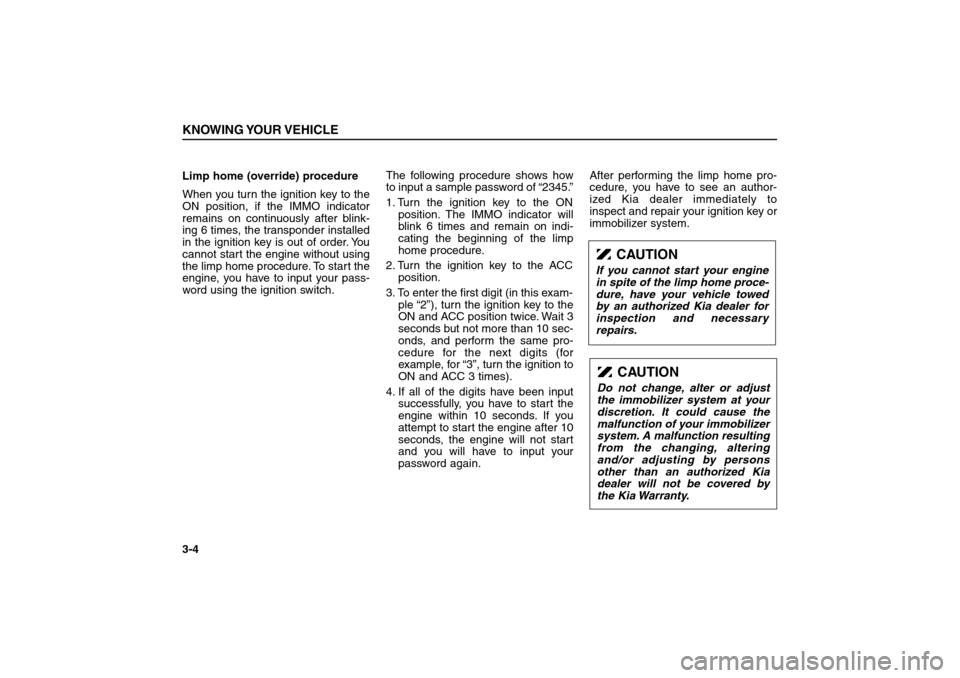

Limp home (override) procedure
When you turn the ignition key to the
ON position, if the IMMO indicator
remains on continuously after blink-
ing 6 times, the transponder installed
in the ignition key is out of order. You
cannot start the engine without using
the limp home procedure. To start the
engine, you have to input your pass-
word using the ignition switch.The following procedure shows how
to input a sample password of “2345.”
1. Turn the ignition key to the ON
position. The IMMO indicator will
blink 6 times and remain on indi-
cating the beginning of the limp
home procedure.
2. Turn the ignition key to the ACC
position.
3. To enter the first digit (in this exam-
ple “2”), turn the ignition key to the
ON and ACC position twice. Wait 3
seconds but not more than 10 sec-
onds, and perform the same pro-
cedure for the next digits (for
example, for “3”, turn the ignition to
ON and ACC 3 times).
4. If all of the digits have been input
successfully, you have to start the
engine within 10 seconds. If you
attempt to start the engine after 10
seconds, the engine will not start
and you will have to input your
password again.After performing the limp home pro-
cedure, you have to see an author-
ized Kia dealer immediately to
inspect and repair your ignition key or
immobilizer system.KNOWING YOUR VEHICLE3-4
CAUTION
If you cannot start your engine
in spite of the limp home proce-
dure, have your vehicle towed
by an authorized Kia dealer for
inspection and necessary
repairs.
CAUTION
Do not change, alter or adjust
the immobilizer system at your
discretion. It could cause the
malfunction of your immobilizer
system. A malfunction resulting
from the changing, altering
and/or adjusting by persons
other than an authorized Kia
dealer will not be covered by
the Kia Warranty.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 4

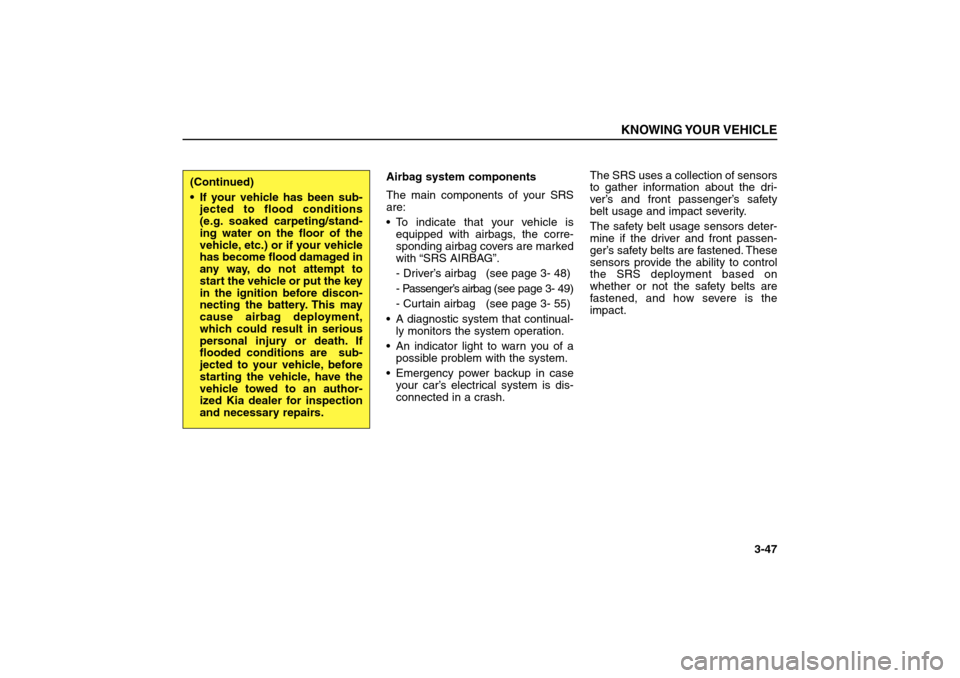

Airbag system components
The main components of your SRS
are:
To indicate that your vehicle is
equipped with airbags, the corre-
sponding airbag covers are marked
with “SRS AIRBAG”.
- Driver’s airbag (see page 3- 48)
- Passenger’s airbag(see page 3- 49)
- Curtain airbag (see page 3- 55)
A diagnostic system that continual-
ly monitors the system operation.
An indicator light to warn you of a
possible problem with the system.
Emergency power backup in case
your car’s electrical system is dis-
connected in a crash.The SRS uses a collection of sensors
to gather information about the dri-
ver’s and front passenger’s safety
belt usage and impact severity.
The safety belt usage sensors deter-
mine if the driver and front passen-
ger’s safety belts are fastened. These
sensors provide the ability to control
the SRS deployment based on
whether or not the safety belts are
fastened, and how severe is the
impact.
KNOWING YOUR VEHICLE
3-47
(Continued)
 If your vehicle has been sub-
jected to flood conditions
(e.g. soaked carpeting/stand-
ing water on the floor of the
vehicle, etc.) or if your vehicle
has become flood damaged in
any way, do not attempt to
start the vehicle or put the key
in the ignition before discon-
necting the battery. This may
cause airbag deployment,
which could result in serious
personal injury or death. If
flooded conditions are sub-
jected to your vehicle, before
starting the vehicle, have the
vehicle towed to an author-
ized Kia dealer for inspection
and necessary repairs.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 47

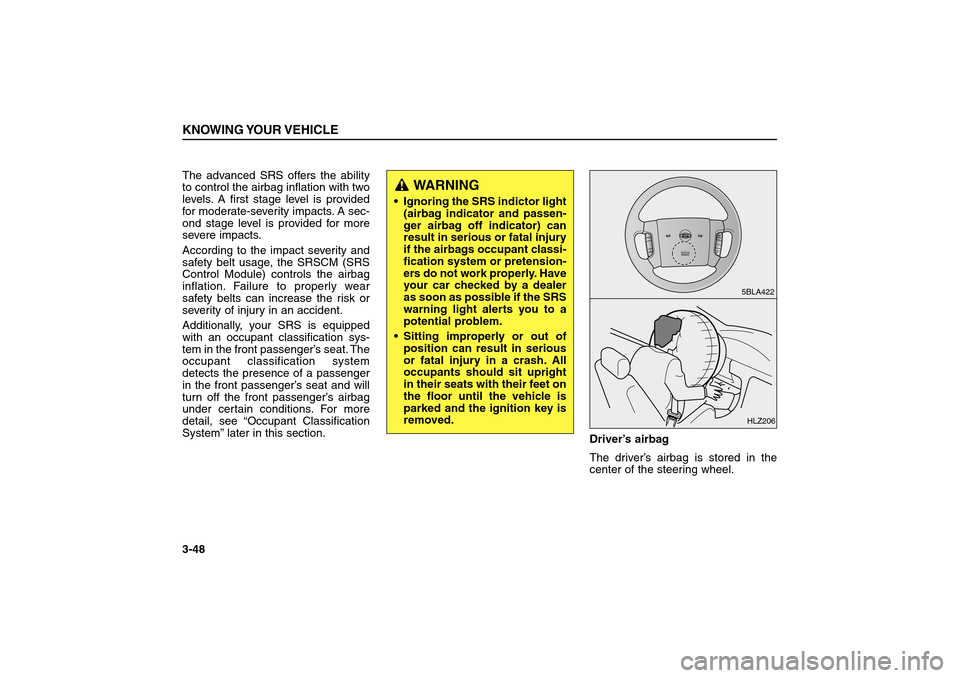

The advanced SRS offers the ability
to control the airbag inflation with two
levels. A first stage level is provided
for moderate-severity impacts. A sec-
ond stage level is provided for more
severe impacts.
According to the impact severity and
safety belt usage, the SRSCM (SRS
Control Module) controls the airbag
inflation. Failure to properly wear
safety belts can increase the risk or
severity of injury in an accident.
Additionally, your SRS is equipped
with an occupant classification sys-
tem in the front passenger’s seat. The
occupant classification system
detects the presence of a passenger
in the front passenger’s seat and will
turn off the front passenger’s airbag
under certain conditions. For more
detail, see “Occupant Classification
System”later in this section.
Driver’s airbag
The driver’s airbag is stored in the
center of the steering wheel.KNOWING YOUR VEHICLE3-48
WARNING
 Ignoring the SRS indictor light
(airbag indicator and passen-
ger airbag off indicator) can
result in serious or fatal injury
if the airbags occupant classi-
fication system or pretension-
ers do not work properly. Have
your car checked by a dealer
as soon as possible if the SRS
warning light alerts you to a
potential problem.
 Sitting improperly or out of
position can result in serious
or fatal injury in a crash. All
occupants should sit upright
in their seats with their feet on
the floor until the vehicle is
parked and the ignition key is
removed.
SRSAIRBAG
R
E
S
A
C
C
E
LCOAST
SET
P
W
RSEEK
C
A
N
C
E
L
5BLA422HLZ206
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 48

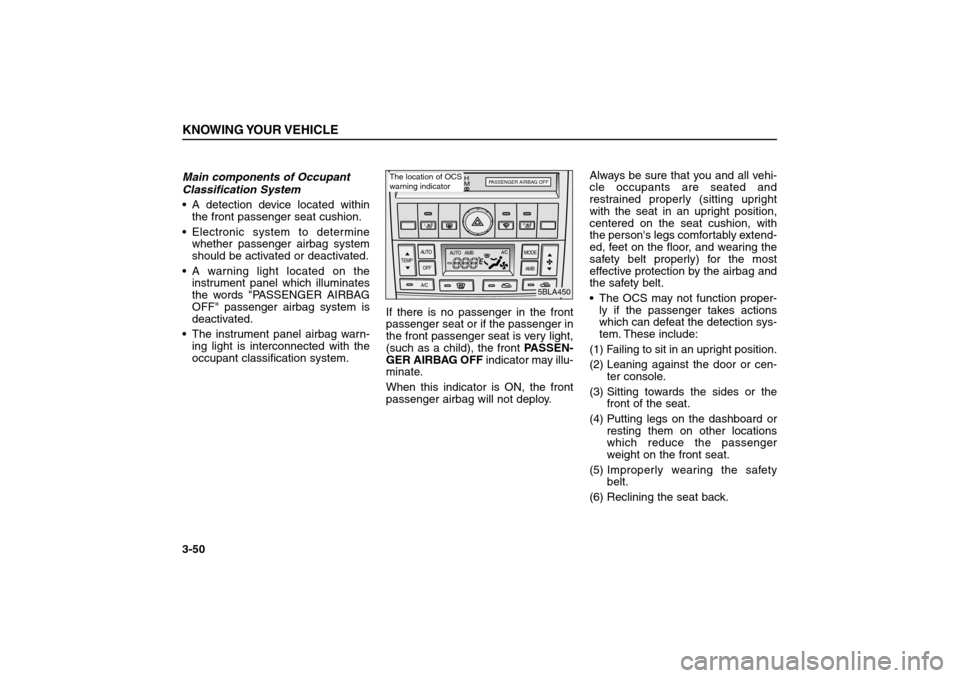

Main components of Occupant
Classification System
A detection device located within
the front passenger seat cushion.
Electronic system to determine
whether passenger airbag system
should be activated or deactivated.
A warning light located on the
instrument panel which illuminates
the words "PASSENGER AIRBAG
OFF" passenger airbag system is
deactivated.
The instrument panel airbag warn-
ing light is interconnected with the
occupant classification system.If there is no passenger in the front
passenger seat or if the passenger in
the front passenger seat is very light,
(such as a child), the front PASSEN-
GER AIRBAG OFFindicator may illu-
minate.
When this indicator is ON, the front
passenger airbag will not deploy.Always be sure that you and all vehi-
cle occupants are seated and
restrained properly (sitting upright
with the seat in an upright position,
centered on the seat cushion, with
the person's legs comfortably extend-
ed, feet on the floor, and wearing the
safety belt properly) for the most
effective protection by the airbag and
the safety belt.
The OCS may not function proper-
ly if the passenger takes actions
which can defeat the detection sys-
tem. These include:
(1) Failing to sit in an upright position.
(2) Leaning against the door or cen-
ter console.
(3) Sitting towards the sides or the
front of the seat.
(4) Putting legs on the dashboard or
resting them on other locations
which reduce the passenger
weight on the front seat.
(5) Improperly wearing the safety
belt.
(6) Reclining the seat back.KNOWING YOUR VEHICLE3-50
AUTO
AUTO AMB
OFF TEMPMODE
AMB
A/C
A/C
H
M
L
R
PASSENGER AIRBAG OFF
5BLA450
The location of OCS
warning indicator
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 50

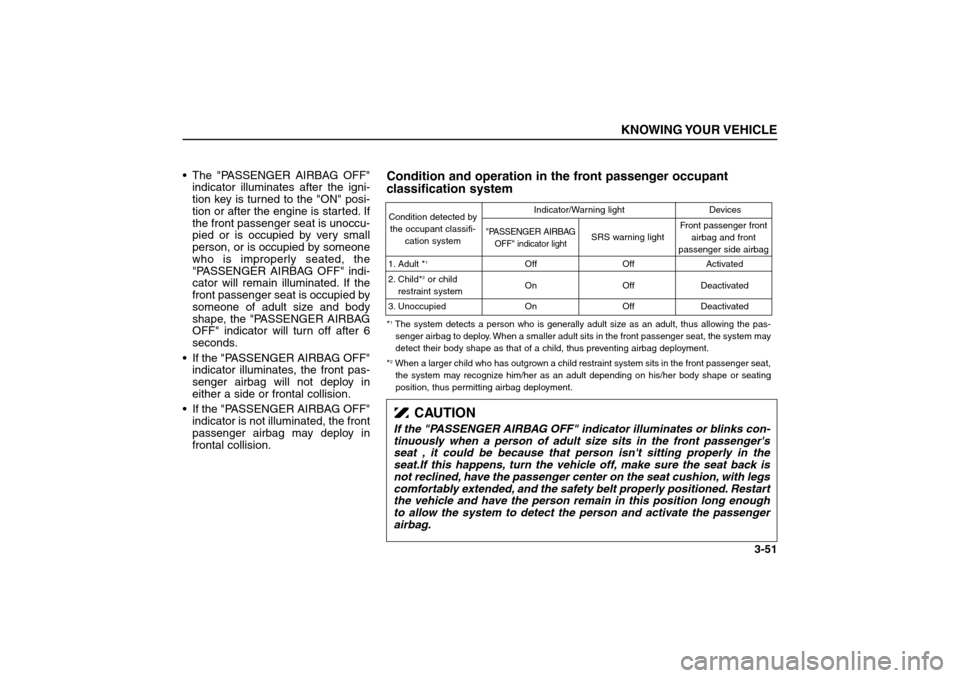

The "PASSENGER AIRBAG OFF"
indicator illuminates after the igni-
tion key is turned to the "ON" posi-
tion or after the engine is started. If
the front passenger seat is unoccu-
pied or is occupied by very small
person, or is occupied by someone
who is improperly seated, the
"PASSENGER AIRBAG OFF" indi-
cator will remain illuminated. If the
front passenger seat is occupied by
someone of adult size and body
shape, the "PASSENGER AIRBAG
OFF" indicator will turn off after 6
seconds.
If the "PASSENGER AIRBAG OFF"
indicator illuminates, the front pas-
senger airbag will not deploy in
either a side or frontal collision.
If the "PASSENGER AIRBAG OFF"
indicator is not illuminated, the front
passenger airbag may deploy in
frontal collision.
KNOWING YOUR VEHICLE
3-51
CAUTION
If the "PASSENGER AIRBAG OFF" indicator illuminates or blinks con-
tinuously when a person of adult size sits in the front passenger's
seat , it could be because that person isn't sitting properly in the
seat.If this happens, turn the vehicle off, make sure the seat back is
not reclined, have the passenger center on the seat cushion, with legs
comfortably extended, and the safety belt properly positioned. Restart
the vehicle and have the person remain in this position long enough
to allow the system to detect the person and activate the passenger
airbag.Condition and operation in the front passenger occupant
classification systemCondition detected by
the occupant classifi-
cation system
1. Adult *
1
2. Child*
2or child
restraint system
3. Unoccupied Off
On
OnOff
Off
OffActivated
Deactivated
Deactivated
"PASSENGER AIRBAG
OFF" indicator light
SRS warning lightFront passenger front
airbag and front
passenger side airbag Indicator/Warning light Devices
*1The system detects a person who is generally adult size as an adult, thus allowing the pas-
senger airbag to deploy. When a smaller adult sits in the front passenger seat, the system may
detect their body shape as that of a child, thus preventing airbag deployment.
*2When a larger child who has outgrown a child restraint system sits in the front passenger seat,
the system may recognize him/her as an adult depending on his/her body shape or seating
position, thus permitting airbag deployment.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 51

KNOWING YOUR VEHICLE3-52

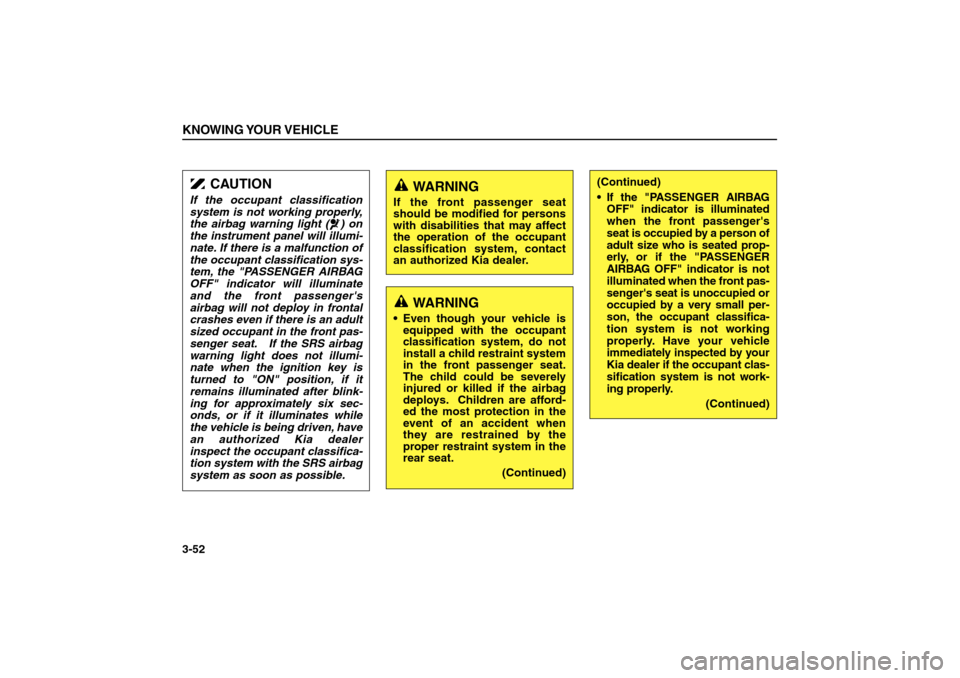

WARNING
If the front passenger seat
should be modified for persons
with disabilities that may affect
the operation of the occupant
classification system, contact
an authorized Kia dealer.
WARNING
 Even though your vehicle is
equipped with the occupant
classification system, do not
install a child restraint system
in the front passenger seat.
The child could be severely
injured or killed if the airbag
deploys. Children are afford-
ed the most protection in the
event of an accident when
they are restrained by the
proper restraint system in the
rear seat.
(Continued)
(Continued)
 If the "PASSENGER AIRBAG
OFF" indicator is illuminated
when the front passenger's
seat is occupied by a person of
adult size who is seated prop-
erly, or if the "PASSENGER
AIRBAG OFF" indicator is not
illuminated when the front pas-
senger's seat is unoccupied or
occupied by a very small per-
son, the occupant classifica-
tion system is not working
properly. Have your vehicle
immediately inspected by your
Kia dealer if the occupant clas-
sification system is not work-
ing properly.
(Continued)
CAUTION
If the occupant classification
system is not working properly,
the airbag warning light ( ) on
the instrument panel will illumi-
nate. If there is a malfunction of
the occupant classification sys-
tem, the "PASSENGER AIRBAG
OFF" indicator will illuminate
and the front passenger's
airbag will not deploy in frontal
crashes even if there is an adult
sized occupant in the front pas-
senger seat. If the SRS airbag
warning light does not illumi-
nate when the ignition key is
turned to "ON" position, if it
remains illuminated after blink-
ing for approximately six sec-
onds, or if it illuminates while
the vehicle is being driven, have
an authorized Kia dealer
inspect the occupant classifica-
tion system with the SRS airbag
system as soon as possible.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 52

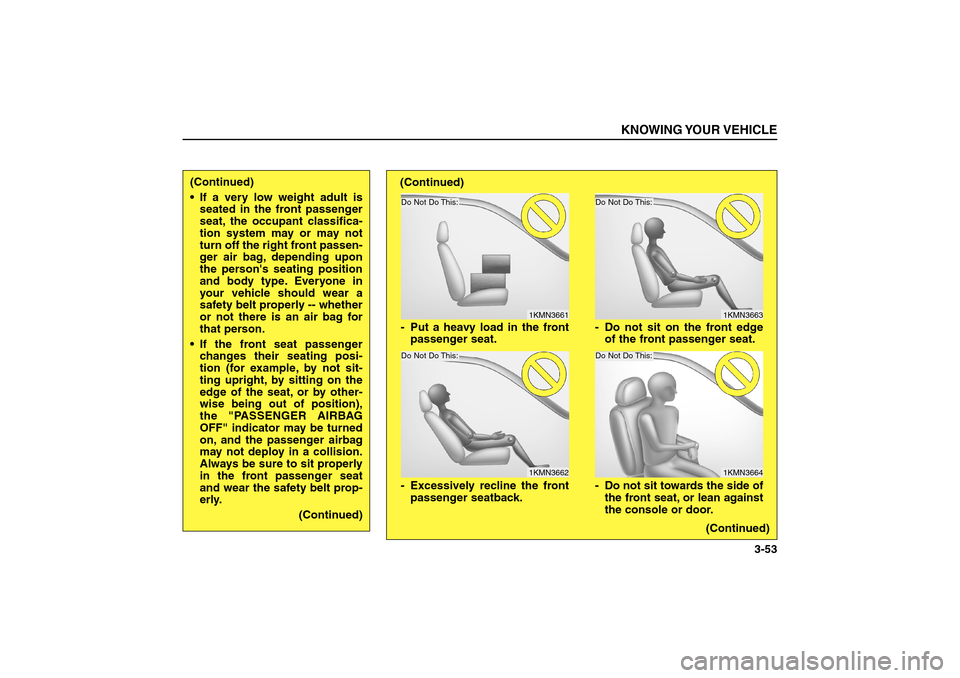

KNOWING YOUR VEHICLE
3-53
(Continued)
 If a very low weight adult is
seated in the front passenger
seat, the occupant classifica-
tion system may or may not
turn off the right front passen-
ger air bag, depending upon
the person's seating position
and body type. Everyone in
your vehicle should wear a
safety belt properly -- whether
or not there is an air bag for
that person.
 If the front seat passenger
changes their seating posi-
tion (for example, by not sit-
ting upright, by sitting on the
edge of the seat, or by other-
wise being out of position),
the "PASSENGER AIRBAG
OFF" indicator may be turned
on, and the passenger airbag
may not deploy in a collision.
Always be sure to sit properly
in the front passenger seat
and wear the safety belt prop-
erly.
(Continued)
1KMN3661
Do Not Do This:Do Not Do This:
1KMN3662
1KMN36631KMN3664
- Put a heavy load in the front
passenger seat.
- Excessively recline the front
passenger seatback.- Do not sit on the front edge
of the front passenger seat.
- Do not sit towards the side of
the front seat, or lean against
the console or door.
Do Not Do This:Do Not Do This:
(Continued)
(Continued)
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 53

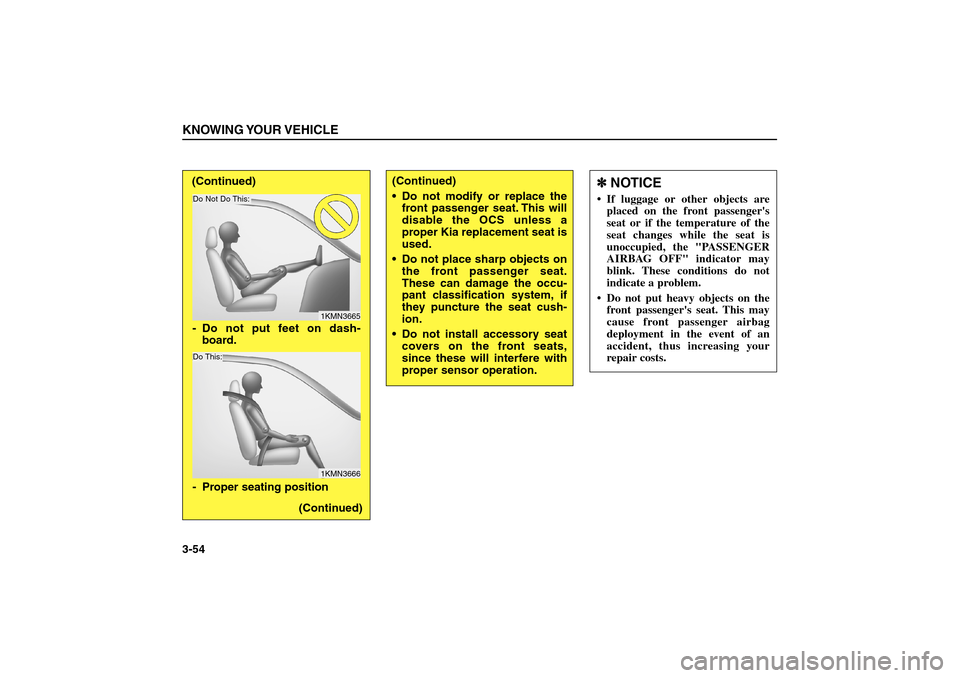

KNOWING YOUR VEHICLE3-54
(Continued)
 Do not modify or replace the
front passenger seat. This will
disable the OCS unless a
proper Kia replacement seat is
used.
 Do not place sharp objects on
the front passenger seat.
These can damage the occu-
pant classification system, if
they puncture the seat cush-
ion.
 Do not install accessory seat
covers on the front seats,
since these will interfere with
proper sensor operation.
✽ ✽
NOTICE If luggage or other objects are
placed on the front passenger's
seat or if the temperature of the
seat changes while the seat is
unoccupied, the "PASSENGER
AIRBAG OFF" indicator may
blink. These conditions do not
indicate a problem.
 Do not put heavy objects on the
front passenger's seat. This may
cause front passenger airbag
deployment in the event of an
accident, thus increasing your
repair costs.
1KMN36651KMN3666
- Proper seating position - Do not put feet on dash-
board.
(Continued) (Continued)Do Not Do This:Do This:
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 54

Airbag warning light
The purpose of airbag warning light
in your instrument panel is to alert
you of a potential problem with your
airbag - Supplemental Restraint
System (SRS).
When the ignition switch is turned
ON, the indicator light should blink or
illuminate for approximately 6 sec-
onds, then go off.
Have the system checked if:
The light does not turn on briefly
when you turn the ignition ON.
The light stays on after the engine
starts.
The light comes on while the vehi-
cle is in motion.Airbag (Supplemental Restraint
System) service
Your Supplemental Restraint System
is virtually maintenance-free. There
are no parts which you can service.
You must have the system serviced
under the following circumstances:
If an airbag ever inflates, the airbag
must be replaced. Do not try to
remove or discard the airbag by
yourself. This must be done by an
authorized Kia dealer.
If the airbag warning indicator light
alerts you to a problem, have the
airbag system checked as soon as
possible. Otherwise, your airbag
system may be ineffective.
KNOWING YOUR VEHICLE3-64
A-BAG-W
WARNING
 Never put child restraint in the
front passenger seat. If the
front passenger airbag
inflates, it would cause seri-
ous or fatal injuries.
 When children are seated in
the rear outboard seats in
which curtain airbags are
equipped, be sure to put the
child restraint system as far
away from the door side as
possible, and secure the child
restraint system to be locked
in position.
Inflation of curtain airbag
could cause serious injury or
death due to the expansion
impact.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 64

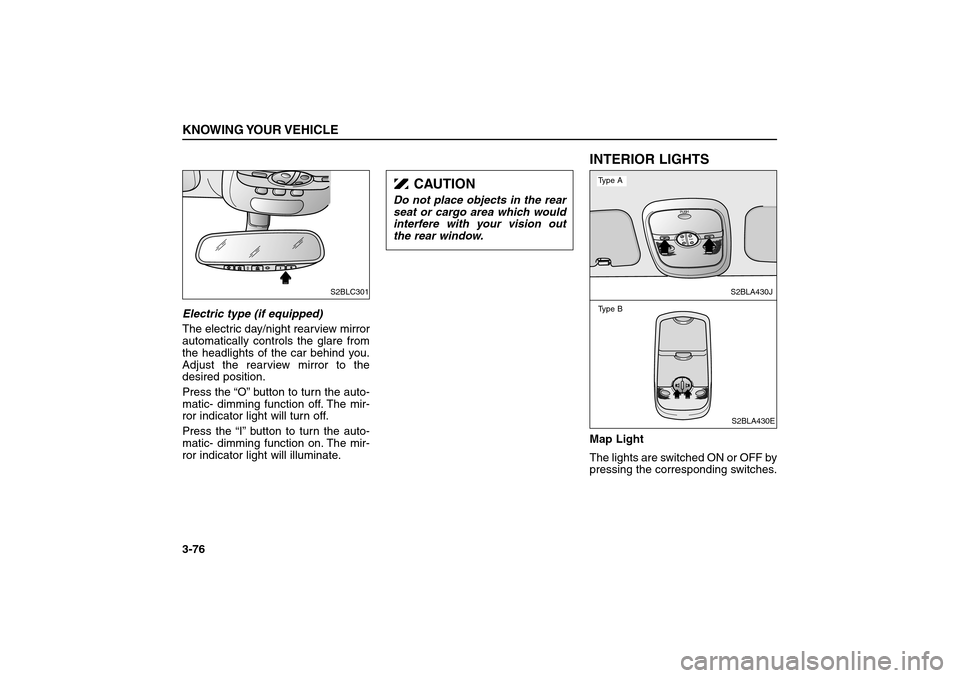

Electric type (if equipped)
The electric day/night rearview mirror
automatically controls the glare from
the headlights of the car behind you.
Adjust the rearview mirror to the
desired position.
Press the “O”button to turn the auto-
matic- dimming function off. The mir-
ror indicator light will turn off.
Press the “I”button to turn the auto-
matic- dimming function on. The mir-
ror indicator light will illuminate.
INTERIOR LIGHTSMap Light
The lights are switched ON or OFF by
pressing the corresponding switches.
KNOWING YOUR VEHICLE3-76
P
U
S
HTILTSLIDE
S2BLA430JS2BLA430E
Type AType B
S2BLC301
CAUTION
Do not place objects in the rear
seat or cargo area which would
interfere with your vision out
the rear window.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 76
