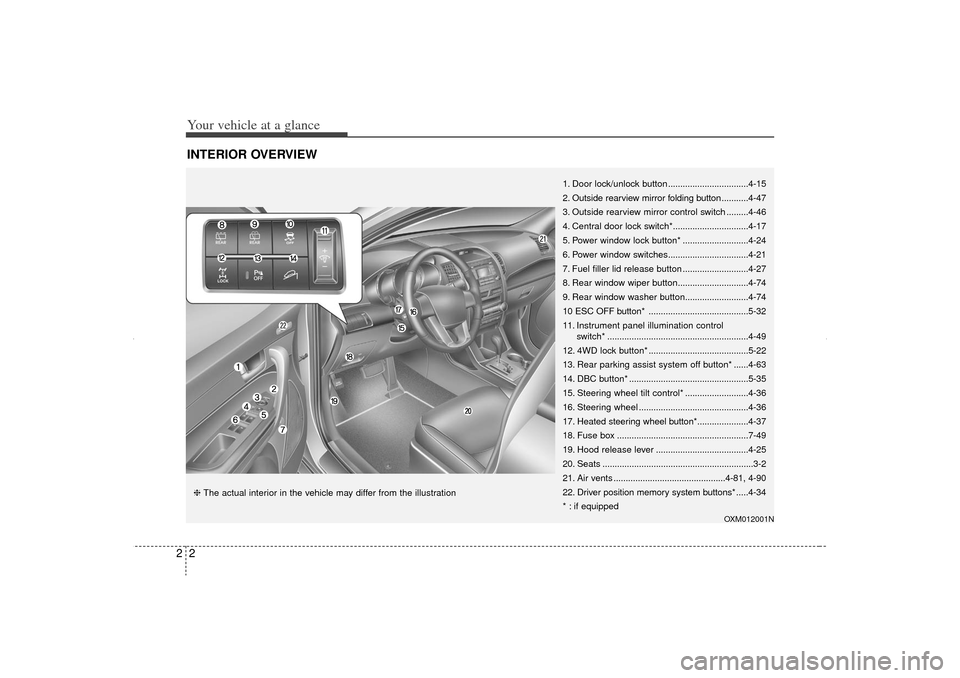

Your vehicle at a glance22INTERIOR OVERVIEW
OXM012001N
1. Door lock/unlock button.................................4-15
2. Outside rearview mirror folding button ...........4-47
3. Outside rearview mirror control switch .........4-46
4. Central door lock switch* ...............................4-17
5. Power window lock button* ...........................4-24
6. Power window switches .................................4-21
7. Fuel filler lid release button ...........................4-27
8. Rear window wiper button .............................4-74
9. Rear window washer button ..........................4-74
10 ESC OFF button* .........................................5-32
11. Instrument panel illumination control switch* ..........................................................4-49
12. 4WD lock button* .........................................5-22
13. Rear parking assist system off button* ......4-63
14. DBC button* .................................................5-35
15. Steering wheel tilt control* ..........................4-36
16. Steering wheel .............................................4-36
17. Heated steering wheel button*.....................4-37
18. Fuse box ......................................................7-49
19. Hood release lever ......................................4-25
20. Seats ..............................................................3-2
21. Air vents ..............................................4-81, 4-90
22. Driver position memory system buttons* .....4-34
* : if equipped
❈ The actual interior in the vehicle may differ from the illustration
XM CAN (ENG) 2.QXP 4/19/2011 10:24 AM Page 2
Page 22 of 388
23
Your vehicle at a glance

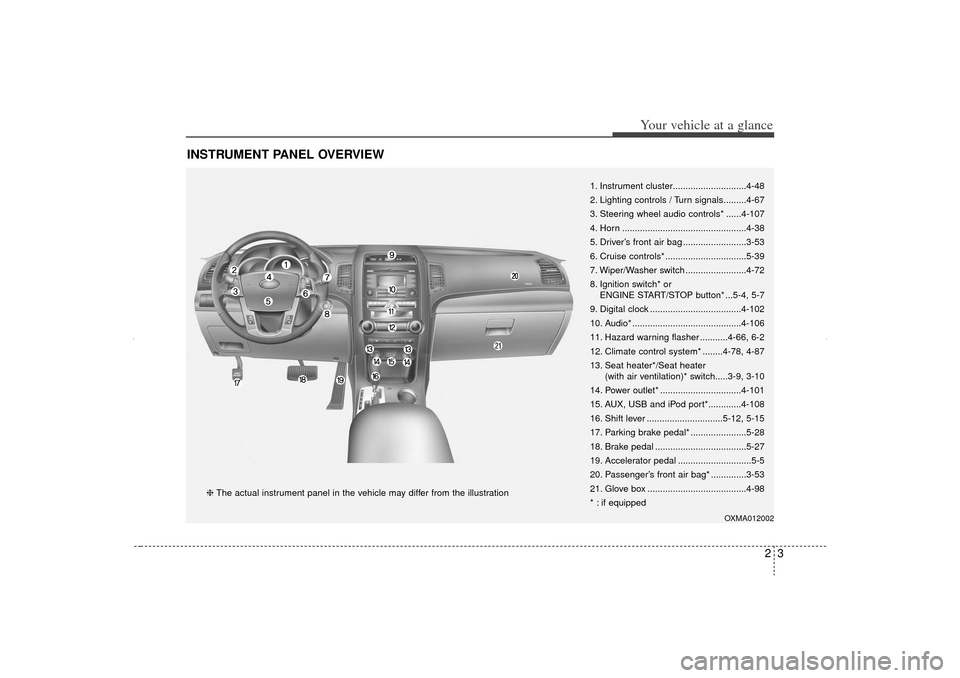

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster.............................4-48
2. Lighting controls / Turn signals.........4-67
3. Steering wheel audio controls* ......4-107
4. Horn .................................................4-38
5. Driver’s front air bag .........................3-53
6. Cruise controls* ................................5-39
7. Wiper/Washer switch ........................4-72
8. Ignition switch* orENGINE START/STOP button* ...5-4, 5-7
9. Digital clock ....................................4-102
10. Audio* ...........................................4-106
11. Hazard warning flasher ...........4-66, 6-2
12. Climate control system* ........4-78, 4-87
13. Seat heater*/Seat heater (with air ventilation)* switch.....3-9, 3-10
14. Power outlet* ................................4-101
15. AUX, USB and iPod port*.............4-108
16. Shift lever ..............................5-12, 5-15
17. Parking brake pedal* ......................5-28
18. Brake pedal ....................................5-27
19. Accelerator pedal .............................5-5
20. Passenger’s front air bag* ..............3-53
21. Glove box .......................................4-98
* : if equipped
OXMA012002
❈ The actual instrument panel in the vehicle may differ from the illustration
XM CAN (ENG) 2.QXP 4/19/2011 10:24 AM Page 3
Page 23 of 388

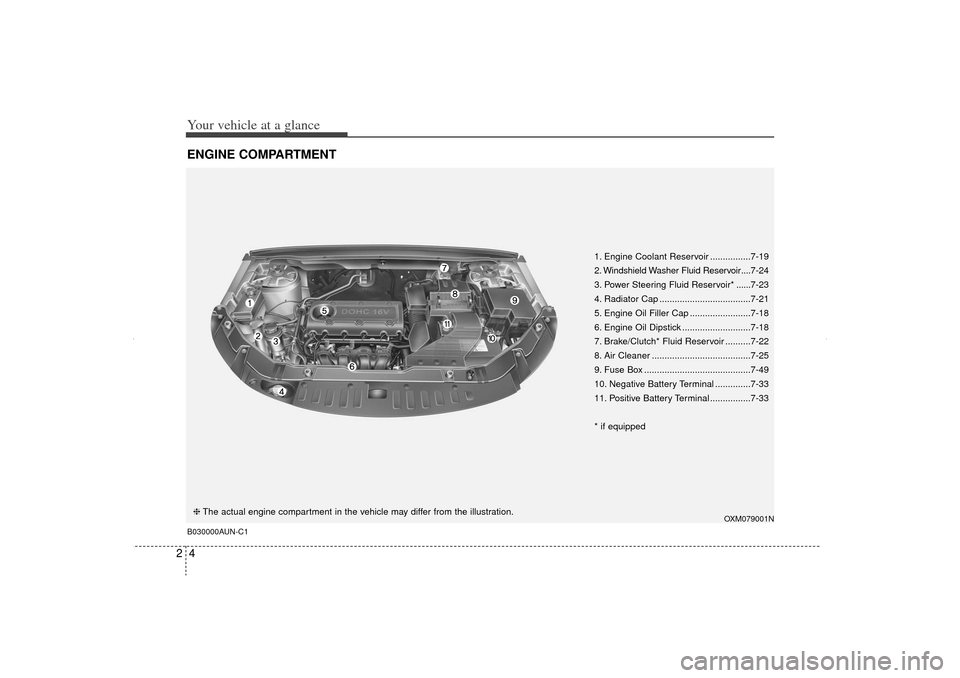

Your vehicle at a glance42ENGINE COMPARTMENTB030000AUN-C1
OXM079001N
❈The actual engine compartment in the vehicle may differ from the illustration. 1. Engine Coolant Reservoir ................7-19
2. Windshield Washer Fluid Reservoir....7-24
3. Power Steering Fluid Reservoir*
......7-23
4. Radiator Cap ....................................7-21
5. Engine Oil Filler Cap ........................7-18
6. Engine Oil Dipstick ...........................7-18
7. Brake/Clutch* Fluid Reservoir ..........7-22
8. Air Cleaner .......................................7-25
9. Fuse Box ..........................................7-49
10. Negative Battery Terminal ..............7-33
11. Positive Battery Terminal ................7-33
* if equipped
XM CAN (ENG) 2.QXP 4/19/2011 10:25 AM Page 4
Page 24 of 388

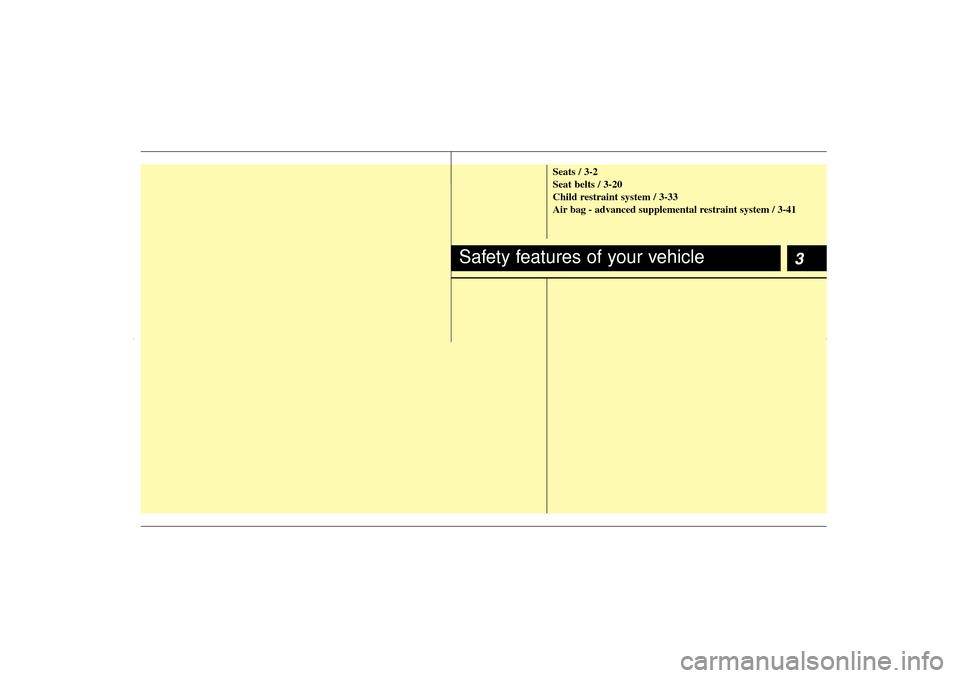

3
Seats / 3-2
Seat belts / 3-20
Child restraint system / 3-33
Air bag - advanced supplemental restraint system / 3-41
Safety features of your vehicle
XM CAN (ENG) 3.QXP 4/19/2011 10:25 AM Page 1
Page 25 of 388

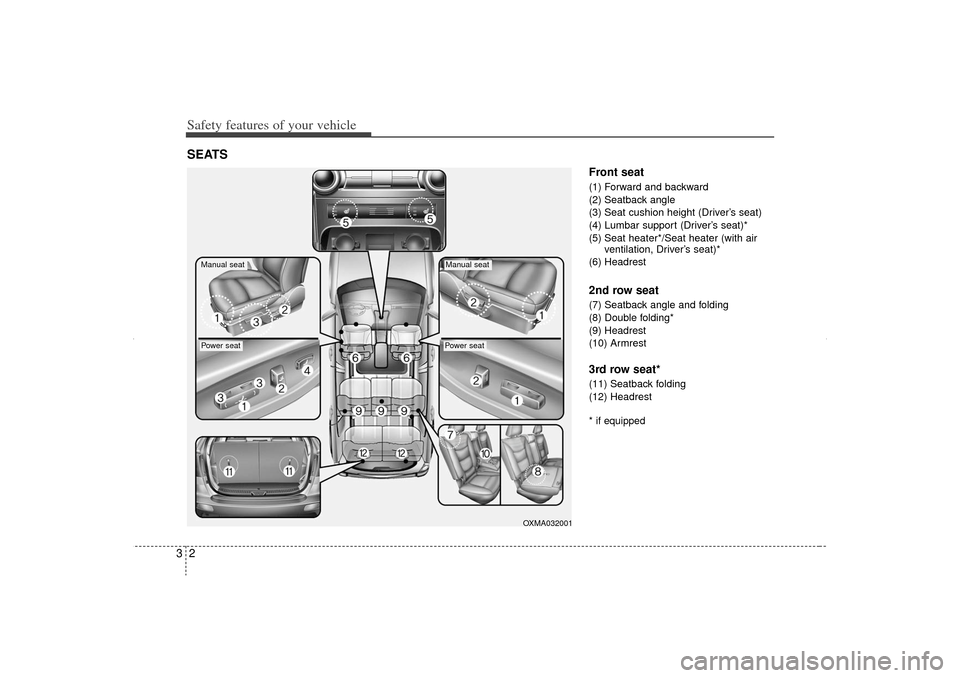

Safety features of your vehicle23
Front seat(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)*
(5) Seat heater*/Seat heater (with airventilation, Driver’s seat)*
(6) Headrest2nd row seat(7) Seatback angle and folding
(8) Double folding*
(9) Headrest
(10) Armrest3rd row seat*(11) Seatback folding
(12) Headrest* if equipped
SEATS
OXMA032001
Manual seat
Manual seat
Power seat
Power seat
XM CAN (ENG) 3.QXP 4/19/2011 10:25 AM Page 2
Page 26 of 388
33

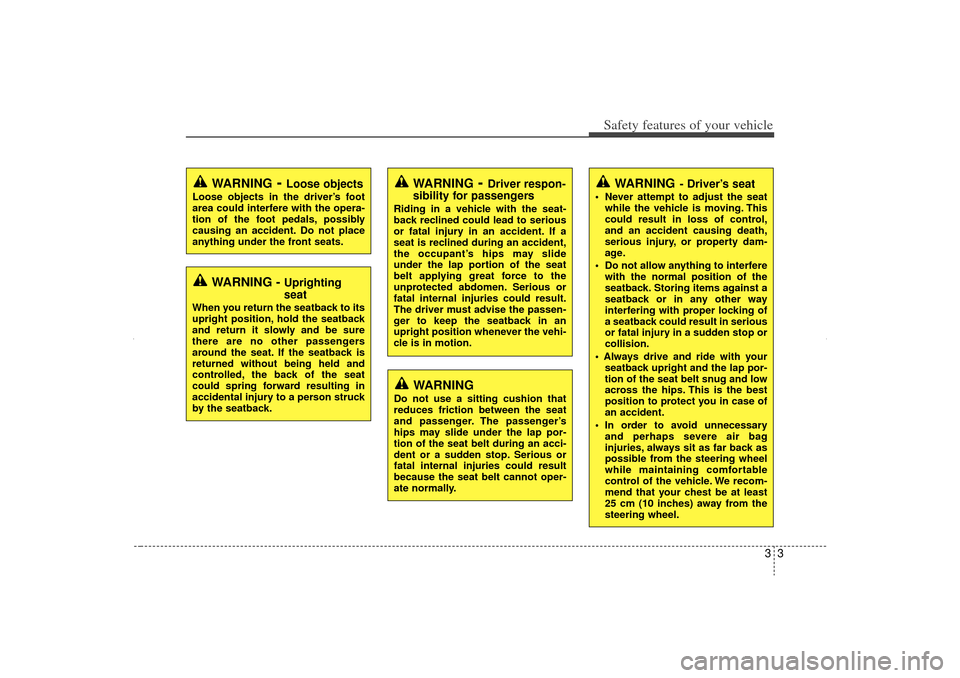

Safety features of your vehicleWARNING
- Driver’s seat
Never attempt to adjust the seatwhile the vehicle is moving. This
could result in loss of control,
and an accident causing death,
serious injury, or property dam-
age.
Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop or
collision.
Always drive and ride with your seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case of
an accident.
In order to avoid unnecessary and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. We recom-
mend that your chest be at least
25 cm (10 inches) away from the
steering wheel.
WARNING -
Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be sure
there are no other passengers
around the seat. If the seatback is
returned without being held and
controlled, the back of the seat
could spring forward resulting in
accidental injury to a person struck
by the seatback.
WARNING
- Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
WARNING
- Driver respon-
sibility for passengers
Riding in a vehicle with the seat-
back reclined could lead to serious
or fatal injury in an accident. If a
seat is reclined during an accident,
the occupant’s hips may slide
under the lap portion of the seat
belt applying great force to the
unprotected abdomen. Serious or
fatal internal injuries could result.
The driver must advise the passen-
ger to keep the seatback in an
upright position whenever the vehi-
cle is in motion.
WARNING
Do not use a sitting cushion that
reduces friction between the seat
and passenger. The passenger’s
hips may slide under the lap por-
tion of the seat belt during an acci-
dent or a sudden stop. Serious or
fatal internal injuries could result
because the seat belt cannot oper-
ate normally.
XM CAN (ENG) 3.QXP 4/19/2011 10:25 AM Page 3
Page 27 of 388

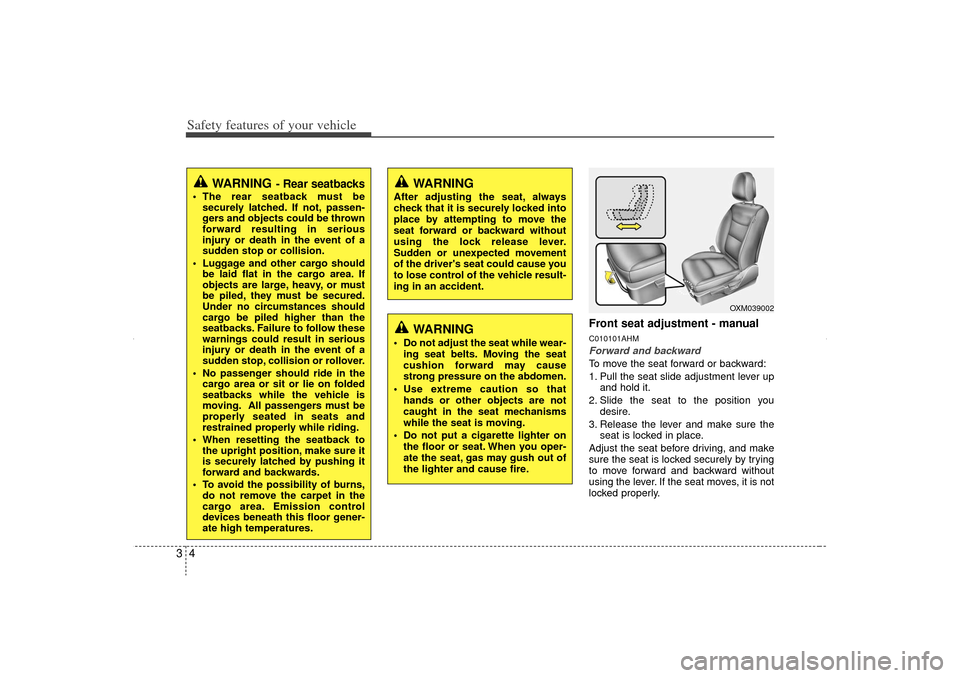

Safety features of your vehicle43
Front seat adjustment - manualC010101AHMForward and backwardTo move the seat forward or backward:
1. Pull the seat slide adjustment lever upand hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
WARNING
After adjusting the seat, always
check that it is securely locked into
place by attempting to move the
seat forward or backward without
using the lock release lever.
Sudden or unexpected movement
of the driver's seat could cause you
to lose control of the vehicle result-
ing in an accident.
OXM039002
WARNING
- Rear seatbacks
The rear seatback must be securely latched. If not, passen-
gers and objects could be thrown
forward resulting in serious
injury or death in the event of a
sudden stop or collision.
Luggage and other cargo should be laid flat in the cargo area. If
objects are large, heavy, or must
be piled, they must be secured.
Under no circumstances should
cargo be piled higher than the
seatbacks. Failure to follow these
warnings could result in serious
injury or death in the event of a
sudden stop, collision or rollover.
No passenger should ride in the cargo area or sit or lie on folded
seatbacks while the vehicle is
moving. All passengers must be
properly seated in seats and
restrained properly while riding.
When resetting the seatback to the upright position, make sure it
is securely latched by pushing it
forward and backwards.
To avoid the possibility of burns, do not remove the carpet in the
cargo area. Emission control
devices beneath this floor gener-
ate high temperatures.
WARNING
Do not adjust the seat while wear-
ing seat belts. Moving the seat
cushion forward may cause
strong pressure on the abdomen.
Use extreme caution so that hands or other objects are not
caught in the seat mechanisms
while the seat is moving.
Do not put a cigarette lighter on the floor or seat. When you oper-
ate the seat, gas may gush out of
the lighter and cause fire.
XM CAN (ENG) 3.QXP 4/19/2011 10:25 AM Page 4
Page 28 of 388
35
Safety features of your vehicle

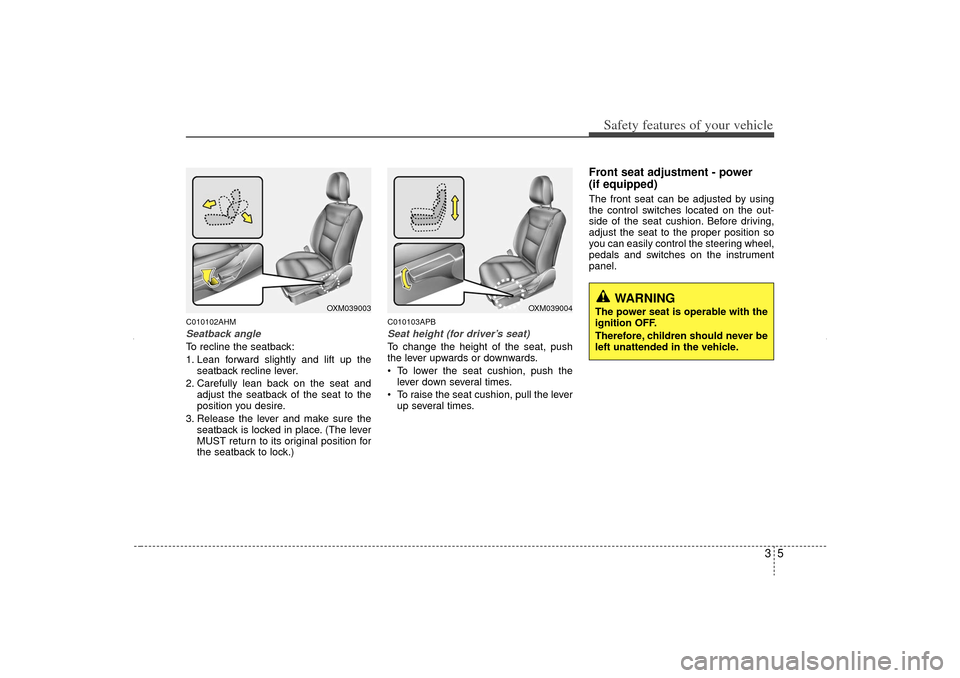

C010102AHMSeatback angleTo recline the seatback:
1. Lean forward slightly and lift up theseatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
C010103APBSeat height (for driver’s seat)To change the height of the seat, push
the lever upwards or downwards.
To lower the seat cushion, push thelever down several times.
To raise the seat cushion, pull the lever up several times.
Front seat adjustment - power
(if equipped)The front seat can be adjusted by using
the control switches located on the out-
side of the seat cushion. Before driving,
adjust the seat to the proper position so
you can easily control the steering wheel,
pedals and switches on the instrument
panel.
OXM039004
OXM039003
WARNING
The power seat is operable with the
ignition OFF.
Therefore, children should never be
left unattended in the vehicle.
XM CAN (ENG) 3.QXP 4/19/2011 10:26 AM Page 5
Page 29 of 388

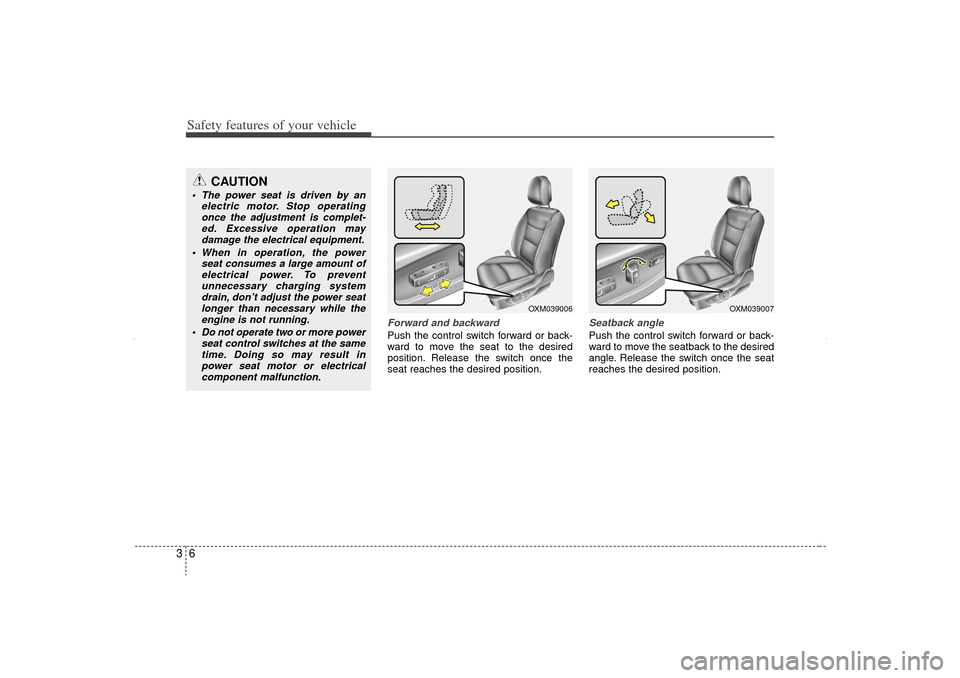

Safety features of your vehicle63
Forward and backwardPush the control switch forward or back-
ward to move the seat to the desired
position. Release the switch once the
seat reaches the desired position.
Seatback anglePush the control switch forward or back-
ward to move the seatback to the desired
angle. Release the switch once the seat
reaches the desired position.
CAUTION
The power seat is driven by anelectric motor. Stop operatingonce the adjustment is complet-ed. Excessive operation maydamage the electrical equipment.
When in operation, the power seat consumes a large amount ofelectrical power. To preventunnecessary charging systemdrain, don’t adjust the power seat longer than necessary while theengine is not running.
Do not operate two or more power seat control switches at the sametime. Doing so may result inpower seat motor or electrical component malfunction.
OXM039006
OXM039007
XM CAN (ENG) 3.QXP 4/19/2011 10:26 AM Page 6
Page 30 of 388
37
Safety features of your vehicle

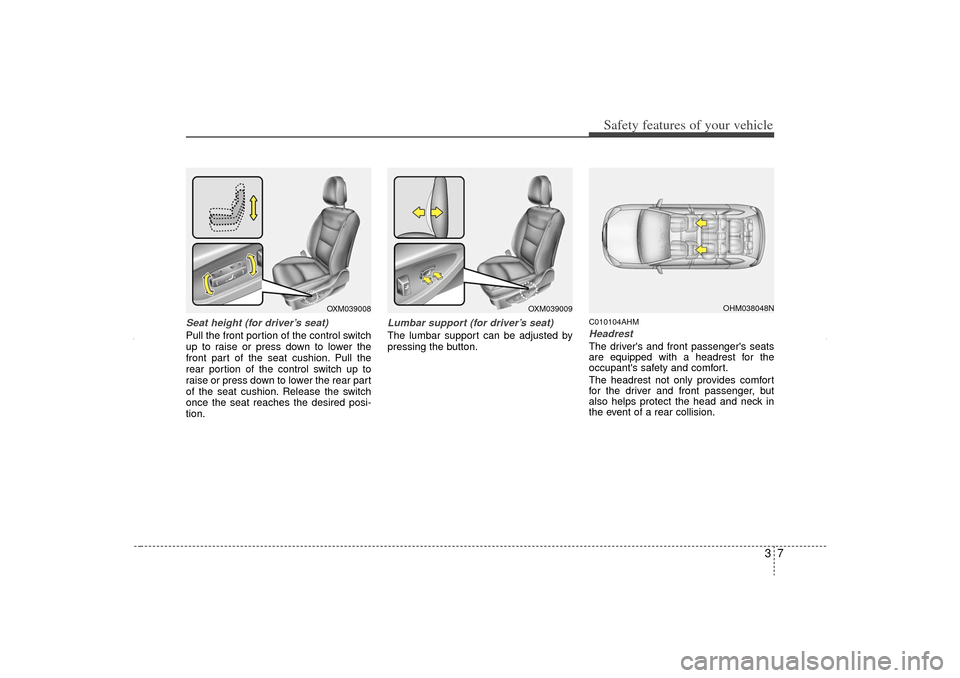

Seat height (for driver’s seat)Pull the front portion of the control switch
up to raise or press down to lower the
front part of the seat cushion. Pull the
rear portion of the control switch up to
raise or press down to lower the rear part
of the seat cushion. Release the switch
once the seat reaches the desired posi-
tion.
Lumbar support (for driver’s seat)The lumbar support can be adjusted by
pressing the button.
C010104AHMHeadrestThe driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps protect the head and neck in
the event of a rear collision.
OHM038048N
OXM039008
OXM039009
XM CAN (ENG) 3.QXP 4/19/2011 10:26 AM Page 7
