KIA Sorento 2012 2.G Owner's Guide

Safety features of your vehicle83

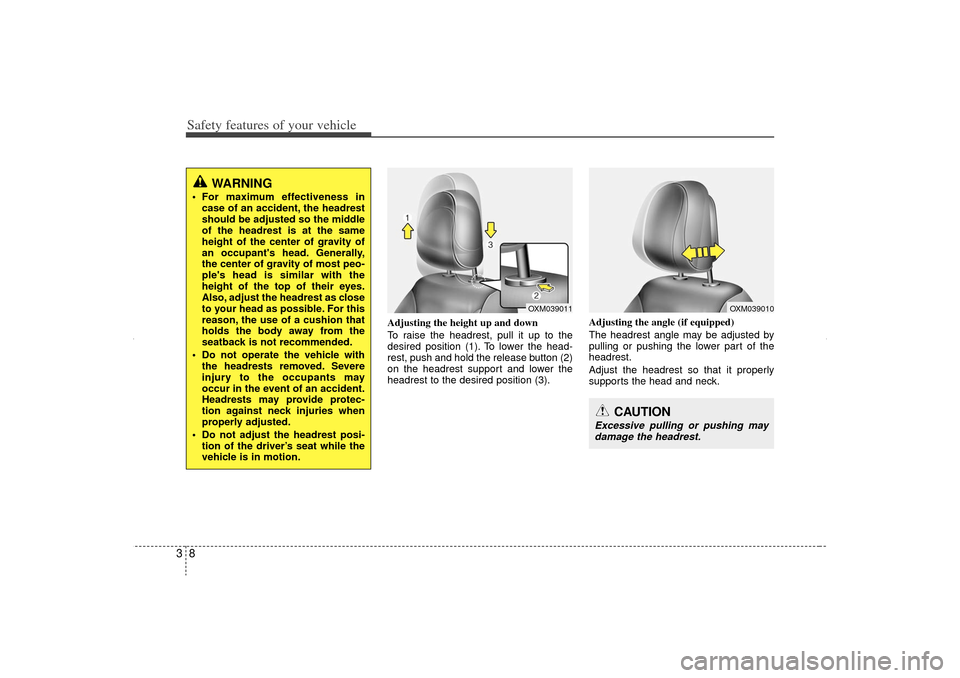

Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).Adjusting the angle (if equipped)
The headrest angle may be adjusted by
pulling or pushing the lower part of the
headrest.
Adjust the headrest so that it properly
supports the head and neck.
WARNING
 For maximum effectiveness in
case of an accident, the headrest
should be adjusted so the middle
of the headrest is at the same
height of the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-
ple's head is similar with the
height of the top of their eyes.
Also, adjust the headrest as close
to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
 Do not operate the vehicle with the headrests removed. Severe
injury to the occupants may
occur in the event of an accident.
Headrests may provide protec-
tion against neck injuries when
properly adjusted.
 Do not adjust the headrest posi- tion of the driver’s seat while the
vehicle is in motion.
OXM039011
OXM039010
CAUTION
Excessive pulling or pushing maydamage the headrest.
XM CAN (ENG) 3.QXP 4/19/2011 10:26 AM Page 8

39
Safety features of your vehicle

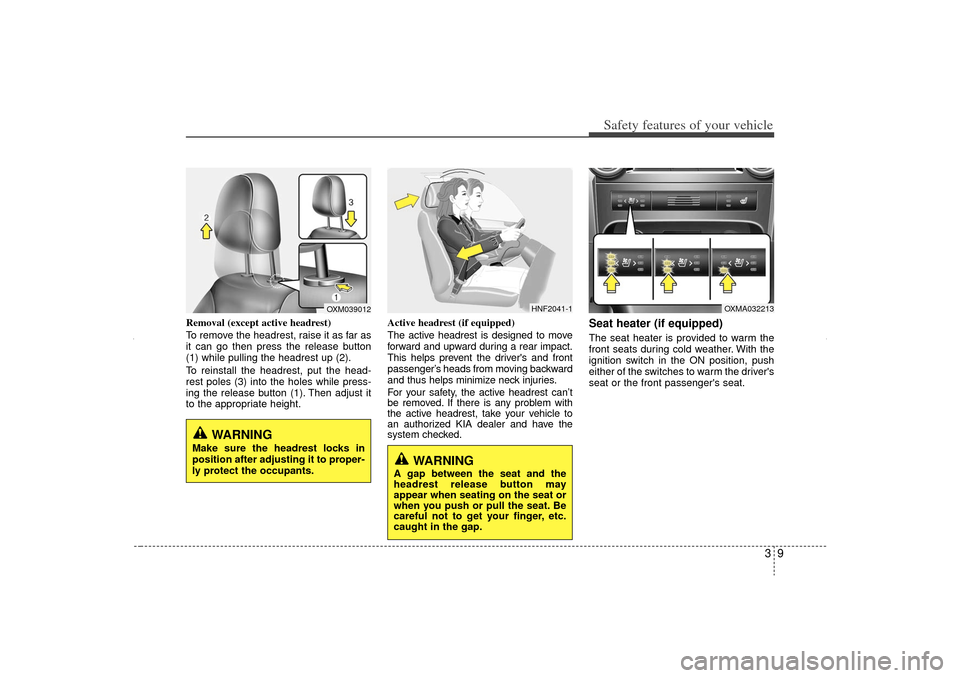

Removal (except active headrest)
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling the headrest up (2).
To reinstall the headrest, put the head-
rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.Active headrest (if equipped)
The active headrest is designed to move
forward and upward during a rear impact.
This helps prevent the driver's and front
passenger’s heads from moving backward
and thus helps minimize neck injuries.
For your safety, the active headrest can’t
be removed. If there is any problem with
the active headrest, take your vehicle to
an authorized KIA dealer and have the
system checked.
Seat heater (if equipped)The seat heater is provided to warm the
front seats during cold weather. With the
ignition switch in the ON position, push
either of the switches to warm the driver's
seat or the front passenger's seat.
OXM039012
WARNING
Make sure the headrest locks in
position after adjusting it to proper-
ly protect the occupants.
HNF2041-1
WARNING
A gap between the seat and the
headrest release button may
appear when seating on the seat or
when you push or pull the seat. Be
careful not to get your finger, etc.
caught in the gap.
OXMA032213
XM CAN (ENG) 3.QXP 4/19/2011 10:26 AM Page 9

Safety features of your vehicle10

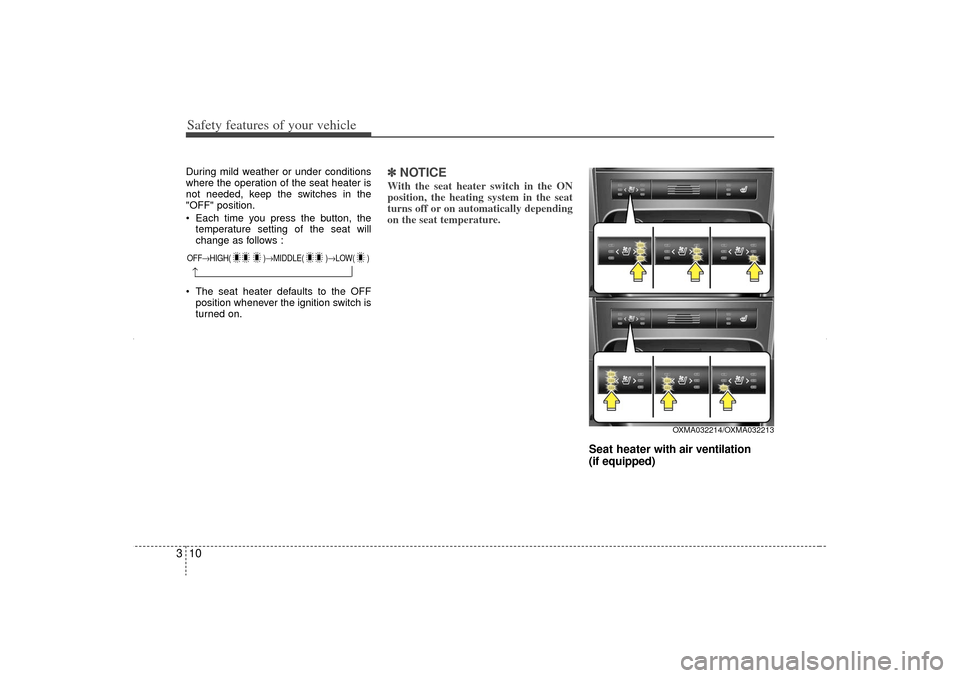

3During mild weather or under conditions
where the operation of the seat heater is
not needed, keep the switches in the
"OFF" position.
 Each time you press the button, the
temperature setting of the seat will
change as follows :
 The seat heater defaults to the OFF position whenever the ignition switch is
turned on.
✽ ✽ NOTICEWith the seat heater switch in the ON
position, the heating system in the seat
turns off or on automatically depending
on the seat temperature.
Seat heater w ith air ventilation
(if equipped)
OFF→ HIGH( )→ MIDDLE( )→LOW( )→
OXMA032214/OXMA032213
XM CAN (ENG) 3.QXP 4/19/2011 10:26 AM Page 10

311
Safety features of your vehicle

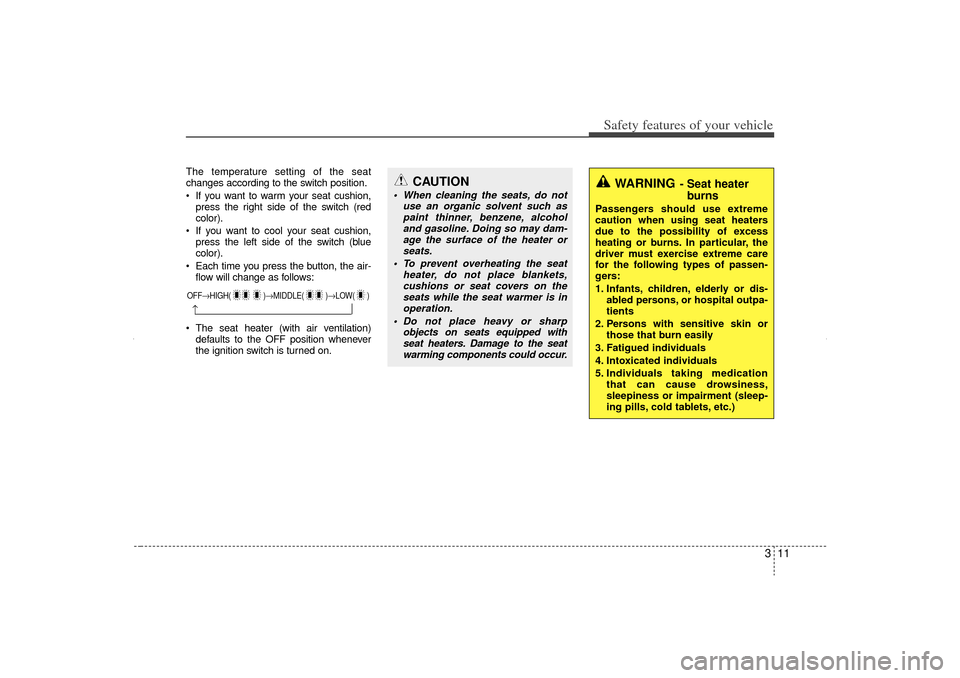

The temperature setting of the seat
changes according to the switch position.
 If you want to warm your seat cushion,press the right side of the switch (red
color).
 If you want to cool your seat cushion, press the left side of the switch (blue
color).
 Each time you press the button, the air- flow will change as follows:
 The seat heater (with air ventilation) defaults to the OFF position whenever
the ignition switch is turned on.OFF→ HIGH( )→ MIDDLE( )→LOW( )→
WARNING
- Seat heater
burns
Passengers should use extreme
caution when using seat heaters
due to the possibility of excess
heating or burns. In particular, the
driver must exercise extreme care
for the following types of passen-
gers:
1. Infants, children, elderly or dis-
abled persons, or hospital outpa-
tients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness,
sleepiness or impairment (sleep-
ing pills, cold tablets, etc.)
CAUTION
 When cleaning the seats, do not use an organic solvent such aspaint thinner, benzene, alcohol and gasoline. Doing so may dam-age the surface of the heater orseats.
 To prevent overheating the seat heater, do not place blankets,cushions or seat covers on the seats while the seat warmer is inoperation.
 Do not place heavy or sharp objects on seats equipped withseat heaters. Damage to the seat warming components could occur.
XM CAN (ENG) 3.QXP 4/19/2011 10:26 AM Page 11

Safety features of your vehicle12

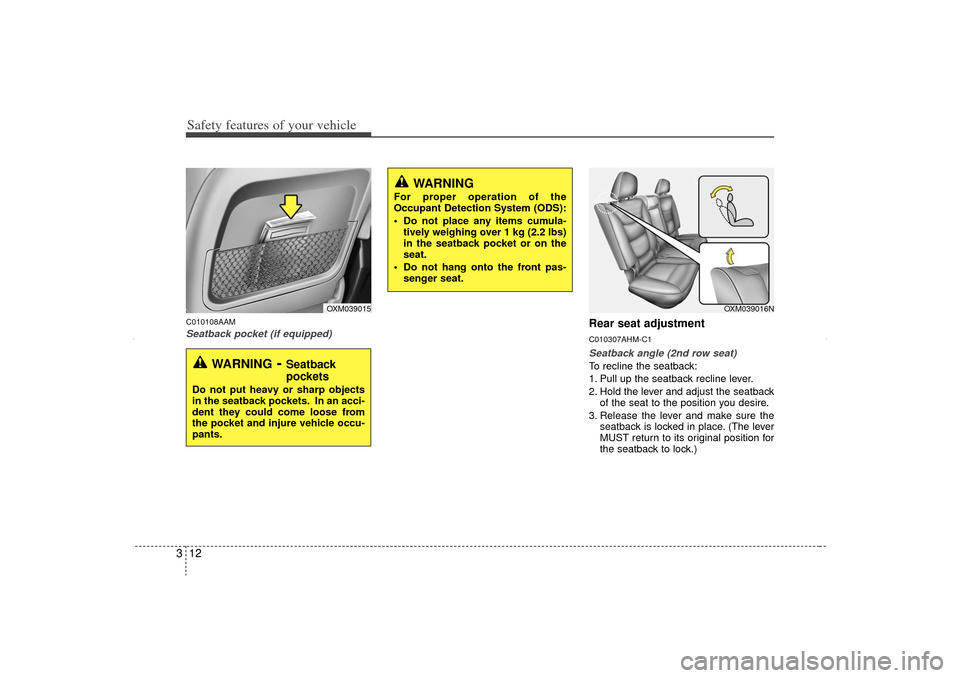

3C010108AAMSeatback pocket (if equipped)
Rear seat adjustmentC010307AHM-C1Seatback angle (2nd row seat)To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback
of the seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
OXM039015
OXM039016N
WARNING
For proper operation of the
Occupant Detection System (ODS):
 Do not place any items cumula-tively weighing over 1 kg (2.2 lbs)
in the seatback pocket or on the
seat.
 Do not hang onto the front pas- senger seat.
WARNING
- Seatback
pockets
Do not put heavy or sharp objects
in the seatback pockets. In an acci-
dent they could come loose from
the pocket and injure vehicle occu-
pants.
XM CAN (ENG) 3.QXP 4/19/2011 10:26 AM Page 12

313
Safety features of your vehicle

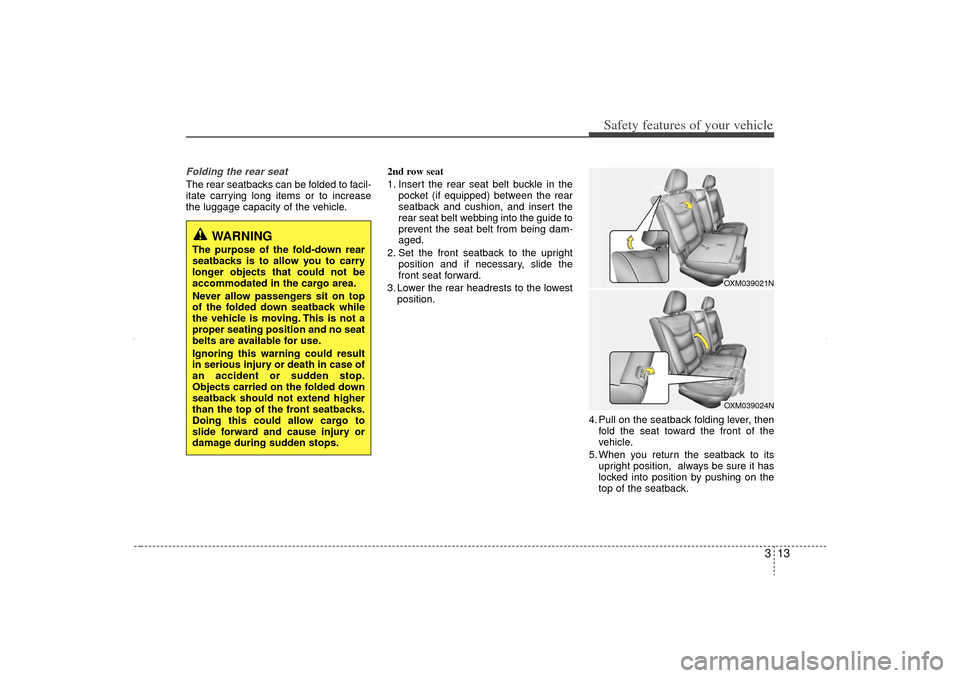

Folding the rear seatThe rear seatbacks can be folded to facil-
itate carrying long items or to increase
the luggage capacity of the vehicle.2nd row seat
1. Insert the rear seat belt buckle in the
pocket (if equipped) between the rear
seatback and cushion, and insert the
rear seat belt webbing into the guide to
prevent the seat belt from being dam-
aged.
2. Set the front seatback to the upright position and if necessary, slide the
front seat forward.
3. Lower the rear headrests to the lowest position.
4. Pull on the seatback folding lever, thenfold the seat toward the front of the
vehicle.
5. When you return the seatback to its upright position, always be sure it has
locked into position by pushing on the
top of the seatback.
WARNING
The purpose of the fold-down rear
seatbacks is to allow you to carry
longer objects that could not be
accommodated in the cargo area.
Never allow passengers sit on top
of the folded down seatback while
the vehicle is moving. This is not a
proper seating position and no seat
belts are available for use.
Ignoring this warning could result
in serious injury or death in case of
an accident or sudden stop.
Objects carried on the folded down
seatback should not extend higher
than the top of the front seatbacks.
Doing this could allow cargo to
slide forward and cause injury or
damage during sudden stops.
OXM039021NOXM039024N
XM CAN (ENG) 3.QXP 4/19/2011 10:27 AM Page 13

Safety features of your vehicle14

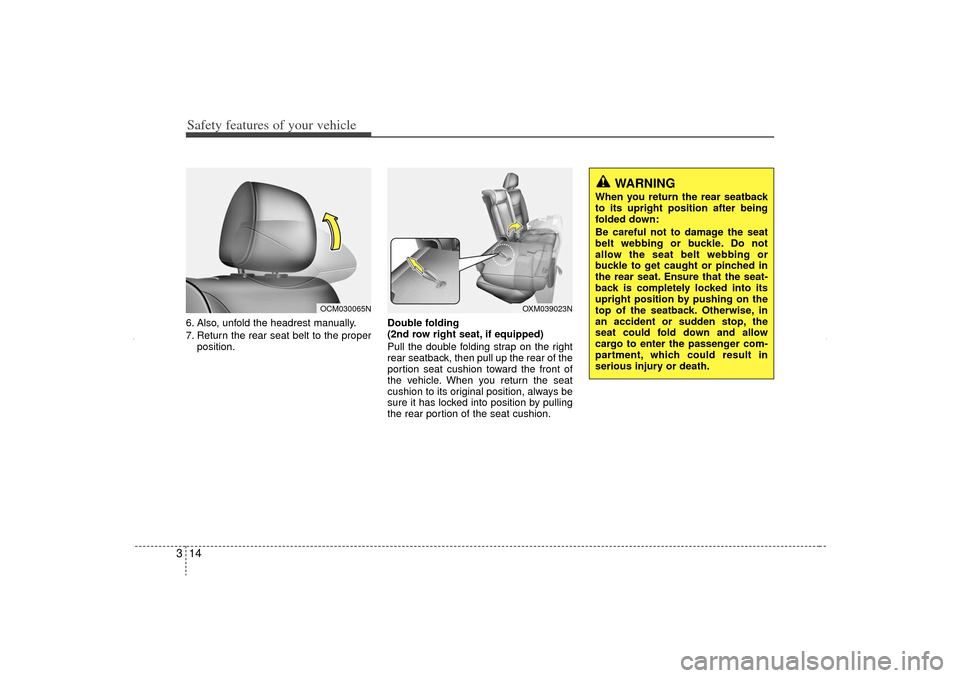

36. Also, unfold the headrest manually.
7. Return the rear seat belt to the proper
position. Double folding
(2nd row right seat, if equipped)
Pull the double folding strap on the right
rear seatback, then pull up the rear of the
portion seat cushion toward the front of
the vehicle. When you return the seat
cushion to its original position, always be
sure it has locked into position by pulling
the rear portion of the seat cushion.
WARNING
When you return the rear seatback
to its upright position after being
folded down:
Be careful not to damage the seat
belt webbing or buckle. Do not
allow the seat belt webbing or
buckle to get caught or pinched in
the rear seat. Ensure that the seat-
back is completely locked into its
upright position by pushing on the
top of the seatback. Otherwise, in
an accident or sudden stop, the
seat could fold down and allow
cargo to enter the passenger com-
partment, which could result in
serious injury or death.
OCM030065N
OXM039023N
XM CAN (ENG) 3.QXP 4/19/2011 10:27 AM Page 14

315
Safety features of your vehicle

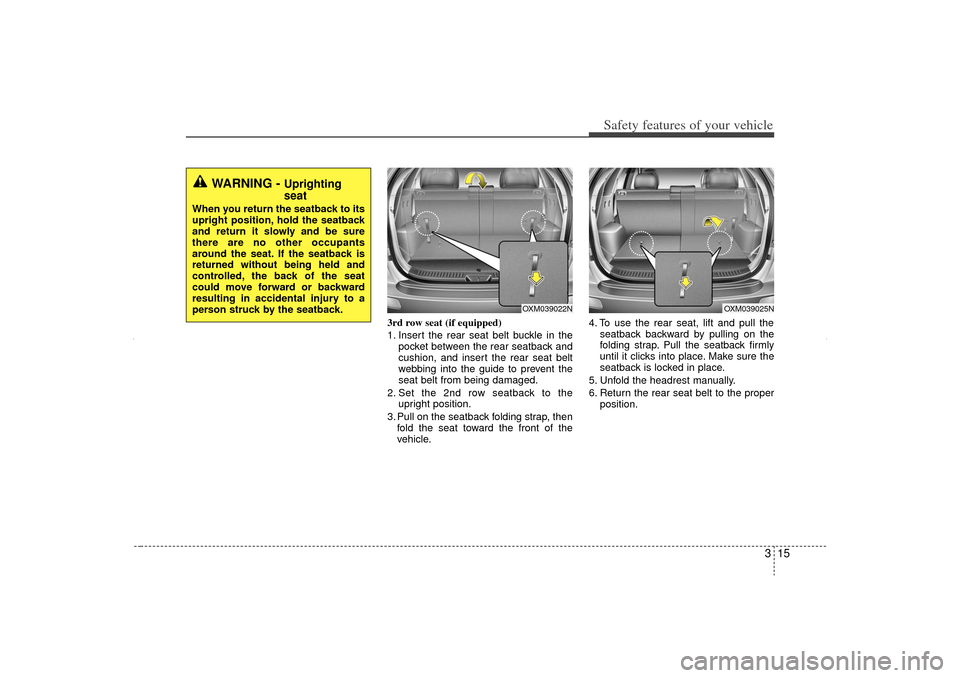

3rd row seat (if equipped)
1. Insert the rear seat belt buckle in thepocket between the rear seatback and
cushion, and insert the rear seat belt
webbing into the guide to prevent the
seat belt from being damaged.
2. Set the 2nd row seatback to the upright position.
3. Pull on the seatback folding strap, then fold the seat toward the front of the
vehicle. 4. To use the rear seat, lift and pull the
seatback backward by pulling on the
folding strap. Pull the seatback firmly
until it clicks into place. Make sure the
seatback is locked in place.
5. Unfold the headrest manually.
6. Return the rear seat belt to the proper position.
WARNING -
Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be sure
there are no other occupants
around the seat. If the seatback is
returned without being held and
controlled, the back of the seat
could move forward or backward
resulting in accidental injury to a
person struck by the seatback.
OXM039025N
OXM039022N
XM CAN (ENG) 3.QXP 4/19/2011 10:27 AM Page 15

Safety features of your vehicle16
3

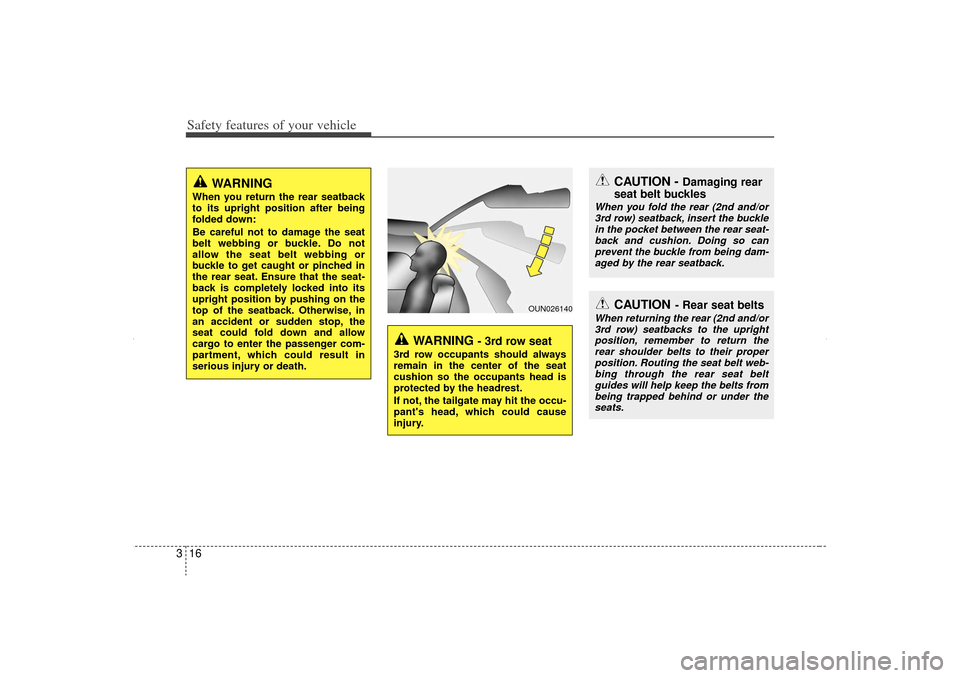

WARNING
When you return the rear seatback
to its upright position after being
folded down:
Be careful not to damage the seat
belt webbing or buckle. Do not
allow the seat belt webbing or
buckle to get caught or pinched in
the rear seat. Ensure that the seat-
back is completely locked into its
upright position by pushing on the
top of the seatback. Otherwise, in
an accident or sudden stop, the
seat could fold down and allow
cargo to enter the passenger com-
partment, which could result in
serious injury or death.
OUN026140
WARNING
- 3rd row seat
3rd row occupants should always
remain in the center of the seat
cushion so the occupants head is
protected by the headrest.
If not, the tailgate may hit the occu-
pant's head, which could cause
injury.
CAUTION
- Rear seat belts
When returning the rear (2nd and/or
3rd row) seatbacks to the uprightposition, remember to return therear shoulder belts to their proper position. Routing the seat belt web-bing through the rear seat belt guides will help keep the belts frombeing trapped behind or under the seats.
CAUTION -
Damaging rear
seat belt buckles
When you fold the rear (2nd and/or
3rd row) seatback, insert the bucklein the pocket between the rear seat- back and cushion. Doing so canprevent the buckle from being dam-aged by the rear seatback.
XM CAN (ENG) 3.QXP 4/19/2011 10:27 AM Page 16

317
Safety features of your vehicle

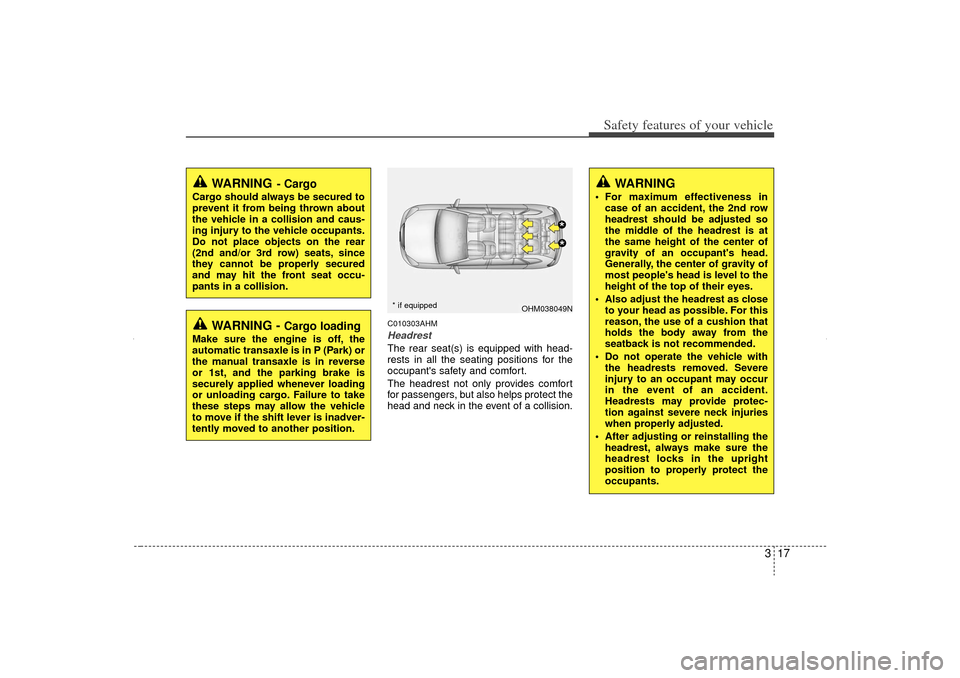

C010303AHMHeadrestThe rear seat(s) is equipped with head-
rests in all the seating positions for the
occupant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps protect the
head and neck in the event of a collision.
WARNING
- Cargo
Cargo should always be secured to
prevent it from being thrown about
the vehicle in a collision and caus-
ing injury to the vehicle occupants.
Do not place objects on the rear
(2nd and/or 3rd row) seats, since
they cannot be properly secured
and may hit the front seat occu-
pants in a collision.
WARNING -
Cargo loading
Make sure the engine is off, the
automatic transaxle is in P (Park) or
the manual transaxle is in reverse
or 1st, and the parking brake is
securely applied whenever loading
or unloading cargo. Failure to take
these steps may allow the vehicle
to move if the shift lever is inadver-
tently moved to another position.
WARNING
 For maximum effectiveness incase of an accident, the 2nd row
headrest should be adjusted so
the middle of the headrest is at
the same height of the center of
gravity of an occupant's head.
Generally, the center of gravity of
most people's head is level to the
height of the top of their eyes.
 Also adjust the headrest as close to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
 Do not operate the vehicle with the headrests removed. Severe
injury to an occupant may occur
in the event of an accident.
Headrests may provide protec-
tion against severe neck injuries
when properly adjusted.
 After adjusting or reinstalling the headrest, always make sure the
headrest locks in the upright
position to properly protect the
occupants.
OHM038049N
**
* if equipped
XM CAN (ENG) 3.QXP 4/19/2011 10:27 AM Page 17
