KIA Sorento 2014 3.G User Guide

23

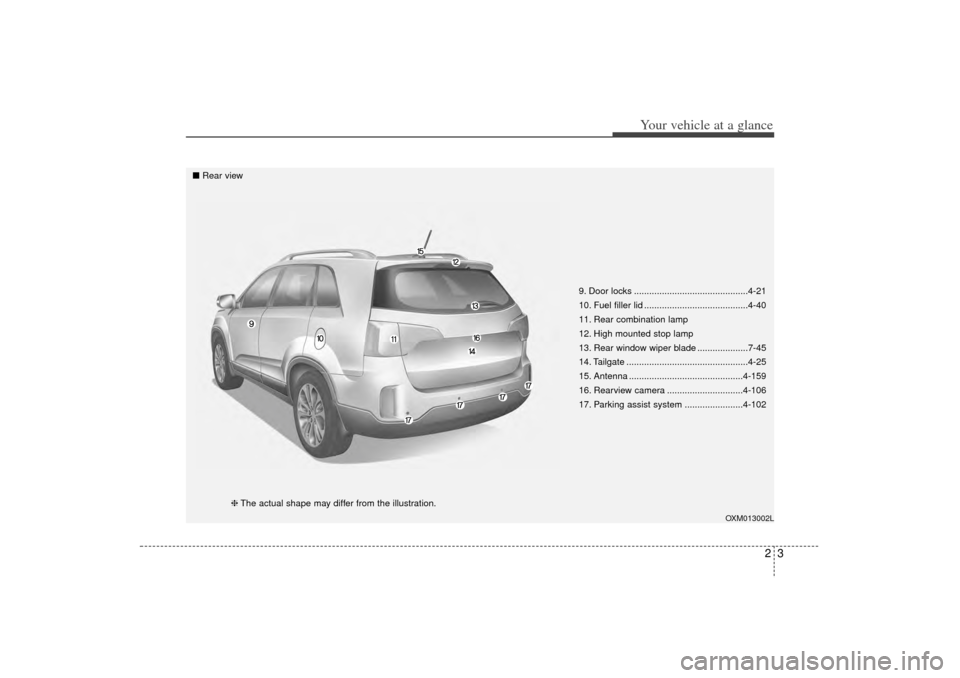

Your vehicle at a glance
9. Door locks .............................................4-21
10. Fuel filler lid .........................................4-40
11. Rear combination lamp
12. High mounted stop lamp
13. Rear window wiper blade ....................7-45
14. Tailgate ................................................4-25
15. Antenna .............................................4-159
16. Rearview camera ..............................4-106
17. Parking assist system .......................4-102
OXM013002L
■Rear view
❈The actual shape may differ from the illustration.
XM(FL) CAN(ENG) 2.QXP 1/23/2013 3:21 PM Page 3

Your vehicle at a glance42INTERIOR OVERVIEW
1. Driver position memory system button .....3-8
2. Inside door handle ...................................4-22
3. Power window switch...............................4-33
4. Central door lock switch ..........................4-23
5. Power window lock button .......................4-36
6. Outside rearview mirror control ...............4-65
7. Outside rearview mirror folding ...............4-66
8. Fuel filler lid open switch .........................4-40
9. Parking assist system On/Off button.....4-102
10. AWD Lock button ...................................5-23
11. ESC Off button ......................................5-36
12. Instrument panel illuminationcontrol switch .........................................4-69
13. BSD On/OFF button ..............................5-49
14. Steering wheel .......................................4-49
15. Steering wheel warmer On/Off Button ..4-51
16. Tilt and telescopic steering control lever .........................................4-50
17. Lighting control lever............................4-109
18. Inner panel fuse panel ...........................7-65
19. Parking brake pedal...............................5-32
20. Hood release lever.................................4-38
21. AC inverter ...........................................4-152
22. Active ECO ...........................................5-54
23. Seat..........................................................3-2
OXMA013003N
❈ The actual interior in the vehicle may differ from the illustration
XM(FL) CAN(ENG) 2.QXP 1/23/2013 3:21 PM Page 4

25
Your vehicle at a glance

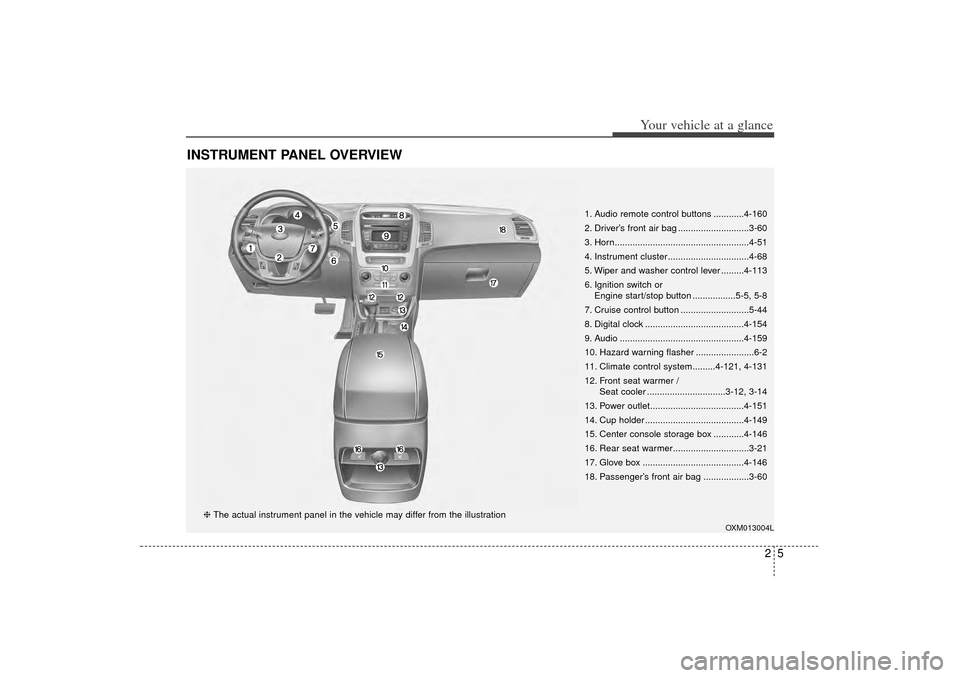

INSTRUMENT PANEL OVERVIEW
1. Audio remote control buttons ............4-160
2. Driver’s front air bag ............................3-60
3. Horn.....................................................4-51
4. Instrument cluster ................................4-68
5. Wiper and washer control lever .........4-113
6. Ignition switch or Engine start/stop button .................5-5, 5-8
7. Cruise control button ...........................5-44
8. Digital clock .......................................4-154
9. Audio .................................................4-159
10. Hazard warning flasher .......................6-2
11. Climate control system.........4-121, 4-131
12. Front seat warmer / Seat cooler ...............................3-12, 3-14
13. Power outlet.....................................4-151
14. Cup holder .......................................4-149
15. Center console storage box ............4-146
16. Rear seat warmer..............................3-21
17. Glove box ........................................4-146
18. Passenger’s front air bag ..................3-60
OXM013004L
❈ The actual instrument panel in the vehicle may differ from the illustration
XM(FL) CAN(ENG) 2.QXP 1/23/2013 3:21 PM Page 5

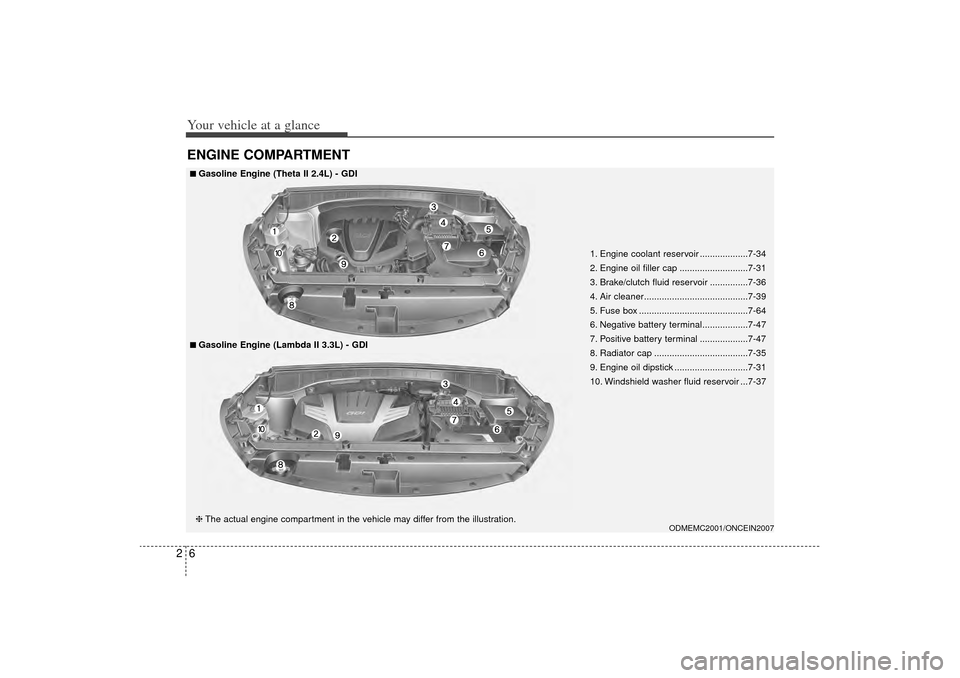

Your vehicle at a glance62ENGINE COMPARTMENT
ODMEMC2001/ONCEIN2007
■
■Gasoline Engine (Theta II 2.4L) - GDI❈The actual engine compartment in the vehicle may differ from the illustration.■
■Gasoline Engine (Lambda II 3.3L) - GDI
1. Engine coolant reservoir ...................7-34
2. Engine oil filler cap ...........................7-31
3. Brake/clutch fluid reservoir ...............7-36
4. Air cleaner.........................................7-39
5. Fuse box ...........................................7-64
6. Negative battery terminal..................7-47
7. Positive battery terminal ...................7-47
8. Radiator cap .....................................7-35
9. Engine oil dipstick .............................7-31
10. Windshield washer fluid reservoir ...7-37
XM(FL) CAN(ENG) 2.QXP 1/23/2013 3:21 PM Page 6

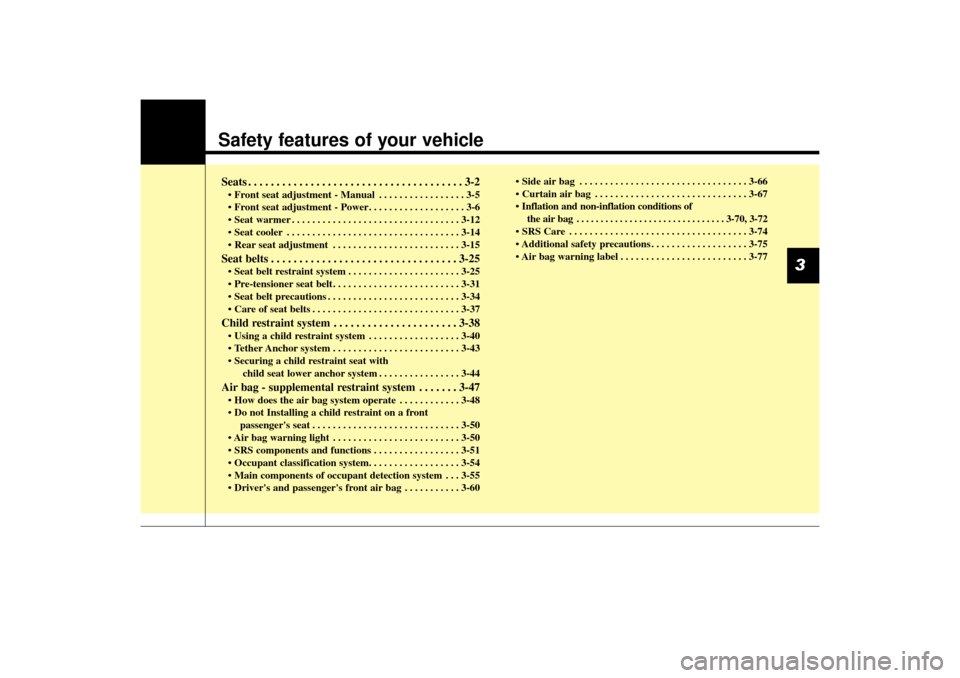

Safety features of your vehicleSeats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 3-2• Front seat adjustment - Manual . . . . . . . . . . . . . . . . . 3-5
• Front seat adjustment - Power. . . . . . . . . . . . . . . . . . . 3-6
• Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
• Seat cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14\
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-15Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-25
• Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . 3-31
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-38• Using a child restraint system . . . . . . . . . . . . . . . . . . 3-40
• Tether Anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
• Securing a child restraint seat with child seat lower anchor system . . . . . . . . . . . . . . . . 3-44Air bag - supplemental restraint system . . . . . . . 3-47• How does the air bag system operate . . . . . . . . . . . . 3-48
• Do not Installing a child restraint on a front passenger's seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-50
• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-50
• SRS components and functions . . . . . . . . . . . . . . . . . 3-51
• Occupant classification system. . . . . . . . . . . . . . . . . . 3-54
• Main components of occupant detection system . . . 3-55
• Driver's and passenger's front air bag . . . . . . . . . . . 3-60 • Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-66
• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-67
• Inflation and non-inflation conditions of
the air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-70, 3-72
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
74
• Additional safety precautions . . . . . . . . . . . . . . . . . . . 3-75
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-77
3
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:22 PM Page 1

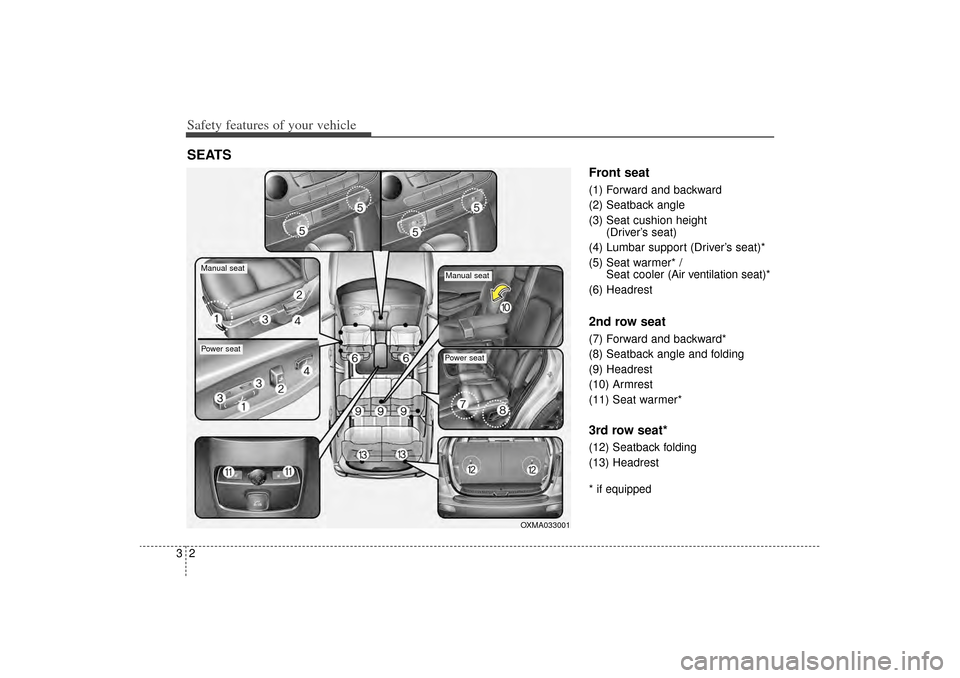

Safety features of your vehicle23
Front seat(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer* / Seat cooler (Air ventilation seat)*
(6) Headrest2nd row seat(7) Forward and backward*
(8) Seatback angle and folding
(9) Headrest
(10) Armrest
(11) Seat warmer*3rd row seat*(12) Seatback folding
(13) Headrest* if equipped
SEATS
OXMA033001
Manual seat
Manual seat
Power seat
Power seat
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:22 PM Page 2

33

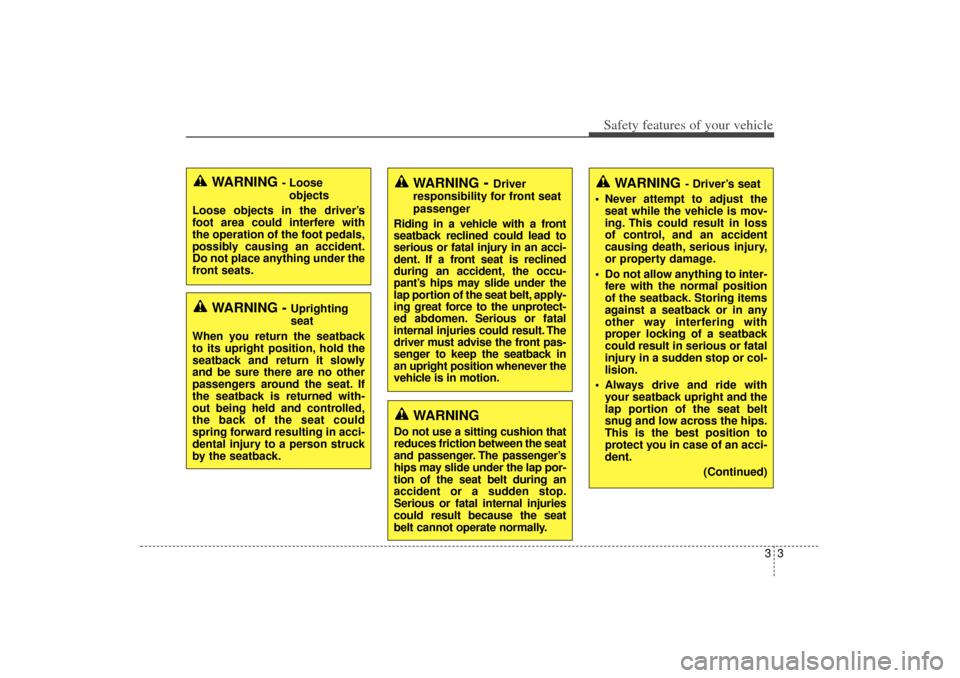

Safety features of your vehicleWARNING
- Driver’s seat
 Never attempt to adjust the seat while the vehicle is mov-
ing. This could result in loss
of control, and an accident
causing death, serious injury,
or property damage.
 Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in serious or fatal
injury in a sudden stop or col-
lision.
 Always drive and ride with your seatback upright and the
lap portion of the seat belt
snug and low across the hips.
This is the best position to
protect you in case of an acci-
dent.
(Continued)
WARNING -
Uprighting
seat
When you return the seatback
to its upright position, hold the
seatback and return it slowly
and be sure there are no other
passengers around the seat. If
the seatback is returned with-
out being held and controlled,
the back of the seat could
spring forward resulting in acci-
dental injury to a person struck
by the seatback.
WARNING
- Loose objects
Loose objects in the driver’s
foot area could interfere with
the operation of the foot pedals,
possibly causing an accident.
Do not place anything under the
front seats.
WARNING
- Driver
responsibility for front seat
passenger
Riding in a vehicle with a front
seatback reclined could lead to
serious or fatal injury in an acci-
dent. If a front seat is reclined
during an accident, the occu-
pant’s hips may slide under the
lap portion of the seat belt, apply-
ing great force to the unprotect-
ed abdomen. Serious or fatal
internal injuries could result. The
driver must advise the front pas-
senger to keep the seatback in
an upright position whenever the
vehicle is in motion.
WARNING
Do not use a sitting cushion that
reduces friction between the seat
and passenger. The passenger’s
hips may slide under the lap por-
tion of the seat belt during an
accident or a sudden stop.
Serious or fatal internal injuries
could result because the seat
belt cannot operate normally.
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:22 PM Page 3

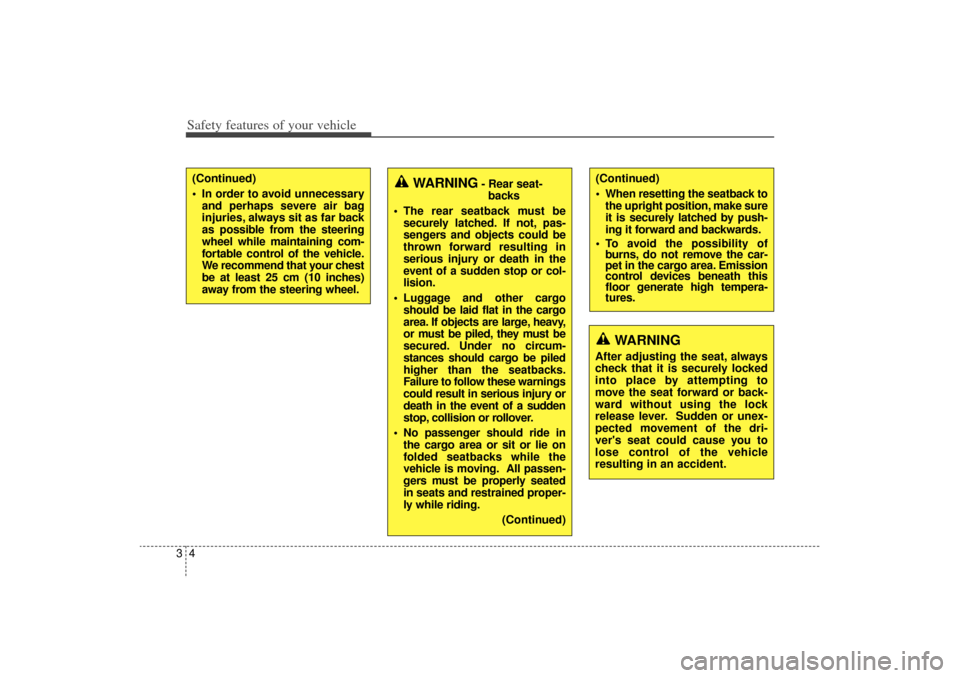

Safety features of your vehicle43
(Continued)
 When resetting the seatback tothe upright position, make sure
it is securely latched by push-
ing it forward and backwards.
 To avoid the possibility of burns, do not remove the car-
pet in the cargo area. Emission
control devices beneath this
floor generate high tempera-
tures.
WARNING
After adjusting the seat, always
check that it is securely locked
into place by attempting to
move the seat forward or back-
ward without using the lock
release lever. Sudden or unex-
pected movement of the dri-
ver's seat could cause you to
lose control of the vehicle
resulting in an accident.
(Continued)
 In order to avoid unnecessary
and perhaps severe air bag
injuries, always sit as far back
as possible from the steering
wheel while maintaining com-
fortable control of the vehicle.
We recommend that your chest
be at least 25 cm (10 inches)
away from the steering wheel.
WARNING
- Rear seat-backs
 The rear seatback must be securely latched. If not, pas-
sengers and objects could be
thrown forward resulting in
serious injury or death in the
event of a sudden stop or col-
lision.
 Luggage and other cargo should be laid flat in the cargo
area. If objects are large, heavy,
or must be piled, they must be
secured. Under no circum-
stances should cargo be piled
higher than the seatbacks.
Failure to follow these warnings
could result in serious injury or
death in the event of a sudden
stop, collision or rollover.
 No passenger should ride in the cargo area or sit or lie on
folded seatbacks while the
vehicle is moving. All passen-
gers must be properly seated
in seats and restrained proper-
ly while riding.
(Continued)
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:22 PM Page 4

35
Safety features of your vehicle
Front seat adjustment - manualForward and backwardTo move the seat forward or back-
ward:
1. Pull the seat slide adjustmentlever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
Seatback angleTo recline the seatback:
1. Lean forward slightly and lift up the seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
OXM039002
OXM039003
WARNING
 Do not adjust the seat whilewearing seat belts. Moving the
seat cushion forward may
cause strong pressure on the
abdomen.
 Use extreme caution so that hands or other objects are not
caught in the seat mechanisms
while the seat is moving.
 Do not put a cigarette lighter on the floor or seat. When you
operate the seat, gas may
gush out of the lighter and
cause fire.
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:22 PM Page 5

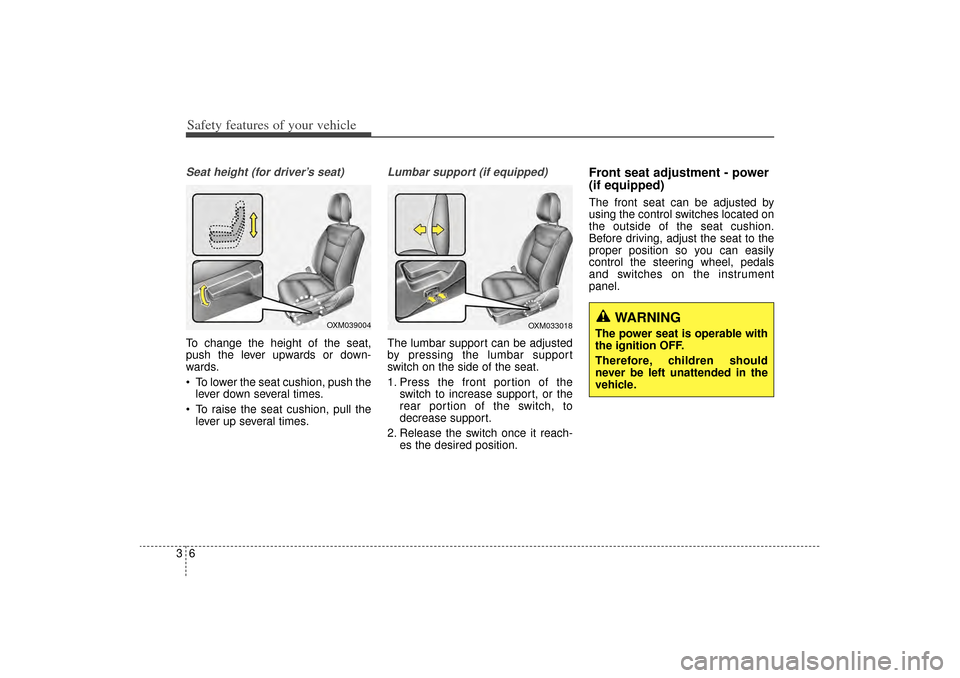

Safety features of your vehicle63Seat height (for driver’s seat)To change the height of the seat,
push the lever upwards or down-
wards.
 To lower the seat cushion, push thelever down several times.
 To raise the seat cushion, pull the lever up several times.
Lumbar support (if equipped)The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the seat.
1. Press the front portion of the switch to increase support, or the
rear portion of the switch, to
decrease support.
2. Release the switch once it reach- es the desired position.
Front seat adjustment - power
(if equipped)The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion.
Before driving, adjust the seat to the
proper position so you can easily
control the steering wheel, pedals
and switches on the instrument
panel.
WARNING
The power seat is operable with
the ignition OFF.
Therefore, children should
never be left unattended in the
vehicle.
OXM033018
OXM039004
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 6
