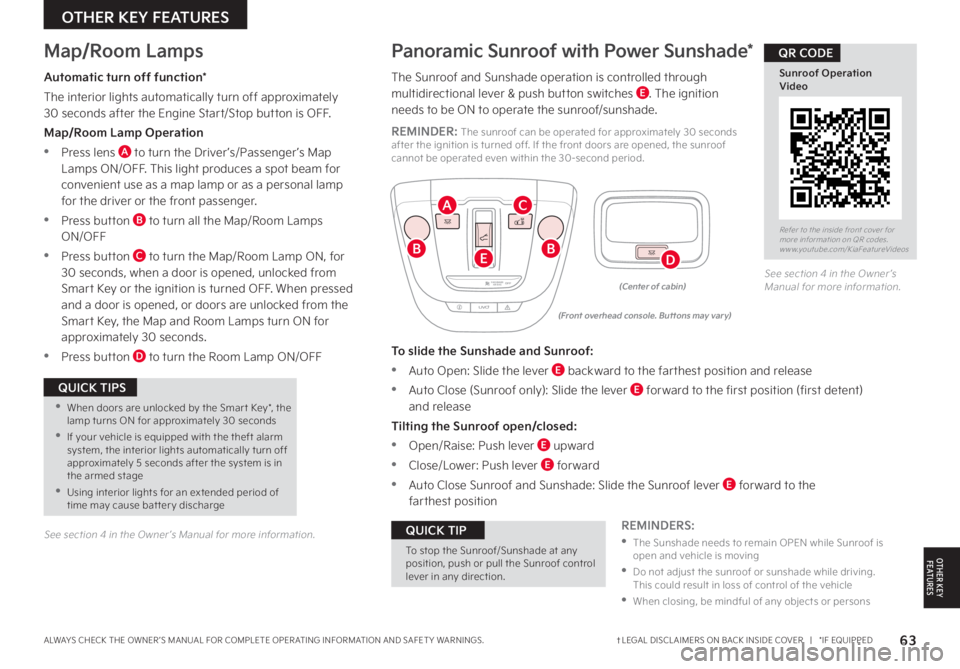

interior lights KIA SORENTO HYBRID 2022 Features and Functions Guide

63†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
See section 4 in the Owner ’s Manual for more information .
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the Engine Start/Stop button is OFF .
Map/Room Lamp Operation
•Press lens A to turn the Driver ’s/Passenger ’s Map Lamps ON/OFF . This light produces a spot beam for convenient use as a map lamp or as a personal lamp for the driver or the front passenger .
•Press button B to turn all the Map/Room Lamps ON/OFF
•
Press button C to turn the Map/Room Lamp ON, for 30 seconds, when a door is opened, unlocked from Smart Key or the ignition is turned OFF . When pressed and a door is opened, or doors are unlocked from the Smart Key, the Map and Room Lamps turn ON for approximately 30 seconds .
•Press button D to turn the Room Lamp ON/OFF
Panoramic Sunroof with Power Sunshade*
The Sunroof and Sunshade operation is controlled through multidirectional lever & push button switches E . The ignition needs to be ON to operate the sunroof/sunshade .
REMINDER: The sunroof can be operated for approximately 30 seconds after the ignition is turned off . If the front doors are opened, the sunroof cannot be operated even within the 30-second period .
To slide the Sunshade and Sunroof:
•Auto Open: Slide the lever E backward to the farthest position and release
•Auto Close (Sunroof only): Slide the lever E forward to the first position (first detent) and release
Tilting the Sunroof open/closed:
•Open/Raise: Push lever E upward
•Close/Lower: Push lever E forward
•Auto Close Sunroof and Sunshade: Slide the Sunroof lever E forward to the farthest position
PASSENGER
AIR BAGOFFPASSENGERAIR BAGOFF
PASSENGERAIR BAGOFF
PASSENGERAIR BAGOFFPASSENGERAIR BAGOFF
PASSENGERAIR BAGOFF
(Front overhead console. Buttons may vary)
(Center of cabin)
REMINDERS:
•
The Sunshade needs to remain OPEN while Sunroof is open and vehicle is moving
•
Do not adjust the sunroof or sunshade while driving . This could result in loss of control of the vehicle
•When closing, be mindful of any objects or persons
See section 4 in the Owner ’s Manual for more information .
BB
C
DE
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Sunroof Operation Video
QR CODE
•When doors are unlocked by the Smar t Key*, the lamp turns ON for approximately 30 seconds
•If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 5 seconds after the system is in the armed stage
•Using interior lights for an extended period of time may cause bat ter y discharge
QUICK TIPS
To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control lever in any direction .
QUICK TIP
OTHER KEY FEATURES
OTHER KEY F E AT U R E S
