Page 421 of 556

KIA Soul 2016 2.G Owners Manual What to do in an emergency
20
6

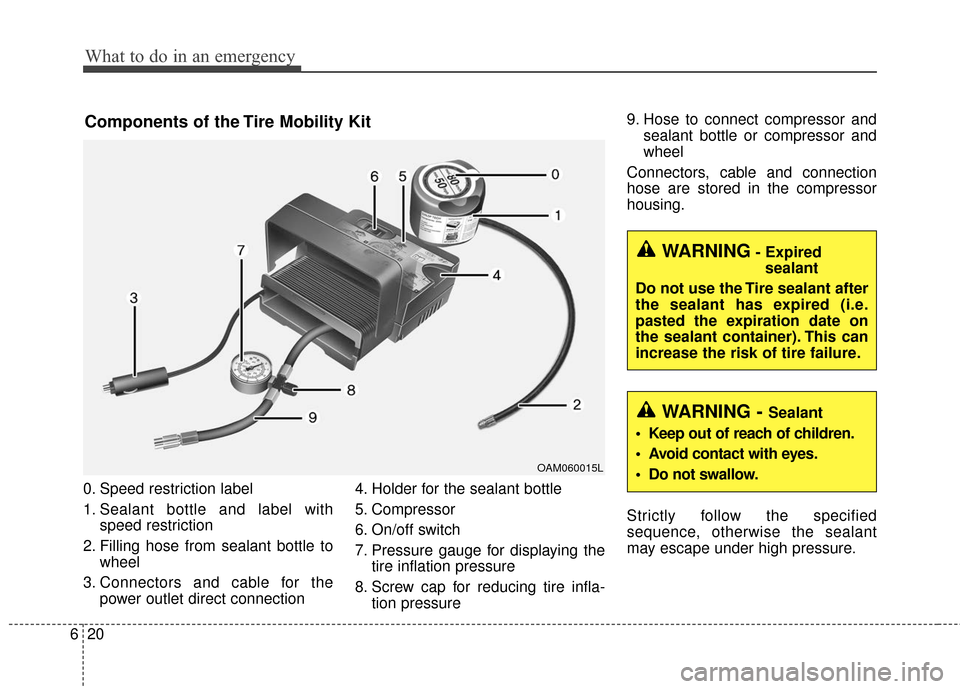

0. Speed restriction label
1. Sealant bottle and label with
speed restriction
2. Filling hose from sealant bottle to wheel
3. Connectors and cable for the power outlet

Page 422 of 556

KIA Soul 2016 2.G Owners Manual 621
What to do in an emergency

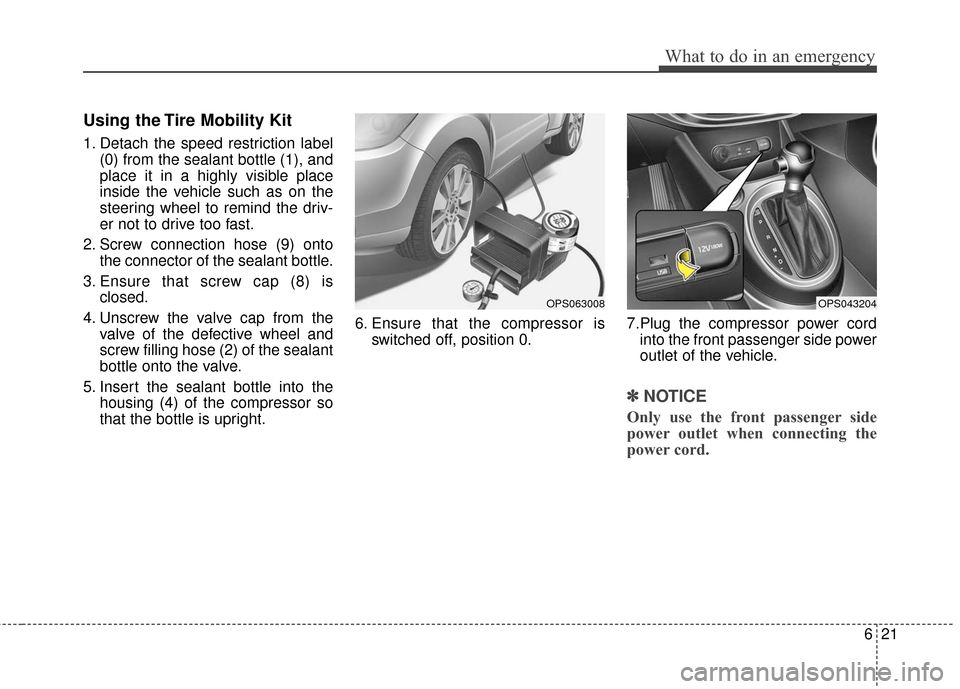

Using the Tire Mobility Kit
1. Detach the speed restriction label(0) from the sealant bottle (1), and
place it in a highly visible place
inside the vehicle such as on th

Page 423 of 556

KIA Soul 2016 2.G Owners Manual What to do in an emergency
22
6

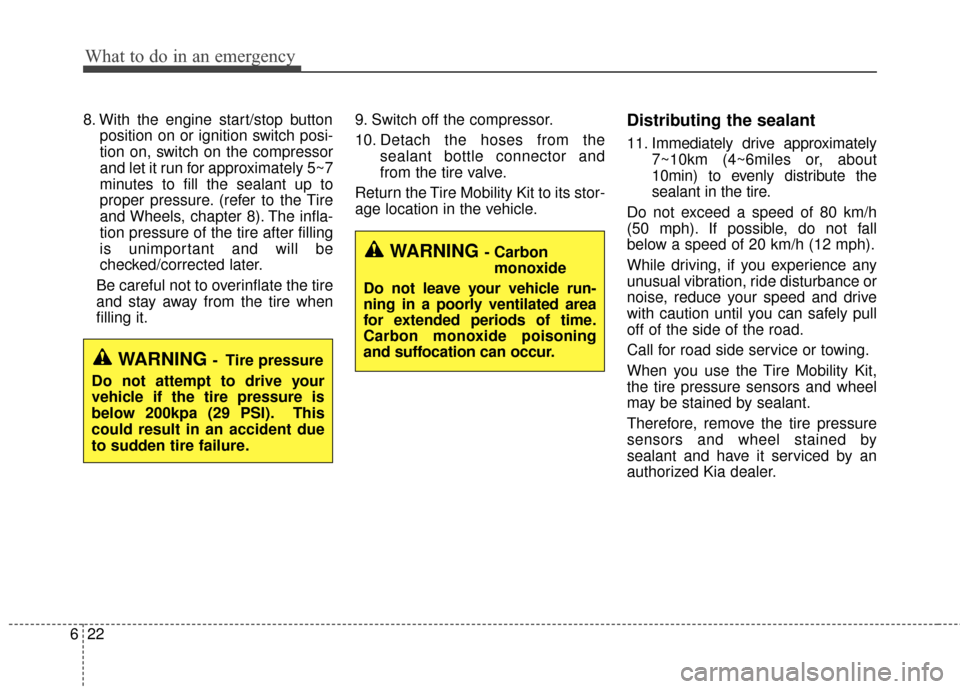

8. With the engine start/stop button
position on or ignition switch posi-
tion on, switch on the compressor
and let it run for approximately 5~7
minutes to fill the sea

Page 424 of 556

KIA Soul 2016 2.G Owners Manual 623
What to do in an emergency

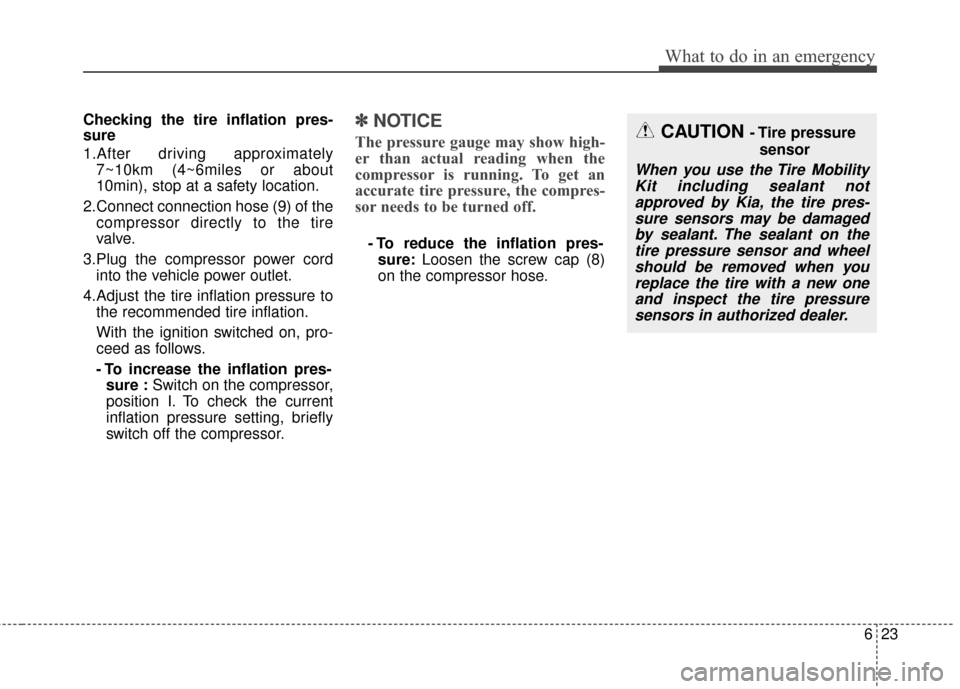

Checking the tire inflation pres-
sure
1.After driving approximately7~10km (4~6miles or about
10min), stop at a safety location.
2.Connect connection hose (9) of the com

Page 425 of 556

KIA Soul 2016 2.G Owners Manual What to do in an emergency
24
6

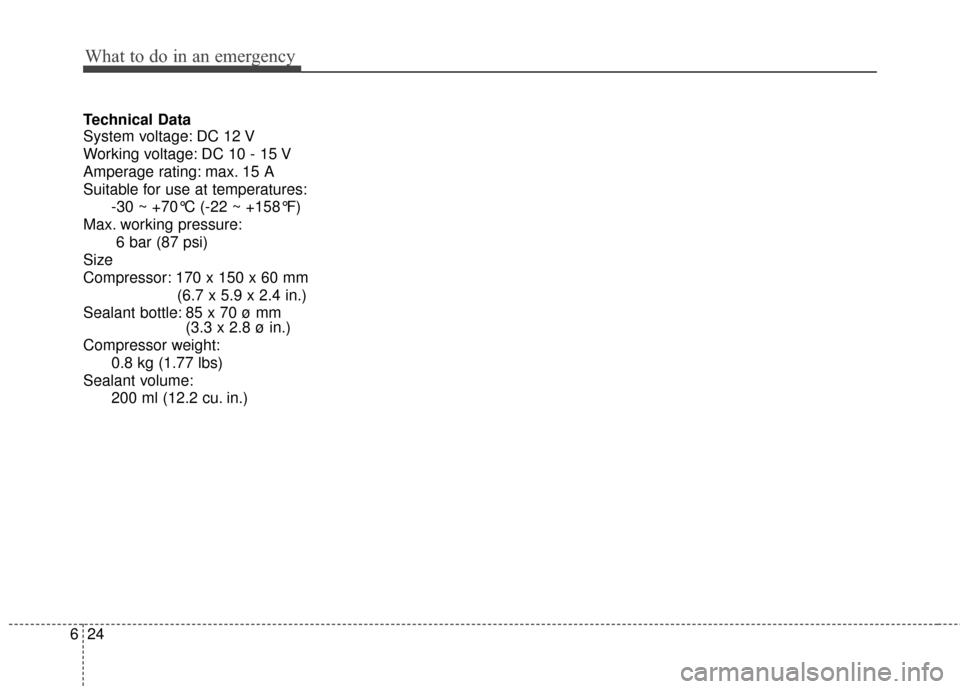

Technical Data
System voltage: DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating: max. 15 A
Suitable for use at temperatures:
-30 ~ +70°C (-22 ~ +158°F)
Max. work

Page 426 of 556

KIA Soul 2016 2.G Owners Manual 625
What to do in an emergency

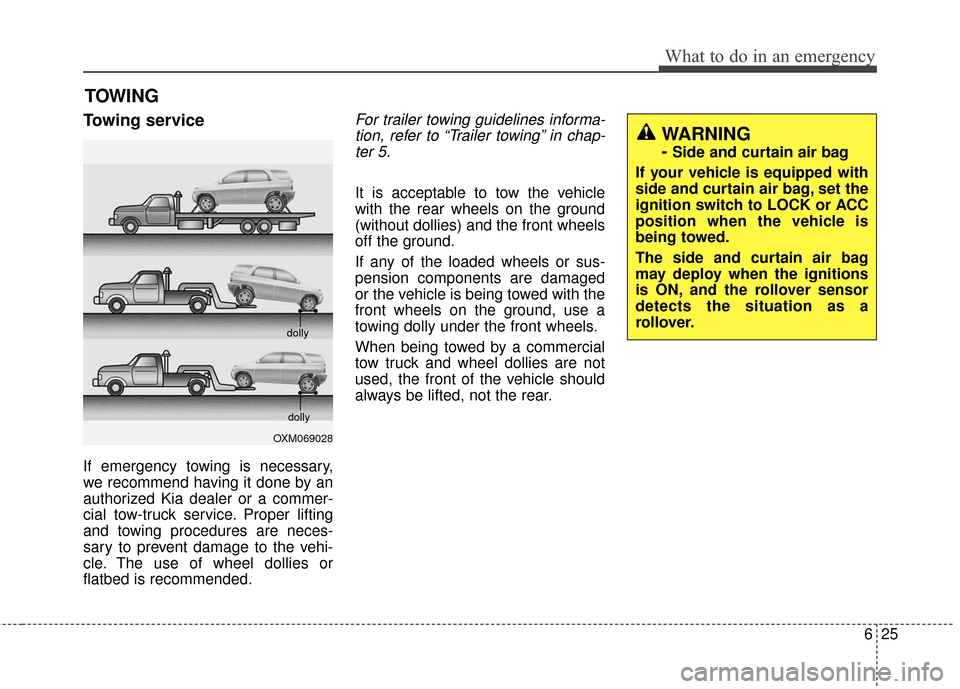

TOWING
Towing service
If emergency towing is necessary,
we recommend having it done by an
authorized Kia dealer or a commer-
cial tow-truck service. Proper lifting
and t

Page 427 of 556

KIA Soul 2016 2.G Owners Manual What to do in an emergency
26
6

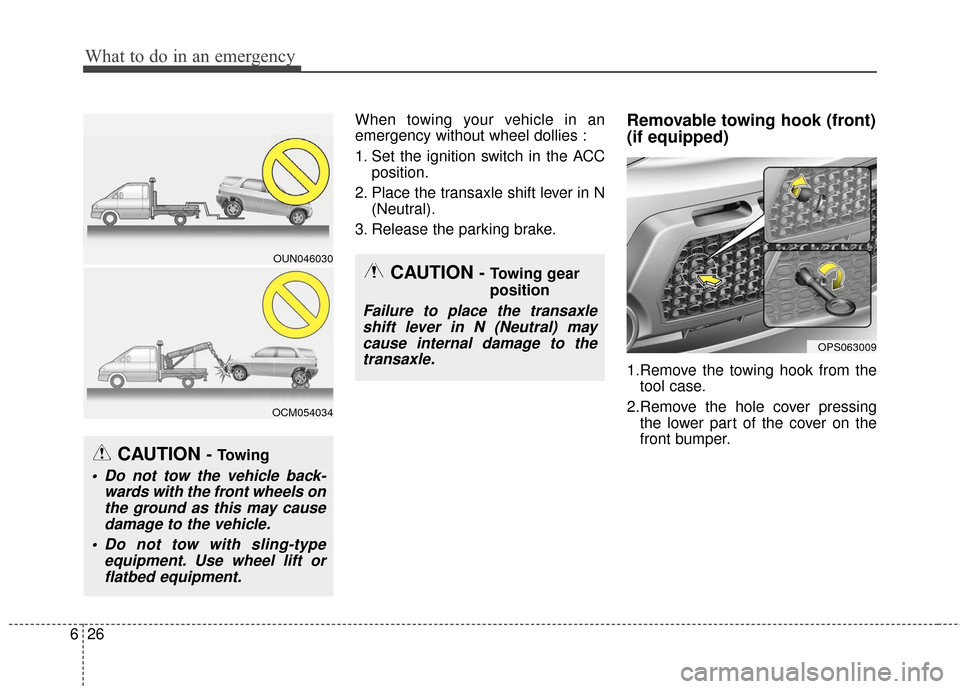

When towing your vehicle in an
emergency without wheel dollies :
1. Set the ignition switch in the ACC
position.
2. Place the transaxle shift lever in N (Neutral).
3. R

Page 428 of 556

KIA Soul 2016 2.G Owners Manual 627
What to do in an emergency

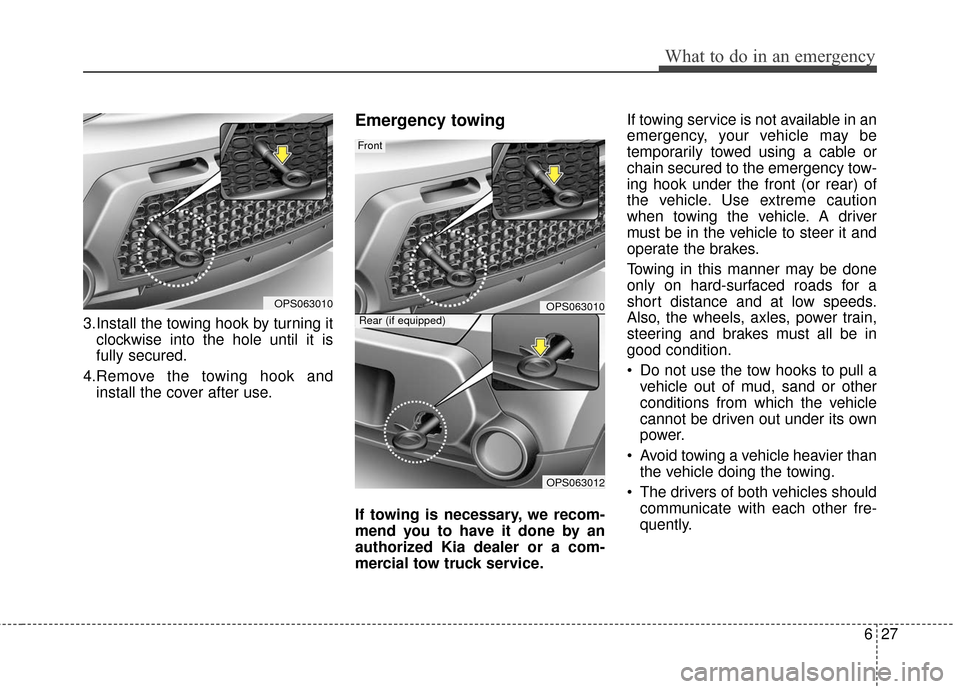

3.Install the towing hook by turning itclockwise into the hole until it is
fully secured.
4.Remove the towing hook and install the cover after use.
Emergency towing
If t

Page 429 of 556

KIA Soul 2016 2.G Owners Manual What to do in an emergency
28
6

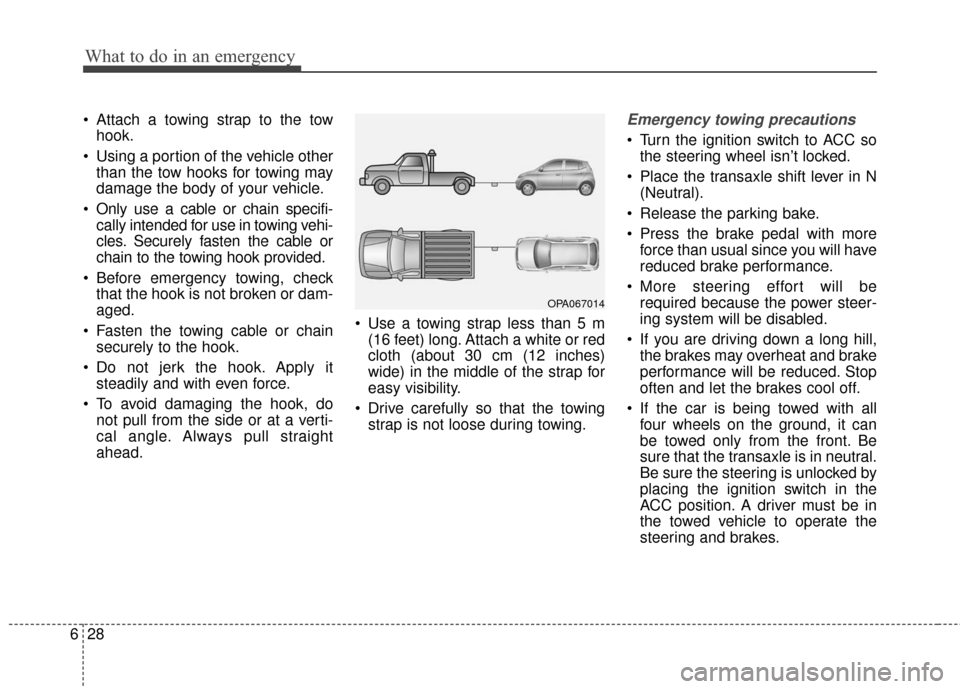

 Attach a towing strap to the tow
hook.
 Using a portion of the vehicle other than the tow hooks for towing may
damage the body of your vehicle.
 Only use a cable or ch

Page 430 of 556

KIA Soul 2016 2.G Owners Manual 629
What to do in an emergency
✽

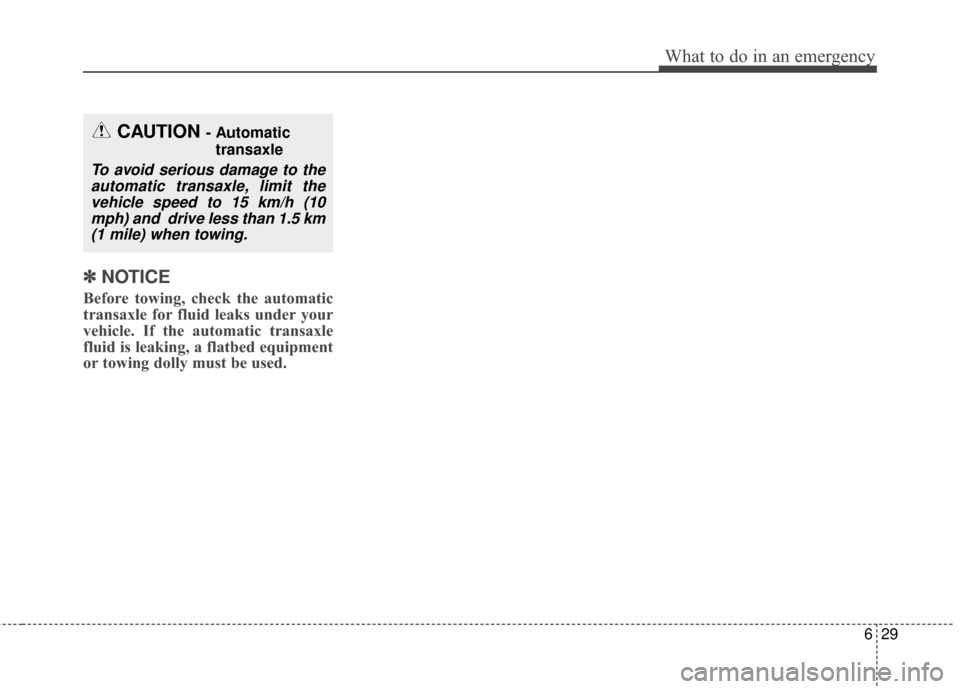

✽NOTICE
Before towing, check the automatic
transaxle for fluid leaks under your
vehicle. If the automatic transaxle
fluid is leaking, a flatbed equipment
or towing
