Page 411 of 556

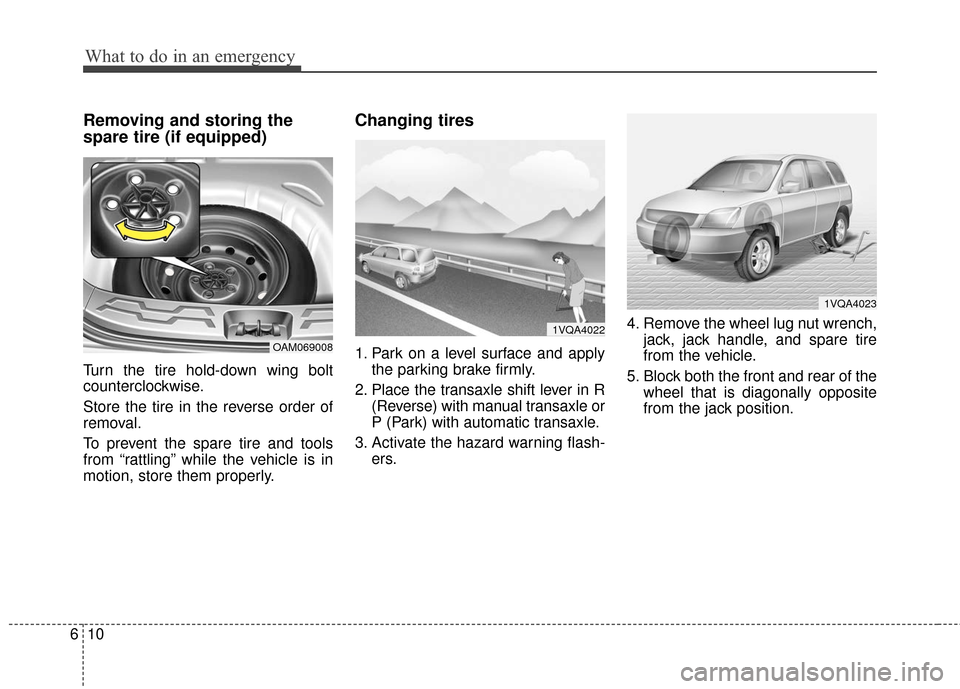

KIA Soul 2016 2.G Owners Manual What to do in an emergency
10
6
Removing and storing the
spare tire (if equipped)
Turn the tire hold-down wing bolt
counterclockwise.
Store the tire in the reverse order of
removal.
To prevent the sp

Page 412 of 556

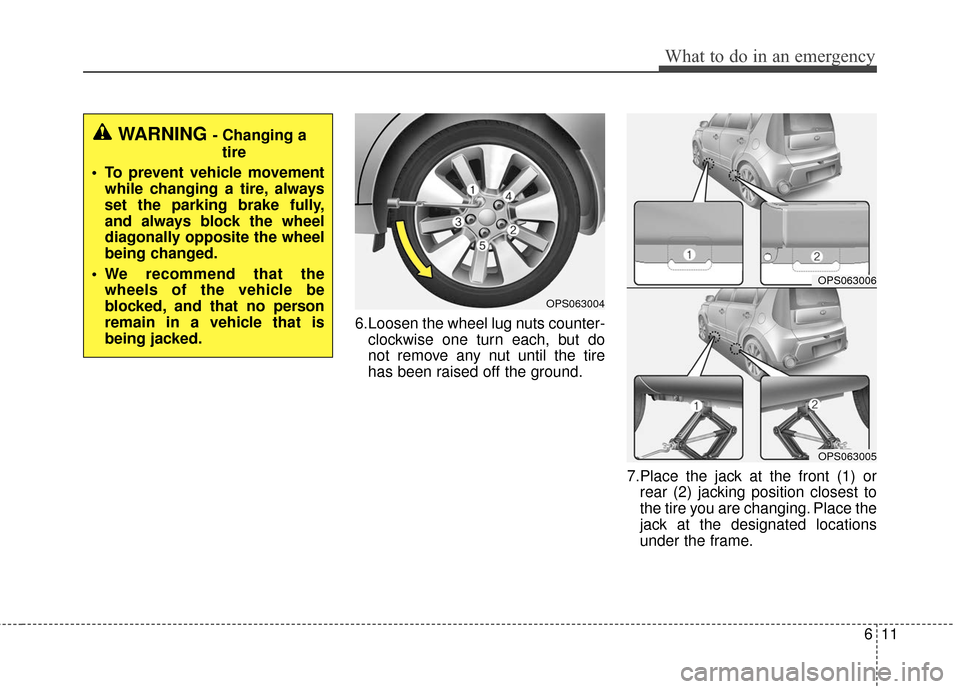

KIA Soul 2016 2.G Owners Manual 611
What to do in an emergency
6.Loosen the wheel lug nuts counter-clockwise one turn each, but do
not remove any nut until the tire
has been raised off the ground.
7.Place the jack at the front (1) o

Page 413 of 556

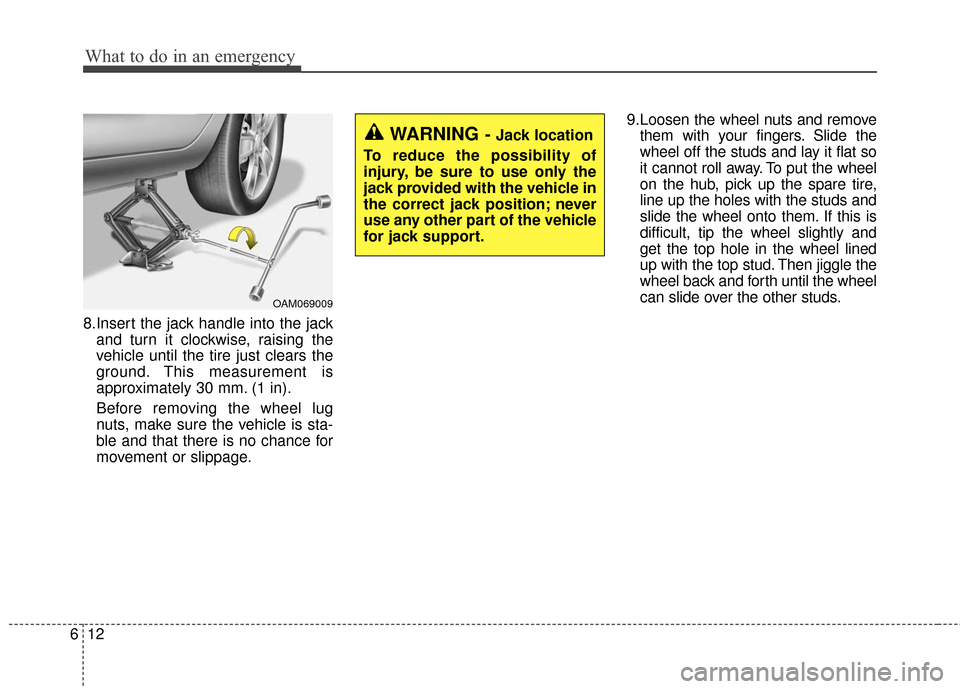

KIA Soul 2016 2.G Owners Manual What to do in an emergency
12
6
8.Insert the jack handle into the jack
and turn it clockwise, raising the
vehicle until the tire just clears the
ground. This measurement is
approximately 30 mm. (1 in)

Page 414 of 556

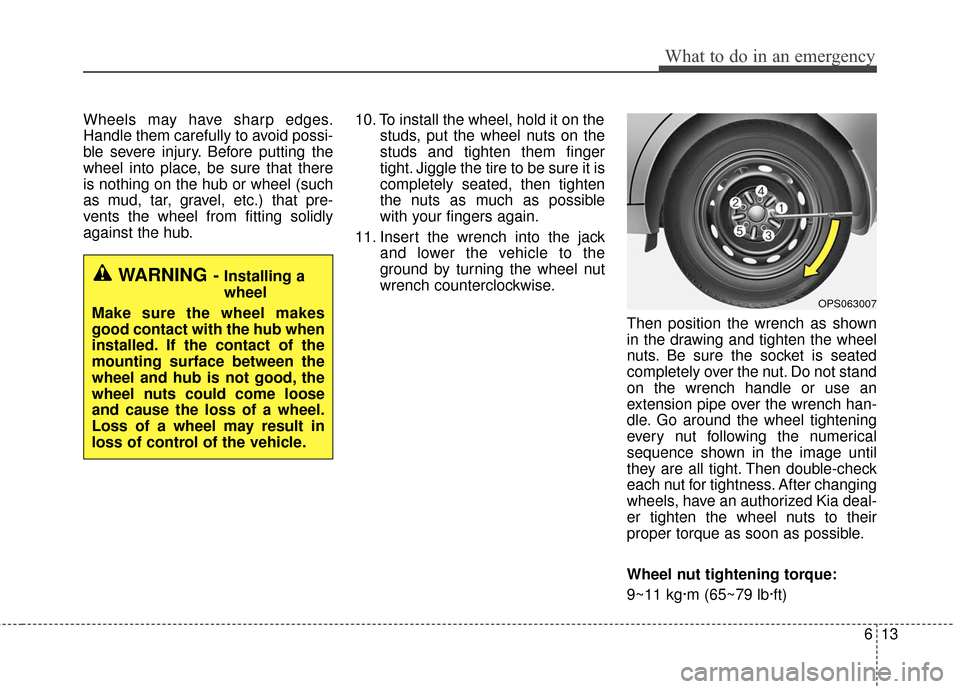

KIA Soul 2016 2.G Owners Manual 613
What to do in an emergency
Wheels may have sharp edges.
Handle them carefully to avoid possi-
ble severe injury. Before putting the
wheel into place, be sure that there
is nothing on the hub or wh

Page 415 of 556

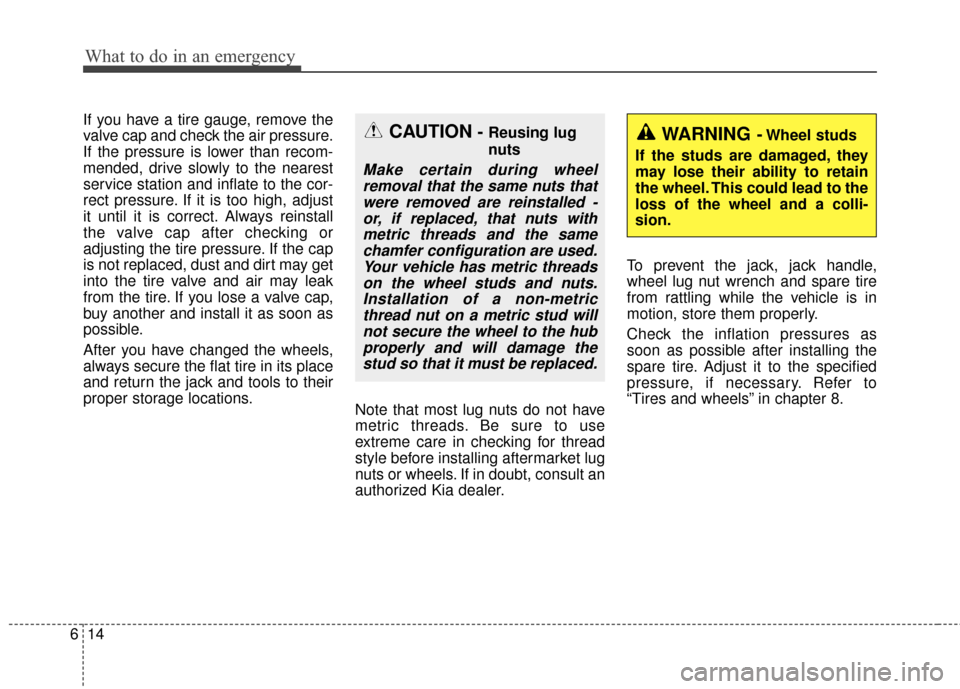

KIA Soul 2016 2.G Owners Manual What to do in an emergency
14
6
If you have a tire gauge, remove the
valve cap and check the air pressure.
If the pressure is lower than recom-
mended, drive slowly to the nearest
service station and

Page 416 of 556

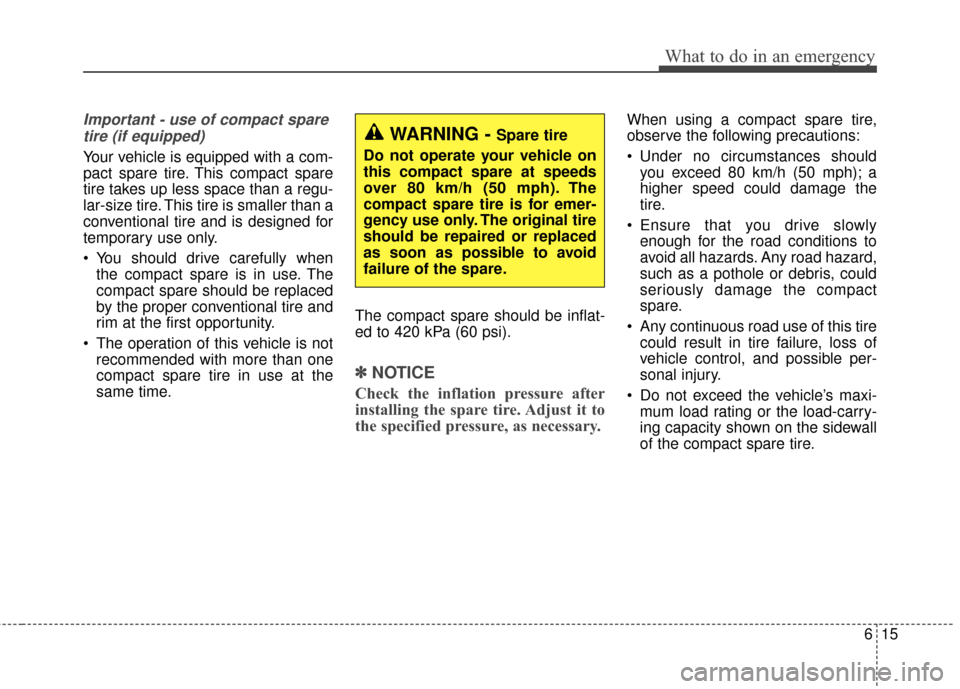

KIA Soul 2016 2.G Owners Manual 615
What to do in an emergency
Important - use of compact sparetire (if equipped)
Your vehicle is equipped with a com-
pact spare tire. This compact spare
tire takes up less space than a regu-
lar-siz

Page 417 of 556

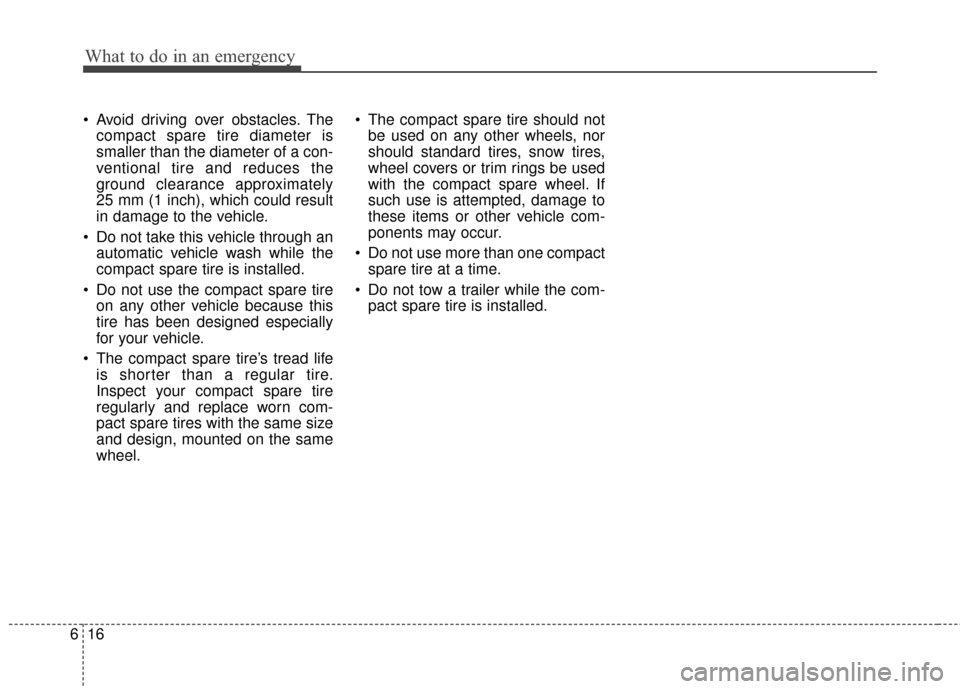

KIA Soul 2016 2.G Owners Manual What to do in an emergency
16
6
 Avoid driving over obstacles. The
compact spare tire diameter is
smaller than the diameter of a con-
ventional tire and reduces the
ground clearance approximately
25 m

Page 418 of 556

KIA Soul 2016 2.G Owners Manual 617
What to do in an emergency
Jack label1. Model Name
2. Maximum allowable load
3. When using the jack, set yourparking brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle t

Page 419 of 556

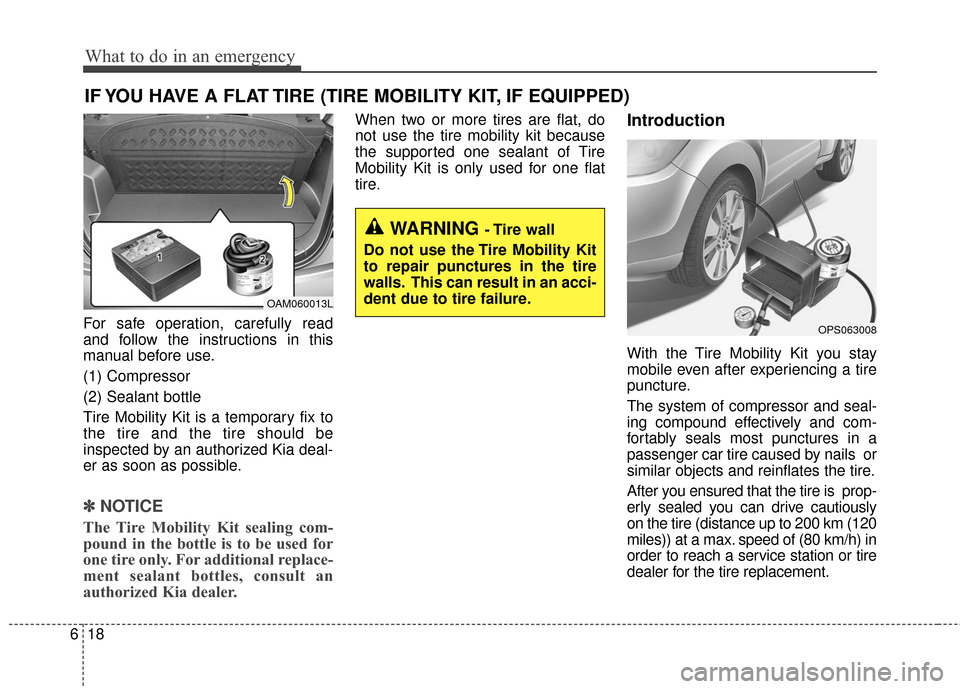

KIA Soul 2016 2.G Owners Manual What to do in an emergency
18
6
IF YOU HAVE A FLAT TIRE (TIRE MOBILITY KIT, IF EQUIPPED)
For safe operation, carefully read
and follow the instructions in this
manual before use.
(1) Compressor
(2) Se

Page 420 of 556

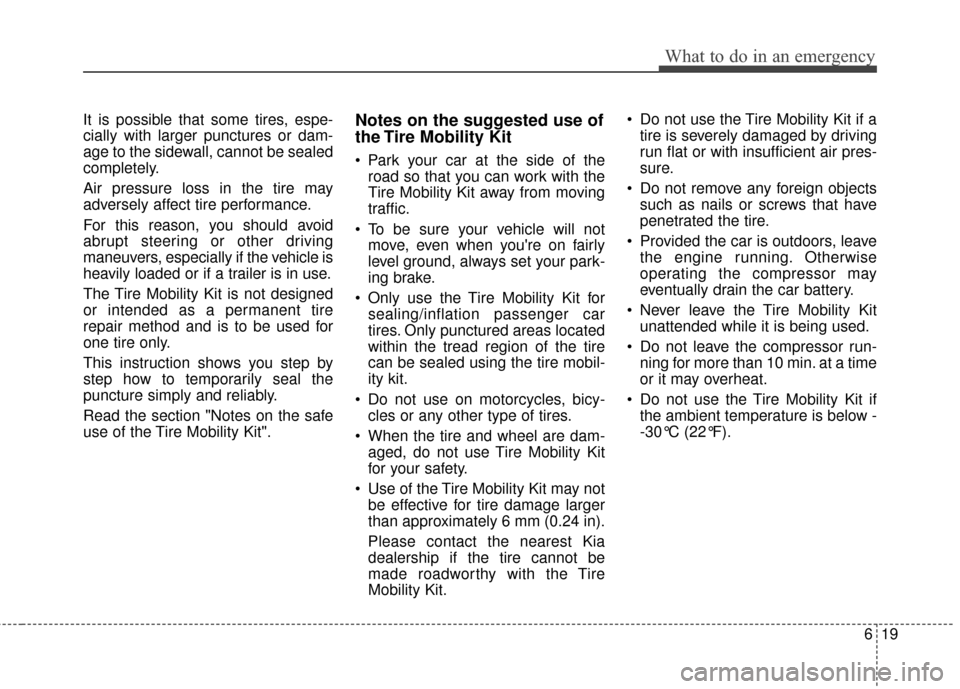

KIA Soul 2016 2.G Owners Manual 619
What to do in an emergency
It is possible that some tires, espe-
cially with larger punctures or dam-
age to the sidewall, cannot be sealed
completely.
Air pressure loss in the tire may
adversely
