KIA Sportage 2005 JE_ / 2.G Owner's Manual

Knowing your vehicle90 3
1
2
3
4
5
6
7
8
9
Outside rearview mirror heater
(if equipped) The outside rearview mirror heater is
actuated in connection with the rear
window defroster. To heat the outside
rearview mirror glass, push the but-
ton for the rear window defroster.
The rearview mirror heater (and rear
window defroster) will not operate
unless the engine is running.
The outside rearview mirror glass will
be heated for defrosting or defogging
and will give you improved rear
vision in inclement weather condi-
tions. Push the button again to turn
the heater off. The outside rearview
mirror heater automatically turns off
after 20 minutes.
Day/night rearview mirror Adjust the rearview mirror to center
on the view through the rear window.
Make this adjustment before you
start driving.
Manual type Make this adjustment before you
start driving and while the day/night
lever is in the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of
vehicles behind you during night
driving.Remember that you lose some
rearview clarity in the night position.
CAUTION
Do not place objects in the rear
seat or cargo area which would
interfere with your vision out
the rear window.
1KMA2089 Day
Night
Day/Night lever
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 90

391
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Electric type (if equipped)The electric day/night rearview mir-
ror automatically controls the glare
from the headlights of the car behind
you in nighttime or low light driving
conditions. The sensor mounted in
the mirror senses the light level
around the vehicle, and through a
chemical reaction, automatically
controls the headlight glare (10% to
70 %) from vehicles behind you.
When the engine is running, the
glare is automatically controlled by
the sensor mounted in the rearview
mirror.
Whenever the shift lever is shifted
into reverse (R), the mirror will auto-
matically go to the brightest setting in
order to improve the drivers view
behind the vehicle.Type A (with compass)
To operate the electric rearview
mirror
Press the “MIRROR” button (
➀) to
turn the automatic- dimming function
on, the mirror indicator light will illu-
minate.
Press the “MIRROR” button (
➀) once
again to turn the automatic- dimming
function off. The mirror indicator light
will turn off.Type B (with homelink wireless
control system)
To operate the electric rearview
mirror
Press the “I” button (
➀) to turn the
automatic- dimming function on, the
mirror indicator light will illuminate.
Press the “O” button (➁) to turn the
automatic- dimming function off. The
mirror indicator light will turn off.
1KMA2091
➀
CAUTION
When cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner.
Do not spray glass cleaner
directly on the mirror as that
may cause the liquid cleaner to
enter the mirror housing.
2GHN3310
➀
➁
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 91

Knowing your vehicle92 3
1
2
3
4
5
6
7
8
9
Room lightFront (map light)The lights are turned ON or OFF by
pressing the corresponding switch.
Center (dome light)➀
DOOR :
The light turns on or off when a
door is opened or closed.
The interior light goes out slowly if
the door is closed.
When a door is unlocked by the
transmitter, the interior light stays
on for 30 seconds as long as the
door is not opened.
➁
ON :
The light turns on and stays on
even when the doors are all
closed.
Rear (dome light)➀
OFF :
The light stays off even when the
rear hatch or rear hatch window
are open.
➁
DR :
The light turns on or off when the
rear hatch or rear hatch window
are opened or closed.
➂
ON :
The light turns on and stays on
even when the rear hatch or rear
hatch window are all closed.
INTERIOR LIGHTS
1KMA2122
1KMA2123
1KMA2121
➀
➁
➂
➀
➁
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 92

393
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Door courtesy lamp
(if equipped)The door courtesy lamp comes ON
when the door is opened to assist
entering or exiting the vehicle. It also
serves as a warning to passing vehi-
cles that the vehicle door is open.
Glove box lampThe glove box lamp comes ON when
the glove box is opened.
The parking lights or headlights must
be ON for the glove box lamp to func-
tion.
Cargo area lampThe cargo area lamp comes ON
when the rear hatch or rear hatch
window are opened.
1KMB5047
1KMB3086
1KMB3087
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 93

Knowing your vehicle94 3
1
2
3
4
5
6
7
8
9
✽ ✽

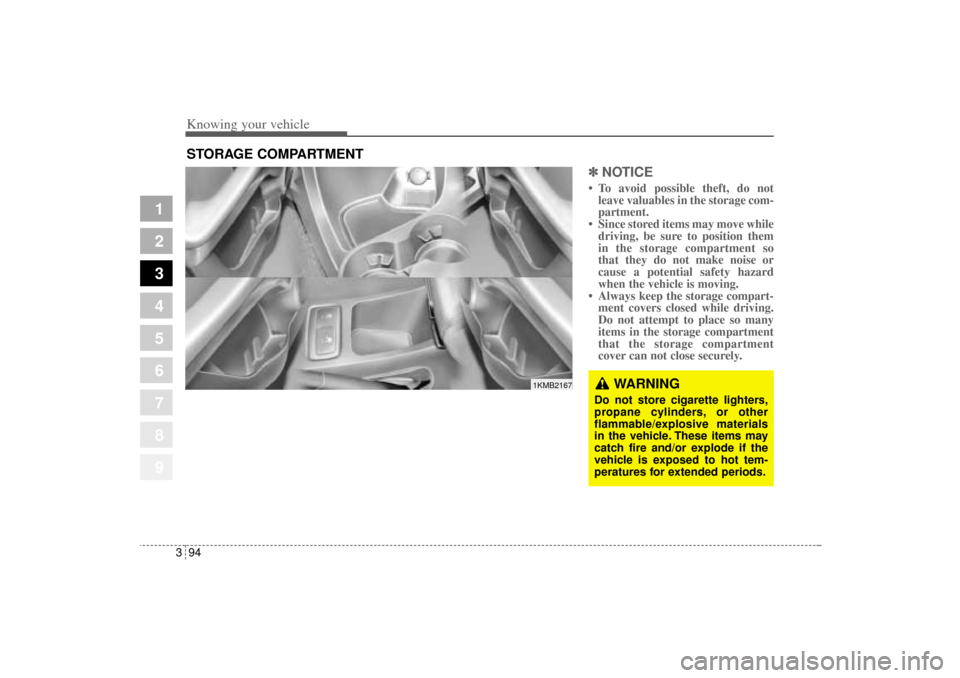

NOTICE• To avoid possible theft, do not
leave valuables in the storage com-
partment.
• Since stored items may move while
driving, be sure to position them
in the storage compartment so
that they do not make noise or
cause a potential safety hazard
when the vehicle is moving.
• Always keep the storage compart-
ment covers closed while driving.
Do not attempt to place so many
items in the storage compartment
that the storage compartment
cover can not close securely.
STORAGE COMPARTMENT
WARNING
Do not store cigarette lighters,
propane cylinders, or other
flammable/explosive materials
in the vehicle. These items may
catch fire and/or explode if the
vehicle is exposed to hot tem-
peratures for extended periods.
1KMB2167
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 94

395
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Center console storageThese compartments can be used to
store small items required by the
driver or front passenger.
Type A (if equipped)
To open either of the console storage
compartments, pull up on the locking
tab (
➀) or (
➁).To use the center console as arm-
rest, push the release button then it
rises.
To lower the center console, push
the release button and press it down.Type B (if equipped)
To open the console storage com-
partment, pull up on the locking tab.
1KMA2165
1KMA2166
1KMA2190
➀
➁
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 95

Knowing your vehicle96 3
1
2
3
4
5
6
7
8
9
Glove boxThe glove box can be locked and
unlocked with a master key.
To open the glove box, make sure it
is unlocked, then pull the handle (
➀)
and the glove box will automatically
open (
➁). Close the glove box after
use.
✽ ✽
NOTICESince key is not fully inserted into
the glove box lock, do not apply
excessive force. Doing so may dam-
age the parts.
Sunglass holder A sunglass storage compartment is
provided on the overhead console.
To open the sunglass holder, press
the cover and the holder will slowly
open. Place your sunglasses in the
compartment door with the lenses
facing out. Push to close.✽ ✽
NOTICEMake sure the sunglass holder is
closed while driving.
CAUTION
To reduce the risk of injury in
case of an accident or sudden
stop, always keep the glove box
door closed while driving.
1KMA2168
1KMA2164
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 96

397
1
2
3
4
5
6
7
8
9
Knowing your vehicle

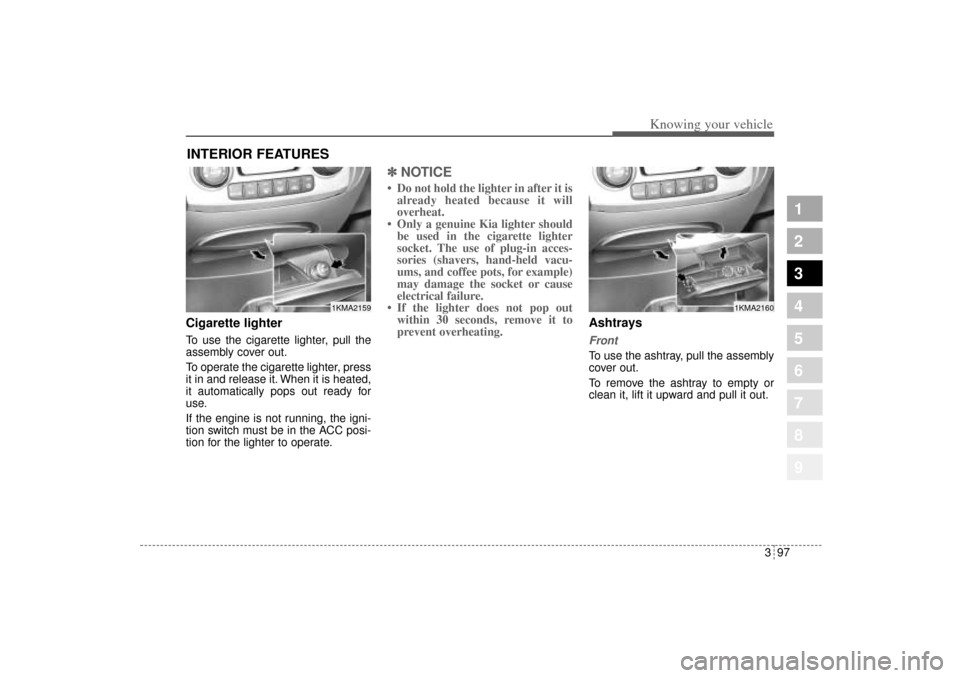

Cigarette lighterTo use the cigarette lighter, pull the
assembly cover out.
To operate the cigarette lighter, press
it in and release it. When it is heated,
it automatically pops out ready for
use.
If the engine is not running, the igni-
tion switch must be in the ACC posi-
tion for the lighter to operate.
✽ ✽
NOTICE• Do not hold the lighter in after it is
already heated because it will
overheat.
• Only a genuine Kia lighter should
be used in the cigarette lighter
socket. The use of plug-in acces-
sories (shavers, hand-held vacu-
ums, and coffee pots, for example)
may damage the socket or cause
electrical failure.
• If the lighter does not pop out
within 30 seconds, remove it to
prevent overheating.
Ashtrays Front To use the ashtray, pull the assembly
cover out.
To remove the ashtray to empty or
clean it, lift it upward and pull it out.
INTERIOR FEATURES
1KMA2159
1KMA2160
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 97

Knowing your vehicle98 3
1
2
3
4
5
6
7
8
9

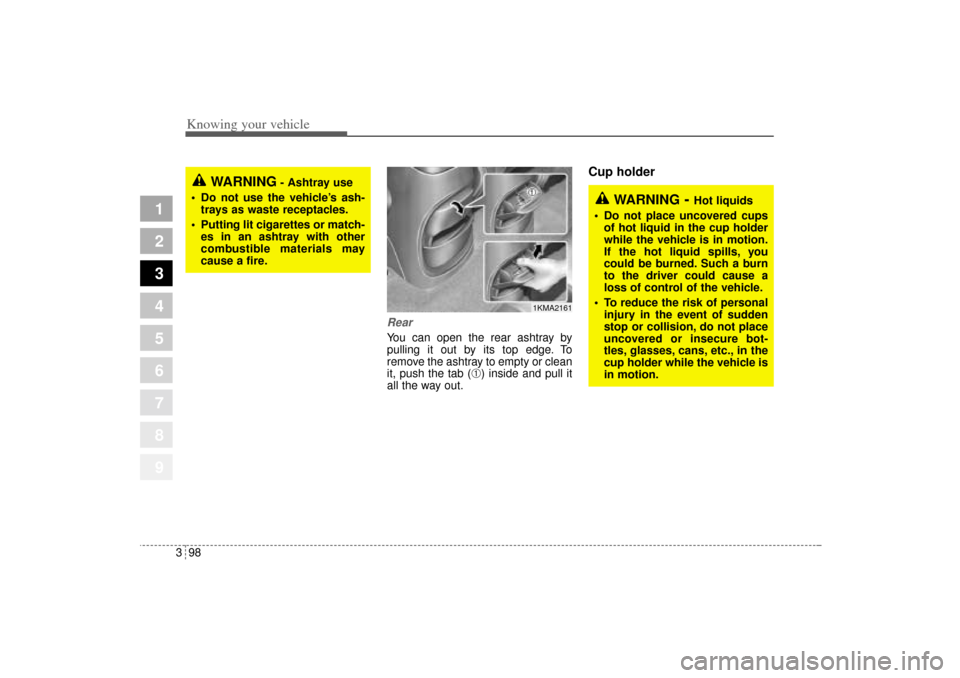

RearYou can open the rear ashtray by
pulling it out by its top edge. To
remove the ashtray to empty or clean
it, push the tab (
➀) inside and pull it
all the way out.
Cup holder
WARNING
- Ashtray use
 Do not use the vehicle’s ash-
trays as waste receptacles.
 Putting lit cigarettes or match-
es in an ashtray with other
combustible materials may
cause a fire.
1KMA2161
WARNING
- Hot liquids
 Do not place uncovered cups
of hot liquid in the cup holder
while the vehicle is in motion.
If the hot liquid spills, you
could be burned. Such a burn
to the driver could cause a
loss of control of the vehicle.
 To reduce the risk of personal
injury in the event of sudden
stop or collision, do not place
uncovered or insecure bot-
tles, glasses, cans, etc., in the
cup holder while the vehicle is
in motion.
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 98

399
1
2
3
4
5
6
7
8
9
Knowing your vehicle

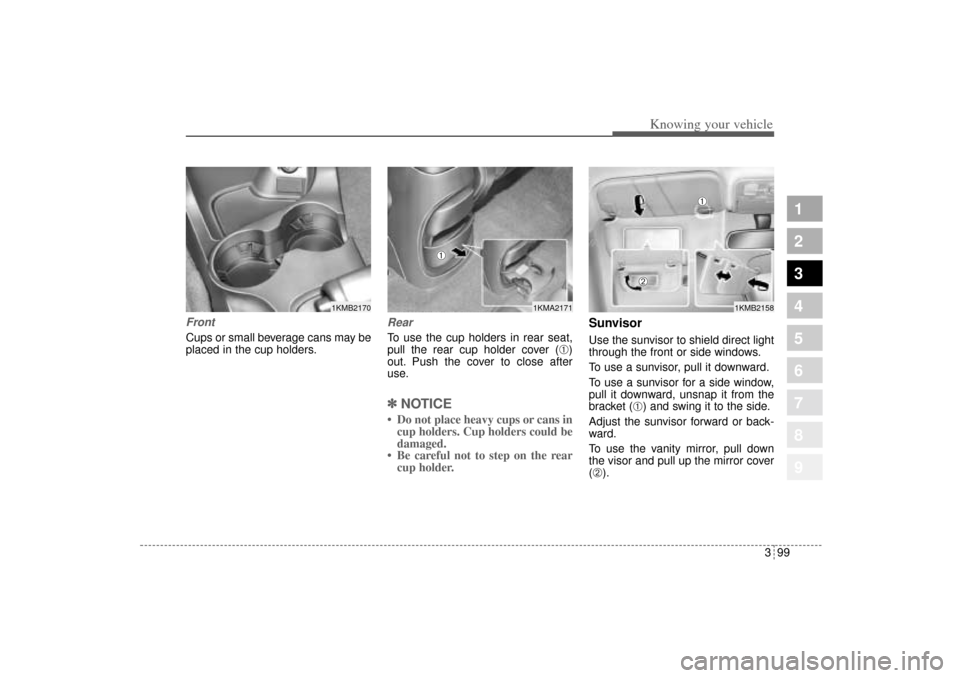

FrontCups or small beverage cans may be
placed in the cup holders.
RearTo use the cup holders in rear seat,
pull the rear cup holder cover (
➀)
out. Push the cover to close after
use.
✽ ✽
NOTICE• Do not place heavy cups or cans in
cup holders. Cup holders could be
damaged.
• Be careful not to step on the rear
cup holder.
SunvisorUse the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (
➀) and swing it to the side.
Adjust the sunvisor forward or back-
ward.
To use the vanity mirror, pull down
the visor and pull up the mirror cover
(
➁).
1KMA2171
1KMB2158
1KMB2170
➀
➁
➀
KM CAN (ENG) 3 (~112).qxd 9/13/2004 4:51 PM Page 99
