KIA Sportage 2008 JE_ / 2.G Owner's Guide
Manufacturer: KIA, Model Year: 2008, Model line: Sportage, Model: KIA Sportage 2008 JE_ / 2.GPages: 350, PDF Size: 6.42 MB
Page 21 of 350
Knowing your vehicle
12 3
1
2
3
4
5
6
7
8
9

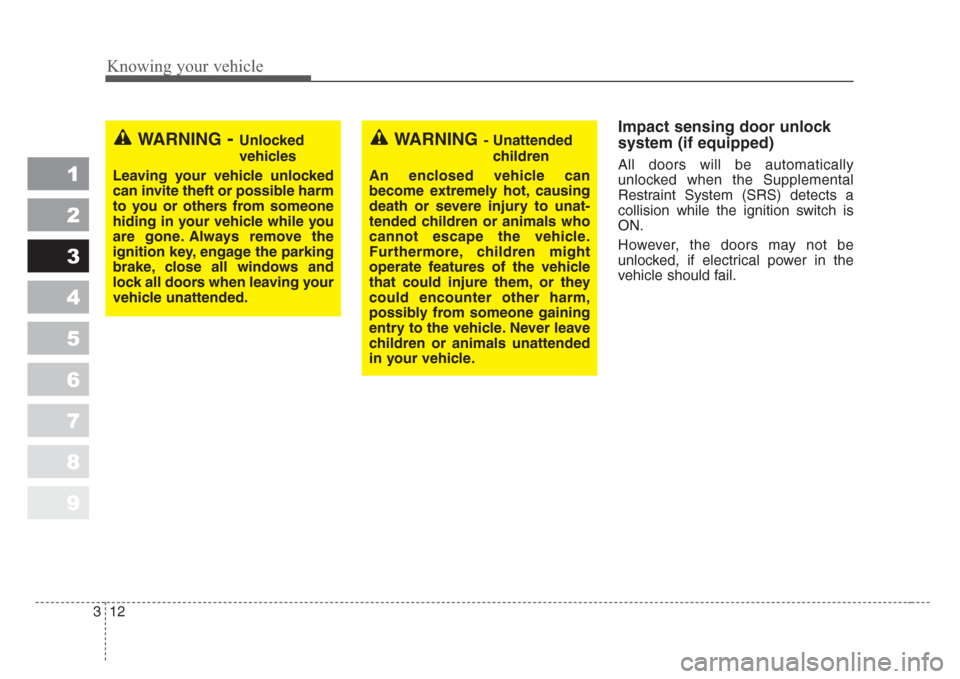

Impact sensing door unlock
system (if equipped)
All doors will be automatically
unlocked when the Supplemental
Restraint System (SRS) detects a
collision while the ignition switch is
ON.
However, the doors may not be
unlocked, if electrical power in the
vehicle should fail.
WARNING-Unlocked
vehicles
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone.Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.WARNING- Unattended
children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or they
could encounter other harm,
possibly from someone gaining
entry to the vehicle.Never leave
children or animals unattended
in your vehicle.
Page 22 of 350
313
Knowing your vehicle
1
2
3
4
5
6
7
8
9

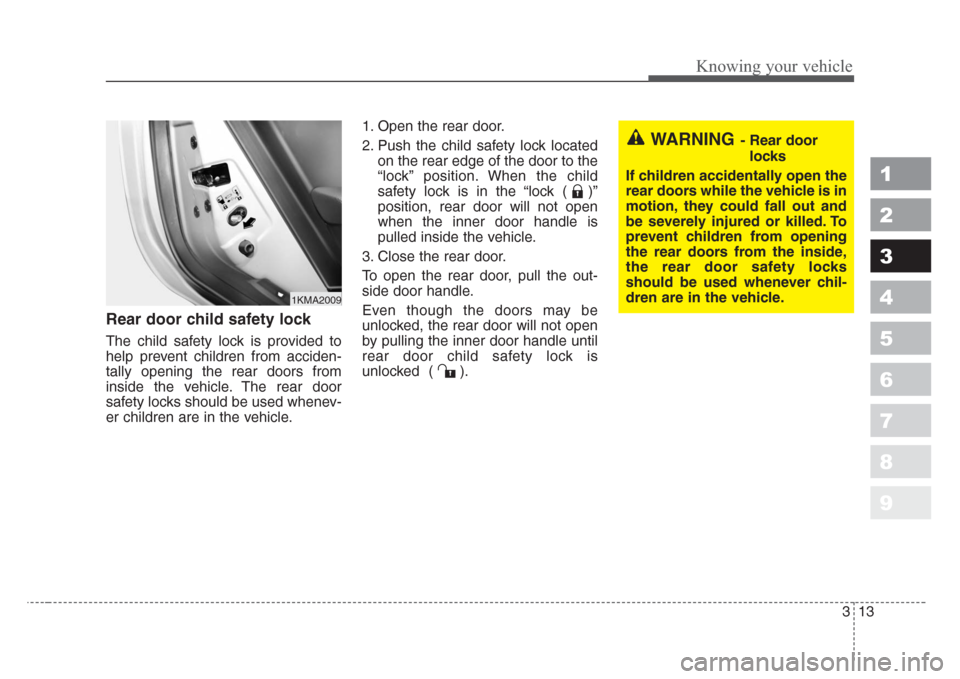

Rear door child safety lock
The child safety lock is provided to
help prevent children from acciden-
tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.1. Open the rear door.
2. Push the child safety lock located
on the rear edge of the door to the
“lock” position. When the child
safety lock is in the “lock ( )”
position, rear door will not open
when the inner door handle is
pulled inside the vehicle.
3. Close the rear door.
To open the rear door, pull the out-
side door handle.
Even though the doors may be
unlocked, the rear door will not open
by pulling the inner door handle until
rear door child safety lock is
unlocked ( ).
WARNING- Rear door
locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and
be severely injured or killed.To
prevent children from opening
the rear doors from the inside,
the rear door safety locks
should be used whenever chil-
dren are in the vehicle.
1KMA2009
Page 23 of 350
Knowing your vehicle
14 3
1
2
3
4
5
6
7
8
9
Rear hatch
Opening the rear hatch
• Rear hatch is locked or unlocked
with a key. (if equipped)
• To open the rear hatch, insert the
key into the lock, turn it to the
unlock position and pull up the rear
hatch by pressing the handle
(DOOR).
You can also lock/unlock the latch
(but not release it) with the central
door lock system.• If unlocked, the rear hatch can be
opened by pressing the handle
(DOOR) and pulling the hatch up.
• To close the rear hatch, lower and
push down the rear hatch firmly.
Make sure that the rear hatch is
securely latched.
✽
NOTICE
Make certain that you close the rear
hatch/window before driving your
vehicle. Possible damage may occur
to the rear hatch/window lift cylin-
ders and attaching hardware if the
rear hatch/window is not closed
prior to driving.
1KMA2017
CAUTION - Rear hatch
The rear hatch/window swings
upward.Make sure no objects
or people are near the rear of
the vehicle when opening the
hatch/window.
1KMA2016
Lock
Unlock
Page 24 of 350
315
Knowing your vehicle
1
2
3
4
5
6
7
8
9

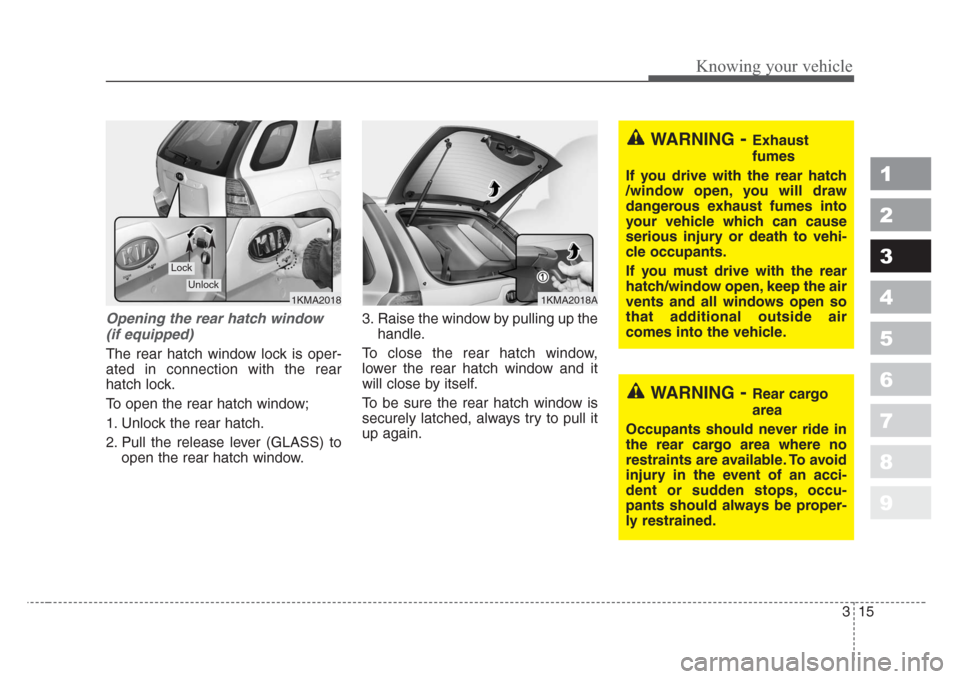

Opening the rear hatch window
(if equipped)
The rear hatch window lock is oper-
ated in connection with the rear
hatch lock.
To open the rear hatch window;
1. Unlock the rear hatch.
2. Pull the release lever (GLASS) to
open the rear hatch window.3. Raise the window by pulling up the
handle.
To close the rear hatch window,
lower the rear hatch window and it
will close by itself.
To be sure the rear hatch window is
securely latched, always try to pull it
up again.
1KMA2018A1KMA2018
Lock
Unlock
WARNING-Exhaust
fumes
If you drive with the rear hatch
/window open, you will draw
dangerous exhaust fumes into
your vehicle which can cause
serious injury or death to vehi-
cle occupants.
If you must drive with the rear
hatch/window open, keep the air
vents and all windows open so
that additional outside air
comes into the vehicle.
WARNING-Rear cargo
area
Occupants should never ride in
the rear cargo area where no
restraints are available.To a v oid
injury in the event of an acci-
dent or sudden stops, occu-
pants should always be proper-
ly restrained.
Page 25 of 350
Knowing your vehicle
16 3
1
2
3
4
5
6
7
8
9

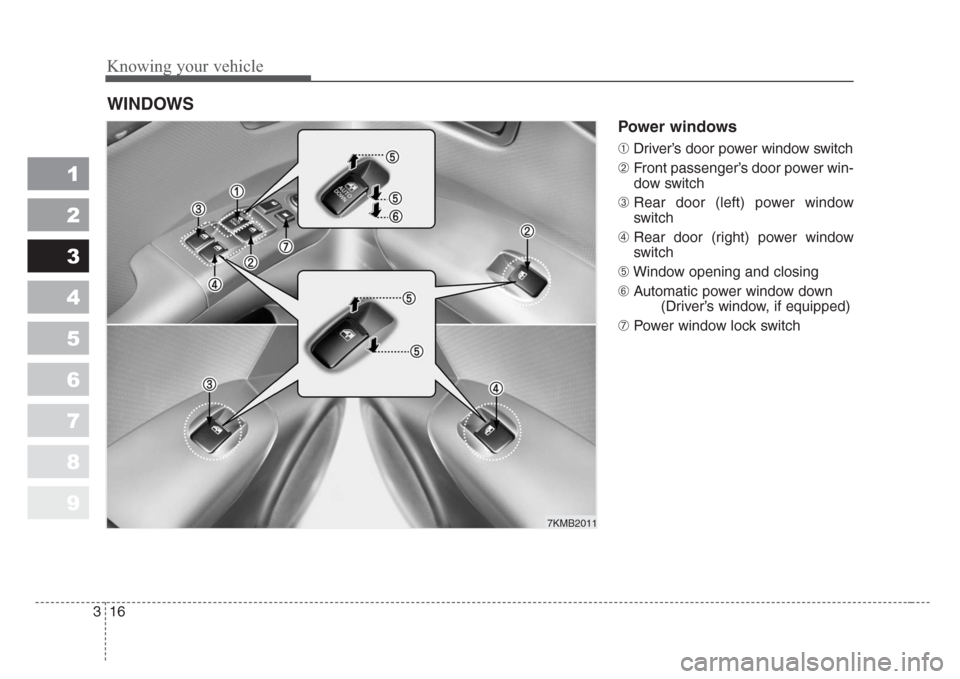

Power windows
➀Driver’s door power window switch
➁Front passenger’s door power win-
dow switch
➂Rear door (left) power window
switch
➃Rear door (right) power window
switch
➄Window opening and closing
➅Automatic power window down
(Driver’s window, if equipped)
➆Power window lock switch
WINDOWS
7KMB2011
Page 26 of 350
317
Knowing your vehicle
1
2
3
4
5
6
7
8
9

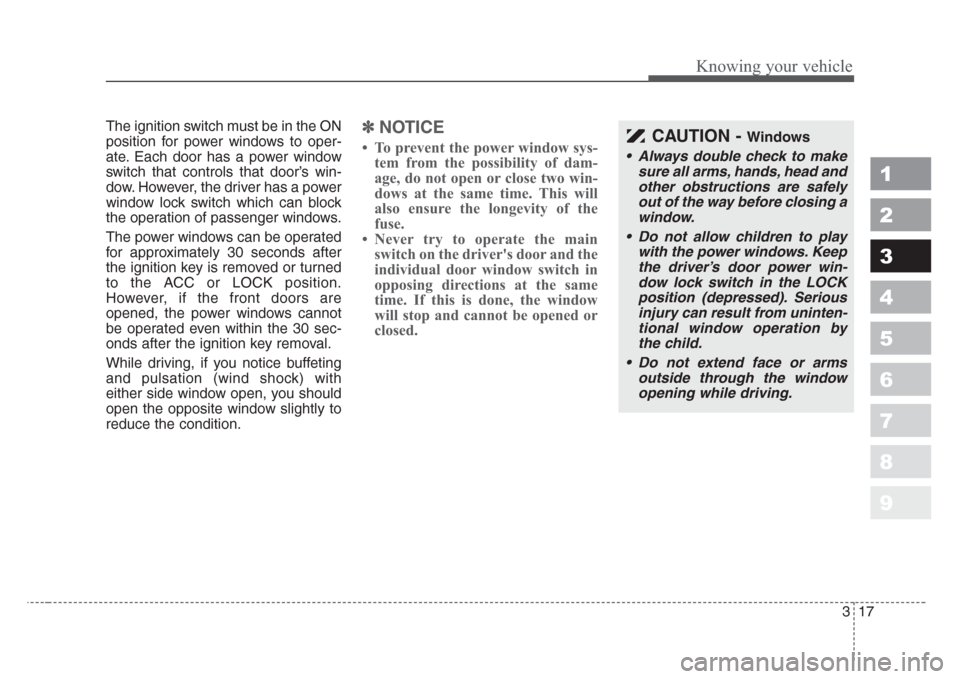

The ignition switch must be in the ON
position for power windows to oper-
ate. Each door has a power window
switch that controls that door’s win-
dow. However, the driver has a power
window lock switch which can block
the operation of passenger windows.
The power windows can be operated
for approximately 30 seconds after
the ignition key is removed or turned
to the ACC or LOCK position.
However, if the front doors are
opened, the power windows cannot
be operated even within the 30 sec-
onds after the ignition key removal.
While driving, if you notice buffeting
and pulsation (wind shock) with
either side window open, you should
open the opposite window slightly to
reduce the condition.✽
NOTICE
• To prevent the power window sys-
tem from the possibility of dam-
age, do not open or close two win-
dows at the same time. This will
also ensure the longevity of the
fuse.
• Never try to operate the main
switch on the driver's door and the
individual door window switch in
opposing directions at the same
time. If this is done, the window
will stop and cannot be opened or
closed.CAUTION - Windows
•Always double check to make
sure all arms, hands, head and
other obstructions are safely
out of the way before closing a
window.
• Do not allow children to play
with the power windows.Keep
the driver’s door power win-
dow lock switch in the LOCK
position (depressed).Serious
injury can result from uninten-
tional window operation by
the child.
• Do not extend face or arms
outside through the window
opening while driving.
Page 27 of 350
Knowing your vehicle
18 3
1
2
3
4
5
6
7
8
9

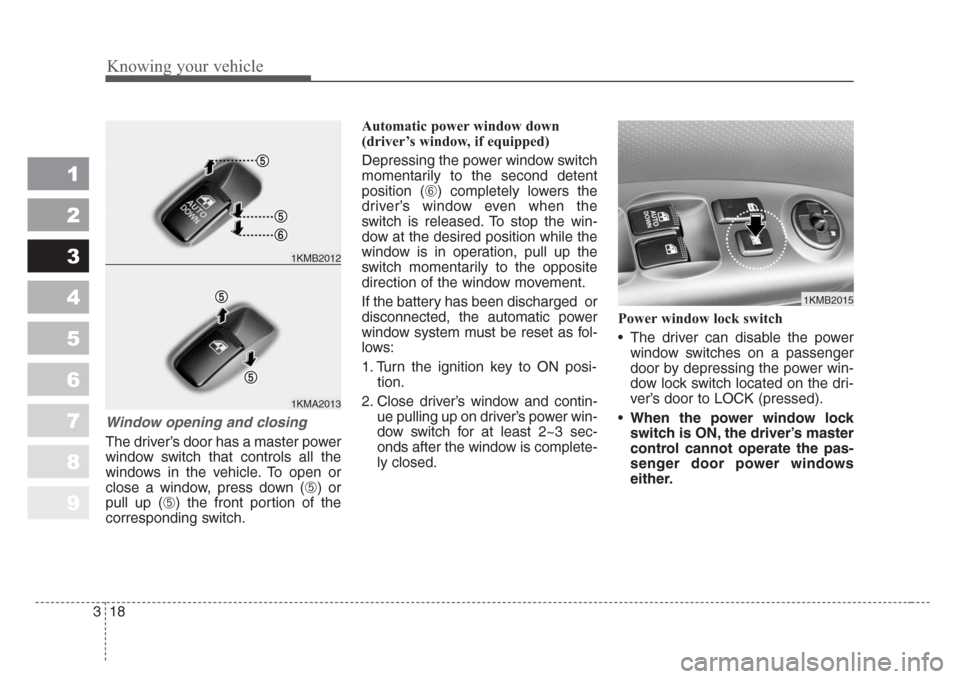

Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle. To open or
close a window, press down (
➄) or
pull up (
➄) the front portion of the
corresponding switch.Automatic power window down
(driver’s window, if equipped)
Depressing the power window switch
momentarily to the second detent
position (
➅) completely lowers the
driver’s window even when the
switch is released. To stop the win-
dow at the desired position while the
window is in operation, pull up the
switch momentarily to the opposite
direction of the window movement.
If the battery has been discharged or
disconnected, the automatic power
window system must be reset as fol-
lows:
1. Turn the ignition key to ON posi-
tion.
2. Close driver’s window and contin-
ue pulling up on driver’s power win-
dow switch for at least 2~3 sec-
onds after the window is complete-
ly closed.Power window lock switch
• The driver can disable the power
window switches on a passenger
door by depressing the power win-
dow lock switch located on the dri-
ver’s door to LOCK (pressed).
•When the power window lock
switch is ON, the driver’s master
control cannot operate the pas-
senger door power windows
either.
1KMA2013
1KMB2012
1KMB2015
Page 28 of 350
319
Knowing your vehicle
1
2
3
4
5
6
7
8
9

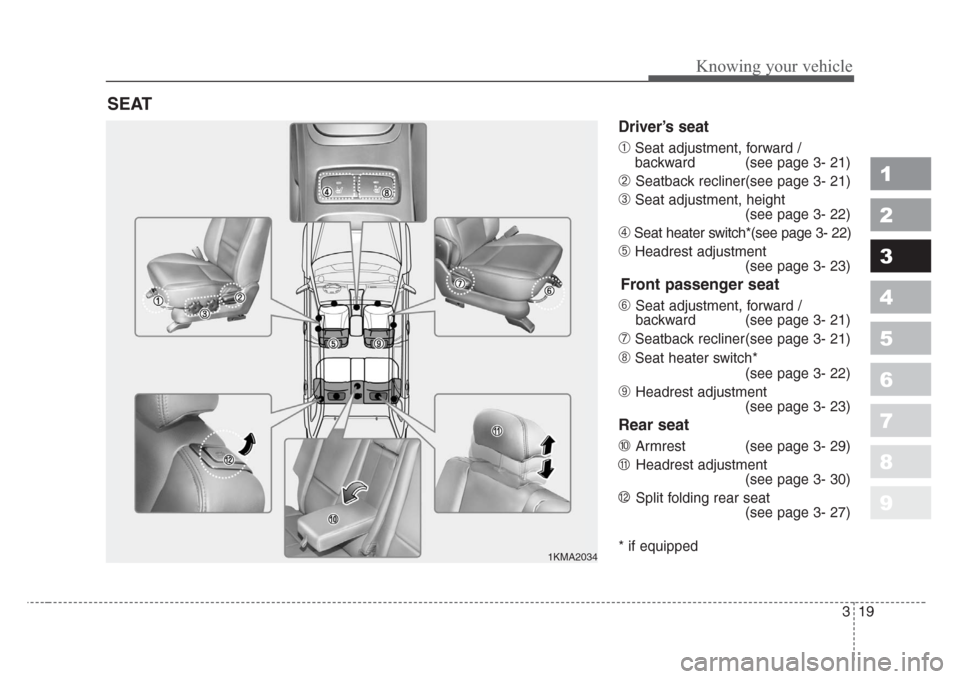

Driver’s seat
➀Seat adjustment, forward /
backward (see page 3- 21)
➁ Seatback recliner(see page 3- 21)
➂Seat adjustment, height
(see page 3- 22)
➃Seat heater switch*(see page 3- 22)
➄Headrest adjustment
(see page 3- 23)
Front passenger seat
➅
Seat adjustment, forward /
backward (see page 3- 21)
➆Seatback recliner(see page 3- 21)
➇Seat heater switch*
(see page 3- 22)
➈ Headrest adjustment
(see page 3- 23)
Rear seat
➉
Armrest (see page 3- 29)
Headrest adjustment
(see page 3- 30)
Split folding rear seat
(see page 3- 27)
* if equipped
SEAT
1KMA2034
11
12
Page 29 of 350
Knowing your vehicle
20 3
1
2
3
4
5
6
7
8
9
(Continued)

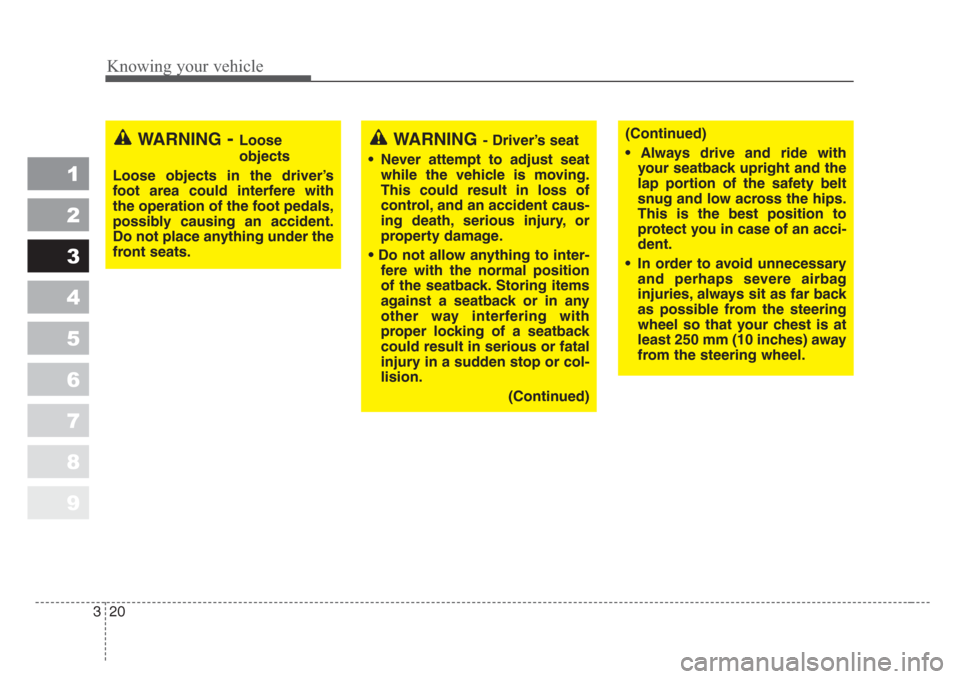

• Always drive and ride with
your seatback upright and the
lap portion of the safety belt
snug and low across the hips.
This is the best position to
protect you in case of an acci-
dent.
• In order to avoid unnecessary
and perhaps severe airbag
injuries,always sit as far back
as possible from the steering
wheel so that your chest is at
least 250 mm (10 inches) away
from the steer
ing wheel.
WARNING-Loose
objects
Loose objects in the driver’s
foot area could interfere with
the operation of the foot pedals,
possibly causing an accident.
Do not place anything under the
front seats.WARNING- Driver’s seat
• Never attempt to adjust seat
while the vehicle is moving.
This could result in loss of
control, and an accident caus-
ing death,serious injury, or
property damage.
• Do not allow anything to inter-
fere with the normal position
of the seatback.Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in s
erious or fatal
injury in a sudden stop or col-
lision.
(Continued)
Page 30 of 350
321
Knowing your vehicle
1
2
3
4
5
6
7
8
9

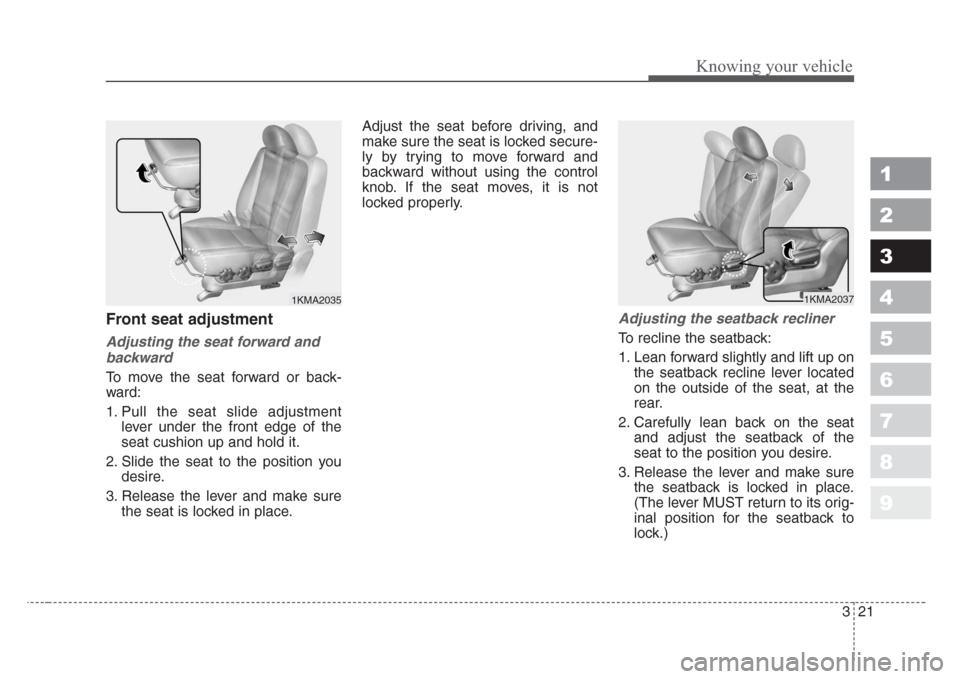

Front seat adjustment
Adjusting the seat forward and
backward
To move the seat forward or back-
ward:
1. Pull the seat slide adjustment
lever under the front edge of the
seat cushion up and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place.Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and
backward without using the control
knob. If the seat moves, it is not
locked properly.
Adjusting the seatback recliner
To recline the seatback:
1. Lean forward slightly and lift up on
the seatback recline lever located
on the outside of the seat, at the
rear.
2. Carefully lean back on the seat
and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
1KMA20351KMA2037
