KIA SPORTAGE 2016 Quick Reference Guide

3WENE09UVO SYSTEM QUICK REFERENCE GUIDEUVO SYSTEM USER'S MANUAL

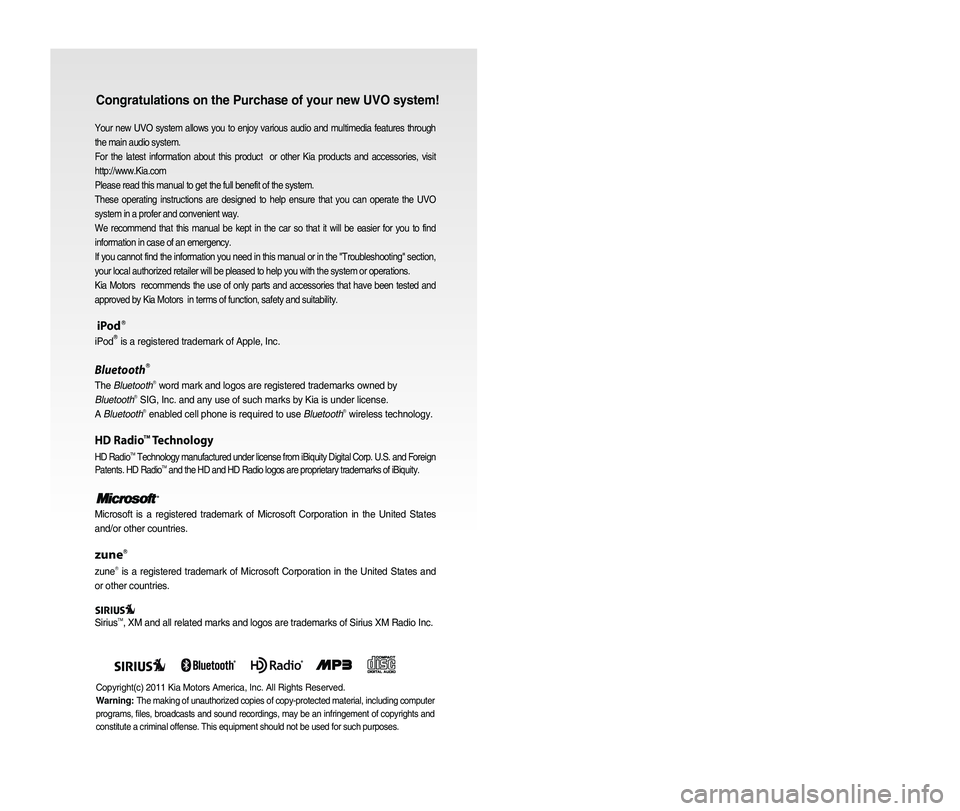

Congratulations on the Purchase of your new UVO system!
Your new UVO system allows you to enjoy various audio and multimedia fea\
tures through
the main audio system.
For the latest information about this product or other Kia products and accessories, visit
http://www.Kia.com
Please read this manual to get the full benefit of the system.
These operating instructions are designed to help ensure that you can operate the UVO
system in a profer and convenient way.
We recommend that this manual be kept in the car so that it will be easi\
er for you to find
information in case of an emergency.
If you cannot find the information you need in this manual or in the "Tr\
oubleshooting" section,
your local authorized retailer will be pleased to help you with the syst\
em or operations.
Kia Motors recommends the use of only parts and accessories that have been tested \
and
approved by Kia Motors in terms of function, safety and suitability.
iPodⓇ
iPodⓇ is a registered trademark of Apple, Inc.
BluetoothⓇ
The BluetoothⓇ word mark and logos are registered trademarks owned by
BluetoothⓇ SIG, Inc. and any use of such marks by Kia is under license.
A BluetoothⓇ enabled cell phone is required to use BluetoothⓇ wireless technology.
HD RadioTM Technology
HD RadioTM Technology manufactured under license from iBiquity Digital Corp. U.S. \
and Foreign
Patents. HD RadioTM and the HD and HD Radio logos are proprietary trademarks of iBiquity.
Microsoft is a registered trademark of Microsoft Corporation in the Unit\
ed States
and/or other countries.
zuneⓇ
zuneⓇ is a registered trademark of Microsoft Corporation in the United States and
or other countries.
SiriusTM, XM and all related marks and logos are trademarks of Sirius XM Radio I\
nc.
Copyright(c) 2011 Kia Motors America, Inc. All Rights Reserved.
Warning:
The making of unauthorized copies of copy-protected material, including \
computer
programs, files, broadcasts and sound recordings, may be an infringement of copyrights and
constitute a criminal offense. This equipment should not be used for suc\
h purposes.

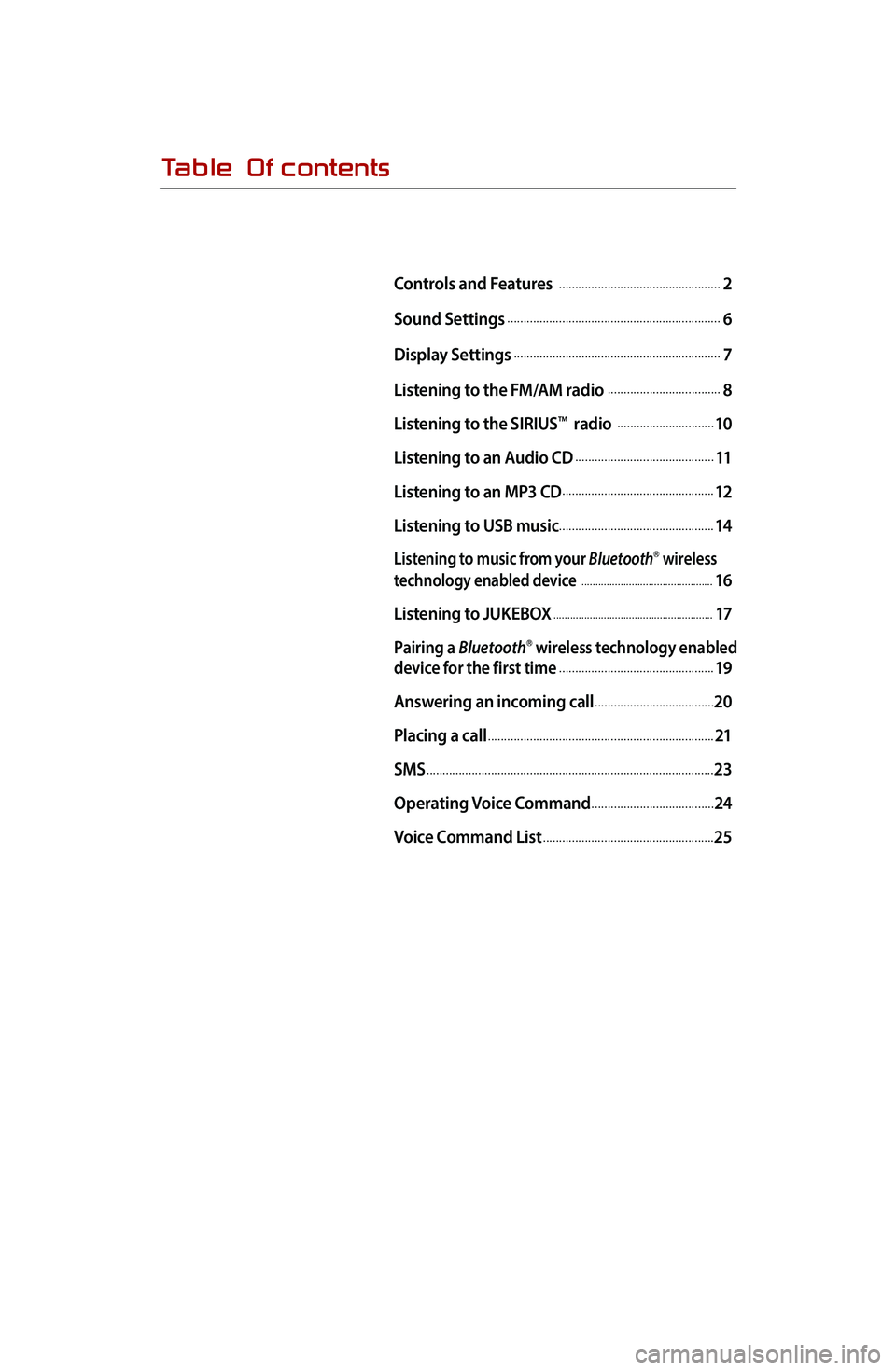

Table Of contents
Controls and Features ...................................................2
Sound Settings
...................................................................6
Display Settings
.................................................................7
Listening to the FM/AM radio
....................................8
Listening to the SIRIUS
TM radio ...............................10
Listening to an Audio CD
............................................11
Listening to an MP3 CD
................................................12
Listening to USB music
.................................................14
Listening to music from your BluetoothⓇ wireless
technology enabled device
...............................................16
Listening to JUKEBOX
.........................................................17
Pairing a BluetoothⓇ wireless technology enabled
device for the first time.................................................19
Answering an incoming call
......................................20
Placing a call
.......................................................................21
SMS
..........................................................................................23
Operating Voice Command
.......................................24
Voice Command List
......................................................25

2

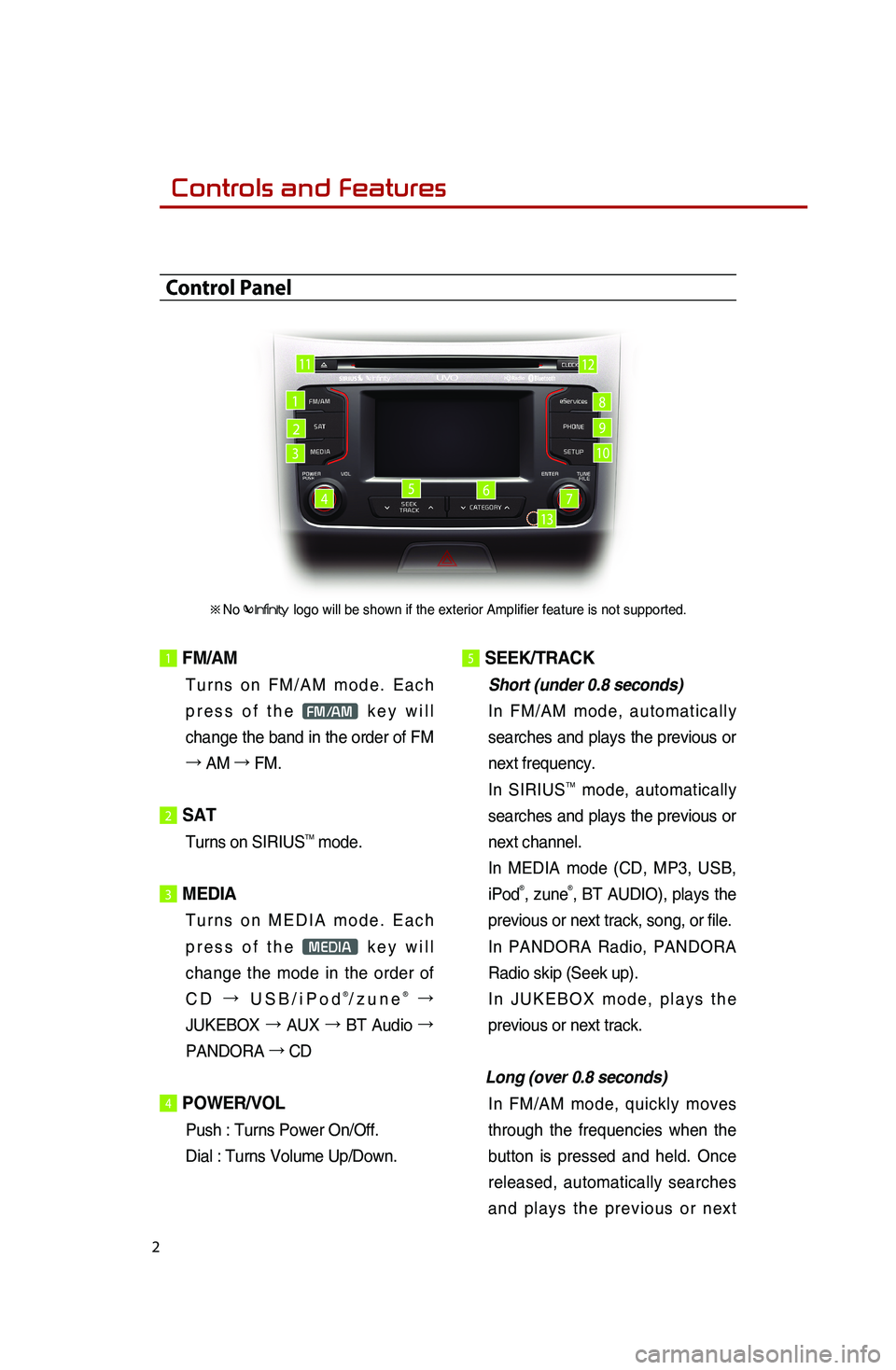

1 FM/AM

Turns on FM/AM mode. Each
press of the
FM/AM key will
change the band in the order of FM
→ AM →
FM.
2 SAT
Turns on SIRIUSTM mode.
3 MEDIA
Turns on MEDIA mode. Each
press of the
MEDIA key will
change the mode in the order of
CD →
USB/iPod
®/zune® →
JUKEBOX →
AUX →
BT Audio →
PANDORA →
CD
4 POWER/VOL
Push : Turns Power On/Off.
Dial : Turns Volume Up/Down.
5 SEEK/TRACK
Short (under 0.8 seconds)
In FM/AM mode, automatically
searches and plays the previous or
next frequency.
In SIRIUS
TM mode, automatically
searches and plays the previous or
next channel.
In MEDIA mode (CD, MP3, USB,
iPod
®, zune®, BT AUDIO), plays the
previous or next track, song, or file.
In PANDORA Radio, PANDORA
Radio skip (Seek up).
In JUKEBOX mode, plays the
previous or next track.

Long (over 0.8 seconds)
In FM/AM mode, quickly moves
through the frequencies when the
button is pressed and held. Once
released, automatically searches
and plays the previous or next
Control Panel
1
2
3
456
8
9
10
1112
※No logo will be shown if the exterior Amplifier feature is not supported.
7
13
0001Controls and Features

3

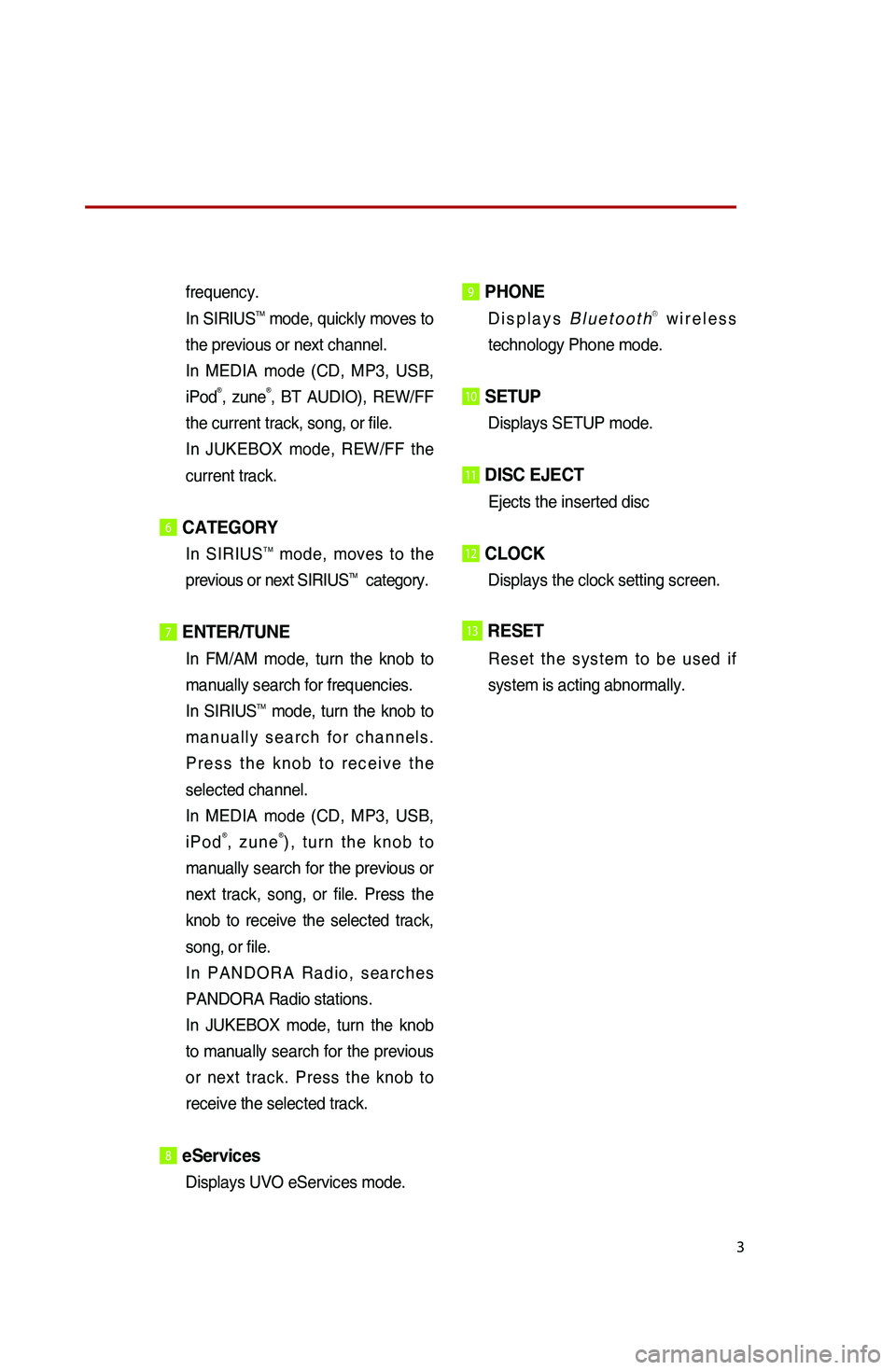

frequency.
In SIRIUSTM mode, quickly moves to
the previous or next channel.
In MEDIA mode (CD, MP3, USB,
iPod
®, zune®, BT AUDIO), REW/FF
the current track, song, or file.
In JUKEBOX mode, REW/FF the
current track.
6CATEGORY
In SIRIUSTM mode, moves to the
previous or next SIRIUSTM category.
7 ENTER/TUNE
In FM/AM mode, turn the knob to
manually search for frequencies.
In SIRIUS
TM mode, turn the knob to
manually search for channels.
Press the knob to receive the
selected channel.
In MEDIA mode (CD, MP3, USB,
iPod
®, zune®), turn the knob to
manually search for the previous or
next track, song, or file. Press the
knob to receive the selected track,
song, or file.
In PANDORA Radio, searches
PANDORA Radio stations.
In JUKEBOX mode, turn the knob
to manually search for the previous
or next track. Press the knob to
receive the selected track.
8 eServices
Displays UVO eServices mode.
9 PHONE
Displays BluetoothⓇ wireless
technology Phone mode.
10 SETUP
Displays SETUP mode.
11 DISC EJECT
Ejects the inserted disc
12 CLOCK
Displays the clock setting screen.
13RESET
Reset the system to be used if
system is acting abnormally.

4

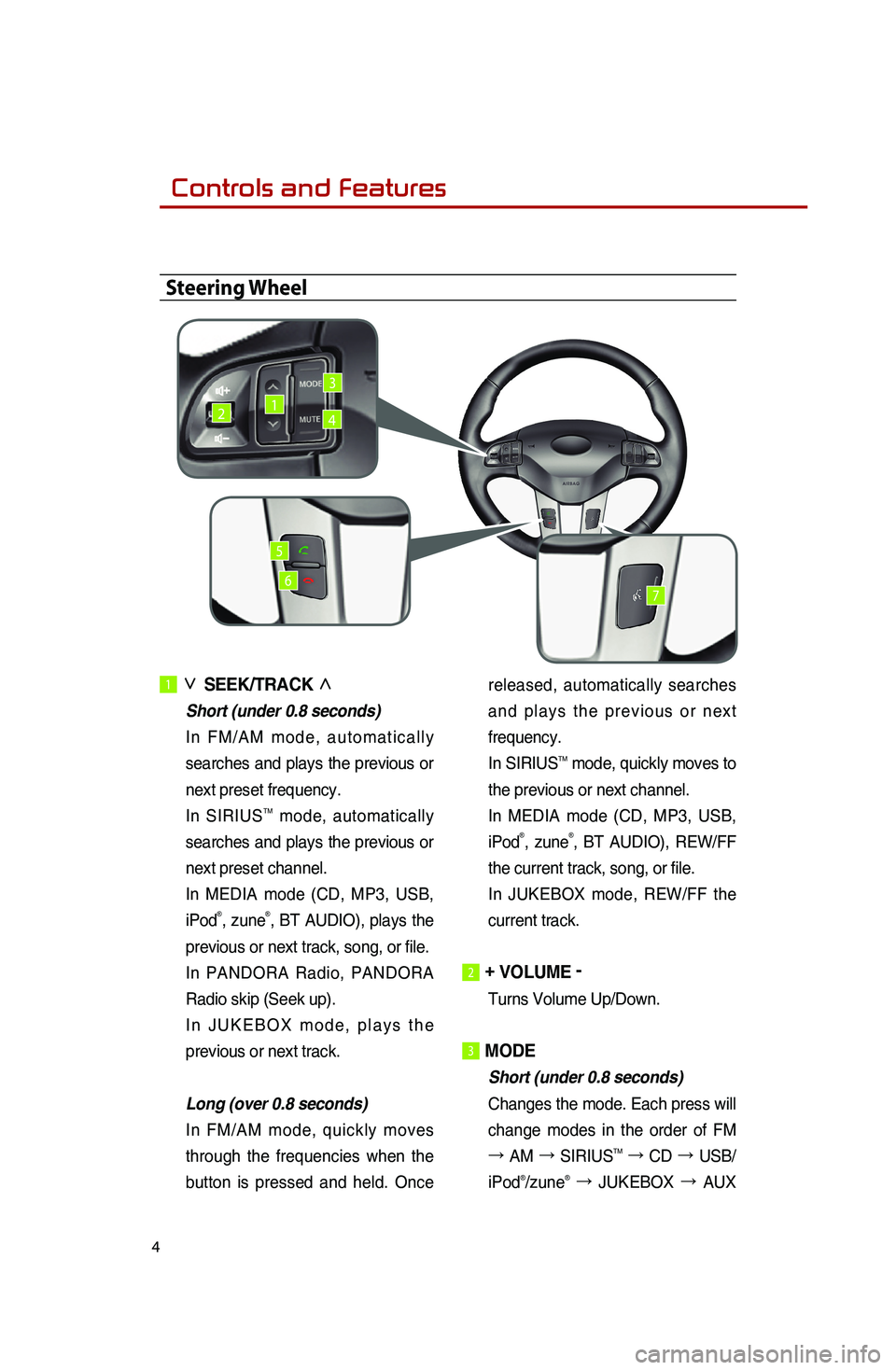

1 ∨ SEEK/TRACK ∧
Short (under 0.8 seconds)
In FM/AM mode, automatically
searches and plays the previous or
next preset frequency.
In SIRIUS
TM mode, automatically
searches and plays the previous or
next preset channel.
In MEDIA mode (CD, MP3, USB,
iPod
®, zune®, BT AUDIO), plays the
previous or next track, song, or file.
In PANDORA Radio, PANDORA
Radio skip (Seek up).
In JUKEBOX mode, plays the previous or next track.
Long (over 0.8 seconds)
In FM/AM mode, quickly moves
through the frequencies when the
button is pressed and held. Once released, automatically searches
and plays the previous or next
frequency.
In SIRIUS
TM mode, quickly moves to
the previous or next channel.
In MEDIA mode (CD, MP3, USB,
iPod
®, zune®, BT AUDIO), REW/FF
the current track, song, or file.
In JUKEBOX mode, REW/FF the
current track.
2 + VOLUME -

Turns Volume Up/Down.
3 MODE
Short (under 0.8 seconds)
Changes the mode. Each press will
change modes in the order of FM
→
AM →
SIRIUS
TM →
CD →
USB/
iPod®/zune® →
JUKEBOX →
AUX
Steering Wheel
142
3
5
67
0001Controls and Features

5

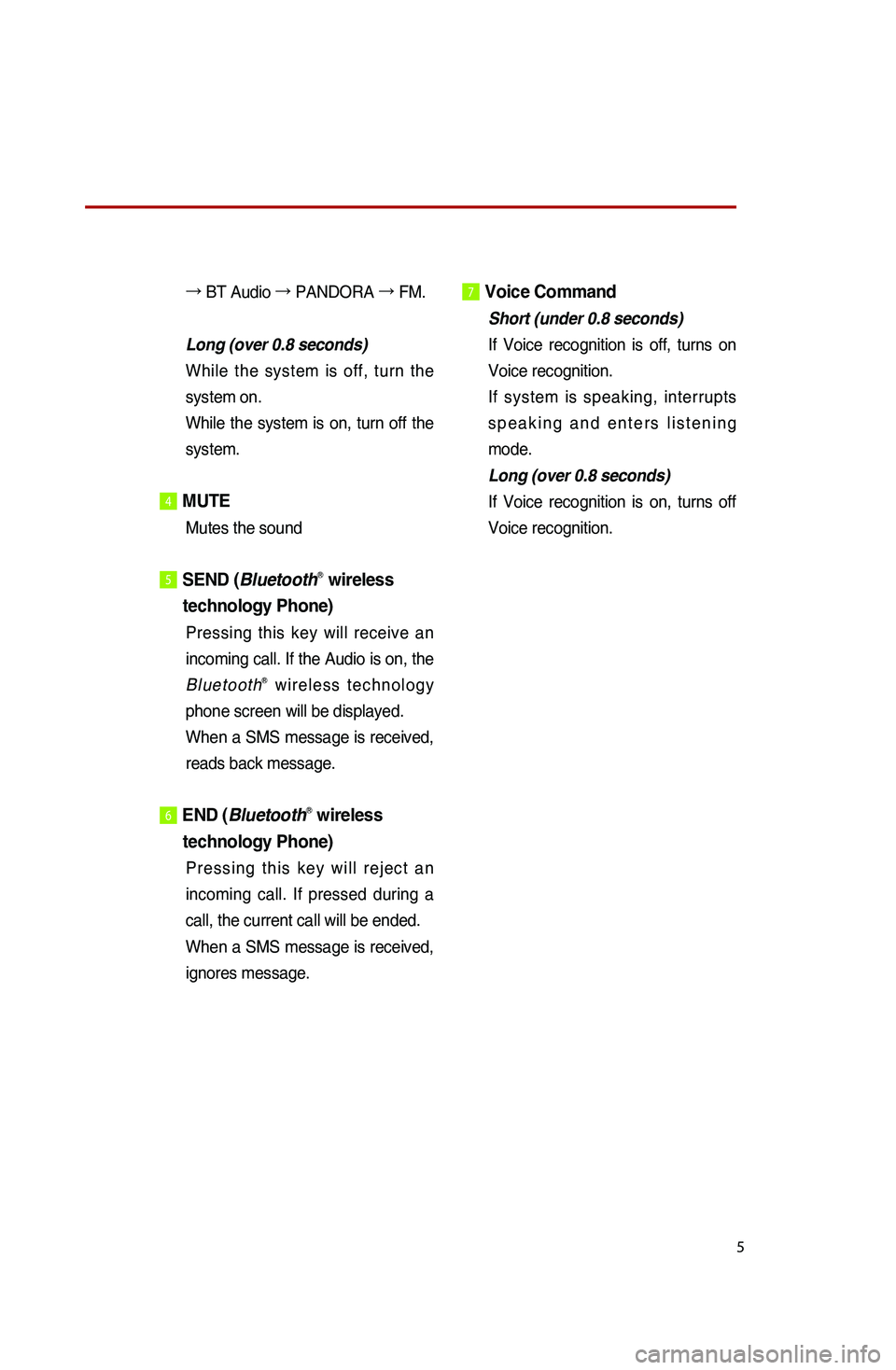

→ BT Audio →
PANDORA →
FM.
Long (over 0.8 seconds)
While the system is off, turn the
system on.
While the system is on, turn off the
system.
4 MUTE
Mutes the sound
5 SEND (BluetoothⓇ wireless
technology Phone)
Pressing this key will receive an
incoming call. If the Audio is on, the
Bluetooth
Ⓡ wireless technology
phone screen will be displayed.
When a SMS message is received,
reads back message.
6 END (BluetoothⓇ wireless
technology Phone)
Pressing this key will reject an
incoming call. If pressed during a
call, the current call will be ended.
When a SMS message is received,
ignores message.
7Voice Command
Short (under 0.8 seconds)
If Voice recognition is off, turns on
Voice recognition.
If system is speaking, interrupts
speaking and enters listening
mode.
Long (over 0.8 seconds)
If Voice recognition is on, turns off
Voice recognition.

6

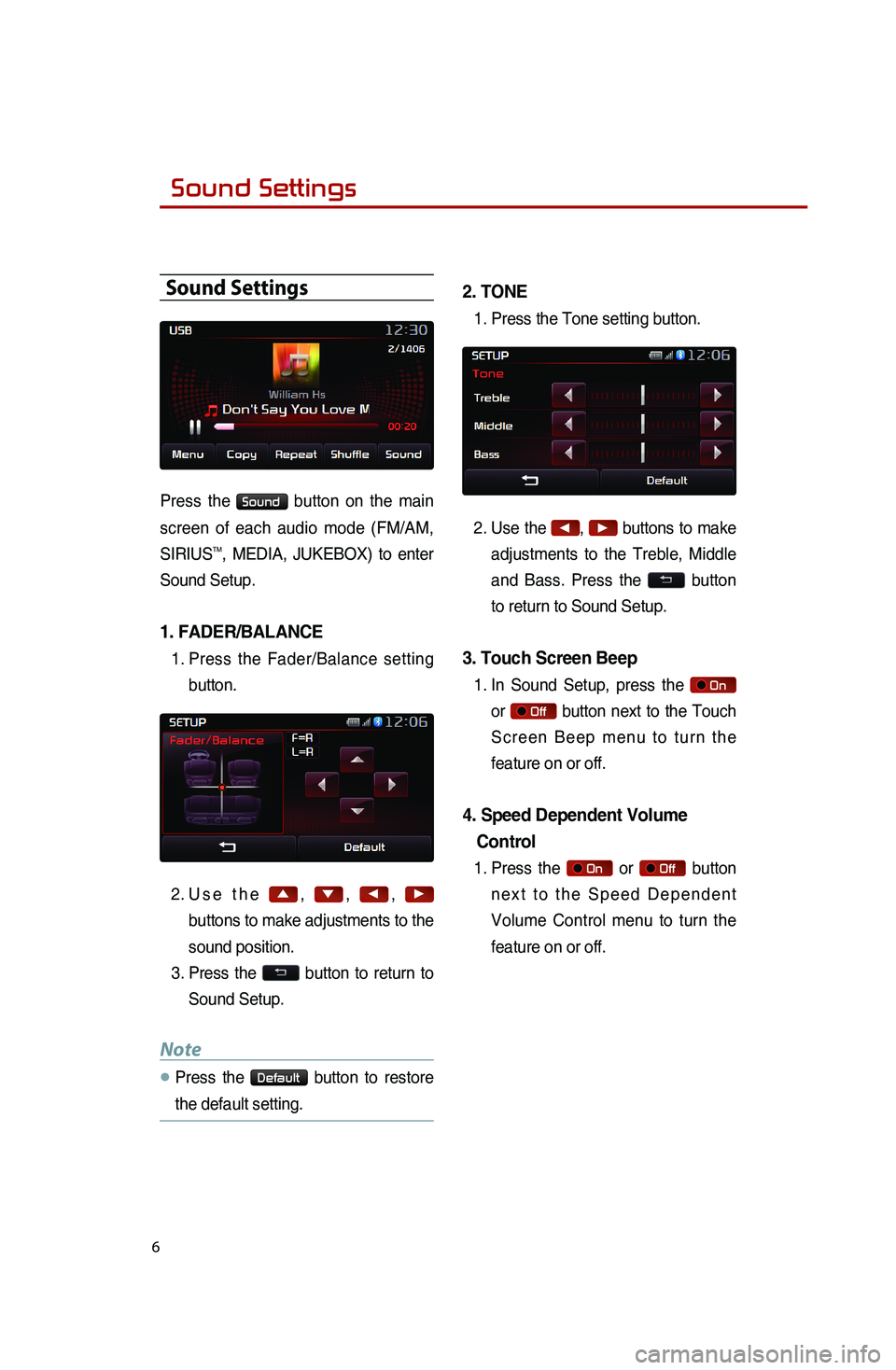

Sound Settings
Press the Sound button on the main
screen of each audio mode (FM/AM,
SIRIUS
TM, MEDIA, JUKEBOX) to enter
Sound Setup.
1. FADER/BALANCE
1. Press the Fader/Balance setting
button.
2. Use the
▲, ▼, ◀, ▶
buttons to make adjustments to the
sound position.
3. Press the
button to return to
Sound Setup.
Note
●.Press the Default button to restore
the default setting.
2. TONE
1. Press the Tone setting button.
2. Use the
◀, ▶ buttons to make
adjustments to the Treble, Middle
and Bass. Press the
button
to return to Sound Setup.
3. Touch Screen Beep
1. In Sound Setup, press the On
or
Off button next to the Touch
Screen Beep menu to turn the
feature on or off.
4. Speed Dependent Volume
Control
1. Press the On or Off button
next to the Speed Dependent
Volume Control menu to turn the
feature on or off.
0001Sound Settings

7

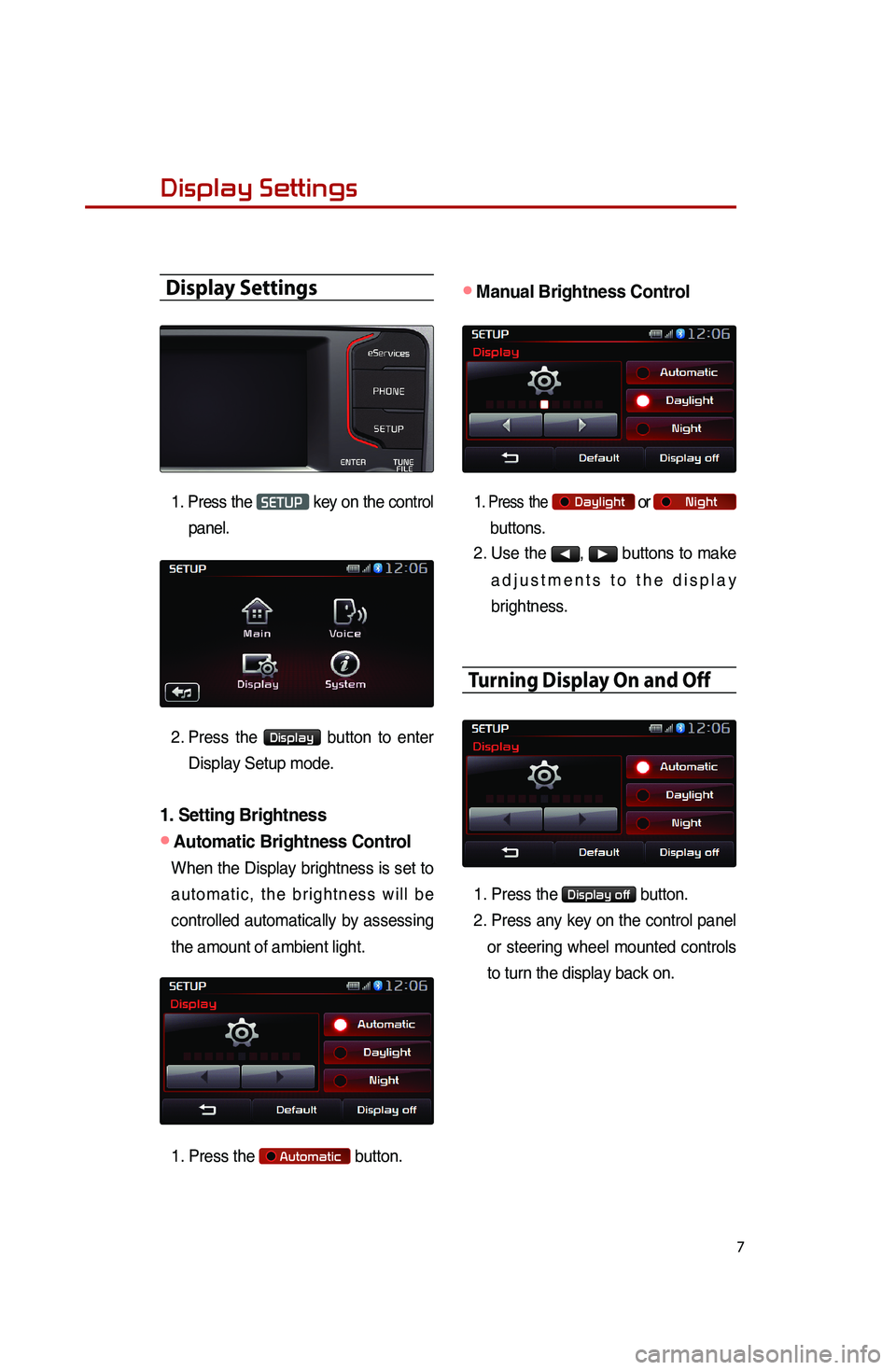

Display Settings
Display Settings
1. Press the SETUP key on the control
panel.
2. Press the
Display button to enter
Display Setup mode.
1. Setting Brightness
●Automatic Brightness Control
When the Display brightness is set to
automatic, the brightness will be
controlled automatically by assessing
the amount of ambient light.
1. Press the
Automatic button.
●Manual Brightness Control
1. Press the Daylight or Night
buttons.
2. Use the
◀, ▶ buttons to make
adjustments to the display
brightness.
Turning Display On and Off
1. Press the Display off button.
2. Press any key on the control panel
or steering wheel mounted controls
to turn the display back on.

8

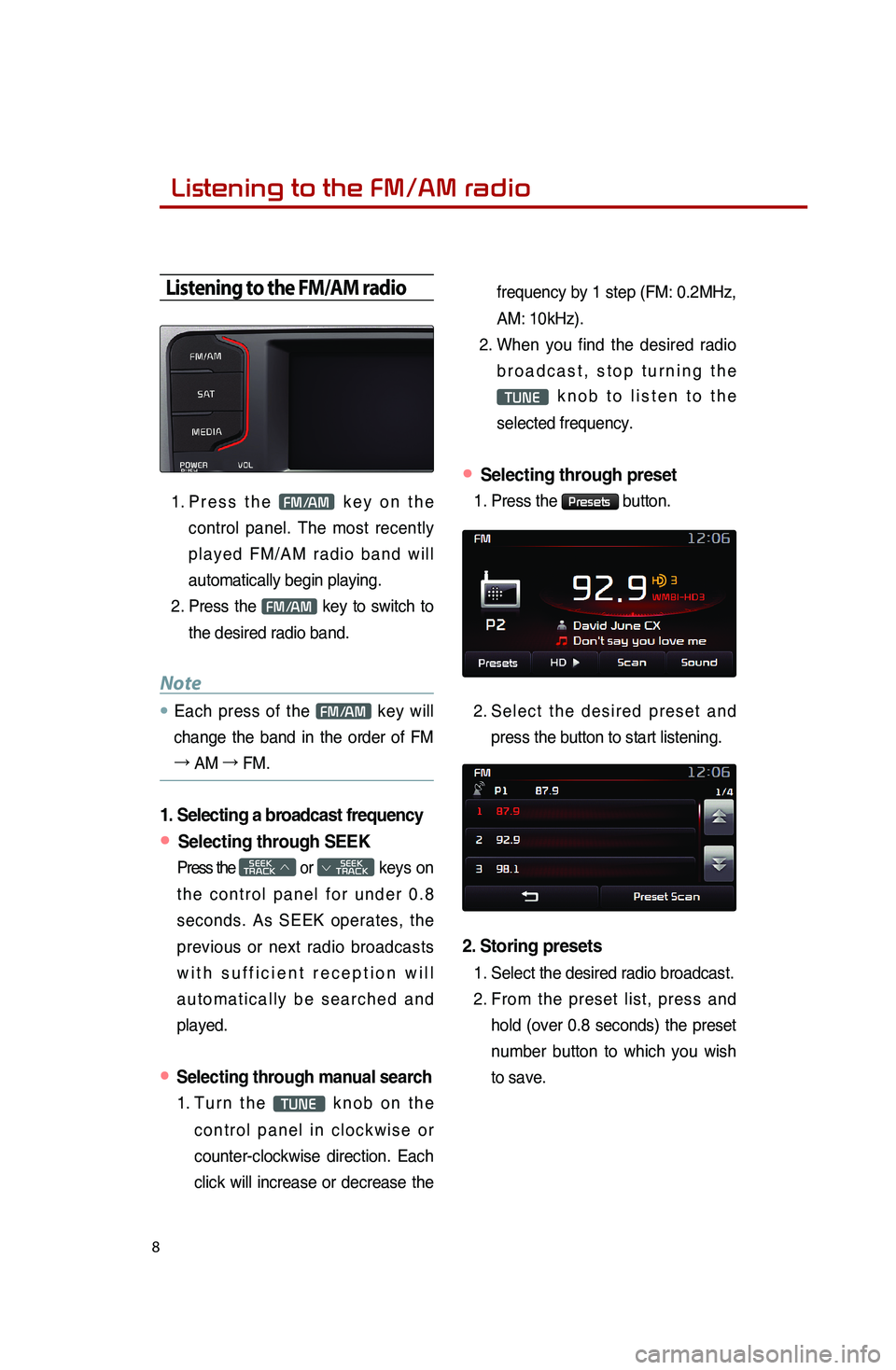

Listening to the FM/AM radio
Listening to the FM/AM radio
1. Press the FM/AM key on the
control panel. The most recently
played FM/AM radio band will
automatically begin playing.
2. Press the
FM/AM key to switch to
the desired radio band.
Note
● Each press of the FM/AM key will
change the band in the order of FM
→ AM →
FM.
1. Selecting a broadcast frequency
● Selecting through SEEK
Press the SEEK
TRACK ∧ or
SEEK
∨ TRACK keys on
the control panel for under 0.8
seconds. As SEEK operates, the
previous or next radio broadcasts
with sufficient reception will
automatically be searched and
played.
● Selecting through manual search
1. Turn the TUNE knob on the
control panel in clockwise or
counter-clockwise direction. Each
click will increase or decrease the frequency by 1 step (FM: 0.2MHz,
AM: 10kHz).
2. When you find the desired radio
broadcast, stop turning the
TUNE knob to listen to the
selected frequency.
● Selecting through preset
1. Press the Presets button.
2.
Select the desired preset and
press the button to start listening.
2. Storing presets
1. Select the desired radio broadcast.
2. From the preset list, press and
hold (over 0.8 seconds) the preset
number button to which you wish
to save.
