INSTRUMENT CLUSTER
9
INSTRUMENT CLUSTER
Head-Up Display is a supplemental system. Do not solely rely on the system, always drive safely, and pay attention to the driving conditions on the road.
Images are for illustrative purposes only and may not reflect actual feature or operation. See section 4 in the Owner’s Manual for more information.

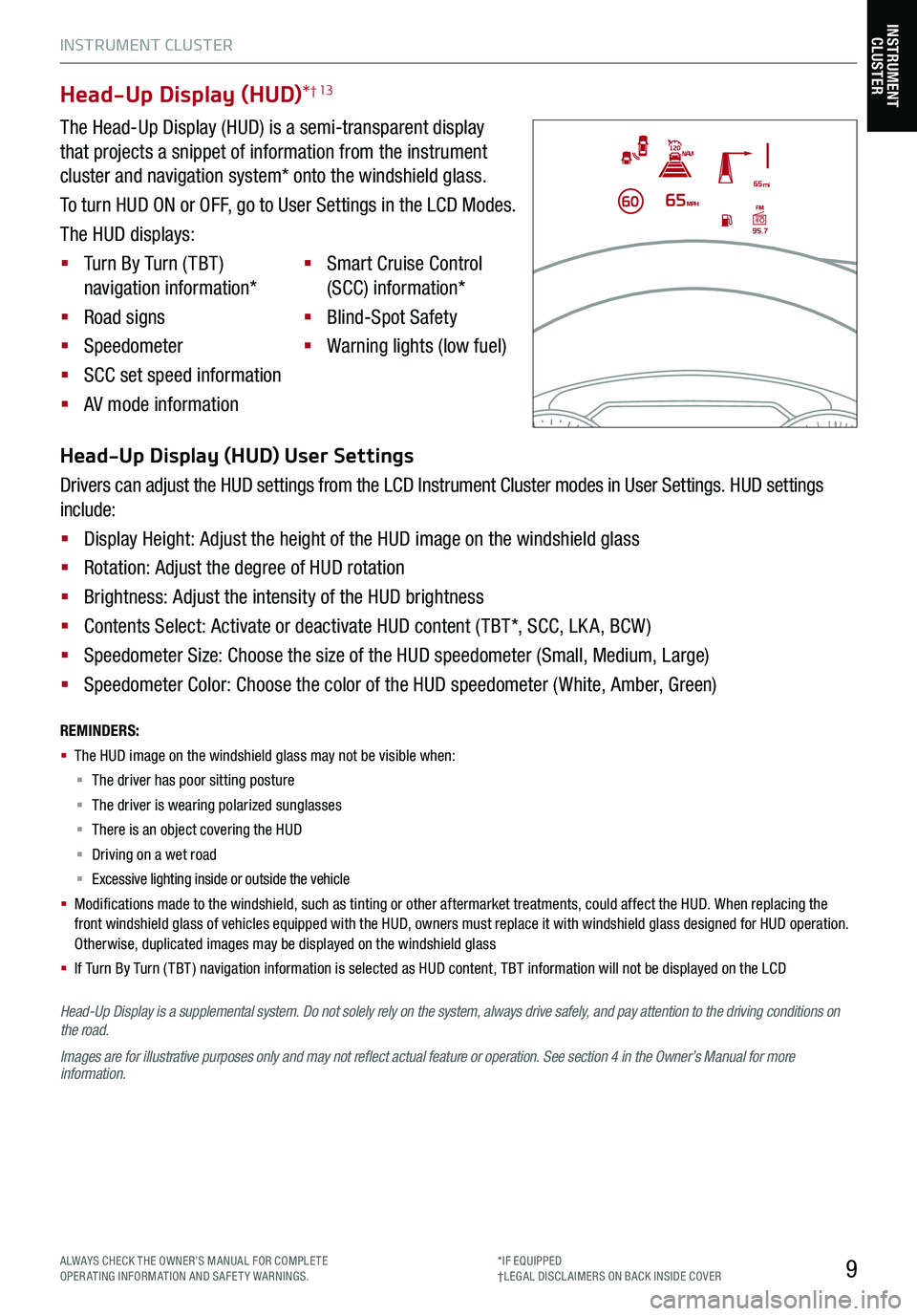

Head-Up Display (HUD)*† 13
The Head-Up Display (HUD) is a semi-transparent display
that projects a snippet of information from the instrument
cluster and navigation system* onto the windshield glass.
To turn HUD ON or OFF, go to User Settings in the LCD Modes.
The HUD displays:
§ Turn By Turn ( TBT )
navigation information*
§ Road signs
§ Speedometer
§ SCC set speed information
§ AV mode information
§ Smart Cruise Control
(SCC) information*
§ Blind-Spot Safety
§ Warning lights (low fuel)
Head-Up Display (HUD) User Settings
Drivers can adjust the HUD settings from the LCD Instrument Cluster modes in User Settings. HUD settings
include:
§ Display Height: Adjust the height of the HUD image on the windshield glass
§ Rotation: Adjust the degree of HUD rotation
§ Brightness: Adjust the intensity of the HUD brightness
§ Contents Select: Activate or deactivate HUD content ( TBT*, SCC, LK A, BCW )
§ Speedometer Size: Choose the size of the HUD speedometer (Small, Medium, Large)
§ Speedometer Color: Choose the color of the HUD speedometer ( White, Amber, Green)
REMINDERS:
§
The HUD image on the windshield glass may not be visible when:
§
The driver has poor sitting posture
§ The driver is wearing polarized sunglasses
§ There is an object covering the HUD
§ Driving on a wet road
§ Excessive lighting inside or outside the vehicle
§ Modifications made to the windshield, such as tinting or other aftermarket treatments, could affect the HUD. When replacing the front windshield glass of vehicles equipped with the HUD, owners must replace it with windshield glass designed for HUD operation. Otherwise, duplicated images may be displayed on the windshield glass
§ If Turn By Turn ( TBT ) navigation information is selected as HUD content, TBT information will not be displayed on the LCD
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPERATING INFORMATION AND SAFETY WARNINGS.*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
Page 12 of 62
VEHICLE SET TINGS
10
VEHICLE SETTINGSCRUISE
CANCEL
RESOKSET
LCD Instrument Cluster Modes*
The LCD Instrument Cluster modes can be changed by using the mode button A on the right side of the
steering wheel.
Modes (Type B Instrument Cluster):
Trip Information / Trip Computer
The Trip Computer is a driver information system that displays
information related to driving when the Engine Start /Stop button is in
the ON position.
To cycle through the LCD Instrument Cluster modes, press the Mode
button A on the right side of the steering wheel.
When in the Trip Computer mode , press the Select /Reset (OK )
button B to cycle through the screens. When displaying the TRIP
screens, press and hold the OK button to reset the TRIP to zero.
REMINDERS:
§ Appearance of Tripmeter display may differ as equipped
§ All stored driving information (except Odometer and Range) is reset if the battery is disconnected
Sport Mode*: This mode displays Gauge, Lap Timer, G-Force
Trip Computer Mode: Displays driving information for fuel economy, accumulated info, etc.
Turn-by-Turn Mode*: Displays the route guidance and destination info
Driving Assist Mode: Displays the Lane Safety*, Driver Attention Warning*, Smart Cruise Control* and TPMS info
User Settings Mode: Change settings of the doors, lamps convenience, service interval and other features
Master Warning Mode: Displays warning messages related to the vehicle when one or more systems is not operating normally
Your vehicle’s steering wheel buttons and LCD modes may differ from those in the illustrations.
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering wheel mounted controls while driving.See section 4 in the Owner’s Manual for more information.
See section 4 in the Owner’s Manual for more information.
Drive Info• Tr ipme t e r • Fuel Economy • Timer
Accumulated Info• Tr ipme t e r • Average Fuel Economy • Timer
TRIP• Average Fuel Economy • Instant Fuel Economy
Drive Mode
Digital Speedometer
(Modes on Instrument Cluster LCD)
CRUISE
CANCEL
RESOKSET
A
B
*IF EQUIPPED
Page 13 of 62
VEHICLE SET TINGS
11
To enter the User Settings mode in the LCD
Instrument Cluster Modes, press the Mode
button A when the vehicle is at a standstill
and with the Engine Start /Stop button in the
ON position and select User Settings .
You can navigate the selections on the display
by pressing the Select /Reset (OK ) button B up
or down, and then pressing again to enter.
User Settings Modes:
Head-Up Display (HUD)*: Enable HUD, Display Height, Rotation, Brightness, Content Selection, Speed Size, Speed Color
Driving Assist: Smart Cruise Control (SCC) Reaction*, Driver Attention Warning*, Lane Safety*, Forward Collision-Avoidance Assist (FCA)*, Forward Collision Warning (FCW )*, Blind-Spot Collision Warning, Blind-Spot Collision Warning* Sound
Door/Liftgate: Automatically Lock, Automatically Unlock, Two-press Unlock*, Power Liftgate*, Smart Liftgate*
Lights: One-Touch Turn Signal, Ambient Light Brightness*, Ambient Light Color*, Headlamp Delay
Sound: Parking Distance Warning Volume*, Welcome Sound*
Convenience: Seat Easy Access*, Steering Easy Access*, Welcome Mirror/Light*, Wiper/Light Display*, Gear Position Pop-Up*, Icy Road Warning*, Lateral Seat Support Enhancement*
Service Interval: Service Interval On/Off, Adjust Service Interval, Reset
Other Features: Fuel Economy Auto Reset, Fuel Economy Unit, Temperature Unit, Tire Pressure Unit, Torque Unit*
Language: Choose the language
Reset: Reset User Settings to factory default
User Settings
CRUISE
CANCEL
RESOKSET
(Button layout on right of steering wheel)
A
B
To view videos on your mobile device, snap these QR Codes or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
LCD DISPLAY VIDEO
LCD DISPLAY: MAINTENANCE VIDEO
See section 4 in the Owner’s Manual for more information.
When Service Interval Mode is activated, set and vehicle service is required,
the following message will be displayed on the LCD: Service Required, along
with the remaining days/miles till service is due.
Service Interval Mode ON and Interval Setting
To activate Service Interval Mode and set the interval, press the Mode button A, scroll to User Settings and press Select /Reset (OK ) button B to enter.
Then press the OK button B up/down to scroll to Service Interval Mode and again to enter. Press the OK
button B up/down to select the option to set the interval. Adjust interval and press the OK button B to
save. To reset the Service Interval Mode system, press and hold the OK button B for more than 1 second.
Service Interval Mode Off
To turn Service Required OFF, go to User Settings and scroll to Service Interval Mode, press the OK button B to enter. Select option to deactivate and press the OK button B to save.
Service Interval Mode
Service in
-20 mi-5 day
Service required
See section 4 in the Owner’s Manual for more information.
VEHICLE SETTINGS
*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
Page 14 of 62
12*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
ADAS(Button located on driver’s panel, left of the steering wheel)
(Blind-spot area monitoring)
( Vehicle approaching at high speed monitoring)
Blind-Spot Collision Warning (BCW)†6
Blind-Spot Collision Warning uses rear corner radar sensors in the rear bumper
to monitor and warn the driver if it detects an approaching vehicle in the driver’s
blind spot area and before changing lanes.
The system will activate when the vehicle is traveling
more than 20 mph and will alert the driver if another
vehicle is detected by the radar sensor.
With the Engine Start /Stop button in the ON position,
press the BCW button A to turn the system ON. The
button light will illuminate. The outside rearview mirror
warning lights will also illuminate for 3 seconds.
1st-stage warning: When another vehicle is detected within the BCW warning
boundary B, a yellow indicator will illuminate on the outside rearview mirrors C.
2nd-stage warning: When 1st stage warning is on and the driver activates a
turn signal, a flashing yellow indicator will illuminate on the outside rearview
mirrors and the system will sound an alert.
REMINDERS:
§ BCW will not issue a warning if the vehicle speed is 6 mph or more above the surrounding vehicles
§ When BCW is ON and the ignition is cycled, BCW returns to its previous state
§
BCW and RCCW are supplemental systems. Do not solely rely on these systems and always pay attention the road and its conditions and drive safely.
See section 5 in the Owner’s Manual for more information.
REMINDERS:
§ The RCCA Warning sound can be adjusted in the User Settings* or the Vehicle Settings* on the audio head unit
§ When vehicle power is cycled, RCCA will remain in the previous state RCCA can be turned OFF/ON in User Settings
§ RCCA will show a warning if the approaching vehicle speed is between 2.5-22 mph within sensing range. See owner’s manual for other conditions
§ RCCA is a supplemental system. Do not solely rely on this system and always pay attention to the road and its conditions
Rear Cross-Traffic Collision Warning (RCCW)†6
If Rear Cross-Traffic Collision Warning (RCCW ) sensors detect vehicles approaching from the rear left or rear
right side D, the system will sound an audible alert, the warning indicators on the outside rearview mirror will
illuminate and a message will appear on the LCD screen. RCCA may activate the Electronic Stability Control
(ESC) to help avoid an imminent collision. RCCA may temporarily apply braking power when an approaching
vehicle is detected within a certain distance next to or behind the vehicle.
RCCW is designed to operate under these conditions:
§ When the vehicle is in Reverse
§ When the vehicle is moving less than 6 mph
A
B
See section 5 in the Owner’s Manual for more information.D
C
BLIND-SPOT COLLISION WARNING VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
§ BCW will activate when:
§ The system is turned on
§ Vehicle speed is above approximately 20 mph
§ Other vehicles are detected on the rear sides of the vehicle
QUICK TIP
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 15 of 62
13
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPERATING INFORMATION AND SAFETY WARNINGS.*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
Forward Collision-Avoidance Assist (FCA)*† 10
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian
in the roadway through front view camera recognition and front radar signals
to warn the driver that a collision is imminent, and if necessary, apply
emergency braking. Initially, FCA provides a Forward Collision Warning when it
detects a potential collision with a vehicle or a pedestrian in front, emitting an
audible warning and visual alert on the instrument cluster A.
Adjust the Warning Time (Early, Normal, Late) in the User Settings. FCA is ON
by default and can be turned OFF in the User Settings, selecting Driving Assist,
then Forward Collision-Avoidance Assist.
If the system detects that the collision risk has increased, Forward Collision-
Avoidance Assist (FCA) automatically applies the brakes to reduce your speed,
potentially helping to reduce the effects of a possible collision.
FCA will become active when the:
§ Engine Start /Stop button is ON
§ Vehicle is traveling more than 5 mph
§ Electronic Stability Control (ESC) is ON
REMINDERS:
§ FCA will be activated by default when the ignition is cycled ON, even when previous setting was OFF
§ FCA will not operate when the vehicle is traveling more than approximately 45/50 mph, respectively
§ If FCA is operating and the ESC (Electronic Stability Control) is turned off, FCA is automatically turned off
§ When FCA is turned off, the FCA warning indicator illuminates on in the Instrument Cluster
Collision Warning
Emergency Braking
FORWARD COLLISION-AVOIDANCE ASSIST VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
Forward Collision-Avoidance Assist (FCA) is not a substitute for safe and proper driving. Always drive safely and use caution. FCA may not always alert the driver when the vehicle is approaching another vehicle.
Images are for illustrative purposes only and may not reflect actual feature or operation. See section 5 in the Owner’s Manual for more information.
A
Page 16 of 62
14*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
ADAS
Lane Keeping Assist (LKA)*†6
With the Engine Start /Stop button in the ON position, press the Lane Safety
button A to turn system ON. The instrument cluster indicator will initially
illuminate white. It will remain white when the vehicle is traveling less than
40 mph and the system does not detect lane markers. When LK A detects the lane
markers and can assist the steering, the Lane Safety icon will illuminate green.
If LK A detects that you are moving outside of your lane, the system may give
an audible warning and display a Lane Departure Warning on the instrument
cluster. If the vehicle continues to move outside of the lane, LK A will provide
steering inputs, trying to prevent the vehicle from moving outside its lane.
LK A is the operating mode by default when the Lane Safety button is
depressed to ON. To switch between modes (Active LK A, LK A and Lane
Departure Warning), go to User Settings in the Instrument Cluster.
The three available modes are:
Active LK A - Provides more frequent steering inputs than standard LK A
Lane Keeping Assist - Guides driver to keep vehicle within lanes and provides
steering inputs when vehicle is about to deviate from the lane
Lane Departure Warning - Alerts driver when the system detects
the vehicle leaving the lane. In this mode the system will not
provide steering inputs
All systems will activate under the following conditions:
§ The vehicle exceeds approximately 40 mph
§ LK A recognizes both sides of the lane markers the vehicle is
traveling in
§ The vehicle is between the lane markers
REMINDERS:
§
LK A will not issue a warning if the turn signal or hazard signal is activated
§
LK A will return to its previous state when the ignition is cycled
§ LK A is not a substitute for safe and proper driving. Always drive safely and use caution
§ LK A may not always alert the driver if the vehicle is about to be driven outside of its lane
When the front view camera detects the lane the vehicle’s traveling in, both lanes are illuminated
When the front view camera does not detect the lane the vehicle’s traveling in the lanes are not illuminated
When the front camera detects the vehicle moving outside of the lane the vehicle’s traveling in, a vehicle crossing lane indicator will blink, either on the left or right lane (as shown in both images above)
Lane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping Assist
(Button located on driver’s panel, left of the steering wheel)
A
LANE KEEPING ASSIST VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
Images are for illustrative purposes only and may not reflect actual feature or operation.
See section 5 in the Owner’s Manual for more information.
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 17 of 62
15
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPERATING INFORMATION AND SAFETY WARNINGS.*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER

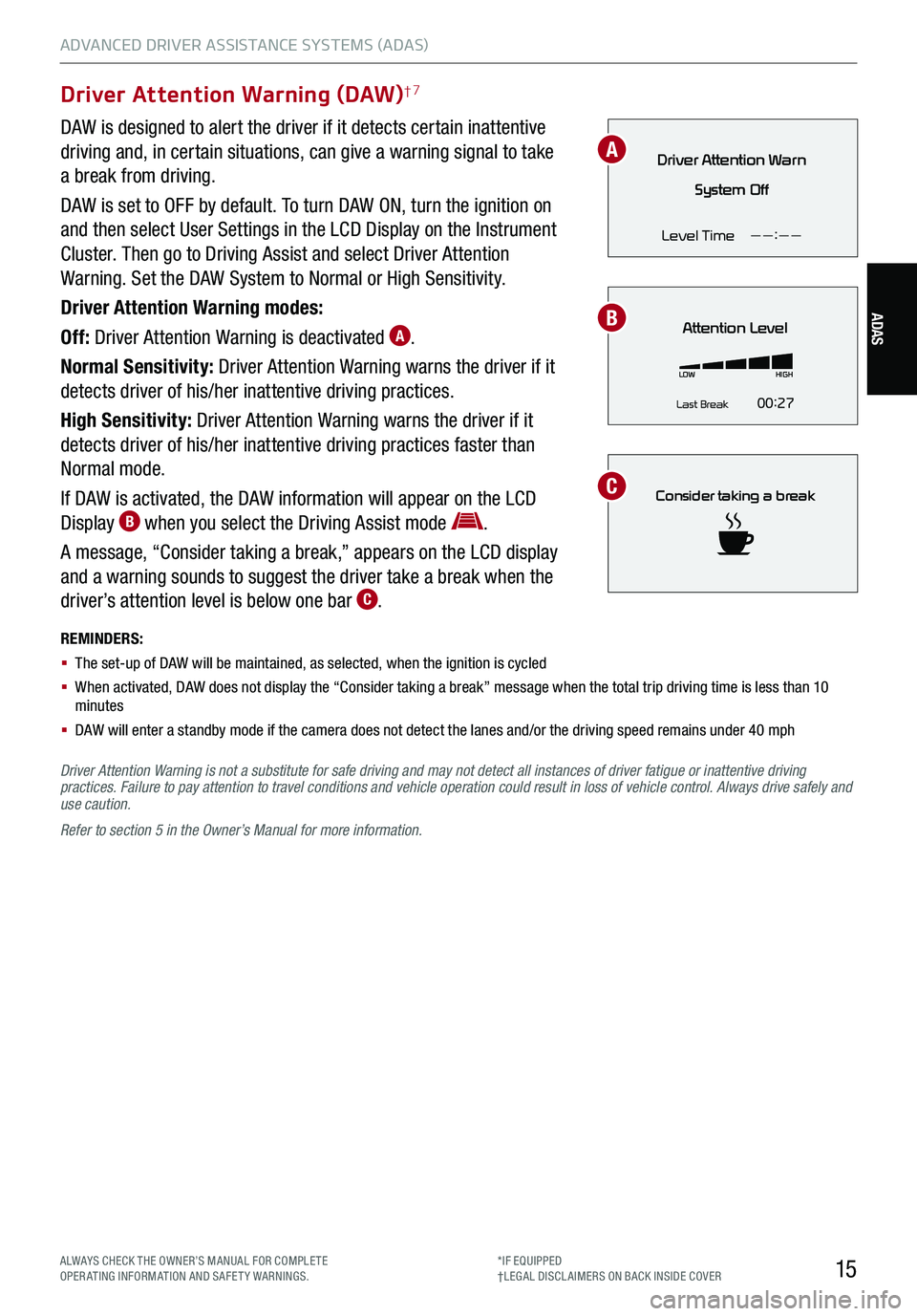

Driver Attention Warning (DAW)†7
DAW is designed to alert the driver if it detects certain inattentive
driving and, in certain situations, can give a warning signal to take
a break from driving.
DAW is set to OFF by default. To turn DAW ON, turn the ignition on
and then select User Settings in the LCD Display on the Instrument
Cluster. Then go to Driving Assist and select Driver Attention
Warning. Set the DAW System to Normal or High Sensitivity.
Driver Attention Warning modes:
Off: Driver Attention Warning is deactivated A.
Normal Sensitivity: Driver Attention Warning warns the driver if it
detects driver of his/her inattentive driving practices.
High Sensitivity: Driver Attention Warning warns the driver if it
detects driver of his/her inattentive driving practices faster than
Normal mode.
If DAW is activated, the DAW information will appear on the LCD
Display B when you select the Driving Assist mode .
A message, “Consider taking a break,” appears on the LCD display
and a warning sounds to suggest the driver take a break when the
driver’s attention level is below one bar C.
REMINDERS:
§ The set-up of DAW will be maintained, as selected, when the ignition is cycled
§ When activated, DAW does not display the “Consider taking a break” message when the total trip driving time is less than 10 minutes
§ DAW will enter a standby mode if the camera does not detect the lanes and/or the driving speed remains under 40 mph
Driver Attention Warn
System Off
Level Time ——:——
Attention Level
LOW HIGH
Last Break 00:27
Consider taking a break
Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.
Refer to section 5 in the Owner’s Manual for more information.
B
C
A
Page 18 of 62
DRIVER’S PANEL
16*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
P
R
N
D
AUTO
HOLD
DRIVE MODE
OFF
OFF
VIEW
P
For more information on Electronic Stability Control (ESC) and its specific features and operations, please refer to section 5 in the Owner’s Manual.
Refer to section 4 in the Owner’s Manual for more information.
Refer to section 5 in the Owner’s Manual for more information.
Instrument Cluster Control (Instrument Panel Dimmer)
With parking lights/headlights ON, press B (+) or (-) to adjust the
brightness of the Instrument panel illumination.
Electronic Stability Control (ESC)†8 / Traction Control System (TCS)†8
Electronic Stability Control (ESC) is designed to help stabilize the vehicle
during certain cornering maneuvers. Traction Control System ( TCS) can help
improve traction. It is a good idea to keep both ESC and TCS turned on
for daily driving whenever possible.
Press the ESC button A to turn Traction Control System OFF/ON.
To turn both Electronic Stability Control and Traction Control System OFF, press
and hold the ESC button for more than 3 seconds. Press again to turn ON.
Hill-start Assist Control (HAC)†8
Hill-start Assist Control (HAC) is designed to prevent the vehicle from rolling backwards when accelerating from
a stop while on a steep incline.
HAC automatically activates whether ESC is OFF or ON but does NOT activate when ESC has
malfunctioned.
REMINDERS:
§ HAC does not operate when the gear shift is in P (Park) or N (Neutral) position
§
HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
§ In the event of HAC system malfunction, see an Authorized Kia Dealer for service
A
B
ELECTRONIC STABILITY CONTROL VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
REMINDERS:
§ ESC is active by default at vehicle start-up. When ignition is cycled, ESC will turn ON again
§ The ESC indicator light in the instrument cluster will be lit momentarily whenever ESC is active
§
When HAC is active (e.g., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator. HAC does not replace the need to apply brakes while stopped on an incline
§ HAC provides a two-second delay before the vehicle may start rolling backwards
QUICK TIPS
DRIVER’S PANEL
Page 19 of 62
*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
DRIVER’S PANEL
17
DRIVER’S PANEL
REMINDER: When pressed C, the rear window controls for the Rear Passenger Windows are disabled
Button configuration may vary depending on vehicle model.
See section 4 in the Owner’s Manual for more information.
A Pull/Press to operate driver and front passenger’s window auto up/down
B Press to unlock /lock all doors
C Press to disable the rear passenger window controls
Power Windows, Window Lock & Central Door Lock
A
B
CE
DF
D
§ Press button A again to stop Auto Up/Down function
§ Auto Door Lock /Unlock* will engage when gear shift is moved in to or out of the P (Park) position
§
To turn Auto Door Lock /Unlock* OFF, go to User Settings* in the LCD Instrument Cluster Modes
§ While driving with the rear windows down or with the sunroof* in an open or partially open position, a wind buffeting or pulsation noise may be heard. This noise is a normal occurrence and can be reduced or eliminated by the following:
– If the noise occurs with one or both of the rear windows down, partially lower both front windows approximately 1 inch
– If the noise occurs with the sunroof open, slightly reduce the size of the sunroof opening
QUICK TIPS
Power Folding Outside Mirrors
D Press the L or R buttons to select the mirror to adjust
E Press button arrows left /right or up/down to adjust mirror position
F Toggle button left /right to unfold/fold the outside rearview mirrors
F Toggle button to center to automatically fold/unfold mirrors when:
§ Smart Key lock /unlock buttons are pressed
§ Outside door handle button is pressed
§ Driver approaches the vehicle with the Smart Key
(if activated in User Settings)
See section 4 in the Owner’s Manual for more information.
REMINDERS:
§ When the mirror toggle button is in the center, press the lock button twice on the Smart Key to automatically fold mirrors when exiting vehicle
§ To lock the mirror position, toggle button to the neutral (center) position
§ The mirrors will automatically unfold when the Smart Key is within close proximity to the vehicle (if activated in User Settings)
QUICK TIP
Page 20 of 62
18
Reverse Parking Aid Function
When the gear shift lever is moved into R (Reverse) and the vehicle is moving backwards, the outside
rearview mirrors will rotate downward to aid in reverse parking.
To turn Reverse Parking Aid Function ON, press the L (Left) A or R (Right) B outside rearview mirror
button (LED lit).
To turn OFF, press button(s) again.
The outside rearview mirrors will automatically return to their original positions when:
§ The Engine Start /Stop button is in the OFF position
§ The gear shift lever is moved out of R (Reverse)
§
The outside rearview mirror switches are OFF (LED not lit)
REMINDER: When the buttons are not pressed, the Reverse Parking Aid Function will not operate and the outside rearview mirrors will not rotate downward.
See section 4 in the Owner’s Manual for more information.
(Mirror shown is for illustrative purposes only)
A
B
DRIVER’S PANEL
Heated Outside Mirrors
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned ON/OFF.
Rear Window Defroster button* is located on climate control system panel.
See section 4 in the Owner’s Manual for more information.
Auto Door Lock/Unlock
Auto Door Lock /Unlock will engage when gear shift is moved into or out of the P (Park) position. Refer to
the User Settings on how to turn Auto Door Lock /Unlock ON/OFF.
See section 4 in the Owner’s Manual for more information.
DRIVER’S PANEL
*IF EQUIPPED
