KIA STINGER 2021 Features and Functions Guide

39
CENTER PANEL
CENTER PANEL

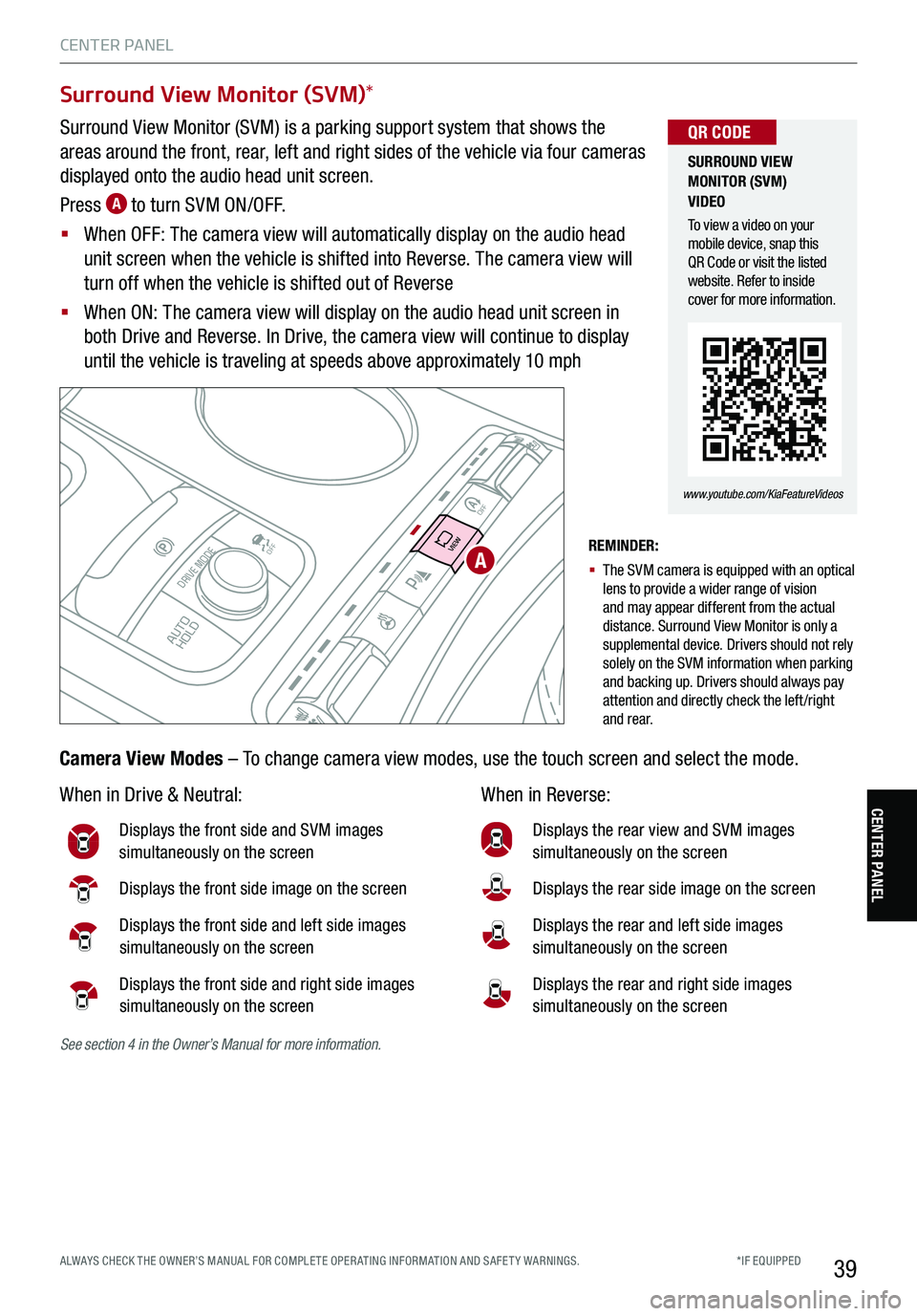

Surround View Monitor (SVM)*
Surround View Monitor (SVM) is a parking support system that shows the
areas around the front, rear, left and right sides of the vehicle via four cameras
displayed onto the audio head unit screen.
Press A to turn SVM ON/OFF.
§ When OFF: The camera view will automatically display on the audio head
unit screen when the vehicle is shifted into Reverse. The camera view will
turn off when the vehicle is shifted out of Reverse
§ When ON: The camera view will display on the audio head unit screen in
both Drive and Reverse. In Drive, the camera view will continue to display
until the vehicle is traveling at speeds above approximately 10 mph
REMINDER:
§ The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance. Surround View Monitor is only a supplemental device. Drivers should not rely solely on the SVM information when parking and backing up. Drivers should always pay attention and directly check the left/right and rear.
SURROUND VIEW MONITOR (SVM) VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
See section 4 in the Owner’s Manual for more information.
When i n Drive & N eu tr a l: When i n Reve rs e :
D is play s the f ro n t s id e a nd S VM i mag es
s imu lt a n eous ly o n the s cre en
D is play s the f ro n t s id e i mag e o n the s cre en
D is play s the f ro n t s id e a nd l eft s id e i mag es
s imu lt a n eous ly o n the s cre en
D is play s the f ro n t s id e a nd r ig h t s id e i mag es
s imu lt a n eous ly o n the s cre en
D is play s the r ea r v iew a nd S VM i mag es
s imu lt a n eous ly o n the s cre en
D is play s the r ea r s id e i mag e o n the s cre en
D is play s the r ea r a nd l eft s id e i mag es
s imu lt a n eous ly o n the s cre en
D is play s the r ea r a nd r ig h t s id e i mag es
s imu lt a n eous ly o n the s cre en
C am era V ie w Mod es – T o ch ange c ame ra v iew m od es, u se t he t ouch s creen a nd s elect t he m od e.
P
R
N
D
AUTO
HOLD
DRIVE MODE
OFF
OFF
VIEW
P
A
*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

40
CENTER PANEL
*IF EQUIPPED
CENTER PANEL
P
R
N
D
OFFOFF
P
Auto Hold
Auto Hold temporarily maintains the vehicle at a standstill even if the brake
pedal is not depressed after the driver brings the vehicle to a complete stop
by depressing the brake pedal. Auto Hold can be turned On/Off using the
AUTO HOLD switch A on the center panel. Before Auto Hold will operate, the
driver’s door, engine hood and liftgate must be closed and the driver’s seat
belt must be fastened.
Depress the brake pedal, start the engine and then press the AUTO HOLD
switch A. The white Auto Hold indicator will come on indicating the system is
in s t andby.
The Auto Hold indicator, which is in the instrument cluster, has four states:
White: Standby – When vehicle is in Park and at a standstill, and AUTO HOLD
switch A turned ON, the indicator will illuminate white. While driving the
vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white.
Green: Engaged – When coming to a complete stop by depressing the brake
pedal, the Auto Hold indicator changes from white to green.
OFF (not illuminated) – The indicator will turn OFF when the AUTO HOLD
switch A is manually turned OFF or when the EPB is manually turned ON.
Yellow: Malfunction – When the indicator is illuminated yellow, there may be a
system malfunction. Take your vehicle to a local Kia dealer.
REMINDERS:
§ To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
§ Do not solely rely on the Auto Hold system to keep the vehicle stopped. Always pay attention to traf fic and road conditions, and be prepared to depress the brakes.
A
ELECTRIC PARKING BRAKE / AUTO HOLD VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
See section 5 in the Owner’s Manual for more information.

41
P
R
N
D
AUTO
HOLD
DRIVE MODE
OFFOFF
P
A
ELECTRIC PARKING BRAKE / AUTO HOLD VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
§
Pull up and hold EPB switch again to increase brake pressure if parked on a decline or incline
§ When leaving your keys with parking lot attendants or valet, make sure to inform them how to operate the EPB
§ If parked on a steep incline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
QUICK TIPS
See section 5 in the Owner’s Manual for more information.
The Electric Parking Brake (EPB) system utilizes an electric motor to engage
the parking brake.
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A. Ensure that the
indicator light is illuminated on the instrument cluster.
Releasing the Parking Brake
The EPB will automatically release when the shifter is placed in Reverse or
Drive. To release EPB manually, depress the brake pedal, then press the
EPB switch A, with the ignition switch in the ON position. Ensure that the
indicator light i s O F F.
Electric Parking Brake (EPB)*
REMINDERS:
§ The EPB malfunction indicator will illuminate for approximately 3 seconds as a bulb check when the ignition switch is turned ON
§ If the warning light does not illuminate temporarily or remains continuously lit, take your vehicle to an authorized Kia dealer and have the system checked
§ The EPB should not be operated while the vehicle is moving
§ A click or electric brake motor sound may be heard while operating or releasing the EPB. These conditions are normal and indicate that the EPB is functioning properly
§ EPB will not release unless the hood, liftgate and all doors are closed and seat belts are fastened
CENTER PANEL
CENTER PANEL
*IF EQUIPPED ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

42*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
S E AT I N G
P
R
N
D
AUTO
HOLD
DRIVE MODE
OFFOFF
P
P
A
A
A
B
B
B
REMINDER: Use extreme caution when using the seat warmers to avoid burns. See section 4 in the Owner’s Manual for more information.

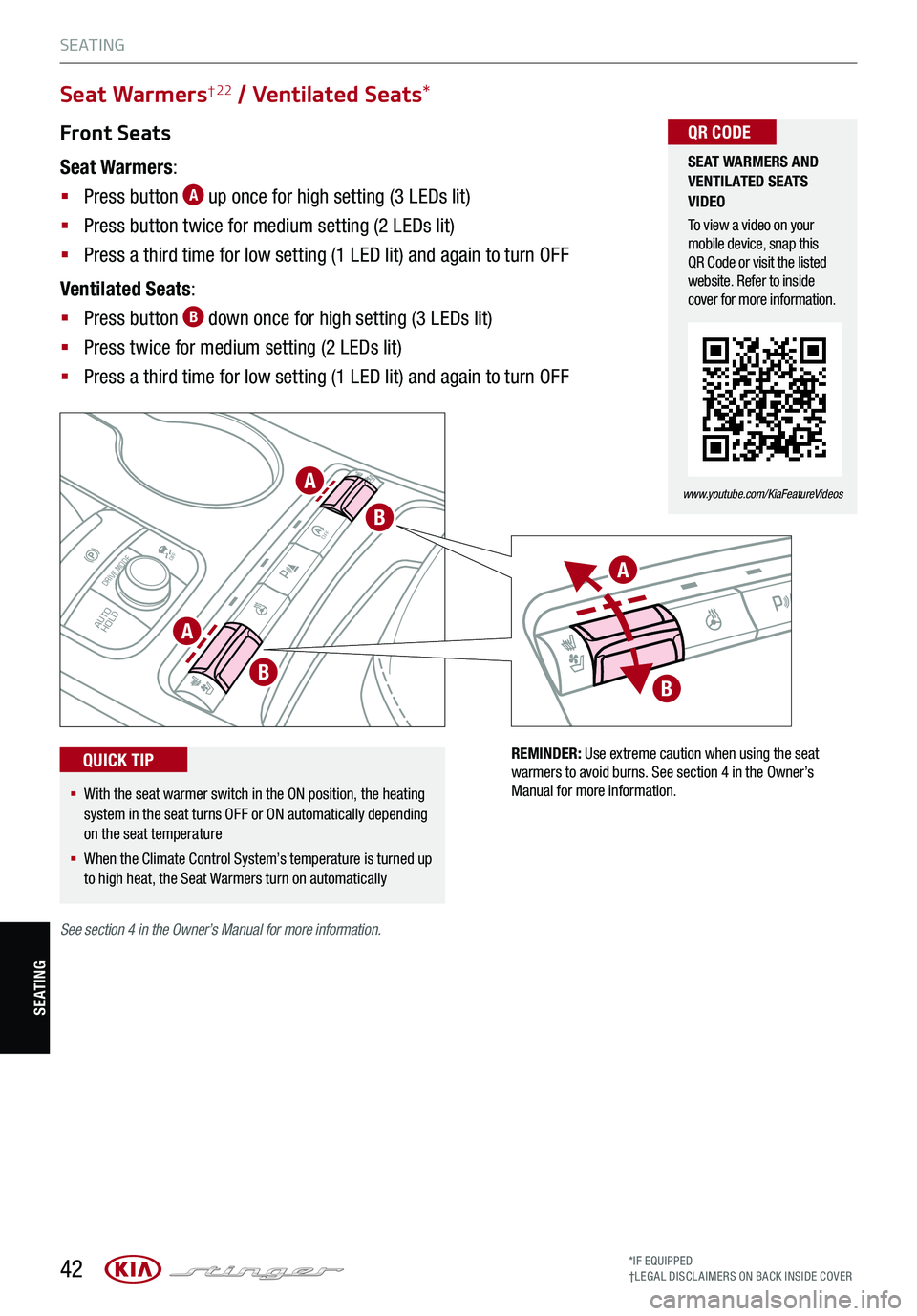

Front Seats
Seat Warmers:
§ Press button A up once for high setting (3 LEDs lit)
§ Press button twice for medium setting (2 LEDs lit)
§ Press a third time for low setting (1 LED lit) and again to turn OFF
Ventilated Seats:
§ Press button B down once for high setting (3 LEDs lit)
§ Press twice for medium setting (2 LEDs lit)
§ Press a third time for low setting (1 LED lit) and again to turn OFF
Seat Warmers† 22 / Ventilated Seats*
SEAT WARMERS AND V ENTIL ATED SE AT S VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
§ With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
§ When the Climate Control System’s temperature is turned up to high heat, the Seat Warmers turn on automatically
QUICK TIP
SE ATING
See section 4 in the Owner’s Manual for more information.

43
S E AT I N G
SeatbackLumbarSeat Cushion ExtensionSeatSeat Cushion

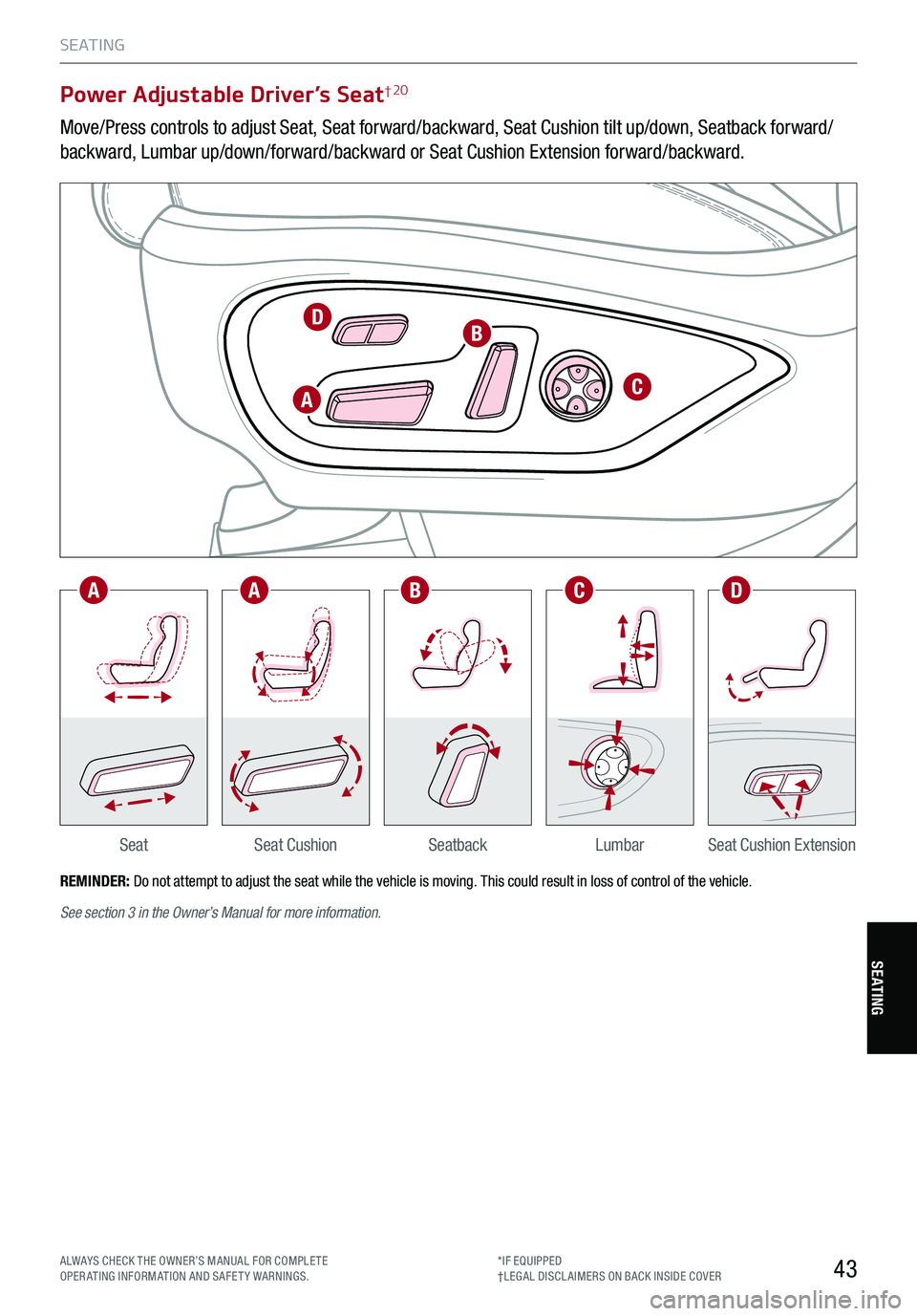

Power Adjustable Driver’s Seat† 20
Move/Press controls to adjust Seat, Seat forward/backward, Seat Cushion tilt up/down, Seatback forward/
backward, Lumbar up/down/forward/backward or Seat Cushion Extension forward/backward.
REMINDER: Do not attempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.
See section 3 in the Owner’s Manual for more information.
A
DB
C
AABCD
SE ATING
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPERATING INFORMATION AND SAFETY WARNINGS.*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER

44
Front Seat Headrest Adjustment† 11
To raise headrest: Pull headrest up.
To lower headrest: Press the lock button A, then press the
headrest down.
REMINDERS:
§ Button may be hard to see if headrest is in its lowest position.
§
Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in an accident.
A
Driver Position Memory System*
The integrated system stores into memory the position of
the driver’s seat, outside rearview mirrors, steering wheel
positions and seat cushion extension*. To store positions
into memory, first place the gear shift into P (Park) while the
Engine Start /Stop button is in the ON position. Then:
1.
Adjust the driver’s seat, outside rearview mirrors, settings
and steering wheel positions
2.
Press the SET button B on the control panel. System will
beep once
3.
Press one of the memory buttons 1 or 2 C within 4 seconds.
The system will beep twice when memory has been stored
(Located on driver’s door control panel)
REMINDER: Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in an accident.
See section 3 in the Owner’s Manual for more information.
B
C
S E AT I N G
SE ATING
Refer to section 3 in the Owner’s Manual for more information.
§ For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath
QUICK TIP
*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER

45
Driver’s Door Lock/Unlock Button G:
To unlock door(s):
§ Press button once to unlock driver’s door
§ Press again within 4 seconds to unlock all doors
To lock all doors:
§ Press again to lock all doors
Mechanical Key:
§ Use to unlock /lock driver’s door:
1. Remove door handle keyhole cover with
mechanical key by pressing up into slot on
bottom of cover as shown H
2. Insert mechanical key I and turn left to
unlock driver’s door
3. Insert mechanical key I and turn right to
lock driver’s door
4. Reinsert the Mechanical Key inside the Smart
Key fob
§ Use to lock and unlock glove box
See section 4 in the Owner’s Manual for more information.
A
BCDE
I
G
HLockUnlock
I
Smart Key†9
A Press to lock all doors
B Press to unlock driver’s door. Press twice within 4 seconds to unlock all
doors
C Press and hold for more than 1 second to unlock the Liftgate and open
manually ( The Smart Power Liftgate* will unlock and automatically open)
REMINDERS:
§ Manual-Liftgate lid will partially open. To fully open, lift up manually
§ The Liftgate unlocks when the Smart Key is within close proximity of the vehicle
D Press and hold more than a half a second for panic alarm. To turn off
alarm, press any button
E Press to release mechanical key I
REMINDER: Remote button configuration may vary depending on vehicle options.
To view videos on your mobile device, snap these QR Codes or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
KIA KEY FOB VIDEO
ENGINE START/STOP BUTTON & SMART KEY VIDEO
§ If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the Engine Start /Stop button (lock button side closest) and press to start engine
§
The Smart Key’s signal can be blocked by the normal operation of a cellular phone or smartphone. To help prevent this, store each device separately
§ When reinserting the mechanical key into the fob, make sure it is pushed all the way in until there is a click sound
QUICK TIPS
OTHER KEY FE AT URE S
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPERATING INFORMATION AND SAFETY WARNINGS.*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER
OTHER KEY FEATURES

46
Smart Power Liftgate*† 18
The Smart Power Liftgate can be operated from several controls to either
open, close or lock the Liftgate.
To turn the Smart Power Liftgate features ON, go to User Setting mode in the
LCD Instrument Cluster Modes and set to ON.
The Smart Power Liftgate will close the Liftgate, lock all doors and Liftgate and
then arm the vehicle.
Opening from Inside the Vehicle:
Press the Smart Power Liftgate Open/Close button* A to automatically open/
close the Liftgate.
Opening from Outside the Vehicle:
To open the Smart Power Liftgate automatically, press the Liftgate Release
handle switch B on exterior of the Liftgate.
Automatically close by pressing Smart Power Liftgate Close button* C located
inside the Liftgate lid.
(Button located on driver’s panel, left of the steering wheel)
(Located inside Liftgate lid)
A
B
C
SMART POWER LIF TG ATE VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
REMINDERS:
§ All doors are closed and locked after about 15 seconds
§ The Smart Power Liftgate feature will not operate when the following occurs:
§ Doors are recently closed and locked
§ The Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles
§ A door is not locked or closed
§ The Smart Key is in the vehicle
§ Pulling the Liftgate upward by the handle or pressing the button a second time will interrupt the automatic opening of the Smart Power Liftgate
See section 4 in the Owner’s Manual for more information.
§ To cancel the Smart Power Liftgate while automatically opening or closing, press any button on the Smart Key fob
QUICK TIP
OTHER KEY FE AT URE S
OTHER KEY FEATURES
*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER

47
Smart Power Liftgate*† 18 (Continued)
REMINDERS:
§
Smart Power Liftgate may be damaged if attempting to open or close manually
§ If going through a car wash, remind the attendant to keep the vehicle in Neutral (N) and keep the engine running. Also, disable the Smart Power Liftgate lid control using the button inside the glove compartment, turn off the auto rain-sensing wipers and fold in the mirrors
§ When not in use, keep the Liftgate Lid Control button in the OFF position
§ Ensure all obstacles are out of the way of the Liftgate lid when operating the Smart Power Liftgate
A
KIA KEY FOB VIDEO
To view a video on your mobile device, snap this QR Code or visit the listed website. Refer to inside cover for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
See section 4 in the Owner’s Manual for more information.
§ The Liftgate must be unlocked before it can be opened by the Liftgate Release button
§ The Liftgate unlocks automatically and then can be opened manually when the Smart Key is within close proximity to the back of the vehicle
QUICK TIPS
Opening with no-touch activation:
When the Smart Key fob is on your person and you are within close proximity
of the back of the vehicle, the hazard lights will blink and a chime will sound for
about 3 seconds as an alert that the Smart Power Liftgate is about to open.
Then the alert system will blink and chime two additional times before opening
the Smart Power Liftgate.
The Smart Power Liftgate feature is OFF by default.
To enable the Smart Power Liftgate, go to User
Settings in the LCD Instrument Cluster modes.
Smart Key:
Using the Smart Key fob to automatically to open
the Smart Power Liftgate*, press and hold the
Smart Key Liftgate button A. Press again and
hold to close.
OTHER KEY FE AT URE S
OTHER KEY FEATURES
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPERATING INFORMATION AND SAFETY WARNINGS.*IF EQUIPPED†LEG AL DISCL AIMERS ON BACK INSIDE COVER

48
OTHER KEY FEATURES
OTHER KEY FE AT URE S
AABC
REMINDER: When room lamp lens is pressed ON it will remain ON, even when the map lamp switch is in the OFF position.
Automatic Turn Off Function
The interior lights automatically turn off approximately 20 seconds after the Engine Start /Stop button is
turned OFF.
Map/Room Lamp Operation
Map Lamps – These lights produce spot beams for convenient use as map lamps or as personal lamps for
the driver or the front passenger. Press the buttons A to turn the map lamps ON/OFF.
Room button – Press the button B to turn the front and rear lamps ON/OFF.
Door button – When the Door button C is pressed the front and rear lamps will turn ON as follows:
§ When a door is opened or doors are unlocked
with the Smart Key, the lamps will turn ON for
approximately 30 seconds
§ If the Engine Start /Stop button is in the ACC/
OFF position and a door is open, the lamps
will stay ON for approximately 20 minutes
§ If the Engine Start /Stop button is in the ACC/
ON position and a door is open, the lamps will
stay ON
The lamps will turn OFF immediately if the
Engine Start /Stop button is turned ON or all
doors are locked.
Map/Room Lamps
§ When doors are unlocked by the Smart Key, the lamp turns ON for approximately 30 seconds
§ If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
§ Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
See section 4 in the Owner’s Manual for more information.
*IF EQUIPPED
