KIA STINGER 2021 Owners Manual

Driving your vehicle
90 5
Smart Cruise Control system has
malfunctioned.
The accelerator pedal is continu-
ously depressed for long time.
When activating the ISG mode.
When the braking control is operat-
ed for Forward Collision-Avoidance
Assist(FCA)
The vehicle stops and goes repeat-
edly for a long period of time.
When the parking brake is locked. Engine has some problems.
Each of these actions will cancel
Smart Cruise Control system opera-
tion. (The set speed and vehicle-to-
vehicle distance on the LCD display
will go off.)
If Smart Cruise Control system is
cancelled automatically, Smart
Cruise Control system will not
resume even though the RES+ or
SET- lever is moved.
If Smart Cruise Control system is
canceled during a scenario that is
not discussed in the preceding
"Cancelled automatically" section,
have the system checked by an
authorized Kia dealer.
✽ ✽
NOTICE
If the system is automatically can-
celled, the warning chime will sound
and a message will appear for a few
seconds. You must adjust the vehicle
speed by depressing the accelerator
or brake pedal according to the road
and driving conditions ahead.
Always check the road conditions.
Do not rely on the warning chime.
OCK057098L

591
Driving your vehicle
To resume Smart Cruise Control
set speed:
If any method other than the
CRUISE button was used to cancel
cruising speed and the system is still
activated, the cruising speed will
automatically resume when you
move the lever up/down (to RES+ or
SET-).
If you move the lever up (to RES+),
the speed will resume to the recently
set speed. If the vehicle speed is
below 20 mph (30 km/h), it will
resume only when a vehicle is in the
front.
To turn Smart Cruise Control off:
Press the CRUISE button. (the
CRUISE indicator in the instrument
cluster will go off).
When Smart Cruise Control system
is not needed, press the [CRUISE]
switch and deactivate the system.
WARNING - Following
Distance
To avoid collisions, always be
aware of the selected speed
and vehicle to vehicle dis-
tance settings when activat-
ing your Smart Cruise Control
system.
Always maintain sufficient
braking distance and deceler-
ate your vehicle by applying
the brakes if necessary.
OCK057028L
OCK057034L

Driving your vehicle
92 5
Vehicle to vehicle distance
setting
To set vehicle to vehicle distance:
This function allows you to program
the vehicle to maintain relative dis-
tance to the vehicle ahead without
depressing the accelerator pedal or
brake pedal.The vehicle to vehicle distance will
automatically activate when Smart
Cruise Control system is on.
Select the appropriate distance
according to road conditions and
vehicle speed.
Each time the button is pressed, the
vehicle to vehicle distance changes
as follows:For example, if you drive at 56 mph
(90 km/h), the distance is maintained
as follows;
Distance 4 - approximately 172 feet
(52.5 m)
Distance 3 - approximately 130 feet
(40 m)
Distance 2 - approximately 106 feet
(32.5 m)
Distance 1 - approximately 82 feet
(25 m)
✽ ✽
NOTICE
The distance is set to the last set dis-
tance when the system is used for the
first time after starting the engine.
OCK057036L
Distance 4 Distance 3 Distance 2
Distance 1

593
Driving your vehicle
When the lane ahead is clear :
The vehicle speed will maintain the
set speed.
When there is a vehicle ahead of you in your lane :
OCK057102N
OCK057103N
OCK057105N
OCK057104N
OCK057106N

Driving your vehicle
94 5
The vehicle will maintain the set
speed, when the lane ahead is
clear.
The vehicle will slow down or
speed up within selected speed to
maintain the selected distance,
when there is a vehicle ahead of
you in the lane. (A vehicle will
appear in front of your vehicle in
the LCD display only when there is
an actual vehicle in front of you)
If the vehicle ahead speeds up,
your vehicle will travel at a steady
cruising speed after accelerating to
the selected speed.
The warning chime sounds and
LCD display blinks if it is hard to
maintain the selected distance to
the vehicle ahead.
If the warning chime sounds,
actively adjust the vehicle speed by
depressing the brake pedal
according to the road condition
ahead and driving condition.
Even if the warning chime is not acti-
vated, always pay attention to the
driving conditions to prevent danger-
ous situations from occurring.If the vehicle ahead (vehicle speed:
less than 20 mph (30 km/h)) moves
to the next lane, the warning chime
will sound and a message will
appear.
Adjust your vehicle speed for vehi-
cles or objects that can suddenly
appear in front of you by depressing
the brake pedal according to the
road and driving conditions ahead.In heavy traffic
Use switch or pedal to accelerate
In traffic, your vehicle will stop if the
vehicle ahead of you stops. Also, if
the vehicle ahead of you starts
moving, your vehicle will start as
well. However, if the vehicle stops
for more than 3 seconds, you must
depress the accelerator pedal or
push up the toggle switch (RES+)
to start driving.
OCK057107L
OCK057108L
CAUTION
While other beeps such as the
seat belt warning sound are in
operation and override the SCC
alarming system, SCC beeps
may not occur.

595
Driving your vehicle
If you push Smart Cruise Control
toggle switch (RES+ or SET-) while
Auto Hold and Smart Cruise
Control is operating, the Auto Hold
will be released regardless of
accelerator pedal operation and
the vehicle will start to move. The
AUTO HOLD indicator changes
from green to white. (if equipped
with EPB (Electronic Parking
Brake))Radar to detect distance to the
vehicle ahead
Smart Cruise Control (SCC) system
uses a sensor to detect distance to
the vehicle ahead.
If the sensor is covered with dirt or
other foreign matter, the vehicle to
vehicle distance control may not
operate correctly.
Always keep the sensor clean.
Warning message
Smart Cruise Control disabled. Radar
blocked
When the sensor lens cover is blocked
with dirt, snow, or debris, Smart
Cruise Control system operation may
stop temporarily. If this occurs, a warn-
ing message will appear on the LCD
display. Remove any dirt, snow, or
debris and clean the radar sensor lens
cover before operating Smart Cruise
Control system. Smart Cruise Control
system may not properly activate, if
the radar is totally contaminated, or if
any substance is not detected after
turning ON the engine (e.g. in an open
terrain).OCK057023L
OCK057109L

Driving your vehicle
96 5
Smart Cruise Control system mal-
function message
Check Smart Cruise Control System
The message will appear when the
vehicle to vehicle distance control
system is not functioning normally.
Take your vehicle to an authorized
Kia dealer and have the system
checked. Always keep the sensor and
bumper clean.
Use only a genuine Kia sensor
cover for your vehicle.
Do not install accessories around
the sensor and do not replace the
bumper by yourself. It may interfere
with the sensor performance.
Impact damage to the sensor or
sensor area may cause the sensor
to move slightly off position and
result in Smart Cruise Control sys-
tem not operating correctly without
any warning or indicator from the
cluster. If this occurs, have your
vehicle checked by an authorized
Kia dealer as soon as possible.
Use only a genuine Kia sensor
cover for your vehicle. Do not paint
anything on the sensor cover.
If the front bumper becomes dam-
aged in the area around the radar
sensor, Smart Cruise Control sys-
tem may not operate properly.
CAUTION - Sensor
Damage
To prevent sensor cover dam-
age from occurring, wash the
car with a soft cloth.
OCK057110L

597
Driving your vehicle

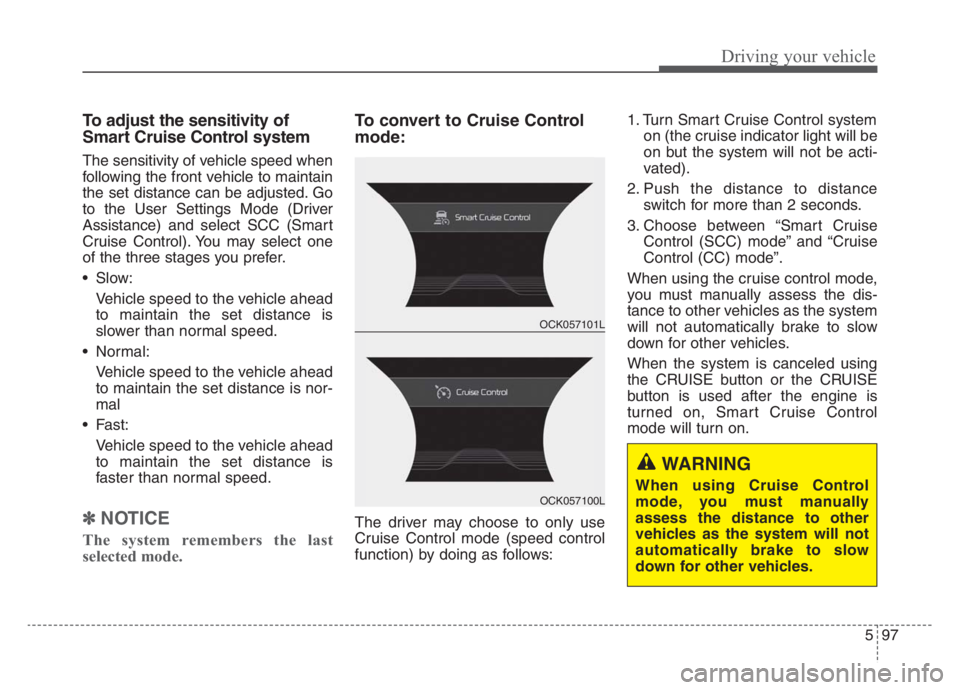

To adjust the sensitivity of
Smart Cruise Control system
The sensitivity of vehicle speed when
following the front vehicle to maintain
the set distance can be adjusted. Go
to the User Settings Mode (Driver
Assistance) and select SCC (Smart
Cruise Control). You may select one
of the three stages you prefer.
Slow:
Vehicle speed to the vehicle ahead
to maintain the set distance is
slower than normal speed.
Normal:
Vehicle speed to the vehicle ahead
to maintain the set distance is nor-
mal
Fast:
Vehicle speed to the vehicle ahead
to maintain the set distance is
faster than normal speed.
✽ ✽
NOTICE
The system remembers the last
selected mode.
To convert to Cruise Control
mode:
The driver may choose to only use
Cruise Control mode (speed control
function) by doing as follows:1. Turn Smart Cruise Control system
on (the cruise indicator light will be
on but the system will not be acti-
vated).
2. Push the distance to distance
switch for more than 2 seconds.
3. Choose between “Smart Cruise
Control (SCC) mode” and “Cruise
Control (CC) mode”.
When using the cruise control mode,
you must manually assess the dis-
tance to other vehicles as the system
will not automatically brake to slow
down for other vehicles.
When the system is canceled using
the CRUISE button or the CRUISE
button is used after the engine is
turned on, Smart Cruise Control
mode will turn on.
OCK057101L
OCK057100L
WARNING
When using Cruise Control
mode, you must manually
assess the distance to other
vehicles as the system will not
automatically brake to slow
down for other vehicles.

Driving your vehicle
98 5
Limitations of the system
Smart Cruise Control system may
have limits to its ability to detect dis-
tance to the vehicle ahead due to
road and traffic conditions.
On curves
On curves, Smart Cruise Control
system may not detect a moving
vehicle in your lane, and then your
vehicle could accelerate to the set
speed. Also, the vehicle speed will
rapidly slow down when the vehicle
ahead is recognized suddenly.
Select the appropriate set speed
on curves and adjust your vehicle
speed by depressing the accelera-
tor or brake pedal according to the
road and driving conditions ahead. Your vehicle speed can be reduced
due to a vehicle in the adjacent
lane. Adjust your vehicle speed by
depressing the brake pedal
according to the road and driving
conditions ahead. Apply the accel-
erator pedal and select the appro-
priate set speed. Check to be sure
that the road conditions permit safe
operation of Smart Cruise Control
system.
OYG056043
OYG056042

599
Driving your vehicle
On inclines
During uphill or downhill driving,
Smart Cruise Control system may
not immediately detect a moving
vehicle in your lane, and may cause
your vehicle to accelerate to the set
speed. Also, the vehicle speed will
rapidly slow down when the vehicle
ahead is recognized suddenly.
Select the appropriate set speed
on inclines and adjust your vehicle
speed by depressing the accelera-
tor or brake pedal according to the
road condition ahead.
Lane changing
A vehicle which moves into your
lane from an adjacent lane cannot
be recognized by the sensor until it
is in the sensor's detection range.
The sensor may not detect imme-
diately when a vehicle cuts in sud-
denly. Always pay attention to the
traffic, road and driving conditions.
If a vehicle which moves into your
lane is slower than your vehicle,
reduce your speed to maintain the
distance to the vehicle ahead. If a vehicle which moves into your
lane is faster than your vehicle,
your vehicle will continue to main-
tain the selected speed.
OYG056045OCK057024
