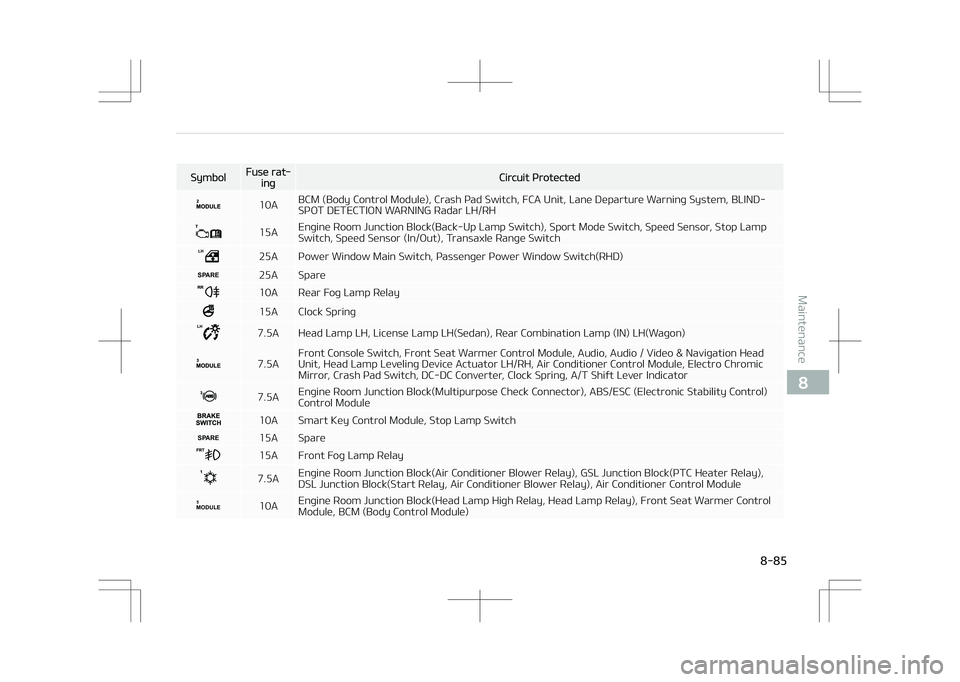

SymbolFuse rat‐ingCircuit Protected
10ABCM (Body Control Module), Crash Pad Switch, FCA Unit, Lane Departure Warning System, BLIND-
SPOT DETECTION WARNING Radar LH/RH
15AEngine Room Junction Block(Back-Up Lamp Switch), Sport Mode Switch, Speed Sensor, Stop Lamp
Switch, Speed Sensor (In/Out), Transaxle Range Switch
LH25A Power Window Main Switch, Passenger Power Window Switch(RHD)
SPARE25A Spare
10A Rear Fog Lamp Relay
15A Clock Spring
LH7.5A Head Lamp LH, License Lamp LH(Sedan), Rear Combination Lamp (IN) LH(Wagon)
7.5A Front Console Switch, Front Seat Warmer Control Module, Audio, Audio / Video & Navigation Head
Unit, Head Lamp Leveling Device Actuator LH/RH, Air Conditioner Control Module, Electro Chromic
Mirror, Crash Pad Switch, DC-DC Converter, Clock Spring, A/T Shift Lever Indicator
7.5A
Engine Room Junction Block(Multipurpose Check Connector), ABS/ESC (Electronic Stability Control)
Control Module
10A Smart Key Control Module, Stop Lamp Switch
SPARE15A Spare
15A Front Fog Lamp Relay
7.5AEngine Room Junction Block(Air Conditioner Blower Relay), GSL Junction Block(PTC Heater Relay),
DSL Junction Block(Start Relay, Air Conditioner Blower Relay), Air Conditioner Control Module
MODULE510AEngine Room Junction Block(Head Lamp High Relay, Head Lamp Relay), Front Seat Warmer Control
Module, BCM (Body Control Module)


8-85
8
Maintenance

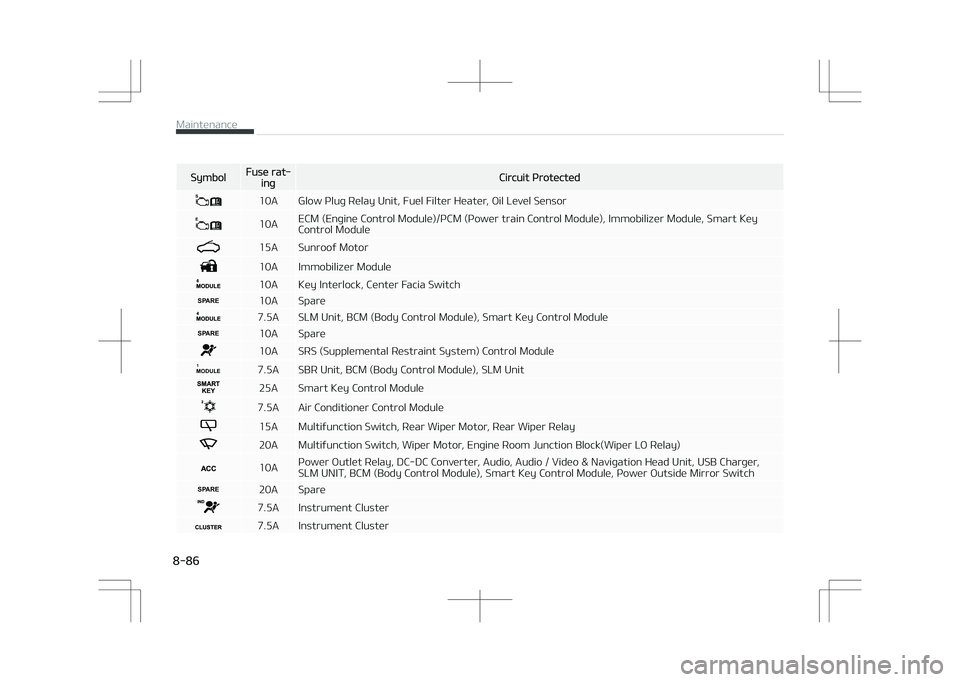

SymbolFuse rat‐ingCircuit Protected
S10A Glow Plug Relay Unit, Fuel Filter Heater, Oil Level Sensor
E10AECM (Engine Control Module)/PCM (Power train Control Module), Immobilizer Module, Smart Key
Control Module
15A Sunroof Motor
10A Immobilizer Module
10A Key Interlock, Center Facia Switch
SPARE10A Spare
7.5A SLM Unit, BCM (Body Control Module), Smart Key Control Module
SPARE10A Spare
10A SRS (Supplemental Restraint System) Control Module
MODULE17.5A SBR Unit, BCM (Body Control Module), SLM Unit
25A Smart Key Control Module
7.5A Air Conditioner Control Module
15A Multifunction Switch, Rear Wiper Motor, Rear Wiper Relay
20A Multifunction Switch, Wiper Motor, Engine Room Junction Block(Wiper LO Relay)
10APower Outlet Relay, DC-DC Converter, Audio, Audio / Video & Navigation Head Unit, USB Charger,
SLM UNIT, BCM (Body Control Module), Smart Key Control Module, Power Outside Mirror Switch
SPARE20A Spare
7.5A Instrument Cluster
7.5A Instrument Cluster
Maintenance

8-86

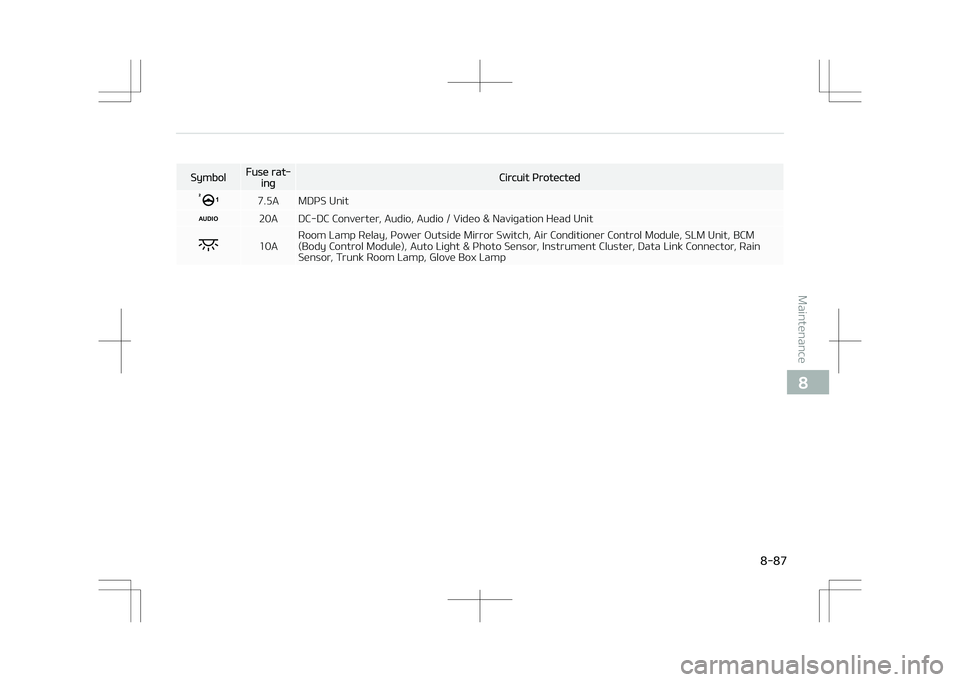

SymbolFuse rat‐ingCircuit Protected
7.5A MDPS Unit
AUDIO20A DC-DC Converter, Audio, Audio / Video & Navigation Head Unit
10ARoom Lamp Relay, Power Outside Mirror Switch, Air Conditioner Control Module, SLM Unit, BCM
(Body Control Module), Auto Light & Photo Sensor, Instrument Cluster, Data Link Connector, Rain
Sensor, Trunk Room Lamp, Glove Box Lamp



8-87
8
Maintenance

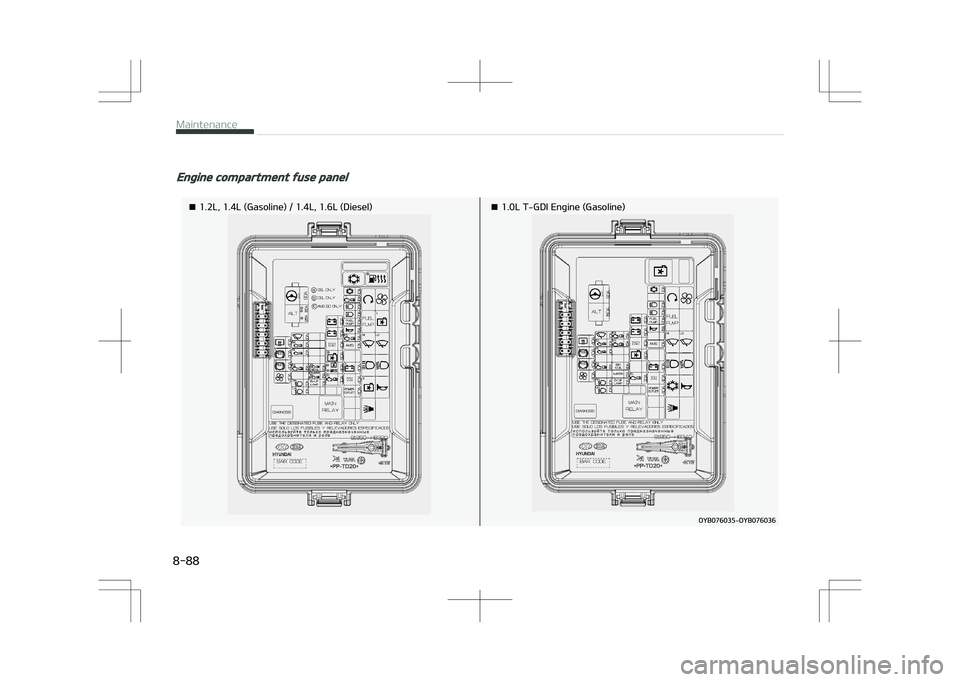

Engine compartment fuse panel
¥
-

-
(BTPMJOF


-

-
%JFTFM
¥
-
5(%*
&OHJOF
(BTPMJOF


Maintenance
8-88

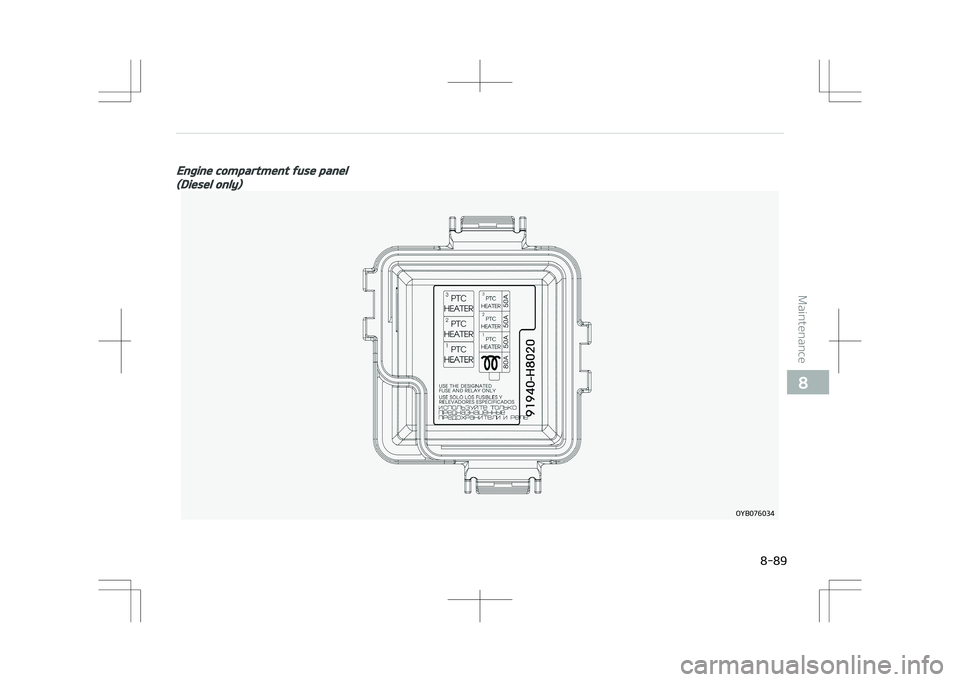

Engine compartment fuse panel
(Diesel only)
0:#

8-89
8
Maintenance

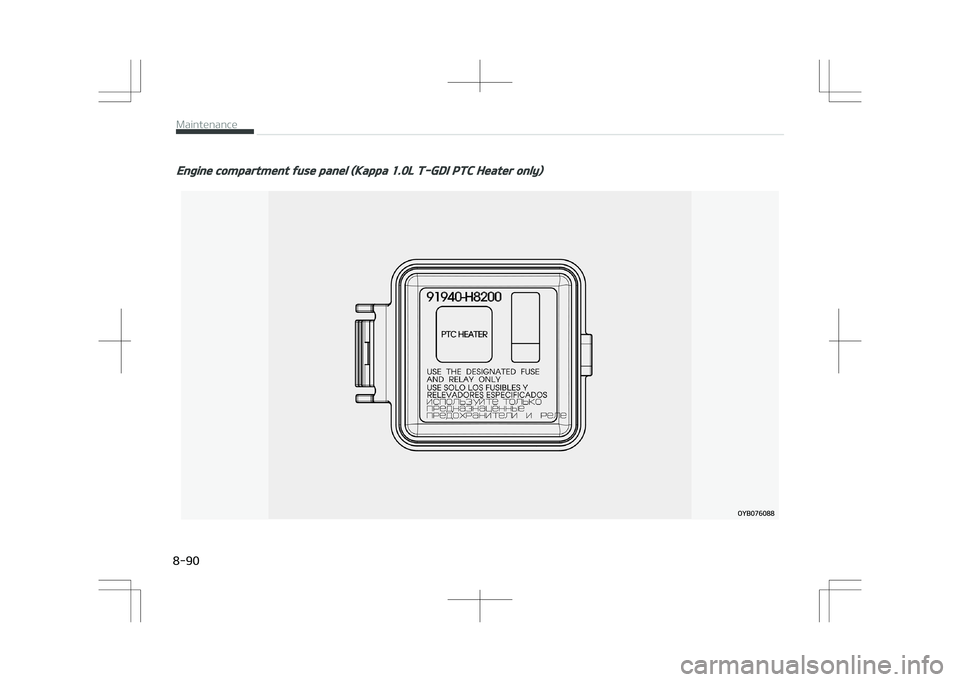

Engine compartment fuse panel (Kappa 1.0L T-GDI PTC Heater only)

Maintenance
8-90

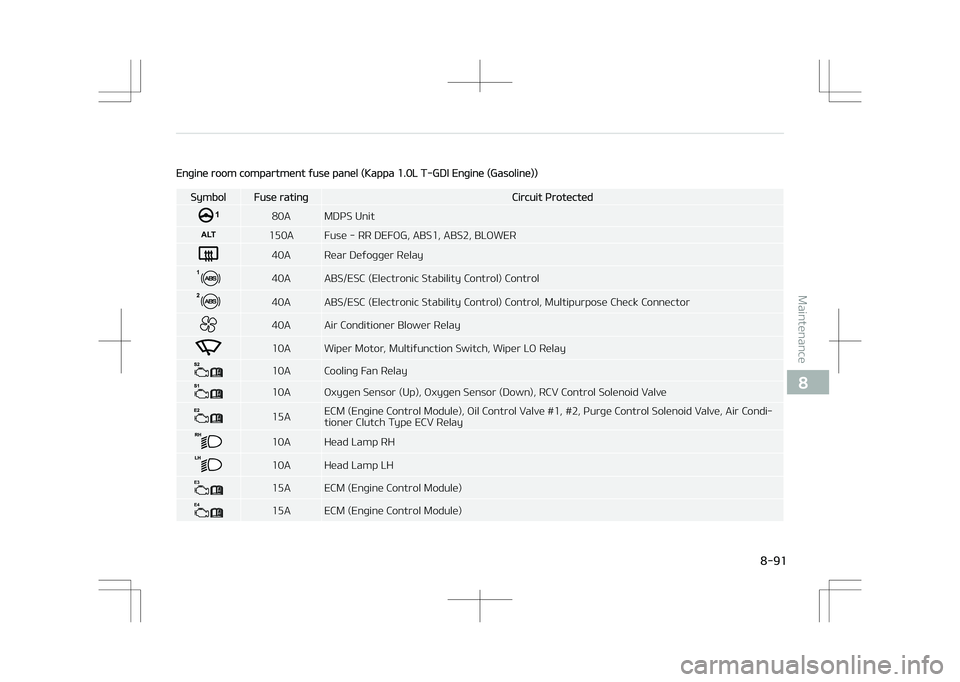

Engine room compartment fuse panel (Kappa 1.0L T-GDI Engine (Gasoline))
SymbolFuse ratingCircuit Protected
80A MDPS Unit
ALT150A Fuse - RR DEFOG, ABS1, ABS2, BLOWER
40A Rear Defogger Relay
140A ABS/ESC (Electronic Stability Control) Control
40A ABS/ESC (Electronic Stability Control) Control, Multipurpose Check Connector
40A Air Conditioner Blower Relay
10A Wiper Motor, Multifunction Switch, Wiper LO Relay
10A Cooling Fan Relay
10A Oxygen Sensor (Up), Oxygen Sensor (Down), RCV Control Solenoid Valve
15AECM (Engine Control Module), Oil Control Valve #1, #2, Purge Control Solenoid Valve, Air Condi‐
tioner Clutch Type ECV Relay
10A Head Lamp RH
10A Head Lamp LH
E315A ECM (Engine Control Module)
E415A ECM (Engine Control Module)


8-91
8
Maintenance

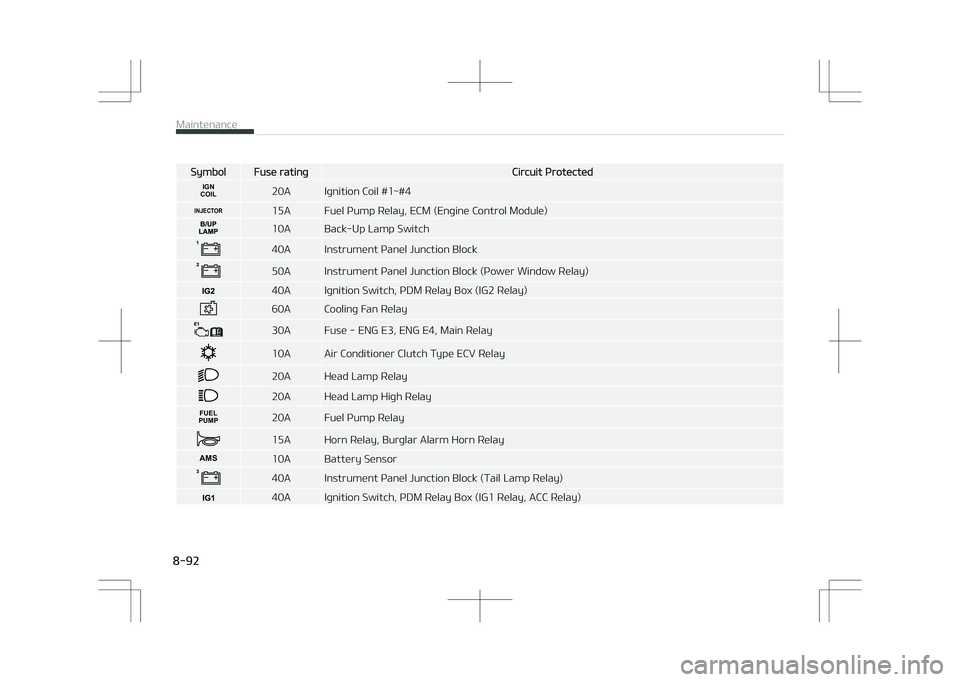

SymbolFuse ratingCircuit Protected
IGN
COIL20A Ignition Coil #1~#4
INJECTOR15A Fuel Pump Relay, ECM (Engine Control Module)
10A Back-Up Lamp Switch
40A Instrument Panel Junction Block
50A Instrument Panel Junction Block (Power Window Relay)
40A Ignition Switch, PDM Relay Box (IG2 Relay)
60A Cooling Fan Relay
30A Fuse - ENG E3, ENG E4, Main Relay
10A Air Conditioner Clutch Type ECV Relay
20A Head Lamp Relay
20A Head Lamp High Relay
FUEL
PUMP20A Fuel Pump Relay
15A Horn Relay, Burglar Alarm Horn Relay
AMS10A Battery Sensor
40A Instrument Panel Junction Block (Tail Lamp Relay)
40A Ignition Switch, PDM Relay Box (IG1 Relay, ACC Relay)
Maintenance
8-92

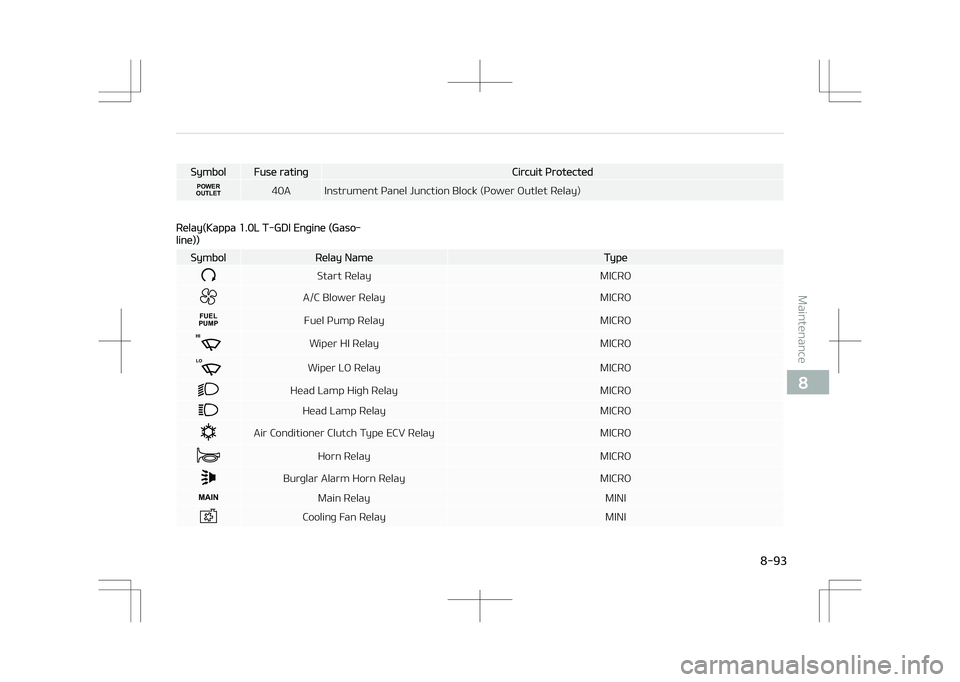

SymbolFuse ratingCircuit Protected
POWER
OUTLET40A Instrument Panel Junction Block (Power Outlet Relay)

Relay(Kappa 1.0L T-GDI Engine (Gaso‐
line))
SymbolRelay NameType
Start Relay MICRO
A/C Blower Relay MICRO
FUEL
PUMPFuel Pump Relay MICRO
Wiper HI RelayMICRO
LOWiper LO Relay MICRO
Head Lamp High Relay MICRO
Head Lamp RelayMICRO
Air Conditioner Clutch Type ECV Relay MICRO
Horn RelayMICRO
Burglar Alarm Horn Relay MICRO
MAINMain RelayMINI
Cooling Fan Relay MINI

8-93
8
Maintenance

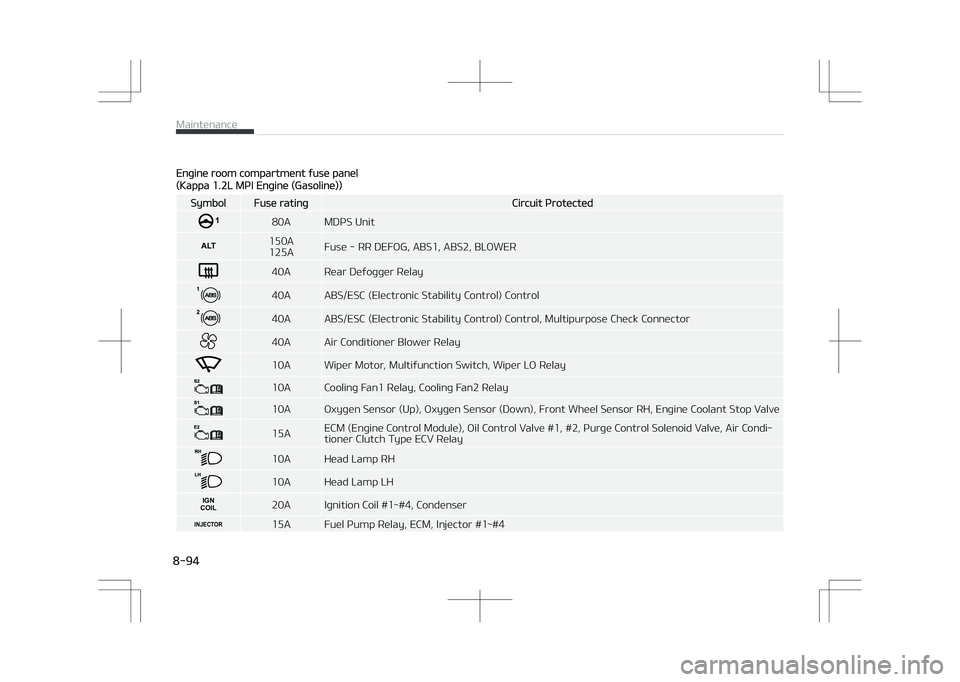

Engine room compartment fuse panel
(Kappa 1.2L MPI Engine (Gasoline))
SymbolFuse ratingCircuit Protected
80A MDPS Unit
ALT150A 125AFuse - RR DEFOG, ABS1, ABS2, BLOWER
40A Rear Defogger Relay
140A ABS/ESC (Electronic Stability Control) Control
40A ABS/ESC (Electronic Stability Control) Control, Multipurpose Check Connector
40A Air Conditioner Blower Relay
10A Wiper Motor, Multifunction Switch, Wiper LO Relay
10A Cooling Fan1 Relay, Cooling Fan2 Relay
10A Oxygen Sensor (Up), Oxygen Sensor (Down), Front Wheel Sensor RH, Engine Coolant Stop Valve
15AECM (Engine Control Module), Oil Control Valve #1, #2, Purge Control Solenoid Valve, Air Condi‐
tioner Clutch Type ECV Relay
10A Head Lamp RH
10A Head Lamp LH
IGN
COIL20A Ignition Coil #1~#4, Condenser
INJECTOR15A Fuel Pump Relay, ECM, Injector #1~#4
Maintenance
8-94
