KIA STONIC 2018 Owners Manual

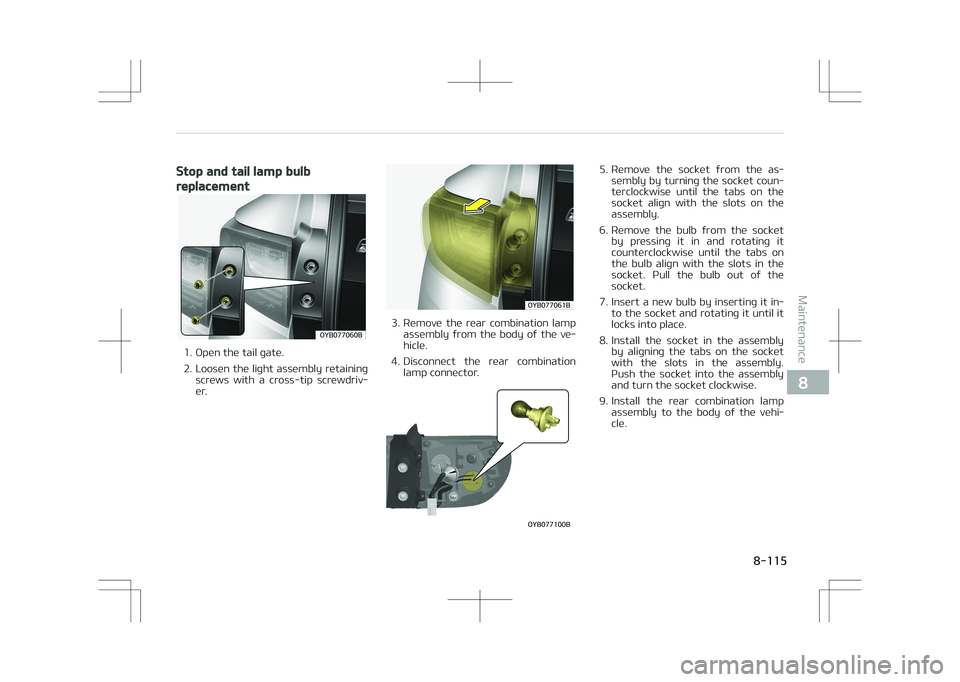

Stop and tail lamp bulb
replacement
0:##
1. Open the tail gate.
2. Loosen the light assembly retainingscrews with a cross-tip screwdriv‐
er.
0:##
3. Remove the rear combination lamp assembly from the body of the ve‐
hicle.
4. Disconnect the rear combination lamp connector.
0:##
5. Remove the socket from the as‐sembly by turning the socket coun‐
terclockwise until the tabs on the
socket align with the slots on the
assembly.
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it in‐ to the socket and rotating it until it
locks into place.
8. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp assembly to the body of the vehi‐
cle.

8-115
8
Maintenance

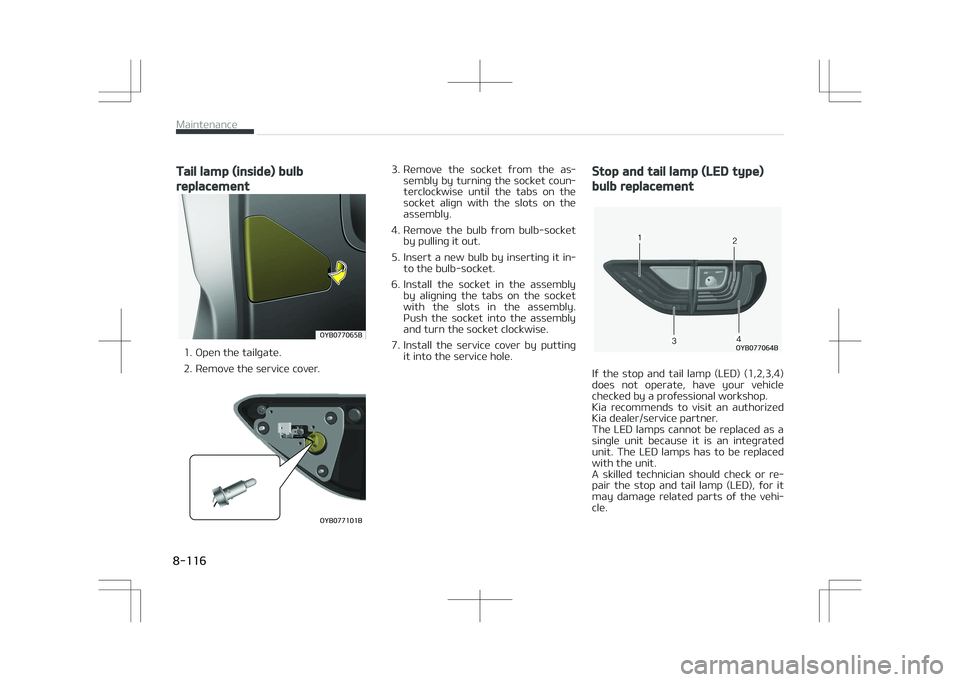

Tail lamp (inside) bulb
replacement
0:##
1. Open the tailgate.
2. Remove the service cover.
0:##
3. Remove the socket from the as‐sembly by turning the socket coun‐
terclockwise until the tabs on the
socket align with the slots on the
assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it in‐ to the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socketwith the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.Stop and tail lamp (LED type)
bulb replacement
0:##
If the stop and tail lamp (LED) (1,2,3,4)
does not operate, have your vehicle checked by a professional workshop.
Kia recommends to visit an authorized
Kia dealer/service partner.
The LED lamps cannot be replaced as a
single unit because it is an integrated unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or re‐
pair the stop and tail lamp (LED), for it may damage related parts of the vehi‐
cle.
Maintenance
8-116

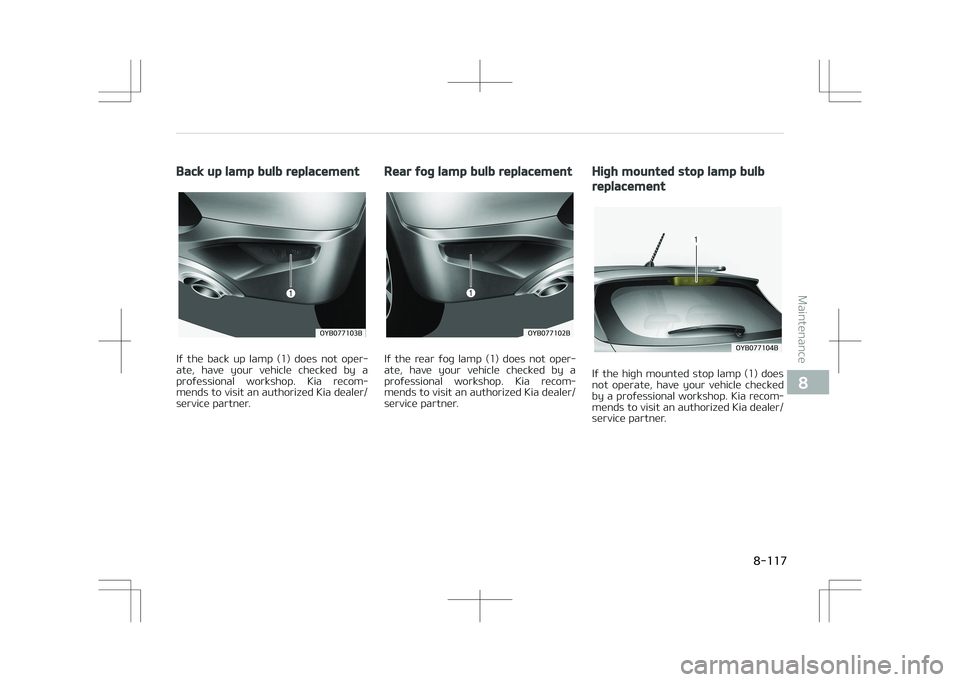

Back up lamp bulb replacement
0:##
If the back up lamp (1) does not oper‐
ate, have your vehicle checked by a professional workshop. Kia recom‐
mends to visit an authorized Kia dealer/
service partner.
Rear fog lamp bulb replacement
0:##
If the rear fog lamp (1) does not oper‐
ate, have your vehicle checked by a professional workshop. Kia recom‐
mends to visit an authorized Kia dealer/
service partner.
High mounted stop lamp bulb
replacement
0:##
If the high mounted stop lamp (1) does
not operate, have your vehicle checked by a professional workshop. Kia recom‐
mends to visit an authorized Kia dealer/
service partner.

8-117
8
Maintenance

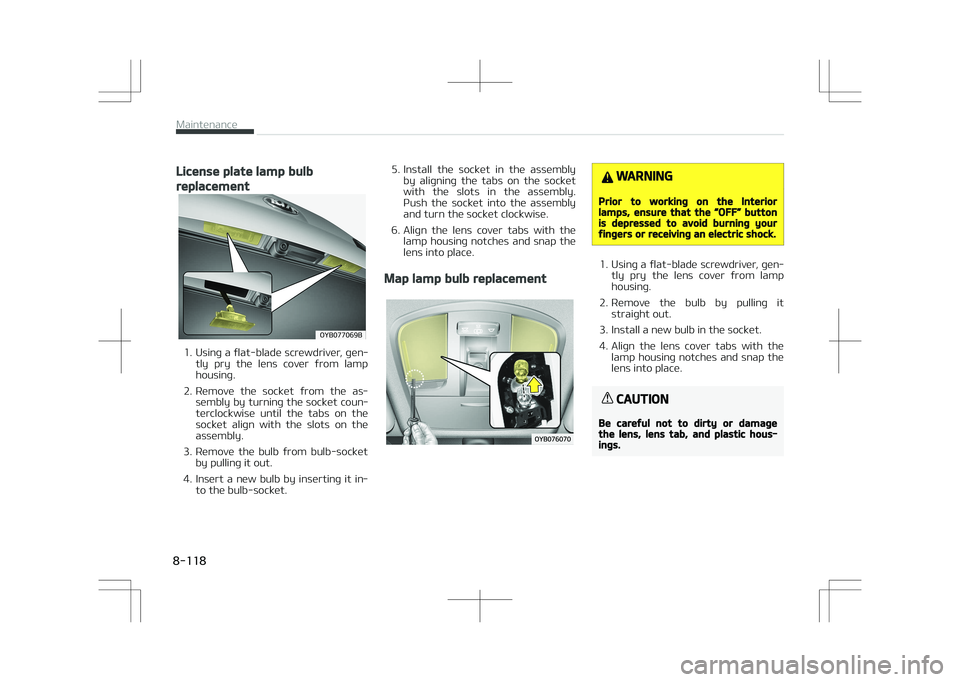

License plate lamp bulb
replacement
0:##
1. Using a flat-blade screwdriver, gen‐tly pry the lens cover from lamp
housing.
2. Remove the socket from the as‐ sembly by turning the socket coun‐
terclockwise until the tabs on the
socket align with the slots on the
assembly.
3. Remove the bulb from bulb-socket by pulling it out.
4. Insert a new bulb by inserting it in‐ to the bulb-socket. 5. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
6. Align the lens cover tabs with the lamp housing notches and snap the
lens into place.
Map lamp bulb replacement
WARNING
Prior to working on the Interiorlamps, ensure that the L

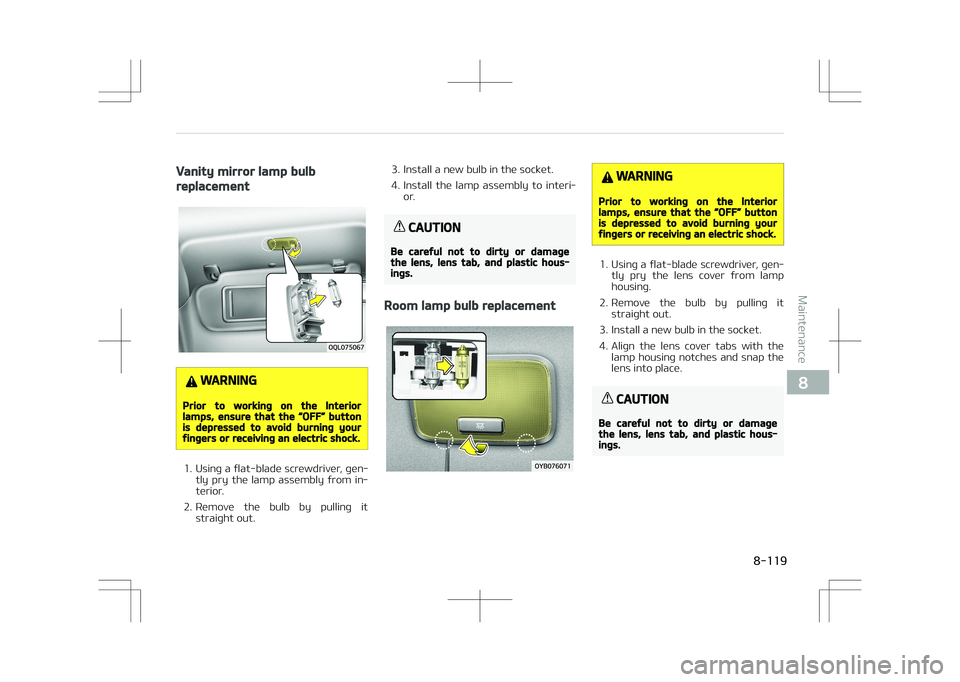

Vanity mirror lamp bulb
replacement
WARNING
Prior to working on the Interiorlamps, ensure that the L

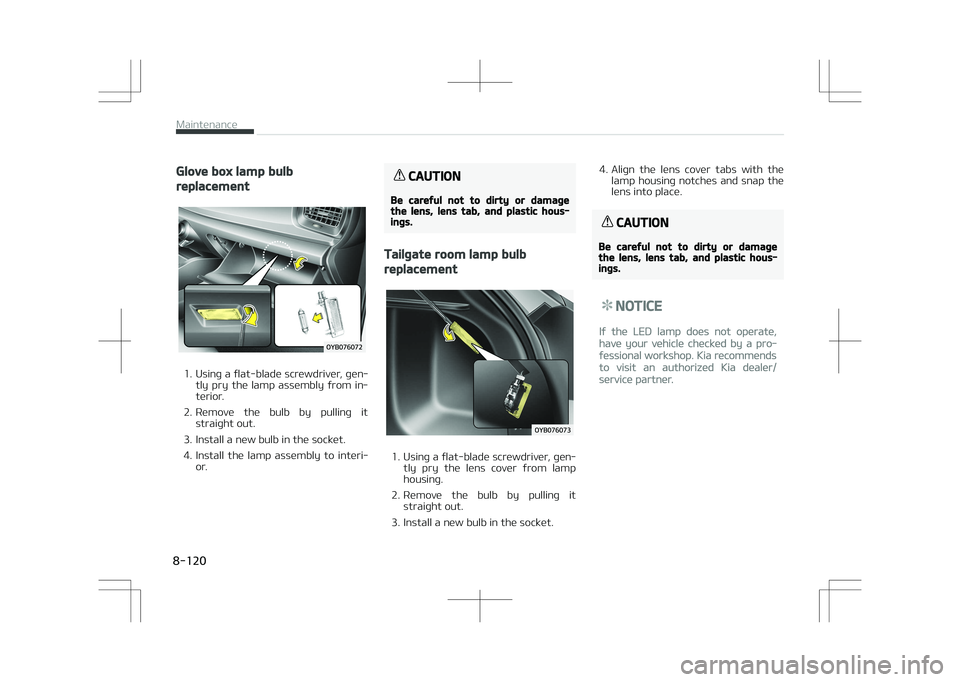

Glove box lamp bulb
replacement
1. Using a flat-blade screwdriver, gen‐tly pry the lamp assembly from in‐
terior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interi‐ or.
CAUTION
Be careful not to dirty or damagethe lens, lens tab, and plastic hous‐ings.
Tailgate room lamp bulb
replacement
1. Using a flat-blade screwdriver, gen‐tly pry the lens cover from lamp
housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket. 4. Align the lens cover tabs with the
lamp housing notches and snap the
lens into place.
CAUTION
Be careful not to dirty or damagethe lens, lens tab, and plastic hous‐ings.
NOTICE
If the LED lamp does not operate,
have your vehicle checked by a pro‐
fessional workshop. Kia recommends
to visit an authorized Kia dealer/
service partner.
Maintenance
8-120

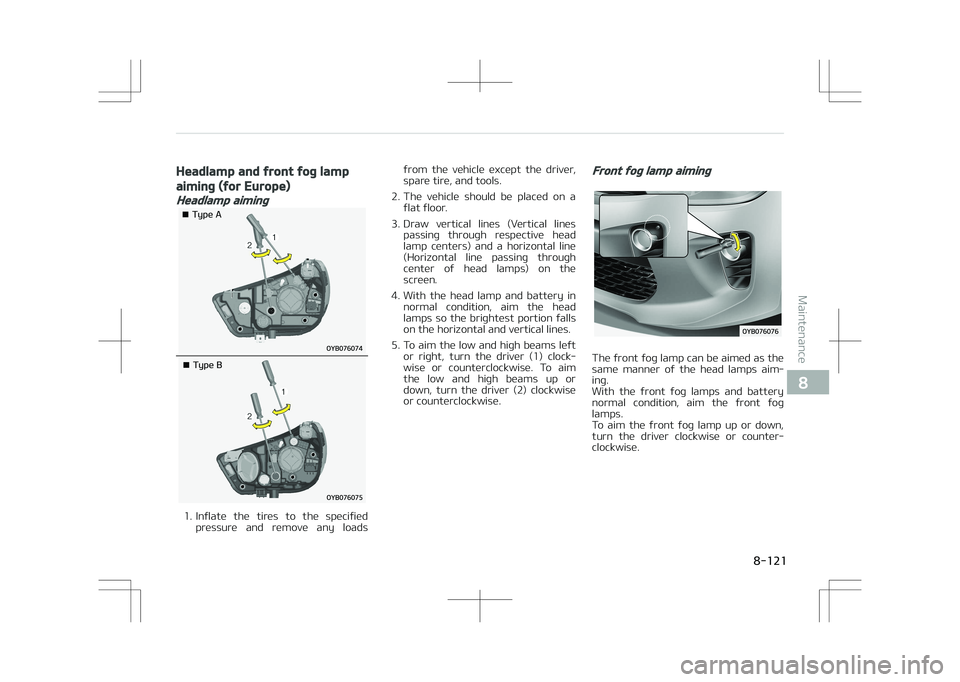

Headlamp and front fog lamp
aiming (for Europe)
Headlamp aiming
¥
5ZQF
"
¥
5ZQF
#
1. Inflate the tires to the specifiedpressure and remove any loads from the vehicle except the driver,
spare tire, and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines (Vertical lines passing through respective head
lamp centers) and a horizontal line
(Horizontal line passing through center of head lamps) on the
screen.
4. With the head lamp and battery in normal condition, aim the head
lamps so the brightest portion falls
on the horizontal and vertical lines.
5. To aim the low and high beams left or right, turn the driver (1) clock‐
wise or counterclockwise. To aim
the low and high beams up or
down, turn the driver (2) clockwise
or counterclockwise.
Front fog lamp aiming
The front fog lamp can be aimed as the
same manner of the head lamps aim‐ ing.
With the front fog lamps and battery
normal condition, aim the front fog
lamps.
To aim the front fog lamp up or down, turn the driver clockwise or counter‐
clockwise.

8-121
8
Maintenance

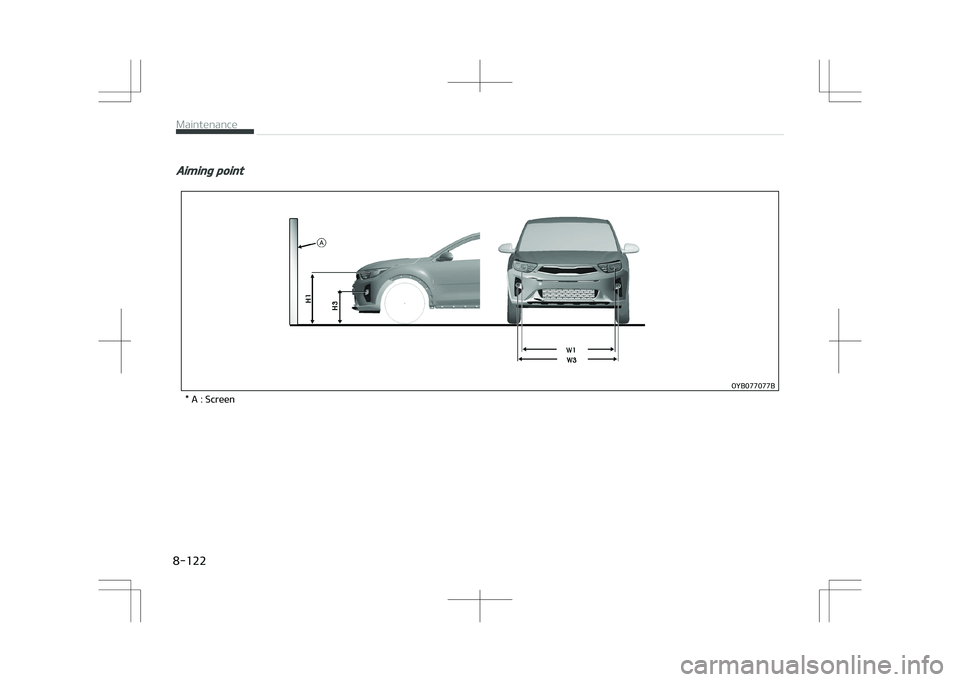

Aiming point
0:##

"

4DSFFO
Maintenance
8-122

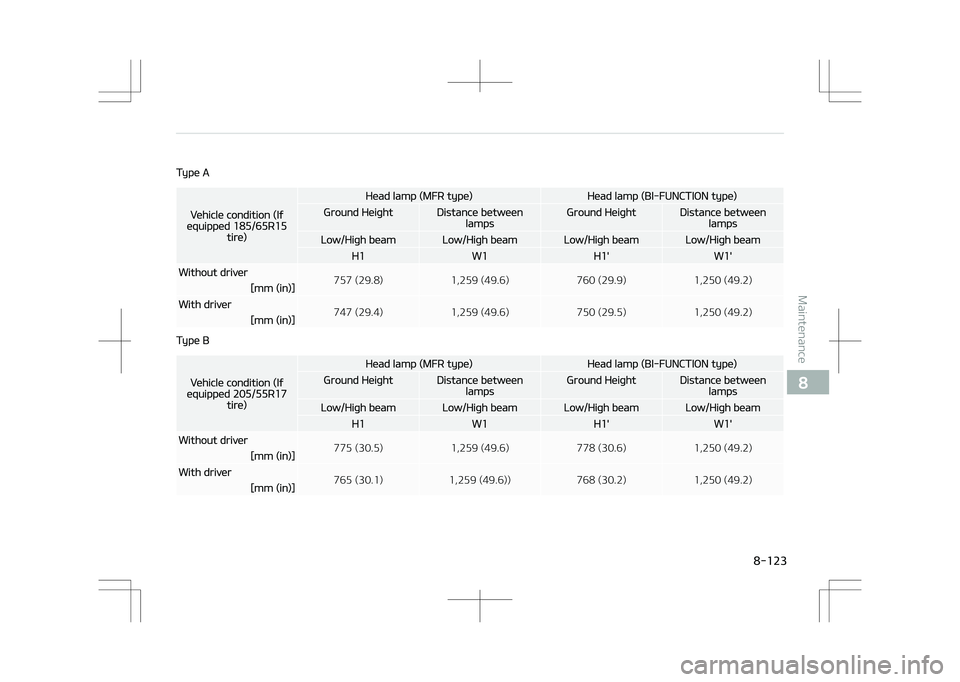

Type A
Vehicle condition (Ifequipped 185/65R15tire)
Head lamp (MFR type)Head lamp (BI-FUNCTION type)
Ground HeightDistance betweenlampsGround HeightDistance betweenlamps
Low/High beamLow/High beamLow/High beamLow/High beam
H1W1H1'W1'
Without driver757 (29.8) 1,259 (49.6) 760 (29.9) 1,250 (49.2)
[mm (in)]
With driver 747 (29.4) 1,259 (49.6) 750 (29.5) 1,250 (49.2)
[mm (in)]
Type B
Vehicle condition (Ifequipped 205/55R17tire)
Head lamp (MFR type)Head lamp (BI-FUNCTION type)
Ground HeightDistance betweenlampsGround HeightDistance betweenlamps
Low/High beamLow/High beamLow/High beamLow/High beam
H1W1H1'W1'
Without driver775 (30.5) 1,259 (49.6) 778 (30.6) 1,250 (49.2)
[mm (in)]
With driver 765 (30.1) 1,259 (49.6)) 768 (30.2) 1,250 (49.2)
[mm (in)]

8-123
8
Maintenance

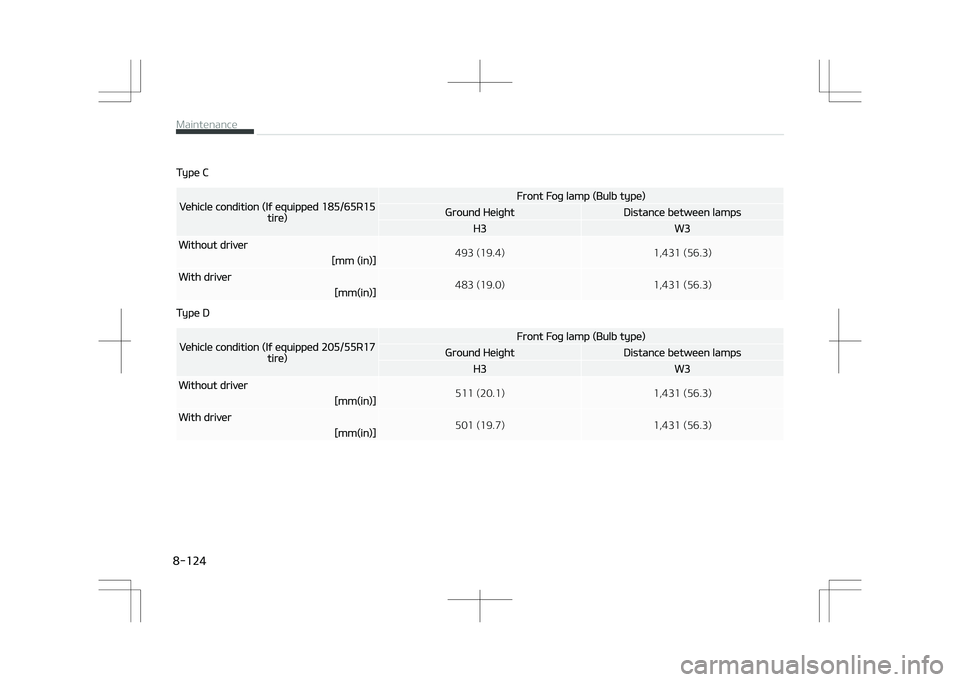

Type C
Vehicle condition (If equipped 185/65R15tire)
Front Fog lamp (Bulb type)
Ground HeightDistance between lamps
H3W3
Without driver493 (19.4) 1,431 (56.3)
[mm (in)]
With driver 483 (19.0) 1,431 (56.3)
[mm(in)]
Type D
Vehicle condition (If equipped 205/55R17tire)
Front Fog lamp (Bulb type)
Ground HeightDistance between lamps
H3W3
Without driver511 (20.1) 1,431 (56.3)
[mm(in)]
With driver 501 (19.7) 1,431 (56.3)
[mm(in)]
Maintenance
8-124
