KIA STONIC 2018 Owners Manual

•Lamp part malfunction due to electri‐cal control system stabilization
A normally functioning lamp may
flicker momentarily. This momentary occurrence is due to stabilization unc‐
tion of the vehicle's electrical on con‐
trol system. If the lamp soon returns
to normal, the vehicle does not re‐
quire service.
However, if the lamp goes out after he momentary flickering, or the flick‐
ering continues, have the system
serviced by a professional workshop.
Kia recommends to visit an author‐
ized Kia dealer/service partner.
NOTICE
•If the light bulb or lamp connector
is removed from an operating
lamp activated by electricity, the
fuse box’s electronic device may
scan it as a malfunction. There‐
fore, a lamp malfunction history
may be recorded in Diagnostic
Trouble Code (DTC) in the fuse
box.
(Continued)
(Continued)
•It is normal for an operating lamp
may blink temporarily. Since this
occurrence is due stabilization
function of the vehicle’s electronic
control device, if the lamp lights up
normally after temporary blinking,
there is no problem in the vehicle.
However, if the lamp continues to
blink several times or turn off
completely, there may be an error
in the vehicle’s electronic control
device. In this case, have the vehi‐
cle checked by a professional
workshop immediately. Kia recom‐
mends to visit an authorized Kia
dealer/service partner.
NOTICE
After an accident or after the head‐
light assembly is reinstalled, have
the headlight aiming adjusted by a
professional workshop. Kia recom‐
mends to visit an authorized Kia
dealer/service partner.
NOTICE
After driving in heavy rain or wash‐
ing, headlamp and taillamp lenses
could appear frosty. This condition is
caused by the temperature differ‐
ence between the lamp inside and
outside. This is similar to the con‐
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the
lamp bulb circuitry, have the vehicle
checked by a professional workshop.
Kia recommends to visit an author‐
ized Kia dealer/service partner.
NOTICE
nTraffic Change (For Europe)
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direc‐
tion, this asymmetric part will dazzle
oncoming car driver. To prevent daz‐
(Continued)

8-105
8
Maintenance

(Continued)
zle, ECE regulation demand several
technical solutions (ex. automatic
change system, adhesive sheet,
down aiming). This headlamps are
designed not to dazzle opposite driv‐
ers. So, you need not change your
headlamps in a country with oppo‐
site traffic direction.

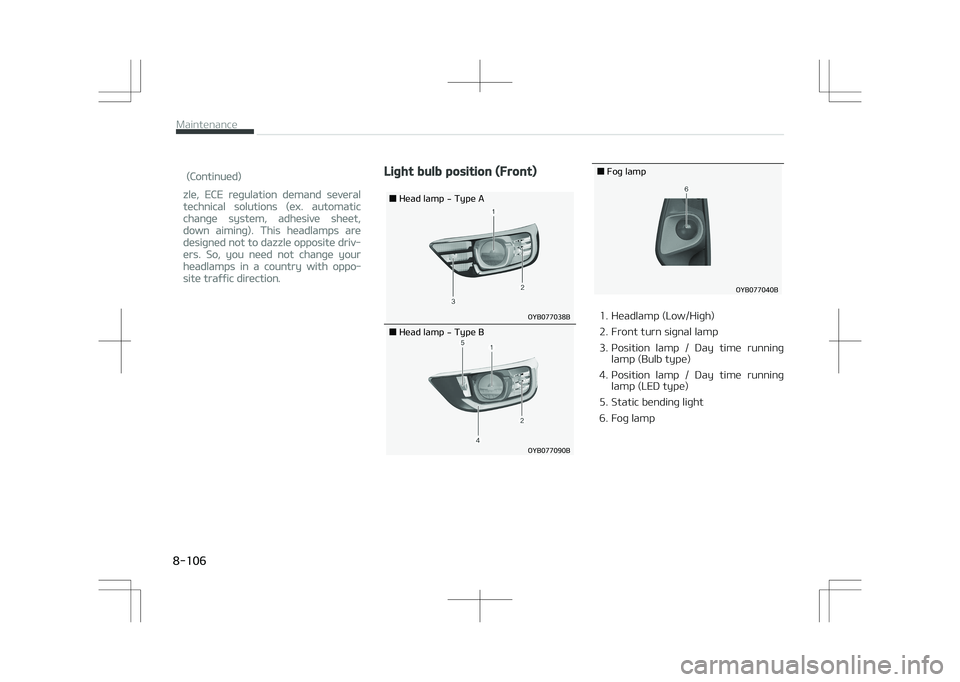

Light bulb position (Front)
0:##
)FBE
MBNQ

5ZQF
"
0:##
)FBE
MBNQ

5ZQF
#
0:##
'PH
MBNQ
1. Headlamp (Low/High)
2. Front turn signal lamp
3. Position lamp / Day time runninglamp (Bulb type)
4. Position lamp / Day time running lamp (LED type)
5. Static bending light
6. Fog lamp
Maintenance
8-106

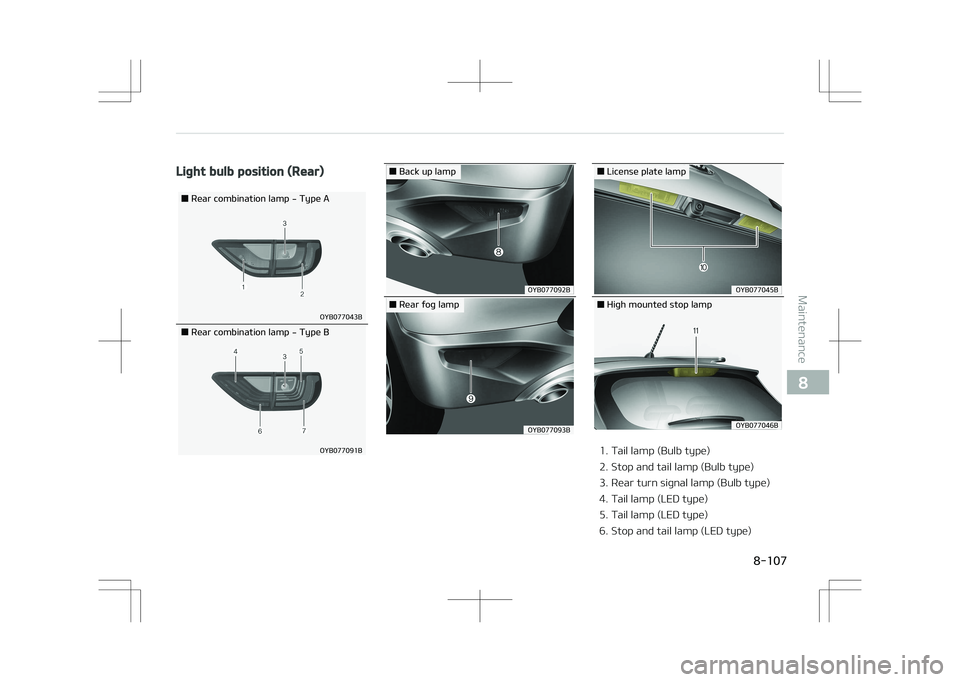

Light bulb position (Rear)
0:##
3FBS
DPNCJOBUJPO
MBNQ

5ZQF
"
0:##
3FBS
DPNCJOBUJPO
MBNQ

5ZQF
#
0:##
#BDL
VQ
MBNQ
0:##
3FBS
GPH
MBNQ
0:##
-JDFOTF
QMBUF
MBNQ
0:##
)JHI
NPVOUFE
TUPQ
MBNQ
1. Tail lamp (Bulb type)
2. Stop and tail lamp (Bulb type)
3. Rear turn signal lamp (Bulb type)
4. Tail lamp (LED type)
5. Tail lamp (LED type)
6. Stop and tail lamp (LED type)

8-107
8
Maintenance

7. Stop and tail lamp (LED type)
8. Back up lamp
9. Rear fog lamp
10. License plate lamp

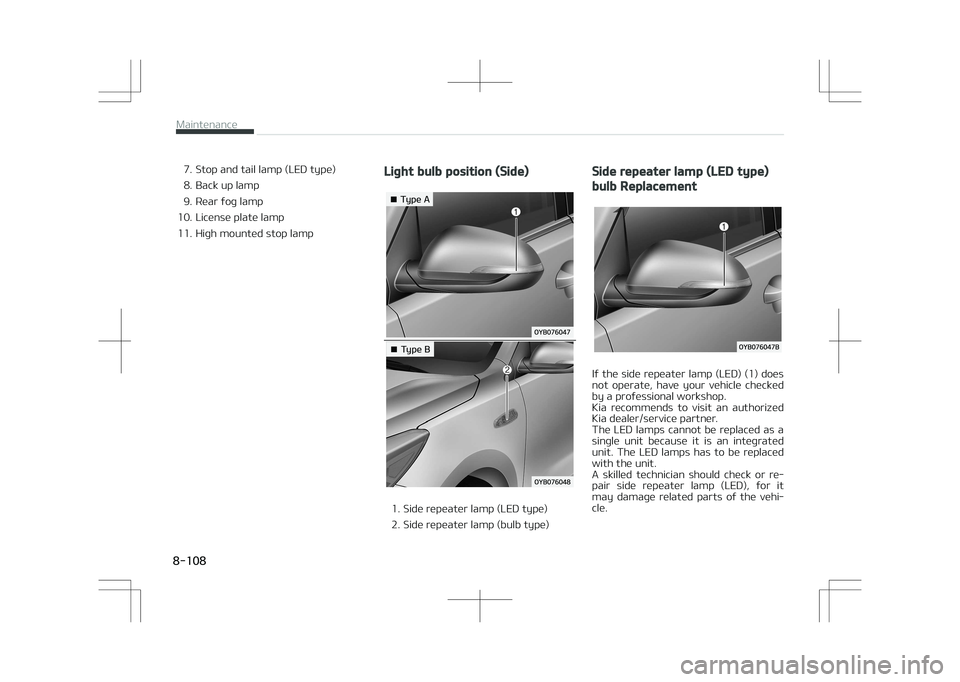

11. High mounted stop lampLight bulb position (Side)
¥
5ZQF
"
¥
5ZQF
#
1. Side repeater lamp (LED type)
2. Side repeater lamp (bulb type)
Side repeater lamp (LED type)
bulb Replacement
If the side repeater lamp (LED) (1) does
not operate, have your vehicle checked by a professional workshop.
Kia recommends to visit an authorized
Kia dealer/service partner.
The LED lamps cannot be replaced as a
single unit because it is an integrated unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or re‐
pair side repeater lamp (LED), for it may damage related parts of the vehi‐
cle.
Maintenance
8-108

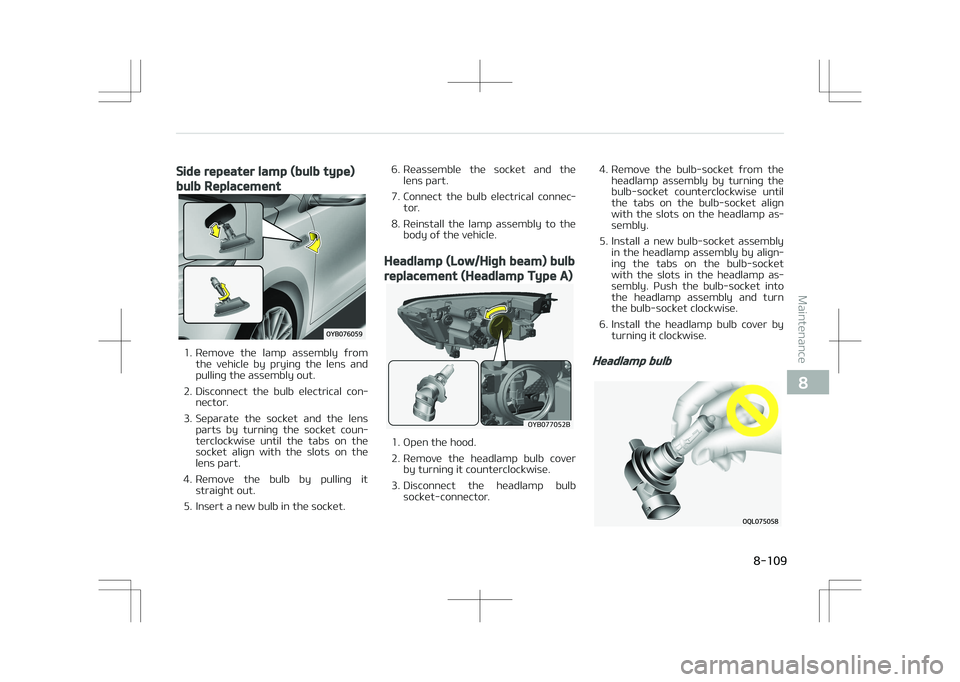

Side repeater lamp (bulb type)
bulb Replacement
1. Remove the lamp assembly fromthe vehicle by prying the lens and
pulling the assembly out.
2. Disconnect the bulb electrical con‐ nector.
3. Separate the socket and the lens parts by turning the socket coun‐
terclockwise until the tabs on the
socket align with the slots on the
lens part.
4. Remove the bulb by pulling it straight out.
5. Insert a new bulb in the socket. 6. Reassemble the socket and the
lens part.
7. Connect the bulb electrical connec‐ tor.
8. Reinstall the lamp assembly to the body of the vehicle.
Headlamp (Low/High beam) bulb
replacement (Headlamp Type A)
0:##
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector. 4. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp as‐
sembly.
5. Install a new bulb-socket assembly in the headlamp assembly by align‐
ing the tabs on the bulb-socket
with the slots in the headlamp as‐
sembly. Push the bulb-socket into
the headlamp assembly and turn
the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.
Headlamp bulb

8-109
8
Maintenance

WARNING
nHalogen bulbs
•Halogen bulbs contain pressurizedgas that will produce flying piecesof glass if broken.
•Always handle them carefully, andavoid scratches and abrasions. Ifthe bulbs are lit, avoid contactwith liquids. Never touch the glasswith bare hands. Residual oil maycause the bulb to overheat andburst when lit.A bulb should be operated onlywhen installed in a headlight.
•If a bulb becomes damaged orcracked, replace it immediatelyand carefully dispose of it.
•Wear eye protection when chang‐ing a bulb. Allow the bulb to cooldown before handling it.
Front turn signal lamp bulb
replacement (Headlamp Type A)
0:##
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp as‐
sembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat‐
ing it counterclockwise until the tabs on the bulb align with the slots
in the bulb-socket. Pull the bulb out
of the bulb-socket. 4. Insert a new bulb by inserting it in‐
to the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock‐
et into the headlamp assembly and
turn the socket clockwise.
Position lamp / Day time
running lamp bulb replacement
(Headlamp Type A)
0:##
1. Open the hood.
Maintenance
8-110

2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp as‐
sembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat‐
ing it counterclockwise until the tabs on the bulb align with the slots
in the bulb-socket. Pull the bulb out
of the bulb-socket.
4. Insert a new bulb by inserting it in‐ to the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock‐
et into the headlamp assembly and

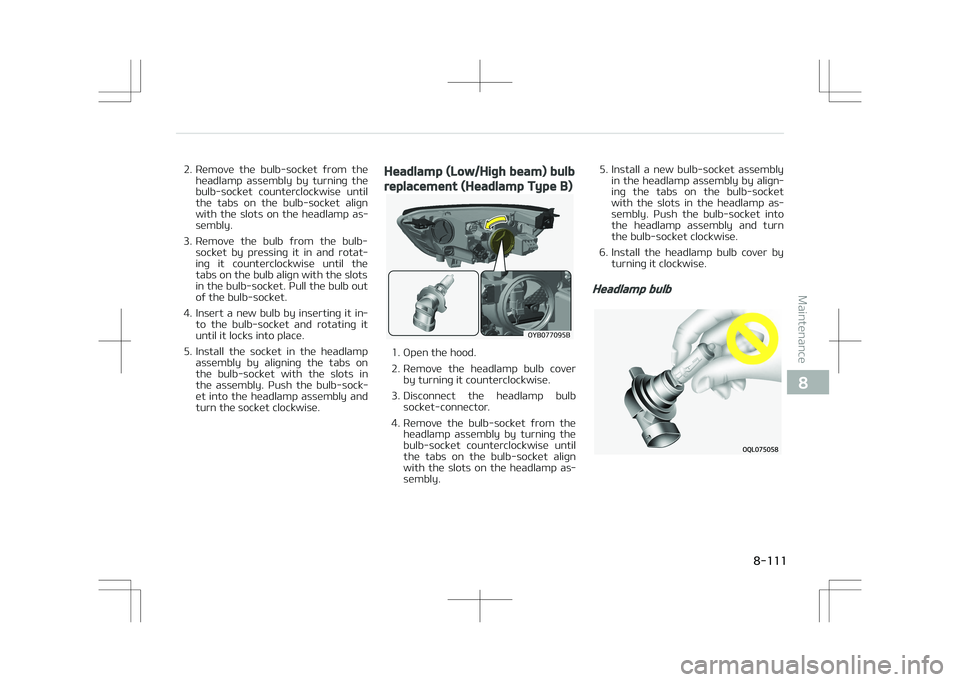

turn the socket clockwise.Headlamp (Low/High beam) bulb
replacement (Headlamp Type B)
0:##
1. Open the hood.
2. Remove the headlamp bulb cover by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp as‐
sembly. 5. Install a new bulb-socket assembly
in the headlamp assembly by align‐
ing the tabs on the bulb-socket
with the slots in the headlamp as‐
sembly. Push the bulb-socket into
the headlamp assembly and turn
the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.
Headlamp bulb

8-111
8
Maintenance

WARNING
nHalogen bulbs
•Halogen bulbs contain pressurizedgas that will produce flying piecesof glass if broken.
•Always handle them carefully, andavoid scratches and abrasions. Ifthe bulbs are lit, avoid contactwith liquids. Never touch the glasswith bare hands. Residual oil maycause the bulb to overheat andburst when lit.A bulb should be operated onlywhen installed in a headlight.
•If a bulb becomes damaged orcracked, replace it immediatelyand carefully dispose of it.
•Wear eye protection when chang‐ing a bulb. Allow the bulb to cooldown before handling it.
Front turn signal lamp bulb
replacement (Headlamp Type B)
0:##
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp as‐
sembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat‐
ing it counterclockwise until the tabs on the bulb align with the slots
in the bulb-socket. Pull the bulb out
of the bulb-socket. 4. Insert a new bulb by inserting it in‐
to the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock‐
et into the headlamp assembly and
turn the socket clockwise.
Static bending light replacement
(Headlamp Type B)
0:##
1. Open the hood.
2. Remove the headlamp bulb cover by turning it counterclockwise.
Maintenance
8-112

3. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp as‐
sembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it in‐ to the bulb-socket.
6. Install the bulb-socket in the head‐ lamp assembly by aligning the tabs
on the bulb-socket with the slots in
the headlamp assembly. Push the
bulb-socket into the headlamp as‐
sembly and turn the bulb-socket
clockwise.

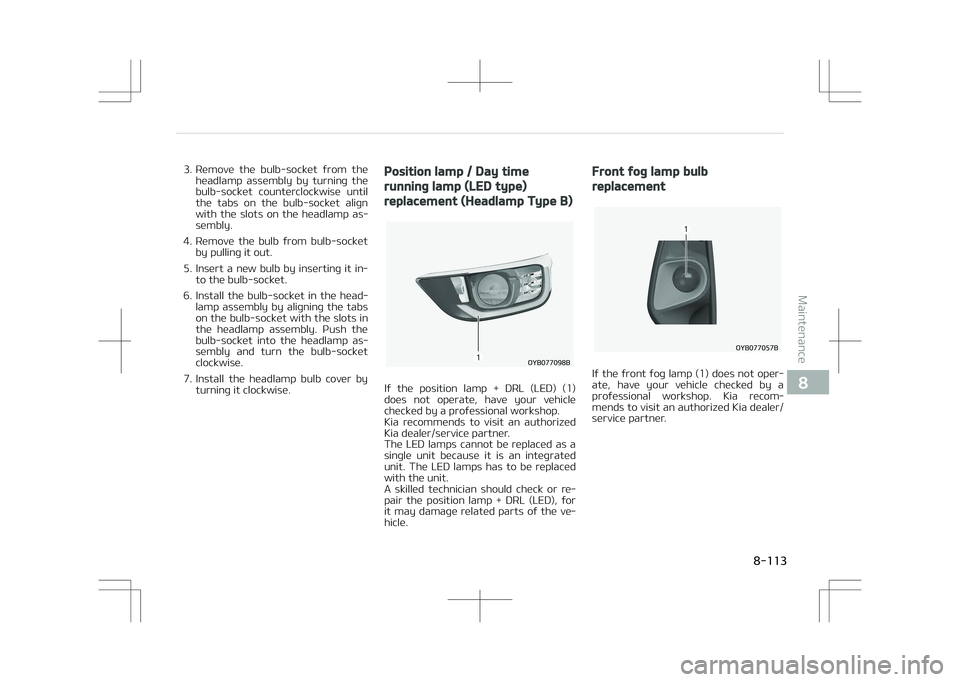

7. Install the headlamp bulb cover by turning it clockwise.Position lamp / Day time
running lamp (LED type)
replacement (Headlamp Type B)
0:##
If the position lamp + DRL (LED) (1)
does not operate, have your vehicle checked by a professional workshop.
Kia recommends to visit an authorized
Kia dealer/service partner.
The LED lamps cannot be replaced as a
single unit because it is an integrated unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or re‐
pair the position lamp + DRL (LED), for it may damage related parts of the ve‐
hicle.
Front fog lamp bulb
replacement
0:##
If the front fog lamp (1) does not oper‐
ate, have your vehicle checked by a professional workshop. Kia recom‐
mends to visit an authorized Kia dealer/
service partner.

8-113
8
Maintenance

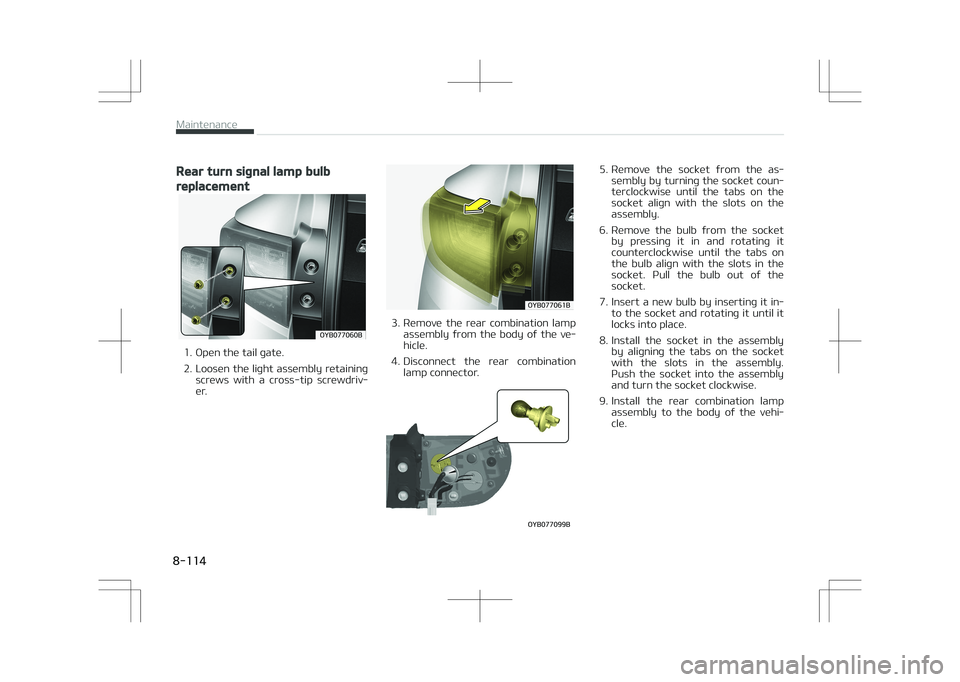

Rear turn signal lamp bulb
replacement
0:##
1. Open the tail gate.
2. Loosen the light assembly retainingscrews with a cross-tip screwdriv‐
er.
0:##
3. Remove the rear combination lamp assembly from the body of the ve‐
hicle.
4. Disconnect the rear combination lamp connector.
0:##
5. Remove the socket from the as‐sembly by turning the socket coun‐
terclockwise until the tabs on the
socket align with the slots on the
assembly.
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it in‐ to the socket and rotating it until it
locks into place.
8. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp assembly to the body of the vehi‐
cle.
Maintenance
8-114
