KIA STONIC 2018 Owners Manual

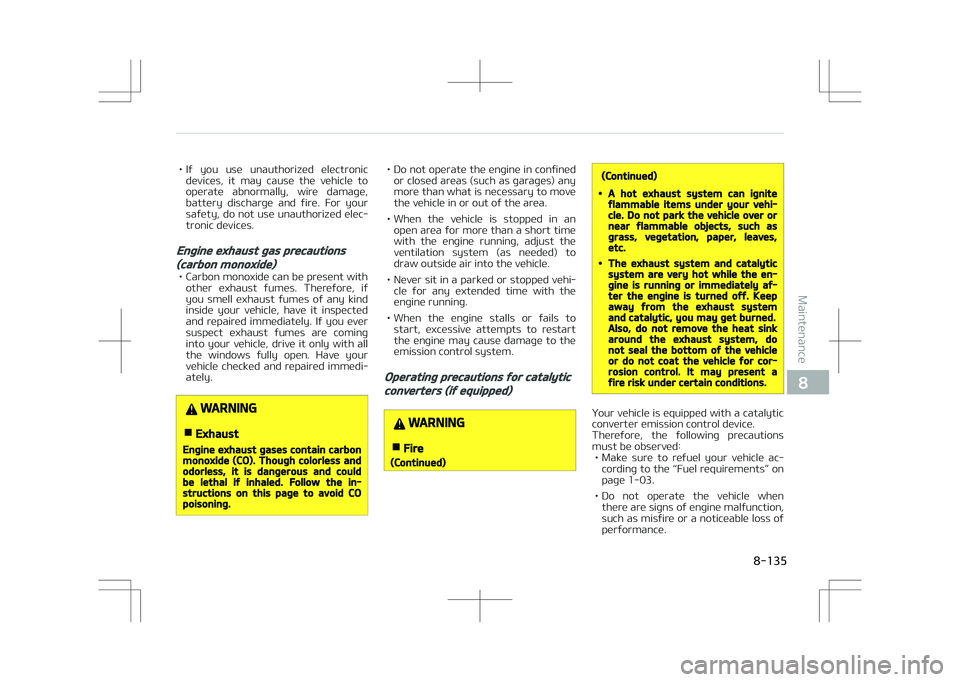

• If you use unauthorized electronicdevices, it may cause the vehicle to
operate abnormally, wire damage, battery discharge and fire. For your
safety, do not use unauthorized elec‐
tronic devices.
Engine exhaust gas precautions
(carbon monoxide)
• Carbon monoxide can be present with other exhaust fumes. Therefore, if
you smell exhaust fumes of any kind inside your vehicle, have it inspected
and repaired immediately. If you ever
suspect exhaust fumes are coming
into your vehicle, drive it only with all
the windows fully open. Have your vehicle checked and repaired immedi‐
ately.
WARNING
nExhaust
Engine exhaust gases contain carbonmonoxide (CO). Though colorless andodorless, it is dangerous and couldbe lethal if inhaled. Follow the in‐structions on this page to avoid COpoisoning.
• Do not operate the engine in confined or closed areas (such as garages) any
more than what is necessary to move the vehicle in or out of the area.
• When the vehicle is stopped in an open area for more than a short time
with the engine running, adjust the
ventilation system (as needed) to
draw outside air into the vehicle.
• Never sit in a parked or stopped vehi‐ cle for any extended time with the
engine running.
• When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to the
emission control system.
Operating precautions for catalytic
converters (if equipped)
WARNING
nFire
(Continued)
(Continued)
•A hot exhaust system can igniteflammable items under your vehi‐cle. Do not park the vehicle over ornear flammable objects, such asgrass, vegetation, paper, leaves,etc.
•The exhaust system and catalyticsystem are very hot while the en‐gine is running or immediately af‐ter the engine is turned off. Keepaway from the exhaust systemand catalytic, you may get burned.Also, do not remove the heat sinkaround the exhaust system, donot seal the bottom of the vehicleor do not coat the vehicle for cor‐rosion control. It may present afire risk under certain conditions.
Your vehicle is equipped with a catalytic
converter emission control device.
Therefore, the following precautions must be observed: • Make sure to refuel your vehicle ac‐ cording to the L

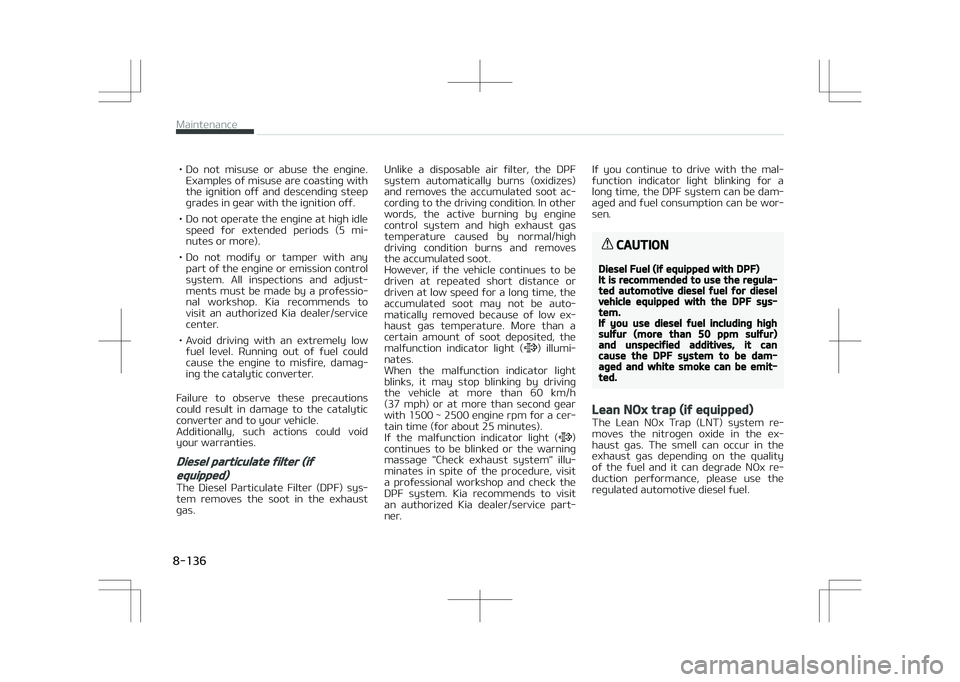

• Do not misuse or abuse the engine.Examples of misuse are coasting with
the ignition off and descending steep grades in gear with the ignition off.
• Do not operate the engine at high idle speed for extended periods (5 mi‐
nutes or more).
• Do not modify or tamper with any part of the engine or emission control
system. All inspections and adjust‐ ments must be made by a professio‐
nal workshop. Kia recommends to
visit an authorized Kia dealer/service
center.
• Avoid driving with an extremely low fuel level. Running out of fuel couldcause the engine to misfire, damag‐
ing the catalytic converter.
Failure to observe these precautions
could result in damage to the catalytic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Diesel particulate filter (if
equipped)
The Diesel Particulate Filter (DPF) sys‐
tem removes the soot in the exhaust gas. Unlike a disposable air filter, the DPF
system automatically burns (oxidizes)
and removes the accumulated soot ac‐ cording to the driving condition. In other
words, the active burning by engine
control system and high exhaust gas temperature caused by normal/high
driving condition burns and removes
the accumulated soot.
However, if the vehicle continues to be driven at repeated short distance or
driven at low speed for a long time, the
accumulated soot may not be auto‐ matically removed because of low ex‐
haust gas temperature. More than a
certain amount of soot deposited, the malfunction indicator light (
) illumi‐
nates.
When the malfunction indicator light
blinks, it may stop blinking by driving
the vehicle at more than 60 km/h (37 mph) or at more than second gear
with 1500 ~ 2500 engine rpm for a cer‐
tain time (for about 25 minutes).
If the malfunction indicator light (
)
continues to be blinked or the warning
massage "Check exhaust system" illu‐ minates in spite of the procedure, visit
a professional workshop and check the
DPF system. Kia recommends to visit an authorized Kia dealer/service part‐
ner. If you continue to drive with the mal‐
function indicator light blinking for a long time, the DPF system can be dam‐
aged and fuel consumption can be wor‐
sen.
CAUTION
Diesel Fuel (if equipped with DPF)It is recommended to use the regula‐ted automotive diesel fuel for dieselvehicle equipped with the DPF sys‐tem.If you use diesel fuel including highsulfur (more than 50 ppm sulfur)and unspecified additives, it cancause the DPF system to be dam‐aged and white smoke can be emit‐ted.
Lean NOx trap (if equipped)
The Lean NOx Trap (LNT) system re‐
moves the nitrogen oxide in the ex‐ haust gas. The smell can occur in the
exhaust gas depending on the quality
of the fuel and it can degrade NOx re‐ duction performance, please use the
regulated automotive diesel fuel.
Maintenance
8-136

Engine..........................................................................................9-02
Dimensions................................................................................. 9-03
Bulb wattage..............................................................................9-04
Tires and wheels....................................................................... 9-06
Weight/Volume.......................................................................... 9-11
Air conditioning system........................................................... 9-12
Recommended lubricants and capacities.............................. 9-13Recommended SAE viscosity number............................... 9-15
Vehicle identification number (VIN)........................................9-17
Vehicle certification label ........................................................ 9-18
Tire specification and pressure label..................................... 9-19
Engine number.......................................................................... 9-20
Air conditioner compressor label............................................ 9-21
Refrigerant label ...................................................................... 9-22
Declaration of conformity....................................................... 9-23
Specifications & Consumer information

9

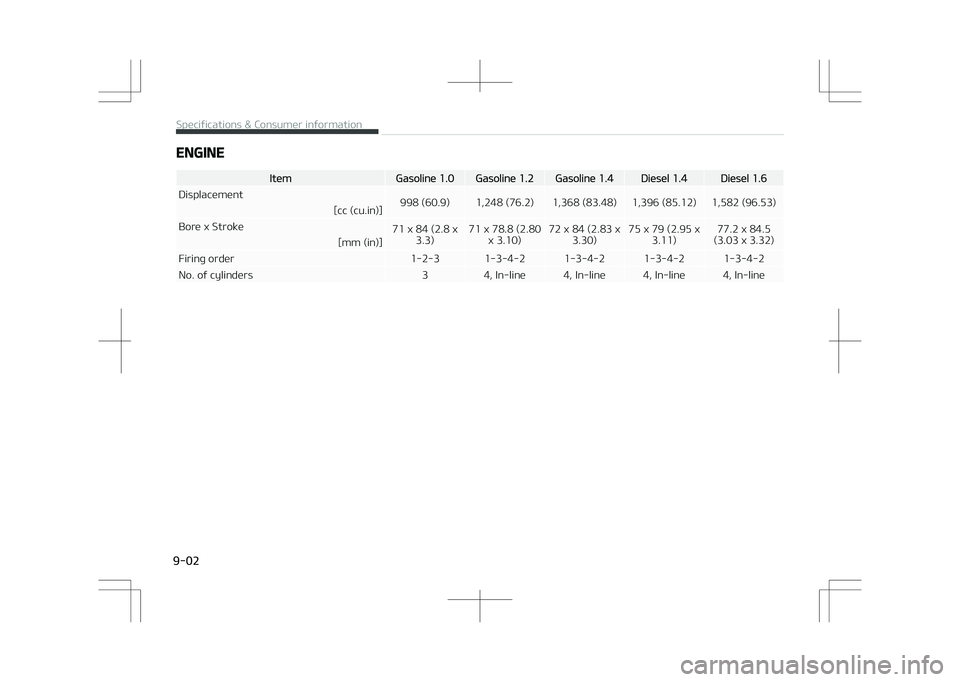

ENGINE
ItemGasoline 1.0Gasoline 1.2Gasoline 1.4Diesel 1.4Diesel 1.6
Displacement 998 (60.9) 1,248 (76.2) 1,368 (83.48) 1,396 (85.12) 1,582 (96.53)
[cc (cu.in)]
Bore x Stroke 71 x 84 (2.8 x
3.3) 71 x 78.8 (2.80
x 3.10) 72 x 84 (2.83 x
3.30) 75 x 79 (2.95 x
3.11) 77.2 x 84.5
(3.03 x 3.32)
[mm (in)]
Firing order 1-2-3 1-3-4-2 1-3-4-2 1-3-4-2 1-3-4-2
No. of cylinders 3 4, In-line 4, In-line 4, In-line 4, In-line

Specifications & Consumer information
9-02

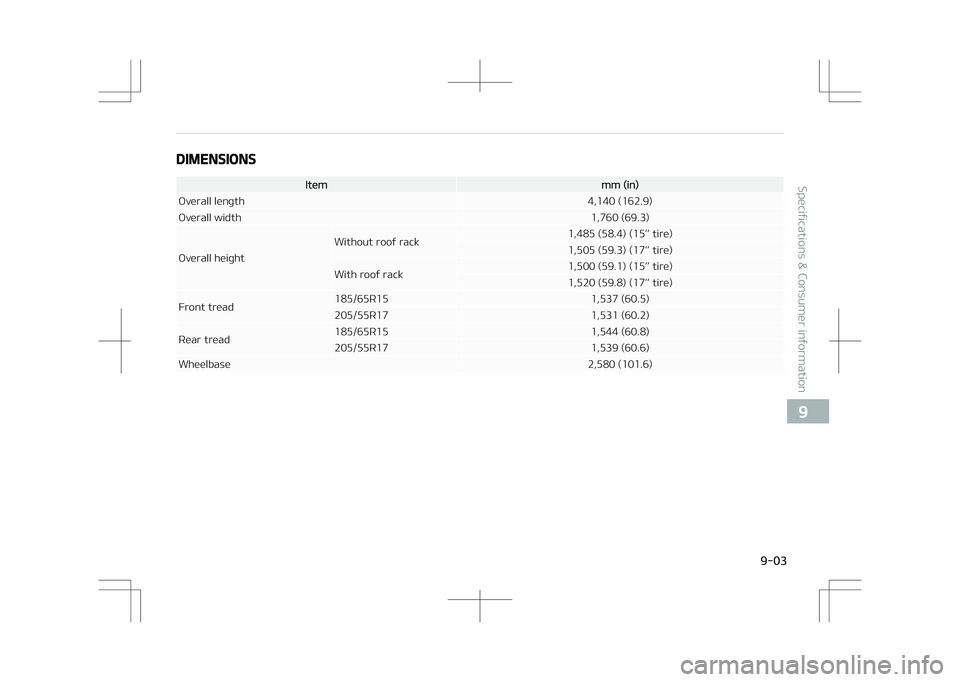

DIMENSIONS
Itemmm (in)
Overall length 4,140 (162.9)
Overall width 1,760 (69.3)
Overall height Without roof rack
1,485 (58.4) (15’’ tire)
1,505 (59.3) (17’’ tire)
With roof rack 1,500 (59.1) (15’’ tire)
1,520 (59.8) (17’’ tire)
Front tread 185/65R15
1,537 (60.5)
205/55R17 1,531 (60.2)
Rear tread 185/65R15
1,544 (60.8)
205/55R17 1,539 (60.6)
Wheelbase 2,580 (101.6)


9-03
9
Specifications & Consumer information

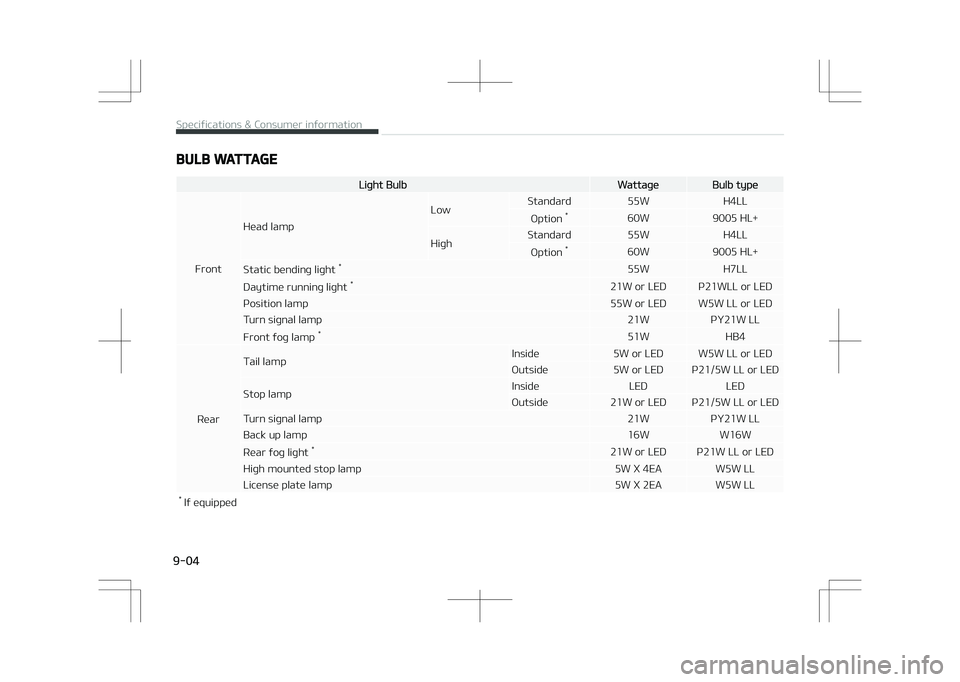

BULB WATTAGE
Light BulbWattageBulb type
Front Head lamp
Low
Standard 55W H4LL
Option *
60W 9005 HL+
High Standard 55W H4LL
Option *
60W 9005 HL+
Static bending light *
55W H7LL
Daytime running light *
21W or LED P21WLL or LED
Position lamp 55W or LED W5W LL or LED
Turn signal lamp 21W PY21W LL
Front fog lamp *
51W HB4
Rear Tail lamp
Inside 5W or LED W5W LL or LED
Outside 5W or LED P21/5W LL or LED
Stop lamp Inside LED LED
Outside 21W or LED P21/5W LL or LED
Turn signal lamp 21W PY21W LL
Back up lamp 16W W16W
Rear fog light *
21W or LED P21W LL or LED
High mounted stop lamp 5W X 4EA W5W LL
License plate lamp 5W X 2EA W5W LL
* If equipped
Specifications & Consumer information
9-04

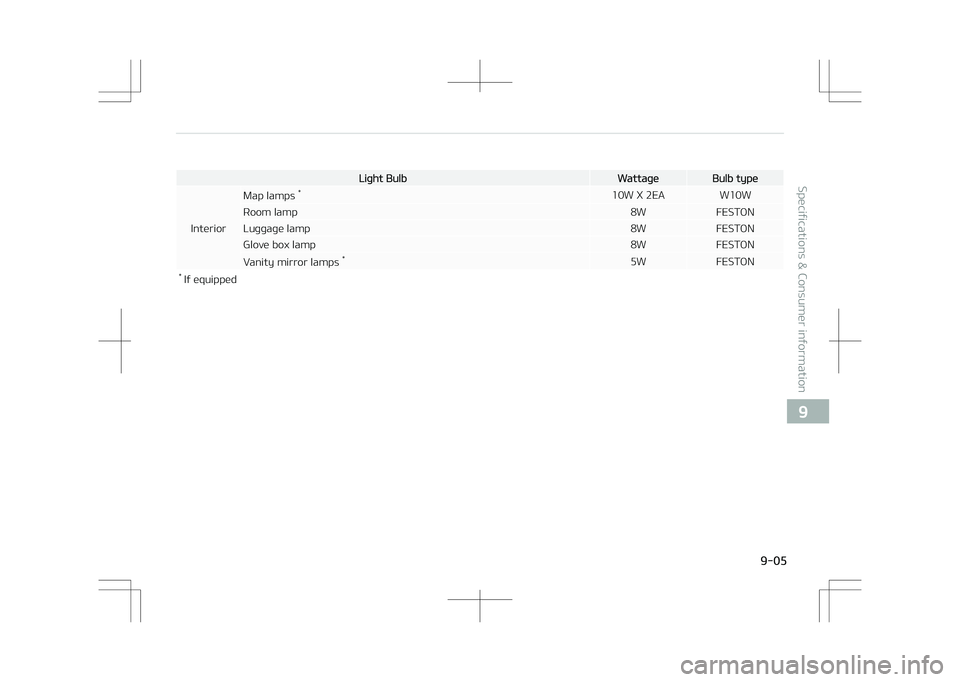

Light BulbWattageBulb type
Interior Map lamps
*
10W X 2EA W10W
Room lamp 8W FESTON
Luggage lamp 8W FESTON
Glove box lamp 8W FESTON
Vanity mirror lamps *
5W FESTON
* If equipped


9-05
9
Specifications & Consumer information

TIRES AND WHEELS
For Europe
Specifications & Consumer information
9-06

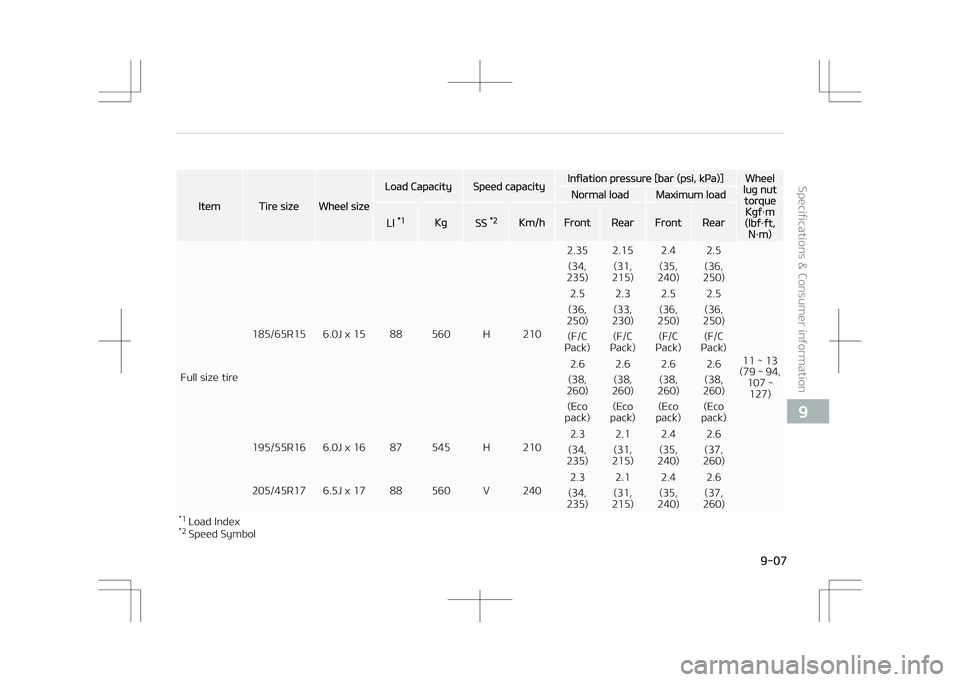

ItemTire sizeWheel size
Load CapacitySpeed capacityInflation pressure [bar (psi, kPa)]Wheellug nuttorqueKgf·m(lbf·ft,N·m)
Normal loadMaximum load
LI *1KgSS *2Km/hFrontRearFrontRear
Full size tire 185/65R15 6.0J x 15 88 560 H 210 2.35 2.15 2.4 2.5
11 ~ 13
(79 ~ 94, 107 ~127)
(34,
235) (31,
215) (35,
240) (36,
250)
2.5 2.3 2.5 2.5
(36,
250) (33,
230) (36,
250) (36,
250)
(F/C
Pack) (F/C
Pack) (F/C
Pack) (F/C
Pack)
2.6 2.6 2.6 2.6
(38,
260) (38,
260) (38,
260) (38,
260)
(Eco
pack) (Eco
pack) (Eco
pack) (Eco
pack)
195/55R16 6.0J x 16 87 545 H 210 2.3 2.1 2.4 2.6
(34,
235) (31,
215) (35,
240) (37,
260)
205/45R17 6.5J x 17 88 560 V 240 2.3 2.1 2.4 2.6
(34,
235) (31,
215) (35,
240) (37,
260)
*1 Load Index
*2 Speed Symbol

9-07
9
Specifications & Consumer information

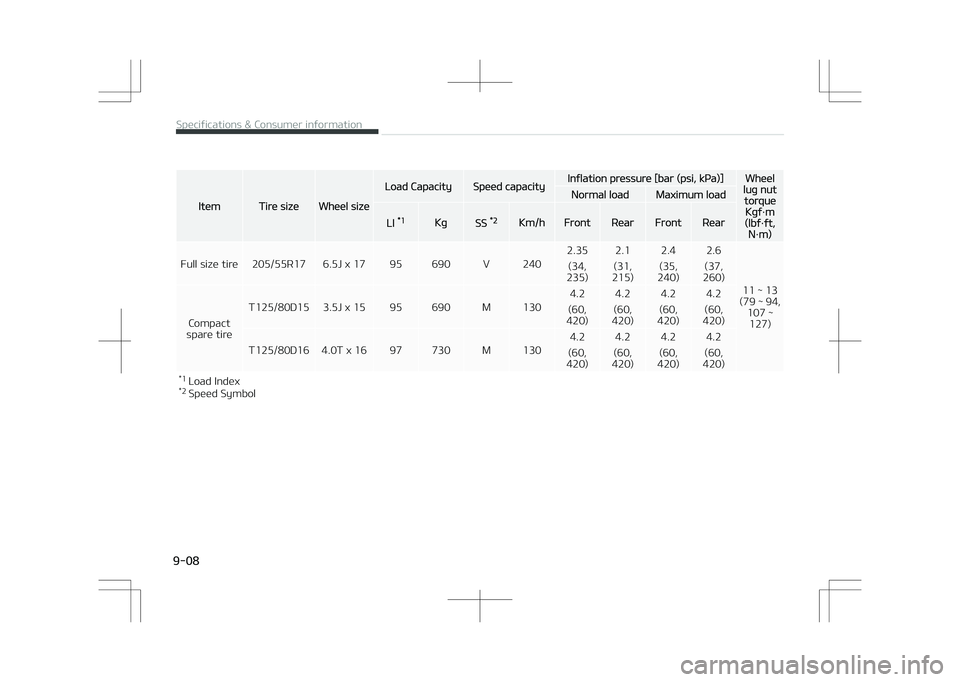

ItemTire sizeWheel size
Load CapacitySpeed capacityInflation pressure [bar (psi, kPa)]Wheellug nuttorqueKgf·m(lbf·ft,N·m)
Normal loadMaximum load
LI *1KgSS *2Km/hFrontRearFrontRear
Full size tire 205/55R17 6.5J x 17 95 690 V 240 2.35 2.1 2.4 2.6
11 ~ 13
(79 ~ 94, 107 ~127)
(34,
235) (31,
215) (35,
240) (37,
260)
Compact
spare tire T125/80D15 3.5J x 15 95 690 M 130
4.2 4.2 4.2 4.2
(60,
420) (60,
420) (60,
420) (60,
420)
T125/80D16 4.0T x 16 97 730 M 130 4.2 4.2 4.2 4.2
(60,
420) (60,
420) (60,
420) (60,
420)
*1 Load Index
*2 Speed Symbol
Specifications & Consumer information
9-08
