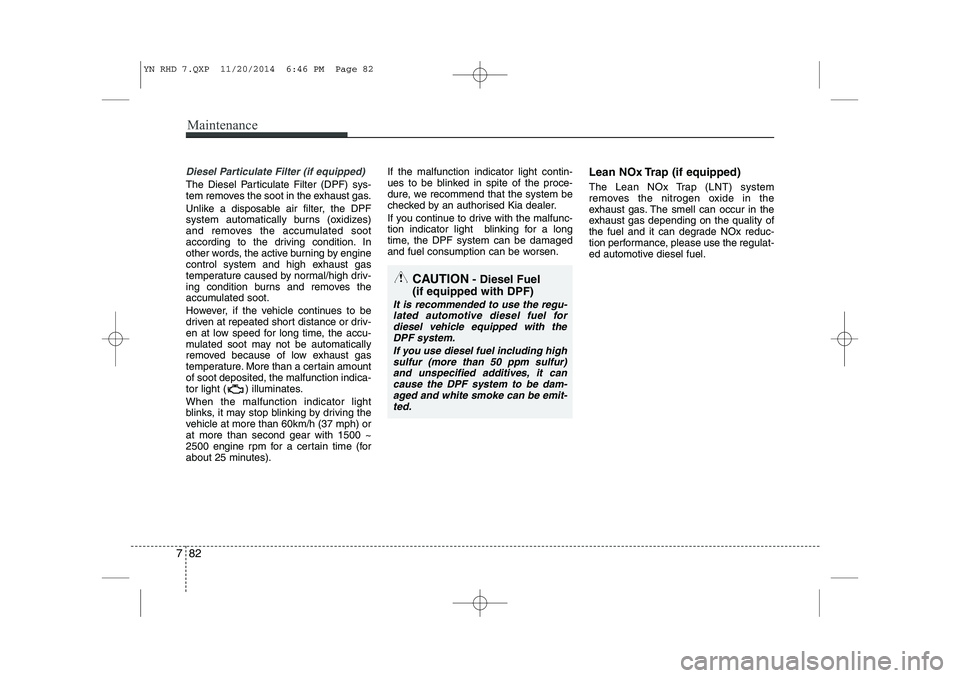

Diesel Particulate Filter (if equipped)
The Diesel Particulate Filter (DPF) sys-
tem removes the soot in the exhaust gas.
Unlike a disposable air filter, the DPF
system automatically burns (oxidizes)
and removes the accumulated soot
according to the driving condition. In
other words, the active burning by engine
control system and high exhaust gas
temperature caused by normal/high driv-
ing condition burns and removes the
accumulated soot.
However, if the vehicle continues to be
driven at repeated short distance or driv-
en at low speed for long time, the accu-
mulated soot may not be automatically
removed because of low exhaust gas
temperature. More than a certain amountof soot deposited, the malfunction indica-
tor light ( ) illuminates. When the malfunction indicator light
blinks, it may stop blinking by driving the
vehicle at more than 60km/h (37 mph) orat more than second gear with 1500 ~
2500 engine rpm for a certain time (for
about 25 minutes). If the malfunction indicator light contin-
ues to be blinked in spite of the proce-
dure, we recommend that the system be
checked by an authorised Kia dealer.
If you continue to drive with the malfunc-
tion indicator light blinking for a long
time, the DPF system can be damaged
and fuel consumption can be worsen.
Lean NOx Trap (if equipped)
The Lean NOx Trap (LNT) system
removes the nitrogen oxide in the
exhaust gas. The smell can occur in the
exhaust gas depending on the quality of
the fuel and it can degrade NOx reduc-
tion performance, please use the regulat-
ed automotive diesel fuel.
CAUTION
- Diesel Fuel
(if equipped with DPF)
It is recommended to use the regu- lated automotive diesel fuel for
diesel vehicle equipped with the DPF system.
If you use diesel fuel including highsulfur (more than 50 ppm sulfur) and unspecified additives, it can
cause the DPF system to be dam- aged and white smoke can be emit-ted.
YN RHD 7.QXP 11/20/2014 6:46 PM Page 82

8

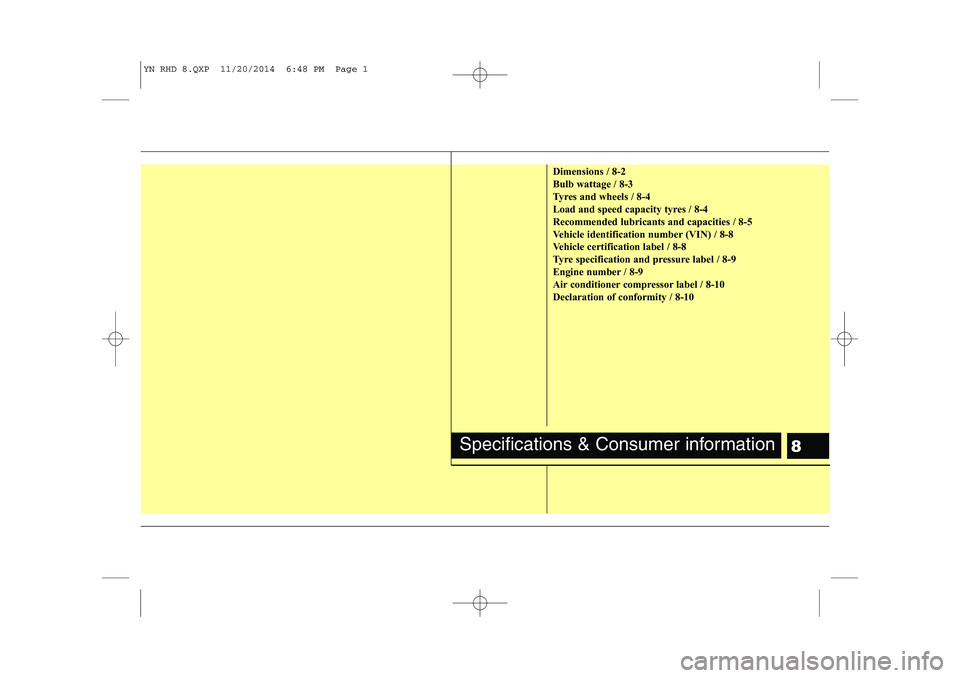

Dimensions / 8-2
Bulb wattage / 8-3
Tyres and wheels / 8-4
Load and speed capacity tyres / 8-4
Recommended lubricants and capacities / 8-5
Vehicle identification number (VIN) / 8-8
Vehicle certification label / 8-8
Tyre specification and pressure label / 8-9
Engine number / 8-9
Air conditioner compressor label / 8-10
Declaration of conformity / 8-10
Specifications & Consumer information
YN RHD 8.QXP 11/20/2014 6:48 PM Page 1

Specifications & Consumer information
2
8

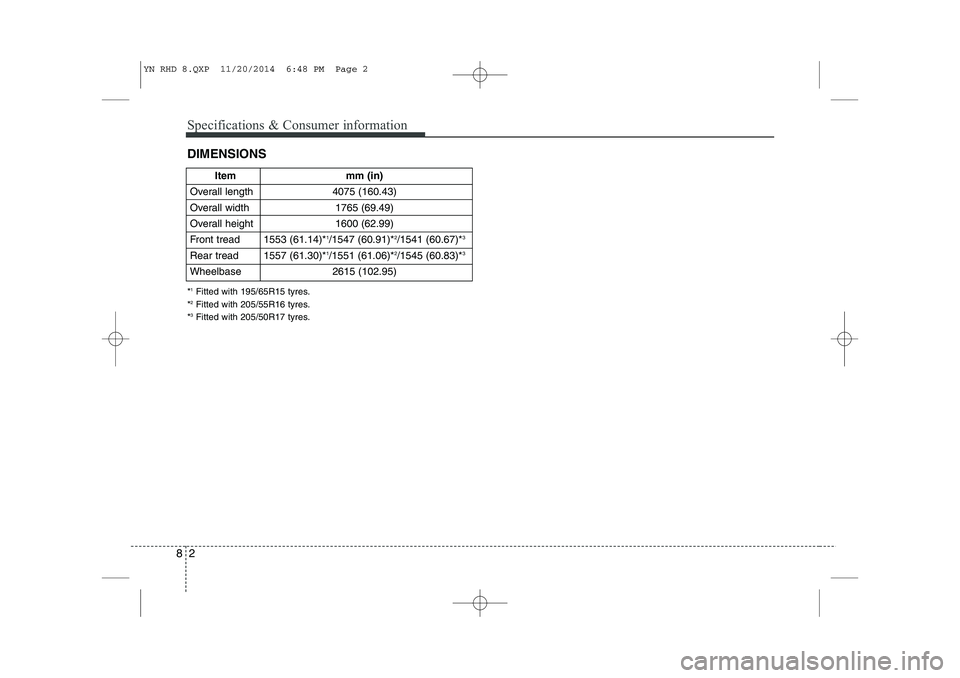

DIMENSIONS
Item mm (in)
Overall length 4075 (160.43)
Overall width 1765 (69.49)
Overall height 1600 (62.99)
Front tread 1553 (61.14)* 1
/1547 (60.91)* 2
/1541 (60.67)* 3
Rear tread 1557 (61.30)* 1
/1551 (61.06)* 2
/1545 (60.83)* 3
Wheelbase 2615 (102.95)
* 1
Fitted with 195/65R15 tyres.
* 2
Fitted with 205/55R16 tyres.
* 3
Fitted with 205/50R17 tyres.
YN RHD 8.QXP 11/20/2014 6:48 PM Page 2

83
Specifications & Consumer information

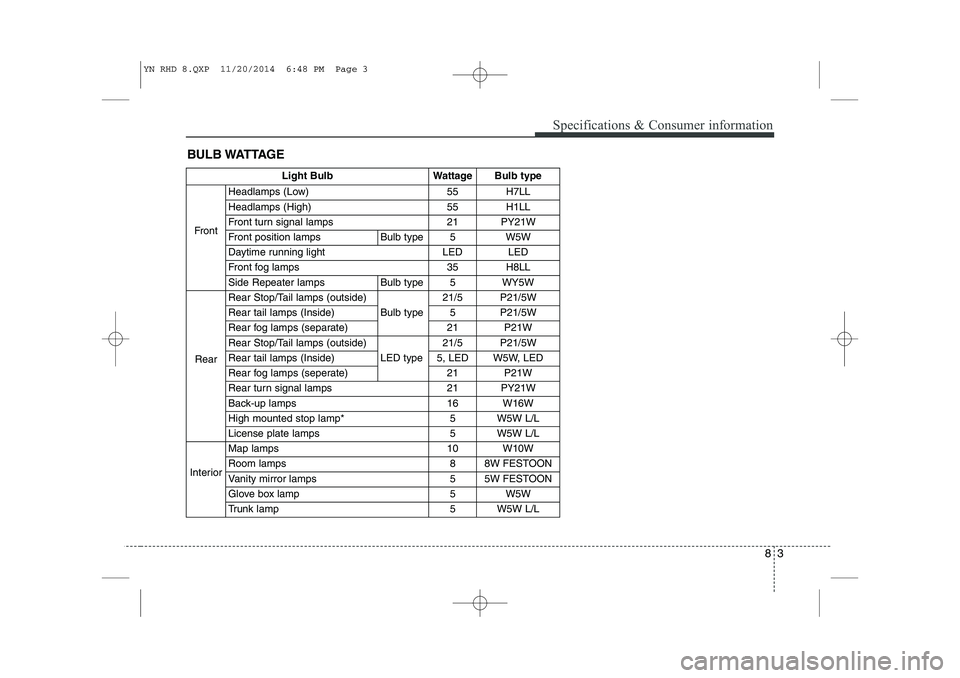

BULB WATTAGE
Light BulbWattageBulb type
Front
Headlamps (Low) 55H7LL
Headlamps (High) 55H1LL
Front turn signal lamps 21PY21W
Front position lamps Bulb type5W5W
Daytime running lightLEDLED
Front fog lamps 35H8LL
Side Repeater lamps Bulb type5WY5W
Rear
Rear Stop/Tail lamps (outside)
Bulb type
21/5P21/5W
Rear tail lamps (Inside)5P21/5W
Rear fog lamps (separate)21P21W
Rear Stop/Tail lamps (outside)
LED type
21/5P21/5W
Rear tail lamps (Inside)5, LEDW5W, LED
Rear fog lamps (seperate) 21P21W
Rear turn signal lamps21PY21W
Back-up lamps16W16W
High mounted stop lamp* 5W5W L/L
License plate lamps5W5W L/L
Interior
Map lamps 10W10W
Room lamps88W FESTOON
Vanity mirror lamps55W FESTOON
Glove box lamp5W5W
Trunk lamp 5W5W L/L
YN RHD 8.QXP 11/20/2014 6:48 PM Page 3

Specifications & Consumer information
4
8

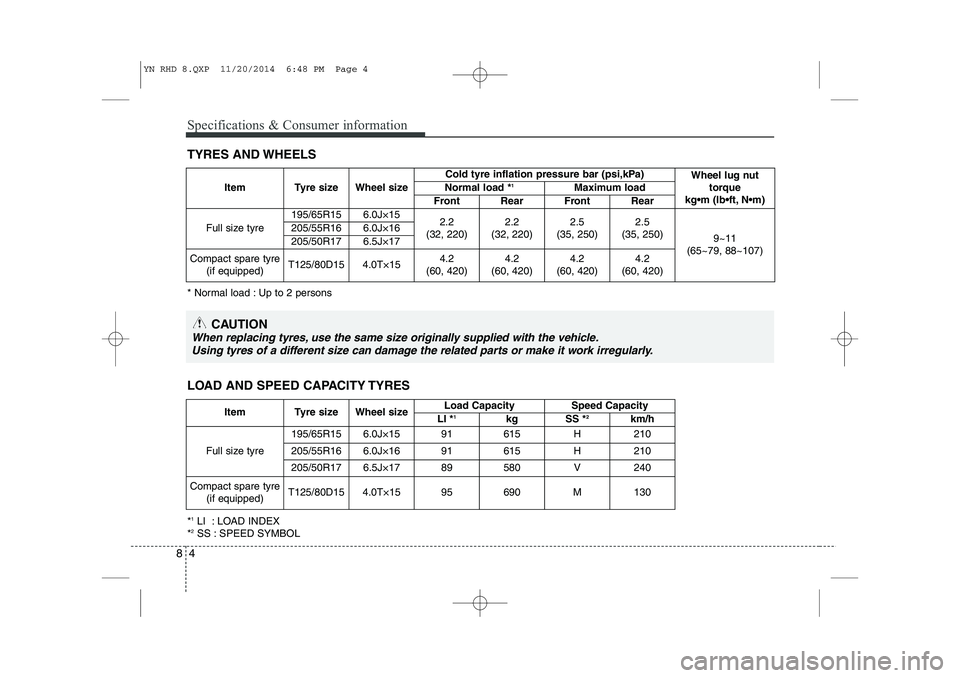

TYRES AND WHEELS
LOAD AND SPEED CAPACITY TYRES * 1
LI : LOAD INDEX
* 2
SS : SPEED SYMBOL Item Tyre size Wheel size
Load Capacity Speed Capacity
LI * 1
kg SS * 2
km/h
Full size tyre 195/65R15 6.0J×15 91 615 H 210
205/55R16 6.0J×16 91 615 H 210
205/50R17 6.5J×17 89 580 V 240
Compact spare tyre (if equipped) T125/80D15 4.0T×15 95 690 M 130
* Normal load : Up to 2 persons
CAUTION
When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or make it work irregularly.
Item Tyre size Wheel size Cold tyre inflation pressure bar (psi,kPa)
Wheel lug nut
torque
kg•m (lbft, Nm)
Normal load *
1
Maximum load
Front Rear Front Rear
Full size tyre 195/65R15 6.0J×15
2.2
(32, 220) 2.2
(32, 220) 2.5
(35, 250) 2.5
(35, 250) 9~11
(65~79, 88~107)
205/55R16 6.0J×16 205/50R17 6.5J×17
Compact spare tyre (if equipped) T125/80D15 4.0T×15 4.2
(60, 420) 4.2
(60, 420) 4.2
(60, 420) 4.2
(60, 420)
YN RHD 8.QXP 11/20/2014 6:48 PM Page 4

85
Specifications & Consumer information

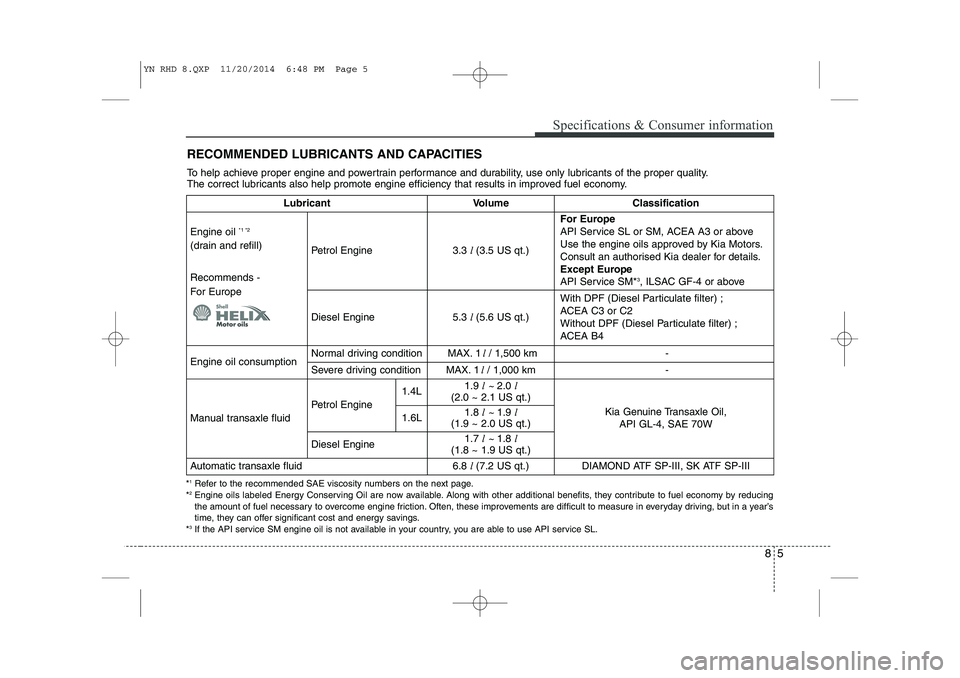

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
* 1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
* 3
If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolumeClassification
Engine oil *1 *2
(drain and refill) Recommends -
For Europe
Petrol Engine3.3 l(3.5 US qt.)
For Europe
API Service SL or SM, ACEA A3 or above
Use the engine oils approved by Kia Motors.
Consult an authorised Kia dealer for details.
Except Europe
API Service SM* 3
, ILSAC GF-4 or above
Diesel Engine5.3 l(5.6 US qt.)
With DPF (Diesel Particulate filter) ;
ACEA C3 or C2
Without DPF (Diesel Particulate filter) ;
ACEA B4
Engine oil consumptionNormal driving conditionMAX. 1 l/ 1,500 km-
Severe driving conditionMAX. 1 l/ 1,000 km-
Manual transaxle fluid
Petrol Engine
1.9 l~ 2.0 l
(2.0 ~ 2.1 US qt.)
Kia Genuine Transaxle Oil,
API GL-4, SAE 70W1.8 l~ 1.9 l
(1.9 ~ 2.0 US qt.)
Diesel Engine1.7 l~ 1.8 l
(1.8 ~ 1.9 US qt.)
Automatic transaxle fluid6.8 l(7.2 US qt.)DIAMOND ATF SP-III, SK ATF SP-III
1.4L
1.6L
YN RHD 8.QXP 11/20/2014 6:48 PM Page 5

Specifications & Consumer information
6
8
LubricantVolumeClassification
Coolant
Petrol Engine1.4MT4.8 l (5.1 US qt.)
Ethylene glycol base for aluminum radiator
AT5.3 l (5.6 US qt.)
1.6MT4.8 l (5.1 US qt.)
AT5.3 l (5.6 US qt.)
Diesel Engine1.4MT6.4 ~ 6.5 l(6.8 ~ 6.9 US qt.)
1.6MT6.4 ~ 6.5 l(6.8 ~ 6.9 US qt.)
Brake/Clutch fluid0.7 ~ 0.8 l (0.7 ~ 0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel50 l (13.20 US gal)Refer to “Fuel requirements” in section 1
YN RHD 8.QXP 11/20/2014 6:48 PM Page 6

87
Specifications & Consumer information

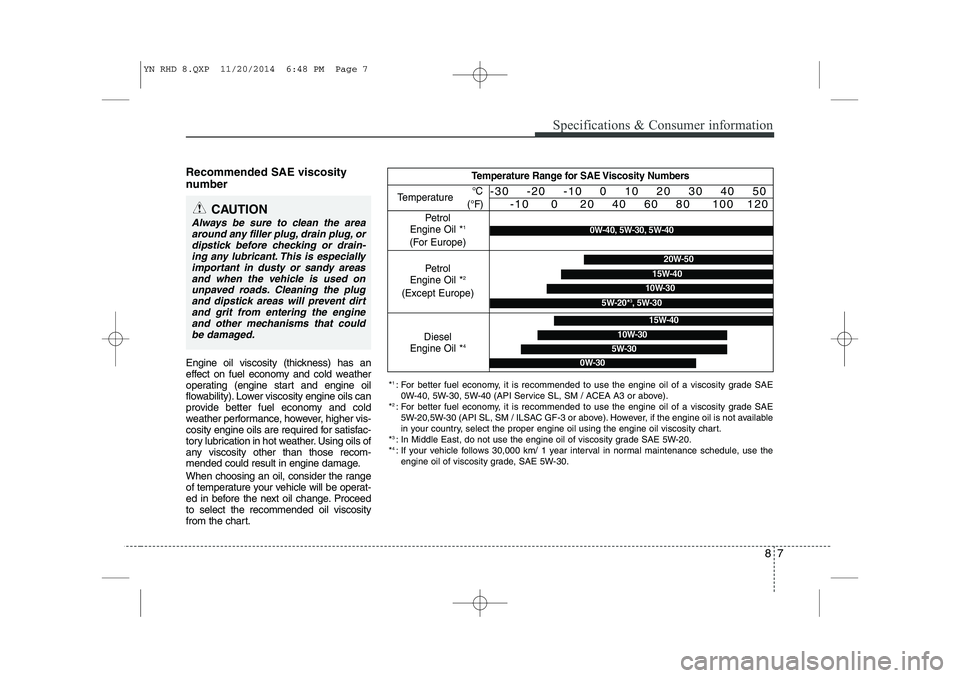

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be operat-
ed in before the next oil change. Proceedto select the recommended oil viscosity
from the chart.
CAUTION
Always be sure to clean the areaaround any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especially
important in dusty or sandy areas and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirt
and grit from entering the engine and other mechanisms that couldbe damaged.
* 1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
0W-40, 5W-30, 5W-40 (API Service SL, SM / ACEA A3 or above).
* 2
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20,5W-30 (API SL, SM / ILSAC GF-3 or above). However, if the engine oil is not available
in your country, select the proper engine oil using the engine oil viscosity chart.
* 3
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 4
: If your vehicle follows 30,000 km/ 1 year interval in normal maintenance schedule, use the
engine oil of viscosity grade, SAE 5W-30.
Temperature Range for SAE Viscosity Numbers
Temperature
Petrol
Engine Oil * 1
(For Europe) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil * 4
5W-30
15W-40
10W-30
0W-40, 5W-30, 5W-40
Petrol
Engine Oil * 2
(Except Europe)20W-50
10W-30
15W-40
5W-20* 3
, 5W-30
0W-30
YN RHD 8.QXP 11/20/2014 6:48 PM Page 7

Specifications & Consumer information
8
8

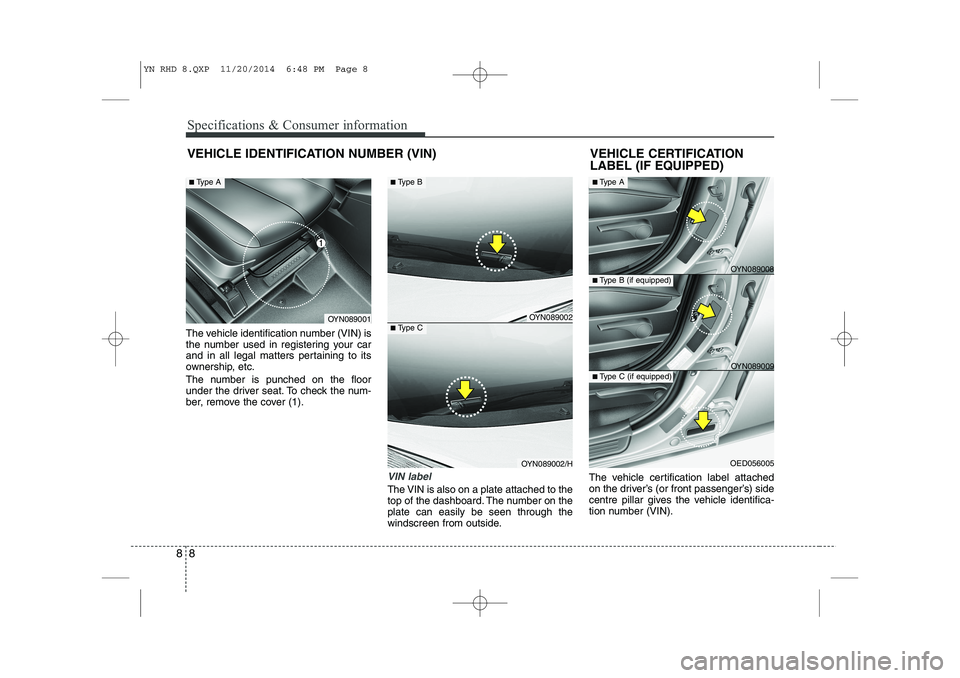

The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the driver seat. To check the num-
ber, remove the cover (1).
VIN label
The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windscreen from outside. The vehicle certification label attached
on the driver’s (or front passenger’s) side
centre pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN) VEHICLE CERTIFICATION
LABEL (IF EQUIPPED)
OYN089008
OYN089009
OED056005
OYN089001
■ Type A
OYN089002
■Type B
OYN089002/H
■Type C
■Type A
■Type B (if equipped)
■Type C (if equipped)
YN RHD 8.QXP 11/20/2014 6:48 PM Page 8

89
Specifications & Consumer information
The tyres supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tyre label located on the driver's side
centre pillar gives the tyre pressures rec-
ommended for your car.
OYN089003R

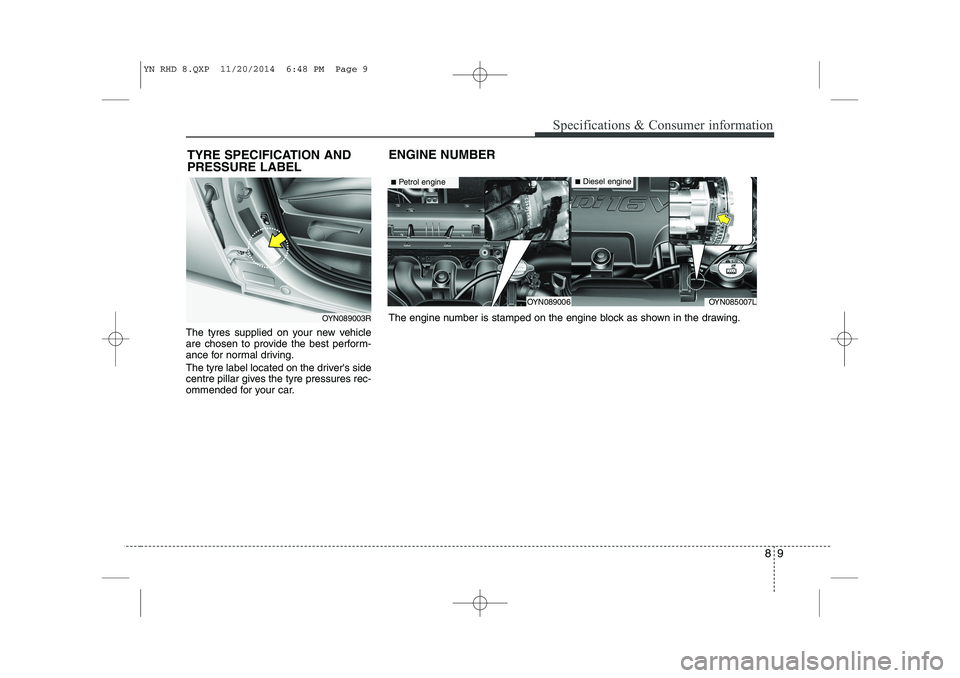

TYRE SPECIFICATION AND PRESSURE LABELENGINE NUMBER
OYN089006OYN085007L
■
Petrol engine■Diesel engine
The engine number is stamped on the engine block as shown in the drawing.
