Your vehicle at a glance
4
2

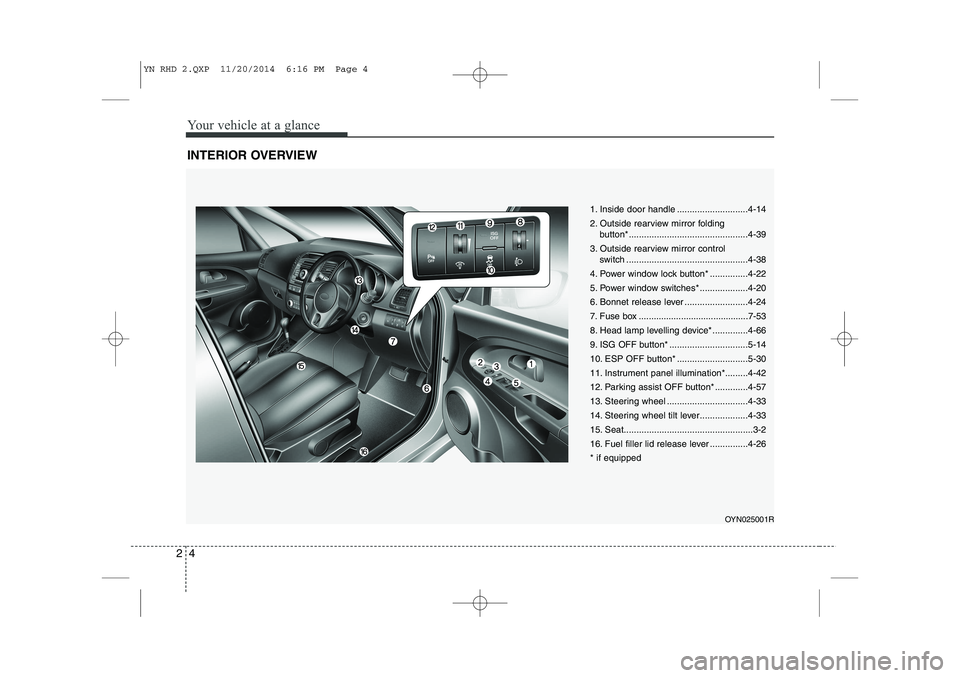

INTERIOR OVERVIEW
1. Inside door handle ............................4-14
2. Outside rearview mirror folding
button*...............................................4-39
3. Outside rearview mirror control switch ................................................4-38
4. Power window lock button* ...............4-22
5. Power window switches* ...................4-20
6. Bonnet release lever .........................4-24
7. Fuse box ............................................7-53
8. Head lamp levelling device* ..............4-66
9. ISG OFF button* ...............................5-14
10. ESP OFF button* ............................5-30
11. Instrument panel illumination*.........4-42
12. Parking assist OFF button* .............4-57
13. Steering wheel ................................4-33
14. Steering wheel tilt lever...................4-33
15. Seat...................................................3-2
16. Fuel filler lid release lever ...............4-26* if equipped
OYN025001R
YN RHD 2.QXP 11/20/2014 6:16 PM Page 4

25
Your vehicle at a glance

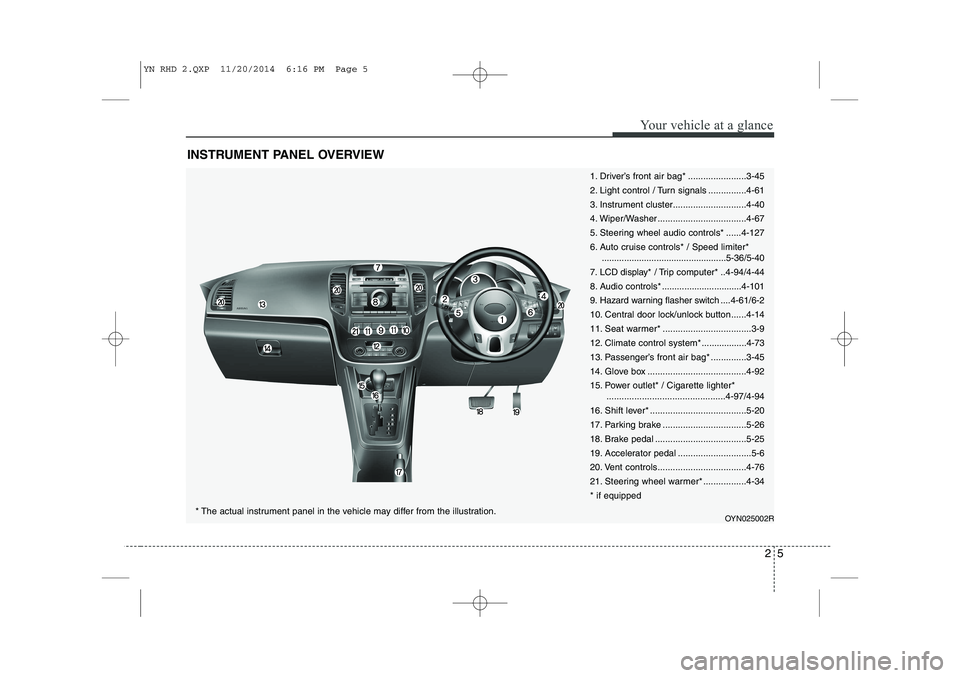

INSTRUMENT PANEL OVERVIEW
1. Driver’s front air bag* .......................3-45
2. Light control / Turn signals ...............4-61
3. Instrument cluster.............................4-40
4. Wiper/Washer ...................................4-67
5. Steering wheel audio controls* ......4-127
6. Auto cruise controls* / Speed limiter*..................................................5-36/5-40
7. LCD display* / Trip computer* ..4-94/4-44
8. Audio controls * ................................4-101
9. Hazard warning flasher switch ....4-61/6-2
10. Central door lock/unlock button......4-14
11. Seat warmer* ...................................3-9
12. Climate control system*..................4-73
13. Passenger’s front air bag* ..............3-45
14. Glove box .......................................4-92
15. Power outlet* / Cigarette lighter* ...............................................4-97/4-94
16. Shift lever* ......................................5-20
17. Parking brake .................................5-26
18. Brake pedal ....................................5-25
19. Accelerator pedal .............................5-6
20. Vent controls...................................4-7621.
Steering wheel warmer* .................4-34
* if equipped
OYN025002R
* The actual instrument panel in the vehicle may differ from the illustration.
YN RHD 2.QXP 11/20/2014 6:16 PM Page 5

Your vehicle at a glance
6
2

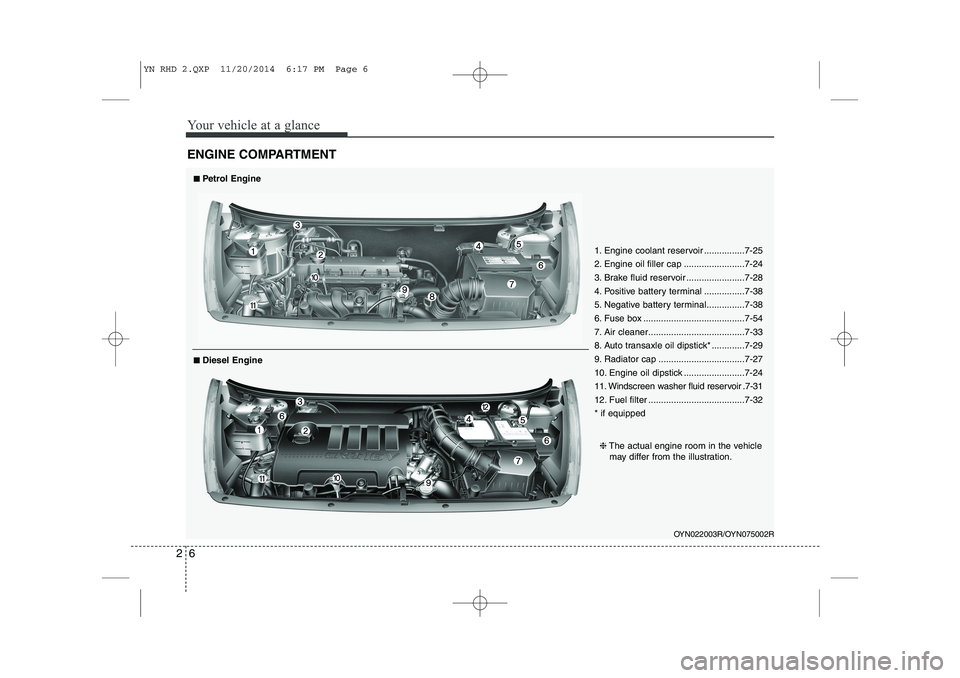

ENGINE COMPARTMENT
OYN022003R/OYN075002R
■■
Petrol Engine
❈ The actual engine room in the vehicle
may differ from the illustration.
■
■
Diesel Engine 1. Engine coolant reservoir ................7-25
2. Engine oil filler cap ........................7-24
3. Brake fluid reservoir .......................7-28
4. Positive battery terminal ................7-38
5. Negative battery terminal...............7-38
6. Fuse box ........................................7-54
7. Air cleaner......................................7-33
8. Auto transaxle oil dipstick* .............7-29
9. Radiator cap ..................................7-27
10. Engine oil dipstick ........................7-24
11. Windscreen washer fluid reservoir .7-31
12. Fuel filter ......................................7-32 * if equipped
YN RHD 2.QXP 11/20/2014 6:17 PM Page 6

3

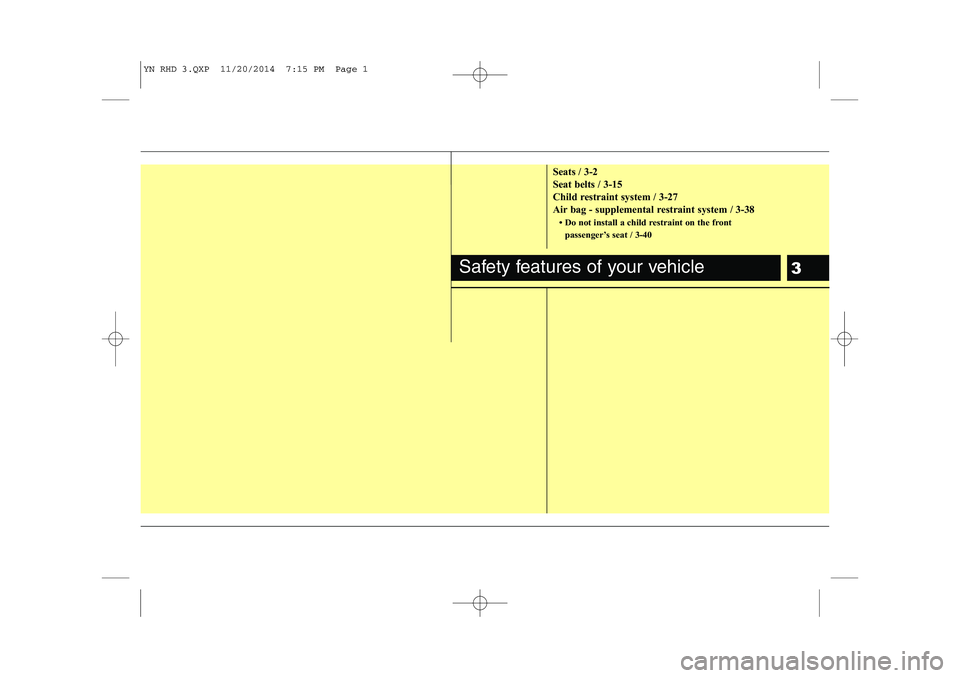

Seats / 3-2
Seat belts / 3-15
Child restraint system / 3-27
Air bag - supplemental restraint system / 3-38 Do not install a child restraint on the frontpassenger’s seat / 3-40
Safety features of your vehicle
YN RHD 3.QXP 11/20/2014 7:15 PM Page 1

Safety features of your vehicle
2
3
Driver’s seat
(1) Seat adjustment, forward / backward
(2) Seatback recliner
(3) Seat adjustment, height*
(4) Seat warmer*
(5) Armrest*
(6) Headrest adjustment
Front passenger seat
(7) Seat adjustment, forward /
backward
(8) Seatback recliner
(9) Seat warmer*
(10) Headrest adjustment Rear seat
(11) Seat adjustment, forward / backward
(12) Armrest*
(13) Headrest adjustment
(14) Split folding rear seat* if equipped

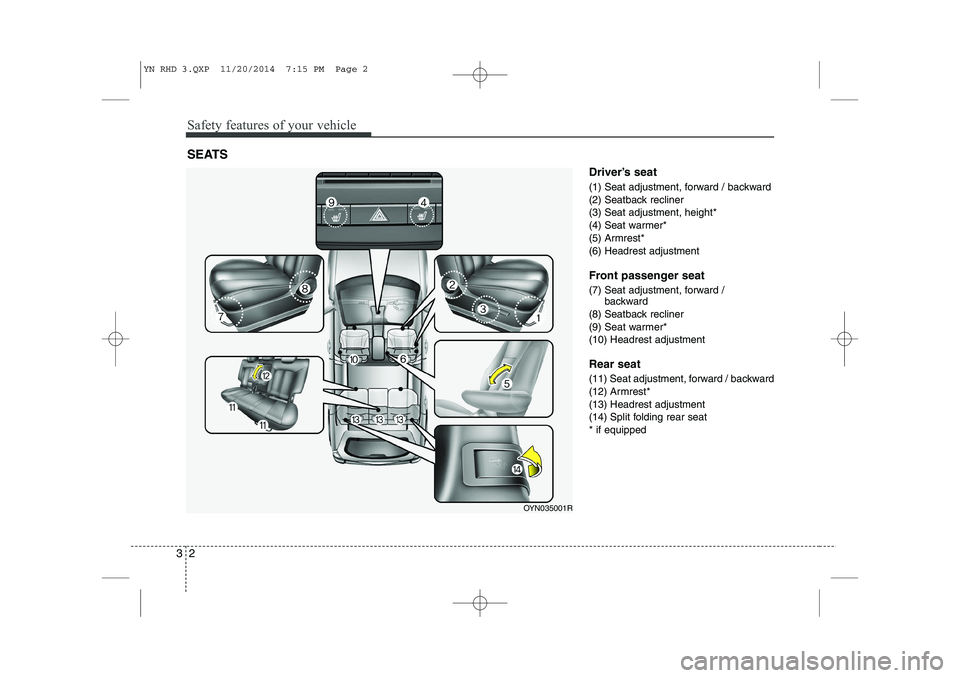

SEATS
OYN035001R
YN RHD 3.QXP 11/20/2014 7:15 PM Page 2

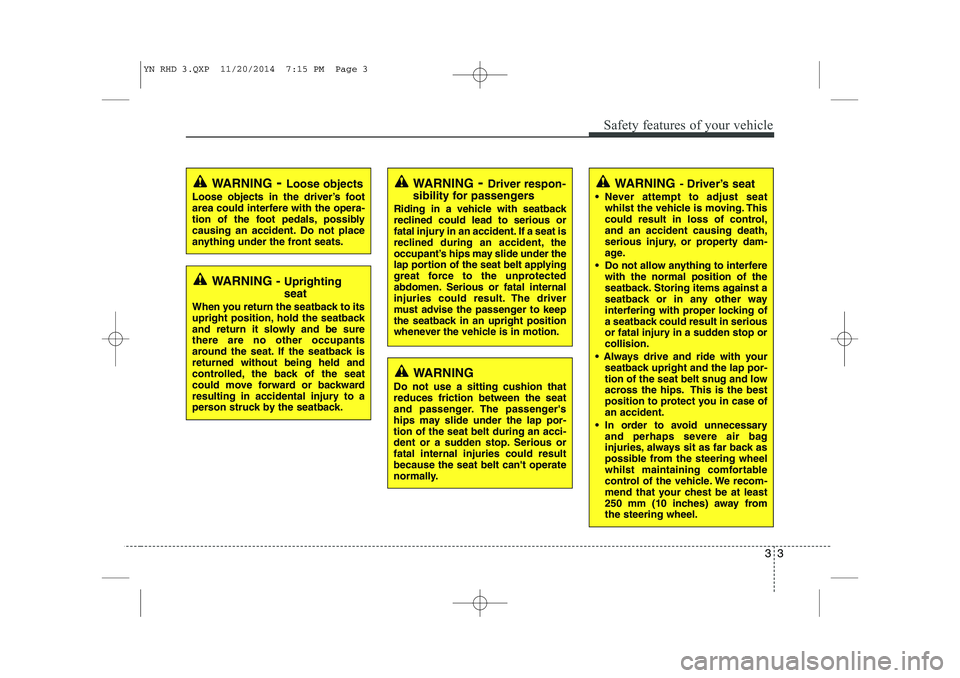

WARNING- Driver’s seat
 Never attempt to adjust seat whilst the vehicle is moving. This
could result in loss of control,and an accident causing death,
serious injury, or property dam-
age.
 Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop orcollision.
 Always drive and ride with your seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case ofan accident.
 In order to avoid unnecessary and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
whilst maintaining comfortable
control of the vehicle. We recom-
mend that your chest be at least
250 mm (10 inches) away fromthe steering wheel.
WARNING - Uprighting seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be surethere are no other occupants
around the seat. If the seatback isreturned without being held and
controlled, the back of the seat
could move forward or backward
resulting in accidental injury to a
person struck by the seatback.
WARNING - Driver respon-
sibility for passengers
Riding in a vehicle with seatback
reclined could lead to serious or
fatal injury in an accident. If a seat is
reclined during an accident, the
occupant’s hips may slide under the
lap portion of the seat belt applying
great force to the unprotected
abdomen. Serious or fatal internal
injuries could result. The driver
must advise the passenger to keep
the seatback in an upright position
whenever the vehicle is in motion.WARNING - Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
33
Safety features of your vehicle
WARNING
Do not use a sitting cushion that reduces friction between the seat
and passenger. The passenger's
hips may slide under the lap por-tion of the seat belt during an acci-
dent or a sudden stop. Serious orfatal internal injuries could resultbecause the seat belt can't operate
normally.
YN RHD 3.QXP 11/20/2014 7:15 PM Page 3

Safety features of your vehicle
4
3
(Continued)
 To avoid the possibility of burns, do
not remove the carpet in the cargo
area. Emission control devices
beneath this floor generate hightemperatures.WARNING - Rear seatbacks

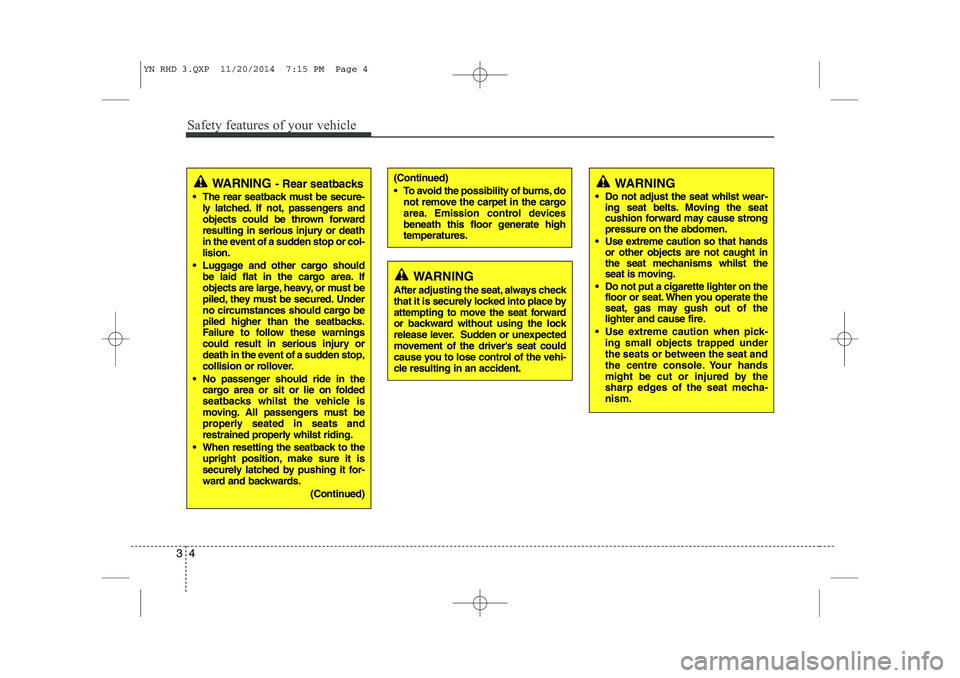

 The rear seatback must be secure- ly latched. If not, passengers and
objects could be thrown forward
resulting in serious injury or death
in the event of a sudden stop or col-lision.
 Luggage and other cargo should be laid flat in the cargo area. If
objects are large, heavy, or must be
piled, they must be secured. Under
no circumstances should cargo be
piled higher than the seatbacks.
Failure to follow these warnings
could result in serious injury or
death in the event of a sudden stop,
collision or rollover.
 No passenger should ride in the cargo area or sit or lie on folded
seatbacks whilst the vehicle is
moving. All passengers must be
properly seated in seats and
restrained properly whilst riding.
 When resetting the seatback to the upright position, make sure it is
securely latched by pushing it for-
ward and backwards.
(Continued)
WARNING
After adjusting the seat, always check
that it is securely locked into place by
attempting to move the seat forward
or backward without using the lock
release lever. Sudden or unexpected
movement of the driver's seat could
cause you to lose control of the vehi-
cle resulting in an accident.
WARNING
 Do not adjust the seat whilst wear- ing seat belts. Moving the seat
cushion forward may cause strongpressure on the abdomen.
 Use extreme caution so that hands or other objects are not caught in
the seat mechanisms whilst the
seat is moving.
 Do not put a cigarette lighter on the floor or seat. When you operate the
seat, gas may gush out of the
lighter and cause fire.
 Use extreme caution when pick- ing small objects trapped under the seats or between the seat and
the centre console. Your hands
might be cut or injured by the
sharp edges of the seat mecha-nism.
YN RHD 3.QXP 11/20/2014 7:15 PM Page 4

35
Safety features of your vehicle

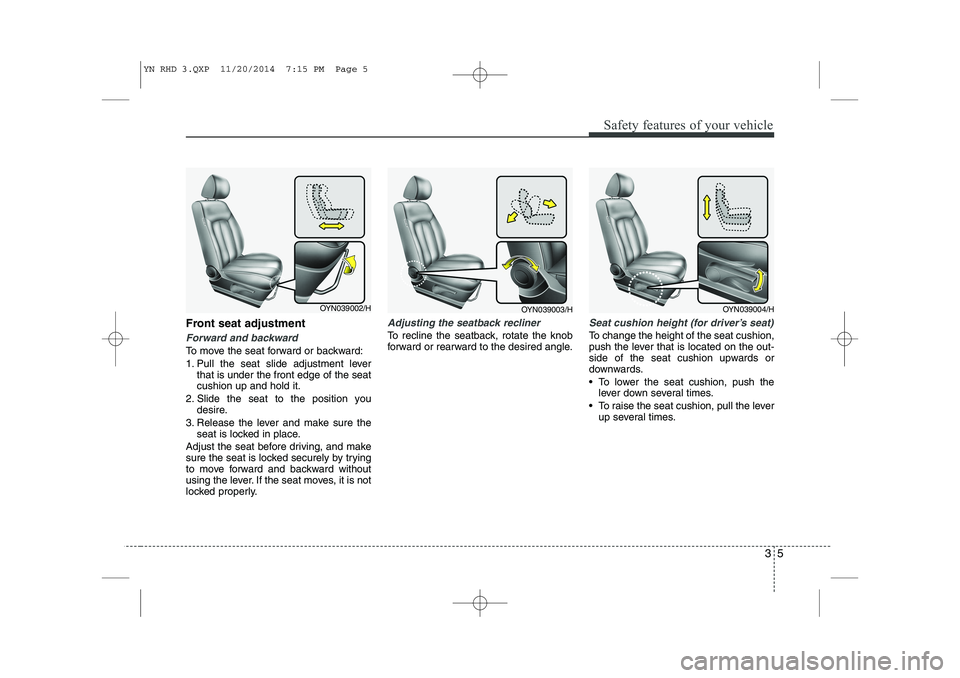

Front seat adjustment
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment leverthat is under the front edge of the seat cushion up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
Adjusting the seatback recliner
To recline the seatback, rotate the knob
forward or rearward to the desired angle.
Seat cushion height (for driver’s seat)
To change the height of the seat cushion,
push the lever that is located on the out-
side of the seat cushion upwards or
downwards.
• To lower the seat cushion, push the lever down several times.
 To raise the seat cushion, pull the lever up several times.
OYN039002/HOYN039004/HOYN039003/H
YN RHD 3.QXP 11/20/2014 7:15 PM Page 5

Safety features of your vehicle
6
3

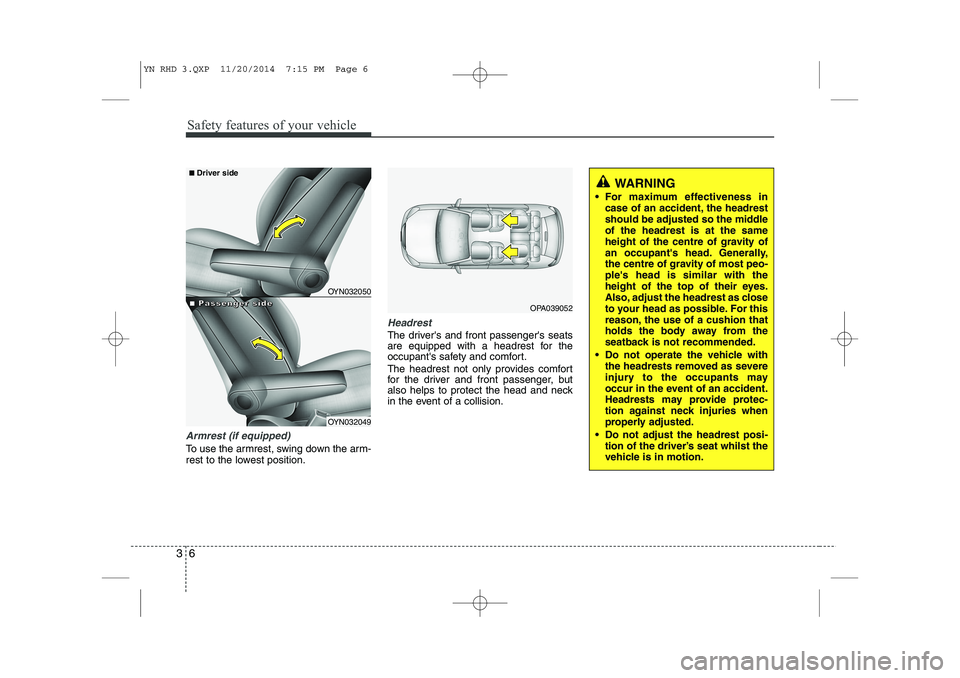

Armrest (if equipped)
To use the armrest, swing down the arm-
rest to the lowest position.
Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.
WARNING
 For maximum effectiveness in case of an accident, the headrest
should be adjusted so the middleof the headrest is at the same
height of the centre of gravity of
an occupant's head. Generally,
the centre of gravity of most peo-ple's head is similar with the
height of the top of their eyes.
Also, adjust the headrest as close
to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
 Do not operate the vehicle with the headrests removed as severe
injury to the occupants may
occur in the event of an accident.
Headrests may provide protec-
tion against neck injuries when
properly adjusted.
 Do not adjust the headrest posi- tion of the driver’s seat whilst the
vehicle is in motion.
OPA039052
OYN032050
OYN032049
■
■
Driver side
■■■■PPPPaaaasssssssseeeennnnggggeeeerrrr ssssiiiiddddeeee
YN RHD 3.QXP 11/20/2014 7:15 PM Page 6

37
Safety features of your vehicle

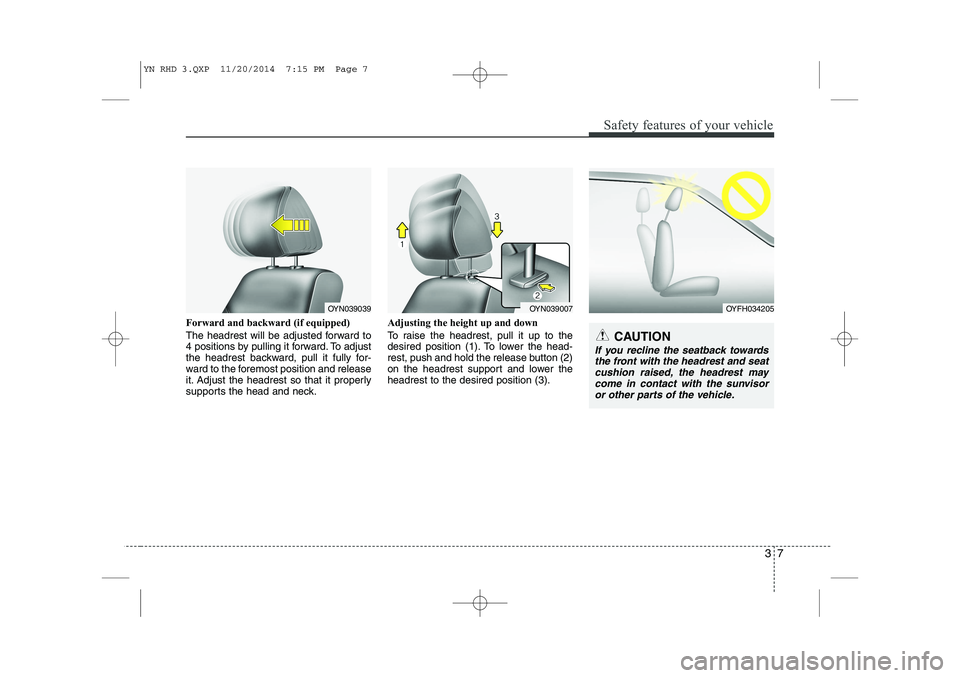

Forward and backward (if equipped)
The headrest will be adjusted forward to
4 positions by pulling it forward. To adjust
the headrest backward, pull it fully for-
ward to the foremost position and release
it. Adjust the headrest so that it properly
supports the head and neck.Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower theheadrest to the desired position (3).
OYN039007OYN039039OYFH034205
CAUTION
If you recline the seatback towards
the front with the headrest and seatcushion raised, the headrest may come in contact with the sunvisor
or other parts of the vehicle.
YN RHD 3.QXP 11/20/2014 7:15 PM Page 7
