58KNOWING YOUR CAR
CLIMATE COMFORT

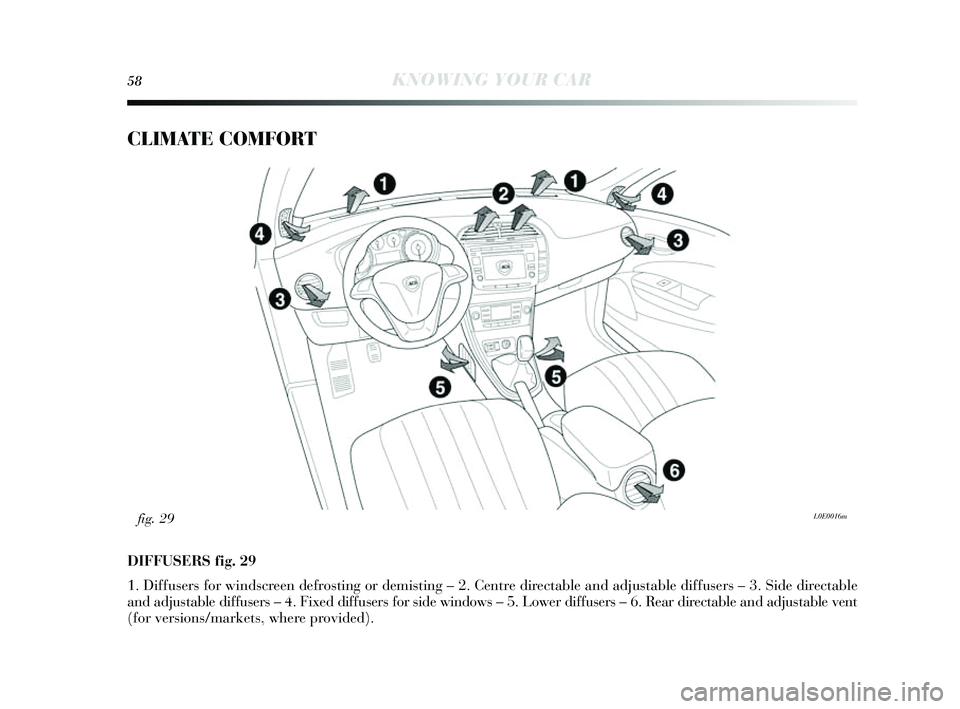

DIFFUSERS fig. 29
1. Diffus ers for winds creen defros ting or demis ting – 2. Centre directable and adju stable diffus ers – 3. S ide directable
and adjus table diffus ers – 4. Fixed diffu sers for side windows – 5. Lower diffu sers – 6. Rear directable and adju stable vent
(for vers ions/markets , where provided).
L0E0016mfig. 29
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 58

KNOWING YOUR CAR63
1
Selecting air distribution B - fi g. 31
Press one or more of button s
 / / ˙to manuall y s e-
lect one of the 7 po ssible air distribution settings for the
passenger compartment:
Air flow to the winds creen and front side window dif-
fus ers to demis t/defrost them.
Air flow to the front and rear footwell diffu sers . This
air dis tribution allow s the passenger compartment to
be warmed up quickl y.
Air flow dis tribution between the
˙front and rear diffus ers, centre/s ide dashboard
diffusers, rear diffus er and winds creen and front s ide
window demi sting/defros ting diffusers.
Air flow dis tribution between the footwell
diffusers and the winds creen and front s ide window

demis ting/defros ting diffusers. This distribution set-
ting allows the passenger compartment to be warmed
up efficiently and prevents the windows from mist-
ing up.
˙
Air flow dis tribution between footwell diffu sers (hot-
ter air) and centre/ side das hboard diffus ers and rear
diffus er (cooler air).
˙Air flow dis tribution between centre/s ide dashboard
diffus ers, rear diffus er and winds creen and front side
window demisting/defrosting diffusers. This distri-
bution setting ventilates the passenger compartment
well and prevents the windows from misting up.
IMPORTANT For the climate control system to function, at
leas t one of the following buttons must be on:
 / / ˙.
The system does not allow all the button s  / / ˙to be
s witched off.
IMPORTANT Pus h the OFF button to turn the climate
control system back on: in this way, all operating condi-
tions saved before s witching off are res tored.
To r e store automatic control of the air dis tribution after
a manual s election, press the AUTO button.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 63

KNOWING YOUR CAR75
1
DEACTIVATING THE DEVIC E
Turn the ring nut A - fig. 36 to OFF or turn the ignition
key to S TOP. The device is automatically turned off in one
of the following ca se s:
❍ when the brake or clutch pedal i s pressed;
❍ if the AS R or Advanced E SP system cuts in (for ver-
s ions /markets where provided);
While travelling with the device engaged, do
not place the gear lever in neutral.
In case of malfunction or if the device is faulty,
turn the control A - fig. 36 to OFF and con-
tact a Lancia Dealership, after checking that
the protective fuse has not blown.
ROOF LIGHTS
FRONT ROOF LIGHT WITH SPOT LIGHTS fig. 37
S witch A is used to s witch on/off roof light s.
With the s witch A in the middle po sition, the lights C and
D go on/off when front door s are opened/clo sed.
Wi t h switch A pressed to the left, the lights C and D are
always off. With s witch A pressed to the right, the lights
C and D are always on.
Lights switch on/off progre ssively.
S witch B controls the spot light function; when the roof
light is off, it s witches on individuall y:
❍ the light C when pre ssed to the left;
❍ the light D when pre ssed to the right.
fig. 37L0E0024m
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 75

KNOWING YOUR CAR95
1
Electric window system initialisation
The system mus t be re-initiali sed after di sconnecting the
battery or if the relevant protection fu se is blown.
Initialis ation procedure:
❍ fully close the window to be initiali sed manuall y;
❍ once fully closed, keep holding down the clo sing con-
trol for at leas t 1 second.
IMPORTANT Where provided, after there ha s been no
power supply for the control units (battery replaced or dis -
connected or protective fu se s for the electric window con-
trol units replaced), the automatic operation of the win-
dows must be res tored. The res
toration procedure mu st be performed a s des cribed
below with the door s clos ed:
1. completely open the driver’ s door window keeping the
operating button pre ssed for at least three seconds af-
ter the (lower) end of travel po sition;
2. completely raise the driver

’ s s ide window and keep the
button pre ssed for at leas t three seconds once the end
of travel pos ition (upper end s top) has been reached;
3. repeat stages 1 and 2 for the passenger-s ide window
4. make sure that the initialis ation is correct by checking
that the windows work automaticall y.
IMPORTANT With central locking on, operating the in-
ternal handle of one of the door s will unlock all the door s.
If there is no electric power s upply (fuse blown, battery
dis connected, etc.) it i s s till possible to operate the door
locking manually ; in this case the automatic lowering func-
tion for the window s i s not available and to open or clo se
the door with the window clo sed it is necessary to exert
pressur
e on the window toward s the in side of the vehicle
to facilitate the movement of the window on the mould-
ing.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 95

108KNOWING YOUR CAR
Under no circumstances should aftermarket
operations be carried out involving steering
system or steering column modifications (e.g.
installation of anti-theft device). This could nega-
tively affect performance and safety, invalidate the
warranty, cause serious safety problems and also
result in vehicle non-compliance with type-ap-
proval requirements.
Before servicing the car, switch off the engine
and remove the key from the ignition device
to activate the steering lock. This is especially
important when the car wheels are not touching the
ground. If this is not possible (i.e. if the key must be
kept in the MAR position or the engine must be kept
running), remove the main electric power steering
system fuse.On some versions, with the CITY function ac-
tivated, the SPORT function is not available.
To activate the SPORT function, deactivate the
CITY function and vice versa, because they are rec-
iprocally incompatible.
IMPORTANT The function i s activated about 5 s econds
after the S PORT button is pressed.
IMPORTANT The s teering may become stiffer during
parking manoeuvres including a great deal of s teering.
This is normal and caus ed by the system preventing the
electric control motor overheating. No repair s are needed.
The power s teering system will s tart working normall y
again the next time the car i s u sed.
001-154 Delta GB 2ed 27/01/14 10.47 Pagina 108

KNOWING YOUR CAR127
1
IMPORTANT The steering may become slightly stiff fol-
lowing parking manoeuvres involving a lot of steering.
This is normal and is caused by a system to prevent the
motor from overheating. No servicing is required. The
power steering system will s tart working normall y again
the next time the car is used.TPMS SYSTEM
(Tyre Pressure Monitoring System)
(for vers ions/markets , where provided)
The car may be equipped with a TPMS (Tyre Pre ssure
Monitoring System). This system compris es a radio fre-
quency transmitter fitted to each wheel (on the wheel rim
ins ide the ty re), which i s able to send information on the
t y re inflation pressure of each wheel to the control unit.
IMPORTANT NOTES ABOUT THE TPMS
The fault indication s are not s tored and will therefore
not be dis played after the engine ha s been s witched off
and then on again. If the fault condition s pers is t, the con-
trol unit will s end the relative indication s to the ins tru-
ment panel only after the car ha s been in motion for a
s hort time.
Before starting any servicing operation, stop
the engine and remove the key from the ig-
nition switch to operate the steering lock, par-
ticularly when the wheels do not touch the ground.
If this is not possible (i.e. if the key must be kept
in the MAR position or the engine must be kept run-
ning), remove the main electric power steering sys-
tem fuse.
001-154 Delta GB 2ed 27/01/14 10.47 Pagina 127

4



IN AN EMERGENCY
195
Starting the engine ..................................................................196
Fix&Go Automatic kit..............................................................198
Replacing a wheel ...................................................................203
Replacing a bulb .....................................................................211
Replacing an exterior bulb .......................................................214
Replacing an interior bulb .......................................................219
Replacing fuses .......................................................................223
Battery recharging ...................................................................230
Lifting the car .........................................................................231
To wing the car ........................................................................231 In an emergency we recommend that you call the freephone number found in the
Warranty Booklet. It is also possible to go to the www.lancia.com
website to find the closest Lancia Dealership.
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 195

IN AN EMERGENCY
211
4
REPLACING A BULBGENERAL INSTRUCTIONS
❍Before changing a bulb, check the contacts for oxida-
tion;
❍burnt-out bulbs must be replaced by others of the same
type and power;
❍always check the direction of the beam after chang-
ing a headlight bulb, for safety reasons;
❍when a light is not working, check that the corre-
sponding fuse is intact before changing the bulb. For
the location of fuses, refer to the “Replacing fuses”
paragraph in this chapter.
IMPORTANT The headlight inner surface might be slight-
ly misted: this does not indicate a fault, it is a natural phe-
nomenon due to low temperature and the air humidity lev-
el. Misting will disappear rap
idly when the headlights are
turned on. The presence of drops inside the headlights in-
dicates infiltration of water. Contact a Lancia Dealership.
Modifications or repairs to the electric sys-
tem that are not carried out properly or do
not take the system technical specifications
into account can cause malfunctions leading to the
risk of fire. Halogen bulbs contain gas under pressure, if
they break glass fragments may be thrown
around.
When handling halogen bulbs just touch the
metal part. If the transparent bulb is touched
with the fingers, its lighting intensity is re-
duced and life of the bulb may be compromised. In
the event of accidental contact, wipe the bulb with
a cloth moistened with alcohol and leave it to dry.Where possible, it is advisable to have bulbs
changed at a Lancia Dealership. Proper op-
eration and direction of the external lights
are essential for driving in safety and comply with
law.
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 211

212
IN AN EMERGENCY
IMPORTANT When the weather is cold or damp or after
heavy rain or after washing, the surface of headlights or
rear lights may steam up and/or form drops of conden-
sation on the inside. This is a natural phenomenon due
to the difference in temperature and humidity between the
inside and the outside of the glass which does not indicate
a fault and does not compromise the normal operation of
lighting devices. The mist disappears quickly when the
lights are turned on, starting from the centre of the dif-
fuser, extending progressively towards the edges.
TYPES OF BULBS fig. 14
Va rious types of bulbs are fitted to your car:
A.Glass bulbs: they are press-fitted. Pull to remove them.B.Bayonet type bulbs: to remove this type of bulb from
its holder press the bulb, turn it anticlockwise and re-
move it.
C.Tubular bulbs: to remove, release them from their con-
tacts.
D-E. Halogen bulbs: to remove the bulb, release the clip
holding the bulb in place.
fig. 14
L0E0084m
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 212

IN AN EMERGENCY
223
4
REPLACING FUSESGENERAL INFORMATION
Fuses protect the electric system: they blow in the event
of a failure or improper action on the system. Check the
condition of the corresponding fuse when a device does
not work: the filament A - fig. 37 must be intact. If it is
not, replace the blown fuse with another having the same
amperage (same colour).
Bintact fuse
C fuse with damaged filament.
To replace a fuse, use the pliers D - fig. 37 attached to
the dashboard fuse box.
Refer to the tables on the following pages to identify the
protection fuse.
fig. 37
L0E0085m
If the fuse blows again contact a Lancia
Dealership.Never replace a blown fuse with metal wires
or other materials.Never replace a fuse with another with a
higher amp rating; FIRE RISK.If a general protection fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-FUSE) blows,
contact a Lancia Dealership.Before changing a fuse, check that the igni-
tion key has been removed and that all the
other electric devices have been turned
off/disabled.If a general protection fuse for safety systems
(airbag system, braking system), power unit
systems (engine system, gearbox system) ac-
tive suspension system (for versions/markets, where
provided) or steering system blows, contact a Lan-
cia Dealership.
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 223
