KNOWING YOUR CAR125
1
“DUALDRIVE” ELECTRIC POWER
STEERING SYSTEM
This is an electrically controlled power s teering system
called “Dualdrive”. It i s only operational with the ignition
key turned to MAR and the engine running; it can be cu s-
tomis ed by the driver according to the driving condition s.
IMPORTANT When turning the ignition ke y quickly , com-
plete power s teering functionality may be achieved after
1-2 seconds . C
ITY FUNC TION
A CTIVATION/DEAC TIVATION
Press button A - fig.76 to activate/deactivate the function.
When the function i s active, the CITY warning light on
the ins trument panel turns on.
When the CITY function i s on, the s teering wheel effort
i s lighter and parking operation s are eas ier: therefore this
function is particularl y u seful for driving in cit y centres .
fig. 76L0E0057m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 125

126KNOWING YOUR CAR
FAULT INDICAT I O NS
Any failure of the electric power s teering is indicated by
ins trument panel g warning light coming on together with
a message in the reconfigurable multifunction di splay . In
the event of electric power s teering system failure, the
car can be driven with mechanical steering.
IMPORTANT In s ome circumstances, factors independent
of the electric power s teering could cause the g warning
light on the ins trument panel to come on. In this case, stop
the car immediately , switch off the engine for about 20
s econds and then res tart the engine. If the gwarning light
remain s on, together with the me ssage on the reconfig-
urable multifunction di splay , contact a Lancia Dealers hip
a s s oon as possible.
Under no circumstances should aftermarket
operations be carried out involving steering
system or steering column modifications (e.g.
installation of anti-theft device). This could nega-
tively affect performance and safety, invalidate the
warranty, cause serious safety problems and also
result in vehicle non-compliance with type-ap-
proval requirements.
On some versions, with the CITY function ac-
tivated, the SPORT function is not available.
To activate the SPORT function, deactivate the
CITY function and vice versa, because they are rec-
iprocally incompatible.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 126

KNOWING YOUR CAR129
1If the vehicle is equipped with the TPMS,
when a tyre is removed, it is advisable to re-
place the rubber gasket for the valve. Contact
a Lancia Dealership.
If the vehicle is equipped with the TPMS, tyre
and/or rim fitting/removal operations require
specific precautions. To avoid damaging the
sensors or fitting them incorrectly, tyre and/or rims
fitting/removal operations should be carried out on-
ly by specialists. Contact a Lancia Dealership.
Particularly strong radiofrequency interfer-
ence may cause the TPMS to operate incor-
rectly. This condition is indicated to the dri-
ver by the
nwarning light or symbol lighting up on
the display together with a dedicated message.
The message will disappear automatically as soon
as the interference ceases to disturb the system.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 129

132KNOWING YOUR CAR
FAILURE INDICAT I O NS
Any faults in the parking s ensor system are indicated,
when revers e gear is engaged, by the
èwarning light on
the ins trument panel lighting up and a dedicated me ssage
appearing in the multifunction di splay .
OPERATION WITH TRAILER
S ens or operation i s automaticall y deactivated when the
trailer’ s electric cable plug is fitted in the car’s tow hook
s ocket.
The sens ors are automaticall y reactivated when the trail-
er’ s cable plug is removed.
For correct operation, sensors must always
be clean from mud, dirt, snow or ice. Be care-
ful not to scratch or damage the sensors while
cleaning them. Avoid using dry, rough or hard
cloths. The sensors must be washed using clean wa-
ter, with the addition of car shampoo if necessary.
When using special washing equipment such as high
pressure jets or steam cleaning, clean the sensors
very quickly keeping the jet more than 10 cm away.
IMPORTANT INFORMATION
❍ When parking, watch out for ob stacles that may be
above or under the sens ors.
❍ Sometimes , objects placed clos e to the car are not de-
tected and could therefore cau se damage to the car or
be damaged them selves .
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 132

KNOWING YOUR CAR135
1
SENS ORS
While searching for a parking place, the system uses s ide
s ens ors (see fig. 78).
Thes e sens ors are automatically activated below around
30 km/h; during thi s s tage if the driver ha s ju st passed a
s pace that might be us eful for a manoeuvre, the function
can be reques ted using the s pecial button; at this point the
ins tructions for carry ing out the manoeuvre will be s hown
on the dis play. If the function is not requested by the dri-
ver us ing the s pecial button, no information will be di s-
play ed on the ins trument panel. OPERATION
The assi
sted parking manoeuvre can onl y be activated with
the ins trument panel on and at speeds below about 30
km/h. It is divided into the following stages :
❍ Activation: pr

essing the button fig. 79 activates the
s earch stage.
❍ Search: through s ide sens ors, the system continuous -
l y s earches for a free parking space, suitable to the vehi-
cle dimens ions. The driver determine s on which s ide of the
road they intend to park us ing the direction indicators
(if no information i s available from the direction indica-
tors or hazard warning lights, the search takes place on
the passenger side).
fig. 78L0E0296mfig. 79L0E0241m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 135

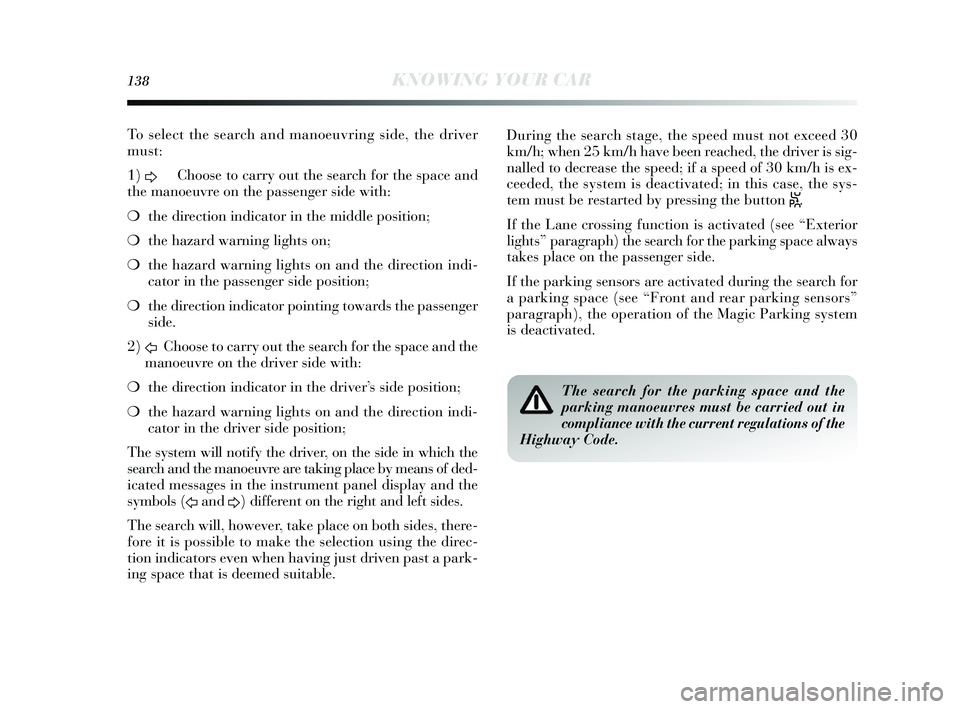

138KNOWING YOUR CAR
To select the s earch and manoeuvring s ide, the driver
mus t:
1) D Choos
e to carry out the search for the s pace and
the manoeuvre on the pa ssenger side with:
❍ the direction indicator in the middle po sition;
❍ the hazard warning light s on;
❍ the hazard warning lights on and the direction indi-
cator in the pa ssenger side pos ition;
❍ the direction indicator pointing toward s the passenger
s ide.
2) F Choos
e to carry out the search for the space and the
manoeuvre on the driver side with:
❍ the direction indicator in the driver’ s s ide pos ition;
❍ the hazard warning lights on and the direction indi-
cator in the driver side pos ition;
The system will notify the driver, on the s ide in which the
s earch and the manoeuvre are taking place b y means of ded-
icated messages in the instrument panel dis play and the
symbols (
F and
D) differ

ent on the right and left s ides.
The search will, however, take place on both sides , there-
fore it is possible to make the selection us ing the direc-
tion indicators even when having ju st driven pas t a park-
ing space that is deemed suitable. During the s
earch stage, the s peed must not exceed 30
km/h; when 25 km/h have been reached, the driver i s s ig-
nalled to decreas e the speed; if a s peed of 30 km/h i s ex-
ceeded, the system is deactivated; in thi s cas e, the sys-
tem mus t be restarted by pressing the button
S.
If the Lane crossing function is activated (see “Exterior
lights ” paragraph) the s earch for the parking space always
takes place on the pa ssenger side.
If the parking sens ors are activated during the search for
a parking s pace (see “Front and rear parking sens ors”
paragraph), the operation of the Magic Parking system
i s deactivated.
The search for the parking space and the
parking manoeuvres must be carried out in
compliance with the current regulations of the
Highway Code.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 138

140KNOWING YOUR CAR
If the driver carries out a voluntary or involuntary action
on the s teering during the parking manoeuvre (touching it
or preventing it s movement), the manoeuvre will be in-
terrupted.
If the road s urface is very uneven or there are obs tacles un-
der the wheel s affecting the movement of the vehicle, pre-
venting it from continuing along the correct trajector y, the
manoeuvre ma y be interrupted.
End of manoeuvre
If the s ize of parking s pace permits, the parking manoeu-
vre may be performed in one go; when revers e gear is re-
leas ed the wheels will be realigned and the manoeuvre will
be cons idered completed; the system will consequently be
deactivated. If the size of the parking space is s maller, park-
ing may require s everal manoeuvres : the driver will be ad-
vis ed to complete the parking manoeuvre manuall y through
a dedicated message on the ins trument panel display . General warning
s
❍ The ultimate res ponsibility when parking, however
, al-
ways re sts with the driver. During the se manoeuvres ,
always make s ure that no people, animals or objects are
within the manoeuvring area. The Magic Parking sys-
tem (like parking s ensors) is des igned to assi st driver s:
in all ca se s, you mu st always pa y the utmo st attention
during potentially dangerous manoeuvre s, even when
thes e are carried out a low s peed:
❍ If the s ensors undergo s hocks influencing their po sition,
the system operation could be s trongly degraded.
❍ If the s ensors are dirty , covered by s now
, ice or mud or
are repainted compared to the original condition s, the
system operation could be s trongly degraded.
❍ It is extremely important, for the correct operation of
the system, that the s ensors are always kept clean. Dur-
ing cleaning, make s ure not to scratch or damage them;
avoid us ing dry or rough cloths . The sensors mus t be
was hed us ing clean water, with the addition of car
s hampoo if necessary . When using special was hing
equipment such as high pressure jets or steam clean-
ing, clean the sens ors very quickly keeping the jet more
than 10 cm away .
If you wish to stop the steering wheel with
your hands during a manoeuvre, it is advis-
able to handle it firmly on the outer rim. Do
not try and keep your hands on the inside or hold
the spokes.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 140

KNOWING YOUR CAR145
1
Version with 8 sensors
On the version with 4 front sens ors and 4 rear s ensors, the
system is activated when revers e gear is engaged or by
pressing the button fig. 84. If there ha s been a reque st to
activate the Magic Parking function, the front and rear
s ens ors are not automaticall y activated during the search
for a parking space, but can be activated b y pre ssing the
s pecial button
tor by engaging revers e gear when the
s peed is below around 15 km/h.
When revers e gear is released, the front and rear s ensors
remain activated until a speed of around 15 km/h i s ex-
ceeded to allow the parking manoeuvre to be completed.
The system can als o be activated by pressing the button
tin the central panel: a warning light in the button
s witches on when the system is activated.
The sens ors are deactivated by pressing the button
tagain or when a speed of 15 km/h is exceeded: thewarning light in the button i
s off when the system is not
active.
When the s ensors are activated, the system starts to pro-
duce acous tic signals from the front or rear buzzers as s oon
a s an obs tacle is detected with the frequency increasing as
the obs tacle gets closer.
When the obs tacle is less than about 30 cm away , the
s ound becomes continuous. Depending on the po sition of
the obs tacle (in front or behind) the sound is emitted by
the corres ponding buzzers (front or rear). The obs tacle
clos est to the car is signalled.
The acoustic signal stops immediately if the distance of
the obs tacle incr

eases. The s ound cy cle remains constant
if the dis tance meas ured by the centre s ensors remains un-
changed, whils t if this s ituation occurs for the side sen-
s ors , the s ignal is interrupted after about 3 s econds (for
example, to prevent s ignals in the cas e of manoeuvres
alongs ide walls ).
fig. 84L0E0249m
The responsibility for parking and other dan-
gerous manoeuvres always and in every case
lies with the driver. While carrying out these ma-
noeuvres, always make sure that no people (espe-
cially children) or animals are in the area con-
cerned. Parking sensors are designed to assist dri-
vers: in all cases, you must always pay the utmost
attention during potentially dangerous manoeuvres,
even when these are carried out a low speed.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 145

146KNOWING YOUR CAR
ACOUS TIC SIGNAL
The information concerning the pre sence and dis tance of
an obs tacle from the car is transmitted to the driver by
means of acous tic signals from 2 buzzers installed in the
passenger compartment:
❍ a front buzzer warns of the presence of obs tacles at the
front and a buzzer located at the rear warns of the pres-
ence of obs tacles at the rear. Thi s permits the driver to
perceive the direction (front/rear) of the ob stacles .
Operation i s automaticall y activated when rever se gear
i s engaged.
The acou stic signal:
❍ increas es a s the dis tance between the car and the ob-
s tacle decreas es;
❍ becomes continuous when the dis tance between the car
and the obs tacle is less than ar

ound 30 cm and stops
immediately if the distance increas es;
❍ is cons tant if the dis tance is unvaried; if this s ituation
occurs for the s ide sens ors, the indication will s top af-
ter about 3 s econds to avoid, for example, warning in-
dications in the event of manoeuvre s alongs ide walls .
The sensor must be clean of mud, dirt, snow
or ice in order for the system to operate cor-
rectly. Be careful not to scratch or damage the
sensors while cleaning them. Avoid using dry, rough
or hard cloths. The sensors must be washed using
clean water, with the addition of car shampoo if nec-
essary. When using special washing equipment such
as high pressure jets or steam cleaning, clean the
sensors very quickly keeping the jet more than 10
cm away.
Only have the bumpers repainted or any re-
touches to the paintwork in the area of the
sensors carried out by a Lancia Dealership.
If the paint is incorrectly applied this could ad-
versely affect the operation of the parking sensors.
S ENS OR OPERATING RANGE
The sens ors allow the system to check the front part (ver-
s ion with 8 s ensors) and rear part of the vehicle.
Their pos ition covers the middle and s ide areas of the front
and rear of the car. If an obs tacle is located in a middle area,
it is detected when the dis tance is less than about 0.9 m
(front) and 1.30 m (rear).
If the obs tacle is located at the s ide, it is detected at dis -
tances of less than 0.6 m.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 146

KNOWING YOUR CAR147
1
OPERATION WITH TRAILER
The operation of the sens ors is automaticall y deactivated
when the trailer’ s electric plug i s in serted in the car’ s tow
hook socket. The sens ors are automatically reactivated
when the trailer’ s cable plug is removed.
IMPORTANT If y ou wish to leave the tow hook fitted when
there is no trailer, it is advisable to go to a Lancia Deal-
ers hip to have the system updated becau se the tow hook
could be detected as an obstacle by the centre s ensors.
FAULT INDIC AT I O NS
Either symbol
S(if the Magic Parking system is fitted),
or symbol
t(if the Magic Parking i s not fitted) will light
up on the di splay in combination with a me ssage or with
ins trument panel
èwarning light if parking s
ensor faults
are detected while revers e is engaged.
IMPORTANT INFORMATION
During parking manoeuvre s, pay the utmos t attention to
any obs tacles that could be located above or below the s en-
s ors .
Under certain circum stances close objects located in front
of or behind the vehicle ma y not be detected and could
therefore caus e damage to the vehicle or be damaged
thems elves. The following condition
s ma y influence the performance
of the parking a ssistance system:
❍ Reduced sens or sens itivity and a reduction in the park-
ing assi stance system performance could be due to the
pres ence on the surface of the sens ors of: ice, s now
,
mud, thick paint.
❍ The sens ors detect a non-exi stent obs tacle (echo in-
terference) due to mechanical interference, for exam-
ple when was hing the vehicle, rain ( strong wind), hail.
❍ The indication s s ent by the sensors can als o be altered
b y the pres ence of ultras onic devices (e.g. truck pneu-
matic brake systems or pneumatic drill s) near the car.
❍ The performance of the parking a ssistance system may
als o be affected by the position of the s ensors. For ex-
ample, if the geometr y is altered (as a result of wear of
the shock abs orbers, su spens ion) or the ty res ar
e
changed, the vehicle i s too heavily laden, specific tun-
ing is carried out that lower s the vehicle.
❍ The detection of obs tacles to the upper part of the ve-
hicle is not guaranteed a s the system is designed to de-
tect obs tacles that could impact the lower part of the
vehicle.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 147
