seat memory Lancia Thema 2012 Owner handbook (in English)

 HEAD RESTRAINTS . . . . . . . . . . . . . . . . . . . . 99
 FOLDING REAR SEAT . . . . . . . . . . . . . . . . . . 101
 DRIVER MEMORY SEAT (for versions/ markets, where provided) . . . . . . . . . . . . . . . . . 101
 PROGRAMMING THE MEMORY FEATURE . . 102
 LINKING AND UNLINKING THE REMOTE KEYLESS ENTRY TRANSMITTER TO
MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
 MEMORY POSITION RECALL . . . . . . . . . . . . 103
 EASY ENTRY/EXIT SEAT (Available With Memory Seat Only) . . . . . . . . . . . . . . . . . . . . . 103
 TO OPEN AND CLOSE THE HOOD . . . . . . . . . . 104
 LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104  HEADLIGHT SWITCH . . . . . . . . . . . . . . . . . . 104
 AUTOMATIC HEADLIGHTS . . . . . . . . . . . . . . 105
 HEADLIGHTS ON WITH WIPERS(Available With Automatic Headlights Only)
. . 105
 HEADLIGHT TIME DELAY . . . . . . . . . . . . . . 105
 SMARTBEAM™ . . . . . . . . . . . . . . . . . . . . . . . 106
 DAYTIME RUNNING LIGHTS (DRLs) . . . . . . 106
 ADAPTIVE BI-XENON HIGH INTENSITY DISCHARGE HEADLIGHTS (for
versions/markets, where provided) . . . . . . . . 106
 LIGHTS-ON REMINDER . . . . . . . . . . . . . . . . 107
 FOG LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . 107
 MULTIFUNCTION LEVER . . . . . . . . . . . . . . . 107
57

Power mirror preselected positions
can be controlled by the optional
Memory Seat Feature. Refer to
“Driver Memory Seat” in “Under-
standing The Features Of Your Ve-
hicle” for further information.
POWER FOLDING
OUTSIDE MIRRORS (for
versions/markets, where
provided)
The switch for the power folding mir-
rors is located between the power mir-
ror switches L (left) and R (right).
Press the switch once and the mirrors
will fold in, pressing the switch a sec-
ond time will return the mirrors to the
normal driving position.
If the mirrors are in the folded posi-
tion, and vehicle speed is equal or
greater than 16 km/h, they will auto-
matically unfold.HEATED MIRRORS (for
versions/markets, where
provided)
These mirrors are heated to
melt frost or ice. This feature is
activated whenever you turn
on the rear window defroster. Refer to
“Rear Window Features” in “Under-
standing The Features Of Your Ve-
hicle” for further information.
ILLUMINATED VANITY
MIRRORS (for
versions/markets, where
provided)
An illuminated vanity mirror is lo-
cated on the sun visor. To use the
mirror, rotate the sun visor downward
and swing the mirror cover upward.
The light turns on automatically.
Closing the mirror cover turns off the
light. “SLIDE-ON-ROD” AND
EXTENDER FEATURES OF
SUN VISOR
To use the “Slide-On-Rod” feature of
the sun visor, rotate the sun visor
downward and swing the sun visor so
it is parallel to the side window, grab-
bing the sun visor with your left hand
pull rearwards until the sun visor is in
the desired position. To use the ex-
tender feature of the sun visor, grab
the extender which is located at the
rear of the visor and pull rearward.
Slide-On-Rod Feature
65

FOLDING REAR SEATThe rear seatbacks can be folded for-
ward to provide an additional storage
area. To fold the rear seatback, pull on
the loops located on the upper seatback.NOTE:
These loops can be tucked away
when not in use.
After releasing the seatback, it can be
folded forward.When the seatback is folded to the
upright position, make sure it is
latched by strongly pulling on the top
of the seatback above the seat strap.
WARNING!
 Be certain that the seatback is se-
curely locked into position. If the
seatback is not securely locked
into position, the seat will not pro-
vide the proper stability for child
seats and/or passengers. An im-
properly latched seat could cause
serious injury.
 The cargo area in the rear of the
vehicle (with the rear seatbacks in
the locked-up or folded down po-
sition) should not be used as a
play area by children when the
vehicle is in motion. They could
be seriously injured in a collision.
Children should be seated and us-
ing the proper restraint system.
DRIVER MEMORY SEAT
(for versions/markets,
where provided)
This feature allows the driver to store
up to two different memory profiles for easy recall through a memory
switch. Each memory profile contains
desired position settings for the driver
seat, side mirrors, adjustable pedals
(for versions/markets, where pro-
vided), and power tilt and telescopic
steering column (for versions/
markets, where provided) and a set of
desired radio station presets. Your Re-
mote Keyless Entry (RKE) transmit-
ter can also be programmed to recall
the same positions when the UN-
LOCK button is pressed.
NOTE:
 Only one RKE transmitter can
be linked to each of the memory
positions.
 Passive Entry door handles can- not be linked to the memory
function. Use either the memory
recall switch or the RKE trans-
mitter (if linked to the memory
feature) to recall memory posi-
tions 1 or 2.
The memory seat switch is located on
the driver's door trim panel. The
switch consists of three buttons: The
(S) button, which is used to activate
Rear Seatback LoopFolded Rear Seatback
101

the memory save function and the (1)
and (2) buttons which are used to
recall either of two pre-programmed
memory profiles.
PROGRAMMING THE
MEMORY FEATURE
NOTE:
Saving a new memory profile will
erase an existing profile from
memory.
To create a new memory profile, per-
form the following:
1. Cycle the ignition to the RUN po-
sition.
2. Adjust all memory profile settings
to desired preferences (i.e., seat, side
mirror, adjustable pedals [for
versions/markets, where provided],power tilt and telescopic steering col-
umn [for versions/markets, where
provided], and radio station presets).
3. Press and release the SET (S) but-
ton on the memory switch.
4. Within five seconds, press and re-
lease the MEMORY button 1 or 2. The
Electronic Vehicle Information Center
(EVIC) (for versions/markets, where
provided) will display which memory
position has been set.
NOTE:
 Memory profiles can be set with-
out the vehicle in PARK, but the
vehicle must be in PARK to re-
call a memory profile.
 The Recall Memory with Remote Key Unlock feature can be
turned on and off using the
Uconnect Touch™ System, refer
to “Uconnect Touch™ Settings”
in “Understanding Your Instru-
ment Panel” for further infor-
mation. LINKING AND UNLINKING
THE REMOTE KEYLESS
ENTRY TRANSMITTER TO
MEMORY
Your RKE transmitters can be pro-
grammed to recall one of two pre-
programmed memory profiles by
pressing the UNLOCK button on the
RKE transmitter.
To program your RKE transmitters,
perform the following:
1. Cycle the ignition to the OFF posi-
tion.
2. Select desired memory profile (1)
or (2).
3. Once the profile has been recalled,
press and release the SET (S) button
on the memory switch, then press and
release button (1) or (2) accordingly.
“Memory Profile Set” (1 or 2) will
display in the instrument cluster on
vehicles equipped with the EVIC.
4. Press and release the LOCK button
on the RKE transmitter within 10 sec-
onds.
Memory Seat Switch
102

NOTE:
Your RKE transmitters can be un-
linked to your memory settings by
pressing the SET (S) button fol-
lowed by the UNLOCK button on
the RKE transmitter in Step 4
above.
MEMORY POSITION
RECALL
NOTE:
The vehicle must be in PARK to
recall memory positions. If a recall
is attempted when the vehicle is
not in PARK, a message will dis-
play in the EVIC (for versions/
markets, where provided).
To recall the memory settings for
driver, press MEMORY button num-
ber (1) on the driver's door or the
UNLOCK button on the RKE trans-
mitter linked to memory position 1.
To recall the memory setting for
driver, press MEMORY button num-
ber (2) on the driver's door or the
UNLOCK button on the RKE trans-
mitter linked to memory position 2.A recall can be cancelled by pressing
any of the MEMORY buttons (S, 1, or
2) on the driver's door during a recall.
When a recall is cancelled, the driver
seat, side mirror, adjustable pedals
(for versions/markets, where pro-
vided), and power tilt and telescopic
steering column (for versions/
markets, where provided) stop mov-
ing. A delay of one second will occur
before another recall can be selected.
EASY ENTRY/EXIT SEAT
(Available With Memory
Seat Only)
This feature provides automatic
driver seat positioning to enhance
driver mobility when entering and ex-
iting the vehicle.
The distance the driver seat moves
depends on where you have the driver
seat positioned when you place the
ignition to the OFF position.
 When you cycle the ignition to the
OFF position, the driver seat will
move about 60 mm rearward if the
driver seat position is greater than
or equal to 67.7 mm forward of the
rear stop. The seat will return to its previously set position when you
place the ignition into the ACC or
RUN position.
 When you cycle the ignition to the OFF position, the driver seat will
move to a position 7.7 mm forward
of the rear stop if the driver seat
position is between 22.7 mm and
67.7 mm forward of the rear stop.
The seat will return to its previously
set position when you place the ig-
nition to the ACC or RUN position.
 The Easy Entry/Easy Exit feature is disabled when the driver seat po-
sition is less than 22.7 mm forward
of the rear stop. At this position,
there is no benefit to the driver by
moving the seat for Easy Exit or
Easy Entry.
Each stored memory setting will have
an associated Easy Entry and Easy
Exit position.
NOTE:
The Easy Entry/Easy Exit feature
can be enabled or disabled using
the Uconnect Touch™ System, re-
fer to “Uconnect Touch™ Settings”
103

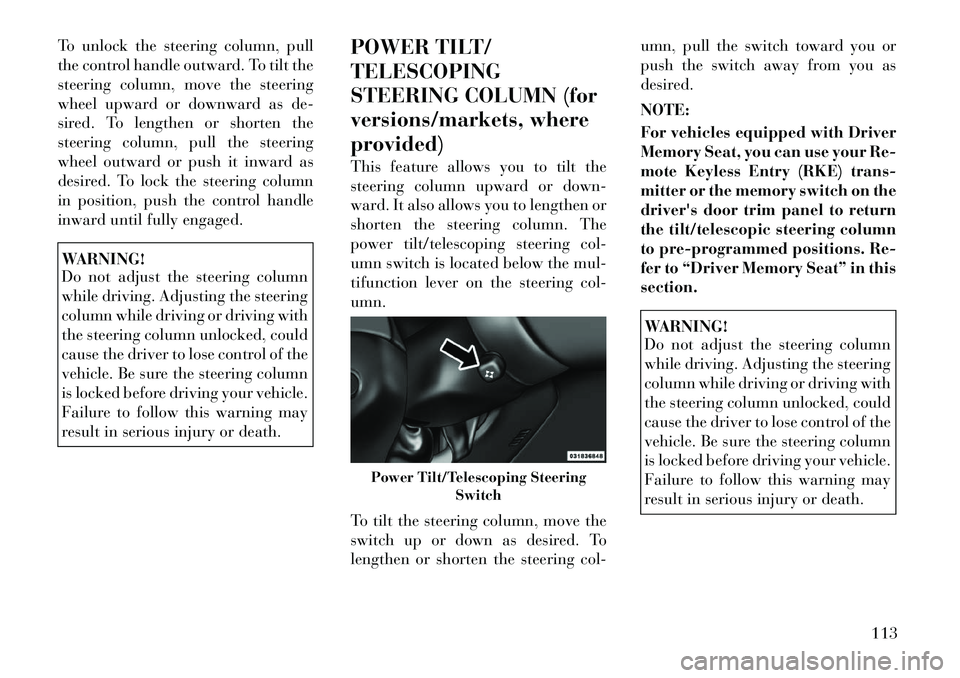

To unlock the steering column, pull
the control handle outward. To tilt the
steering column, move the steering
wheel upward or downward as de-
sired. To lengthen or shorten the
steering column, pull the steering
wheel outward or push it inward as
desired. To lock the steering column
in position, push the control handle
inward until fully engaged.WARNING!
Do not adjust the steering column
while driving. Adjusting the steering
column while driving or driving with
the steering column unlocked, could
cause the driver to lose control of the
vehicle. Be sure the steering column
is locked before driving your vehicle.
Failure to follow this warning may
result in serious injury or death.POWER TILT/
TELESCOPING
STEERING COLUMN (for
versions/markets, where
provided)
This feature allows you to tilt the
steering column upward or down-
ward. It also allows you to lengthen or
shorten the steering column. The
power tilt/telescoping steering col-
umn switch is located below the mul-
tifunction lever on the steering col-
umn.
To tilt the steering column, move the
switch up or down as desired. To
lengthen or shorten the steering col- umn, pull the switch toward you or
push the switch away from you as
desired.
NOTE:
For vehicles equipped with Driver
Memory Seat, you can use your Re-
mote Keyless Entry (RKE) trans-
mitter or the memory switch on the
driver's door trim panel to return
the tilt/telescopic steering column
to pre-programmed positions. Re-
fer to “Driver Memory Seat” in this
section.
WARNING!
Do not adjust the steering column
while driving. Adjusting the steering
column while driving or driving with
the steering column unlocked, could
cause the driver to lose control of the
vehicle. Be sure the steering column
is locked before driving your vehicle.
Failure to follow this warning may
result in serious injury or death.
Power Tilt/Telescoping Steering
Switch
113

from the driver to provide improved
position with the steering wheel.
The switch is located on the front side
of the driver's seat cushion side shield.
Press the switch forward to move the
pedals forward (toward the front of
the vehicle).
Press the switch rearward to move the
pedals rearward (toward the driver).
 The pedals can be adjusted with theignition OFF.
 The pedals cannotbe adjusted
when the vehicle is in REVERSE or
when the Electronic Speed Control
System is on. The following mes-
sages will be displayed on vehicles
equipped with the Electronic Ve-
hicle Information System (EVIC) if
the pedals are attempted to be ad- justed when the system is locked
out (“Adjustable Pedal Disabled —
Cruise Control Engaged” or “Ad-
justable Pedal Disabled — Vehicle
In Reverse”.
NOTE:
For vehicles equipped with Driver
Memory Seat, you can use your Re-
mote Keyless Entry (RKE) trans-
mitter or the memory switch on the
driver's door trim panel to return
the adjustable pedals to pre-
programmed positions. Refer to
“Driver Memory Seat” in “Under-
standing The Features Of Your Ve-
hicle” for further information.
CAUTION!
Do not place any article under the
adjustable pedals or impede its abil-
ity to move as it may cause damage
to the pedal controls. Pedal travel
may become limited if movement is
stopped by an obstruction in the ad-
justable pedal's path.
WARNING!
Do not adjust the pedals while the
vehicle is moving. You could lose
control and have an accident. Al-
ways adjust the pedals while the ve-
hicle is parked.
ELECTRONIC SPEED
CONTROL (for
versions/markets, where
provided)
When engaged, the Electronic Speed
Control takes over accelerator opera-
tions at speeds greater than 40 km/h.
The Electronic Speed Control buttons
are located on the right side of the
steering wheel.
Adjustable Pedals Switch
1 — ON/OFF 2 — RES +
4 — CANCEL 3 — SET -
115

doors. When Unlock All Doors On 1st
Press is selected, all of the doors will
unlock on the first press of the RKE
transmitter UNLOCK button.
NOTE:
If the vehicle is programmed 1st
Press Of Key Fob Unlocks, all
doors will unlock no matter which
Passive Entry equipped door
handle is grasped. If 1st Press Of
Key Fob Unlocks is programmed,
only the driver’s door will unlock
when the driver’s door is grasped.
With Passive Entry, if 1st Press Of
Key Fob Unlocks is programmed
touching the handle more than
once will only result in the driver’s
door opening. If driver door first is
selected, once the driver door is
opened, the interior door lock/
unlock switch can be used to un-
lock all doors (or use RKE trans-
mitter). Passive Entry (for
versions/markets, where
provided)
This feature allows you to lock and
unlock the vehicle’s door(s) without
having to press the Remote Keyless
Entry (RKE) transmitter lock or un-
lock buttons. To make your selection,
touch the Passive Entry soft-key, until
a check-mark appears next to setting,
showing that setting has been se-
lected. Touch the back arrow soft-key
to return to the previous menu. Refer
to “Keyless Enter-N-Go” in “Things
To Know Before Starting Your Ve-
hicle”.
 Personal Settings Linked To FOB
(for versions/markets, where
provided)
This feature provides automatic
driver seat positioning to enhance
driver mobility when entering and ex-
iting the vehicle. To make your selec-
tion, touch the Memory Linked To
FOB soft-key, until a check-mark ap-
pears next to setting, showing that
setting has been selected. Touch the
back arrow soft-key to return to the
previous menu. NOTE:
The seat will return to the memo-
rized seat location (if Recall
Memory with Remote Key Unlock
is set to ON) when the Remote Key-
less Entry (RKE) transmitter is
used to unlock the door. Refer to
“Driver Memory Seat” in “Under-
standing The Features Of Your Ve-
hicle” for further information.
Engine Off Options
After pressing the Engine Off Options
soft-key the following settings will be
available.
 Easy Exit Seat (for
versions/markets, where
provided)
This feature provides automatic
driver seat positioning to enhance
driver mobility when entering and ex-
iting the vehicle. To make your selec-
tion, touch the Easy Exit Seats soft-
key, until a check-mark appears next
to setting, showing that setting has
been selected. Touch the back arrow
soft-key to return to the previous
menu.
174

Automatic Door . . . . . . . . . . 19
Child Protection . . . . . . . . . . 20
Door . . . . . . . . . . . . . . . . . . 18
Power Door . . . . . . . . . . . . . 19
Low Tire Pressure System . . . . 219
Lower Anchors and Tether for
CHildren (LATCH) . . . . . . . 46,47
Lubrication, Body . . . . . . . . . 262
Maintenance Free Battery . . . . 260
Maintenance Procedures . . . . . 257
Maintenance Schedule . . . 290,293
Maintenance, General . . . . . . . 257
Malfunction Indicator Light
(Check Engine) . . . . . . . . . . . 156
Manual Transmission . . . . . . . 271 Fluid Level Check . . . . . . . 271
Master Cylinder (Brakes) . . . . 269
Memory Feature (Memory
Seat) . . . . . . . . . . . . . . . . . . 101
Memory Seat . . . . . . . . . . . . . 101
Memory Seats and Radio . . . . 101
Methanol . . . . . . . . . . . . . . . 223
Methanol Fuel . . . . . . . . . . . . 223
Mini-Trip Computer . . . . . . . . 166
Mirrors . . . . . . . . . . . . . . . . . . 63
Automatic Dimming . . . . . . . 63
Electric Powered . . . . . . . . . 64
Electric Remote . . . . . . . . . . 64 Exterior Folding . . . . . . . . . . 63
Heated . . . . . . . . . . . . . . . . 65
Outside . . . . . . . . . . . . . . . . 63
Vanity . . . . . . . . . . . . . . . . . 65
Mode Fuel Saver . . . . . . . . . . . . . 165
Modifications/Alterations,
Vehicle . . . . . . . . . . . . . . . . . . . 7
Monitor, Tire Pressure
System . . . . . . . . . . . . . . . . . 219
Multi-Function Control
Lever . . . . . . . . . . . . . . . . . . 107
Navigation System
(Uconnect™ gps) . . . . . . 134,177
New Vehicle Break-In Period . . 50
Occupant Restraints . . . . 25,37,40
Occupant Restraints
(Sedan) . . . . . . . . . . . . . 35,37,39
Octane Rating, Gasoline
(Fuel) . . . . . . . . . . . . . . 223,284
Odometer . . . . . . . . . . . . . . . 154
Oil Change Indicator . . . . 154,164
Oil Change Indicator,
Reset . . . . . . . . . . . . . . . 154,164
Oil, Engine . . . . . . . . . . . 258,284 Capacity . . . . . . . . . . . . . . 283
Change Interval . . . . . . 164,258 Diesel . . . . . . . . . . . . . . . . 259
Dipstick . . . . . . . . . . . . . . . 258
Filter . . . . . . . . . . . . . 259,284
Materials Added to . . . . . . . 259
Recommendation . . 258,259,283
Synthetic . . . . . . . . . . . . . . 259
Viscosity . . . . . . . . . . . . . . 283
Onboard Diagnostic System . . 257
Operating Precautions . . . . . . 257
Operator Manual (Owner's
Manual) . . . . . . . . . . . . . . . . . . 5
Outside Rearview Mirrors . . . . . 63
Overdrive . . . . . . . . . . . . . . . 202
Overdrive OFF Switch . . . . . . 202
Overhead Console . . . . . . . . . 135
Overheating, Engine . . . . 159,240
Owner's Manual (Operator
Manual) . . . . . . . . . . . . . . . . . . 5
Paint Care . . . . . . . . . . . . . . . 271
Park Sense System, Rear . . . . 129
Parking Brake . . . . . . . . . . . . 206
Passing Light . . . . . . . . . . . . 108
Pedals, Adjustable . . . . . . . . . 114
Pets . . . . . . . . . . . . . . . . . . . . 50
Power
Deck Lid Release . . . . . . . . . 24
Distribution Center
(Fuses) . . . . . . . . . . . . 274,276
303

Door Locks . . . . . . . . . . . . . 19
Mirrors . . . . . . . . . . . . . . . . 64
Outlet (Auxiliary Electrical
Outlet) . . . . . . . . . . . . . . . 140
Seats . . . . . . . . . . . . . . . . . . 96
Steering . . . . . . . . . . . . . . . 206
Sunroof . . . . . . . . . . . . 136,138
Tilt/Telescoping Steering
Column . . . . . . . . . . . . . . . 113
Windows . . . . . . . . . . . . . . . 22
Power Steering Fluid . . . . . . . 285
Pregnant Women and Seat
Belts . . . . . . . . . . . . . . . . . . . . 33
Pretensioners Seat Belts . . . . . . . . . . . . . . 30
Programming Transmitters
(Remote Keyless Entry) . . . . . . 16
Radial Ply Tires . . . . . . . . . . . 215
Radiator Cap (Coolant
Pressure Cap) . . . . . . . . . . . . 267
Radio (Sound Systems) . . . . . 177
Radio Operation . . . . . . . . . . 180
Radio Remote Controls . . . . . . 179
Rain Sensitive Wiper System . . 111
Rear Camera . . . . . . . . . . . . . 134
Rear Cupholder . . . . . . . . . . . 142
Rear Fog Lights . . . . . . . . . . . 107
Rear Park Sense System . . . . . 129 Rear Seat, Folding . . . . . . . . . 101
Rear Window Defroster . . . . . 145
Rear Window Features . . . . . . 145
Recorder, Event Data . . . . . . . . 41
Recreational Towing . . . . . . . . 237
Refrigerant . . . . . . . . . . . . . . 261
Reminder, Lights On . . . . . . . 107
Reminder, Seat Belt . . . . . . . . . 32
Remote Keyless Entry (RKE) . . 16
Remote Sound System (Radio)
Controls . . . . . . . . . . . . . . . . 179
Remote Trunk Release . . . . . . . 24
Replacement Bulbs . . . . . . . . 280
Replacement Keys . . . . . . . . . . 14
Replacement Parts . . . . . . . . . 257
Replacement Tires . . . . . . . . . 217
Resetting Oil Change
Indicator . . . . . . . . . . . . 154,164
Restraint, Head . . . . . . . . . . . . 99
Restraints, Child . . . . . . . . . . . 42
Restraints, Occupant . . . . . . . . 25
Rocking Vehicle When Stuck . . 248
Rotation, Tires . . . . . . . . . . . . 219
Safety Checks Inside Vehicle . . . 51
Safety Checks Outside Vehicle . . 53
Safety Tips . . . . . . . . . . . . . . . 50
Safety, Exhaust Gas . . . . . . . . . 51
Schedule, Maintenance . . 290,293Seat Belt Maintenance . . . . . . 274
Seat Belt Reminder . . . . . . . . . 32
Seat Belts . . . . . . . . . . . 25,26,51
Adjustable Upper Shoulder
Anchorage . . . . . . . . . . . . . . 28
And Pregnant Women . . . . . . 33
Child Restraint . . . . . . 42,45,49
Front Seat . . . . . . . . . . . . 26,27
Inspection . . . . . . . . . . . . . . 51
Operating Instructions . . . . . 27
Pretensioners . . . . . . . . . . . . 30
Rear Seat . . . . . . . . . . . . . . . 26
Untwisting Procedure . . . . . . 29
Seats . . . . . . . . . . . . . . . . . . . 96 Adjustment . . . . . . . . . . . . . 96
Easy Entry . . . . . . . . . . . . 103
Head Restraints . . . . . . . . . . 99
Height Adjustment . . . . . . . . 96
Memory . . . . . . . . . . . . . . . 101
Power . . . . . . . . . . . . . . . . . 96
Rear Folding . . . . . . . . . . . 101
Seatback Release . . . . . . . . 101
Tilting . . . . . . . . . . . . . . . . . 96
Selection of Coolant
(Antifreeze) . . . . . . . . . . 266,284
Selection of Oil . . . . . . . . . . . 259
Sentry Key (Immobilizer) . . . . . 13
Sentry Key Programming . . . . . 14
Sentry Key Replacement . . . . . . 14
304
