CHASSIS
ComponentFluids and Lubricants Specs (Genuine Parts)
Automatic Transmission Totally synthetic lubricant that meets FIAT Classification
9.55550-AV4 (TUTELA TRANSMISSION FORCE4, Con-
tractual Technical Reference N° F108.F11)
Brake/Clutch Master Cylinder Synthetic fluid that meets FIAT Classification 9.55597,
FMVSS n° 116, DOT 4, ISO 4925, SAE J-1704 (TUTELA
TOP 4, Contractual Technical Reference N° F001.A93)
Power Steering Reservoir Totally synthetic lubricant that meets FIAT Classification
9.55550-AV4 (TUTELA TRANSMISSION FORCE4, Con-
tractual Technical Reference N° F108.F11)
Windshield/Rear Window Washer Fluid Mixture of alcohol, water and surfactants that meets FIAT
Classification 9.55522, CUNA NC 956-11 (TUTELA PRO-
FESSIONAL SC35, Contractual Technical Reference N°
F201.D02)
335

ARRANGEMENTS FOR
DEALING WITH THE
VEHICLE AT THE END OF
ITS LIFE
LANCIA has been committed for
many years to safeguarding the envi-
ronment through the constant im-
provement of its production processes
and manufacturing products that are
increasingly “eco-compatible”.
To give customers the best possible
service in terms of respecting environ-
mental laws and in response to Euro-
pean Directive 2000/53/EC govern-
ing vehicles at the end of their life,
LANCIA is offering its customers the
opportunity of handing over their ve-
hicle* at the end of its life without
incurring any additional costs.
The European Directive sets out that
when the vehicle is handed over the
last keeper or owner should not incur
any expenses as a result of it having a
zero or negative market value.In all European Union countries, until
1st January 2007, only vehicles regis-
tered after 1st July 2002 were col-
lected free of charge, while since 2007
collection has been free of charge irre-
spective of the year of registration as
long as the vehicle contains its basic
components (in particular, the engine
and bodywork) and has no additional
waste.
To hand your vehicle over at the end
of its life without extra cost, go to one
of our Dealerships or LANCIA-
authorized collection and scrapping
centres.
These centres have been carefully
chosen to offer high quality service for
the collection, treatment and recy-
cling of unused vehicles with respect
to the environment.
You can find further information on
these collection and scrapping centres
either from a LANCIA or LANCIA
Commercial Vehicle Dealership or by
calling the freephone number
00800 526242 00 or by going on the
LANCIA website.
(*) Vehicle for transporting passen-
gers with a maximum of nine seats
and a total permitted weight of 3.5 t
336

337

338

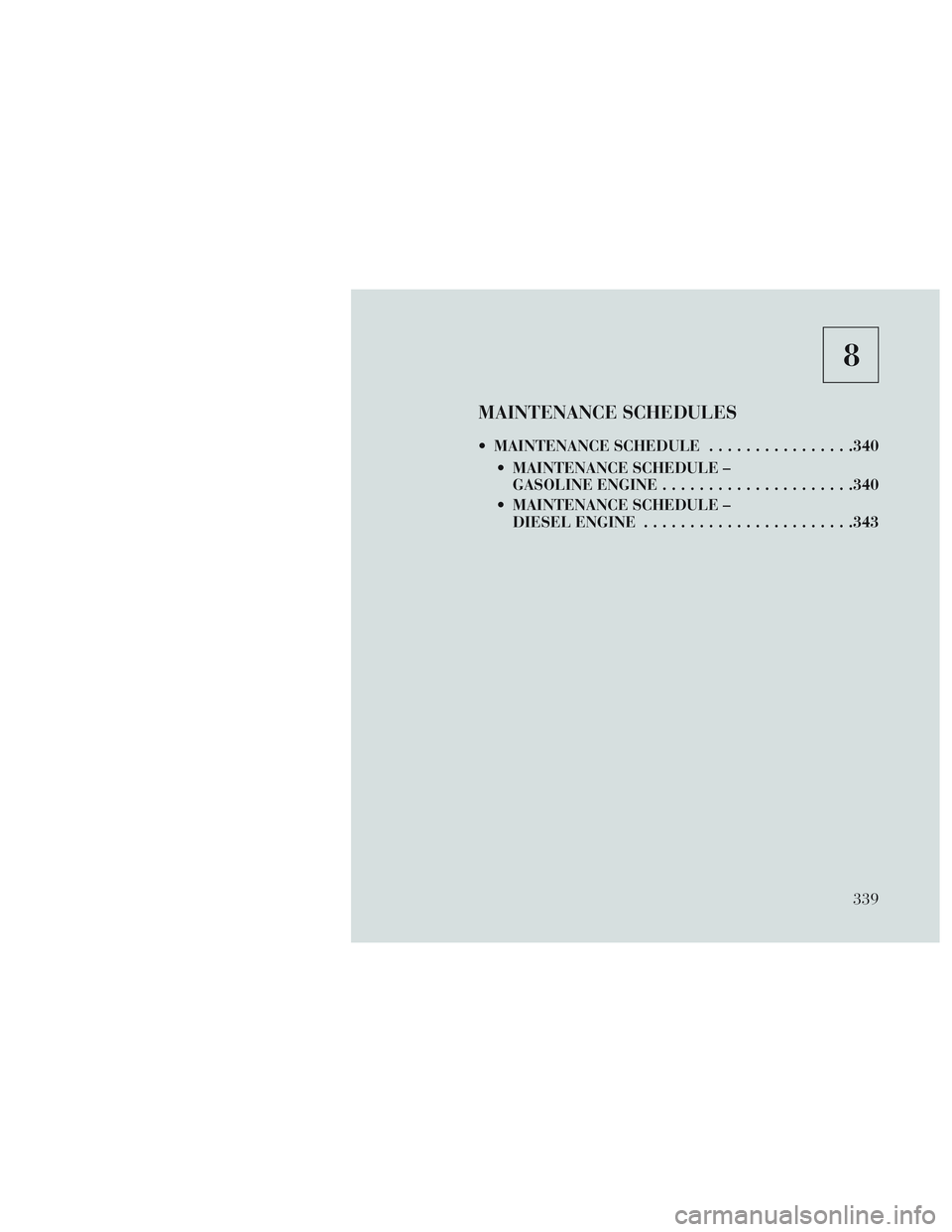

8
MAINTENANCE SCHEDULES
MAINTENANCE SCHEDULE................340
MAINTENANCE SCHEDULE – GASOLINE ENGINE .................... .340
MAINTENANCE SCHEDULE – DIESEL ENGINE ...................... .343
339

MAINTENANCE
SCHEDULE
MAINTENANCE
SCHEDULE – GASOLINE
ENGINE
The Scheduled Maintenance services
listed in this manual must be done at
the times or mileages specified to pro-
tect your vehicle warranty and ensure
the best vehicle performance and reli-
ability. More frequent maintenance
may be needed for vehicles in severe
operating conditions, such as dusty
areas and very short trip driving. In-
spection and service should also be
done anytime a malfunction is sus-
pected.The oil change indicator system will
remind you that it is time to take your
vehicle in for scheduled maintenance.
On Electronic Vehicle Information
Center (EVIC) equipped vehicles “Oil
Change Required” will be displayed
in the EVIC and a single chime will
sound, indicating that an oil change is
necessary.
NOTE:
The oil change indicator mes-
sage will not monitor the time
since the last oil change. Change
your vehicles oil if it has been 12
months since your last oil
change even if the oil change in-
dicator message is NOT illumi-
nated. Under no circumstances should
oil change intervals exceed
12,000 km or 12 months, which-
ever comes first.
Rotate the tires at the first sign of irregular wear.
Your authorized dealer will reset the
oil change indicator message after
completing the scheduled oil change.
CAUTION!
Failure to perform the required
maintenance items may result in
damage to the vehicle.
Thousands Of Kilometers 24 48 72 96 120 144 168 192 Months 12 24 36 48 60 72 84 96
Change the engine oil and replace oil filter. (**)
Inspect and replace PCV valve if necessary.
Check battery charge status and possibly recharge.
Check tire condition/wear and adjust pressure, if necessary.
340

Thousands Of Kilometers 24 48 72 96 120 144 168 192Months 12 24 36 48 60 72 84 96
Check operation of lighting system (headlamps, direction indi-
cators, hazard warning lights, luggage compartment, passen-
ger compartment, glove compartment, instrument panel warn-
ing lights, etc.).
Check operation of windshield washer system and adjust jets if
necessary.
Check windshield/rear window wiper blade position/wear.
Check cleanliness of hood and tailgate locks and cleanliness
and lubrication of linkages.
Visually inspect condition of: exterior bodywork, underbody
protection, pipes and hoses (exhaust - fuel system - brakes),
rubber elements (boots, sleeves, bushes, etc.).
Check conditions and wear of front disc brake pads.
Check conditions and wear of rear disc brake pads.
Check and, if necessary, top up fluid levels (brakes, windshield
washer, battery, engine coolant, etc.).
Visually inspect the condition of accessory drive belt/s.
Check exhaust gas emissions.
Check engine management system operation (via diagnostic
socket).
Adjust parking brake shoes as necessary.
Change the automatic transmission fluid and filter. (*)
Replace spark plugs. (***)
Replace air filter cartridge.
341

Thousands Of Kilometers 24 48 72 96 120 144 168 192Months 12 24 36 48 60 72 84 96
Change brake fluid (or every 24 months).
Replace pollen filter.
(*) Change the automatic transmis-
sion fluid and filter(s) at 96 km or 48
months if using your vehicle for any of
the following: city driving, short (less
than 7-8 km) and repeated journeys,
or frequent trailer or caravan towing
(**) The oil and oil filter replacement
must be carried out when indicated by
a warning light or message on the
instrument panel, or in any case every
12 months.
(***) The spark plug change in Km
based only monthly intervals do not
apply.
Periodic Checks
Every 1,000 km or before long jour-
neys, check and, if necessary, restore:
engine coolant;
brake fluid;
power steering fluid;
windshield washer fluid level; power steering fluid;
tire inflation pressure and
condition;
operation of lighting system (head- lights, direction indicators, hazard
warning lights, etc.);
operation of windshield washer/ wiper system and positioning/wear
of windshield/rear window wiper
blades.
Every 3,000 km, check and top up, if
required, the engine oil level and au-
tomatic transmission fluid level (four-
speed automatic only).
Heavy-Duty Use Of The Car
If the car is used mainly under one of
the following conditions:
towing a trailer or caravan;
dusty roads; short, repeated journeys (less than
7-8 km) at sub-zero outside
temperatures;
engine often idling or driving long distances at low speeds or long pe-
riods of idleness.
You should perform the following in-
spections more frequently than shown
on the Scheduled Servicing Plan:
check front disc brake pad condi- tions and wear;
check cleanliness of hood and trunk locks, cleanliness and lubrication of
linkage;
visually inspect conditions of: en- gine, transmission, pipes and hoses
(exhaust - fuel system - brakes) and
rubber elements (boots - sleeves -
bushes - etc.);
check battery charge and battery fluid level (electrolyte);
342

visually inspect condition of the ac-cessory drive belts;
check and, if necessary, change en- gine oil and replace oil filter;
check and, if necessary, replace pol- len filter;
check and, if necessary, replace air cleaner.
MAINTENANCE
SCHEDULE – DIESEL
ENGINE
To help you have the best driving
experience possible, the manufacturer
has identified the specific vehicle
maintenance service intervals that are
required to keep your vehicle operat-
ing properly and safely.
The manufacturer recommends that
these maintenance intervals be per-
formed at your selling dealer. The
technicians at your dealership know
your vehicle best, and have access to
factory trained information, genuine
LANCIA parts, and specially designed electronic and mechanical tools that
can help prevent future costly repairs.
The maintenance intervals shown
should be performed as indicated in
this section.
NOTE:
Under no circumstances should
oil change intervals exceed
25,000 km or 12 months, which-
ever comes first.
Rotate the tires at the first sign of irregular wear.
CAUTION!
Failure to perform the required
maintenance items may result in
damage to the vehicle.
Diesel Models with Diesel
Particulate Filter (DPF)
The oil change indicator system will
remind you that it is time to take your
vehicle in for scheduled maintenance.
A “CHANgE OIL” message will flash
in the instrument cluster odometer and a single chime will sound, indi-
cating that an oil change is necessary.
Based on engine operation conditions,
the oil change indicator message will
illuminate, this means that service is
required for your vehicle. Have your
vehicle serviced as soon as possible,
within the next 805 km.
Your dealer will reset the oil change
indicator message after completing
the scheduled oil change. If this
scheduled oil change is performed by
someone other than your dealer the
message can be reset by referring to
the steps described under “Instru-
ment Cluster Description/Odometer/
Trip Odometer” in "Understanding
Your Instrument Panel” for further
information.
Required Maintenance Intervals
Refer to the Maintenance Schedules
on the following pages for the re-
quired maintenance intervals.
343

Thousands Of Kilometers 20 40 60 80 100 120 140 160 180 200Months 12 24 36 48 60 72 84 96 108 120
Change engine oil and replace oil filter. (**)
Rotate Tires.
Check battery charge status and possibly re-
charge.
Check tire condition/wear and adjust pressure, if
necessary.
Check operation of lighting system (headlamps,
direction indicators, hazard warning lights, lug-
gage compartment, passenger compartment, glove
compartment, instrument panel warning lights,
etc.).
Check operation of windscreen washer system
and adjust jets if necessary.
Check windshield/rear window wiper blade
position/wear.
Check cleanliness of hood and tailgate locks and
cleanliness and lubrication of linkages.
Visually inspect condition of: exterior bodywork,
underbody protection, pipes and hoses (exhaust -
fuel system - brakes), rubber elements (boots,
sleeves, bushes, etc.).
Check conditions and wear of front disc brake pads.
Check conditions and wear of rear disc brake pads.
