Lexus CT200h 2011 Owner's Manual (in English)

131
1
Before driving
CT200h_EE (OM76041E)
1-7. Theft deterrent system
Immobilizer system
System maintenance
The vehicle has a maintenance-free type immobilizer system.
Conditions affecting operation
Depending on the surrounding environment and conditions, the immobilizer
system may not operate properly. This may prevent the hybrid system from
starting. (P. 8 2 )
The vehicle’s keys have built-in transponder chips that prevent the
hybrid system from starting if a key has not been previously registered
in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes
after the “POWER” switch
has been turned off to indi-
cate that the system is operat-
ing.
The indicator light stops
flashing after the “POWER”
switch has been turned to
ACCESSORY or ON mode

132
1-7. Theft deterrent system
CT200h_EE (OM76041E)

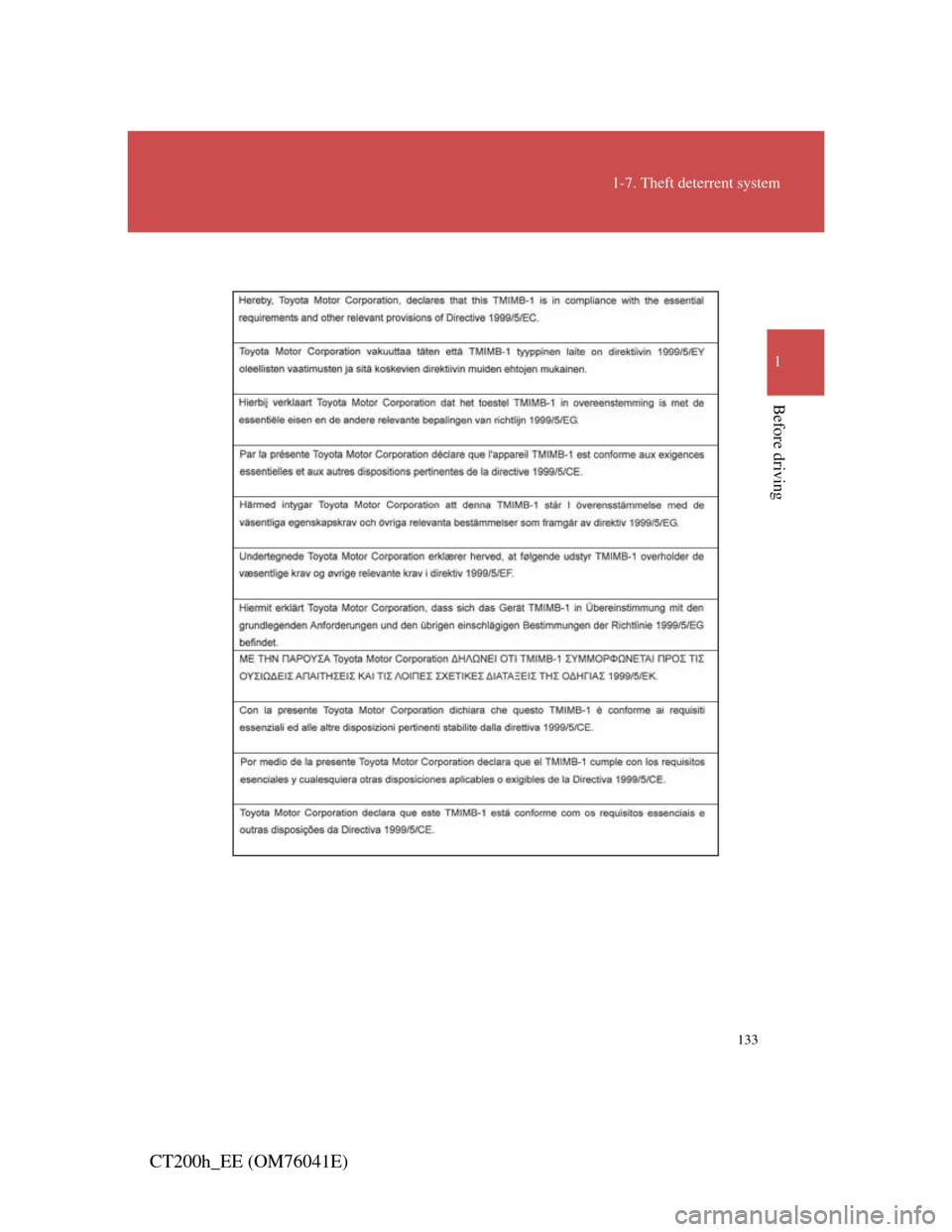

Certifications for the immobilizer system

133
1-7. Theft deterrent system
1
Before driving
CT200h_EE (OM76041E)

134
1-7. Theft deterrent system
CT200h_EE (OM76041E)

135
1-7. Theft deterrent system
1
Before driving
CT200h_EE (OM76041E)
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

136
1-7. Theft deterrent system
CT200h_EE (OM76041E)
Double locking system
Setting the double locking system
Turn the “POWER” switch off, have all the passengers exit the
vehicle and ensure that all the doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press
twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the door
unlocking function from both the interior and exterior of the vehicle.
Vehicles employing this sys-
tem have labels on the win-
dow glass of both front
doors.

137
1-7. Theft deterrent system
1
Before driving
CT200h_EE (OM76041E)
Canceling the double locking system
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

138
1-7. Theft deterrent system
CT200h_EE (OM76041E)
Alarm
: If equipped
The system sounds the alarm and flashes lights when forcible entry is
detected.
Triggering of the alarm
The alarm is triggered in the following situations when the
alarm is set:
A locked door is unlocked or opened in any way other than
using the entry function (vehicles with a smart entry & start
system) or wireless remote control.
The hood is opened.
The intrusion sensor detects something moving inside the
vehicle. (An intruder gets in the vehicle.) (if equipped)
The tilt sensor detects a change of vehicle inclination. (if
equipped)
The back door window is tapped or broken. (if equipped)
Setting the alarm system
Close the doors and hood,
and lock all the doors using
the entry function (vehicles
with a smart entry & start
system) or wireless remote
control. The system will be
set automatically after 30
seconds.
The indicator light changes
from being on to flashing

139
1-7. Theft deterrent system
1
Before driving
CT200h_EE (OM76041E)
Intrusion sensor and tilt sensor (if equipped)
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
The intrusion sensor detects intruders or movement in the vehi-
cle.
The tilt sensor detects changes in vehicle inclination, such as
when the vehicle is towed away.
The intrusion sensor and tilt sensor can be canceled using the can-
cel switch.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
Unlock the doors using the entry function (vehicles with a
smart entry & start system) or wireless remote control.
Start the hybrid system. (The alarm will be deactivated or
stopped after a few seconds.)

140
1-7. Theft deterrent system
CT200h_EE (OM76041E)
Canceling the intrusion sensor and tilt sensor (if equipped)
Turn the “POWER” switch off
and press the intrusion sensor
and tilt sensor cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
The intrusion sensor and tilt
sensor will revert to on each
time the “POWER” switch is
turned to ON mode.
