Lexus CT200h 2011 Owner's Manual (in English)

641
6-1. Specifications
6
Vehicle specifica-
CT200h_EE (OM76041E)

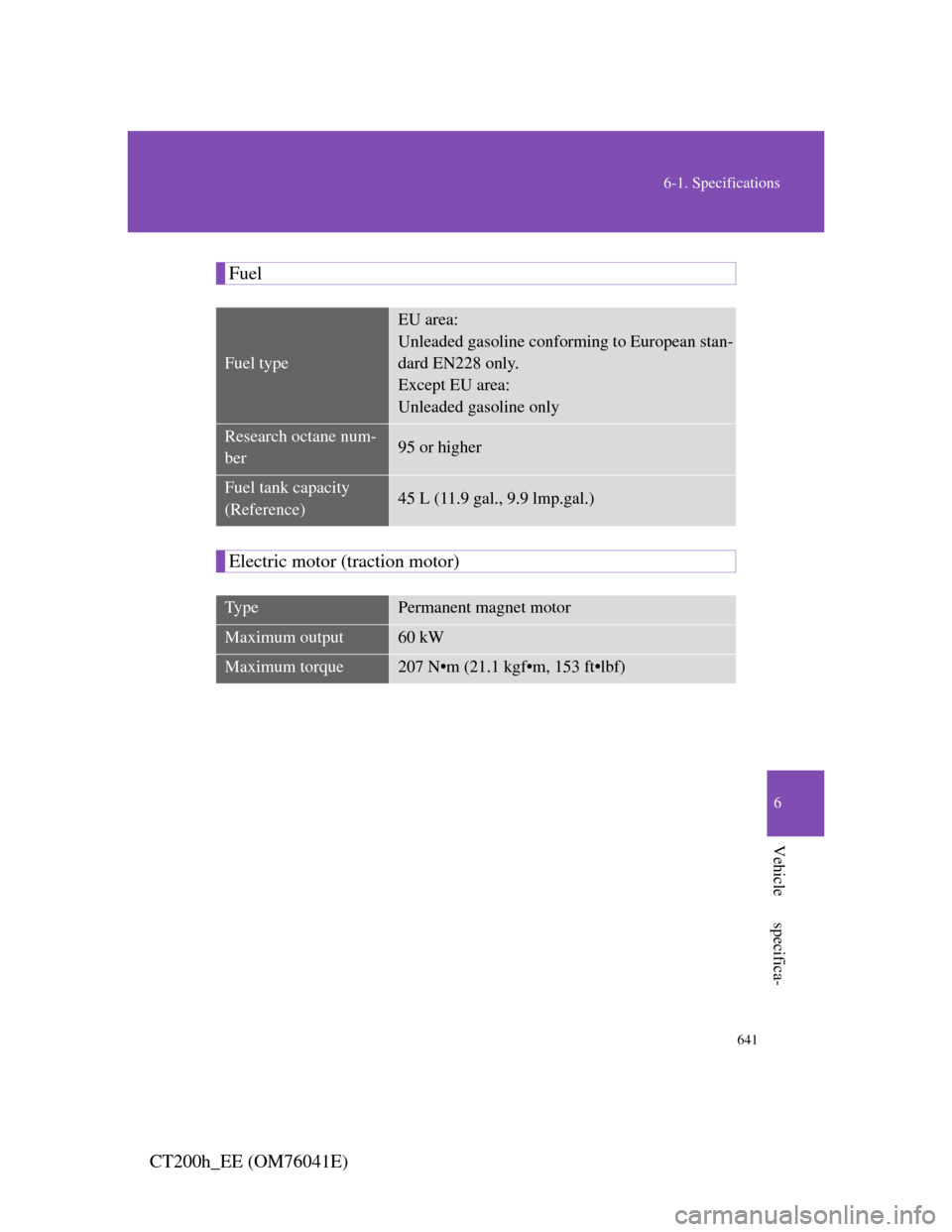

Fuel
Electric motor (traction motor)
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only.
Except EU area:
Unleaded gasoline only
Research octane num-
ber95 or higher
Fuel tank capacity
(Reference)45 L (11.9 gal., 9.9 lmp.gal.)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)

642
6-1. Specifications
CT200h_EE (OM76041E)
Hybrid battery (traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchang-
ing. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Oil capacity
(Drain and refill
 reference
*)
With filter
Without filter
4.2 L (4.4 qt., 3.7 lmp.qt.)
3.9 L (4.1 qt., 3.4 lmp.qt.)

643
6-1. Specifications
6
Vehicle specifica-
CT200h_EE (OM76041E)Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Lexus vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at
the next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become diffi-
cult to start, so SAE 5W-30 or
lower viscosity engine oil is
recommended.
Temperature range anticipated
before
Preferred

644
6-1. Specifications
CT200h_EE (OM76041E)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality des-
ignation by API (American
Petroleum Institute) (SM)
Center portion: The SAE vis-
cosity grade (SAE 0W-20)
Lower portion: “Energy-Con-
serving” means that the oil has
fuel-saving capabilities.
ILSAC Certification Mark
The ILSAC (International
Lubricant Standardization and
Approval Committee) Certifica-
tion Mark is displayed on the
front of the container.

645
6-1. Specifications
6
Vehicle specifica-
CT200h_EE (OM76041E)
Cooling system
Capacity
Gasoline
engine
With an exhaust heat recirculator system
6.9 L (7.3 qt., 6.1 Imp.qt.)
Without exhaust heat recirculator system
6.5 L (6.9 qt., 5.7 Imp.qt.)
Power
control
unit
2.1 L (2.2 qt., 1.8 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.

646
6-1. Specifications
CT200h_EE (OM76041E)
Ignition system
Electrical system
Spark plug
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
12-volt battery
12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)Open voltage
at 20 C (68 F):
Charging rates
With a navigation system or alarm
4.2 A max.
Without a navigation system and alarm
3.5 A max.

647
6-1. Specifications
6
Vehicle specifica-
CT200h_EE (OM76041E)

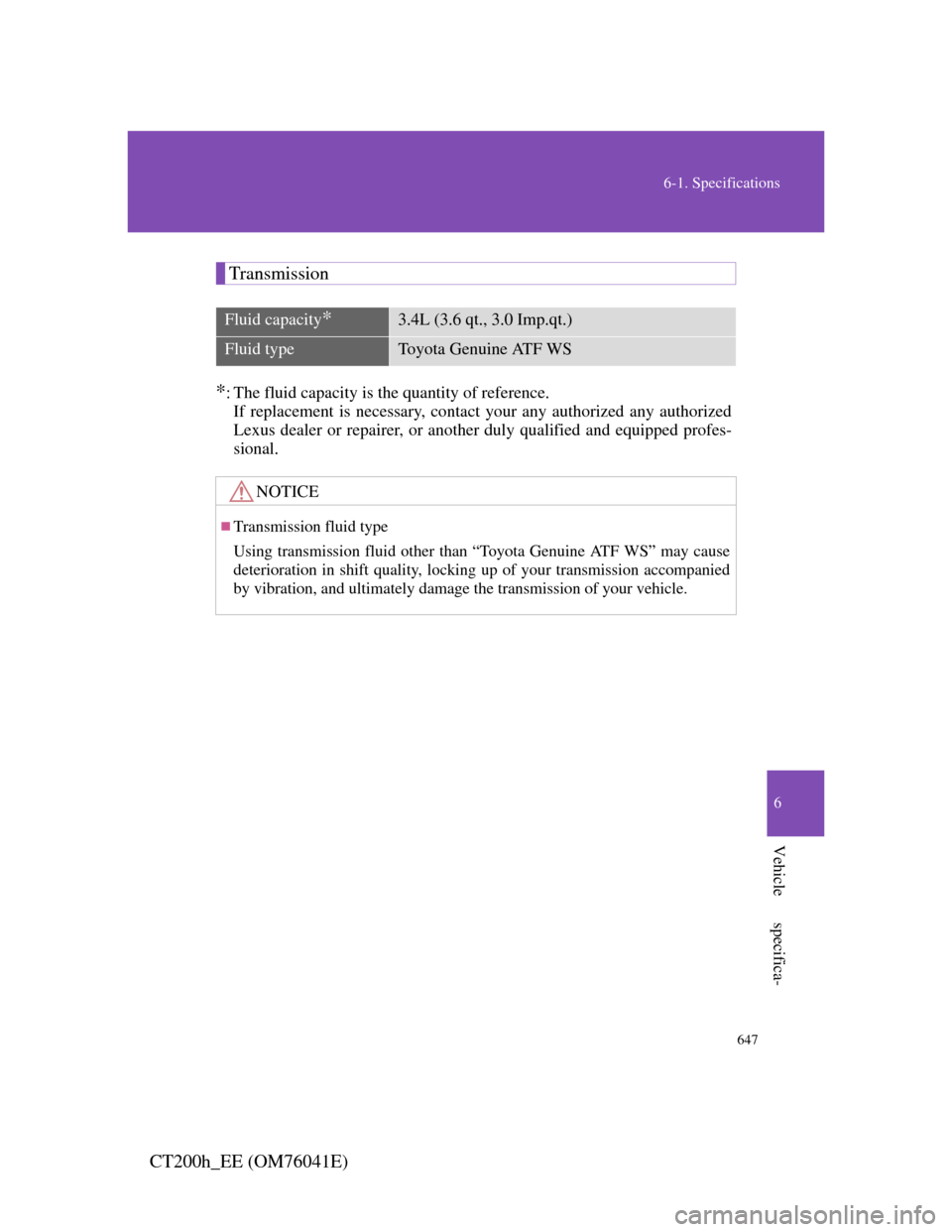

Transmission
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your any authorized any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
Fluid capacity*3.4L (3.6 qt., 3.0 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.

648
6-1. Specifications
CT200h_EE (OM76041E)
Brakes
*1:Minimum pedal clearance when depressed with a force of 196 N
(20.0 kgf, 44.1 lbf) while the hybrid system is operating.
*2:Parking brake pedal travel when depressed with a force of 300 N (30.6
kgf, 67.5 lbf).
Steering
Pedal
clear-
ance
*1
Left-hand
drive vehicles
With an aluminum pedal
79 mm (3.11 in.) Min.
Without an aluminum pedal
77 mm (3.03 in.) Min.
Right-hand
drive vehicles
With an aluminum pedal
82 mm (3.23 in.) Min.
Without an aluminum pedal
80 mm (3.15 in.) Min.
Pedal free play1.0  6.0 mm (0.04  0.24 in.)
Parking brake pedal travel*28 11 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 30 mm (1.2 in.)

649
6-1. Specifications
6
Vehicle specifica-
CT200h_EE (OM76041E)

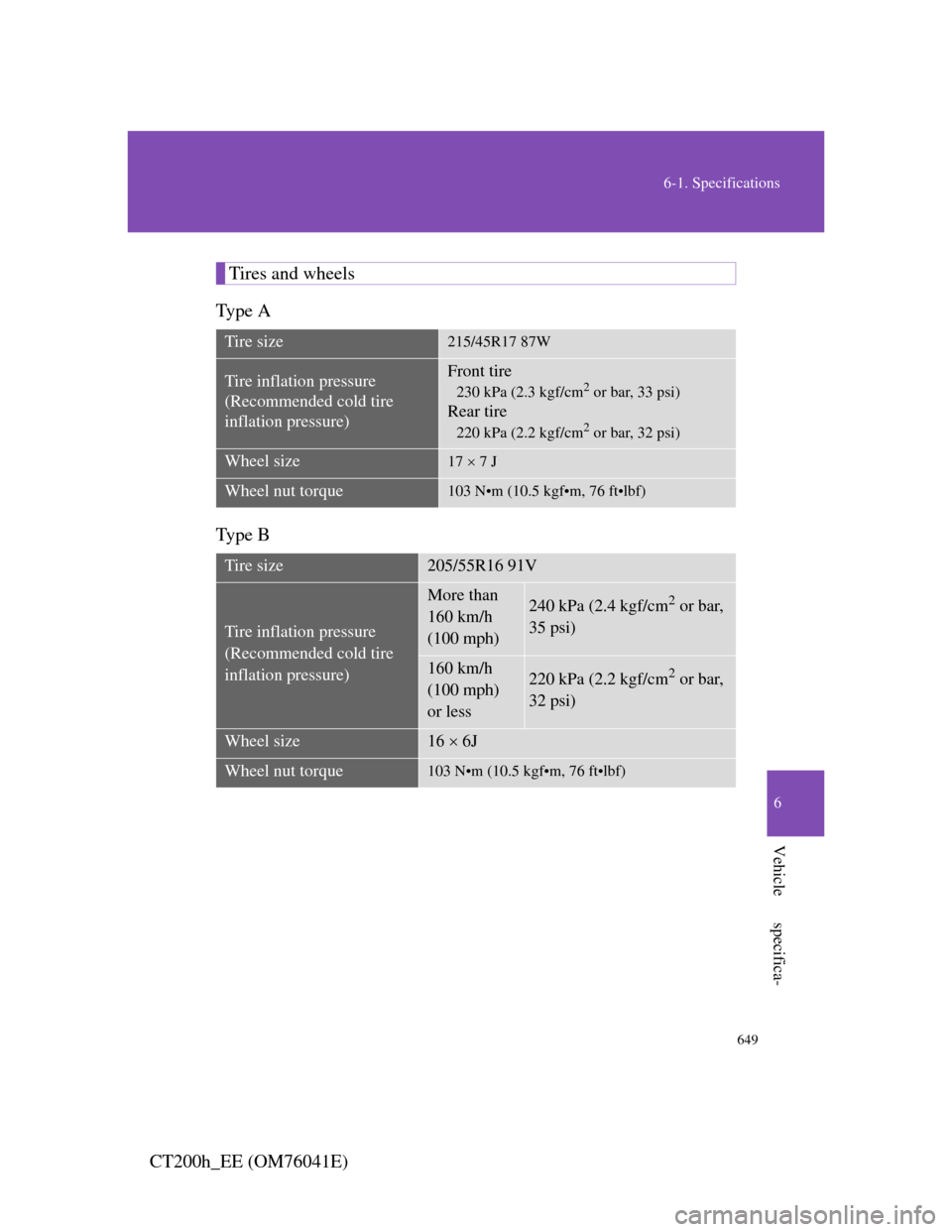

Tires and wheels
Ty p e A
Ty p e B
Tire size215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tire
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear tire
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size17  7 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size205/55R16 91V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
More than
160 km/h
(100 mph)240 kPa (2.4 kgf/cm2 or bar,
35 psi)
160 km/h
(100 mph)
or less220 kPa (2.2 kgf/cm2 or bar,
32 psi)
Wheel size16  6J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

650
6-1. Specifications

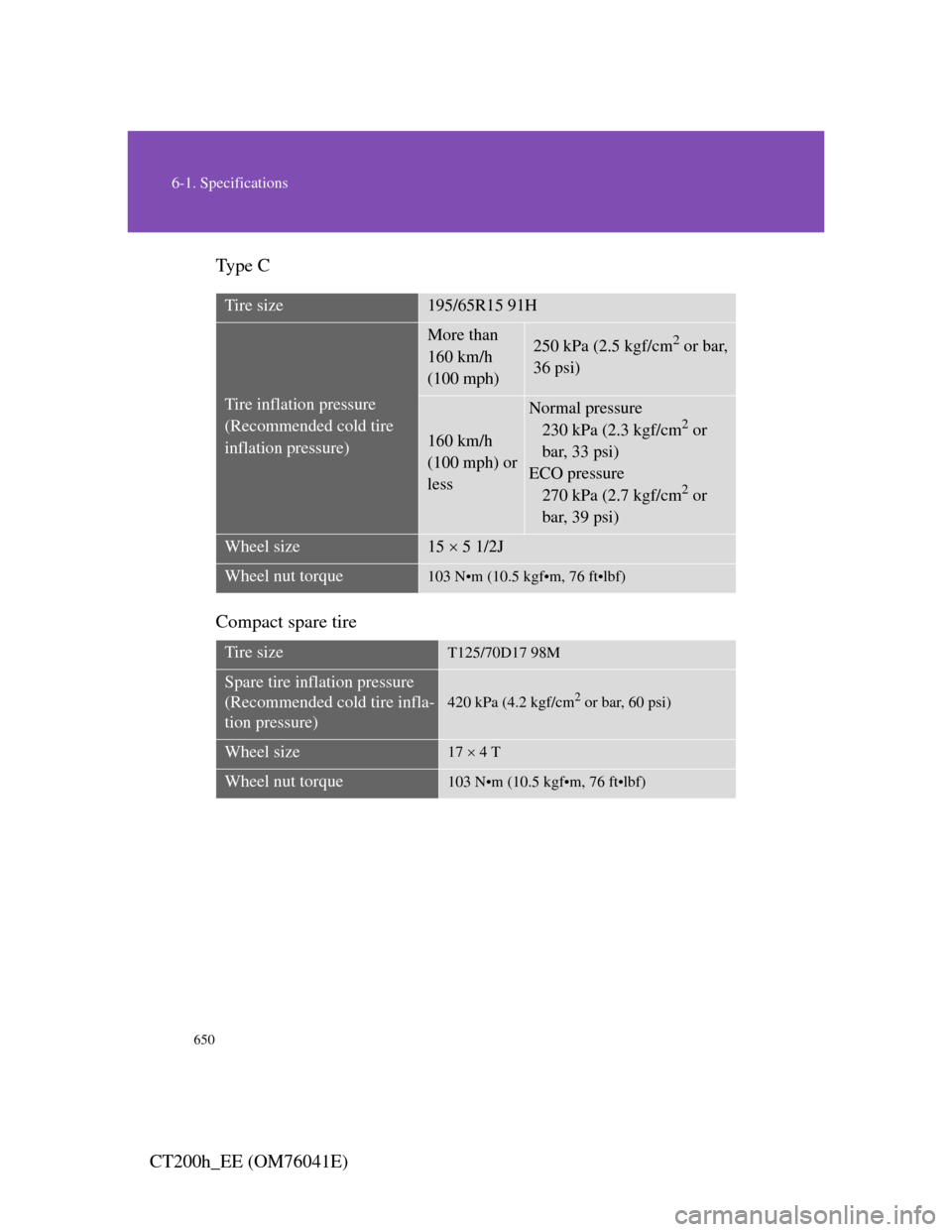

CT200h_EE (OM76041E)Ty p e C
Compact spare tire
Tire size195/65R15 91H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
More than
160 km/h
(100 mph)250 kPa (2.5 kgf/cm2 or bar,
36 psi)
160 km/h
(100 mph) or
less
Normal pressure
230 kPa (2.3 kgf/cm2 or
bar, 33 psi)
ECO pressure
270 kPa (2.7 kgf/cm
2 or
bar, 39 psi)
Wheel size15  5 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D17 98M
Spare tire inflation pressure
(Recommended cold tire infla-
tion pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4 T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
