Radiator and condenser
Check the radiator and condenser and clear away any foreign
objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped
professional.
CAUTION
When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause serious
injuries, such as burns.
When the electric cooling fans are operating
Do not touch the engine compartment.
The electric cooling fans may keep rotating for about 3 minutes even after
the “POWER” switch is off.
With the “POWER” switch in ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. Be sure the “POWER” switch is off when working near the
electric cooling fans or radiator grille.

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following precautions before
recharging:
If recharging with the 12-volt battery installed on the vehicle, be sure to
disconnect the ground cable.
Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the 12-volt battery.
After recharging/reconnecting the 12-volt battery
Unlocking the doors using the smart entry & start system may not be
possible immediately after reconnecting the 12-volt battery. If this hap-
pens, use the wireless remote control or the mechanical key to lock/
unlock the doors.
Start the hybrid system with the “POWER” switch in ACCESSORY
mode. The hybrid system may not start with the “POWER” switch
turned OFF. However, the hybrid system will operate normally from the
second attempt.
The “POWER” switch mode is recorded by the vehicle. If the battery is
reconnected, the vehicle will return the “POWER” switch mode to the
status it was in before the battery was disconnected. Make sure to turn
off the power before disconnect the battery. Take extra care when con-
necting the battery if the “POWER” switch mode prior to discharge is
unknown.
Restart the hybrid system, depress the brake pedal, and confirm that it is
possible to shift into each shift position.
If the system will not start even after multiple attempts at all methods above,
contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.

511
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)

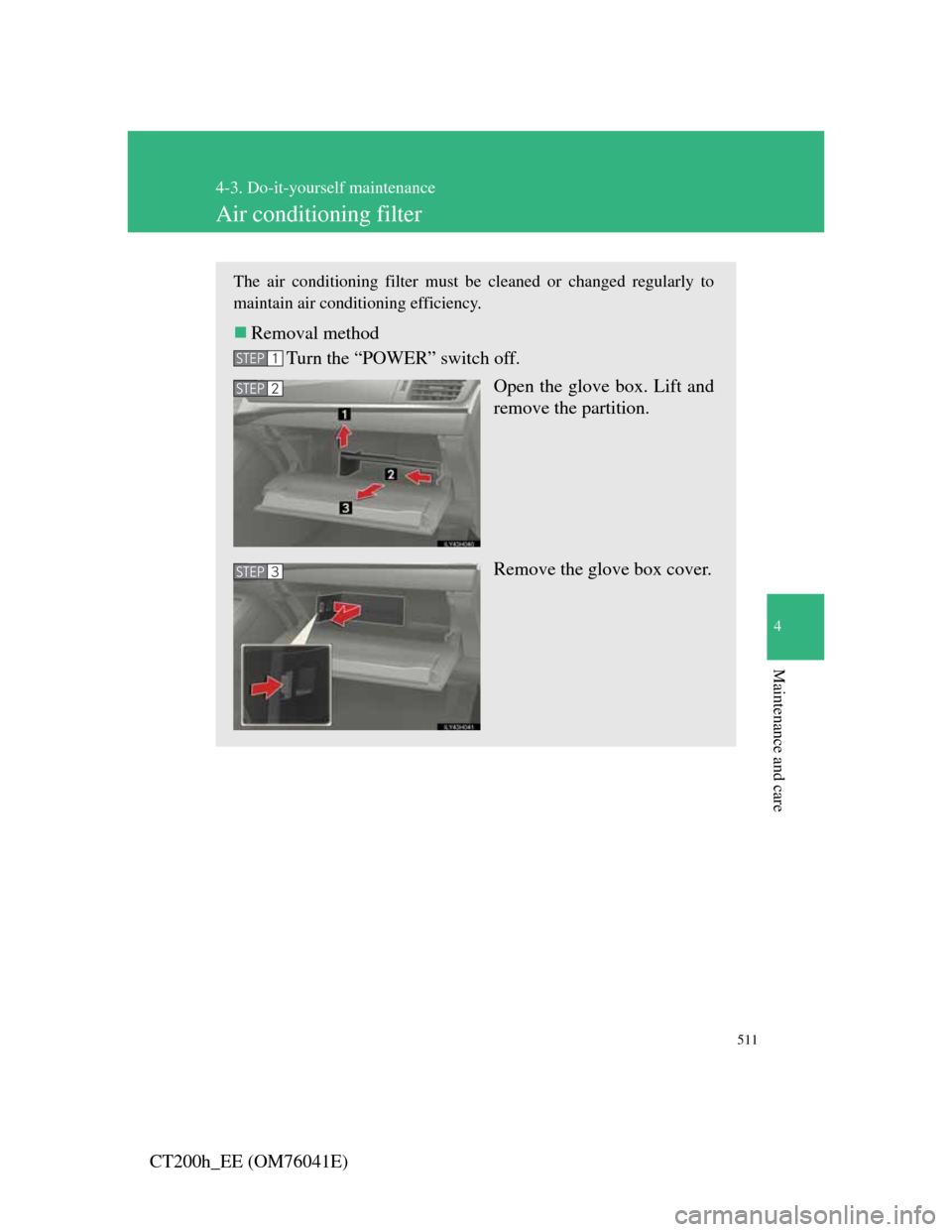

Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.
Removal method
Turn the “POWER” switch off.
Open the glove box. Lift and
remove the partition.
Remove the glove box cover.
STEP1
STEP2
STEP3

520
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Left side instrument panel (left-hand drive vehicles)
Remove the lid.STEP1
STEP2

525
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
11AMP NO.230 AAudio system
12ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection
system
13IGCT30 APCU, IGCT NO.2, IGCT NO.3
14DC/DC-S5 AInverter and converter
15P CON MAIN7.5 AP position control system, P posi-
tion switch
16AM27.5 APower management system
17ECU-B27.5 ASmart entry & start system
18MAYDAY10 ANo circuit
19ECU-B310 AAir conditioning system
20TURN & HAZ10 ATurn signal lights, emergency
flashers
21AMP NO.130 AAudio system
22ABS MAIN
NO.120 AElectronically controlled brake
system
23P/I 240 A
P position control system, horn,
headlights (low beam), back-up
light
24ABS MTR 130 AElectronically controlled brake
system
25ABS MTR 230 AElectronically controlled brake
system
26H-LP HI MAIN20 AH-LP RH HI, H-LP LH HI
FuseAmpereCircuit

530
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
5WIP30 AWindshield wipers
6RR WIP20 ARear window wiper and washer
7WASHER15 AWindshield washer
8A/C10 AAir conditioning system
9GAUGE10 A
Windshield wiper de-icer switch,
automatic headlight leveling sys-
tem
10ECU-IG NO.210 A
Windshield wipers, Lexus parking
assist monitor, Lexus parking
assist-sensor, electronically con-
trolled brake system, navigation
system, electric power steering
system, turn signal lights, emer-
gency flashers, yaw rate and G
sensor, headlight cleaner, outside
rear view mirrors, driving mode
select switches, overhead module,
pre-crash seat belts, seat heater
switches, heated steering wheel
switch, dynamic radar cruise con-
trol
11ECU-IG NO.110 ANo circuit
12S/ROOF30 AMoon roof
FuseAmpereCircuit

532
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
29RAD NO.27.5 A
Audio system, Lexus parking
assist monitor, navigation system,
overhead module
30PWR OUTLET15 APower outlet
31ECU-ACC10 AAir conditioning system, outside
rear view mirror switches
32PWR OUTLET215 ANo circuit
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 534)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
FuseAmpereCircuit

5
555
5-1. Essential information
When trouble arises
CT200h_EE (OM76041E)
Using a flat bed truck
If your Lexus is transported by
a flat bed truck, it should be
tied down at the locations
shown in the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Before emergency towing
Turn the “POWER” switch to ON mode.
Do not turn the “POWER” switch to ACCESSORY mode.
Shift the shift position to N.
Release the parking brake.
Emergency towing eyelet location
P. 586, 600
STEP1
STEP2
STEP3

556
5-1. Essential information
CT200h_EE (OM76041E)
CAUTION
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
Do not turn the “POWER” switch off.
This may lead to an accident as the front wheels will be locked by the
parking lock.
If the hybrid system is off, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing. This
may lead to accidents that cause serious injury or even death.
NOTICE
To prevent damaging the vehicle
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the vehi-
cle could be damaged while being towed.
To prevent causing serious damage to the hybrid transmission when towing
using a wheel-lift type truck
Never tow this vehicle from the front with the rear wheels on the ground.
To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
To prevent causing serious damage to the hybrid transmission in emergency
towing
Never tow a vehicle from the rear with four wheels on the ground. This may
cause serious damage to the hybrid transmission.

5
567
5-2. Steps to take in an emergency
When trouble arises
CT200h_EE (OM76041E)
Have the vehicle inspected immediately.
A buzzer sounds and a warning message is shown on the multi-
information display. Failure to investigate the cause of the follow-
ing warnings may lead to the system operating abnormally and
possibly cause an accident. Have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Warning messageDetails
Indicates a malfunction in the P position control
system
In this situation, there is a possibility that the
parking lock mechanism will not work.
When parking, park the vehicle on a flat surface
and apply the parking brake securely. Also, it
may not be possible to turn the “POWER”
switch off. If this happens, applying the parking
brake will enable the switch to be turned off.
(Flashes)
(If equipped)
Indicates a malfunction in the LED headlight sys-
tem
