Lexus CT200h 2012 Owner's Manual (in English)

340
3-2. Using the audio system
CT200h_OM_OM76067E_(EE)
EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When the 12-volt battery is disconnected
All preset stations are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the
continually changing position of the antenna, differences in signal
strength and surrounding objects, such as trains, transmitters, etc.
When (type A) or (type B) is used, automatic station selec-
tion may not be possible.
The radio antenna is mounted on the rear roof. The antenna can be
removed from the base by turning.
Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.
NOTICE
To prevent damage, remove the antenna in the following cases
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.
When driving through an automatic car wash.
Any other cases where there is a risk of touching surrounding parts.

341
3-2. Using the audio system
3
Interior features
CT200h_OM_OM76067E_(EE)
Using the CD player
Type A
Displaying
text message
Selecting a track Random
playback
Powe Volume
CD eject
Repeat play
Playback

342
3-2. Using the audio system
CT200h_OM_OM76067E_(EE)

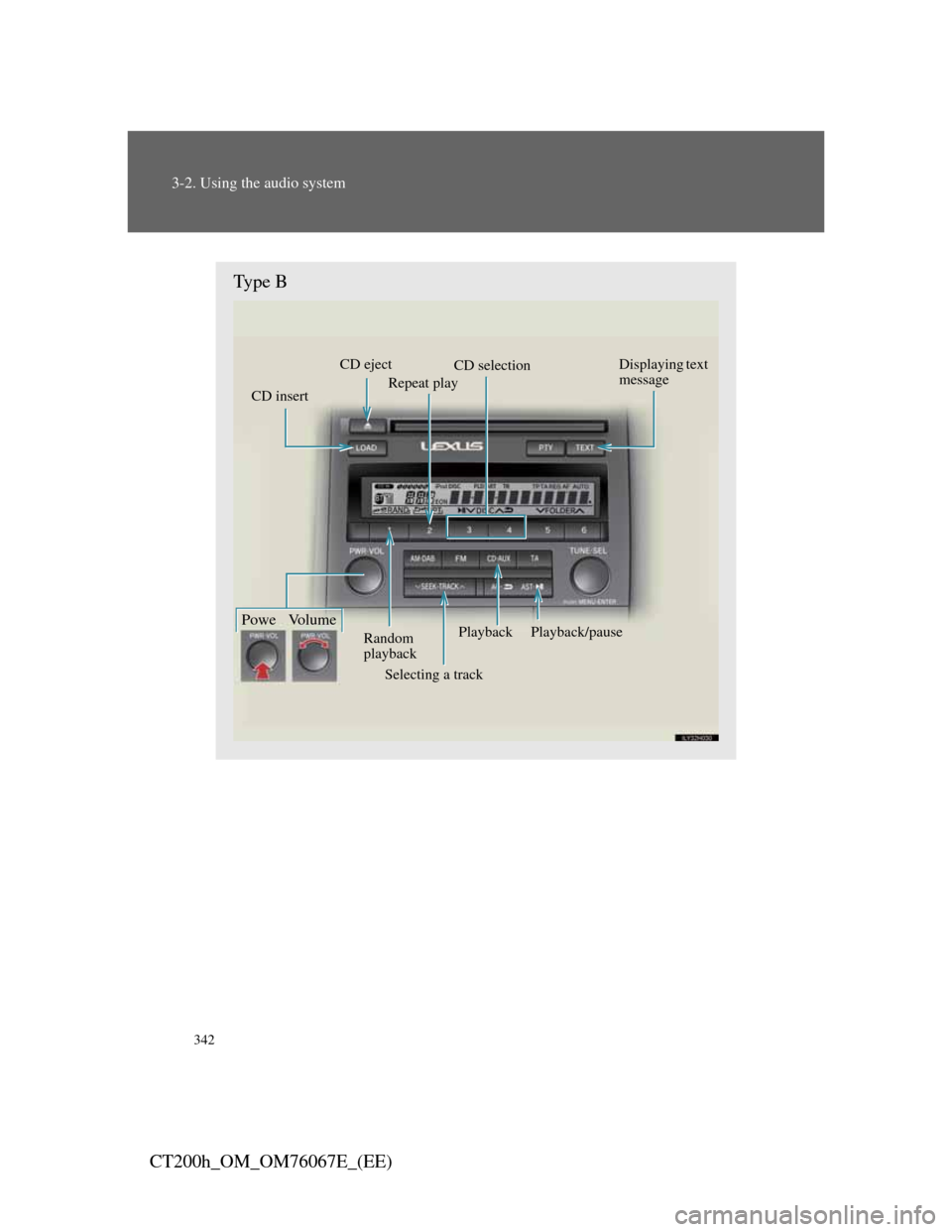

Type B
CD insertDisplaying text
message
Selecting a track Random
playback
Powe Volume
CD eject
Repeat playCD selection
Playback Playback/pause

343
3-2. Using the audio system
3
Interior features
CT200h_OM_OM76067E_(EE)
Loading a CD
Loading a CD
Ty p e A
Insert a CD.
Ty p e B
Press .
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green,
insert a CD.
The display changes from “WAIT” to “LOAD”.
Loading multiple CDs (type B)
Press and hold until you hear a beep.
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green,
insert a CD.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is being
inserted.
When the indicator on the slot turns from amber to green,
insert the next CD.
Repeat the procedure for the remaining CDs.
To cancel the operation, press . If you do not insert a disc
within 15 seconds, loading will be canceled automatically.
STEP1
STEP2
STEP1
STEP2
STEP3

344
3-2. Using the audio system
CT200h_OM_OM76067E_(EE)
Ejecting CDs
Ejecting a CD
Ty p e A
Press and remove the CD.
Ty p e B
To select the CD to be ejected,
press or .
The selected disc number is
shown on the display.
Press and remove the CD.
Ejecting all the CDs (type B)
Press and hold until you hear a beep, and then remove the
CDs.
STEP1
STEP2

345
3-2. Using the audio system
3
Interior features
CT200h_OM_OM76067E_(EE)
Selecting, fast-forwarding and reversing tracks
Selecting a track
Press “” to move up or “” to move down using
until the desired track number appears on the displayed.
Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “”or “” on
until you hear a beep.
Selecting a CD (type B)
To select the desired CD, press or .
Playing and pausing tracks (type B)
To play or pause a track, press .
Random playback
Current CD
Press .
Songs are played in random order.
To cancel, press again.
All CDs (type B)
Press and hold until you hear a beep.
Tracks on all loaded CDs are played in random order.
To cancel, press again.

346
3-2. Using the audio system
CT200h_OM_OM76067E_(EE)
Repeat play
Repeating a track
Press .
To cancel, press again.
Repeating all of the tracks on a CD (type B)
Press and hold until you hear a beep.
To cancel, press again.
Switching the display
Press .
Each time the button is pressed, the display changes in the following
order:
Elapsed time  CD title  Track title
CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
Display
Up to 12 characters can be displayed at a time.
If there are 13 or more characters, pressing and holding for 1 second
or more enables to display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for more than 1 second again or has not been operated for
more than 6 seconds, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.

347
3-2. Using the audio system
3
Interior features
CT200h_OM_OM76067E_(EE)
When “ERROR” or “WAIT” is shown on the display
“ERROR”:This indicates a trouble either in the CD or inside the player. The
CD may be dirty, damaged, or inserted up-side down.
“WAIT”: This indicates that operation is stopped due to a high temperature
inside the player. Wait for a while and then press
(type A)
or
(type B). If the CD still cannot be played back, contact
any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protection features may not be used.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
If discs are left inside the CD player or in the ejected position for extended
periods of time
The discs may be damaged and may not play properly.

348
3-2. Using the audio system
CT200h_OM_OM76067E_(EE)
NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs, 8 cm (3 in.) CD adapters or Dual
Discs.
Doing so may damage the CD player and/or the CD load/eject function.
CDs that have a diameter that is not 12
cm (4.7 in.)
Low-quality and deformed CDs
CDs with a transparent or translucent
recording area
CDs that have had tape, stickers or CD-
R labels attached to them, or that have
had the label peeled off

349
3-2. Using the audio system
3
Interior features
CT200h_OM_OM76067E_(EE)
NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.
Do not insert more than one CD at a
time.
