Lexus CT200h 2014 Owner's Manual (in English)

151
3
3-3. Adjusting the seats
Operation of each component
CT200h_OM_OM76135E_(EE)

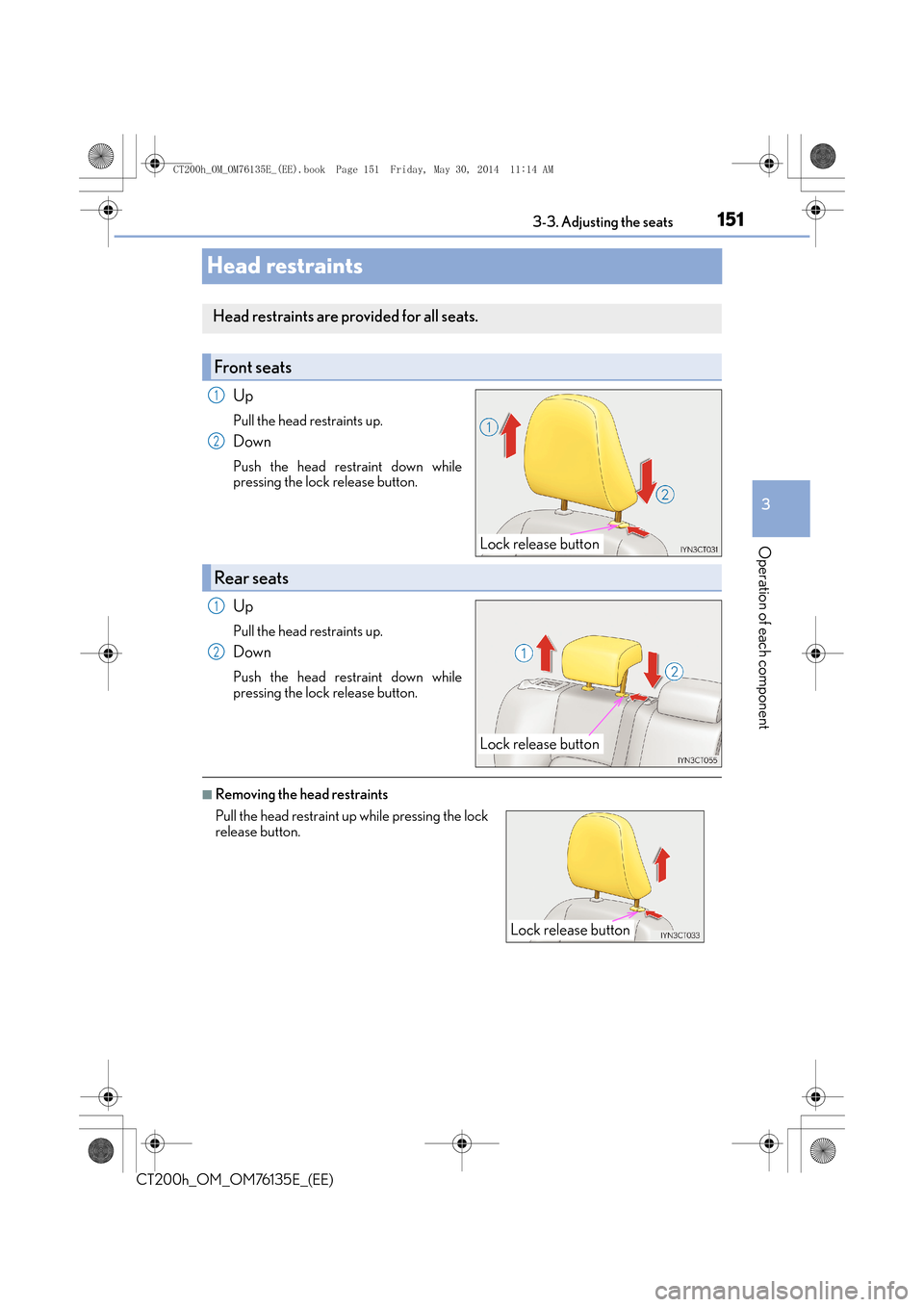

Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
Head restraints are provided for all seats.
Front seats
Lock release button
1
2
Rear seats
Lock release button
1
2
Pull the head restraint up while pressing the lock
release button.
Lock release button
CT200h_OM_OM76135E_(EE).book Page 151 Friday, May 30, 2014 1
1:14 AM

1523-3. Adjusting the seats
CT200h_OM_OM76135E_(EE)
■Installing the head restraints
■Adjusting the height of the head restraints (front seats)
■Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when using. Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
Make sure that the head restraints are adjusted
so that the center of the head restraint is closest
to the top of your ears.
WA R N I N G
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may
result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.
Lock release button
CT200h_OM_OM76135E_(EE).book Page 152 Friday, May 30, 2014 1 1:14 AM

153
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
CT200h_OM_OM76135E_(EE)
Steering wheel
Hold the steering wheel and push
the lever down.
Adjust to the ideal position by mov-
ing the steering wheel horizontally
and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
To sound the horn, press on or close to
the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
1
2
Horn
CT200h_OM_OM76135E_(EE).book Page 153 Friday, May 30, 2014 1
1:14 AM

1543-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76135E_(EE)
WA R N I N G
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident, result-
ing in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident, and
resulting in death or serious injury.
CT200h_OM_OM76135E_(EE).book Page 154 Friday, May 30, 2014 11:14 AM

155
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
CT200h_OM_OM76135E_(EE)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving posture.
Adjust the height of the rear view mir-
ror by moving it up and down.
XManual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced by operat-
ing the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient confirma-
tion of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2
CT200h_OM_OM76135E_(EE).book Page 155 Friday, May 30, 2014 1 1:14 AM

1563-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76135E_(EE)
XAuto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles behind, the
reflected light is automatically reduced.
Changing automatic anti-glare func-
tion mode
On/off
When the automatic anti-glare function
is in ON mode, the indicator illuminates.
The function will set to ON mode each
time the power switch is turned to ON
mode.
Pressing the button turns the function to
OFF mode. (The indicator also turns
off.)
■To prevent sensor error (vehicles with auto anti-glare inside rear view mirror)
Indicator
To ensure that the sensors operate properly, do
not touch or cover them.
WA R N I N G
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.
CT200h_OM_OM76135E_(EE).book Page 156 Friday, May 30, 2014 1 1:14 AM

157
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
CT200h_OM_OM76135E_(EE)
Outside rear view mirrors
XTy p e A
To select a mirror to adjust, press the
switch.
Left
Right
To adjust the mirror, press the switch. Up
Right
Down
Left
XTy p e B
To select a mirror to adjust, slide the
switch.Left
Right
Adjustment procedure
1
1
2
2
1
2
3
4
1
1
2
CT200h_OM_OM76135E_(EE).book Page 157 Friday, May 30, 2014 1 1:14 AM

1583-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76135E_(EE)
To adjust the mirror, press the switch.Up
Right
Down
Left
XTy p e A
Press the switch to fold the mirrors.
Press it again to extend them to the orig-
inal position.
XTy p e B
Extends the mirrors
Folds the mirrors
Putting the outside rear view mirror
folding switch in the neutral position sets
the mirrors to automatic mode. Auto-
matic mode allows the folding or
extending of the mirrors to be linked to
locking/unlocking of the doors.
When the mirror select switch is in the “L” or “R” position, the outside rear view
mirrors will automatically angle downwards when the vehicle is reversing in
order to give a better view of the ground.
To disable this function, move the mirror select switch to the neutral position
(between “L” and “R”).
2
1
2
3
4
Folding and extending the mirrors
1
2
Linked mirror function when reversing (type B only)
CT200h_OM_OM76135E_(EE).book Page 158 Friday, May 30, 2014 1 1:14 AM

1593-4. Adjusting the steering wheel and mirrors
3
Operation of each component
CT200h_OM_OM76135E_(EE)
■Mirror angle can be adjusted when
The power switch is in ACCESSORY or ON mode.
■Rain clearing mirrors (type B only)
The coating on the mirror has the rain clearing (hydrophilic) effect to make the rear view
clearer in raining. When water droplets collects on the mirror surface, this effect causes
the droplets to be spread out into a film.
●The rain clearing effect will be reduced temp orarily, when the dirt is adhered to the mir-
ror or after your vehicle is parked for a long time in underground or indoor parking lots,
etc., where there is no direct sunlight. Howe ver, the effect will gradually recover after 1-
or 2-day exposure to direct sunlight.
●If you want to restore the rain clearing effect immediately, conduct the restoration work
( → P. 443).
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the
rear window defogger to turn on the outside rear view mirror defoggers.
(→ P. 4 1 2 , 4 1 9 )
■Automatic adjustment of the mirror angle (vehicles with driving position memory)
A desired mirror face angle can be entered to memory and recalled automatically by the
driving position memory. ( →P. 1 4 7 )
■Auto anti-glare function (type B only)
When the anti-glare inside rear view mirror is set to automatic mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. ( →P. 1 5 5 )
■Using automatic mode in cold weather (type B only)
When automatic mode is used in cold weather, the door mirror could freeze up and
automatic stowing and return may not be possible. In this event, remove any ice and snow
from the door mirror, then either operate the mirror using manual mode or move the mir-
ror by hand.
■Customization
The automatic mirror folding and extending operation can be changed.
(Customizable features: →P. 5 8 9 )
CT200h_OM_OM76135E_(EE).book Page 159 Friday, May 30, 2014 1 1:14 AM

1603-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76135E_(EE)
WA R N I N G
■Important points while driving
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident, result-
ing in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly adjusted
before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand caught
by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn you.
NOTICE
■Handling the rain clearing mirror (type B only)
The rain clearing effect is finite. Observe the Following precautions in order to retain
the rain-clearing properties of the mirrors:
●When using water repellent, oil film remover, wax, or any other car maintenance
product that contains silicone, pay full attention not to adhere it to the mirror surface.
●Do not wipe the mirror surface by using any cloth smeared with sand, oil film remover,
abrasive agent, or any other thing that may scratch the mirror surface.
●When the mirrors become iced up, remove the ice by applying warm water, or oper-
ating the outside rear view mirror defoggers, etc. But, do not attempt to scrape the
ice off by using the plastic plate, etc.
●When washing your vehicle using car shampoo with water repellent effect, rinse the
mirror surface with a lot of water, and remove the water drops by using a clean and
soft cloth.
CT200h_OM_OM76135E_(EE).book Page 160 Friday, May 30, 2014 1 1:14 AM
