Lexus CT200h 2014 Owner's Manual (in English)

161
3
3-5. Opening, closing the windows and moon roof
Operation of each component
CT200h_OM_OM76135E_(EE)
Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, operate the switch in the opposite direction.
Press the switch down to lock the pas-
senger window.
Use this switch to prevent children from
accidentally opening or closing a pas-
senger window.
Opening and closing procedures
1
2
3
4
Window lock switch
CT200h_OM_OM76135E_(EE).book Page 161 Friday, May 30, 2014 1 1:14 AM

1623-5. Opening, closing the windows and moon roof
CT200h_OM_OM76135E_(EE)
■The power windows can be operated when
The power switch is in ON mode.
■Operating the power windows after turning the hybrid system off
The power windows can be operated for approximately 45 seconds even after the
power switch is turned to ACCESSORY mode or turned off. They cannot, however, be
operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window travel
is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be closed,
perform the following operations using the power window switch on the relevant door.
●After stopping the vehicle, the window can be closed by holding the power window
switch in the one-touch closing position while the power switch is turned to ON mode.
●If the window still cannot be closed even by carrying out the operation explained above,
initialize the function by performing the following procedure.
Hold the power window switch in the one- touch closing position. Continue holding
the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one- touch opening position. Continue holding
the switch for a further 2 seconds afte r the window has opened completely.
Hold the power window switch in the one-touch closing position once again. Con-
tinue holding the switch for a further 2 seconds after the window has closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.* ( → P. 565)
●The power windows can be opened and closed using the wireless remote control.*(→ P. 1 1 9 )
*: These settings must be customized at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■Customization
Setting (e.g. linked door lock operation) can be changed.
(Customizable features:
→P. 5 8 9 )
1
2
3
CT200h_OM_OM76135E_(EE).book Page 162 Friday, May 30, 2014 1 1:14 AM

1633-5. Opening, closing the windows and moon roof
3
Operation of each component
CT200h_OM_OM76135E_(EE)

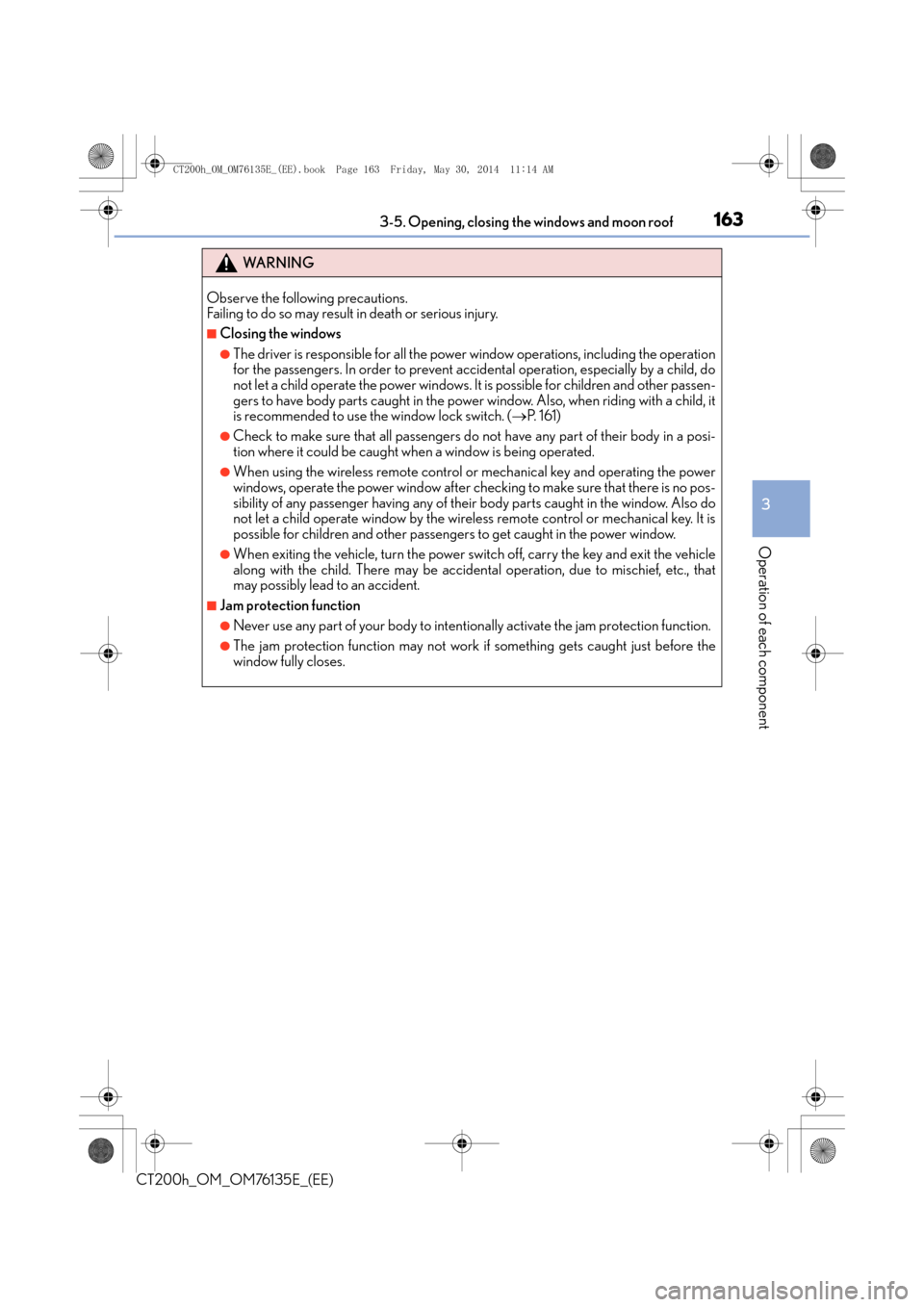

WA R N I N G
Observe the following precautions.
Failing to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the power window operations, including the operation
for the passengers. In order to prevent accidental operation, especially by a child, do
not let a child operate the power windows. It is possible for children and other passen-
gers to have body parts caught in the power window. Also, when riding with a child, it
is recommended to use the window lock switch. ( →P. 161)
●Check to make sure that all passengers do not have any part of their body in a posi-
tion where it could be caught when a window is being operated.
●When using the wireless remote control or mechanical key and operating the power
windows, operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of thei r body parts caught in the window. Also do
not let a child operate window by the wireless remote control or mechanical key. It is
possible for children and other passengers to get caught in the power window.
●When exiting the vehicle, turn the power switch off, carry the key and exit the vehicle
along with the child. There may be accidental operation, due to mischief, etc., that
may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intent ionally activate the jam protection function.
●The jam protection function may not work if something gets caught just before the
window fully closes.
CT200h_OM_OM76135E_(EE).book Page 163 Friday, May 30, 2014 1 1:14 AM

1643-5. Opening, closing the windows and moon roof
CT200h_OM_OM76135E_(EE)

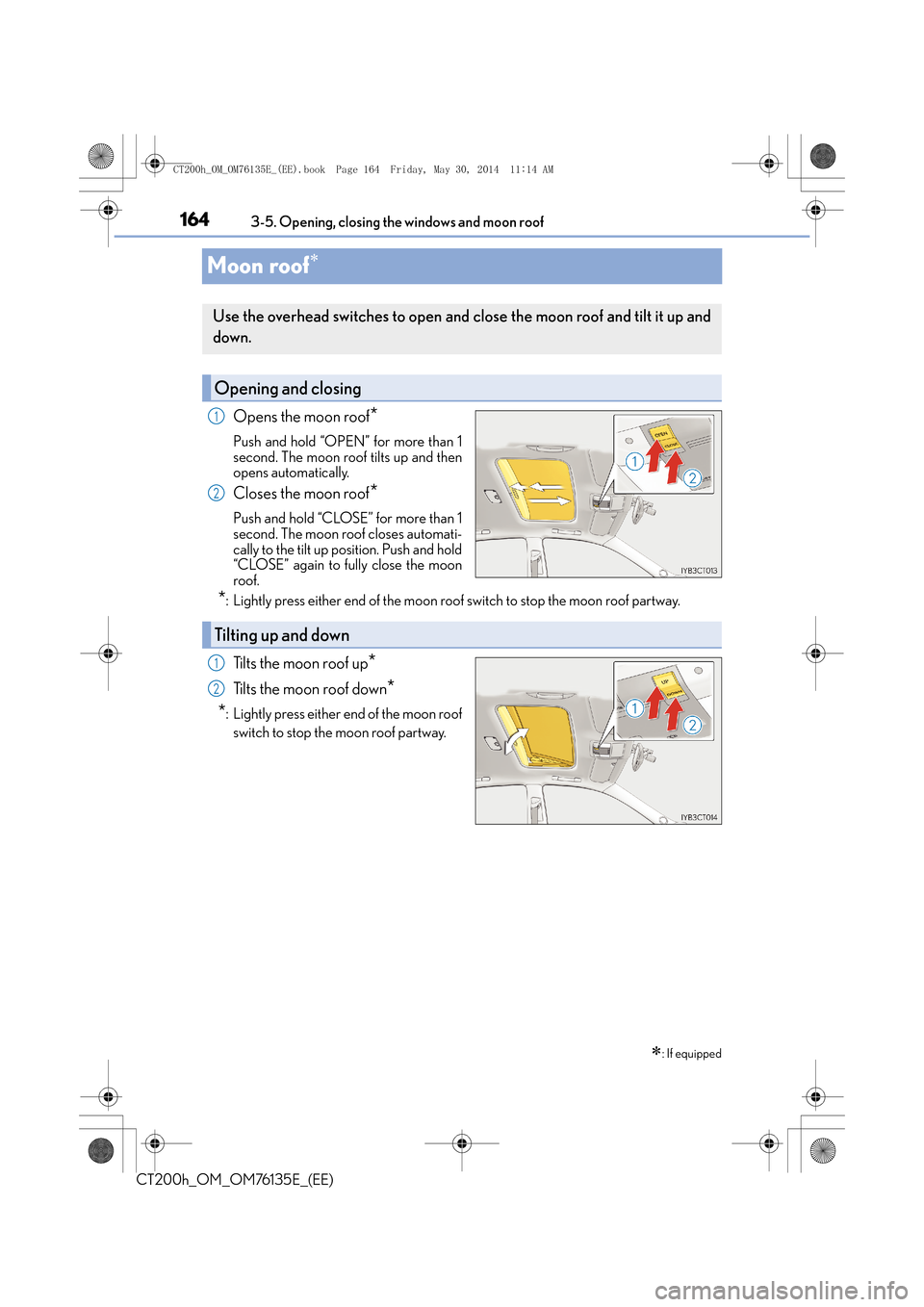

Moon roof∗
Opens the moon roof*
Push and hold “OPEN” for more than 1
second. The moon roof tilts up and then
opens automatically.
Closes the moon roof*
Push and hold “CLOSE” for more than 1
second. The moon roof closes automati-
cally to the tilt up position. Push and hold
“CLOSE” again to fully close the moon
roof.
*: Lightly press either end of the moon roof switch to stop the moon roof partway.
Tilts the moon roof up*
Tilts the moon roof down*
*
: Lightly press either end of the moon roof switch to stop the moon roof partway.
∗: If equipped
Use the overhead switches to open and close the moon roof and tilt it up and
down.
Opening and closing
1
2
Tilting up and down
1
2
CT200h_OM_OM76135E_(EE).book Page 164 Friday, May 30, 2014 1 1:14 AM

1653-5. Opening, closing the windows and moon roof
3
Operation of each component
CT200h_OM_OM76135E_(EE)
■The moon roof can be operated when
The power switch is in ON mode.
■Operating the moon roof after turning the hybrid system off
The moon roof can be operated for approximately 45 seconds even after the power
switch is turned to ACCESSORY mode or turned off. It cannot, however, be operated
once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is clos-
ing or tilting down, travel is stoppe d and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically to slightly before the fully op en position when the moon roof is opened.
■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen an d pause for approximately 10 seconds.*2 Then it
will close again and tilt down. Finally it w ill be adjusted slightly and then stop.
Check to make sure that the moon roof completely stops and then release the
switch.
●If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “DOWN” switch.
*1
The moon roof will close, reopen and paus e for approximately 10 seconds in the tilt
up position.
*2 Then it will close again and tilt down . Finally it will be adjusted slightly
and then stop.
Check to make sure that the moon roof has completely stopped and then release
the switch.
*1: If the switch is released at the incorrect time, the procedure will have to be per-
formed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automatic operation will be disabled. In that case, press and hold the “CLOSE” or “DOWN”
switch, and the moon roof will close, be adjusted slightly and then stop. Check to
make sure that the moon roof has completely stopped and then release the switch.
If the moon roof does not fully close even after performing the above procedure cor-
rectly, have the vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
■Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the instru-
ment cluster when the power switch is turned off and the driver’s door is opened with the
moon roof open.
1
2
3
1
2
3
CT200h_OM_OM76135E_(EE).book Page 165 Friday, May 30, 2014 1 1:14 AM

1663-5. Opening, closing the windows and moon roof
CT200h_OM_OM76135E_(EE)
WA R N I N G
Observe the following precautions.
Failing to do so may cause death or serious injury.
■Opening the moon roof
●Do not allow any passengers to put their hands or heads outside the vehicle while it is
moving.
●Do not sit on top of the moon roof.
■Closing the moon roof
●The driver is responsible for moon roof opening and closing operations. In order to
prevent accidental operation, especially by a child, do not let a child operate the
moon roof. It is possible for children and other passengers to have body parts caught
in the moon roof.
●Check to make sure that all passengers do not have any part of their body in a posi-
tion where it could be caught when the moon roof is being operated.
●When exiting the vehicle, turn the power switch off, carry the key and exit the vehicle
along with the child. There may be accidental operation, due to mischief, etc., that
may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intent ionally activate the jam protection function.
●The jam protection function may not work if something gets caught just before the
moon roof fully closes.
CT200h_OM_OM76135E_(EE).book Page 166 Friday, May 30, 2014 1 1:14 AM

167
4Driving
CT200h_OM_OM76135E_(EE)
4-1. Before drivingDriving the vehicle ...................... 168
Cargo and luggage .....................175
Trailer towing.................................. 176
4-2. Driving procedures Power (ignition) switch...............177
EV drive mode .............................. 181
Hybrid transmission ................... 183
Turn signal lever ...........................188
Parking brake................................ 189 4-3. Operating the lights
and wipers
Headlight switch.......................... 190
Fog light switch .............................194
Windshield wipers and washer .......................................... 196
Rear window wiper and washer .........................................200
Headlight cleaner switch ......... 201
4-4. Refueling Opening the fuel tank cap ..... 202
4-5. Using the driving support systems
Cruise control .............................205
Dynamic radar cruise control .........................................208
Lexus parking assist-sensor............................... 219
Rear view monitor system .......227
Driving mode select switch ........................................... 237
Driving assist systems...............238
Hill-start assist control ..............242
PCS (Pre-Crash Safety system) ........................................ 244
4-6. Driving tips Hybrid vehicle driving tips .......251
Winter driving tips ..................... 254
CT200h_OM_OM76135E_(EE).book Page 167 Friday, May 30, 2014 1 1:14 AM

1684-1. Before driving
CT200h_OM_OM76135E_(EE)
Driving the vehicle
→ P. 1 7 7
With the brake pedal depressed, sh ift the shift position to D. (→P. 1 8 3 )
Check that the shift position indicator shows D.
Release the parking brake. ( →P. 1 8 9 )
Gradually release the brake pedal and gently depress the accelerator pedal
to accelerate the vehicle.
With the shift position in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift position to
P. ( →P. 1 8 4 )
Stop the vehicle completely.
Set the parking brake. ( →P. 1 8 9 )
Shift the shift position to P. ( →P. 1 8 4 )
Check that the shift position indicator shows P.
Press the power switch to stop the hybrid system.
Slowly release the brake pedal.
Lock the door, making sure that you have the electronic key on your person.
If parking on a hill, bl ock the wheels as needed.
The following procedures should be observed to ensure safe driving:
Starting the hybrid system
Driving
Stopping
Parking the vehicle
1
2
3
1
2
1
2
3
4
5
6
CT200h_OM_OM76135E_(EE).book Page 168 Friday, May 30, 2014 1 1:14 AM

1694-1. Before driving
4
Driving
CT200h_OM_OM76135E_(EE)
Firmly set the parking brake with the brake pedal depressed, and then shift the
shift position to D.
Release the brake pedal and gently depress the accelerator pedal.
Release the parking brake.
■When starting off on a uphill
The hill-start assist control is available. (→P. 2 4 2 )
■For fuel-efficient driving
Keep in mind that hybrid vehicles are similar to conventional vehicles, and it is necessary
to refrain from activities such as sudden acceleration, etc. Refer to “Hybrid vehicle
driving tips”. ( →P. 2 5 1 )
■Driving in the rain
●Drive carefully when it is raining, becaus e visibility will be reduced, the windows may
become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, beca use the road surface will be especially slip-
pery.
●Refrain from high speeds when driving on an expressway in the rain, because there may
be a layer of water between the tires and the road surface, preventing the steering and
brakes from operating properly.
■Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is recommended:
●For the first 300 km (200 miles):
Avoid sudden stops.
●For the first 2000 km (1200 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive at a constant speed for extended periods.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the cor-
rect fuel. ( →P. 5 8 0 )
Starting off on a uphill
1
2
3
CT200h_OM_OM76135E_(EE).book Page 169 Friday, May 30, 2014 1 1:14 AM

1704-1. Before driving
CT200h_OM_OM76135E_(EE)
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When starting the vehicle
Always keep your foot on the brake pedal while stopped with the “READY” indicator is
illuminated. This prevents the vehicle from creeping.
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator ped-
als to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a difficulty in oper-
ating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly. This allows you to depress the brake and accelerator pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake pedal using
your left foot may delay response in an emergency, resulting in an accident.
●The driver should pay extra attention to pedestrians when the vehicle is powered only
by the electric motor (traction motor). As there is no engine noise, the pedestrians
may misjudge the vehicle’s movement.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot parts may
cause a fire if there is any flammable material nearby.
●During normal driving, do not turn off the hybrid system. Turning the hybrid system off
while driving will not cause loss of steering or braking control, however, power assist
to the steering will be lost. This will make it more difficult to steer smoothly, so you
should pull over and stop the vehicle as soon as it is safe to do so. In the event of an
emergency, such as if it becomes impossib le to stop the vehicle in the normal way:
→ P. 5 0 9
●Use engine braking (shift position B instea d of shift position D) to maintain a safe
speed when driving down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose effective-
ness. ( →P. 1 8 4 )
●Do not adjust the positions of the steering wheel, the seat, or the inside or outside rear
view mirrors while driving.
Doing so may result in a loss of vehicle control.
●Always check that all passengers’ arms, heads or other parts of their body are not
outside the vehicle.
CT200h_OM_OM76135E_(EE).book Page 170 Friday, May 30, 2014 1 1:14 AM
