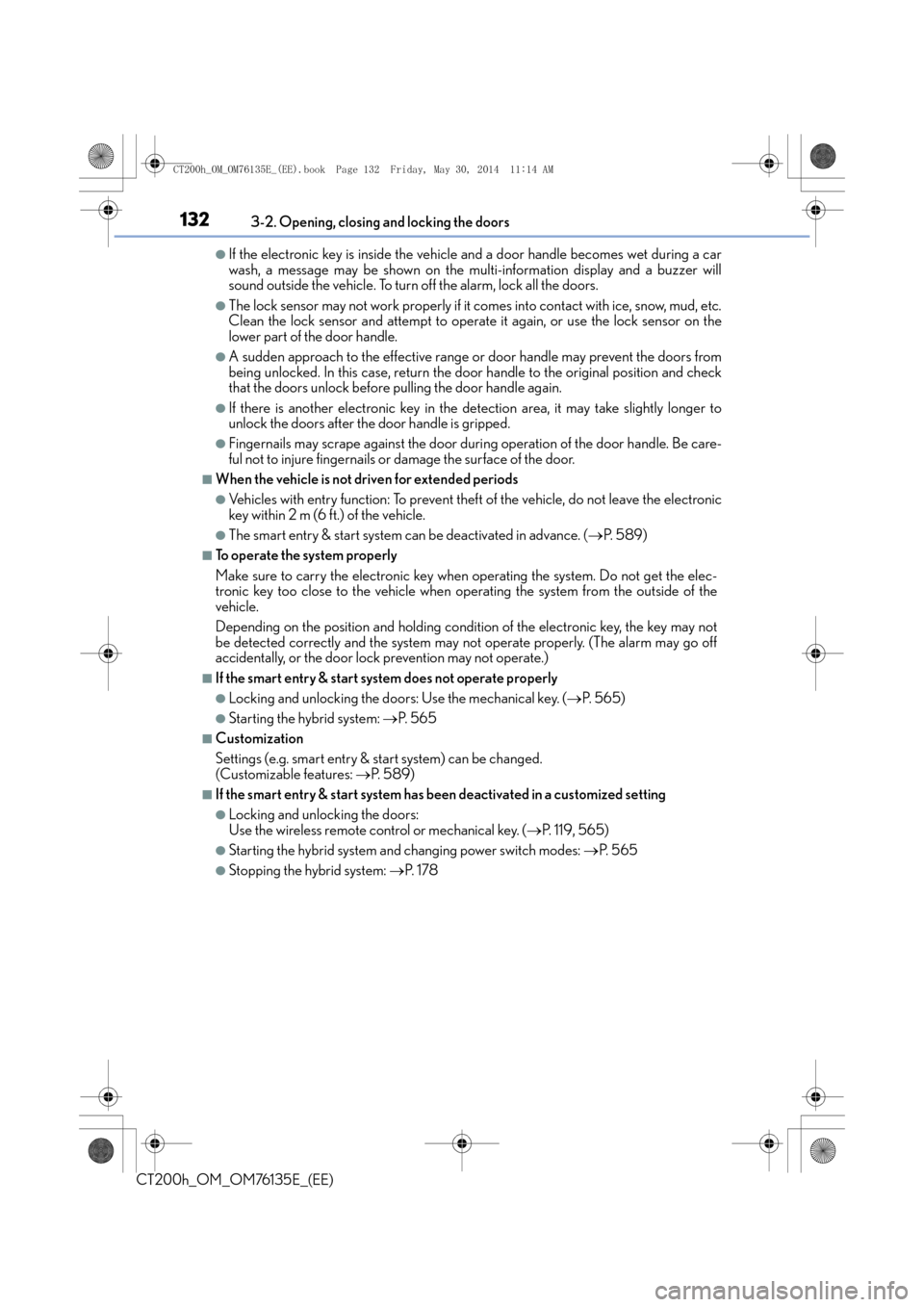

1323-2. Opening, closing and locking the doors
CT200h_OM_OM76135E_(EE)
●If the electronic key is inside the vehicle and a door handle becomes wet during a car
wash, a message may be shown on the multi-information display and a buzzer will
sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc.
Clean the lock sensor and attempt to operate it again, or use the lock sensor on the
lower part of the door handle.
●A sudden approach to the effective range or door handle may prevent the doors from
being unlocked. In this case, return the door handle to the original position and check
that the doors unlock before pulling the door handle again.
●If there is another electronic key in the detection area, it may take slightly longer to
unlock the doors after the door handle is gripped.
●Fingernails may scrape against the door duri ng operation of the door handle. Be care-
ful not to injure fingernails or damage the surface of the door.
■When the vehicle is not driven for extended periods
●Vehicles with entry function: To prevent theft of the vehicle, do not leave the electronic
key within 2 m (6 ft.) of the vehicle.
●The smart entry & start system can be deactivated in advance. ( →P. 5 8 9 )
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the elec-
tronic key too close to the vehicle when operating the system from the outside of the
vehicle.
Depending on the position and holding condit ion of the electronic key, the key may not
be detected correctly and the system may not operate properly. (The alarm may go off
accidentally, or the door lock prevention may not operate.)
■If the smart entry & start system does not operate properly
●Locking and unlocking the doors: Use the mechanical key. ( →P. 565)
●Starting the hybrid system: →P. 5 6 5
■Customization
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: →P. 5 8 9 )
■If the smart entry & start system has been deactivated in a customized setting
●Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( →P. 119, 565)
●Starting the hybrid system and changing power switch modes: →P. 5 6 5
●Stopping the hybrid system: →P. 1 7 8
CT200h_OM_OM76135E_(EE).book Page 132 Friday, May 30, 2014 1 1:14 AM

1493-3. Adjusting the seats
3
Operation of each component
CT200h_OM_OM76135E_(EE)
Each electronic key (including a card key) can be registered to recall your pre-
ferred driving position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing the
following:
Carry only the key you want to register, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be recorded
properly. Turn the power switch to ON mode.
Check that the shift position is in P.
Recall the driving position that you want to record.
While pressing the recalled but-
ton, press and hold the door lock
switch (either lock or unlock) until
the buzzer sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
■Recall procedure
Carry the electronic key that has been registered to the driving position, and
then unlock and open the driver’s door using the smart entry & start system or
wireless remote control.
The driving position will move to the recorded position.
If the driving position is in a position that has already been recorded, the seat and
outside rear view mirrors will not move.
Memory recall function
1
2
3
4
CT200h_OM_OM76135E_(EE).book Page 149 Friday, May 30, 2014 1 1:14 AM

1623-5. Opening, closing the windows and moon roof
CT200h_OM_OM76135E_(EE)
■The power windows can be operated when
The power switch is in ON mode.
■Operating the power windows after turning the hybrid system off
The power windows can be operated for approximately 45 seconds even after the
power switch is turned to ACCESSORY mode or turned off. They cannot, however, be
operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window travel
is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be closed,
perform the following operations using the power window switch on the relevant door.
●After stopping the vehicle, the window can be closed by holding the power window
switch in the one-touch closing position while the power switch is turned to ON mode.
●If the window still cannot be closed even by carrying out the operation explained above,
initialize the function by performing the following procedure.
Hold the power window switch in the one- touch closing position. Continue holding
the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one- touch opening position. Continue holding
the switch for a further 2 seconds afte r the window has opened completely.
Hold the power window switch in the one-touch closing position once again. Con-
tinue holding the switch for a further 2 seconds after the window has closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.* ( → P. 565)
●The power windows can be opened and closed using the wireless remote control.*(→ P. 1 1 9 )
*: These settings must be customized at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■Customization
Setting (e.g. linked door lock operation) can be changed.
(Customizable features:
→P. 5 8 9 )
1
2
3
CT200h_OM_OM76135E_(EE).book Page 162 Friday, May 30, 2014 1 1:14 AM

4657-3. Do-it-yourself maintenance
CT200h_OM_OM76135E_(EE)
7
Maintenance and care
Hook on the 2 tabs on the near side
of the cover.
Hook on the 2 tabs on the upper
side of the cover.
■Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following precautions before recharging:
●If recharging with the 12-volt battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and disconnecting
the charger cables to the 12-volt battery.
■After recharging/reconnecting the 12-volt battery
●Unlocking the doors using the smart entry & start system may not be possible immedi-
ately after reconnecting the 12-volt battery. If this happens, use the wireless remote
control or the mechanical key to lock/unlock the doors.
●Start the hybrid system with the power switch in ACCESSORY mode. The hybrid sys-
tem may not start with the power switch turned off. However, the hybrid system will
operate normally from the second attempt.
●The power switch mode is recorded by the vehicle. If the 12-volt battery is reconnected,
the vehicle will return the power switch mode to the status it was in before the 12-volt
battery was disconnected. Make sure to turn off the power before disconnect the 12-
volt battery. Take extra care when connecting the 12-volt battery if the power switch
mode prior to discharge is unknown.
●Restart the hybrid system, depress the brake pedal, and confirm that it is possible to
shift into each shift position.
If the system will not start even after multiple attempts at all methods above, contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
2
3
CT200h_OM_OM76135E_(EE).book Page 465 Friday, May 30, 2014 1 1:14 AM

4857-3. Do-it-yourself maintenance
CT200h_OM_OM76135E_(EE)
7
Maintenance and care
■Use a CR1632 lithium battery
●Batteries can be purchased at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, local electrical appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional can replace the
battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not function properly.
●The operational range will be reduced.
WA R N I N G
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
■Certification for the smart entry & start system
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.
CT200h_OM_OM76135E_(EE).book Page 485 Friday, May 30, 2014 1 1:14 AM

5658-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
If the electronic key does not operate properly
Use the mechanical key ( →P. 1 1 5 ) i n
order to perform the following opera-
tions:
Locks all the doors
Closes the windows
* (turn and hold)
Unlocks all the doors
Opens the windows
* (turn and hold)
*: These settings must be customized at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the power switch.
If any of the doors is opened or closed
while the key is being touched to the
switch, an alarm will sound to indicate
that the start function cannot detect the
electronic key.
Press the power switch within 10 seconds of the buzzer sounding, keeping the
brake pedal depressed.
In the event that the hybrid system still cannot be operated, contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
If communication between the electronic key and vehicle is interrupted ( →P.
130) or the electronic key cannot be us ed because the battery is depleted, the
smart entry & start system and wireless remote control cannot be used. In such
cases, the doors can be opened and the hybrid system can be started by following
the procedure below.
Locking and unlocking the doo rs and key linked functions
1
2
3
4
Starting the hybrid system
1
2
3
CT200h_OM_OM76135E_(EE).book Page 565 Friday, May 30, 2014 1 1:14 AM

5929-2. Customization
CT200h_OM_OM76135E_(EE)
■Smart entry & start system* and wireless remote control ( →P. 129, 114)
*: If equipped
■Smart entry & start system* (→ P. 1 2 9 )
*: If equipped
■Wireless remote control ( →P. 1 1 4 )
FunctionDefault
settingCustomized setting
Operation signal (emergency
flashers)OnOffO–OO
Time elapsed before the auto-
matic door lock function is
activated if a door is not
opened after being unlocked
30 seconds
60 seconds
–––O
120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff–––O
1234
FunctionDefault settingCustomized setting
Smart door unlocking All the doors Driver’s door O – O O
Smart entry & start system On Off O – O O
1234
FunctionDefault settingCustomized setting
Wireless remote control On Off – – – O
Unlocking operation All doors
unlocked in first
stepDriver’s door
unlocked in first
step, all doors
unlocked in
second step
O–OO
1234
CT200h_OM_OM76135E_(EE).book Page 592 Friday, May 30, 2014 1
1:14 AM

5939-2. Customization
CT200h_OM_OM76135E_(EE)
9
Vehicle specifications
■Tu r n s i g n a l l e v e r ( →P. 188)
■Automatic light control system ( →P. 1 9 0 )
■Illumination ( →P. 4 2 6 )
FunctionDefault
settingCustomized setting
Times of flashing of the lane
change signal flashers3
5
O––O
7
9
11
Off
1234
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O–OO
Welcome light
illumination control On Off – – – O
1234
FunctionDefault
settingCustomized setting
Time elapsed before the inte-
rior lights turn off 15 secondsOff
O–OO
7. 5 s e c o n d s
30 seconds
Time elapsed before the exte-
rior lights turn off15 seconds
Off
O–OO7. 5 s e c o n d s
30 seconds
Operation after the power
switch is turned offOnOff–––O
Operation when the doors
are unlocked with the Smart
entry & start system or the
wireless remote control func-
tion or the mechanical key
*
OnOff–––O
1234
CT200h_OM_OM76135E_(EE).book Page 593 Friday, May 30, 2014 1 1:14 AM

614Alphabetical index
CT200h_OM_OM76135E_(EE)
Keyless entrySmart entry & start system ..............129
Wireless remote control ................... 114
Keys ............................................................... 114 Electronic key ......................................... 114
Engine switch......................................... 177
If the electronic key does
not operate properly ................... 565
If you lose your keys ................... 116, 118
Key number plate ................................. 114
Keyless entry ........................................... 114
Mechanical key...................................... 114
Power switch ......................................... 177
Replacing the battery.......................483
Warning buzzer .................................. 130
Wireless remote control key .......... 114
Knee airbags.............................................. 42 Language
(multi-information display) ............ 594
Lever
Auxiliary catch lever......................... 452
Hood lock release lever ................ 452
Shift lever .................................................183
Turn signal lever.................................. 188
Wiper lever ............................................ 196
Lexus Display Audio
controller .......................... 106, 223, 410
Lexus parking assist-sensor
Function.................................................... 219
Warning message ................ 523, 524
License plate lights Light switch.............................................190
Replacing light bulbs ....................... 504
Light
Fog light switch..................................... 194
Follow me home system....................191
Headlight switch ..................................190
Illuminated entry system ................. 427
Interior lights ........................................ 426
Interior light list.................................... 426
Luggage compartment light.......... 125
Manual headlight leveling .................191
Personal lights......................................427
Replacing light bulbs ....................... 490
Turn signal lever.................................. 188
Vanity lights.......................................... 436
Wattage .................................................586
Light bulbs
Replacing............................................... 490
Wattage .................................................586
Luggage cover ...................................... 434
KL
CT200h_OM_OM76135E_(EE).book Page 614 Friday, May 30, 2014 1 1:14 AM

618Alphabetical index
CT200h_OM_OM76135E_(EE)
Folding down the rear seatbacks..............................................145
Head restraint......................................... 151
Properly sitting in the seat ................ 36
Seat heaters .......................................... 424
Sensor
Inside rear view mirror ..................... 156
Lexus parking assist-sensor ...........219
Radar sensor ..............................214, 245
Rain-sensing windshield wipers.................................................... 198
Tilt sensor.................................................. 87
Service reminder indicators................ 92
Shift lever................................................... 183
Side airbags................................................ 42
Side doors ................................................... 119
Side mirrors.............................................. 157 Adjusting and folding.........................157
Heaters .......................................... 412, 419
Side turn signal lights
Replacing light bulbs....................... 504
Turn signal lever .................................. 188
Smart entry & start system................. 129 Antenna location..................................129
Entry functions.............................. 119, 124
Starting the hybrid system............... 177
Warning message.............................535
Snow tires................................................. 254 Spare tire
Inflation pressure ...............................585
Storage location................................. 540
Spark plug ............................................... 583
Specifications ......................................... 578
Speech command system................. 405
Speedometer .............................................97
Sport mode ............................................. 237
Steering wheel Adjustment ............................................. 153
Audio switches ........................ 262, 327
“DISP” switch .......................................... 101
Heated steering wheel ....................424
Meter control switches.....................104
Telephone switches ......................... 294
Stop lights
Emergency brake signal................ 239
Replacing light bulbs ....................... 504
Storage feature ..................................... 428
Storage precautions............................ 428
Stuck If the vehicle becomes stuck ....... 575
Sun visors ................................................. 436
Switch Audio remote control switches ................................... 262, 327
Cruise control switch ......... 205, 208
“DISP” switch .......................................... 101
Door lock switch ................................... 121
Driving mode select switch...........237
Driving position memory switches ................................................ 147
Emergency flashers switch.......... 508
EV drive mode switch ....................... 181
Fog light switch..................................... 194
CT200h_OM_OM76135E_(EE).book Page 618 Friday, May 30, 2014 1 1:14 AM
