Lexus CT200h 2014 Owner's Manual (in English)

301
5
5-7. Setup menu
Audio system
CT200h_OM_OM76135E_(EE)
Setting a cellular phone
To enter menu for each function, follow the steps below.
Press the off-hook switch and select “Setup” using the “TUNE•SEL” knob
Select “Phone Setup” using the knob.
Select one of the following items using the knob:
●Registering a cellular phone
“Pair Phone”
●Selecting a cellular phone to be used
“Select Phone”
●Changing the registered name of a cellular phone
“Change Name”
●Listing the registered cellular phones
“List Phones”
●Changing the passkey
“Set Passkey”
●Deleting a registered cellular phone
“Delete Phone”
Select “Pair Phone” using the “TUNE•SEL” knob, and perform the procedure for
registering a cellular phone. ( →P. 2 9 6 )
Select “Select Phone” using the “TUNE•SEL” knob.
Select the cellular phone to be used using the knob.
Registering a cellular phone in the ha nds-free phone system allows the system
to function. The following function can be used for registered cellular phones:
Functions and operation procedures
Registering a cellular phone
Selecting a cellular phone to be used
1
2
3
1
2
CT200h_OM_OM76135E_(EE).book Page 301 Friday, May 30, 2014 1 1:14 AM

3025-7. Setup menu
CT200h_OM_OM76135E_(EE)
Select “Change Name” using the “TUNE•SEL” knob.
Select the desired cellular phone name to be changed using the knob.
Select “Record Name” using the knob, and say the new name after the beep.
The name to be registered will be repeated aloud. Select “Confirm” using the knob.
Select “List Phones” using the “TUNE•SEL” knob. The list of registered cellular
phones will be read aloud.
When listing is complete, the system returns to “Phone Setup”. Select “Set Passkey” using the “TUNE•SEL” knob.
Select a 4 to 8-digit number using the knob.
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been input, press
the knob again.
If the number to be registered has 8 digits, pressing of the knob is not necessary.
Select “Delete Phone” using the “TUNE•SEL” knob.
Select the desired cellular phone to be deleted using the knob.
If the cellular phone to be deleted is paired as a Bluetooth
® audio player, the
registration of the audio player can be deleted at the same time.
When “Del Audio?” is displayed, select “Yes” or “No” using the knob.
(Bluetooth
® audio player →P. 316)
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
Changing the registered name of a cellular phone
Listing the registered cellular phones
Changing the passkey
Deleting a registered cellular phone
1
2
3
4
1
2
3
1
2
3
CT200h_OM_OM76135E_(EE).book Page 302 Friday, May 30, 2014 1 1:14 AM

303
5
5-7. Setup menu
Audio system
CT200h_OM_OM76135E_(EE)
Security and system setup
To enter the menu of each setting, follow the steps below.
Press the off-hook switch and select “Setup” using the “TUNE•SEL” knob.
Select “Security” using the knob.
Select one of the following items using the knob:
●Setting or changing the PIN (Personal Identification Number)
“Set PIN”
●Locking the phone book
“Phbk Lock”
●Unlocking the phone book
“Phbk Unlock”
Press the off-hook switch and select “Setup” using the “TUNE•SEL” knob.
Select “System Setup” using the knob.
Select one of the following items using the knob:
●Setting voice guidance volume
“Guidance Vol”
●Displaying the Bluetooth® device address and name
“Device Name”
●Initializing the system
“Initialize”
Security setting items and operation procedures
System setup items an d operation procedures
1
2
3
1
2
3
CT200h_OM_OM76135E_(EE).book Page 303 Friday, May 30, 2014 1 1:14 AM

3045-7. Setup menu
CT200h_OM_OM76135E_(EE)
■Setting a PINSelect “Set PIN” using the “TUNE•SEL” knob.
Enter a PIN using the knob.
Input the code 1 digit at a time.
■Changing the PINSelect “Set PIN” using the “TUNE•SEL” knob.
Enter the registered PIN using the knob.
Enter a new PIN using the knob.
Input the code 1 digit at a time.
Select “Phbk Lock” or “Phbk Unlock” using the “TUNE•SEL” knob.
Input a PIN by using the knob and select “Confirm” using the knob.
Input the code 1 digit at a time.
Select “Guidance Vol” using the “TUNE•SEL” knob.
Change the voice guidance volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
Select “Device Name” using the “TUNE•SEL” knob.
Turn the knob to display the Bluetooth
® device address and name.
Select “Go Back” using the knob to return to “System Setup”.
Select “Initialize” and then “Confirm” using the “TUNE•SEL” knob.
Select “Confirm” again using the knob.
Setting or changing the PIN
Locking or unlocking the phone book
Setting voice guidance volume
Displaying the Bluetooth® device address and name
Initializing the system
1
2
1
2
3
1
2
1
2
1
2
3
1
2
CT200h_OM_OM76135E_(EE).book Page 304 Friday, May 30, 2014 1 1:14 AM

3055-7. Setup menu
5
Audio system
CT200h_OM_OM76135E_(EE)

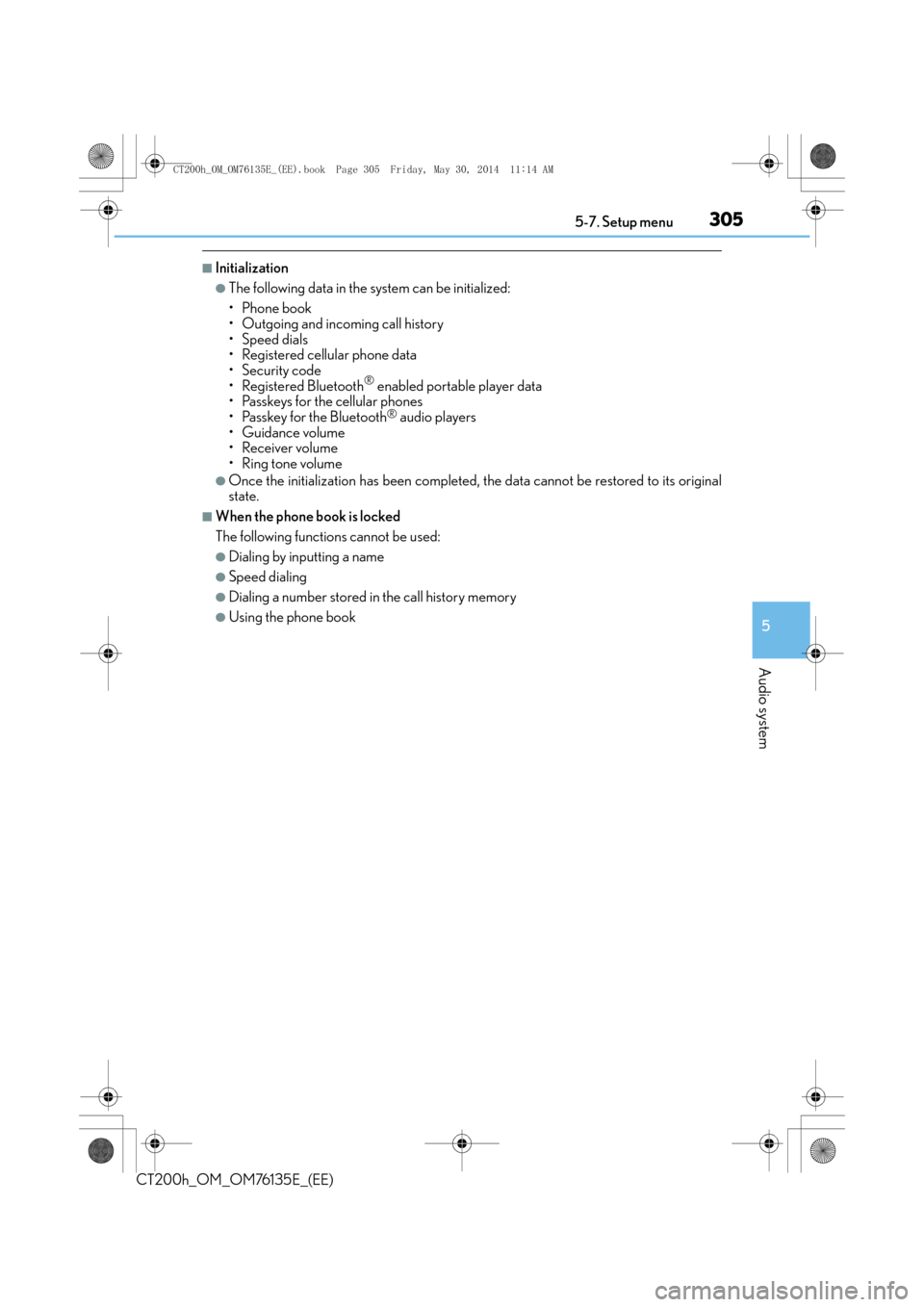

■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
•Security code
• Registered Bluetooth
® enabled portable player data
• Passkeys for the cellular phones
• Passkey for the Bluetooth
® audio players
•Guidance volume
• Receiver volume
• Ring tone volume
●Once the initialization has been completed, the data cannot be restored to its original
state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book
CT200h_OM_OM76135E_(EE).book Page 305 Friday, May 30, 2014 1 1:14 AM

3065-7. Setup menu
CT200h_OM_OM76135E_(EE)
Using the phone book
To enter the menu of each setting, follow the steps below. Press the off-hook switch and select “Phonebook” using the “TUNE•SEL”
knob.
Select one of the following items using the knob.
●Adding a new phone number
“A d d E n t r y ”
●Changing the registered name in the phone book
“Change Name”
●Listing the registered data
“List Names”
●Setting speed dials
“Speed Dial”
●Deleting the registered data
“Delete Entry”
●Deleting speed dials
“Del Spd Dial”
The following methods can be used to add a new phone number:
●Transferring data from the cellular phone
●Inputting a phone number using the “TUNE•SEL” knob
●Selecting a phone number from outgoing or incoming call history
■Adding procedure Select “Add Entry” using the “TUNE•SEL” knob.
Use one of the following methods to input a telephone number:
Transferring data from the cellular phone: STEP2-1 Select “By Phone” and then “Confirm” using the knob.
STEP2-2 When “Transfer” appears in the display, transfer the data from the cellular phone.
Refer to the manual that comes with the cellular phone for the details
of transferring data.
STEP2-3 Select the desired data using the knob.
Adding a new phone number
1
2
1
2
CT200h_OM_OM76135E_(EE).book Page 306 Friday, May 30, 2014 1 1:14 AM

3075-7. Setup menu
5
Audio system
CT200h_OM_OM76135E_(EE)
Inputting a phone number using the knob:STEP2-1 Select “Manual Input” using the knob.
STEP2-2 Input a phone number us ing the knob, and press the knob
again.
Input the phone number 1 digit at a time.
Selecting a phone number from outgoing or incoming call history:
STEP2-1 Select “Call History” using the knob.
STEP2-2 Select “Outgoing” or “Incoming” using the knob.
STEP2-3 Select the desired data using the knob.
Select “Record Name” using the knob, and say the desired name after the
beep.
The name to be registered will be repeated aloud. Select “Confirm” using the knob.
Select “Confirm” again using the knob.
In step , selecting “Speed Dial” instead of “Confirm” registers the newly added
phone number as a speed dial.
Select “Change Name” using the “TUNE•SEL” knob
Select the desired name to be changed using the knob.
Select “Record Name” using the knob, and say the new name after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using the knob.
Selecting “List Names” using the “TUNE•SEL” knob. The list of the registered
data will be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing the off-hook switch while an entry is being read aloud selects the entry,
and calls the registered phone number.
Changing the registered name in the phone book
Listing the registered data
3
4
5
5
1
2
3
4
CT200h_OM_OM76135E_(EE).book Page 307 Friday, May 30, 2014 1 1:14 AM

3085-7. Setup menu
CT200h_OM_OM76135E_(EE)
Select “Speed Dial” using the “TUNE•SEL” knob
Select the desired data using the knob.
Select the desired preset button, and register the data into speed dial by
either of the following methods:
a. Press the desired preset button, and select “Confirm” using the knob.
b. Press and hold the desired preset button.
Select “Delete Entry” using the “TUNE•SEL” knob
Select the desired data to be deleted using the knob.
Select “Del Spd Dial” using the “TUNE•SEL” knob.
Press the preset button to which the desired speed dial is registered after the
beep.
The name to be deleted will be heard.
Select “Confirm” using the knob.
■Adding an entry to the phonebook
Up to 20 names can be stored.
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
Setting speed dials
Deleting the registered data
Deleting speed dials
1
2
3
1
2
1
2
3
CT200h_OM_OM76135E_(EE).book Page 308 Friday, May 30, 2014 1 1:14 AM

309
5
5-8. Bluetooth
® Audio
Audio system
CT200h_OM_OM76135E_(EE)
Operating a Bluetooth® enabled portable player
To select the desired album, press the “5” button or the “6” button.
Press “
∧” or “ ∨” on the “SEEK•TRACK” button to select the desired track.
Control panel
Displaying text message
Repeat play
Playback/pause
Album selection
“TUNE•SEL” knob
BT•A menu
Playback Track selection
Random play
Po w e r/v o l u m e k n o b
Press: Turning the audio system on
or off
Turn: Adjusting the volume1
2
3
4
5
6
7
8
9
Selecting an album
Selecting tracks
CT200h_OM_OM76135E_(EE).book Page 309 Friday, May 30, 2014 1
1:14 AM

3105-8. Bluetooth® Audio
CT200h_OM_OM76135E_(EE)
To play or pause a track, press the “3” button.
To fast-forward or rewind, press and hold “∧” or “ ∨” on the “SEEK•TRACK” but-
ton until you hear a beep.
Press the “1” button.
To cancel, press the button again.
Press the “2” button.
To cancel, press the button again.
Press the “TEXT” button.
Each time the button is pressed, the di splay changes in the following order:
Elapsed time → Album title → Track title → Artist name
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions may
not be available.
■Display
→ P. 2 7 2
■Error messages
“Memory Error”: This indicates a problem in the system.
Playing and pausing tracks
Fast-forwarding and rewinding tracks
Random play
Repeat play
Switching the display
CT200h_OM_OM76135E_(EE).book Page 310 Friday, May 30, 2014 1 1:14 AM
