Interior Lexus CT200h 2014 (in English) Owner's Guide

4316-3. Using the storage features
CT200h_OM_OM76135E_(EE)
6
Interior features
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles or glass and paper
cups containing liquid in the bottle holders.
The contents may spill and glasses may break.

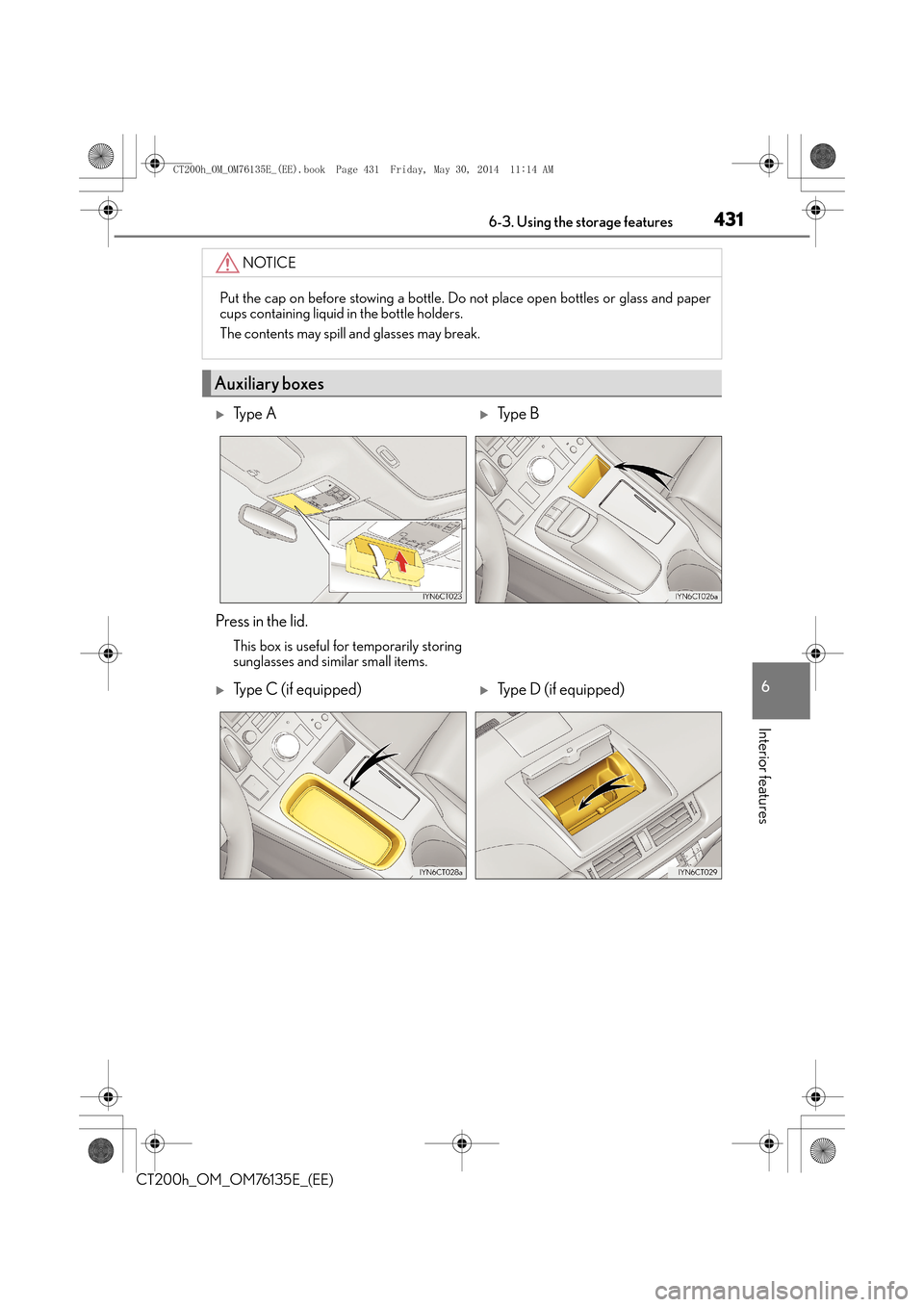

Auxiliary boxes
XTy p e AXTy p e B
Press in the lid.
This box is useful for temporarily storing
sunglasses and similar small items.
XTy p e C ( i f e q u i p p e d )XType D (if equipped)
CT200h_OM_OM76135E_(EE).book Page 431 Friday, May 30, 2014 1 1:14 AM

4336-3. Using the storage features
CT200h_OM_OM76135E_(EE)
6
Interior features
Luggage compartment features
Raise the hook to use.
The cargo hooks are provided for
securing loose items.
Secure the first-aid kit. To loosen
To t i g h t e n
Cargo hooks
First-aid kit storage belt
1
2
Auxiliary boxes
XCenter XRight side
Lift the center deck board. Lift the right side deck board.
CT200h_OM_OM76135E_(EE).book Page 433 Friday, May 30, 2014 1 1:14 AM

4356-3. Using the storage features
CT200h_OM_OM76135E_(EE)
6
Interior features
■Stowing the luggage cover Remove the side deck boards and
open the center auxiliary box.
Adjust the cover so that the infor-
mation label is facing up.
Fold the rear edge of the cover
over, replace the side deck
boards and close the center auxil-
iary box.
1
2
3
WA R N I N G
●To avoid injury, always return the cargo hooks to their stowed positions when not in
use.
●If the deck boards are removed, return them to their original positions before driving.
In the event of sudden braking, an accident may occur due to an occupant being
struck by the deck boards or the items stored in the auxiliary box.
●Do not allow children to climb on the luggage cover. Climbing on the luggage cover
could result in damage to the luggage cove r, possibly causing death or serious injury
to the child.
CT200h_OM_OM76135E_(EE).book Page 435 Friday, May 30, 2014 1 1:14 AM

4366-4. Using the other interior features
CT200h_OM_OM76135E_(EE)
Other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
Slide the cover to open.
The light turns on when the cover is
opened.
If the vanity lights remain on when the power sw itch is turned off, the light will go off auto-
matically after 20 minutes.
Sun visors
1
2
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for extended peri-
ods while the hybrid system is off.
CT200h_OM_OM76135E_(EE).book Page 436 Friday, May 30, 2014 1 1:14 AM

4376-4. Using the other interior features
CT200h_OM_OM76135E_(EE)
6
Interior features
XVehicles with a navigation system
Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
XVehicles without navigation system
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour
*
*
:e.g. 1:00 to 1:29 →1:00
1:30 to 1:59 →2:00
The clock is displayed when the power switch is in ACCESSORY or ON mode.
Please use a power supply for electronic goods that use less than 12 VDC /10 A
(power consumption of 120 W).
When using electronic goods, make sure that the power consumption of all the
connected power outlets is less than 120 W.
XCenter console
Press down and release the lid.
Clock
1
2
3
Power outlet
1
CT200h_OM_OM76135E_(EE).book Page 437 Friday, May 30, 2014 1 1:14 AM

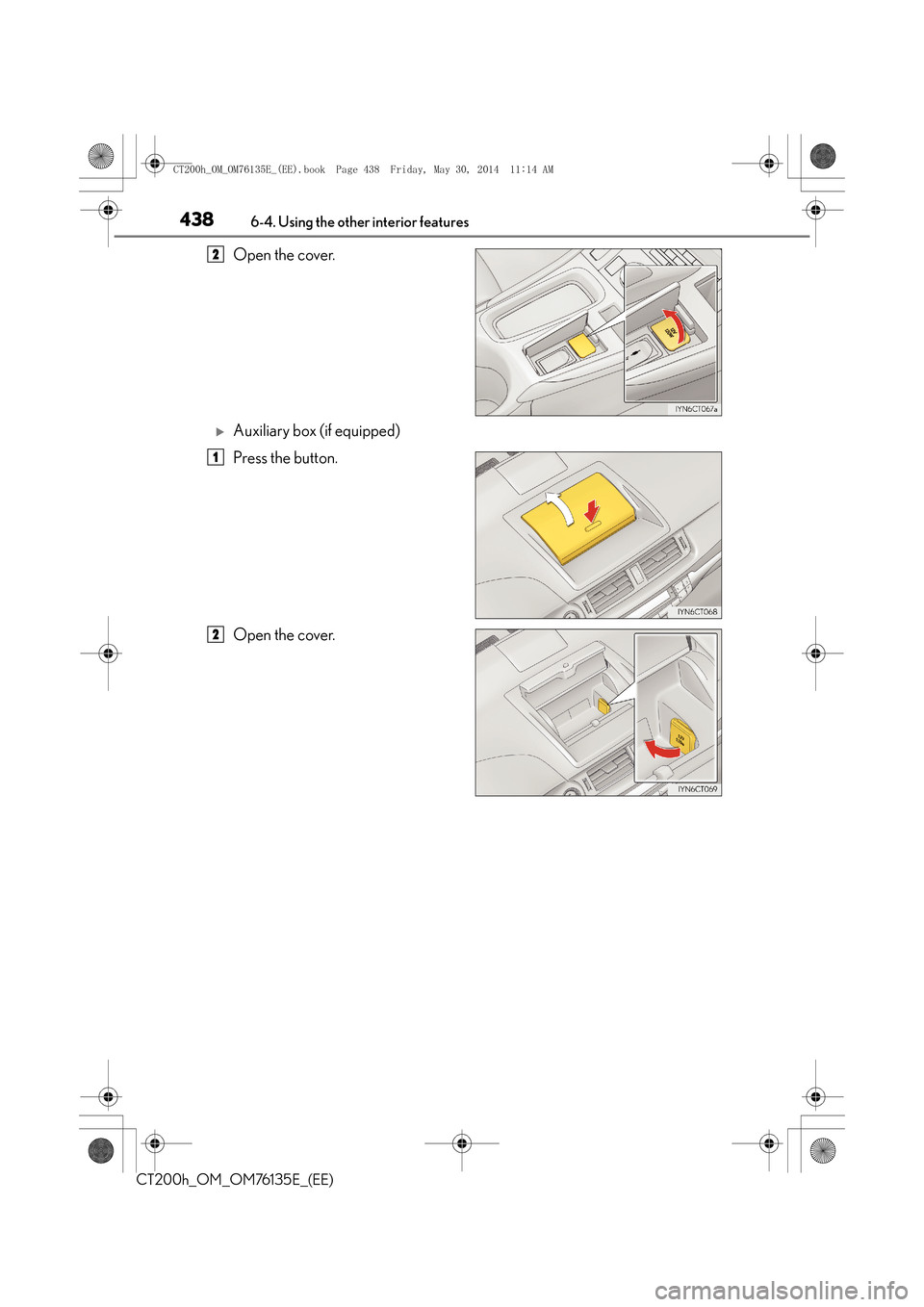

438
CT200h_OM_OM76135E_(EE)6-4. Using the other interior features
Open the cover.
XAuxiliary box (if equipped)
Press the button.
Open the cover.
2
1
2
CT200h_OM_OM76135E_(EE).book Page 438 Friday, May 30, 2014 1
1:14 AM

4396-4. Using the other interior features
CT200h_OM_OM76135E_(EE)
6
Interior features
●The power outlet can be used when the power switch is in ACCESSORY or ON mode.
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
●The gap in the lid allows power cables to be
passed through even when the lid is closed.
(auxiliary box)
NOTICE
●To avoid damaging the power outlet, close the power outlet lid when the power outlet
is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
●To prevent 12-volt battery discharge, do not use the power outlet longer than neces-
sary when the hybrid system is off.
Assist grips
WA R N I N G
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a heavy load
on the assist grip.
CT200h_OM_OM76135E_(EE).book Page 439 Friday, May 30, 2014 1 1:14 AM

440
CT200h_OM_OM76135E_(EE)6-4. Using the other interior features
CT200h_OM_OM76135E_(EE).book Page 440 Friday, May 30, 2014 1
1:14 AM

441
7Maintenance and care
CT200h_OM_OM76135E_(EE)
7-1. Maintenance and careCleaning and protecting the vehicle exterior ........................ 442
Cleaning and protecting the vehicle interior ......................... 446
7-2. Maintenance Maintenance requirements............................. 448
7-3. Do-it-yourself maintenance Do-it-yourself service precautions................................ 450
Hood ............................................... 452
Positioning a floor jack............. 454
Engine compartment ............... 455
12-volt battery ............................. 463
Tires..................................................468
Tire inflation pressure ................477
Wheels ............................................479
Air conditioning filter ................ 481
Electronic key battery ..............483
Checking and replacing fuses..............................................486
Light bulbs..................................... 490
CT200h_OM_OM76135E_(EE).book Page 441 Friday, May 30, 2014 1 1:14 AM

4467-1. Maintenance and care
CT200h_OM_OM76135E_(EE)
Cleaning and protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth
dampened with lukewarm water.
●Remove dirt and dust using a vacuum cleaner.
●Wipe off any excess dirt and dust with a soft cloth dampened with diluted
detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
●Wring out any excess water from the cloth and thoroughly wipe off all remain-
ing traces of detergent.
●Wipe the surface with a dry, soft cloth to remove any remaining moisture.
Allow the leather to dry in a shaded and ventilated area.
●Remove loose dirt using a vacuum cleaner.
●Apply a mild soap solution to the synthetic leather using a sponge or soft cloth.
●Allow the solution to soak in for a few minutes. Remove the dirt and wipe off
the solution with a clean, damp cloth.
■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to maintain
the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type clea ners available. Use a sponge or brush to
apply the foam. Rub in overlapping circles. Do not use water. Wipe dirty surfaces and let
them dry. Excellent results are obtained by keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water us ing a cloth or sponge. Also check the belts
periodically for excessive wear, fraying or cuts.
The following procedures will help protect your vehicle’s interior and keep it
in top condition:
Protecting the ve hicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas
CT200h_OM_OM76135E_(EE).book Page 446 Friday, May 30, 2014 1 1:14 AM
