1. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE-OVERVIEW
CT200h_Navi_OM76146U_(U)14.06.17 09:48
9
LEXUS ENFORM, SAFETY CONNECT AND APP SUITE
2. TYPE A: FUNCTION ACHIEVED BY USING A CELLULAR PHONE
The LEXUS App Suite service requires a compatible cellular phone with data connec-
tion.
LEXUS App Suite is a service that enables downloadable applications to be displayed
on and operated from the navigation screen. Before LEXUS App Suite can be used, a
few actions need to be performed first. (→P.356)

354
1. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE-OVERVIEW
CT200h_Navi_OM76146U_(U)14.06.17 09:48
*: For known compatible phones, refer to http://www.lexus.com/MobileLink.
No.NameFunction
Content providerProvides content to the navigation system via a cellular phone.
Application serverProvides downloadable applications to the navigation system
via a cellular phone.
Cellular phone*
Utilizing the LEXUS Enform application on your phone, com-
munication is relayed between the navigation system, the appli-
cation server and the content provider if you have a data
connection.
ApplicationsDownloaded App Suite applications provide access to audiovi-
sual content from a content provider, when connected with a
compatible phone with a data connection.
Navigation system
Content received, via a cellular phone, from the content provid-
er’s server are displayed on the navigation screen. The naviga-
tion system is equipped with an application player to run
applications.

357
1. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE-OVERVIEW
9
LEXUS ENFORM, SAFETY CONNECT AND APP SUITE
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Download the LEXUS Enform applica-
tion to your cellular phone.
2Run the LEXUS Enform application on
your cellular phone.
3Enter the information required into the
LEXUS Enform application. Login to
the application.
1Before App Suite Applications can be
downloaded, the other actions on
→P.356 need to be performed first.
2Once your phone is running the Lexus
Enform Application, with an account
logged in, and connected to the naviga-
tion system, an on-screen pop-up will
display offering to begin the App Suite
application download. See P.363 step
2 for more information once download
has started.
DOWNLOADING AND
LOGGING INTO THE LEXUS
ENFORM APPLICATION
INFORMATION
●
Applications can only be used when the
LEXUS Enform application has been
downloaded to your cellular phone and
the application is running.
●LEXUS App Suite operational proce-
dures can also be confirmed by visiting
http://www.lexus.com/enform/
.
●In order to use applications, it is neces-
sary to run the LEXUS App Suite appli-
cation on your cellular phone.
● If an iPhone is connected via Bluetooth
®
and USB at the same time, system opera-
tion may become unstable. For known
phone compatibility information, refer to
http://www.lexus.com/enform/
.
● If a LEXUS App Suite application is used
while iPod audio/video is being played
back, system operation may become
unstable.
DOWNLOADING App Suite
APPLICATIONS TO
NAVIGATION SYSTEM

362
CT200h_Navi_OM76146U_(U)14.06.17 09:48
2. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE OPERATION
1. LEXUS App Suite
1Press the “MENU” button on the
Remote Touch.
2Select “LEXUS App Suite” .
3Select the desired application button.USING LEXUS App Suite
LEXUS App Suite is a service that en-
ables the usable contents of a cellular
phone to be displayed on and operated
from the navigation screen. Before
LEXUS App Suite can be used, a few
actions need to be performed first.
(→ P.356)
For details about the function and ser-
vice of each application, refer to
http://www.lexus.com/enform/
.
No.FunctionPage
Select to activate an appli-
cation.
Select to update all the ap-
plications.363
Select to reorder the appli-
cations.365
Displays the number of new
notifications for the appli-
cation

364
2. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
zApplication download time will vary based
on speed of cellular network, and will take
some time.
z Application download can be resumed
after ignition off and back on.
z Future Mandatory updates will display an
on-screen pop-up when available.
■ INSTALLING THE UPDATED
DATA
1Select “Install” .
2Select “Continue” .
“Later” : Select to postpone the installation
of the updated data and go back to the pre-
vious screen.
No.Function
Select to install later. When this
screen button is selected, the screen
will return to the last displayed
screen. To install the updated data:
→ P.364
Select to display detailed update
data information.
Select to install the updated data.
Follow the steps “INSTALLING
THE UPDATED DATA” from
“STEP 2”. ( →P.364)
After the downloading is complete,
“Update” will be changed to “Install”.

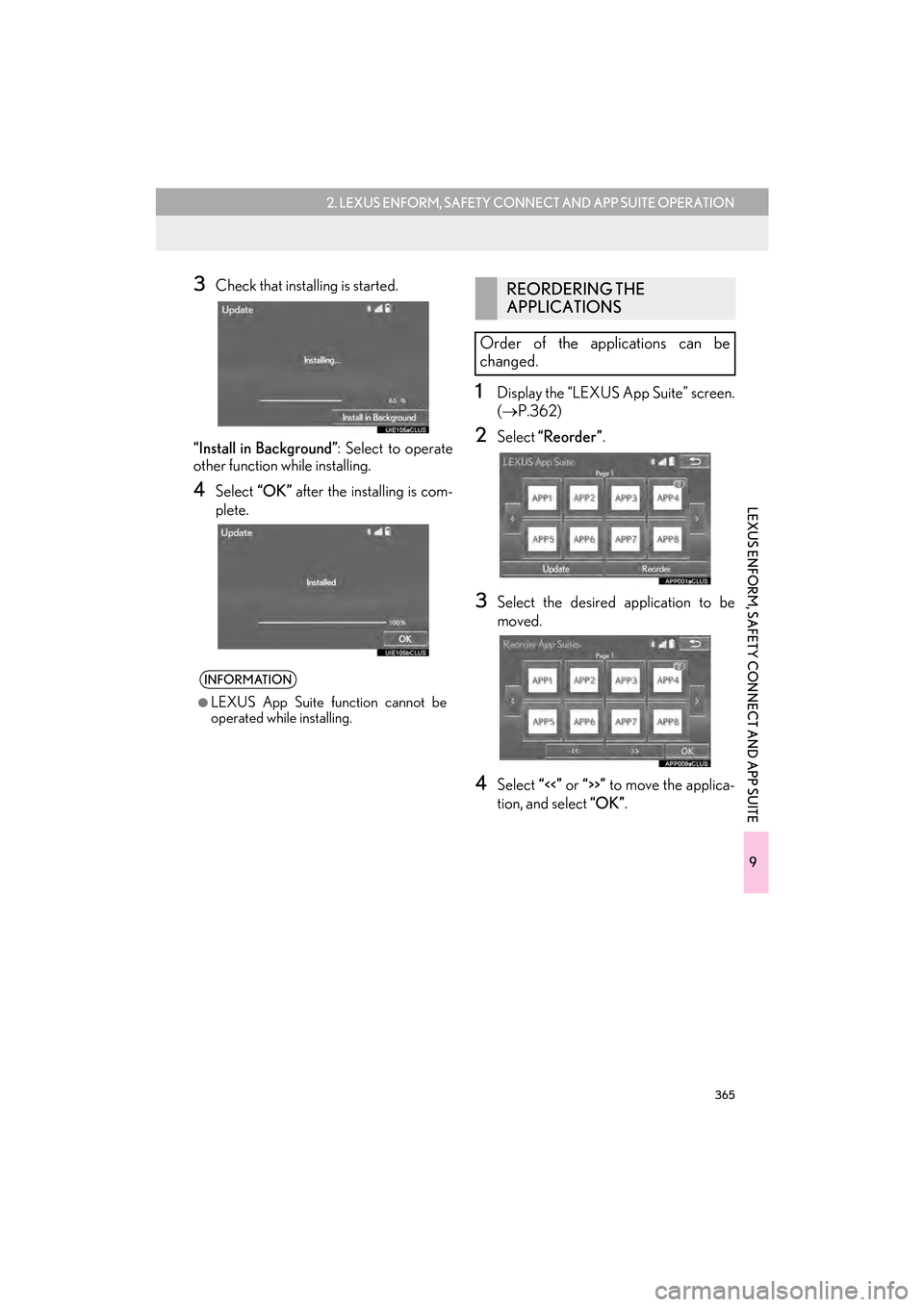

365
2. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE OPERATION
9
LEXUS ENFORM, SAFETY CONNECT AND APP SUITE
CT200h_Navi_OM76146U_(U)14.06.17 09:48
3Check that installing is started.
“Install in Background” : Select to operate
other function while installing.
4Select “OK” after the installing is com-
plete.
1Display the “LEXUS App Suite” screen.
( → P.362)
2Select “Reorder” .
3Select the desired application to be
moved.
4Select “<<” or “>>” to move the applica-
tion, and select “OK”.
INFORMATION
●
LEXUS App Suite function cannot be
operated while installing.
REORDERING THE
APPLICATIONS
Order of the applications can be
changed.

366
2. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
IF A MESSAGE APPEARS ON THE SCREEN
When problems occur with starting up the application player, a message will appear
on the screen. Referring to the table below to identify the problem, take the suggested
corrective action.
MessageDisplay conditionsCorrective action
“This feature is unavailable
during an emergency call.”Safety Connect is being oper-
ated.After Safety Connect is fin-
ished, perform the operation
again.
“This feature is unavailable
while transferring contacts.”Contacts are being trans-
ferred manually from the
phonebook.When the transfer of contacts
is complete, perform the op-
eration.
“Unable to connect to a
Bluetooth* phone. For trou-
bleshooting assistance,
please visit the Lexus website
or contact your dealer.”
The cellular phone cannot be
connected.
Refer to http://
www.lexus.com/enform/ to
confirm if the phone is com-
patible or not.
“This feature is unavailable
during a handsfree call.”A hands-free call is in
progress.After the hands-free call is fin-
ished, perform the operation.
“To use the services, an active
application needs to be run-
ning on your phone. For more
information, please visit
lexus.com.”
The LEXUS App Suite appli-
cation cannot be connected
to Bluetooth
® SPP.
Refer to http://www.lexus.com/enform/ to
confirm if the phone is
Bluetooth
® SPP compatible
or not, and then activate the
LEXUS App Suite applica-
tion.
“Communication error.
Please try again.”Communication was discon-
nected.
After a few moments, retry the
operation.
Note: This may be caused by
poor connectivity with the cel-
lular network or the content
provider.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

367
2. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE OPERATION
9
LEXUS ENFORM, SAFETY CONNECT AND APP SUITE
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Press the “MENU” button on the
Remote Touch.
2Select “Nav”.
3Select “Dest.” .
4Select “Web Search” .
5Check that the “Web Search” screen is
displayed.
LINKING LEXUS App Suite
AND NAVIGATION LOCAL
FUNCTION
The navigation can set a destination and
make a hands-free call via LEXUS App
Suite. For details about the function and
service of each application, refer to
http://www.lexus.com/enform/
.

368
2. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE OPERATION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Display the “Web Search” screen.
(→ P.367)
2Select the desired application button to
search.
3Enter a search term, and select “Go”.
4Select “Map”.
5Select “Go to ” .
6Select “OK” to start guidance.
SETTING A DESTINATION
USING LEXUS App Suite
Locations that were searched using
LEXUS App Suite can be set as a desti-
nation.
z For the operation of the route guidance
screen and the function of each screen
button: →P.1 2 1
z These application screens are shown for
illustrative purposes, and the actual
screens may vary based on application.

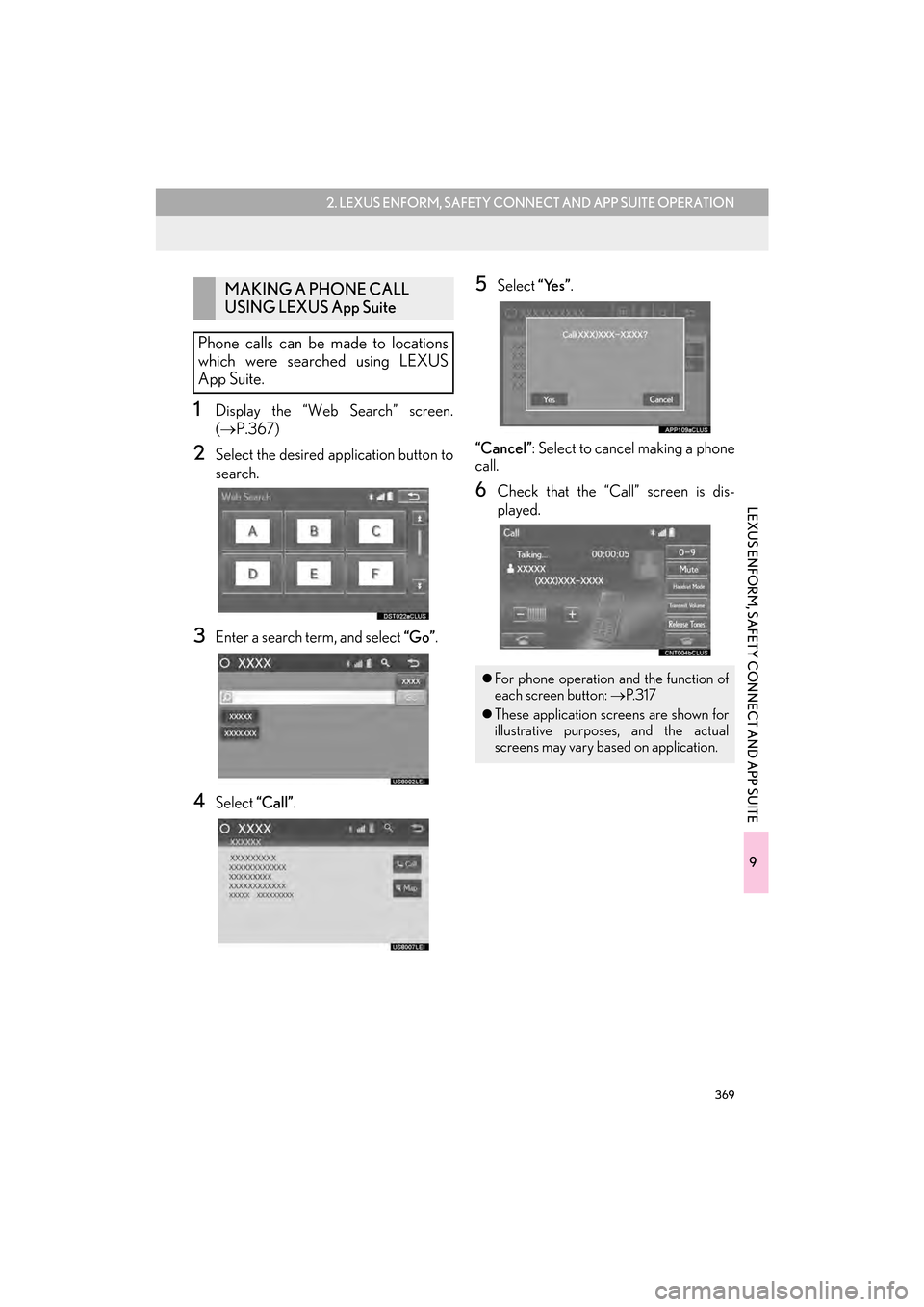

369
2. LEXUS ENFORM, SAFETY CONNECT AND APP SUITE OPERATION
9
LEXUS ENFORM, SAFETY CONNECT AND APP SUITE
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Display the “Web Search” screen.
(→ P.367)
2Select the desired application button to
search.
3Enter a search term, and select “Go”.
4Select “Call”.
5Select “Yes”.
“Cancel” : Select to cancel making a phone
call.
6Check that the “Call” screen is dis-
played.
MAKING A PHONE CALL
USING LEXUS App Suite
Phone calls can be made to locations
which were searched using LEXUS
App Suite.
z For phone operation and the function of
each screen button: →P. 3 1 7
z These application screens are shown for
illustrative purposes, and the actual
screens may vary based on application.
