key Lexus CT200h 2015 (in English) Owner's Guide

156
CT200h_OM_OM76174U_(U)4-2. Driving procedures
Power (ignition) switch
Check that the parking brake is set.
Firmly depress the brake pedal.
Check that the power switch indicator turns green. If the indicator does not turn
green, the hybrid system cannot be started.
When the shift position is N, the hybrid system cannot start. Shift the shift position to P
when starting the hybrid system. (
→P. 1 6 3 )
Press the power switch.
Continue depressing the brake pedal
until the hybrid system is completely
started.
The hybrid system can be started from
any power switch mode.
Check that the “READY” indicator is illuminated.
If the “READY” indicator changes from a flashing light to a solid light and the buzzer
sounds, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the engine is stopped.
(The gasoline engine starts or stops automatically in accordance with the state of the
vehicle.)
Performing the following operations when carrying the electronic key on your
person starts the hybrid system or changes power switch modes.
Starting the hybrid system
1
2
3
4

158
CT200h_OM_OM76174U_(U)4-2. Driving procedures
■Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or ON mode (the
hybrid system is not operating) for more than an hour with the shift position in P, the
power switch will automatically turn off. However, this function cannot entirely prevent
the 12-volt battery discharge. Do not leave the vehicle with the power switch in ACCES-
SORY or ON mode for long periods of time when the hybrid system is not operating.
■Sounds and vibrations specific to a hybrid vehicle
→
P. 6 7
■Electronic key battery depletion
→P. 1 0 3
■When the ambient temperature is low, such as during winter driving conditions
When starting the hybrid system, the flashing time of the “READY” indicator may be
long. Leave the vehicle as it is until the “REA DY” indicator is steady on, as steady means
the vehicle is able to move.
■Conditions affecting operation
→ P. 115
■Note for the entry function
→P. 116
■If the hybrid system does not start
The immobilizer system may not have been deactivated. ( →P. 7 3 )
Contact your Lexus dealer.
■When the power switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer
immediately.
■If the “READY” indicator does not come on
In the event that the “READY” indicator does not come on even after performing the
proper procedures for starting the vehicle, contact your Lexus dealer immediately.
■If the hybrid system is malfunctioning
→ P. 5 3 7
■If the electronic key battery is depleted
→P. 5 0 2
■Operation of the power switch
●When operating the power switch, one short, firm press is enough. If the switch is
pressed improperly, the hybrid system may not start or the power switch mode may not
change. It is not necessary to press and hold the switch.
●If attempting to restart the hybrid system immediately after turning the power switch off,
the hybrid system may not start in some cases. After turning the power switch off,
please wait a few seconds before restarting the hybrid system.
■Automatically P position selection function
→P. 1 6 5
■When the shift control system malfunctions
The power switch will not be able to be turned off. In such a case, the switch can be
turned off after applying the parking brake.
Have the vehicle inspected by your Lexus dealer immediately.

CT200h_OM_OM76174U_(U)
1714-3. Operating the lights and wipers
4
Driving
■Headlight control sensor
■Automatic light off system
●When the headlights come on: The headlights and tail lights turn off 30 seconds after a
door is opened and closed if the power switch is turned to ACCESSORY mode or
turned off. (The lights turn off immediately if on the key is pressed after all the doors
are locked.)
●When only the tail lights come on: The tail lights turn off automatically if the power
switch is turned to ACCESSORY mode or tu rned off and the driver’s door is opened.
To turn the lights on again, turn the power switch to ON mode, or turn the light switch off
once and then back to or .
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number of passen-
gers and the loading condition of the vehicle to ensure that the headlights do not inter-
fere with other road users.
■12-volt battery-saving function
In order to prevent the vehicle 12-volt battery from discharging, if the headlights and/or
tail lights are on when the power switch is turned off the 12-volt battery saving function
will operate and automatically turn off all the lights after approximately 20 minutes.
When the power switch is turned to ON mode, the 12-volt battery-saving function will be
disabled.
When any of the following are performed, the 12-volt battery-saving function is canceled
once and then reactivated. All the lights will turn off automatically 20 minutes after the
12-volt battery-saving function has been reactivated:
●When the headlight switch is operated
●When a door is opened or closed
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 5 9 1 )
The sensor may not function properly if an
object is placed on the sensor, or anything that
blocks the sensor is affixed to the windshield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.

2885-6. Using Bluetooth® devices
CT200h_OM_OM76174U_(U)
■Normal operation
XAudio ( →P. 2 9 4 )
XPhone
Menu list of the Bluetooth® audio/phone
First menuSecond
menuThird menuOperation detail
“BTA
MENU”“BTA
Setup”
“Pair Audio”Registering a portable player
“Connect”Selecting a portable player to be
used
“Change Name”Changing the registered name of
a portable player
“List Audios”Listing the registered portable
players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered portable
player
First menuSecond menuThird menuOperation detail
“Callback”--Dialing a number stored in the
incoming call history memory
“Redial”--Dialing a number stored in the
outgoing call history memory
“Phonebook”
(→P. 3 0 5 )
“A d d E n t r y ”-Adding a new phone number
“Change
Name”-Changing the registered name in
the phone book
“Delete
Entry”-Deleting the registered data
“Del Spd
Dial”-Deleting speed dials
“List
Names”-Listing the registered data
“Speed
Dial”-Setting speed dials

CT200h_OM_OM76174U_(U)
2895-6. Using Bluetooth® devices
5
Audio system
“Setup”
“Security”
(→ P. 3 0 2 )
“Set PIN”Setting a PIN code
“Phbk Lock”Locking the phone book
“Phbk Unlock”Unlocking the phone book
“Phone
Setup”
(→ P. 2 9 9 )
“Pair Phone”Registering the cellular phone to
be used
“Connect”Selecting a cellular phone to be
used
“Change Name”Changing a registered name of a
cellular phone
“List Phones”Listing the registered cellular
phones
“Set Passkey”Changing the passkey
“Delete Phone”Deleting a registered cellular
phone
“System
Setup”
(→ P. 3 0 2 )
“Guidance Vol”Setting voice guidance volume
“Device Name”Displaying the Bluetooth® device
address and name
“Initialize”Initializing the system
First menuSecond menuThird menuOperation detail

2905-6. Using Bluetooth® devices
CT200h_OM_OM76174U_(U)
■Using a short cut key
■Automatic volume adjustment
When vehicle speed reaches 50 mph (80 km/h) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle speed drops
to 43 mph (70 km/h) or less.
■When using a voice command
For numbers, say a combination of single digits from zero to nine, # (pound), ∗ (star), and
+ (plus).
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with the “TUNE•SEL” knob.
●Registering a a portable player or cellular phone to the system
First menuSecond menuOperation detail
“Dial XXX (name)”-Dialing a name registered in the
phone book
“Phone book add
Entry”-Adding a new phone number
“Phone book Change
name”-Changing a registered name in
the phone book
“Phone book Delete
Entry”-Deleting the registered data
“Phone book List
names”-Listing the registered data
“Phone book Set Speed
Dial”-Setting speed dials
“Phone book Delete
Speed Dial”-Deleting speed dials
“Dial XXX (number)”-Dialing by inputting a number
“Phonebook”“Phonebook Unlock”Unlocking the phone book
“Phonebook Lock”Locking the phone book

292
CT200h_OM_OM76174U_(U)5-6. Using Bluetooth
® devices
Registering a Bluetooth® audio system for the first
time
Press the “CD•AUX” button and select “BTA MENU” using the “TUNE•SEL”
knob.
Press the talk switch or select “BTA Setup” using the knob.
The introductory guidance and portable player name registration instructions
are heard. Select “Pair Audio Player (Pair Audio)” using a voice command or the knob.
Register a portable player name by either of the following methods:
a. Select “Record Name” using the knob, and say the name to be registered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heard. Select “Confirm” using a voice command or the knob.
A passkey is displayed and heard, and a voice guidance instruction for inputting
the passkey into the portable player is heard. Input the passkey into the portable player.
Refer to the manual that comes with the portable player for the operation of the por-
table player.
Guidance for registration completion is heard.
If the portable player has a Bluetooth
® phone, the phone can be registered at
the same time. A voice guidance instruction to register a Bluetooth® phone is
heard.
Select “Yes” or “No” using a voice command or the knob.
(Bluetooth
® phone → P. 3 1 7 )
■Changing the passkey
→P. 2 9 7
Before using the Bluetooth® audio system, it is necessary to register a
Bluetooth® enabled portable player in the system. Follow the procedure
below to register (pair) a portable player:
1
2
3
4
5
6
7

293
CT200h_OM_OM76174U_(U)5-6. Using Bluetooth
® devices
5
Audio system
Registering a Bluetooth® phone for the first time
Press the off-hook switch or the talk switch.
The introductory guidance and phone name registration instructions are heard.
Select “Pair Phone” using a voice command or the “TUNE•SEL” knob.
Register a phone name by either of the following methods:
a. Select “Record Name” using the knob, and say the name to be registered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heard. Select “Confirm” using a voice command or the knob.
A passkey is displayed and heard, and a voice guidance instruction for inputting
the passkey into the cellular phone is heard. Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of the phone.
Guidance for registration completion is heard.
If the cellular phone has a Bluetooth
® audio player, the audio player can be reg-
istered at the same time. A voice guidance instruction to register a Bluetooth®
audio player is heard.
Select “Yes” or “No” using a voice command or the knob.
(Bluetooth
® audio player →P. 3 1 7 )
■Changing the passkey
→P. 3 0 1
Before using the hands-free phone system, it is necessary to register a cellular
phone in the system. The system will enter phone registration mode automati-
cally when starting the system with no cellular phone registered. Follow the
procedure below to register (pair) a cellular phone:
1
2
3
4
5
6

294
CT200h_OM_OM76174U_(U)5-7. Setup menu
Setting up a Bluetooth® enabled portable player
XPa t t e r n A
To enter the menu for each function, follow the steps below using a voice com-
mand or the “TUNE•SEL” knob:
●Registering a portable player
1. “Setup” → 2. “Bluetooth Audio Setup (BTA Setup)” →
3. “Pair Audio Player (Pair Audio)”
●Selecting a portable player to be used
1. “Setup” → 2. “Bluetooth Audio Setup (BTA Setup)” →
3. “Connect Audio Player (Connect)”
●Changing the registered name of a portable player
1. “Setup” → 2. “Bluetooth Audio Setup (BTA Setup)” →
3. “Change Name”
●Listing the registered portable players
1. “Setup” → 2. “Bluetooth Audio Setup (BTA Setup)” →
3. “List Audio Players (List Audios)”
●Changing the passkey
1. “Setup” → 2. “Bluetooth Audio Setup (BTA Setup)” →
3. “Set Passkey”
●Deleting a registered portable player
1. “Setup” → 2. “Bluetooth Audio Setup (BTA Setup)” →
3. “Delete Audio Player (Delete Audio)”
Registering a portable player in the Bluetooth® audio system allows the sys-
tem to function. The following functions can be used for registered portable
players:
Functions and operation procedures

CT200h_OM_OM76174U_(U)

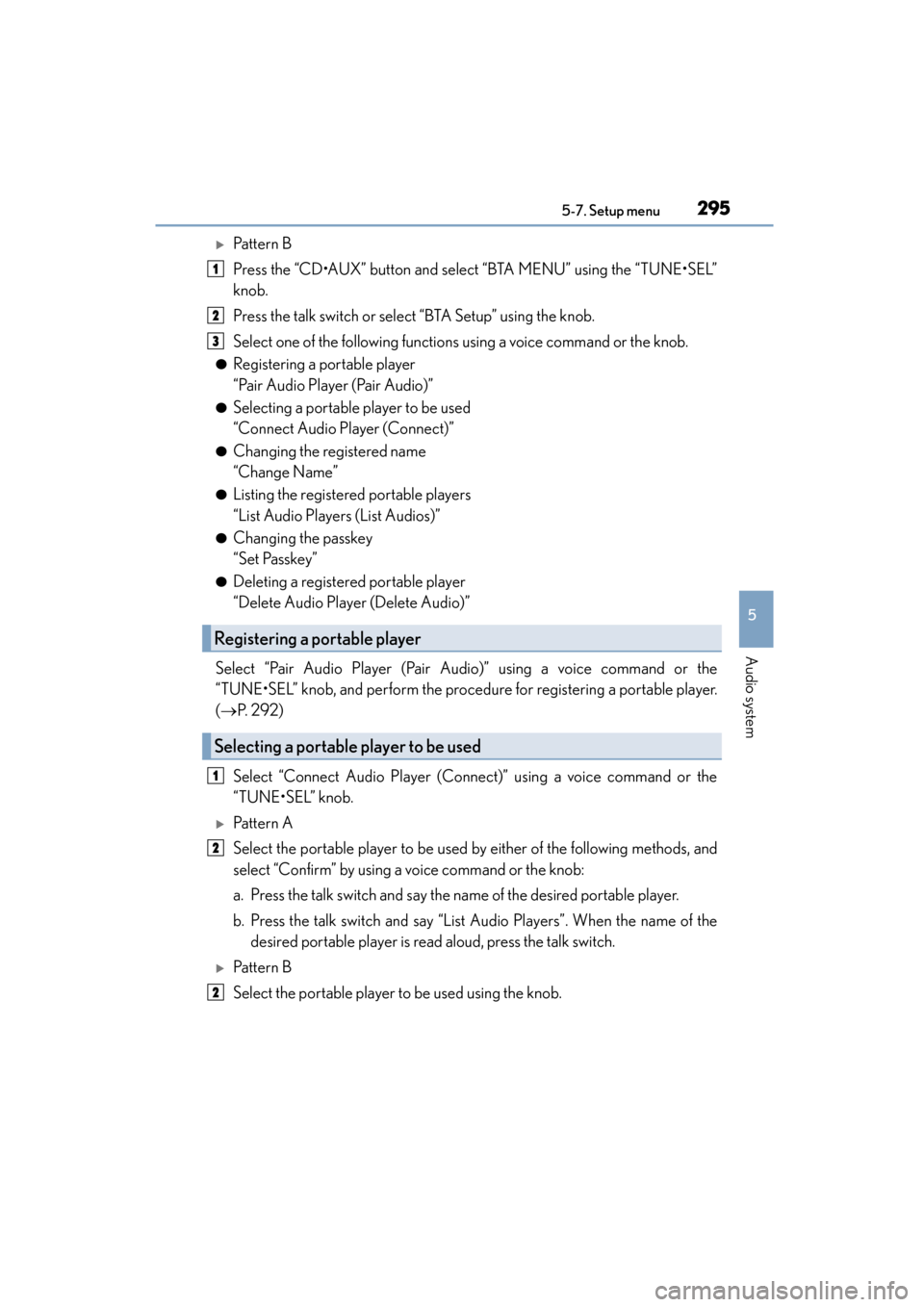

2955-7. Setup menu
5
Audio system
XPa t t e r n B
Press the “CD•AUX” button and select “BTA MENU” using the “TUNE•SEL”
knob.
Press the talk switch or select “BTA Setup” using the knob.
Select one of the following functions using a voice command or the knob.
●Registering a portable player
“Pair Audio Player (Pair Audio)”
●Selecting a portable player to be used
“Connect Audio Player (Connect)”
●Changing the registered name
“Change Name”
●Listing the registered portable players
“List Audio Players (List Audios)”
●Changing the passkey
“Set Passkey”
●Deleting a registered portable player
“Delete Audio Player (Delete Audio)”
Select “Pair Audio Player (Pair Audio)” using a voice command or the
“TUNE•SEL” knob, and perform the procedure for registering a portable player.
( → P. 2 9 2 )
Select “Connect Audio Player (Connect)” using a voice command or the
“TUNE•SEL” knob.
XPa t t e r n A
Select the portable player to be used by either of the following methods, and
select “Confirm” by using a voice command or the knob:
a. Press the talk switch and say the name of the desired portable player.
b. Press the talk switch and say “List Audio Players”. When the name of the desired portable player is read aloud, press the talk switch.
XPa t t e r n B
Select the portable player to be used using the knob.
Registering a portable player
Selecting a portable player to be used
1
2
3
1
2
2
