3985-21. Bluetooth® (Lexus Display Audio System)
CT200h_OM_OM76215U_(U)
WA R N I N G
■While driving
Do not operate the portable audio player, cellular phone or connect a device to the
Bluetooth
® system.
■Caution regarding interference with electronic devices
●Your audio unit is fitted with Bluetooth® antennas. People with implantable cardiac
pacemakers, cardiac resynchronization ther apy-pacemakers or implantable cardio-
verter defibrillators should maintain a re asonable distance between themselves and
the Bluetooth
® antennas. The radio waves may affect the operation of such devices.
●Before using Bluetooth® devices, users of any electrical medical device other than
implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators shou ld consult the manufacturer of the device
for information about its operation under the influence of radio waves. Radio waves
could have unexpected effects on th e operation of such medical devices.
NOTICE
■When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The inside of
the vehicle may become hot, causing damage to the portable audio player or cellular
phone.

408
CT200h_OM_OM76215U_(U)5-22. Other function (Lex
us Display Audio System)

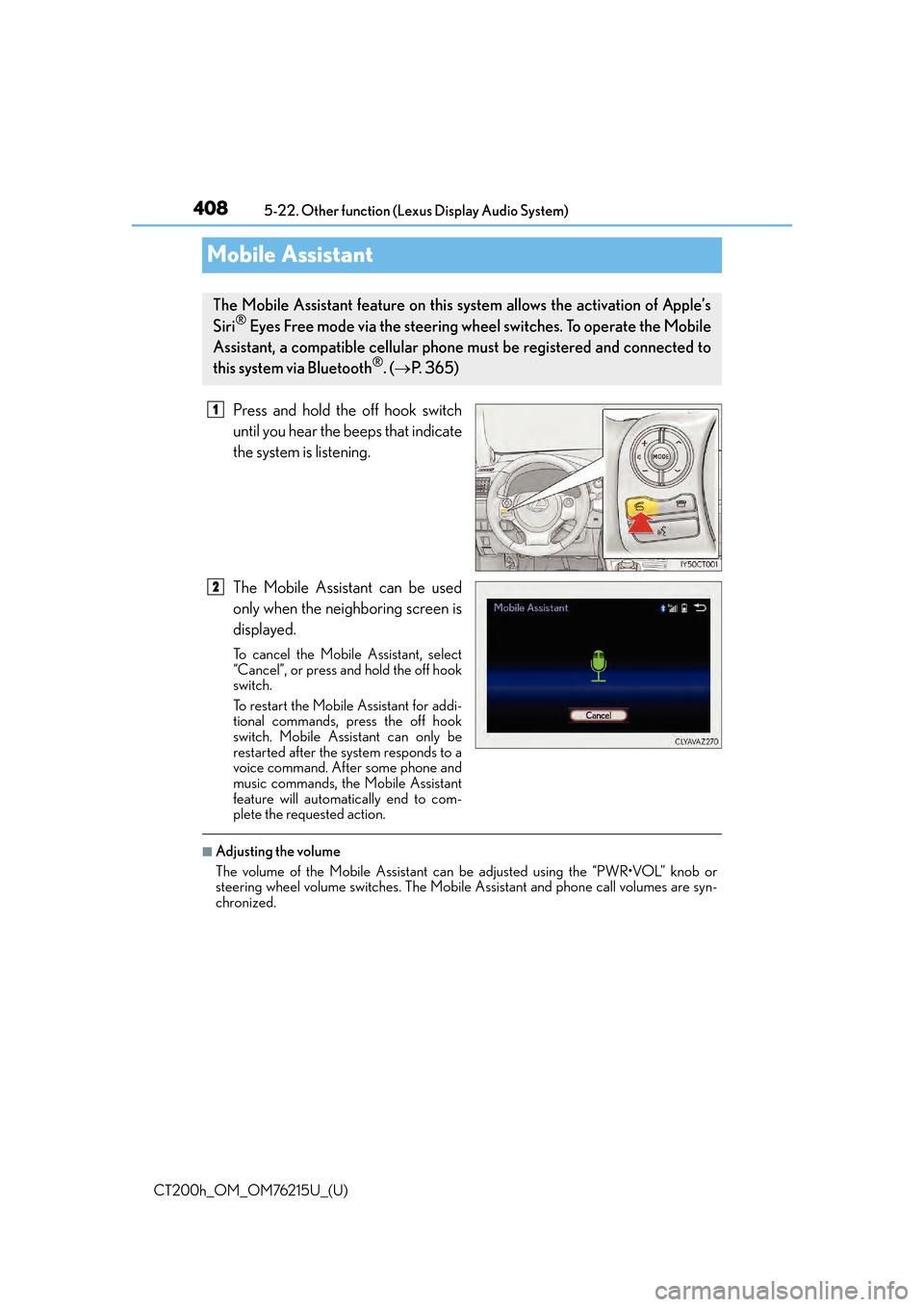

Mobile Assistant
Press and hold the off hook switch
until you hear the beeps that indicate
the system is listening.
The Mobile Assistant can be used
only when the neighboring screen is
displayed.
To cancel the Mobile Assistant, select
“Cancel”, or press and hold the off hook
switch.
To restart the Mobile Assistant for addi-
tional commands, press the off hook
switch. Mobile Assistant can only be
restarted after the system responds to a
voice command. After some phone and
music commands, the Mobile Assistant
feature will automatically end to com-
plete the requested action.
■Adjusting the volume
The volume of the Mobile Assistant can be adjusted using the “PWR•VOL” knob or
steering wheel volume switches. The Mobile Assistant and phone call volumes are syn-
chronized.
The Mobile Assistant feature on this system allows the activation of Apple’s
Siri® Eyes Free mode via the steering wheel switches. To operate the Mobile
Assistant, a compatible cellular phone must be registered and connected to
this system via Bluetooth
®. (  P. 3 6 5 )
1
2

CT200h_OM_OM76215U_(U)
4095-22. Other function (Lexus Display Audio System)
5
Audio system
■Microphone
●Wait for the listening beeps before using the Mobile Assistant.
●The Mobile Assistant may not recognize commands in the following situations:
• When spoken too quickly.
• When spoken at a low or high volume.
• When the roof or windows are open.
• When passengers are talking while th e Mobile Assistant is being used.
• When the air conditioning syst em’s fan speed is set high.
• When the air conditioning vents ar e turned toward the microphone.
■Mobile Assistant precautions
●The available features and functions may vary based on the iOS version installed on the
connected device.
●Some Siri features are limited in Eyes Free mode. If you attempt to use an unavailable
function, Siri will inform you that the function is not available.
●If Siri is not enabled on the cellular phone connected via Bluetooth®, an error message
will be displayed on the screen.
●While a phone call is active, the Mobile Assistant cannot be used.
●If using the navigation feature of the cellular phone, ensure the active audio source is
Bluetooth® audio or iPod in order to hear turn by turn direction prompts.
It is not necessary to speak directly into the
microphone when using
the Mobile Assistant.

CT200h_OM_OM76215U_(U)
4616-4. Using the other interior features
6
Interior features
Subscribers have the following Safety Connect services available:
●Automatic Collision Notification*
Helps drivers receive necessary response from emergency service providers.
(P. 4 6 2 )
*: U.S. Patent No. 7,508,298 B2
●Stolen Vehicle Location
Helps drivers in the event of vehicle theft. ( P. 4 6 2 )
●Emergency Assistance Button (SOS)
Connects drivers to resp onse-center support. (P. 4 6 2 )
●Enhanced Roadside Assistance
Provides drivers various on-road assistance. ( P. 4 6 3 )
After you have signed the Telematics Subscription Service Agreement and are
enrolled, you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your Lexus
dealer, call 1-800-25-LEXUS (1-800-255-3987) or push the “SOS” button in
your vehicle for further subscription details.
■Safety Connect Services Information
●Phone calls using the vehicles Bluetooth® technology will not be possible during Safety
Connect.
●Contact with the Safety Conne ct response center is dependent upon the telematics
device being in operative condition, cellul ar connection availability, and GPS satellite
signal reception, which can limit the ability to reach the response center or receive
emergency service support. Enrollment an d Telematics Subscription Service Agree-
ment required. A variety of subscription terms is available; charges vary by subscription
term selected.
●Automatic Collision Notification, Emergency Assistance and Stolen Vehicle Location
will function in the United States, including Hawaii and Alaska, and in Canada, and
Enhanced Roadside Assistance will function in the United States (except Hawaii) and in
Canada. No Safety Connect services will function outside of the United States in coun-
tries other than Canada.
●Safety Connect services are not subject to section 255 of the Telecommunications Act
and the device is not TTY compatible.
■Languages
The Safety Connect resp onse center will offer support in multiple languages. The Safety
Connect system will offer voice prompts in English and Spanish. Please indicate your lan-
guage of choice when enrolling.
■When contacting the response center
You may be unable to contact the resp onse center if the network is busy.
Services
Subscription

623Alphabetical index
CT200h_OM_OM76215U_(U)
Audio system (with Lexus Display Audio system) .................... 324Antenna ................................................. 348
Audio input........................................... 330
AUX port.............................................. 330
Bluetooth
® audio .............................. 373
CD player ............................................... 351
iPod ...........................................................357
MP3/WMA disc ................................ 351
Optimal use ..........................................339
Portable music player ......................364
Radio ........................................................345
Setup menu ........................................... 332
Steering wheel audio switches ...............................................329
USB memory ...................................... 360
Audio system (without Lexus Display Audio system) .................... 256Antenna ..................................................266
Audio input............................................259
AUX port...............................................259
Bluetooth
® audio ............................... 314
CD player/changer..........................269
iPod ........................................................... 276
MP3/WMA disc ...............................269
Optimal use ........................................... 261
Portable music player ......................259
Radio ........................................................263
Steering wheel audio switches .............................................. 258
USB memory .......................................282 Automatic air conditioning system
Air conditioning filter ....................... 507
Automatic air conditioning system ........................................ 414, 422
Automatic headlight leveling system ...................................................... 174
Automatic light control system ........ 174
AUX port .....................................259, 330
Auxiliary boxes ..................................... 439
Back door ....................................................112
Back-up lights Replacing light bulbs ....................... 523
Wattage ................................................ 585
Battery (12-volt battery) If the 12-volt battery is discharged........................................ 568
Preparing and checking before winter.................................................... 249
Warning light .......................................535
Battery (traction battery) ....................... 71
Bluetooth
®..................................320, 394
Audio system ............................. 314, 373
Hands-free system (for cellular phone) .......... 288, 375
Bottle holders .........................................434
Brake Fluid ..........................................................583
Parking brake ..........................................171
Regenerative braking ......................... 69
Warning light .......................................535
B
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
