Lexus ES300 2001 Owner's Manuals (in English)

ENGINE
404
FUEL
Fuel type
Your vehicle must use only unleaded gasoline.
To help prevent gas station mixups, your Lexus has a
smaller fuel tank opening. The special nozzle on pumps
with unleaded fuel will fit it, but the larger standard nozzle
on pumps with leaded gas will not.
At a minimum, the gasoline you use should meet the
specifications of ASTM D4814 in the U.S.A. and CGSB
3.5±M93 in Canada.
NOTICE
Do not use leaded gasoline. Use of leaded gasoline will cause the three±way catalyticconverter to lose its effectiveness and theemission control system to function improperly.Also, this can increase maintenance costs.
Octane rating
Select Octane Rating 87 (Research Octane Number
91) or higher. For improved vehicle performance,
the use of premium unleaded gasoline with an
Octane Rating of 91 (Research Octane Number 96)
or higher is recommended.
Use of unleaded fuel with an Octane Rating or Research Octane Number lower than stated above will cause
persistent heavy knocking. If it is severe, this will lead
to engine damage.
If your engine knocks ...
If you detect heavy knocking even when using the
recommended
fuel, or if you hear steady knocking while
holding a steady speed on level roads, consult your
Lexus dealer.
However, now and then, you may notice light knocking
for a short time while accelerating or driving up hills. This
is no cause for concern.
Gasolines containing detergent additives
Lexus recommends the use of gasoline that contain
detergent additives to avoid build±up of engine
deposits.
For further details, ask your Lexus dealer or a local
gasoline retailer.
Quality gasoline
Automobile manufacturers in U.S., Europe and
Japan have developed a specification for quality
fuel named W orld±Wide Fuel Charter (WWFC) that is
expected to be applied world wide. The WWFC
consists of three categories that depend on
required emission levels. In the U.S., category 3 has
been adopted. The WWFC improves air quality by
providing for better emissions in vehicle fleets, and

ENGINE
405
customer satisfaction through better vehicle
performance.
Cleaner burning gasoline
Cleaner burning gasoline, including reformulated
gasoline that contains oxygenates such as ethanol
or MTBE is available in many areas.
Lexus recommends the use of cleaner burning gasoline
and appropriately blended reformulated gasoline.
These types of gasoline provide excellent vehicle
performance,
reduce vehicle emissions, and improve air
quality.
Oxygenates in gasoline
Lexus all ows the use of oxygenate blended gasoline
where the oxygenate content is up to 10% ethanol or
15% MTBE. If you use gasohol in your Lexus, be
sure that it has an octane rating no lower than 87.
Lexus does not recommend the use of gasoline
containing methanol.
Sulfur in gasoline
If your vehicle is certified to California Emission
Regulations, the vehicle is designed to operate on
California cleaner burning gasoline (CBG) that
contains lower sulfur. If you cannot use California
CBG, your emission control system may suffer
damage and turn on the Malfunction Indicator Lamp.
If the malfunction is caused by the type of fuel used,
repairs may not be covered by your warranty.

ENGINE
406
Gasoline containing MMT
Some gasoline contain an octane enhancing
additive called MMT (Methylcyclopentadienyl
Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that
contains MMT. If fuel containing MMT is used, your
emission control system may be adversely affected.
The Malfunction Indicator Lamp on the instrument
cluster may come on. If this happens, contact your
Lexus dealer for service.
Gasoline quality
In a very few cases, you may experience driveability
problems caused by the particular gasoline that you are
using. If you continue to have unacceptable driveability,
try changing gasoline brands. If this does not rectify your
problem, then consult your Lexus dealer.
NOTICE
Do not use gasohol other than stated above. It will cause fuel system damage or vehicleperformance problems.
If drivability problems are encountered (poorhot starting, vaporizing, engine knock, etc.),discontinue its use.
Take care not to spill gasohol during refueling.Gasohol may cause paint damage.
Fuel tank capacity
70 L (18.5 gal., 15.4 lmp. gal.)

ENGINE
407
FACTS ABOUT ENGINE OILCONSUMPTION
Functions of engine oil
Engine oil has the primary function of lubricating and
cooling the inside of the engine, and plays a major role
in maintaining the engine in proper working order.
Engine oil consumption
It is normal that an engine should consume some
engine oil during normal engine operation. The
causes of oil consumption in a normal engine are as
follows.
Oil is used to lubricate pistons, piston rings and
cylinders. A thin film of oil is left on the cylinder wall
when a piston moves downwards in the cylinder.
High negative pressure generated when the vehicle
is decelerating sucks some of this oil into the
combustion chamber. This oil as well as some part of
the oil film left on the cylinder wall is burned by the
high temperature combustion gases during the
combustion process.
 Oil is also used to lubricate the stems of the intake
valves. Some of this oil is sucked into the combustion
chamber together with the intake air and is burned
along with the fuel. High temperature exhaust gases
also burn the oil used to lubricate the exhaust valve stems.
The amount of engine oil consumed depends on the
viscosity of the oil, the quality of the oil and the way
the vehicle is driven.
More oil is consumed under driving conditions such as
high speeds and frequent acceleration and
deceleration.
A new engine consumes more oil, since its pistons,
piston rings and cylinder walls have not become
conditioned.
When judging the amount of oil consumption, keep
in mind that the oil may have become diluted,
making it difficult to judge the true level accurately.
For example, if a vehicle is used for repeated short trips
and consumes a normal amount of oil, the dipstick may
not show any drop in the oil level at all, even after 1000
km (600 miles) or more. This is because the oil is
gradually becoming diluted with fuel or moisture, making
it appear that the oil level has not changed.
The diluting ingredients evaporate out when the vehicle
is then driven at high speeds, as on an expressway,
making it appear that oil is excessively consumed after
driving at high speeds.

ENGINE
408
Importance of engine oil level check
One of the most important points in proper vehicle
maintenance is to keep the engine oil at the optimum
level so that oil function will not be impaired. Therefore,
it is essential that the oil level be checked regularly.
Lexus recommends that the oil level be checked every
time you refuel the vehicle.
NOTICE
Failure to check the oil level regularly could leadto serious engine trouble due to insufficient oil.
For detailed information on oil level check, see
ªChecking the engine oil levelº on page 410.

ENGINE
409
USED ENGINE OIL

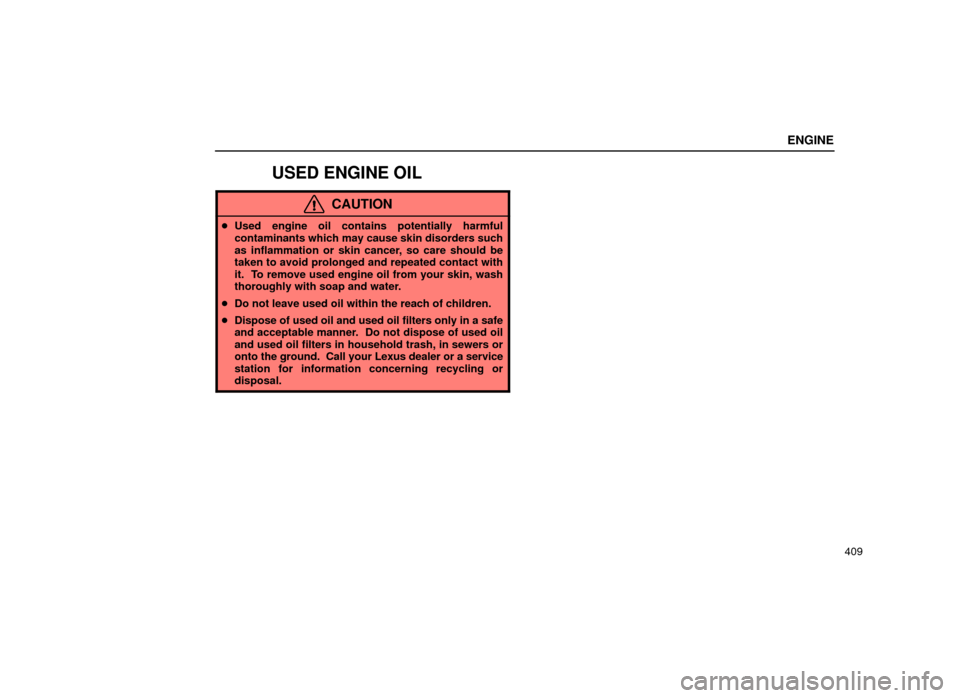

CAUTION
Used engine oil contains potentially harmful
contaminants which may cause skin disorders such
as inflammation or skin cancer, so care should be
taken to avoid prolonged and repeated contact with
it. To remove used engine oil from your skin, wash
thoroughly with soap and water.
 Do not leave used oil within the reach of children.
 Dispose of used oil and used oil filters only in a safe
and acceptable manner. Do not dispose of used oil
and used oil filters in household trash, in sewers or
onto the ground. Call your Lexus dealer or a service
station for information concerning recycling or
disposal.

ENGINE
410
CHECKING THE ENGINE OILLEVEL

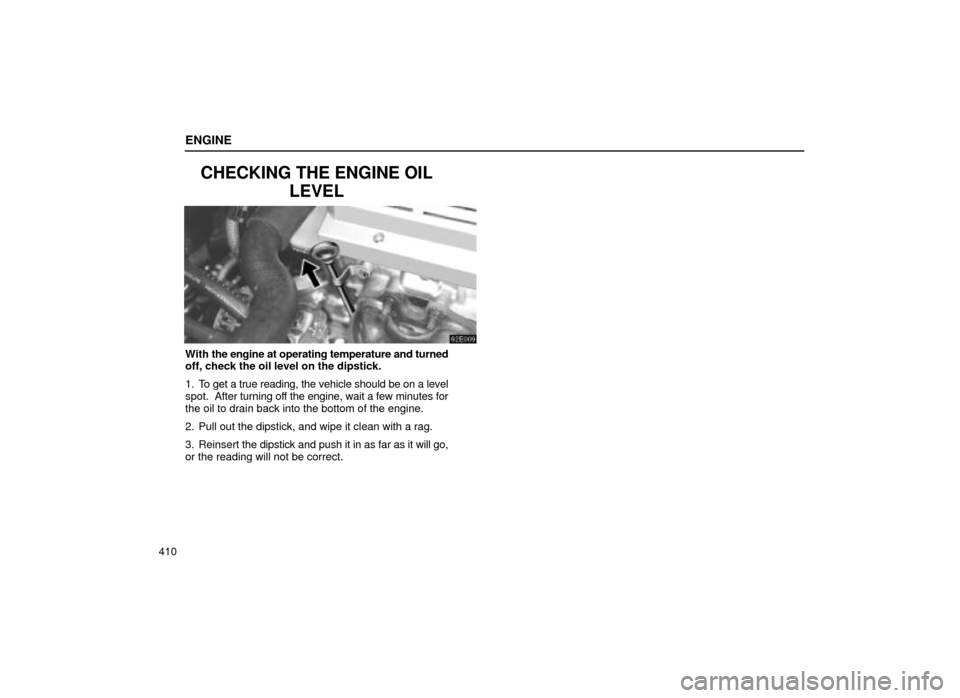

62E009
With the engine at operating temperature and turned
off, check the oil level on the dipstick.
1. To get a true reading, the vehicle should be on a level
spot. After turning off the engine, wait a few minutes for
the oil to drain back into the bottom of the engine.
2. Pull out the dipstick, and wipe it clean with a rag.
3. Reinsert the dipstick and push it in as far as it will go,
or the reading will not be correct.

ENGINE
411

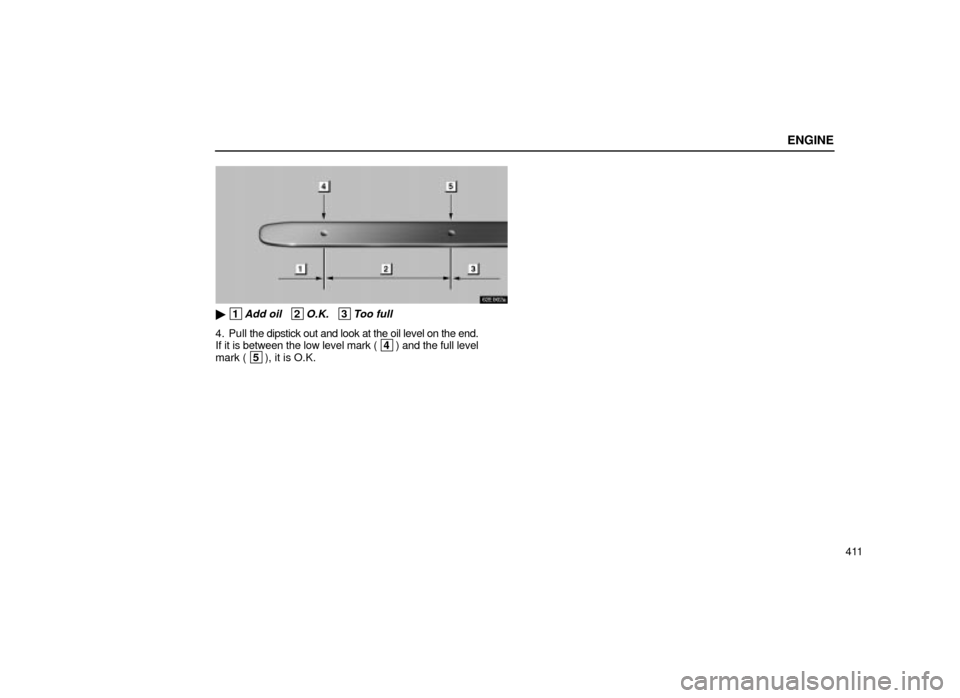

62E002a

1Add oil 2O.K. 3Too full
4. Pull the dipstick out and look at the oil level on the end.
If it is between the low level mark ( 4 ) and the full level
mark ( 5 ), it is O.K.

ENGINE
412
62E003±2

ENGINE
413
If the oil level is below or only slightly above the low
mark, add engine oil of the same type as already in
the engine.

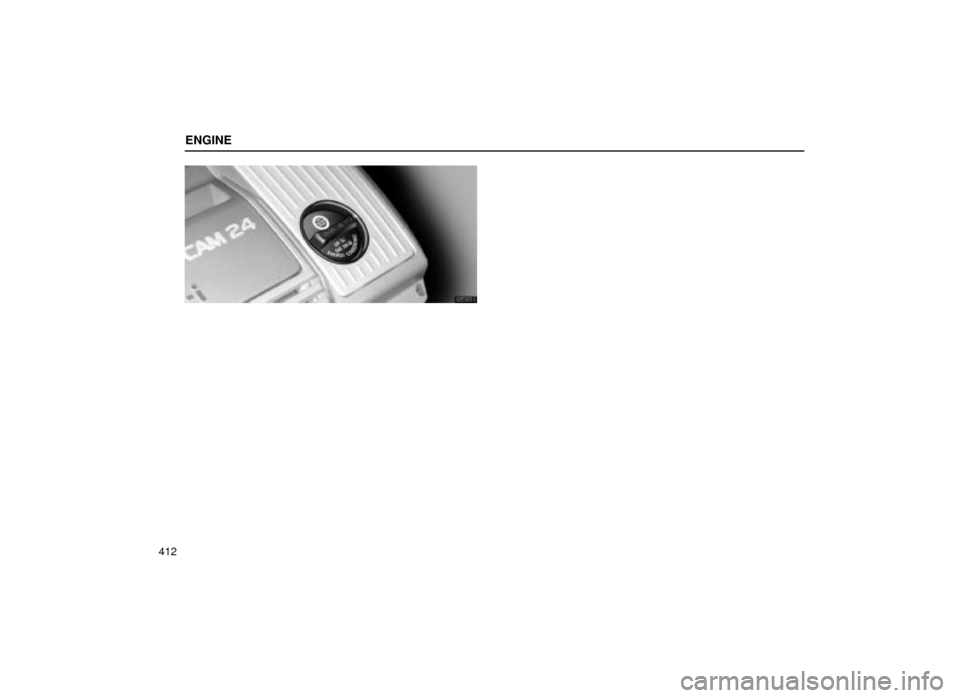

Remove the oil filler cap and add engine oil a little at a
time,
checking the dipstick. The approximate quantity of
oil needed to fill between the low level mark and the full
level mark on the dipstick is indicated below for
reference.
When the level reaches within the correct range, return
the filler cap and turn the cap clockwise until you hear a
click.
Oil quantity. L (qt., lmp. qt.) 1.5 (1.6, 1.3)
NOTICE
Avoid overfilling, or the engine could be
damaged. Ch eck the oil level on the dipstick once
again after adding the oil.
