INTRODUCTION
394
NOTICE
Remember that battery and ignition cablescarry high currents or voltages. Be careful ofaccidentally causing a short circuit.
Before closing the engine hood, check to seethat you have not forgotten any tools, rags, etc.
Do not drive with the air cleaner removed, or
excessive engine wear could result. Alsobackfiring could cause a fire in the enginecompartment.
Do not overfill automatic transmission fluid, orthe transmission could be damaged.
Be careful not to scratch the glass surface withthe wiper frame.
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
do±it±yourself maintenance. Remember all Lexus parts
are designed in metric sizes, so your tools must be
metric.
Checking the engine oil level
Parts (if level is low):
 Use API grade SJ, ªEnergy±Conservingº multigrade
engine oil or ILSAC multigrade engine oil. For
recommended oil viscosity, see page 414.
Tools:
 Rag or paper towel
 Funnel (only for adding oil)
Checking the engine coolant level
Parts (if level is low):
ªToyota Long Life Coolantº or equivalent
See ªChecking the engine coolant levelº on page 415
for instructions.
 Demineralized or distilled water
Tools:
 Funnel (only for adding coolant)

INTRODUCTION
395
Checking brake fluid
Parts (if level is low):
FMVSS No. 116 DOT 3 or SAE J1703 brake fluid
Tools:
 Funnel (only for adding fluid)
Checking power steering fluid
Parts (if level is low):
Automatic transmission fluid DEXRON
II or III
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)
Checking battery condition
Tools:
Warm water
 Baking soda
 Grease
 Conventional wrench (for terminal clamp bolts)
Checking and replacing the blade type
fuses
Parts (if replacement is necessary):
Fuse with same amperage rating as original
Checking the cartridge type fuses
Parts (if replacement is necessary):
Genuine Lexus fuse or equivalent with same
amperage rating as original
Adding washer fluid
Parts:
Water
 Washer fluid containing antifreeze (for winter use)
Tools:
 Funnel

INTRODUCTION
396
POSITIONING THE JACK
61E030

Front
61E031

Rear
When jacking up your vehicle with the jack, position
the jack correctly as shown in the illustrations.

INTRODUCTION
397

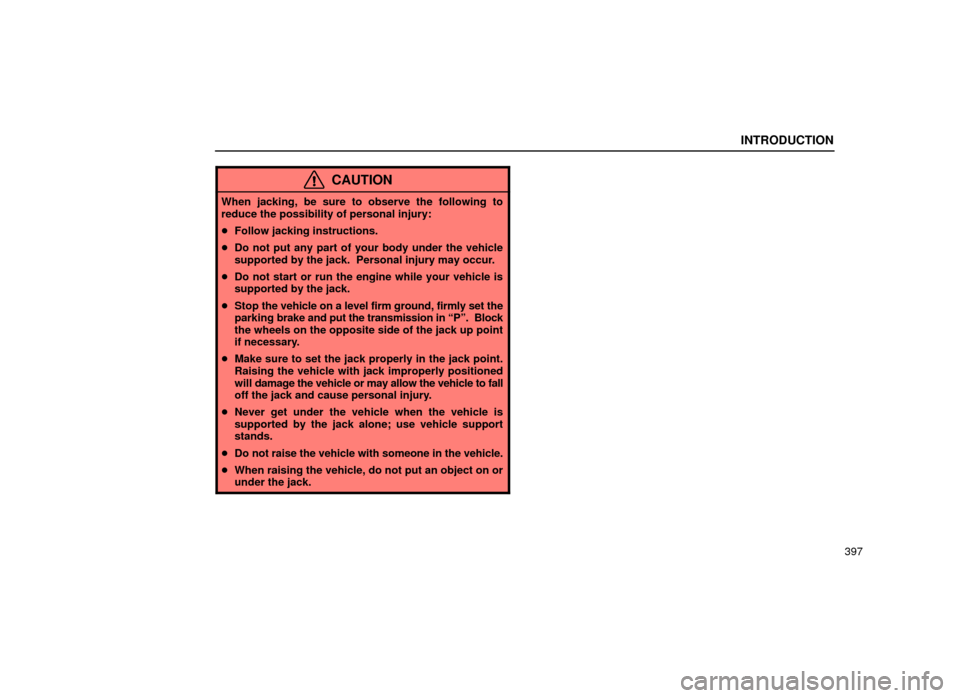

CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
Follow jacking instructions.
 Do not put any part of your body under the vehicle
supported by the jack. Personal injury may occur.
 Do not start or run the engine while your vehicle is
supported by the jack.
 Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in ªPº. Block
the wheels on the opposite side of the jack up point
if necessary.
 Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.
 Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.
 Do not raise the vehicle with someone in the vehicle.
 When raising the vehicle, do not put an object on or
under the jack.

INTRODUCTION
398
NOTICE
Make sure to place the jack correctly, or yourvehicle may be damaged.

INTRODUCTION
399

SECTION 6 ± 2
400
SERVICE PROCEDURES AND
SPECIFICATIONS
Engine
Specifications 401. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel 404
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Facts about engine oil consumption 407
. . . . . . . . . . . . .
Used engine oil 409
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine oil level 410
. . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 415
. . . . . . . . . . . . . . .
Spark plugs 419
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ENGINE
401
SPECIFICATIONS
± GENERALModel
Type
Bore and stroke
Displacement
Valve clearance (engine cold) Intake
Exhaust
Drive belt tension (with Borroughs drive belt tension
gauge No. BT±33±73F)
1MZ ± FE
6 cylinder V type, 4 cycle, gasoline
87.5
83 mm (3.44
3.27 in.)
2995 cm
3 (182.8 cu. in.)
0.15 ± 0.25 mm (0.006 ± 0.010 in.)
0.25 ± 0.35 mm (0.010 ± 0.014 in.)
115  20 lb.
± LUBRICATION SYSTEM

62L005±1
Temperature range anticipated before next oil change
ENGINE
402Oil capacity
Drain and refillwith filter
without filter
Oil grade
Recommended oil viscosity (SAE):
4.7 L (5.0 qt., 4.1 lmp. qt.)
4.5 L (4.8 qt., 4.0 lmp. qt.)
API SJ, ªEnergy±Conservingº multigrade engine oil or
ILSAC multigrade engine oil
± COOLING SYSTEM
Capacity
Coolant type
8.8 L (9.3 qt., 7.7 lmp. qt.)
ªToyota Long Life Coolantº or equivalent
With ethylene±glycol type coolant for a proper
corrosion protection of aluminum components
Do not use alcohol type antifreeze or plain water
alone.
± FUELFuel type
Octane Rating
Only UNLEADED
87 (Research Octane Number 91) or higher

ENGINE
403
± IGNITION SYSTEM
Spark plug ± Make DENSO NGK
± Gap
SK20R11
IFR6A11
1.1 mm (0.043 in.)
± ELECTRICAL SYSTEM
Battery ± Maintenance type battery Specific gravity reading at 20 C (68F):
Charging rates Quick charge Slow charge
± Non±maintenance battery Open voltage at 20C (68F):
Charging rates
1.260 Fully charged
1.160 Half charged
1.060 Discharged
15A max.
5A max.
12.7V Fully charged
12.3V Half charged
11.9V Discharged
[Voltage that is checked 20 minutes after the key is
removed with all the lights turned off]
5A max.
