Lexus ES350 2008 Owner's Manual

339
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0708)■
Driver’s side instrument panel
FuseAmpereCircuit
1RR DOOR RH25 APower window
2RR DOOR LH25 APower window
3FUEL OPN7. 5 AFuel filler door opener
4FR FOG15 AFront fog lights
5OBD7. 5 AOn-board diagnosis system
6ECU-B NO.27. 5 AECU powers
7STO P10 AStop lights
8TI & TE30 ATilt and telescopic steering
9A/C7. 5 AAir conditioning system
10PWR25 APower windows
11DOOR NO.225 AMain body ECU
12S/ROOF30 AMoon roof
13TA I L10 AFront and rear side marker lights, tail
lights, license plate lights
14PA N E L7. 5 ASwitch illumination

340
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0708)
15ECU-IG NO. 110 A
Moon roof, seat heaters, power win-
dows, clock, automatic windshield
wiper, electric cooling fans, driving
position memory system, seat position
memory system
16ECU-IG NO. 27. 5 A
Anti-lock brake system, vehicle stabil-
ity control system, traction control sys-
tem, brake assist system, cruise
control system, stop lights, shift lock
control system
17A/C NO. 210 AAir conditioning system, rear window
defogger
18WA S H10 AWindshield washer
19S-HTR20 ASeat heaters, air conditioning system
20GAUGE NO. 110 AEmergency flashers, back-up lights,
rear sunshade, charging system
21WIP25 AWindshield wipers
22H - L P LV L7. 5 AHeadlight leveling system
23IGN10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, SRS airbag system, steering lock
system
24GAUGE NO. 27. 5 AMeters
25ECU-ACC7. 5 AClock, main body ECU
26CIG20 ACigarette lighter
27PWR OUTLET20 APower outlet
28RADIO NO. 27. 5 AAudio system
29MIR HTR15 AOutside rear view mirror defoggers
FuseAmpereCircuit

341
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0708)
30POWER30 APower window
31P/ S E AT30 APower seat
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 3 4 3 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
FuseAmpereCircuit

342
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0708)
Headlight aim (vehicles with discharge headlights)
■Vertical movement adjusting bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
■ Adjusting the headlight aim
Turn bolt A in either direction
using a Phillips-head screw-
driver.
Remember the turning direction
and the number of turns in mind.
Turn bolt B the same number of
turns and in the same direction
as step 1 using a Phillips-head
screwdriver.
If the error is over the value
specified above, take the vehicle
to your Lexus dealer to adjust
the headlight aim.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2

343
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0708)
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( →P. 4 1 7 )
■ Remove the engine compartment cover.
→ P. 302
■ Front bulb locations
■ Rear bulb locations
Headlight high beam
Headlight
low beam
(halogen
bulb)
Front turn signal lightFront side marker light
Parking light
Rear turn signal light Stop/tail light
Rear side marker light

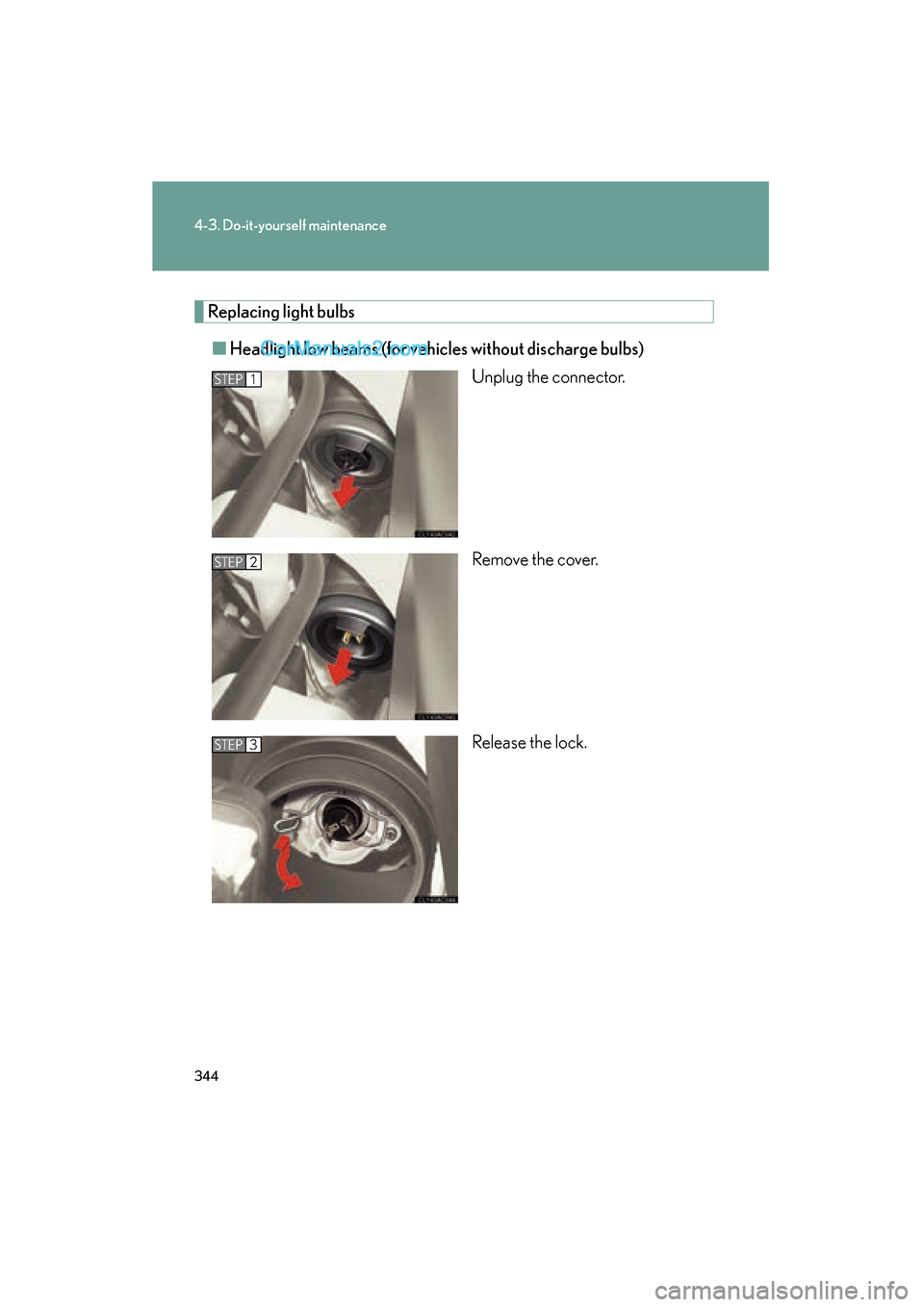

344
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0708)
Replacing light bulbs■ Headlight low beams (for vehi cles without discharge bulbs)
Unplug the connector.
Remove the cover.
Release the lock.
STEP1
STEP2
STEP3

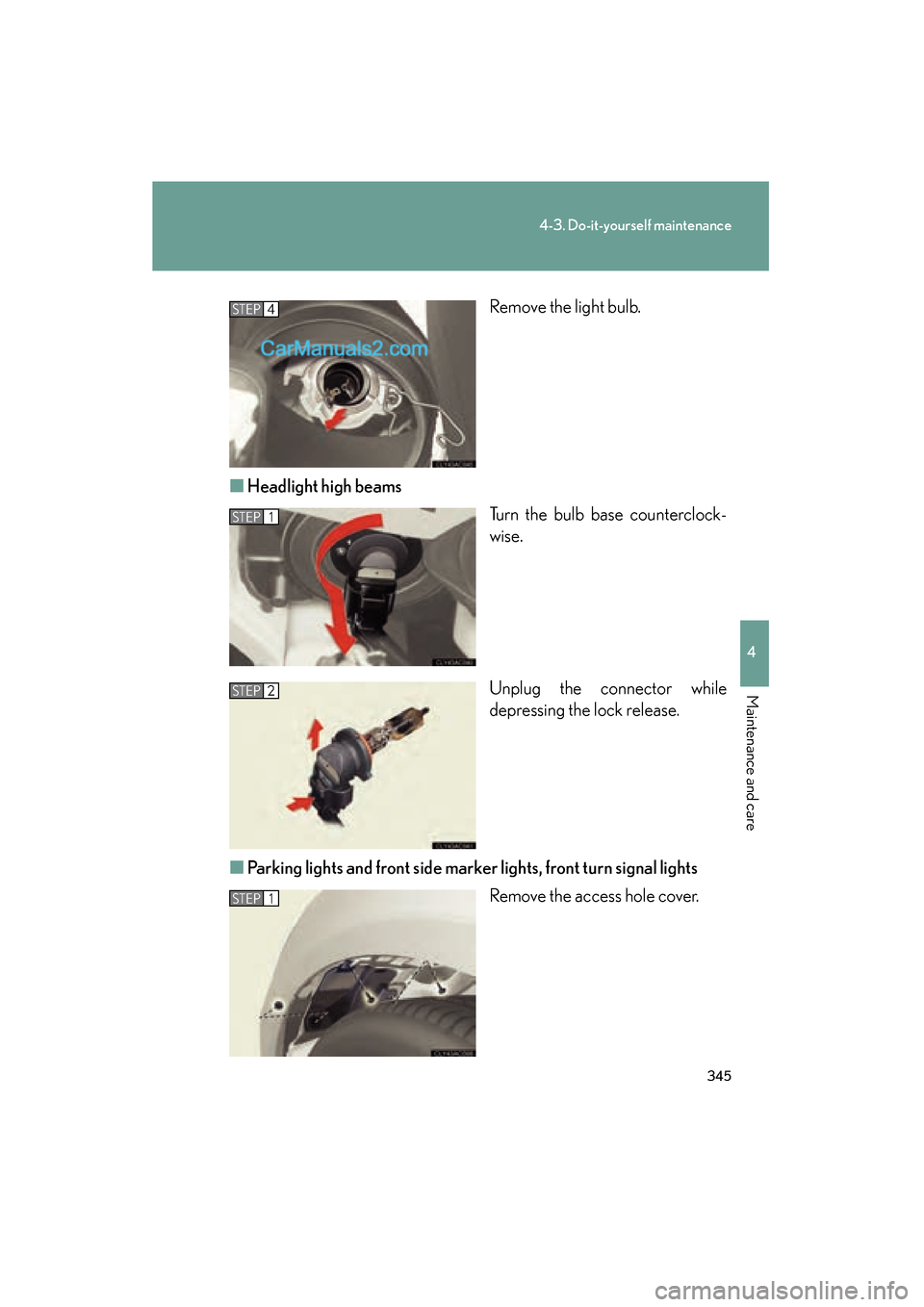

345
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0708)Remove the light bulb.
■ Headlight high beams
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Parking lights and front side marker lights, front tu rn signal lights
Remove the access hole cover.
STEP4
STEP1
STEP2
STEP1

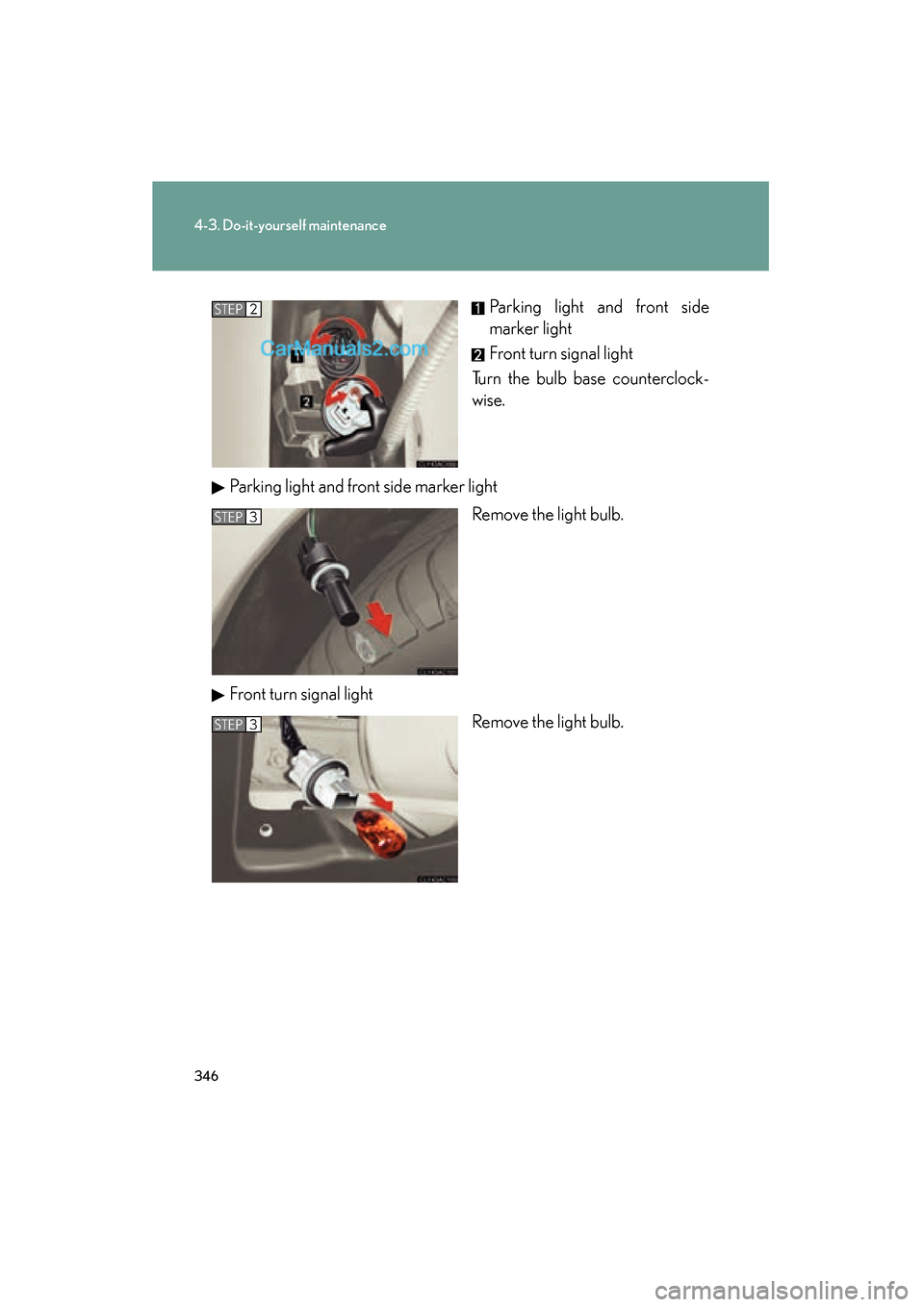

346
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0708)Parking light and front side
marker light
Front turn signal light
Turn the bulb base counterclock-
wise.
Parking light and front side marker light Remove the light bulb.
Front turn signal light Remove the light bulb.
STEP2
STEP3
STEP3

347
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0708)■
Stop/tail, rear turn signal and rear side marker lights
Open the trunk lid and remove the
access hole cover.
Stop/tail light
Rear turn signal light
Rear side marker light
Turn the bulb base counterclock-
wise.
Stop/tail light Remove the light bulb.
STEP1
STEP2
STEP3

348
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0708)Rear turn signal light
Remove the light bulb.
Rear side marker light Remove the light bulb.
■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
● Headlight low beams (discharge bulbs)
● Front fog lights
● Tail lights
● High mounted stoplight
● License plate lights
● Back-up lights
STEP3
STEP3
