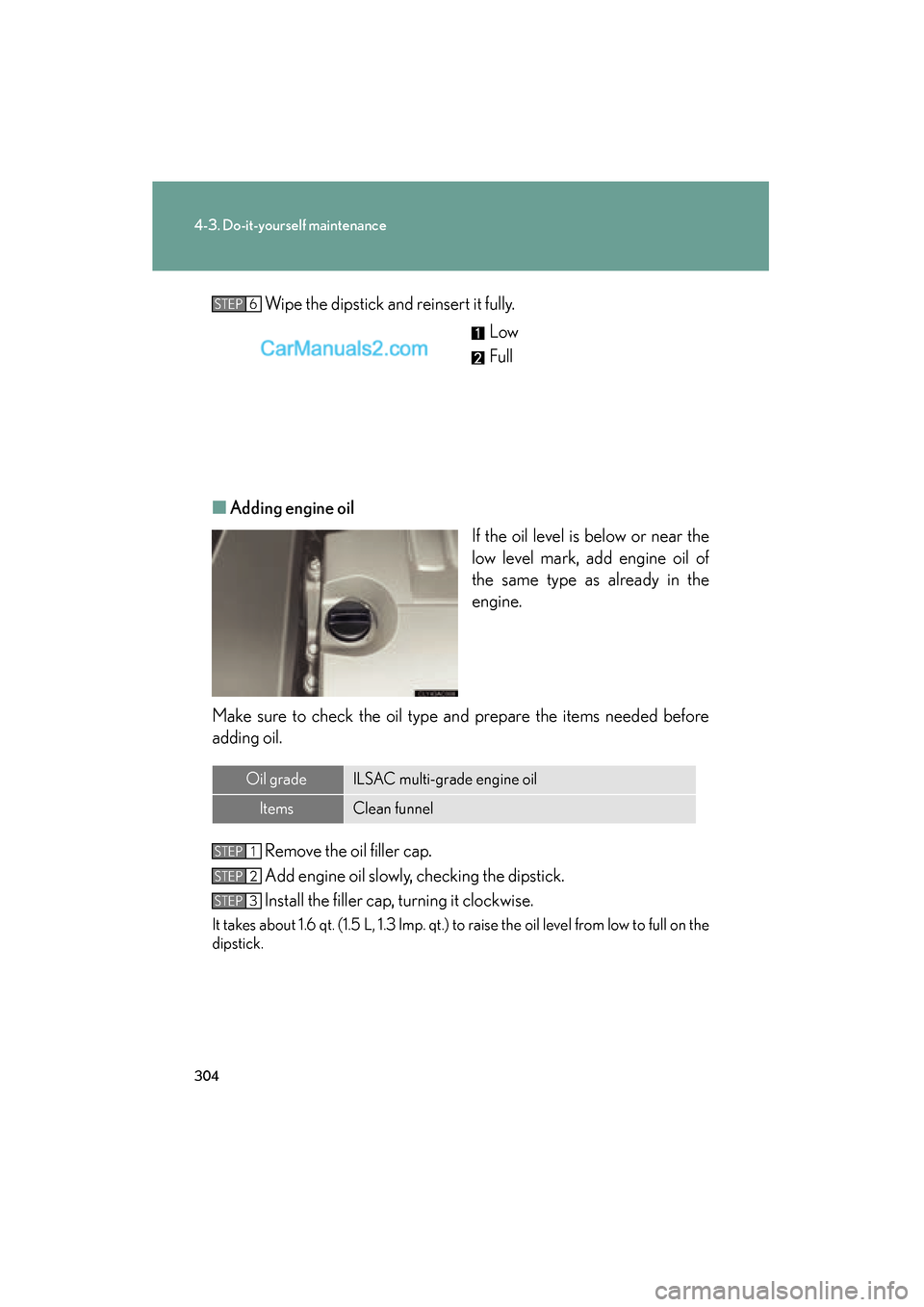

304
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0708)Wipe the dipstick and reinsert it fully.
Low
Full
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil. Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
It takes about 1.6 qt. (1.5 L, 1.3 lmp. qt.) to raise the oil level from low to full on the
dipstick.
STEP6
Oil gradeILSAC multi-grade engine oil
ItemsClean funnel
STEP1
STEP2
STEP3
427
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0708)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty 12-volt battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer's designation for a rim by
style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68
kg) times the vehicle's designated seating capacity
Tire related termMeaning
456
ES350_U_(L/O_0708)
GAS STATION INFORMATION
Auxiliary catch leverP. 2 9 8Trunk openerP. 4 1Fuel filler door P. 6 7
Hood lock release lever P. 2 9 8Fuel filler door opener P. 6 7Tire inflation pressureP. 4 1 5
Fuel tank capacity18.5 gal. (70L, 15.4 lmp.gal.)
Fuel typeUnleaded gasoline only P. 68, 410
Cold tire inflation
pressureP. 4 1 5
Engine oil capacity
(Drain and refill)qt. (L, Imp.qt.)
With filter 6.4 (6.1, 5.3)
Without filter 6.0 (5.7
, 5.0)
Engine oil typeToyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil P. 411
Recommended oil viscosity: SAE 5W-30
