Lexus ES350 2009 Owner's Manual

229
3-3. Using the hands-free phone system (for cellular phone)
3
Interior features
ES350_U_(L/O_0808)

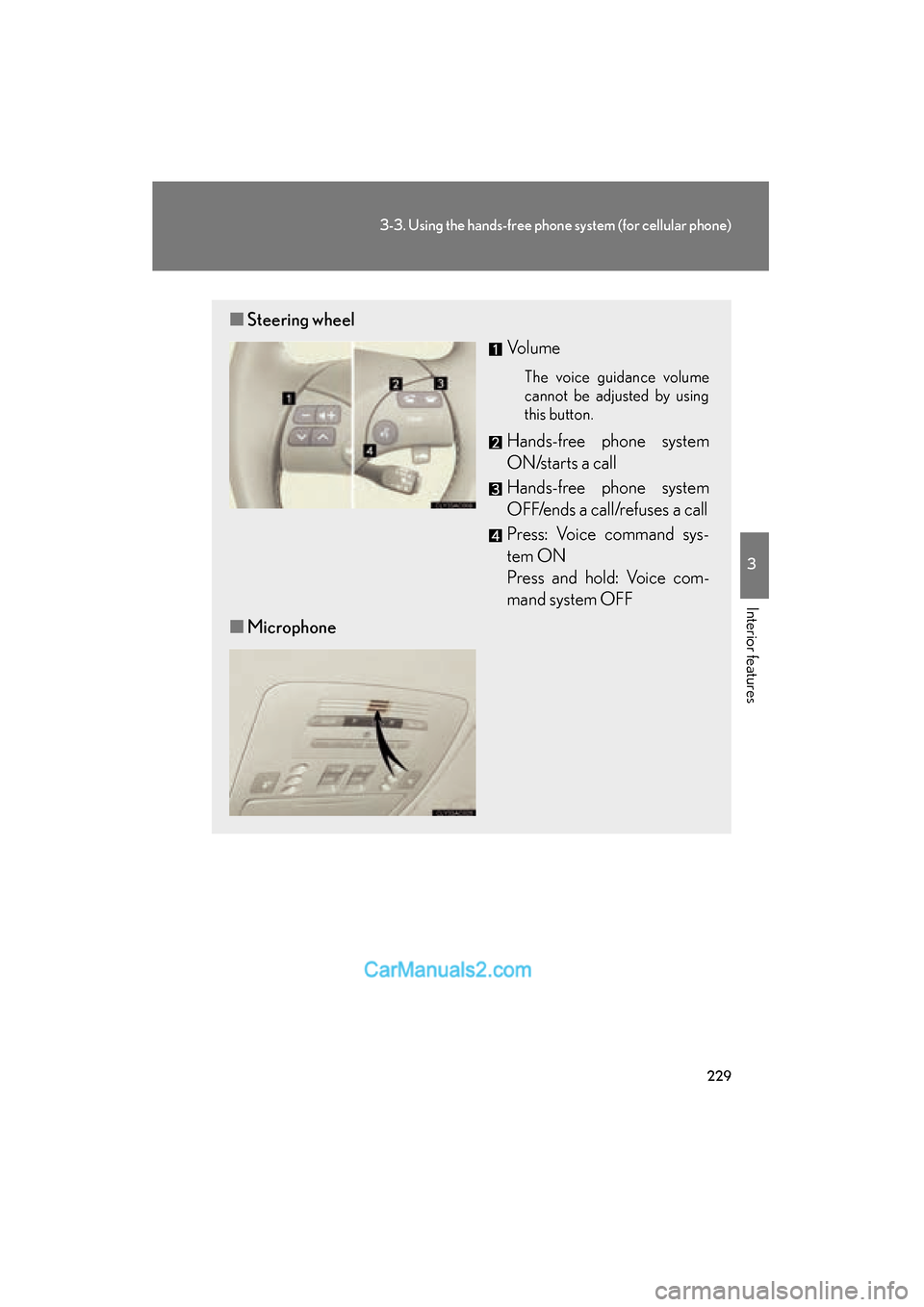

■Steering wheel
Vo l u m e
The voice guidance volume
cannot be adjusted by using
this button.
Hands-free phone system
ON/starts a call
Hands-free phone system
OFF/ends a call/refuses a call
Press: Voice command sys-
tem ON
Press and hold: Voice com-
mand system OFF
■ Microphone

230
3-3. Using the hands-free phone system (for cellular phone)
ES350_U_(L/O_0808)

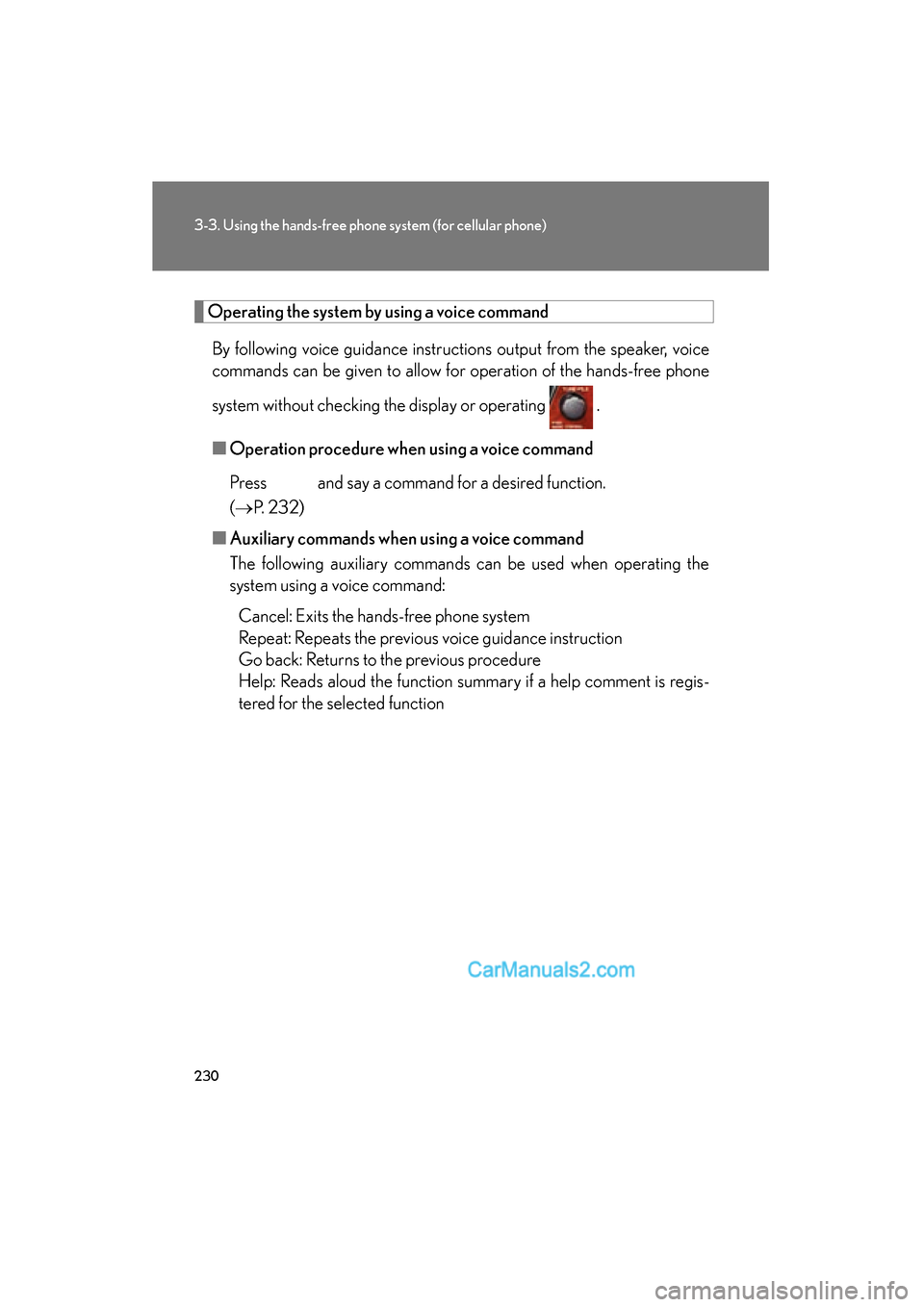

Operating the system by using a voice command
By following voice guidance instructions output from the speaker, voice
commands can be given to allow for operation of the hands-free phone
system without checking the display or operating .
■ Operation procedure when using a voice command
Press and say a command for a desired function.
(→ P. 2 3 2 )
■ Auxiliary commands when using a voice command
The following auxiliary commands can be used when operating the
system using a voice command:
Cancel: Exits the hands-free phone system
Repeat: Repeats the previous voice guidance instruction
Go back: Returns to the previous procedure
Help: Reads aloud the function summary if a help comment is regis-
tered for the selected function

231
3-3. Using the hands-free phone system (for cellular phone)
3
Interior features
ES350_U_(L/O_0808)
Using the hands-free phone system for the first time
Before using the hands-free phone system, it is necessary to register a
cellular phone in the system. The phone registration mode will be entered
automatically when starting the system with no cellular phone registered.
Follow the procedure below to register a cellular phone:
Press or .
The introductory guidance and phone name registration instructions are
heard.
Register a phone name by either of the following methods.
a. Select “Record Name” by using , and say a name to be
registered.
b. Press and say a name to be registered.
Voice guidance instruction to confirm the input is heard.
Select “Confirm” by using a voice command or .
A passkey is displayed and heard, and voice guidance instruction for
inputting the passkey into the cellular phone is heard. Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the opera-
tion of the phone.
Guidance for registration completion is heard.
STEP1
STEP2
STEP3
STEP4

232
3-3. Using the hands-free phone system (for cellular phone)
ES350_U_(L/O_0808)

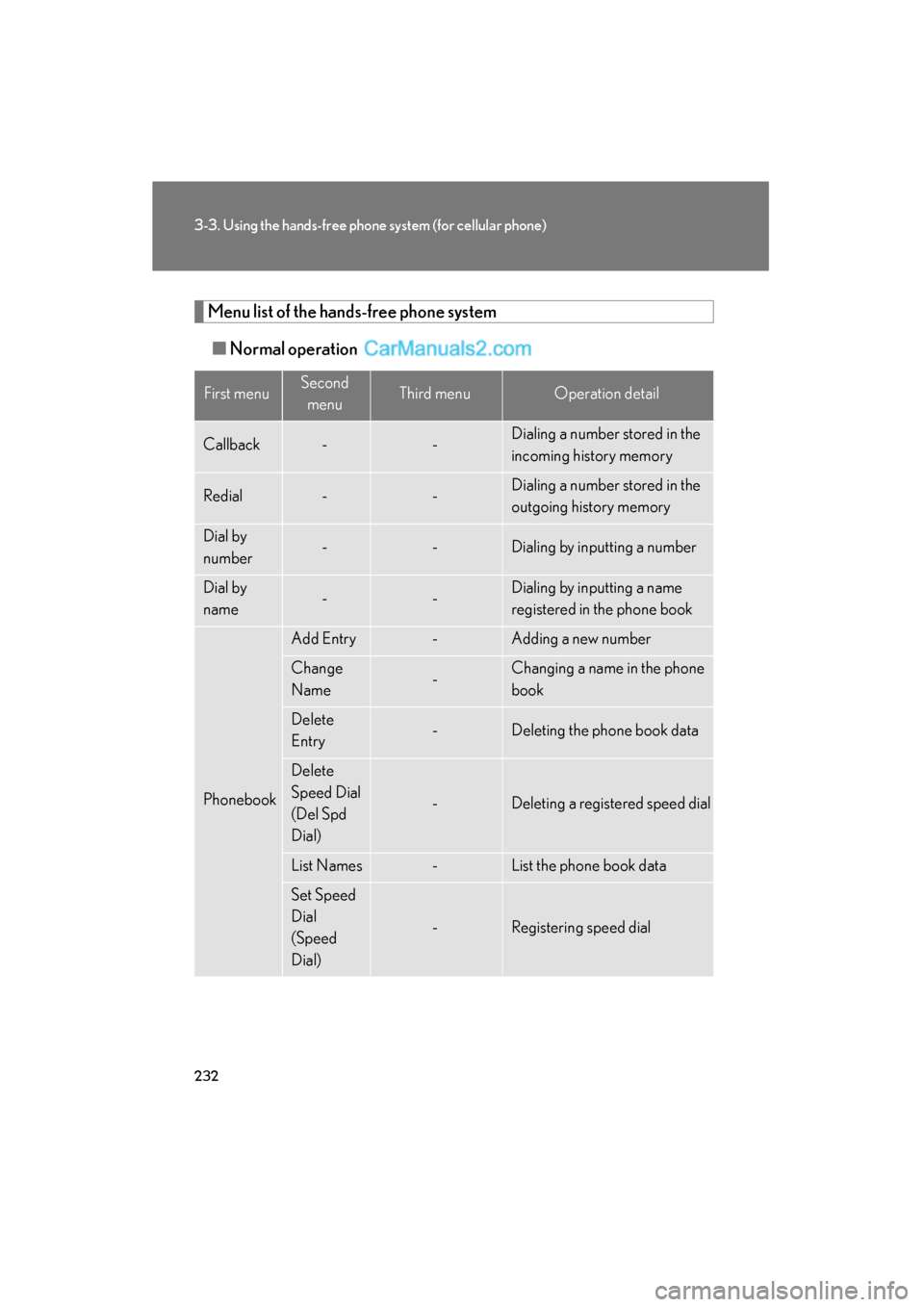

Menu list of the hands-free phone system■ Normal operation
First menuSecond
menuThird menuOperation detail
Callback--Dialing a number stored in the
incoming history memory
Redial--Dialing a number stored in the
outgoing history memory
Dial by
number--Dialing by inputting a number
Dial by
name--Dialing by inputting a name
registered in the phone book
Phonebook
Add Entry-Adding a new number
Change
Name-Changing a name in the phone
book
Delete
Entry-Deleting the phone book data
Delete
Speed Dial
(Del Spd
Dial)
-Deleting a registered speed dial
List Names-List the phone book data
Set Speed
Dial
(Speed
Dial)
-Registering speed dial

233
3-3. Using the hands-free phone system (for cellular phone)
3
Interior features
ES350_U_(L/O_0808)
Setup
Security
Set PINSetting a PIN code
Phonebook LockLocking the phone book
Phonebook
UnlockUnlocking the phone book
Phone
Setup
Pa i r P h o n eRegistering a cellular phone to
be used
Change NameChanging a registered name of
a cellular phone
DeleteDeleting a registered cellular
phone
List phonesListing the registered cellular
phones
Select phoneSelecting a cellular phone to be
used
Set PasskeyChanging the passkey
System
SetupGuidance Volume
(Guidance Vol)Setting voice guidance volume
InitializeInitialization
First menuSecond menuThird menuOperation detail

234
3-3. Using the hands-free phone system (for cellular phone)
ES350_U_(L/O_0808)■
Using a short cut key
First menuSecond menuOperation detail
Dial “XXX (name)”-Dialing a number registered in
the phone book
Phone book add entry-Adding a new number
Phone book change
name-Changing a name of a phone
number in the phone book
Phone book delete
entry-Deleting phone book data
Phone book set speed
dial-Registering speed dial
Phone book delete
speed dial-Deleting speed dial
PhonebookPhonebook UnlockUnlocking the phone book
Phonebook LockLocking the phone book

235
3-3. Using the hands-free phone system (for cellular phone)
3
Interior features
ES350_U_(L/O_0808)
■Automatic adjustment of volume
When vehicle speed is 50 mph (80 km/h) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle speed
drops to 43 mph (70 km/h) or less.
■When using a voice command
●For numbers, say a combination of single digits from zero to nine, # (pound),
∗ (star), and + (plus).
●Say a command correctly and clearly.
■The system may not recognize your voice in the following situations:
●When driving on a rough road
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■The following cannot be performed while driving:
●Operating the system with
●Registering a cellular phone to the system
■Changing the passkey
→ P. 2 4 3

236
3-3. Using the hands-free phone system (for cellular phone)
ES350_U_(L/O_0808)

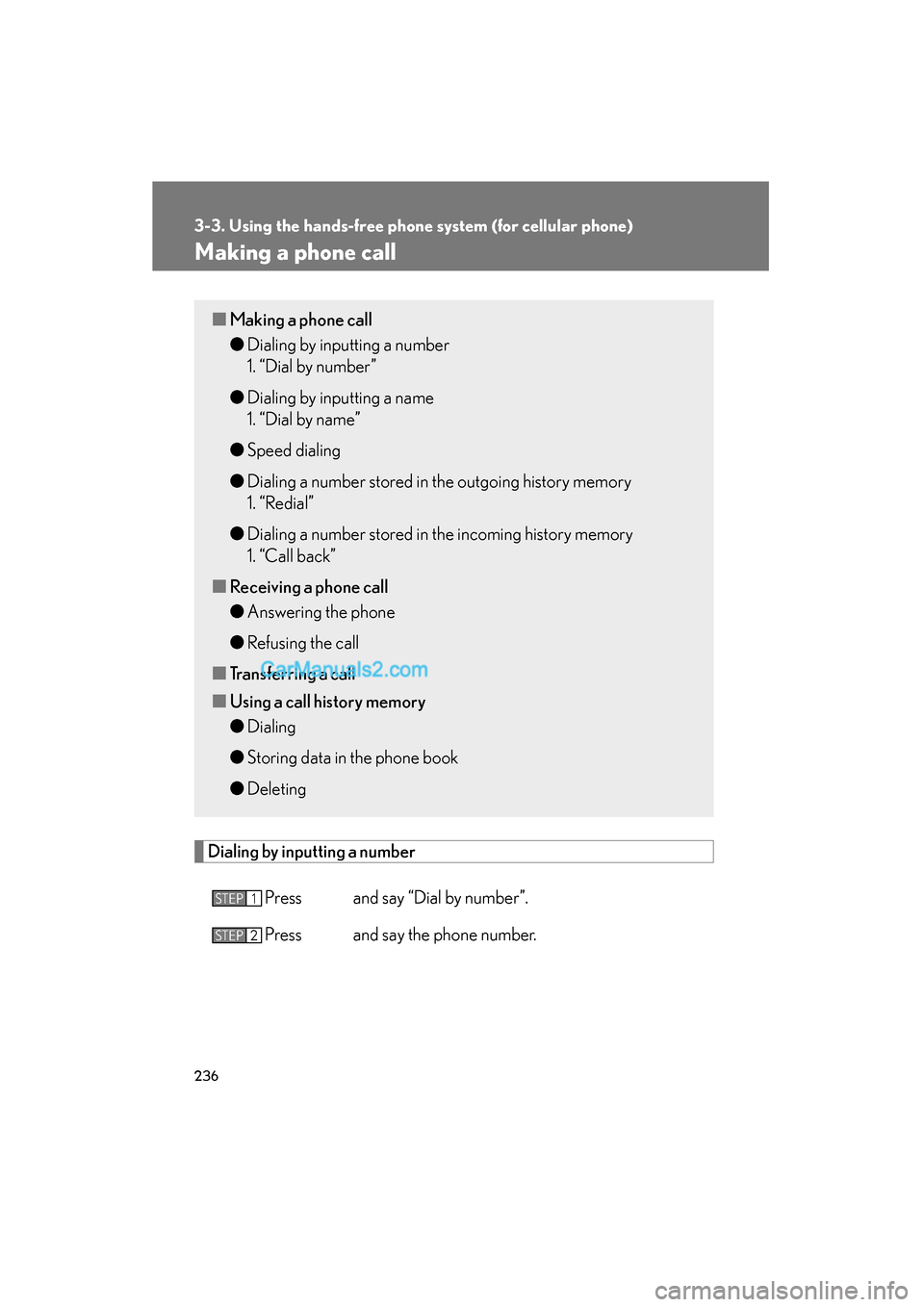

Making a phone call
Dialing by inputting a numberPress and say “Dial by number”.
Press and say the phone number.
■Making a phone call
● Dialing by inputting a number
1. “Dial by number”
● Dialing by inputting a name
1. “Dial by name”
● Speed dialing
● Dialing a number stored in the outgoing history memory
1. “Redial”
● Dialing a number stored in the incoming history memory
1. “Call back”
■ Receiving a phone call
● Answering the phone
● Refusing the call
■ Transferring a call
■ Using a call history memory
● Dialing
● Storing data in the phone book
● Deleting
STEP1
STEP2

237
3-3. Using the hands-free phone system (for cellular phone)
3
Interior features

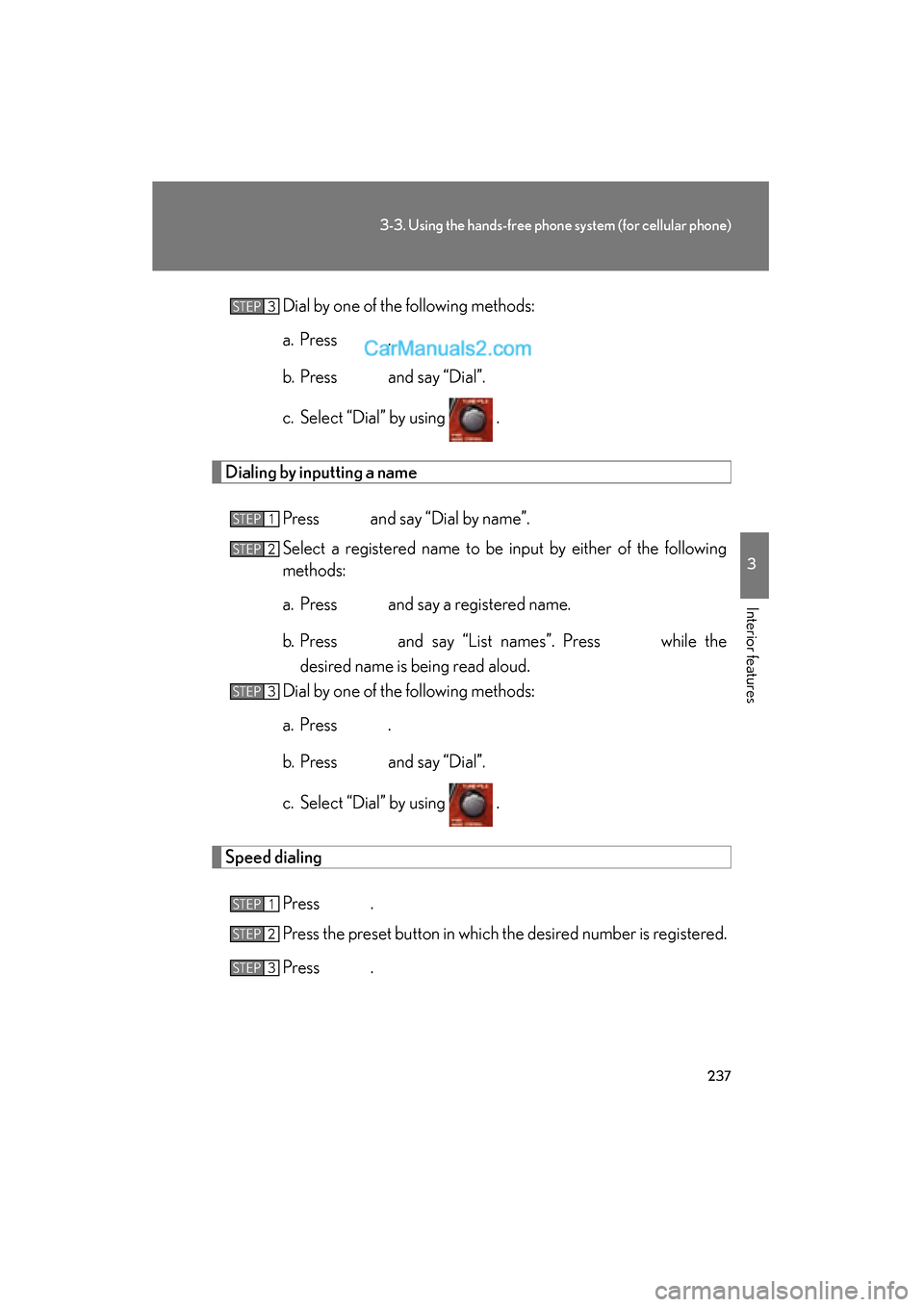

ES350_U_(L/O_0808)Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” by using .
Dialing by inputting a name
Press and say “Dial by name”.
Select a registered name to be input by either of the following
methods:
a. Press and say a registered name.
b. Press and say “List names”. Press while thedesired name is being read aloud.
Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” by using .
Speed dialing
Press .
Press the preset button in which the desired number is registered.
Press .
STEP3
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

238
3-3. Using the hands-free phone system (for cellular phone)
ES350_U_(L/O_0808)

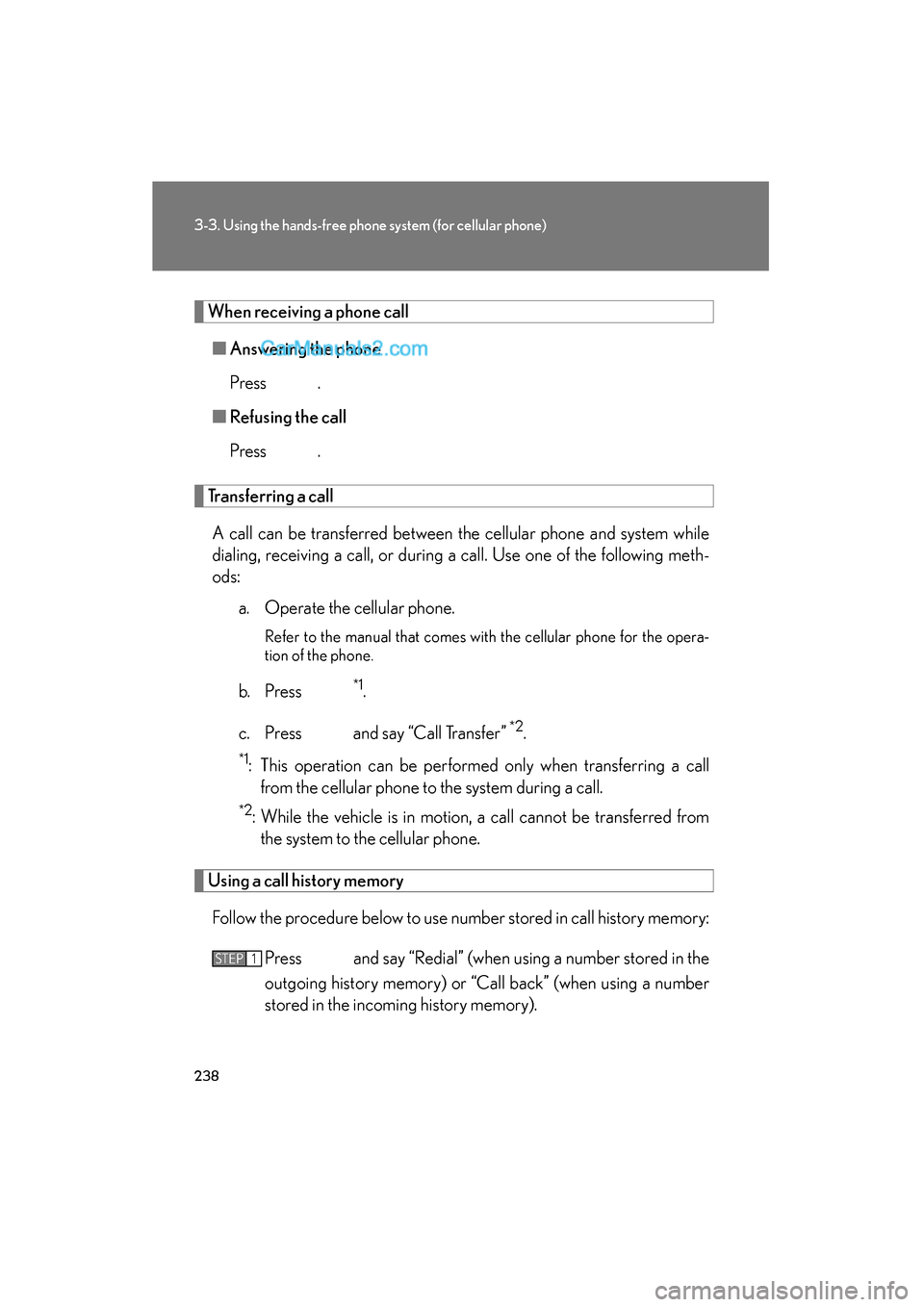

When receiving a phone call■ Answering the phone
Press .
■ Refusing the call
Press .
Transferring a call
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following meth-
ods: a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the opera-
tion of the phone.
b. Press *1.
c. Press and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call from the cellular phone to the system during a call.
*2: While the vehicle is in motion, a call cannot be transferred fromthe system to the cellular phone.
Using a call history memory
Follow the procedure below to use number stored in call history memory:
Press and say “Redial” (when using a number stored in the
outgoing history memory) or “Call back” (when using a number
stored in the incom ing history memory).
STEP1
