Lexus ES350 2014 Warranty and Services Guide

Explanation of MaintEnancE itEMs
MAINTENANCE
Scheduled Maintenance Log 69
Cabin Air Filter
Replace at specified intervals.
More frequent replacement may
be re quired when driving in dusty
conditions, heavy traffic areas,
urban areas, desert areas or dirt
roads. Refer to your Owner’s
Manual for service details.
Drive Belt
Inspect for cracks, excessive
wear and oiliness. Check the belt
tension and adjust if necessary.
Replace the belt if it is damaged.
Driver’s Floor Mat • Only use the driver’s floor
mat de signed specifically
for the model and model
year of your vehicle, such as
Lexus Genuine floor mats.
• Always properly secure
the driver’s floor mat using
the retaining hooks.
• Never install another floor
mat on top of the existing
driver’s floor mat.
• Never install the driver’s
floor mat upside down. Engine Air Filter
Check for excessive dirt, damage
and oiliness. Replace if necessary.
Engine Coolant
When inspecting, visually check

the engine coolant level on the
see-through reservoir. Add coolant
as necessary. When replacing,
drain the cooling system and refill
with coolant. Always use Genuine
Toyota Super Long-Life Coolant
or similar high-quality non-silicate,
non-amine, non-nitrate, non-borate
ethylene-glycol coolant with long-life
hybrid organic acid technology
(i.e., a combination of low phosphates
and organic acids). Check that the
radiator is not blocked with leaves,
dirt or insects and clean if necessary.
Also check the hose connection
for cor rosion and condition of
installation. A qualified technician
should perform these operations.
n ote: Initial replacement is at
120 months/100,000 miles.
Replace every 60 months/50,000
miles thereafter.

129173_text.indd 698/20/13 10:26 PM

Explanation of MaintEnancE itEMs
MAINTENANCE
Scheduled Maintenance Log
70
Engine Oil and Oil Filter
Replace the oil filter and drain and
refill the engine oil at specified
intervals. SAE 0W-20 oil is the best
choice for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 may be used; however, it
must be replaced with SAE 0W-20
at the next oil change. See your
Lexus dealer for oil specifically
formulated for your vehicle’s engine.
Your vehicle is equipped with a
replaceable oil-filter element and
oil-filter cap O-ring; replace both
at each oil change. For instructions
on how to reset the reminder light,
refer to your Owner’s Manual.
note: If you do the majority of
your driving under any of the
special operating conditions
indicated on page 44, you should
replace the engine oil and oil filter
every six months or 5,000 miles,
regardless of the oil used or the
certification of the vehicle.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes,
muffler and hangers for cracks,
deterioration and damage. Start the
engine and listen carefully for any
exhaust leakage. Tighten connections
and replace parts as necessary. Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion,
damage, cracks, and loose or leaking
connections. Tighten connections
and replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterio
ration
and damage and replace if necessary.
Nuts and Bolts on Chassis
Check that tightness of the seat-
mounting bolts and front/rear
suspension-member retaining bolts
matches torque measurements
specified in the Repair Manual.
Rack-and-Pinion Assembly
Inspect the rack-and-pinion assembly
for signs of leakage, damage and
loose electrical connections. Tighten
connections and if you discover any
leakage or damage, have it repaired
immediately by a qualified technician.
Road Test
While driving the vehicle, check
for proper operation of engine,
transmission, brakes and steering.
Also check the parking brake, and
check for ab normal noise or vibration
from any part of the vehicle.
129173_text.indd 708/20/13 10:26 PM

Explanation of MaintEnancE itEMs
MAINTENANCE
Scheduled Maintenance Log 71
Spark Plugs
Replace at specified interval. Install
new plugs of the same type as originally
equipped (see your Owner’s Manual).
A qualified technician should perform
this operation.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering
wheel. Inspect the linkage for
bending and damage and the dust
boots for deterioration, cracks and
damage. Replace any damaged
parts. A qualified technician should
perform these operations.
Timing Chain
The timing chain requires no
periodic inspection.
Tire-Pressure Warning Sensors
A tire-pressure sensor is mounted
on each full-size wheel. These
sensors do not require periodic
maintenance. When a sensor’s
long-life lithium battery becomes
discharged, the battery should be
replaced by a qualified technician
following procedures in Lexus
service and repair publications. Tire Rotation
See your Owner’s Manual for tire
rotation requirements. Check tire
pressure and check tires for damage
and uneven wear. If the vehicle is
equipped with a spare tire, check the
condition and pressure of the spare.
Transmission
The transmission and transmission
fluid are a completely sealed unit.
Therefore, periodic checks and
replacement of the transmission

fluid are not required, and there is
no dipstick on the transmission.
Any repairs that require adding or
replacing fluid should be performed
by a qualified technician following
procedures in Lexus service and
repair publications.
Wiper Blades
The wiper blades should not show
any signs of cracking, splitting, wear,
contamination or deformation. The
wiper blades should clear the windshield
without streaking or skipping.

129173_text.indd 718/20/13 10:26 PM

Model
In-service date
Mileage at delivery
Selling dealership
Selling dealership phone number
Vehicle Identification Number
Vehicle identification
MAINTENANCE
Scheduled Maintenance Log
72
129173_text.indd 728/20/13 10:26 PM

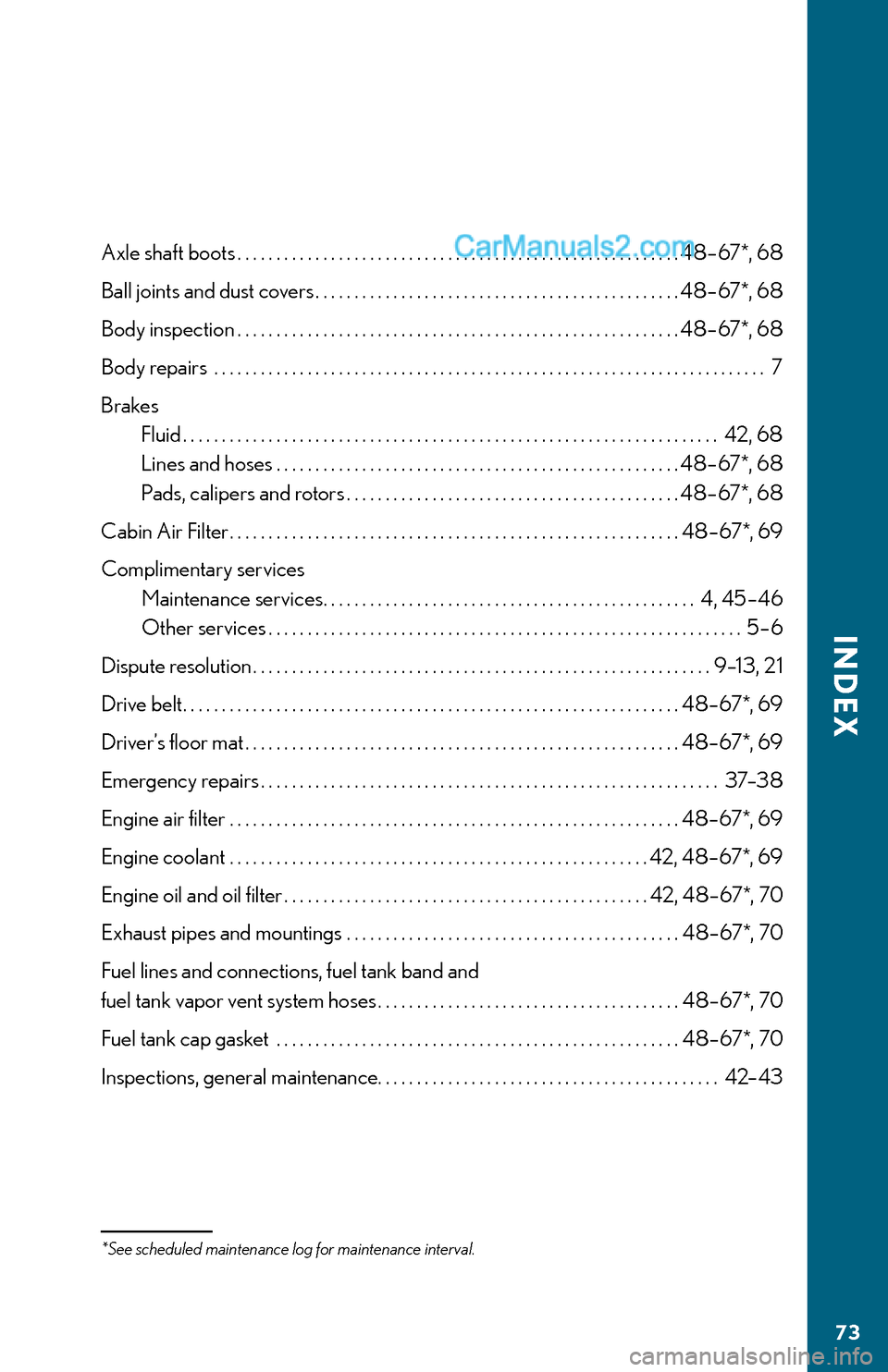

INDEX
Axle shaft boots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 6 8
Ball joints and dust covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 6 8
Body inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 6 8
Body repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Brakes
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42, 68
Lines and hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 6 8
Pads, calipers and rotors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 6 8
Cabin Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 69
Complimentary services
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4, 45–46
Other services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6
Dispute resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–13, 21
Drive belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 69
Driver’s floor mat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 69
Emergency repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37– 3 8
Engine air filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 69
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42, 48–67*, 69
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42, 48–67*, 70
Exhaust pipes and mountings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 8 – 67*, 70
Fuel lines and connections, fuel tank band and
fuel tank vapor vent system hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 70
Fuel tank cap gasket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 70
Inspections, general maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42– 43
*See scheduled maintenance log for maintenance interval.
73
INDEX
129173_text.indd 738/20/13 10:26 PM

74
INDEX
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . 8
Lexus Personalized Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1, 4, 45
Loaner vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Maintenance
As related to warranty coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . .25, 29, 31, 35, 40
Complimentary first and second services . . . . . . . . . . . . . . . . . . . . . . . . . . .4, 45–46
Explanation of maintenance items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 –71
General maintenance and inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42– 43
Importance of maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Maintenance intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Scheduled maintenance log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67
Where to obtain maintenance . . . . . . . . . . . . . . . . . . . . . . . .inside front cover, 35, 41
Nuts and bolts on chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 8 – 67*, 70
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 70
Owner responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 29, 31, 35–38
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 16, 25, 32, 36
Pre-delivery service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Quality control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rack-and-pinion assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 70
Road test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 70
Roadside assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1, 6
Service agreements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Smog-check tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 32
*See scheduled maintenance log for maintenance interval.
INDEX
129173_text.indd 748/20/13 10:26 PM

75
INDEX
Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 71
Steering linkage and boots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 7 1
Timing chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Tire inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Tire-pressure warning sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 7 1
Tires, Warranty Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tow i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 44
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 7 1
Travel protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty coverages
Basic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 18
California Emission Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28–33
Corrosion perforation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Coverages at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Federal Emission Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2–27
General provisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 –17
Powertrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Restraint systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Ti re s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 34
Tow i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
What is not covered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 19–21, 23, 30
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8 – 67*, 7 1
*See scheduled maintenance log for maintenance interval.
INDEX
129173_text.indd 758/20/13 10:27 PM

76
NOTES
129173_text.indd 768/20/13 10:27 PM

129173_BRC.indd 28/20/13 10:46 PM

If your name or address
has changed or if you
purchased your Lexus
as a used vehicle, please
complete and mail
the attached card,
even if your warranty
coverage has expired.
This will enable Lexus
to contact you with
important product or
safety updates concerning
your vehicle. If there is no
longer a card attached,
please call the Lexus
Customer Satisfaction
Department at
(800) 255-3987.
129173_BRC.indd 18/20/13 10:46 PM
