Lexus ES350 2017 Quick Guide

90
ES350_QG_OM33C84U_(U)
Moon Roof
■Opening and closing
Standard type
Opens the moon roof
*
The moon roof stops slightly before the
fully open position to reduce wind
noise.
Press the switch again to fully open the
moon roof.
Closes the moon roof
*
*
: Lightly press either way of the moon roof
switch to stop the moon roof partway.
Glass type
Opens the moon roof
Closes the moon roof (push and hold)
*
*
: The moon roof stops once. Push and
hold the switch again to fully close.
1
2
1
2

91
ES350_QG_OM33C84U_(U)
■Tilting up and down
Standard type
Tilts the moon roof up
*
Tilts the moon roof down*
*
: Lightly press either way of the moon roof
switch to stop the moon roof partway.
Glass type Tilts the moon roof up
*
Tilts the moon roof down (push and
hold)
*: Lightly press either way of the moon roofswitch to stop the moon roof partway.
1
2
1
2

92
ES350_QG_OM33C84U_(U)
Fuel Tank Cap
■Before refueling the vehicle
● Turn the engine switch off and ensure that all the doors and windows are closed.
● Confirm the type of fuel.
■Opening the fuel tank cap
Press the opener switch to open the
fuel filler door.
Turn the fuel tank cap slowly to open
and hang it on the back of the fuel filler
door.1
2

93
ES350_QG_OM33C84U_(U)
Trunk
■Opening the trunk
● From inside the vehicle
Press the opener switch.If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully
Turn the main switch in the glove box off to
disable the trunk opener. On
Off
The trunk lid cannot be opened even with
the wireless remote control or the trunk
release button.
● From outside the vehicle
• Smart access system with push-button start
While carrying the electronic key, press the
button on the trunk lid.When all the doors are unlocked with
the power door lock system, the trunk
can be opened without carrying the
electronic key.
If the vehicle is equipped with power
trunk opener and closer, the trunk lid
automatically opens fully.
• Wireless remote control Press and hold the switchIf the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
1
2

94
ES350_QG_OM33C84U_(U)
■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slight ly open, the trunk easy closer will automatically
close it to the fully closed position.
■ Trunk closer switch (vehicles with power trunk opener and closer)
Pressing the switch closes the trunk lid
automatically. (A buzzer sounds.)
Pressing the switch while the trunk lid is
closing opens the trunk lid again.

What to do if...
95
ES350_QG_OM33C84U_(U)
List of Warning/Indicator Lights
Immediately stop the vehicle in a safe place and contact your Lexus dealer.
Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Have the vehicle inspected by your Lexus dealer immediately.
(U.S.A.)Malfunction
indicator lamp(Flashes)
PCS warning light*1
(Canada)Electric power steering
system warning light
SRS warning lightSlip indicator light
(U.S.A.)
ABS warning light(Blinking and then continu-
ously on)
Tire pressure warning light
(Canada)
Follow the correction procedures.
Low fuel level warning light
(Illuminates without
blinking)
Tire pressure warning light*2
Seat belt reminder light
Master warning light
(Flashes)
“AFS OFF” indicator*1
For further information, refer to the OWNER’S MANUAL.

96
What to do if...
ES350_QG_OM33C84U_(U)
*1: If equipped
*2: It also comes on due to natural causes such as natural air leaks and tire inflation pressure changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have the system checked by your Lexus dealer.
See the OWNER’S MANUAL
Turn signal indicatorIntuitive parking assist
indicator
*1
Headlight indicator (U.S.A.)
(Flashes)
Slip indicator light
Tail light indicator (Canada)VSC OFF indicator
Headlight high beam indicatorPCS warning light*1
Automatic High Beam
indicator
*1BSM outside rear view mirror
indicators
*1
Fog light indicator“A I R B A G O N / O F F ”
indicator
Eco Driving Indicator Light
Cruise control indicator(U.S.A.)Parking brake
indicator
Radar cruise control
indicator
*1(Canada)
Cruise control “SET” indicatorLow outside temperature
indicator
LDA indicator*1
For further information, refer to the OWNER’S MANUAL.

What to do if...
97
ES350_QG_OM33C84U_(U)
If the electronic key does not operate properly
■Unlocking and locking the doors
Use the mechanical key ( →P.1 4 ) i n o r d e r t o
perform the following operations:
Locks all the doors
Closes the windows and moon roof
*
(turn and hold)
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other doors.
Opens the windows and moon roof
*
(turn and hold)
*: This setting must be customized at yourLexus dealer.
■ Unlocking the trunk
Turn the mechanical key clockwise to open.
An alarm will sound if the alarm is set.
(→ P.1 6 )
1
2
3
4

98
What to do if...
ES350_QG_OM33C84U_(U)

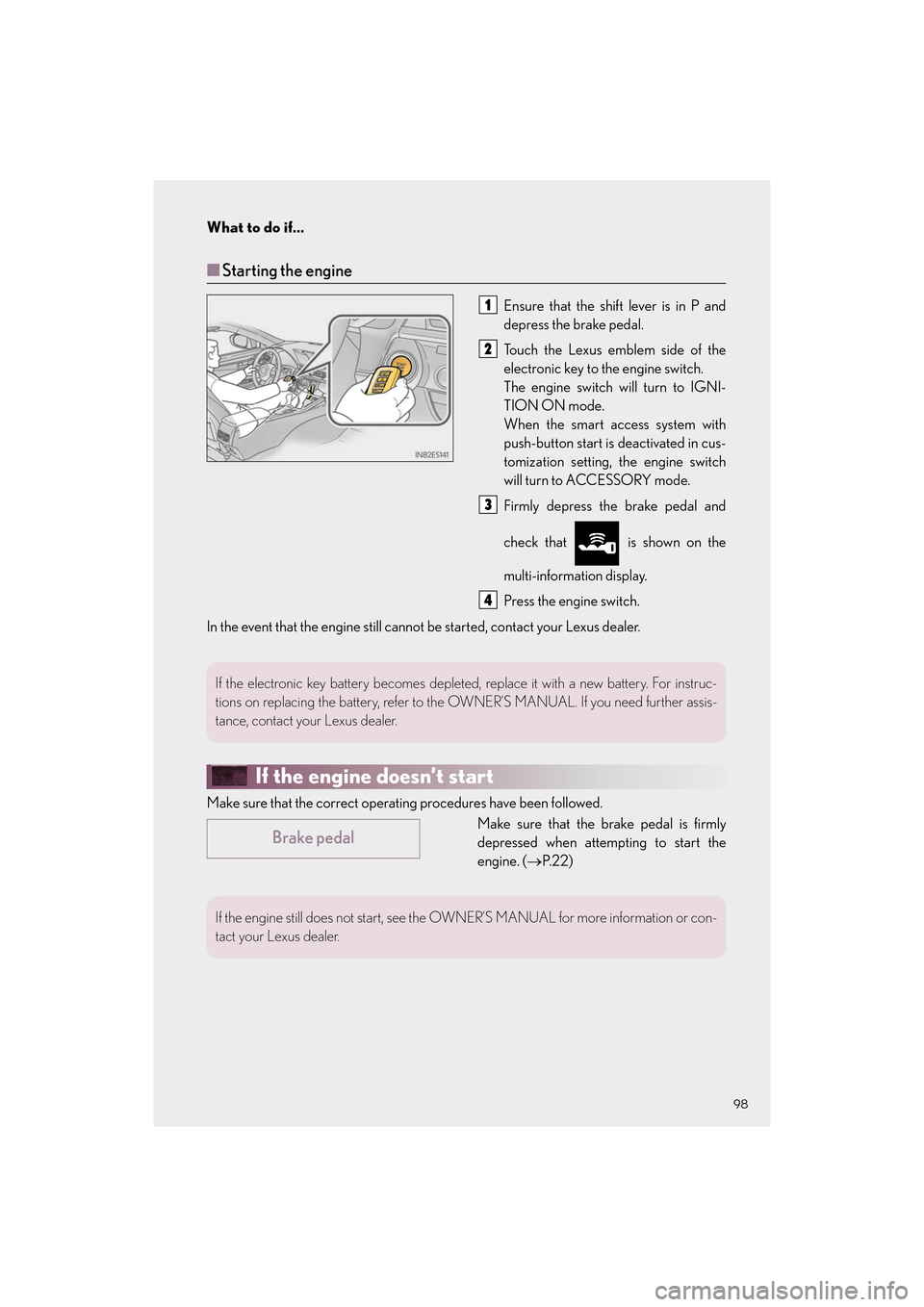

■Starting the engine
Ensure that the shift lever is in P and
depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
The engine switch will turn to IGNI-
TION ON mode.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the engine switch
will turn to ACCESSORY mode.
Firmly depress the brake pedal and
check that is shown on the
multi-information display.
Press the engine switch.
In the event that th e engine still cannot be started, contact your Lexus dealer.
If the engine doesn’t start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the
engine. (→P. 2 2 )
1
2
3
4
If the electronic key battery becomes depleted , replace it with a new battery. For instruc-
tions on replacing the battery, refer to th e OWNER’S MANUAL. If you need further assis-
tance, contact your Lexus dealer.
Brake pedal
If the engine still does not start, see the OWNER’S MANUAL for more information or con-
tact your Lexus dealer.

99
ES350_QG_OM33C84U_(U)
