Lexus GS250 2012 Owner's Manual

5965-4. Using the hands-free phone system (for cellular phone)
GS350/250_EE (OM30C36E)

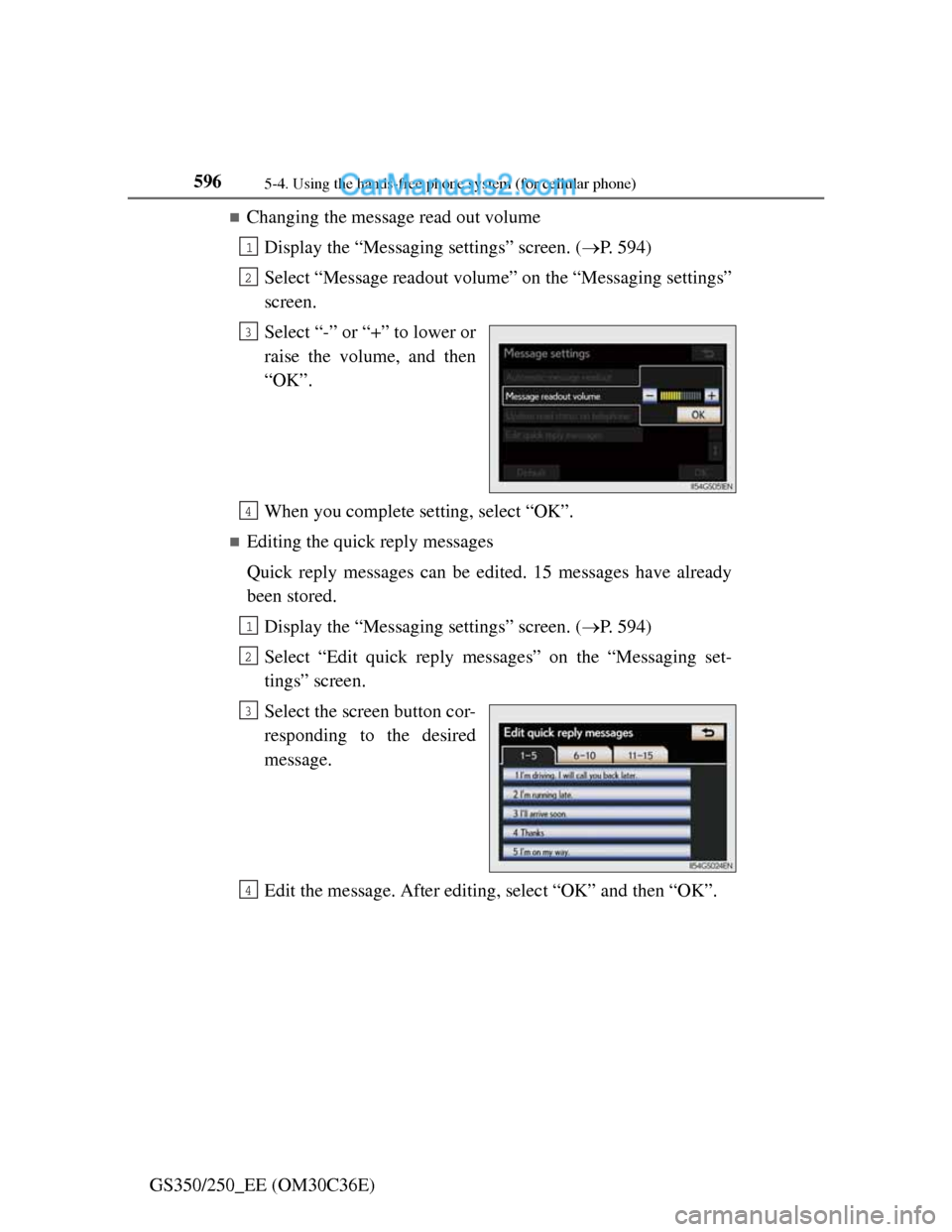

Changing the message read out volume
Display the “Messaging settings” screen. (P. 594)
Select “Message readout volume” on the “Messaging settings”
screen.
Select “-” or “+” to lower or
raise the volume, and then
“OK”.
When you complete setting, select “OK”.
Editing the quick reply messages
Quick reply messages can be edited. 15 messages have already
been stored.
Display the “Messaging settings” screen. (P. 594)
Select “Edit quick reply messages” on the “Messaging set-
tings” screen.
Select the screen button cor-
responding to the desired
message.
Edit the message. After editing, select “OK” and then “OK”.
1
2
3
4
1
2
3
4

5975-4. Using the hands-free phone system (for cellular phone)
5
Interior features
GS350/250_EE (OM30C36E)

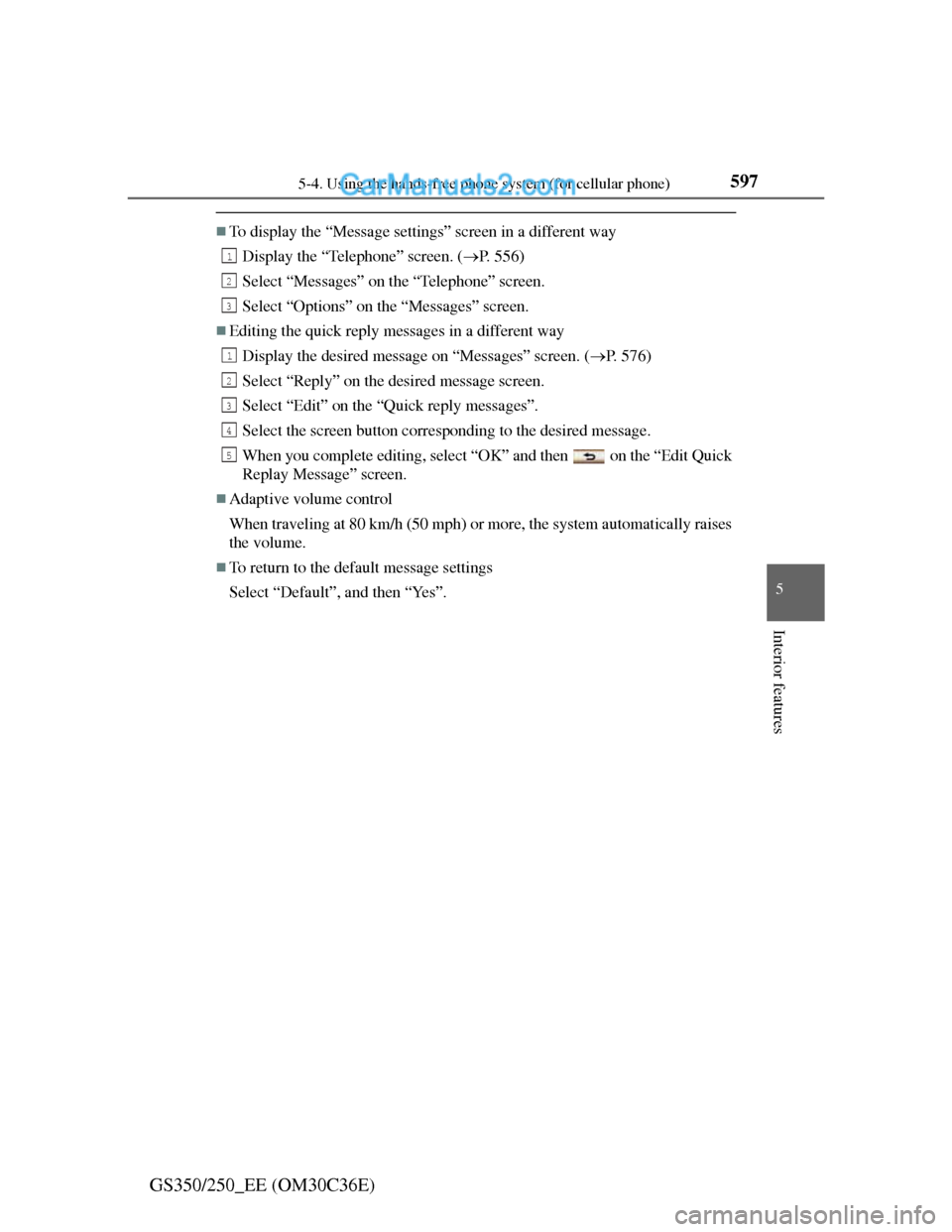

To display the “Message settings” screen in a different way
Display the “Telephone” screen. (P. 556)
Select “Messages” on the “Telephone” screen.
Select “Options” on the “Messages” screen.
Editing the quick reply messages in a different way
Display the desired message on “Messages” screen. (P. 576)
Select “Reply” on the desired message screen.
Select “Edit” on the “Quick reply messages”.
Select the screen button corresponding to the desired message.
When you complete editing, select “OK” and then on the “Edit Quick
Replay Message” screen.
Adaptive volume control
When traveling at 80 km/h (50 mph) or more, the system automatically raises
the volume.
To return to the default message settings
Select “Default”, and then “Yes”.
1
2
3
1
2
3
4
5

5985-4. Using the hands-free phone system (for cellular phone)

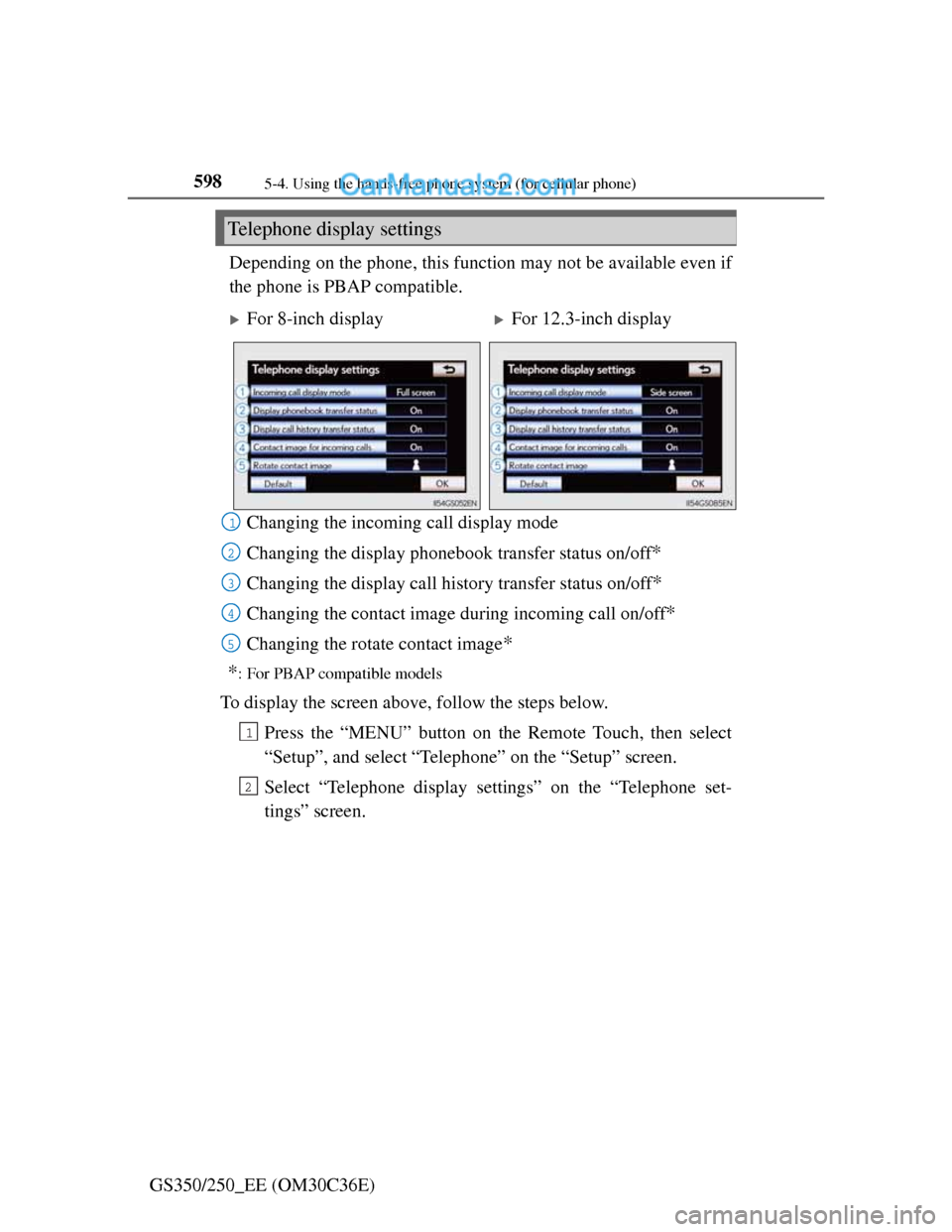

GS350/250_EE (OM30C36E)Depending on the phone, this function may not be available even if
the phone is PBAP compatible.
Changing the incoming call display mode
Changing the display phonebook transfer status on/off
*
Changing the display call history transfer status on/off*
Changing the contact image during incoming call on/off*
Changing the rotate contact image*
*
: For PBAP compatible models
To display the screen above, follow the steps below.
Press the “MENU” button on the Remote Touch, then select
“Setup”, and select “Telephone” on the “Setup” screen.
Select “Telephone display settings” on the “Telephone set-
tings” screen.
Telephone display settings
For 8-inch displayFor 12.3-inch display
1
2
3
4
15
1
2

5995-4. Using the hands-free phone system (for cellular phone)
5
Interior features
GS350/250_EE (OM30C36E)

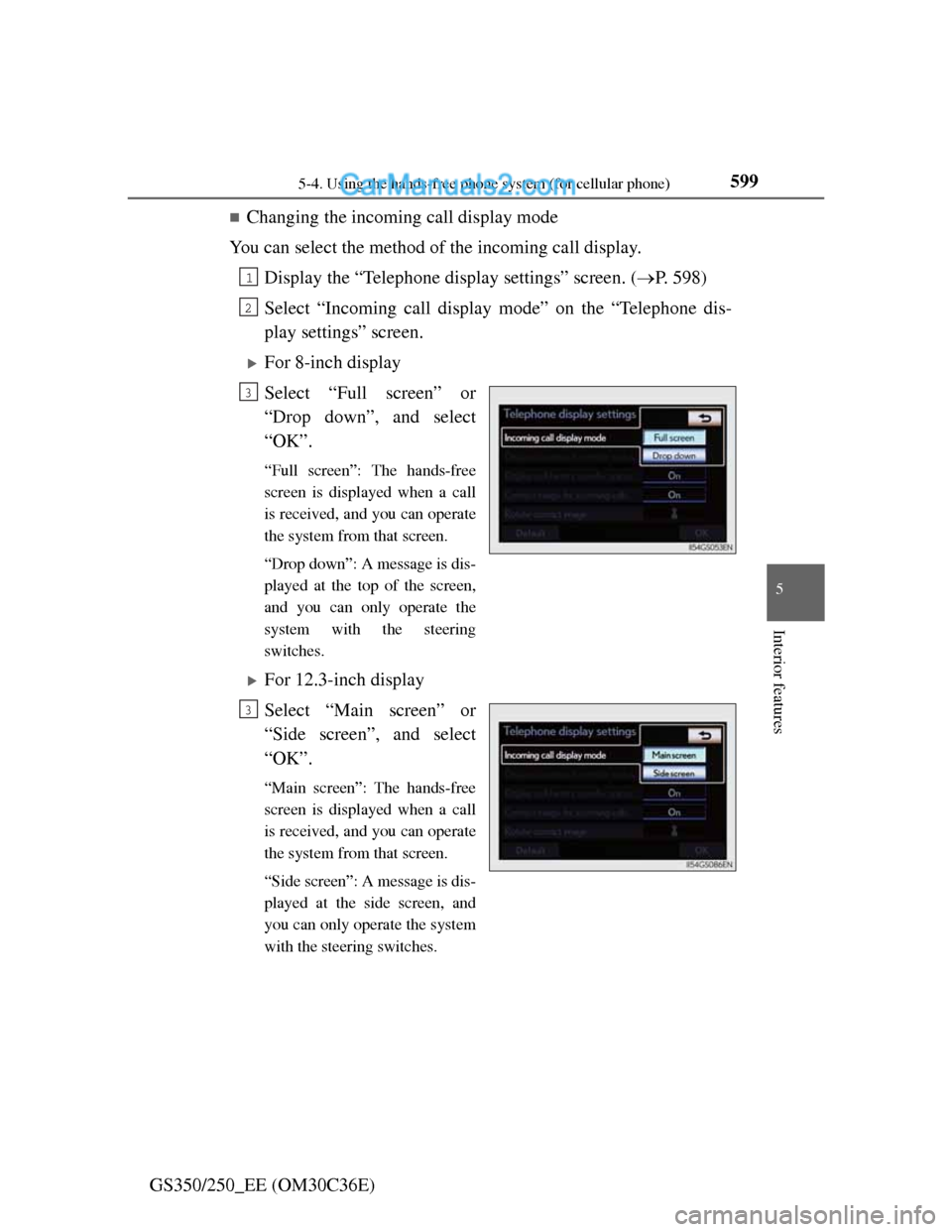

Changing the incoming call display mode
You can select the method of the incoming call display.
Display the “Telephone display settings” screen. (P. 598)
Select “Incoming call display mode” on the “Telephone dis-
play settings” screen.
For 8-inch display
Select “Full screen” or
“Drop down”, and select
“OK”.
“Full screen”: The hands-free
screen is displayed when a call
is received, and you can operate
the system from that screen.
“Drop down”: A message is dis-
played at the top of the screen,
and you can only operate the
system with the steering
switches.
For 12.3-inch display
Select “Main screen” or
“Side screen”, and select
“OK”.
“Main screen”: The hands-free
screen is displayed when a call
is received, and you can operate
the system from that screen.
“Side screen”: A message is dis-
played at the side screen, and
you can only operate the system
with the steering switches.
1
2
3
3

6005-4. Using the hands-free phone system (for cellular phone)
GS350/250_EE (OM30C36E)

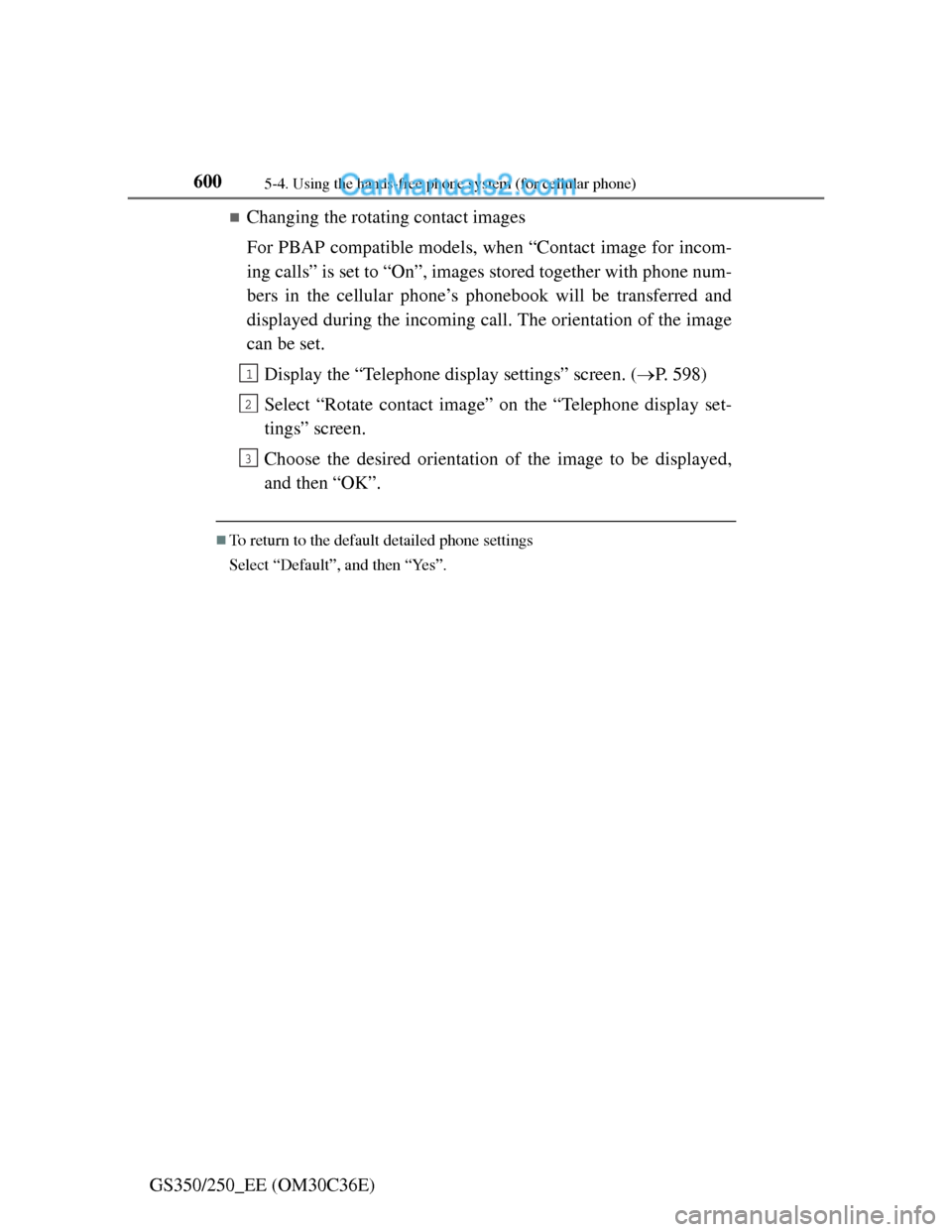

Changing the rotating contact images
For PBAP compatible models, when “Contact image for incom-
ing calls” is set to “On”, images stored together with phone num-
bers in the cellular phone’s phonebook will be transferred and
displayed during the incoming call. The orientation of the image
can be set.
Display the “Telephone display settings” screen. (P. 598)
Select “Rotate contact image” on the “Telephone display set-
tings” screen.
Choose the desired orientation of the image to be displayed,
and then “OK”.
To return to the default detailed phone settings
Select “Default”, and then “Yes”.
1
2
3

6015-4. Using the hands-free phone system (for cellular phone)
5
Interior features
GS350/250_EE (OM30C36E)

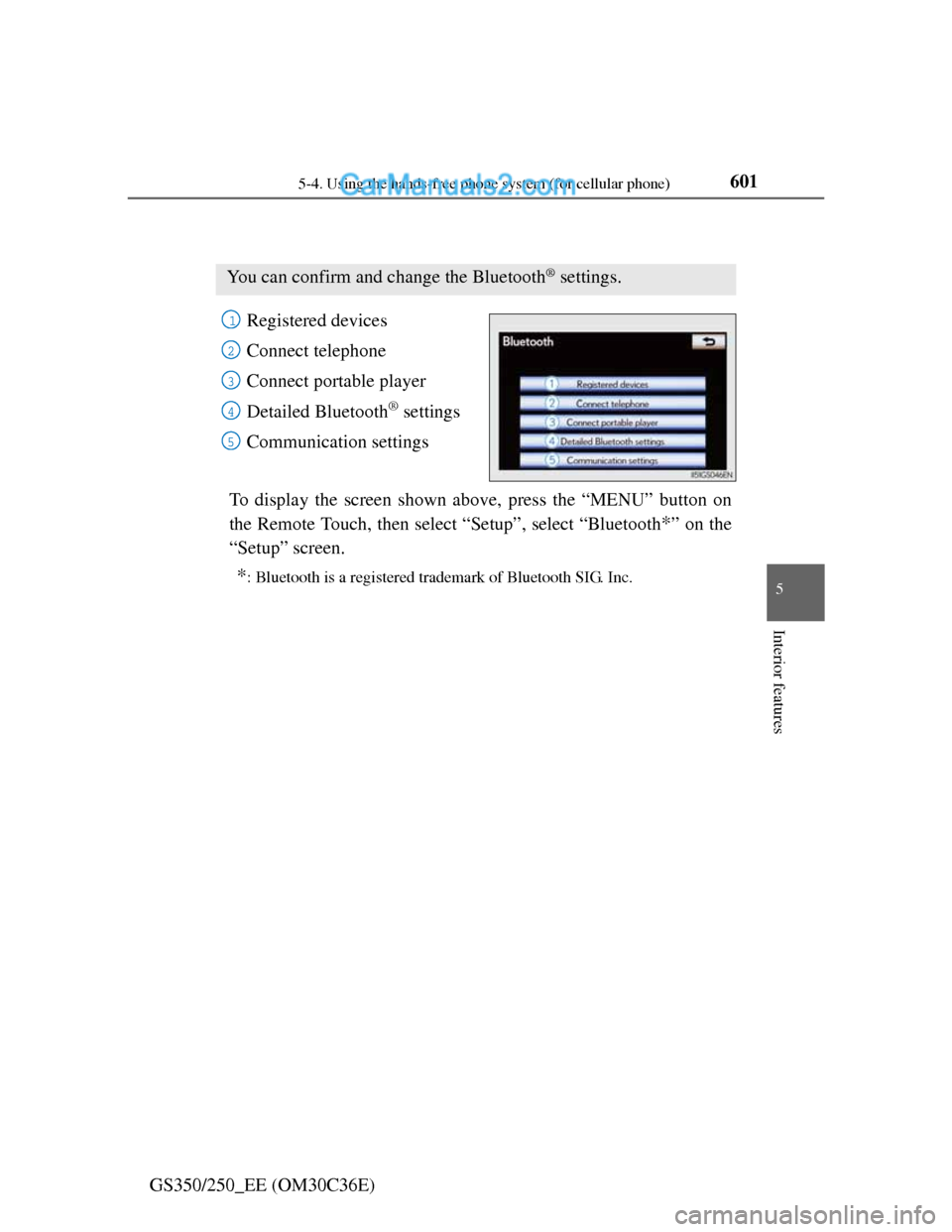

Setting the Bluetooth®
Registered devices
Connect telephone
Connect portable player
Detailed Bluetooth
® settings
Communication settings
To display the screen shown above, press the “MENU” button on
the Remote Touch, then select “Setup”, select “Bluetooth
*” on the
“Setup” screen.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
You can confirm and change the Bluetooth® settings.
1
2
3
4
15

6025-4. Using the hands-free phone system (for cellular phone)
GS350/250_EE (OM30C36E)
Registering a Bluetooth® devices
Bluetooth
® devices compatible with phones (HFP) and portable
players (AVP) can be registered simultaneously. Phones (HFP)
and portable players (AVP) (maximum of 5) can be registered.
Display the “Bluetooth
*” screen. (P. 601)
Select “Registered devices” on the “Bluetooth
*” screen.
Select “Add new” to regis-
ter a Bluetooth
® device to
the system.
When 5 Bluetooth® devices
have already been registered, a
registered device needs to be
deleted.
Select “Yes” to delete one or
more.
Select the device to be deleted,
then select “Remove”, and then
“Yes”.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
Registered devices
1
2
3

6035-4. Using the hands-free phone system (for cellular phone)
5
Interior features

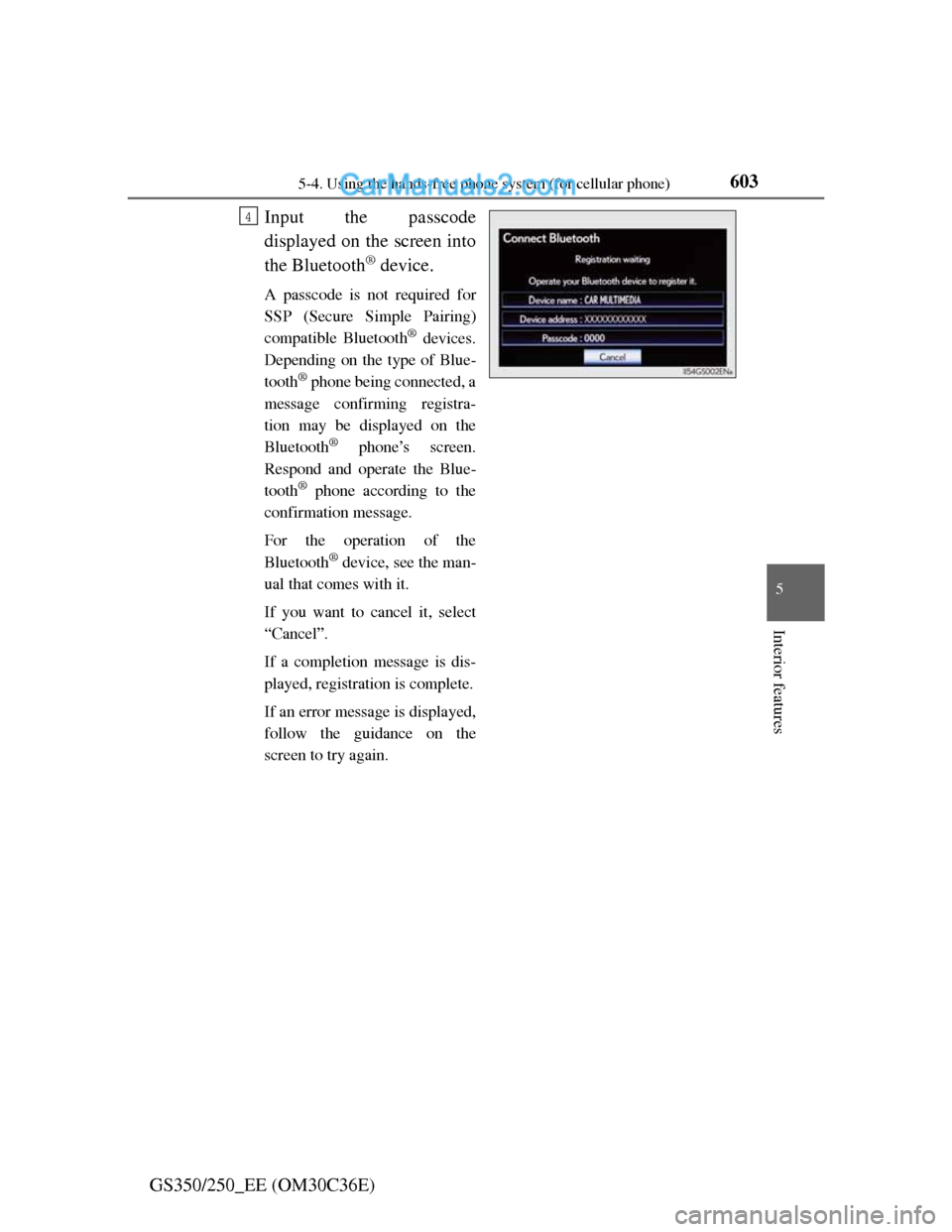

GS350/250_EE (OM30C36E)Input the passcode
displayed on the screen into
the Bluetooth
® device.
A passcode is not required for
SSP (Secure Simple Pairing)
compatible Bluetooth
® devices.
Depending on the type of Blue-
tooth
® phone being connected, a
message confirming registra-
tion may be displayed on the
Bluetooth
® phone’s screen.
Respond and operate the Blue-
tooth
® phone according to the
confirmation message.
For the operation of the
Bluetooth
® device, see the man-
ual that comes with it.
If you want to cancel it, select
“Cancel”.
If a completion message is dis-
played, registration is complete.
If an error message is displayed,
follow the guidance on the
screen to try again.
4

6045-4. Using the hands-free phone system (for cellular phone)
GS350/250_EE (OM30C36E)

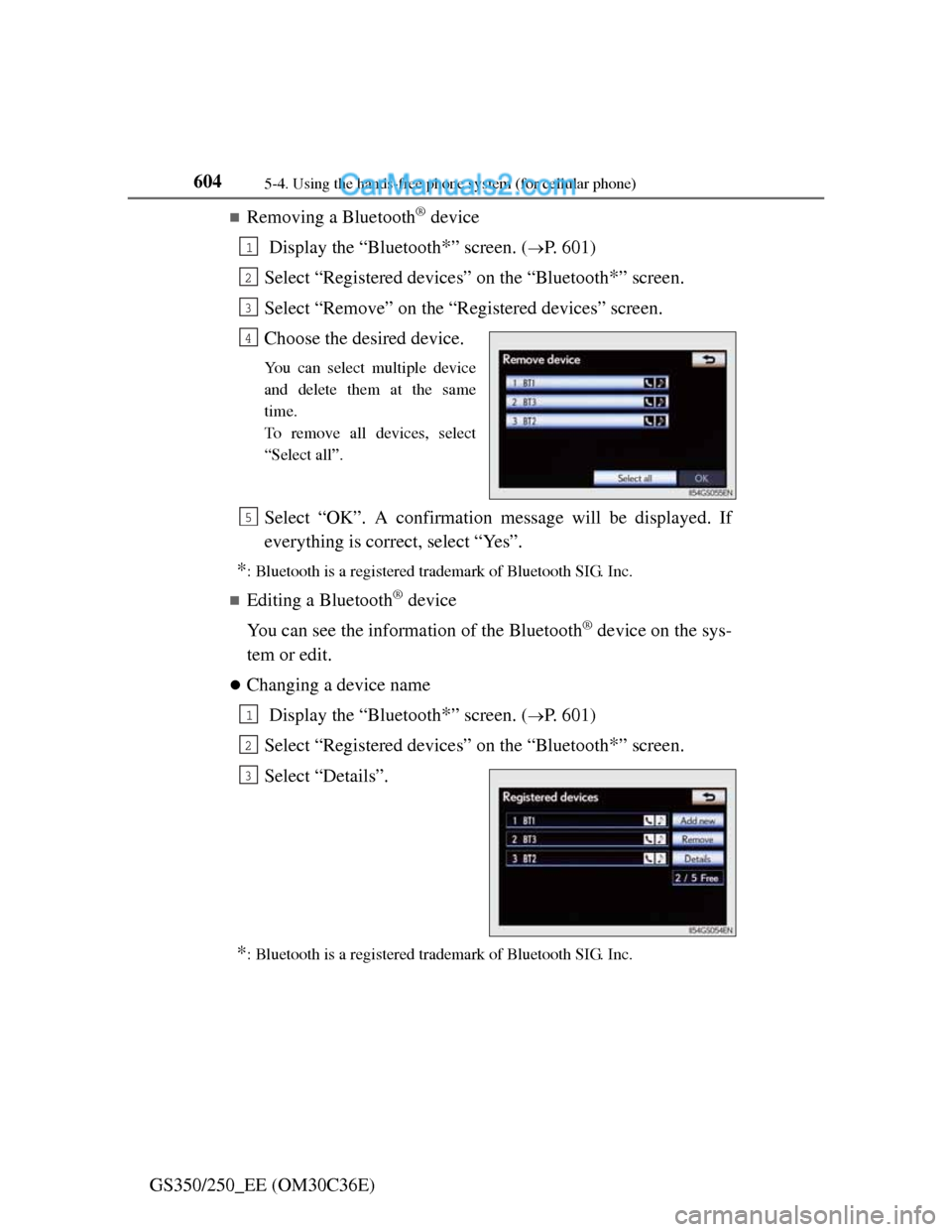

Removing a Bluetooth® device
Display the “Bluetooth
*” screen. (P. 601)
Select “Registered devices” on the “Bluetooth
*” screen.
Select “Remove” on the “Registered devices” screen.
Choose the desired device.
You can select multiple device
and delete them at the same
time.
To remove all devices, select
“Select all”.
Select “OK”. A confirmation message will be displayed. If
everything is correct, select “Yes”.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
Editing a Bluetooth® device
You can see the information of the Bluetooth
® device on the sys-
tem or edit.
Changing a device name
Display the “Bluetooth
*” screen. (P. 601)
Select “Registered devices” on the “Bluetooth
*” screen.
Select “Details”.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
1
2
3
4
5
1
2
3

6055-4. Using the hands-free phone system (for cellular phone)
5
Interior features

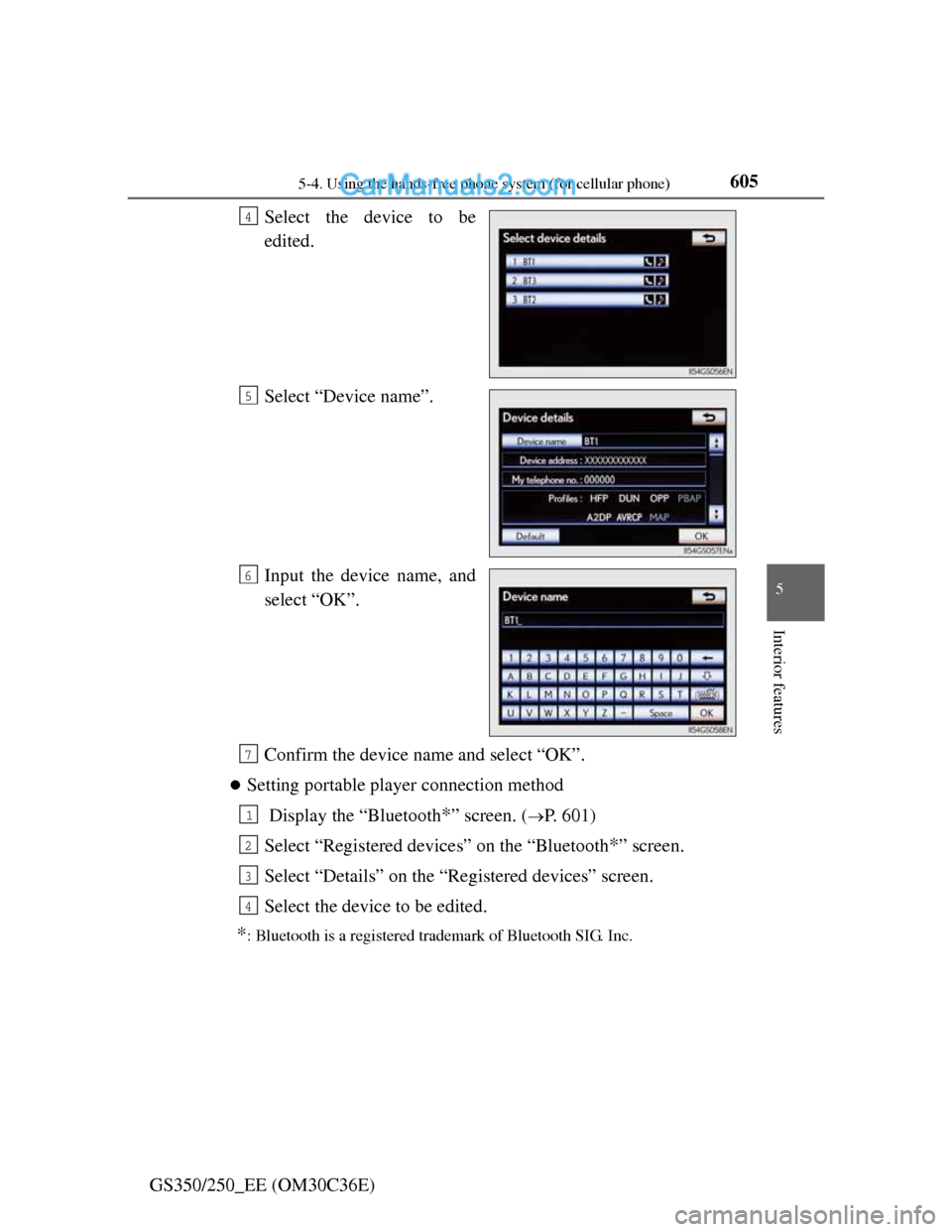

GS350/250_EE (OM30C36E)Select the device to be
edited.
Select “Device name”.
Input the device name, and
select “OK”.
Confirm the device name and select “OK”.
Setting portable player connection method
Display the “Bluetooth
*” screen. (P. 601)
Select “Registered devices” on the “Bluetooth
*” screen.
Select “Details” on the “Registered devices” screen.
Select the device to be edited.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
4
5
6
7
1
2
3
4
