■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be
adjusted individually. However, when the surroundings are bright (daytime, etc.),
turning on the tail lights will not change the instrument panel brightness.
■Limitation of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the
light sensor detecting how bright the surroundings are. However, if the instrument
panel brightness has been manually set to either the brightest or darkest setting, the
automatic adjustment will not be performed.
■ECO lamp and SPORT lamp
●When sport mode is selected, SPORT lamp (red) will illuminate.
●When all of the following conditions are satisfied and Eco-friendly driving, ECO
lamp (blue) will illuminate. (ECO lamp will become brighter the more Eco-friendly
driving you perform. Also, while the acceleration exceeds Zone of Eco driving,
ECO lamp turns off. [→P. 108] However, when Eco drive mode is selected, while
the acceleration exceeds Zone of Eco driving, ECO lamp does not turn off.):
• Driving with the shift lever in D
• Paddle shift switch is not operated.
• Either normal mode or Eco drive mode is selected.
• The vehicle speed is approximately 130 km/h (80 mph) or below.
■Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features: →P. 6 5 2 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 6 2 5 )
GS350_250_OM_OM30E16E_(EE).book Page 101 Tuesday, July 8, 201 4 7:11 PM

1022. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
●Eco Driving Indicator (→P. 103)
●Outside temperature display
(→ P. 103)
●Trip information ( →P. 103)
Displays driving range, fuel consump-
tion and other cruising related infor-
mation
●
Tire inflation pressure (if equipped) ( →P. 105)
●Drive monitor ( →P. 105)
●Lexus parking assist-sensor display*1, 2 (if equipped)
●Dynamic radar cruise control display*1 (if equipped) ( →P. 2 8 9 )
●LKA (Lane-Keeping Assist) display*1 (if equipped) ( →P. 305)
●Warning messages ( →P. 5 5 2 )
Automatically displayed when a malfunction occurs in one of the vehicle’s sys-
tems. Display can be switched by pressing the “DISP” button. ( →P. 1 0 3 )
*1: Automatically displayed when the system is used. Display can be switched by
pressing the “DISP” button. ( →P. 1 0 3 )
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
Display contents
GS350_250_OM_OM30E16E_(EE).book Page 102 Tuesday, July 8, 201 4 7:11 PM

1032. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)

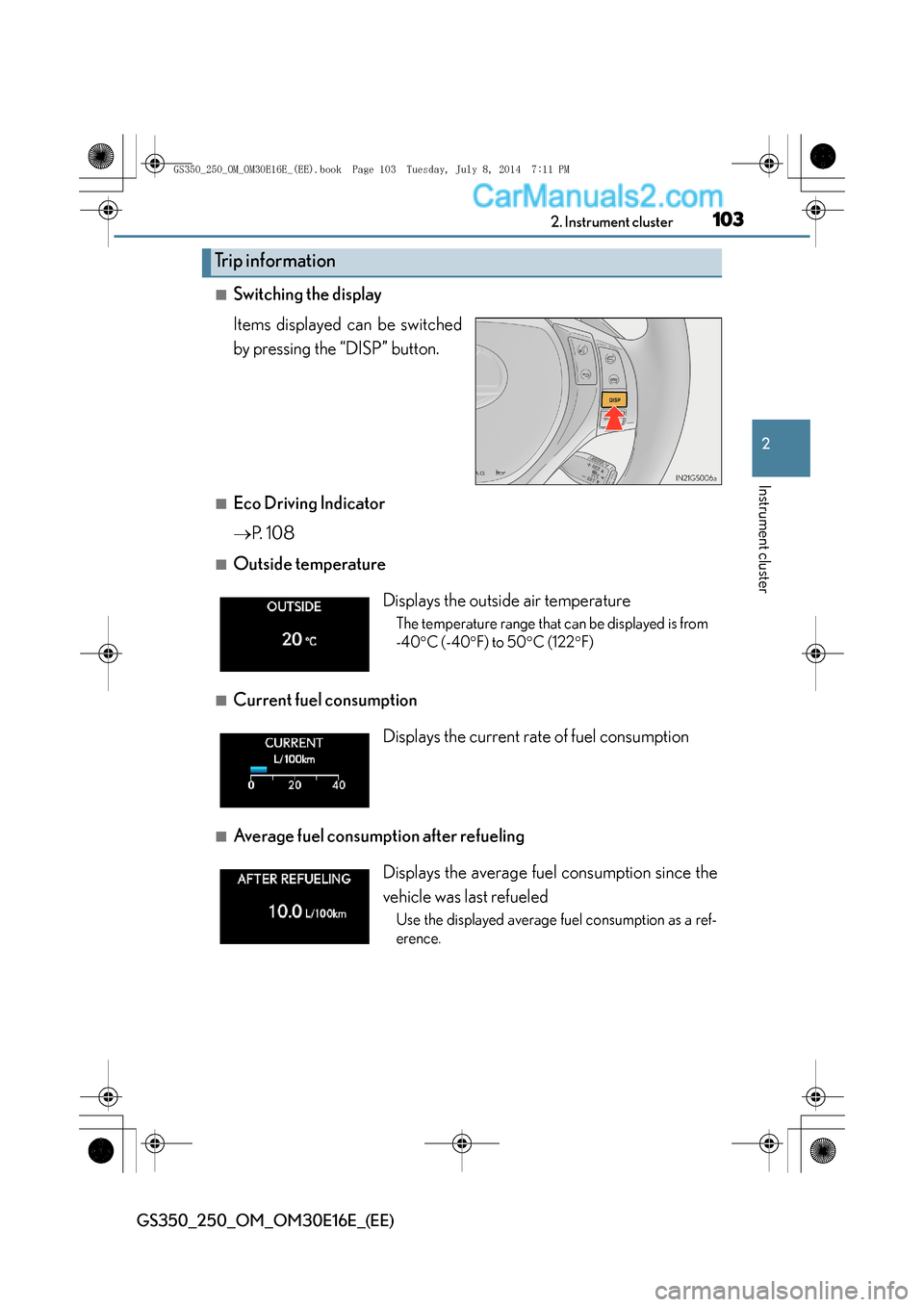

■Switching the display
Items displayed can be switched
by pressing the “DISP” button.
■Eco Driving Indicator
→P. 1 0 8
■Outside temperature
■Current fuel consumption
■Average fuel consumpt ion after refueling
Trip information
Displays the outside air temperature
The temperature range that can be displayed is from
-40°C (-40 °F) to 50 °C (122 °F)
Displays the current rate of fuel consumption
Displays the average fuel consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a ref-
erence.
GS350_250_OM_OM30E16E_(EE).book Page 103 Tuesday, July 8, 201 4 7:11 PM

1042. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
■Average fuel consumption
■Average vehicle speed
■Driving range Displays the average fuel consumption since the
function was reset
• The function can be reset by pressing the “DISP”
button for longer than 1 second when the average
fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Displays the average vehicle speed since the
function was reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the average vehicle
speed is displayed.
Displays the estimated approximate distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your averagefuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine switch
off, the display may not be updated.
GS350_250_OM_OM30E16E_(EE).book Page 104 Tuesday, July 8, 201 4 7:11 PM

1052. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
■Tire inflation pressure (if equipped)
Outside temperature, average fuel
consumption after refueling or driv-
ing range can be selected and dis-
played.
If displayed on the drive monitor,
other trip information or warning
messages can be displayed simulta-
neously.
For display and selection proce-
dures, follow the “Setting up the dis-
plays”.
The information displayed on the drive
monitor will not be displayed on the
trip information screen.
Displays inflation pressure of each tire
For the vehicles with a compact spare tire: The infla-
tion pressure of the spare tire will not be displayed.
Drive monitor
GS350_250_OM_OM30E16E_(EE).book Page 105 Tuesday, July 8, 201 4 7:11 PM

1062. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
While the vehicle is stopped,
press the “DISP” button until the
“Settings” screen appears.
Press and hold the “DISP” button
until the screen changes.
Press and hold the “DISP” button
after selecting the desired set-
ting item by pressing the “DISP”
button.

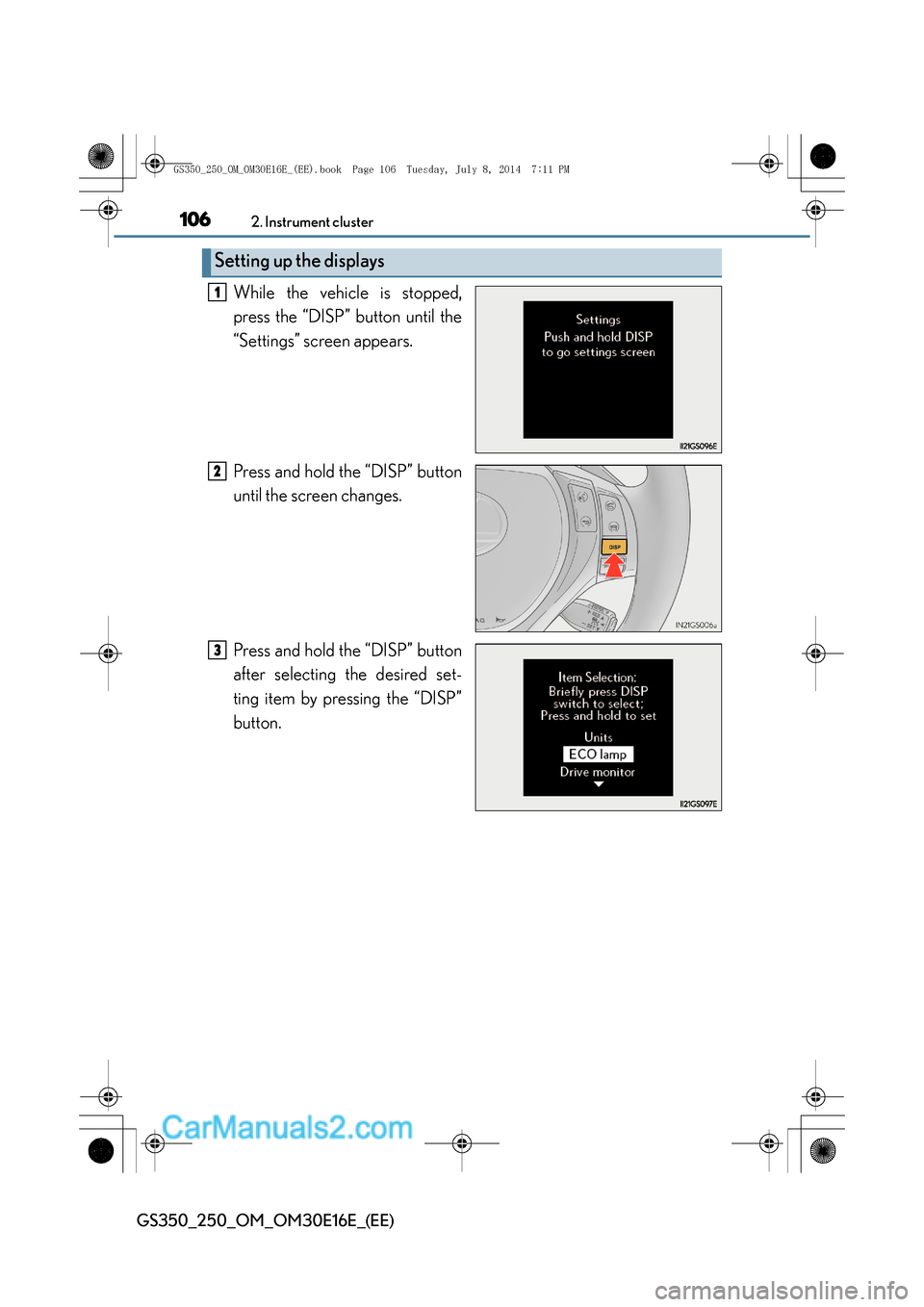

Setting up the displays
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 106 Tuesday, July 8, 2014 7:11 PM

1072. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)

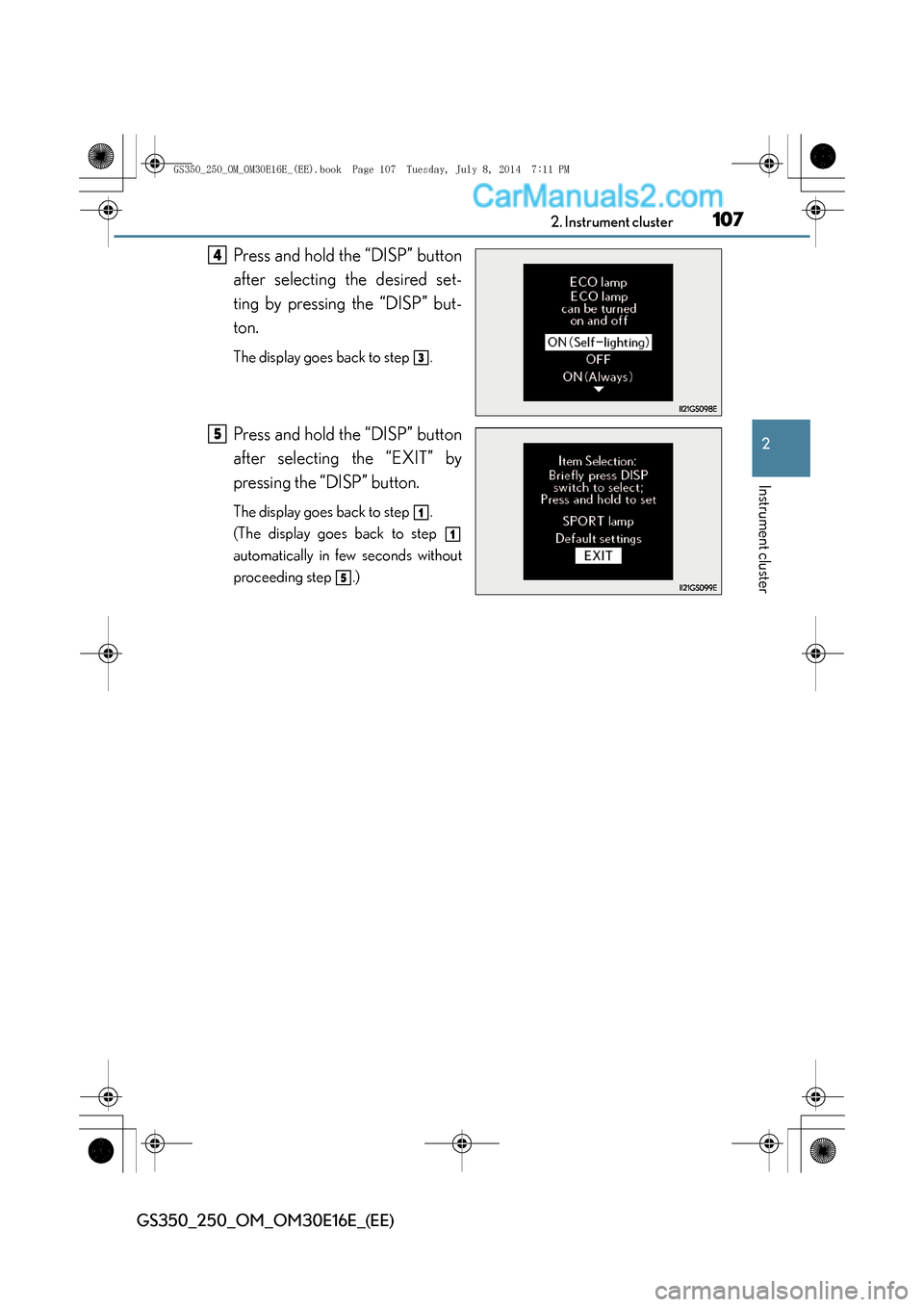

Press and hold the “DISP” button
after selecting the desired set-
ting by pressing the “DISP” but-
ton.
The display goes back to step .
Press and hold the “DISP” button
after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
(The display goes back to step
automatically in few seconds without
proceeding step .)
4
3
5
1
1
5
GS350_250_OM_OM30E16E_(EE).book Page 107 Tuesday, July 8, 2014 7:11 PM

1082. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
■System check display
After turning the engine switch to IGNITION ON mode, “SYSTEM CHECK” is dis-
played while system operation is checked.
■Eco Driving Indicator Zone Display
Eco Driving Indicator will not operate in the following conditions:
●The shift lever is anything other than D.
●Paddle shift switch is operated.
●Neither normal mode nor Eco drive mode is selected. (→P. 3 1 5 )
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
■Outside temperature display
In the following situations, the correct ou tside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 20 km/h [12 mph])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
Suggests Zone of Eco driving and Eco driving
ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco
driving, the right side of Eco Driving Indica-
tor Zone Display blinks.
Zone of Eco driving
1
2
GS350_250_OM_OM30E16E_(EE).book Page 108 Tuesday, July 8, 201 4 7:11 PM

1092. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
■Tire inflation pressure (if equipped)
●It may take a few minutes to display the tire inflation pressure after the engine
switch is turned to IGNITION ON mode. It may also take a few minutes to display
the tire inflation pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features: →P. 6 5 2 )
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and
enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the
display features.
GS350_250_OM_OM30E16E_(EE).book Page 109 Tuesday, July 8, 201 4 7:11 PM

1102. Instrument cluster
GS350_250_OM_OM30E16E_(EE)

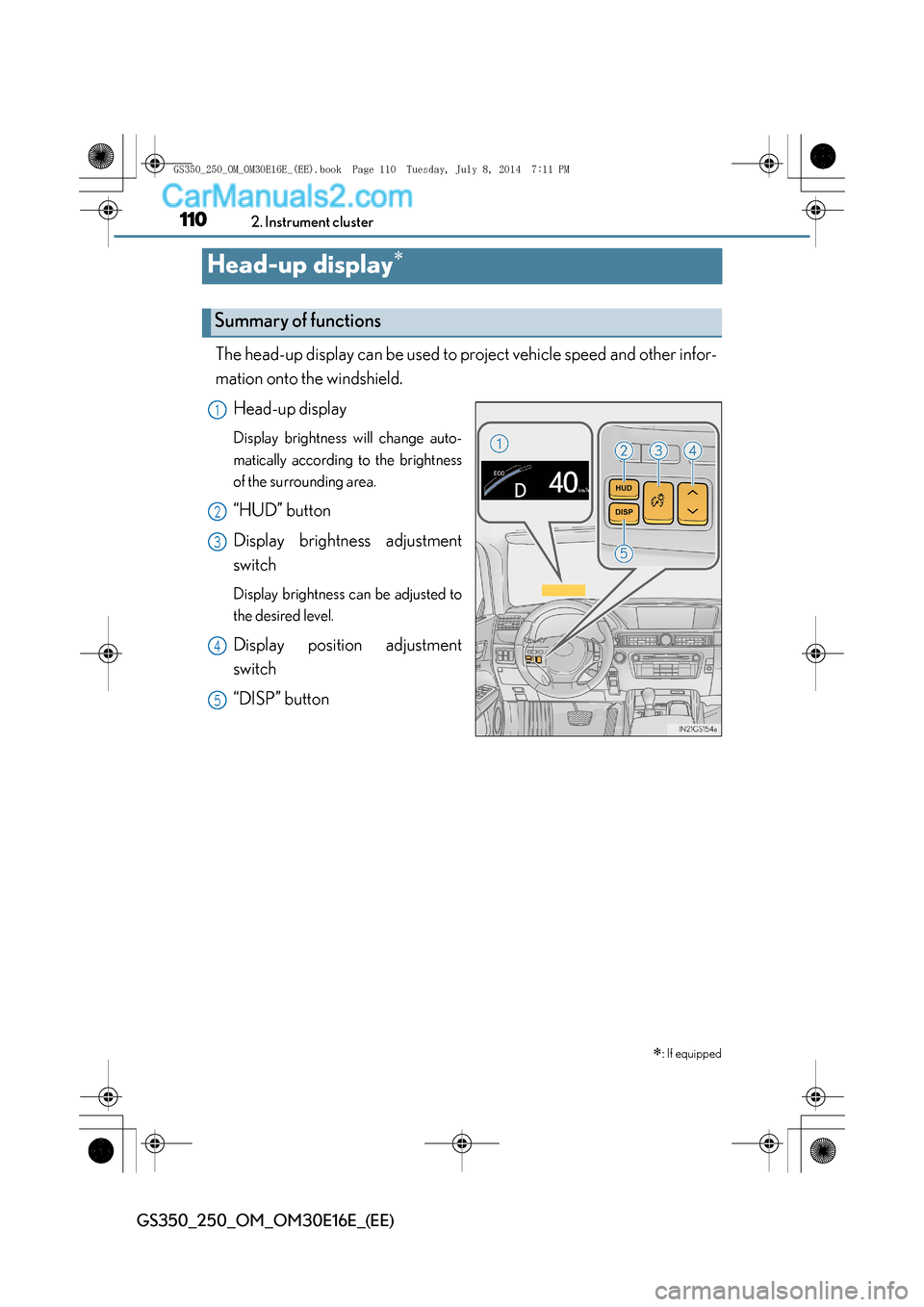

Head-up display∗
The head-up display can be used to project vehicle speed and other infor-
mation onto the windshield.Head-up display
Display brightness will change auto-
matically according to the brightness
of the surrounding area.
“HUD” button
Display brightness adjustment
switch
Display brightness can be adjusted to
the desired level.
Display position adjustment
switch
“DISP” button
∗
: If equipped
Summary of functions
1
2
3
4
5
