Lexus GS250 2014 Manual Online

811-2. Theft deterrent system
1
GS350_250_OM_OM30E16E_(EE)
For safety and security

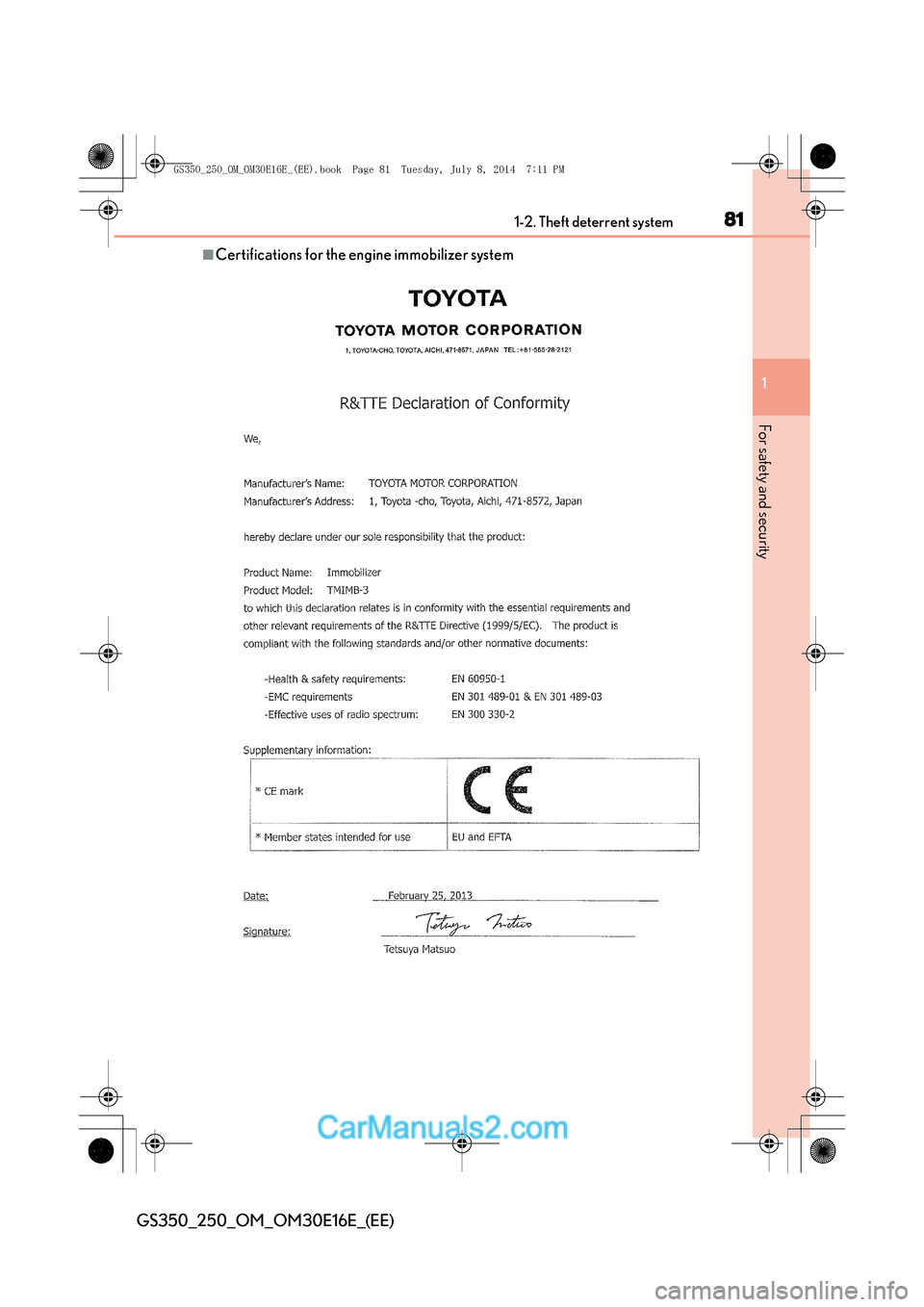

■Certifications for the engine immobilizer system
GS350_250_OM_OM30E16E_(EE).book Page 81 Tuesday, July 8, 2014 7:11 PM

821-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
GS350_250_OM_OM30E16E_(EE).book Page 82 Tuesday, July 8, 2014 7:11 PM

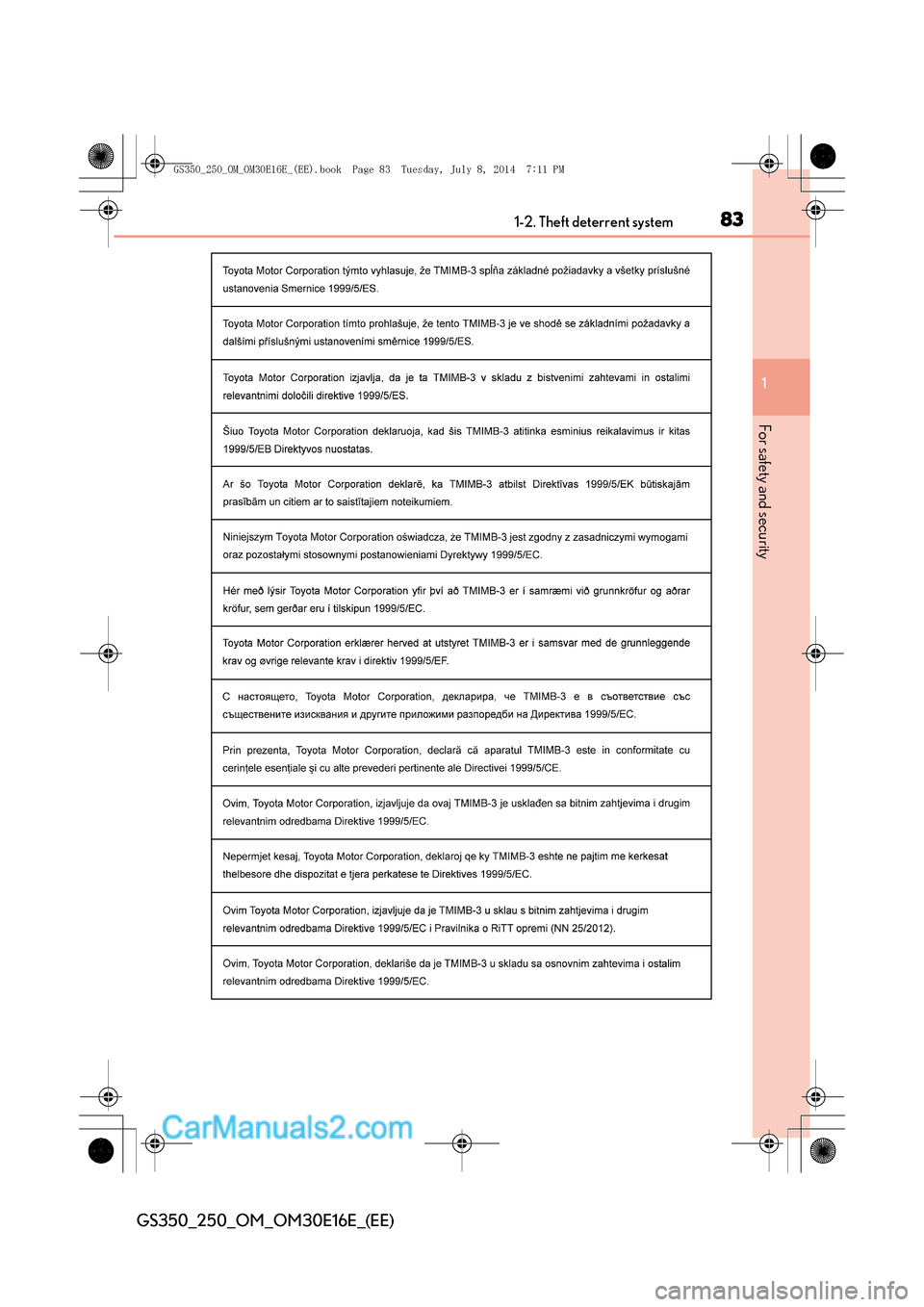

831-2. Theft deterrent system
1
GS350_250_OM_OM30E16E_(EE)
For safety and security
GS350_250_OM_OM30E16E_(EE).book Page 83 Tuesday, July 8, 2014 7:11 PM

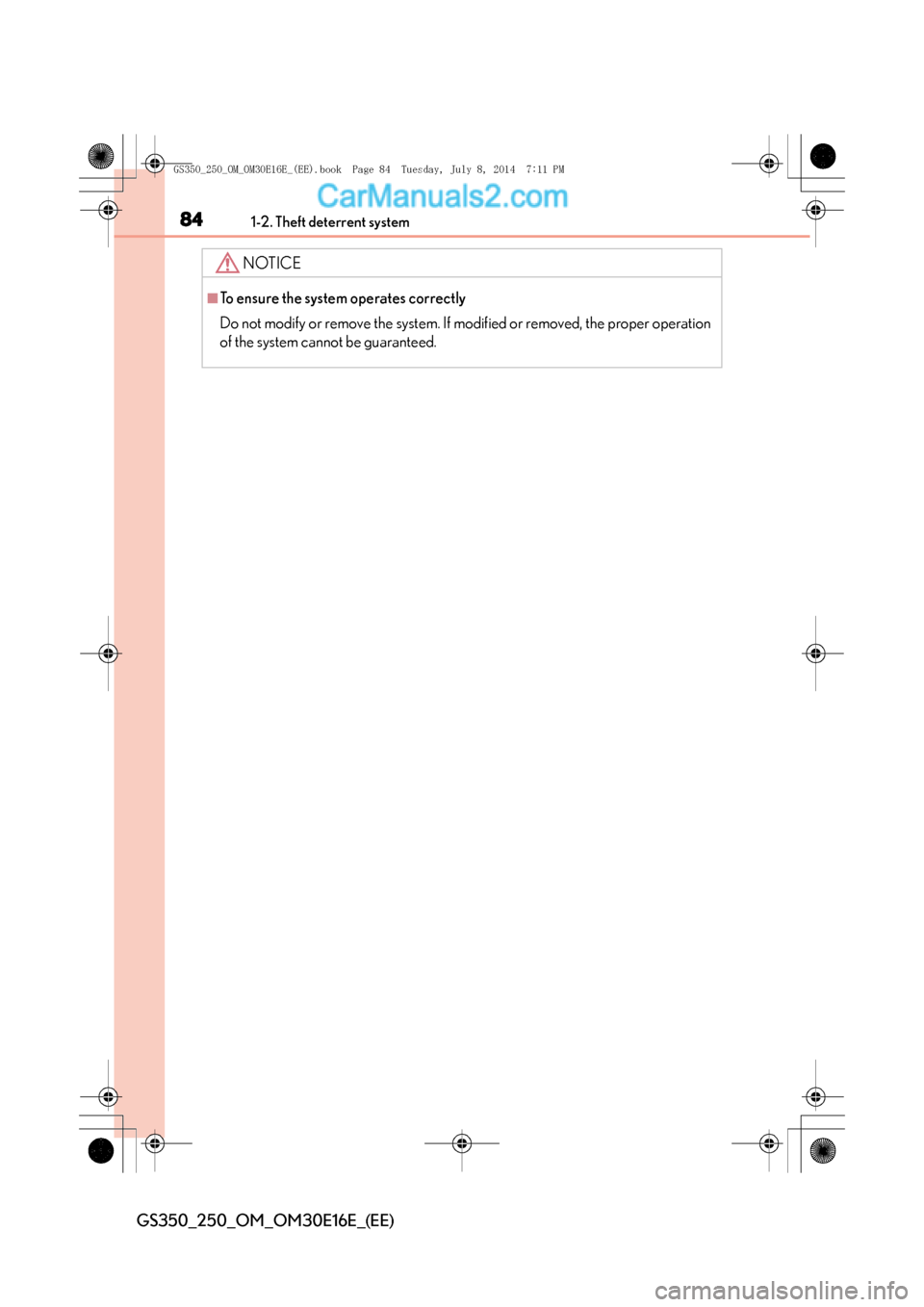

841-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
GS350_250_OM_OM30E16E_(EE).book Page 84 Tuesday, July 8, 2014 7:11 PM

85
1
1-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
For safety and security
Double locking system
Vehicles employing this system have
labels on the window glass of both
front doors.
Turn the engine switch off, have all the passengers exit the vehicle and
ensure that all the doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5 seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
Unauthorized access to the vehicle is
prevented by disabling the door
unlocking function from both the in terior and exterior of the vehicle.
Setting the double locking system
Canceling the double locking system
CAUTION
■Double locking system precaution
Never activate the double locking system when there are people in the vehicle
because all the doors cannot be opened from inside the vehicle.
GS350_250_OM_OM30E16E_(EE).book Page 85 Tuesday, July 8, 2014 7:11 PM

861-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
Alarm∗
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door is unlocked or opened in any way other than using the
entry function or wireless remote control. (The door will lock again
automatically.)
●A trunk is opened in any way other than using the entry function, wire-
less remote control or mechanical key.
●The hood is opened.
●The tilt sensor detects a change of vehicle inclination. (if equipped)
Close the doors, trunk and hood,
and lock all the doors using the
entry function or wireless remote
control. The system will be set auto-
matically after 30 seconds.
The indicator light changes from
being on to flashing when the system
is set.
∗: If equipped
The alarm
Setting the alarm system
GS350_250_OM_OM30E16E_(EE).book Page 86 Tuesday, July 8, 2014 7:11 PM

871-2. Theft deterrent system
1
GS350_250_OM_OM30E16E_(EE)
For safety and security
Do one of the following to deactivate or stop the alarm:
●Unlock the doors or open the trunk using the entry function or wireless
remote control.
●Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a few
seconds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the fol-
lowing:
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm
GS350_250_OM_OM30E16E_(EE).book Page 87 Tuesday, July 8, 2014 7:11 PM

881-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent intrud-
ers.
●Do not leave the key inside the vehicle when the alarm is operating, and make sure
the key is not inside the vehicle when recharging or replacing the battery.
■Customization
The alarm can be set to deactivate when the mechanical key is used to unlock.
(Customizable features: →P. 650)
●The doors are unlocked using the mechani-
cal key.
●A person inside the vehicle opens a door,
the trunk or hood.
●The battery is recharged or replaced when
the vehicle is locked. ( →P. 6 2 3 )
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
GS350_250_OM_OM30E16E_(EE).book Page 88 Tuesday, July 8, 2014 7:11 PM

891-2. Theft deterrent system
1
GS350_250_OM_OM30E16E_(EE)
For safety and security
●The intrusion sensor detects intruders or movement in the vehicle.
●The tilt sensor detects changes in vehicle inclination, such as when the
vehicle is towed away. (if equipped)
This system is designed to deter and prevent vehicle theft but does not
guarantee absolute security against all intrusions.
■Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the
alarm is set. ( →P. 8 6 )
■Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehicle, make
sure to stop the intrusion sensor and tilt sensor before setting the alarm,
as they will respond to movement inside the vehicle.
Turn the engine switch off.
Press the intrusion sensor and
tilt sensor cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
Press the switch again to re-enable
the intrusion sensor and tilt sensor.
Intrusion sensor and tilt sensor
1
2
GS350_250_OM_OM30E16E_(EE).book Page 89 Tuesday, July 8, 2014 7:11 PM

901-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
■Canceling and automatic re-enabling of the intrusion sensor and tilt sensor
●The alarm will still be set even when the intrusion sensor and tilt sensor are can-
celed.
●After the intrusion sensor and tilt sensor are canceled, pressing the engine switch
or unlocking the doors using the entry function, wireless remote control or
mechanical key will re-enable the intrusion sensor and tilt sensor.
●The intrusion sensor and tilt sensor will automatically be re-enabled when the
alarm system is deactivated.
■Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
●Places with extreme vibrations or noises, or situations in which the vehicle is subject
to repeated impacts or vibrations:
• When parked in a parking garage
• When the vehicle is transported by a ferry, trailer, train, etc.
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
●A window or the moon roof is open.
In this case, the sensor may detect the fol-
lowing:
• Wind or the movement of objects such asleaves and insects inside the vehicle
• Ultrasonic waves emitted from devices such as the intrusion sensors of other
vehicles
• The movement of people outside the vehicle
●Unstable items, such as dangling accesso-
ries or clothes hanging on the coat hooks,
are in the vehicle.
GS350_250_OM_OM30E16E_(EE).book Page 90 Tuesday, July 8, 2014 7:11 PM
