Lexus GS250 2014 Manual PDF

711-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
■Rear-facing  Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Install a locking clip near the
tab of the lap and shoulder belt
by inserting the lap and shoul-
der webbing through the
recesses of the locking clip.
Buckle the belt again. If the
belt has any slack, release the
buckle and reinstall the locking
clip.
Installing child restraints using a seat belt
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 71 Tuesday, July 8, 2014 7:11 PM

721-1. For safe use
GS350_250_OM_OM30E16E_(EE)
■Forward-facing  Child seat
Remove the head restraint if it
interferes with your child
restraint system.
Place the child restraint system
on the seat facing the front of
the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Install a locking clip near the
tab of the lap and shoulder belt
by inserting the lap and shoul-
der webbing through the
recesses of the locking clip.
Buckle the belt again. If the
belt has any slack, release the
buckle and reinstall the locking
clip.
1
2
3
4
GS350_250_OM_OM30E16E_(EE).book Page 72 Tuesday, July 8, 2014 7:11 PM

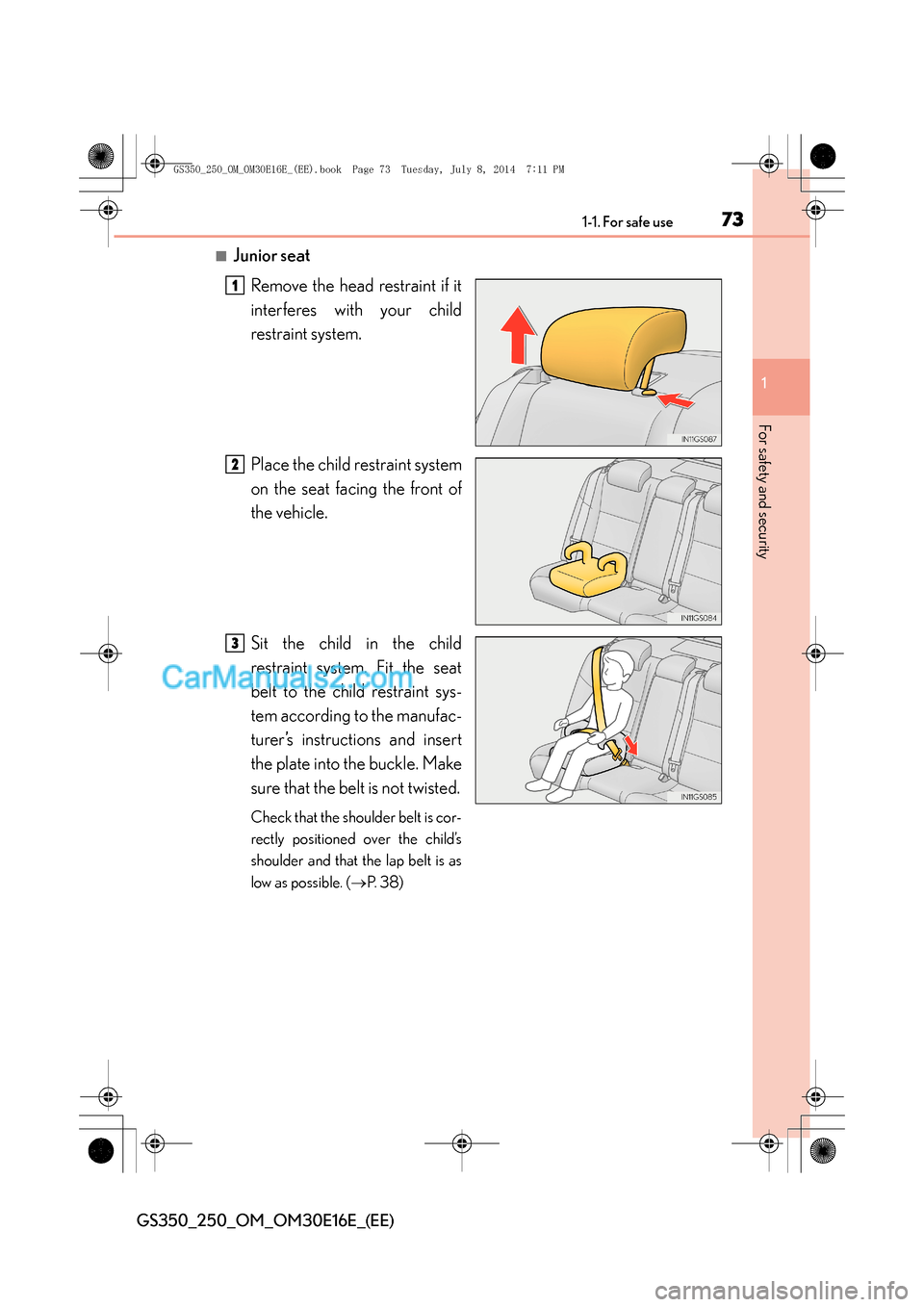

731-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
■Junior seatRemove the head restraint if it
interferes with your child
restraint system.
Place the child restraint system
on the seat facing the front of
the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manufac-
turer’s instructions and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. ( →P. 3 8 )
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 73 Tuesday, July 8, 2014 7:11 PM

741-1. For safe use
GS350_250_OM_OM30E16E_(EE)
Push the buckle release button and
fully retract the seat belt. Remove the head restraint if it
interferes with your child restraint
system.
Widen the gap between the seat cushion and seatback slightly.
Latch the buckles onto the exclu-
sive fixing bars.
If the child restraint has a top strap, the
top strap should be latched onto the
anchor bracket.
Removing a child restraint installed with a seat belt
Installation with ISOFIX rigid anchor
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 74 Tuesday, July 8, 2014 7:11 PM

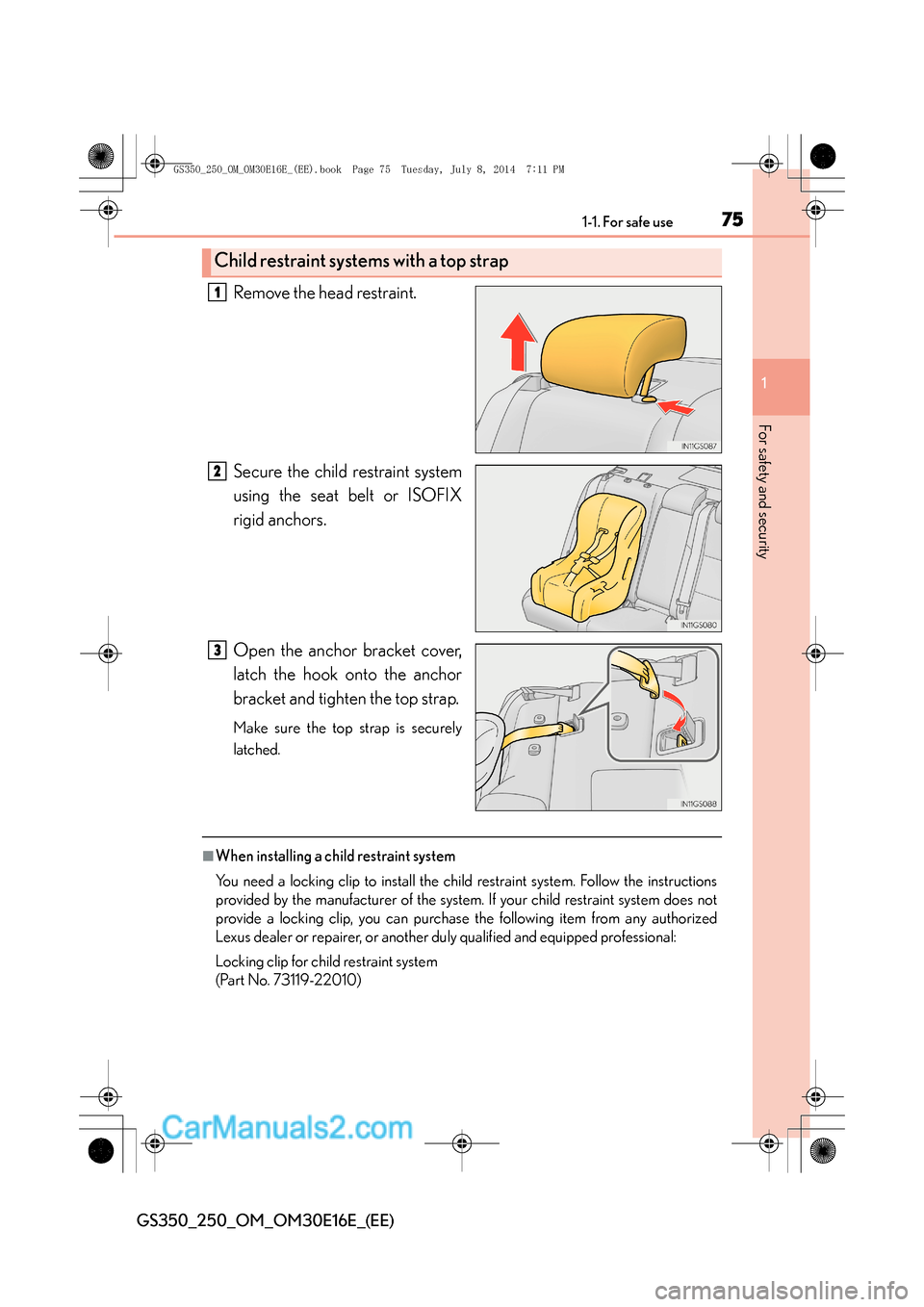

751-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
Remove the head restraint.
Secure the child restraint system
using the seat belt or ISOFIX
rigid anchors.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
■When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the instructions
provided by the manufacturer of the system. If your child restraint system does not
provide a locking clip, you can purchase the following item from any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
Child restraint systems with a top strap
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 75 Tuesday, July 8, 2014 7:11 PM

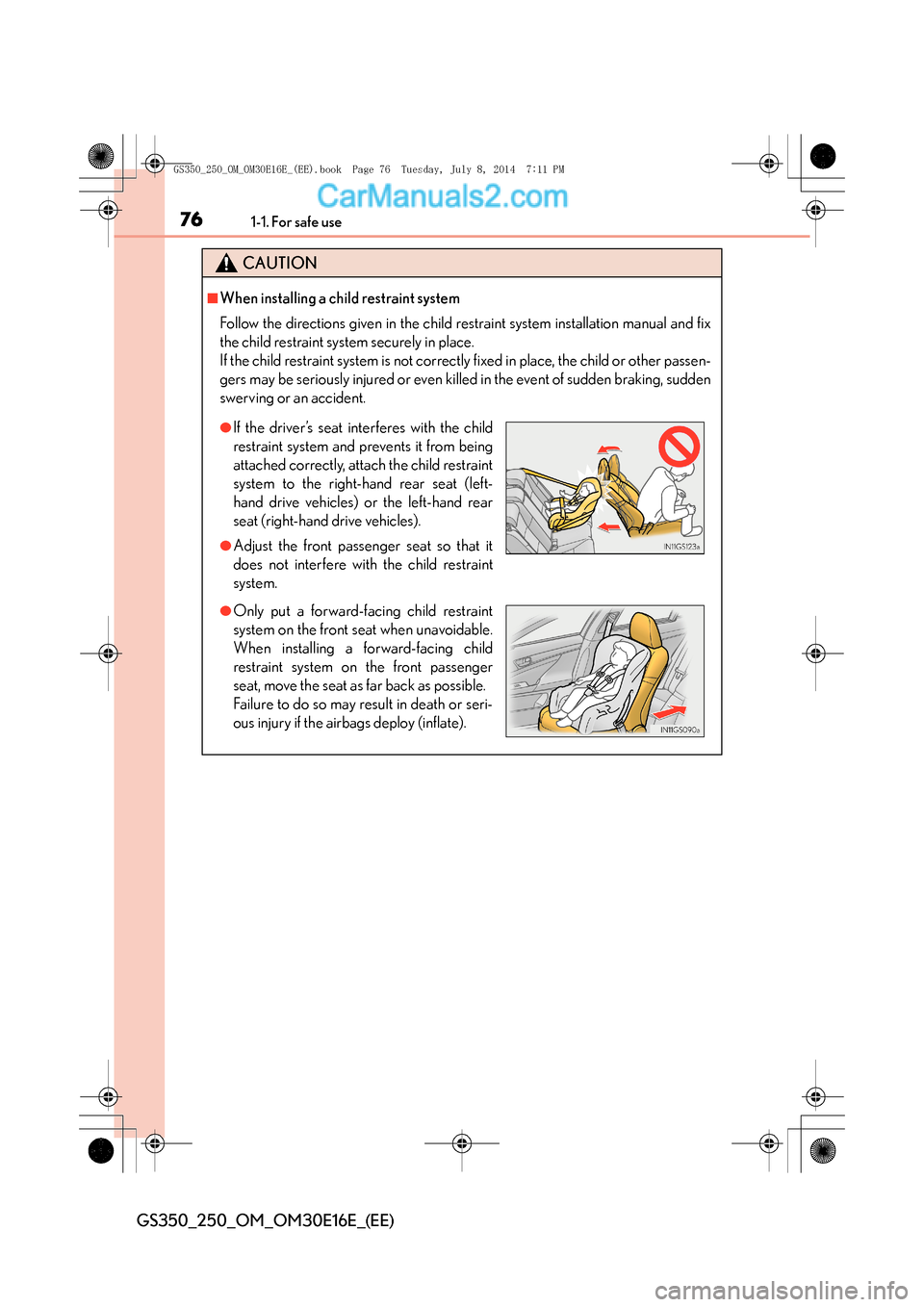

761-1. For safe use
GS350_250_OM_OM30E16E_(EE)
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be seriously injured or even killed in the event of sudden braking, sudden
swerving or an accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat (left-
hand drive vehicles) or the left-hand rear
seat (right-hand drive vehicles).
●Adjust the front passenger seat so that it
does not interfere with the child restraint
system.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible.
Failure to do so may result in death or seri-
ous injury if the airbags deploy (inflate).
GS350_250_OM_OM30E16E_(EE).book Page 76 Tuesday, July 8, 2014 7:11 PM

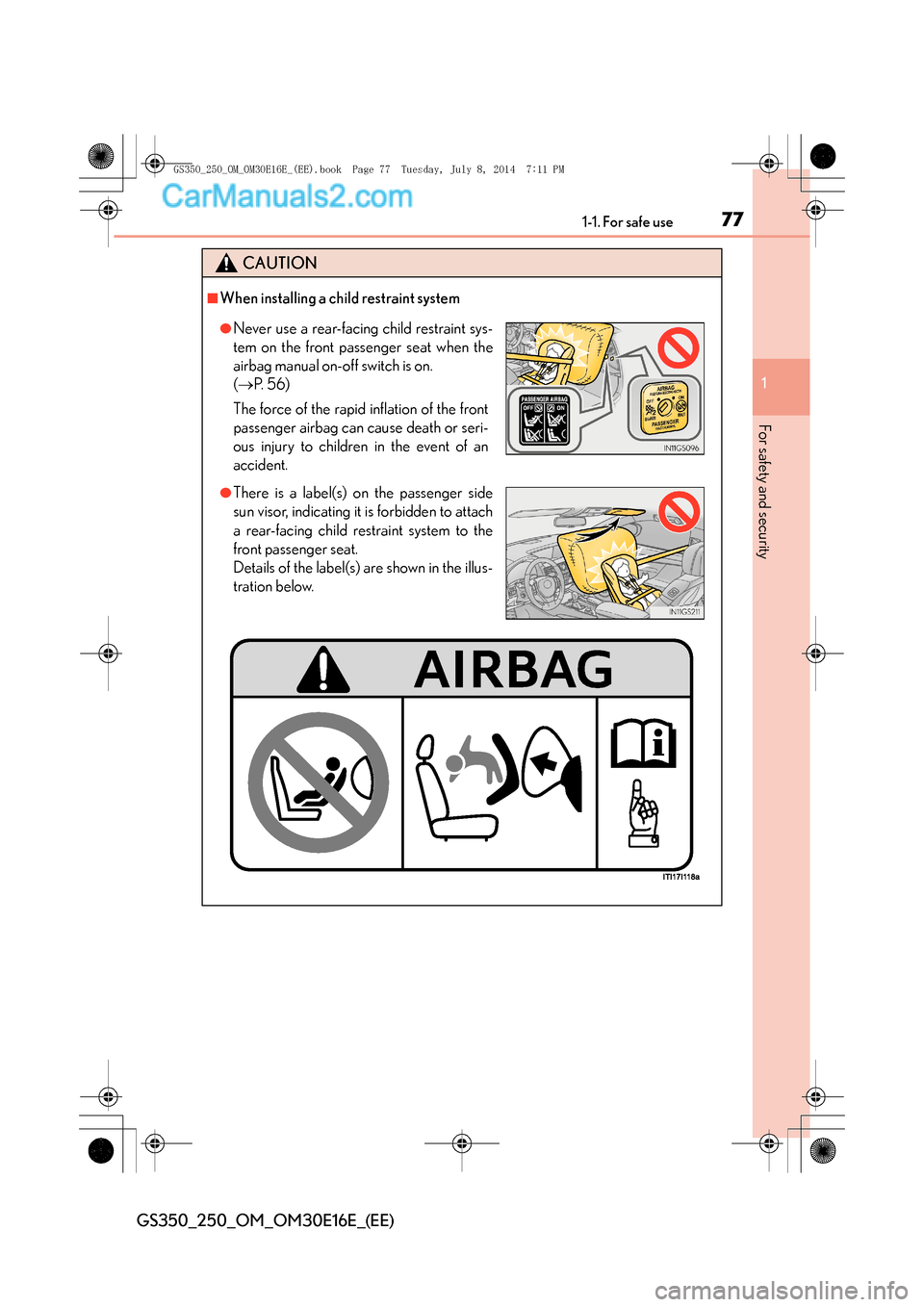

771-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
CAUTION
■When installing a child restraint system
●Never use a rear-facing child restraint sys-
tem on the front passenger seat when the
airbag manual on-off switch is on.
(→ P. 5 6 )
The force of the rapid inflation of the front
passenger airbag can cause death or seri-
ous injury to children in the event of an
accident.
●There is a label(s) on the passenger side
sun visor, indicating it is forbidden to attach
a rear-facing child restraint system to the
front passenger seat.
Details of the label(s) are shown in the illus-
tration below.
GS350_250_OM_OM30E16E_(EE).book Page 77 Tuesday, July 8, 2014 7:11 PM

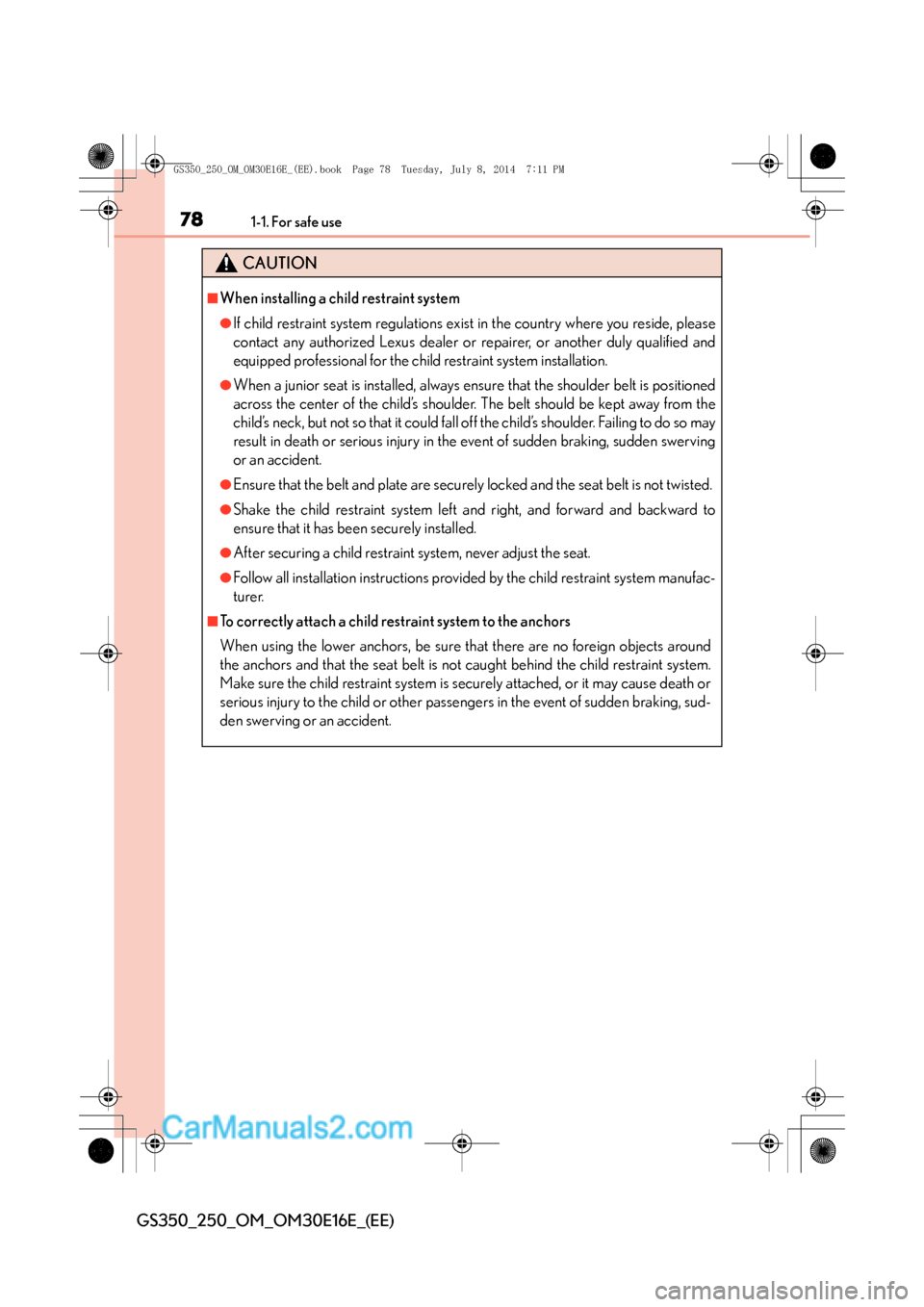

781-1. For safe use
GS350_250_OM_OM30E16E_(EE)
CAUTION
■When installing a child restraint system
●If child restraint system regulations exist in the country where you reside, please
contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional for the child restraint system installation.
●When a junior seat is installed, always ensure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the
child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so may
result in death or serious injury in the event of sudden braking, sudden swerving
or an accident.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to
ensure that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufac-
turer.
■To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects around
the anchors and that the seat belt is not caught behind the child restraint system.
Make sure the child restraint system is securely attached, or it may cause death or
serious injury to the child or other passengers in the event of sudden braking, sud-
den swerving or an accident.
GS350_250_OM_OM30E16E_(EE).book Page 78 Tuesday, July 8, 2014 7:11 PM

791-1. For safe use
1
GS350_250_OM_OM30E16E_(EE)
For safety and security
Exhaust gas precautions
Harmful substance to the human body is included in exhaust gases if
inhaled.
CAUTION
Exhaust gases include harmful carbon monoxide (CO), which is colorless and odor-
less. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an acci-
dent caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
●Keep the trunk lid closed.
●If you smell exhaust gases in the vehicle even when the trunk lid is closed, open
the windows and have the vehicle inspected at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop
the engine.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
ensure that exhaust fumes do not enter the vehicle interior.
●Do not leave the engine running in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the engine is running,
exhaust gases may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack
caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have
the vehicle inspected and repaired by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
GS350_250_OM_OM30E16E_(EE).book Page 79 Tuesday, July 8, 2014 7:11 PM

801-2. Theft deterrent system
GS350_250_OM_OM30E16E_(EE)
Engine immobilizer system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNI-
TION ON mode to indicate that the
system has been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a
built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the ve hicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guar-
antee absolute security against all vehicle thefts.
GS350_250_OM_OM30E16E_(EE).book Page 80 Tuesday, July 8, 2014 7:11 PM
