Lexus GS250 2014 Owner's Manual

461 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)

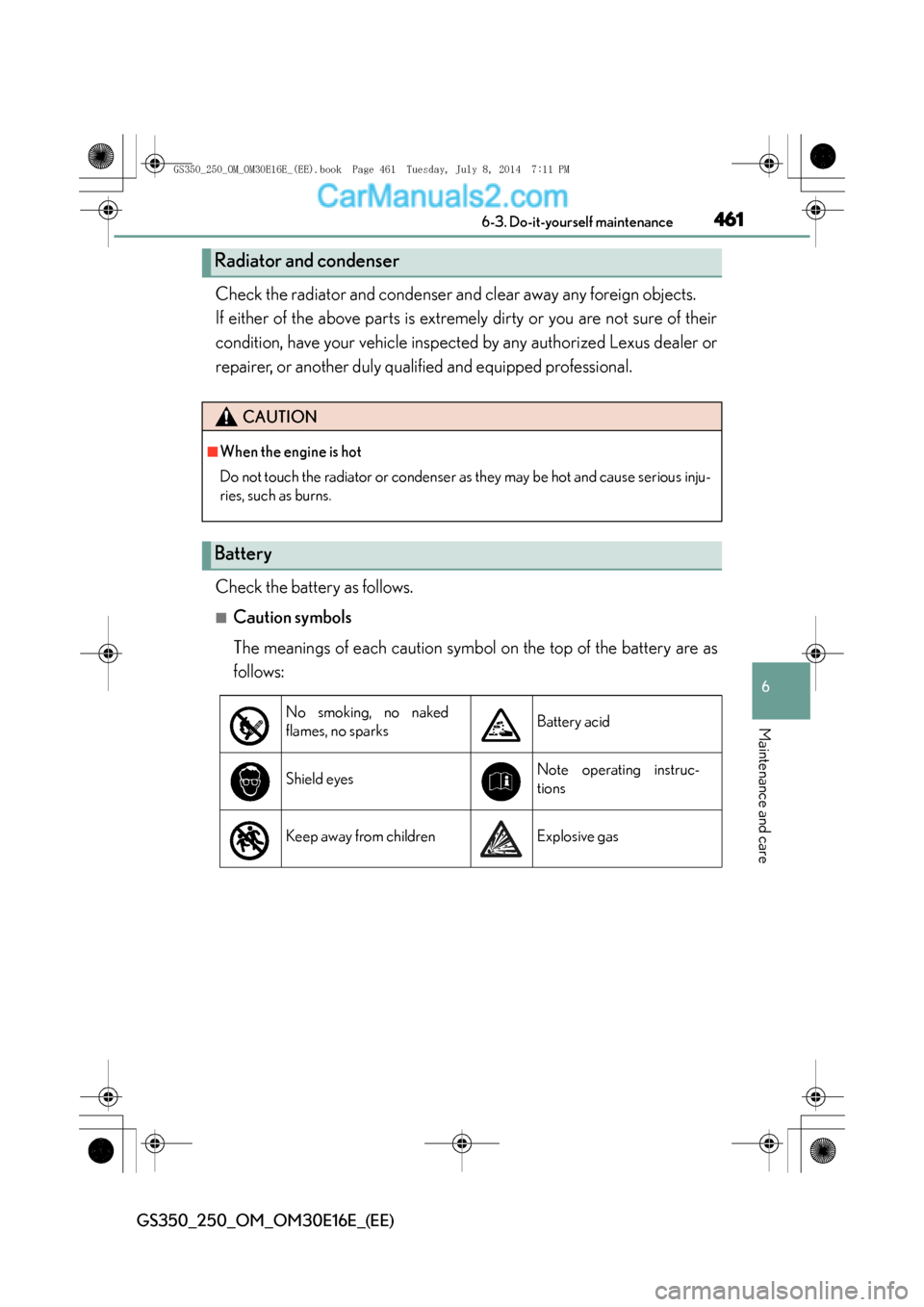

Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their
condition, have your vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Check the battery as follows.
■Caution symbols
The meanings of each caution symbol on the top of the battery are as
follows:
Radiator and condenser
CAUTION
■When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause serious inju-
ries, such as burns.
Battery
No smoking, no naked
flames, no sparksBattery acid
Shield eyesNote operating instruc-
tions
Keep away from childrenExplosive gas
GS350_250_OM_OM30E16E_(EE).book Page 461 Tuesday, July 8, 2014 7:11 PM

4626-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)

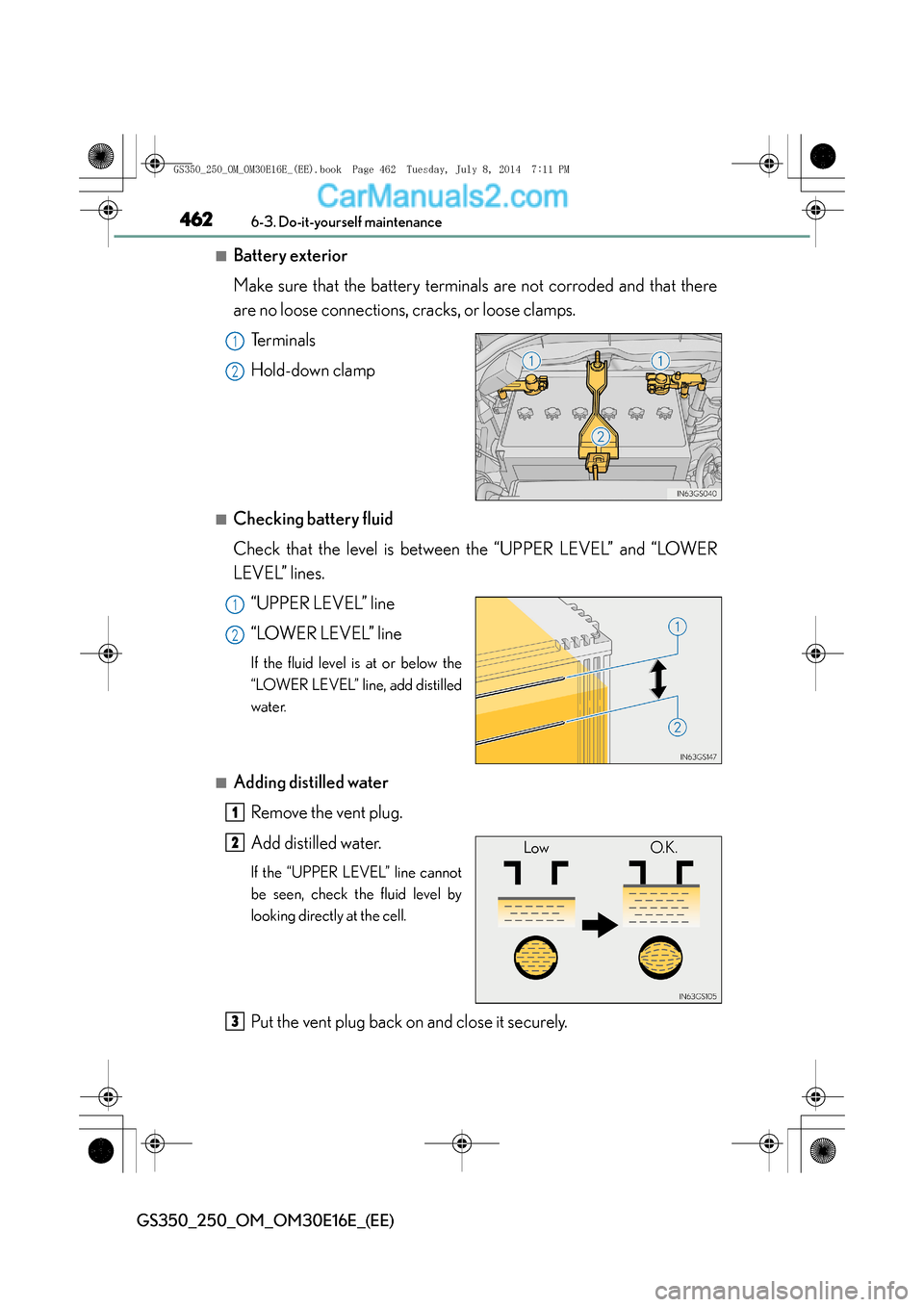

■Battery exterior
Make sure that the battery terminals are not corroded and that there
are no loose connections, cracks, or loose clamps.Terminals
Hold-down clamp
■Checking battery fluid
Check that the level is between the “UPPER LEVEL” and “LOWER
LEVEL” lines.“UPPER LEVEL” line
“LOWER LEVEL” line
If the fluid level is at or below the
“LOWER LEVEL” line, add distilled
water.
■Adding distilled waterRemove the vent plug.
Add distilled water.
If the “UPPER LEVEL” line cannot
be seen, check the fluid level by
looking directly at the cell.
Put the vent plug back on and close it securely.
1
2
1
2
1
Low O.K.2
3
GS350_250_OM_OM30E16E_(EE).book Page 462 Tuesday, July 8, 201 4 7:11 PM

463 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)

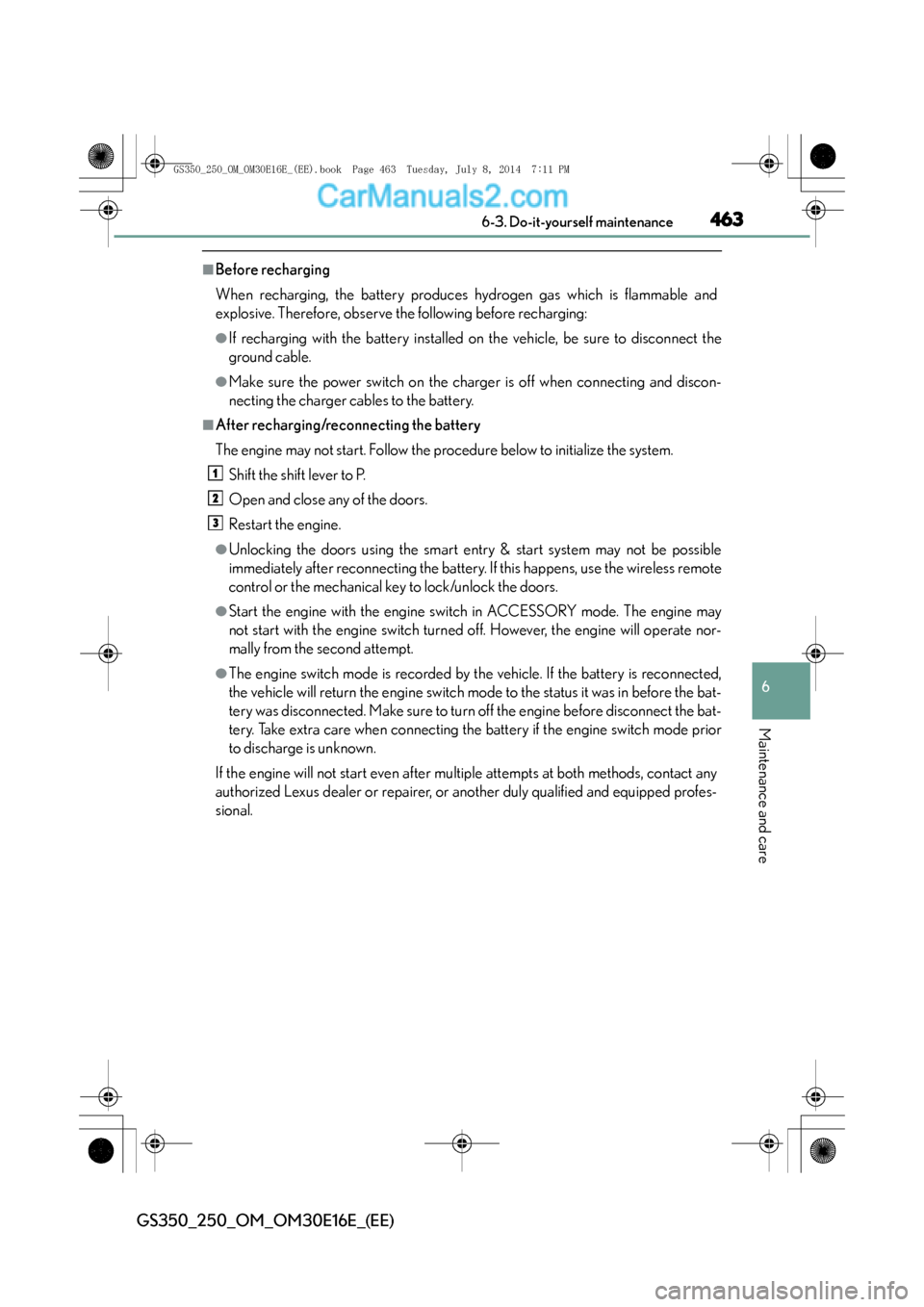

■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the battery.
■After recharging/reconnecting the battery
The engine may not start. Follow the procedure below to initialize the system.Shift the shift lever to P.
Open and close any of the doors.
Restart the engine.
●Unlocking the doors using the smart entry & start system may not be possible
immediately after reconnecting the battery. If this happens, use the wireless remote
control or the mechanical key to lock/unlock the doors.
●Start the engine with the engine switch in ACCESSORY mode. The engine may
not start with the engine switch turned off. However, the engine will operate nor-
mally from the second attempt.
●The engine switch mode is recorded by the vehicle. If the battery is reconnected,
the vehicle will return the engine switch mode to the status it was in before the bat-
tery was disconnected. Make sure to turn off the engine before disconnect the bat-
tery. Take extra care when connecting the battery if the engine switch mode prior
to discharge is unknown.
If the engine will not start even after multiple attempts at both methods, contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 463 Tuesday, July 8, 201 4 7:11 PM

4646-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)

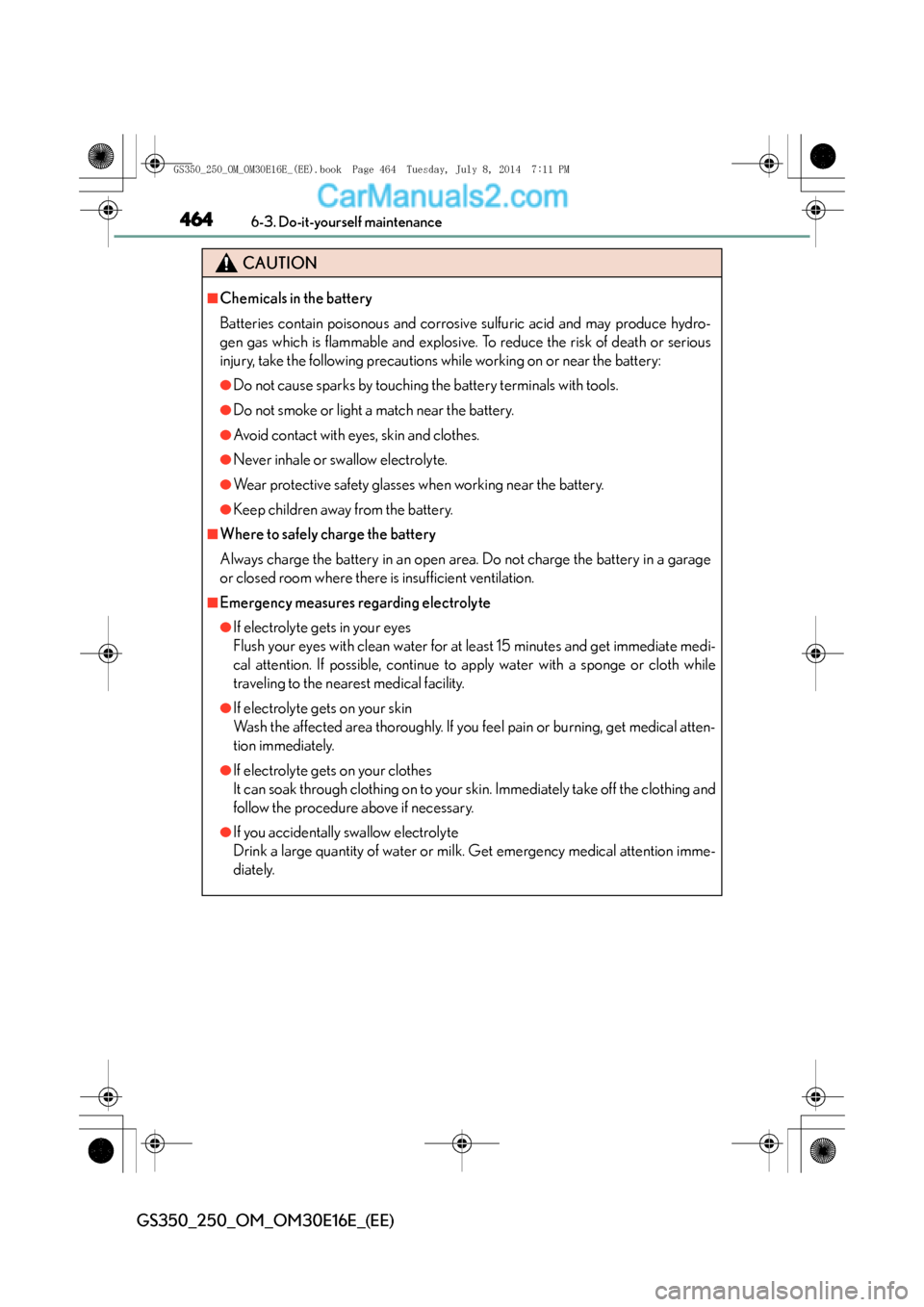

CAUTION
■Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce hydro-
gen gas which is flammable and explosive. To reduce the risk of death or serious
injury, take the following precautions while working on or near the battery:
●Do not cause sparks by touching the battery terminals with tools.
●Do not smoke or light a match near the battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the battery.
●Keep children away from the battery.
■Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a garage
or closed room where there is insufficient ventilation.
■Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immediate medi-
cal attention. If possible, continue to apply water with a sponge or cloth while
traveling to the nearest medical facility.
●If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical atten-
tion immediately.
●If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the clothing and
follow the procedure above if necessary.
●If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention imme-
diately.
GS350_250_OM_OM30E16E_(EE).book Page 464 Tuesday, July 8, 2014 7:11 PM

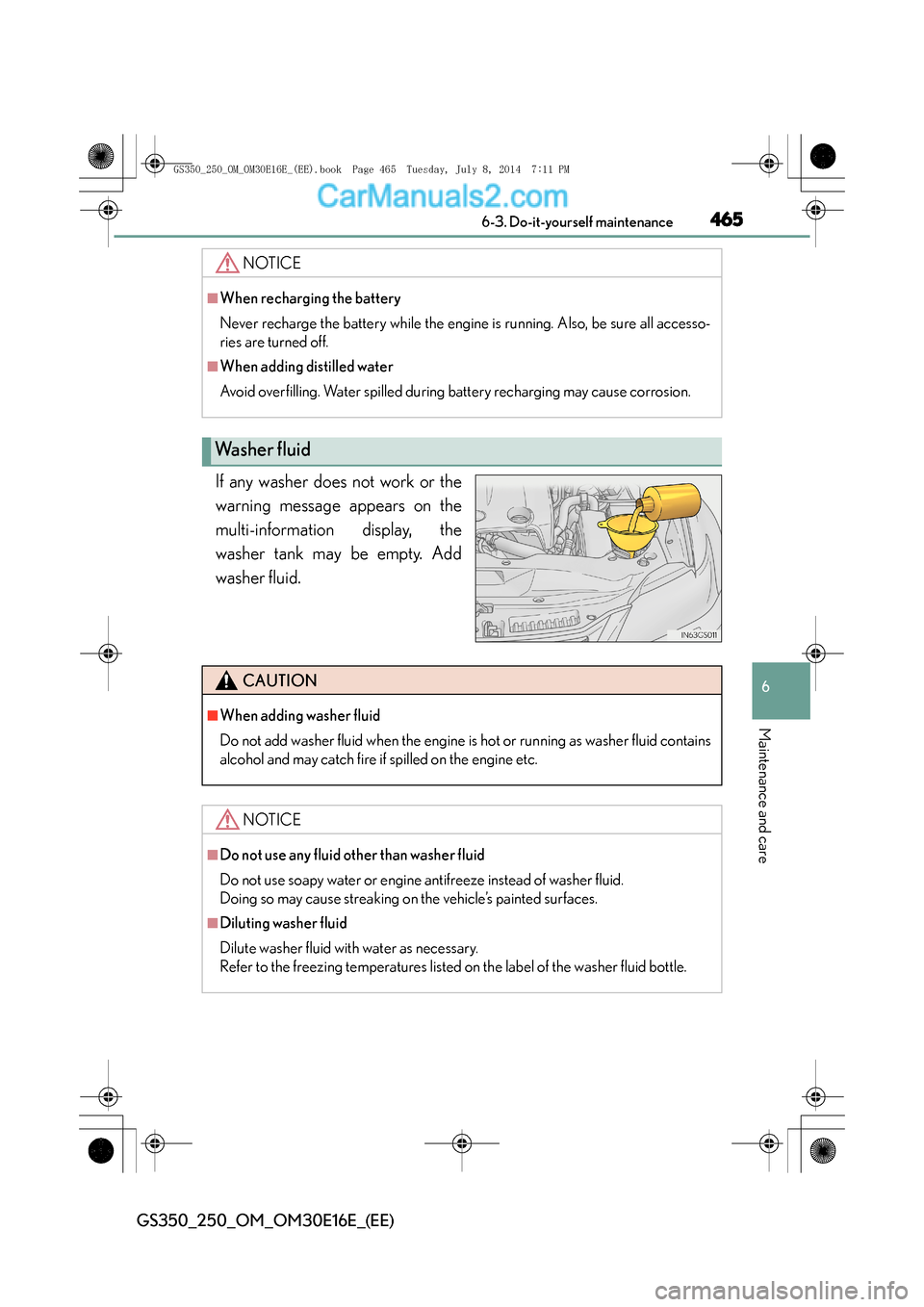

465 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
If any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
NOTICE
■When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accesso-
ries are turned off.
■When adding distilled water
Avoid overfilling. Water spilled during battery recharging may cause corrosion.
Wa s h e r f l u i d
CAUTION
■When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid contains
alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.
GS350_250_OM_OM30E16E_(EE).book Page 465 Tuesday, July 8, 2014 7:11 PM

4666-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)
Tires
New tread
Treadwear indicator
Worn tread
The location of treadwear indicators is
shown by the “TWI” or “∆” marks, etc.,
molded on the sidewall of each tire.
Check spare tire condition and pres-
sure if not rotated.
Replace or rotate tires in accordance with maintenance schedules and
treadwear.
Checking tires
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 466 Tuesday, July 8, 201 4 7:11 PM

467 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)

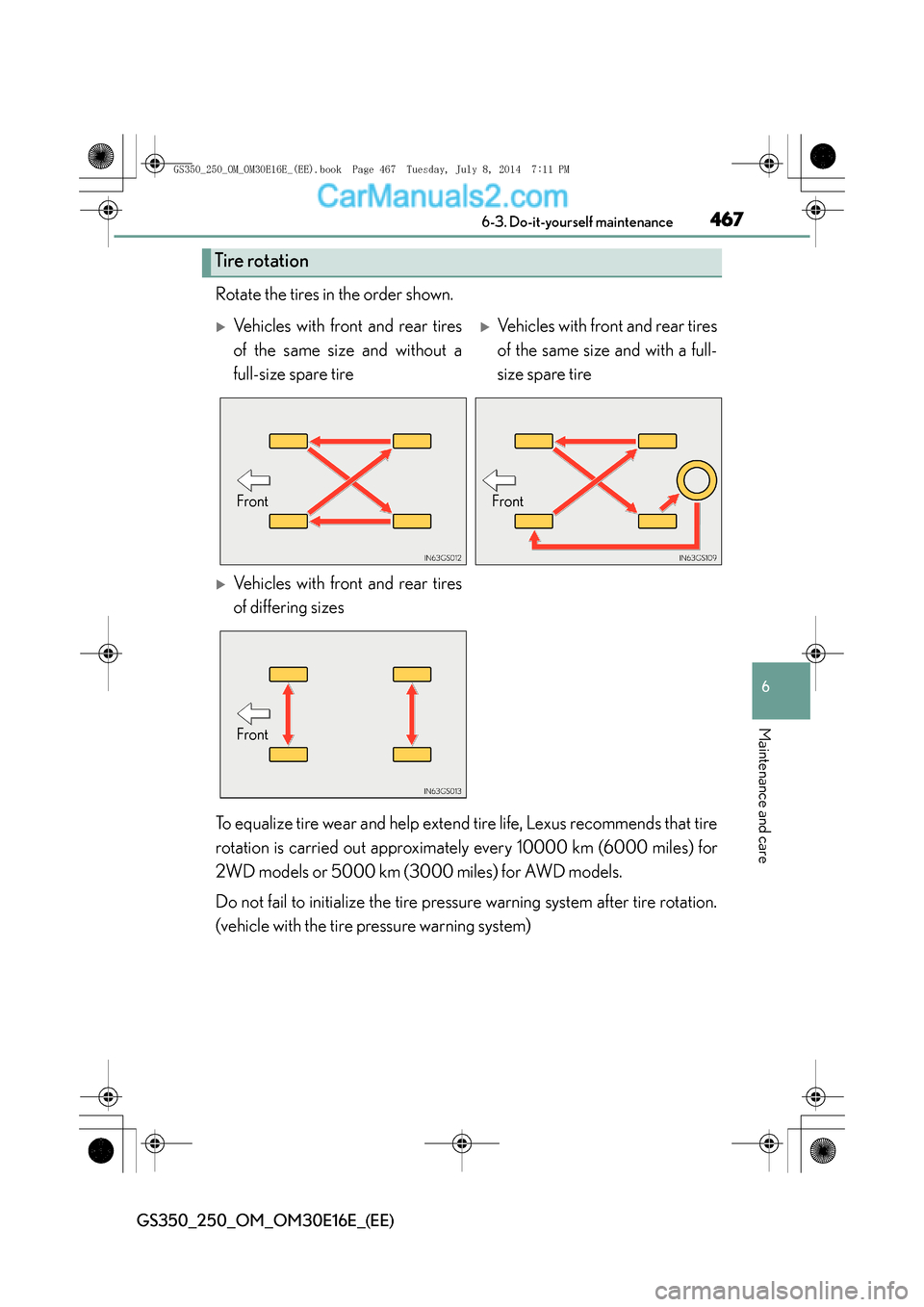

Rotate the tires in the order shown.
To equalize tire wear and help extend tire life, Lexus recommends that tire
rotation is carried out approximately every 10000 km (6000 miles) for
2WD models or 5000 km (3000 miles) for AWD models.
Do not fail to initialize the tire pressure warning system after tire rotation.
(vehicle with the tire pressure warning system)
Tire rotation
XVehicles with front and rear tires
of the same size and without a
full-size spare tireXVehicles with front and rear tires
of the same size and with a full-
size spare tire
XVehicles with front and rear tires
of differing sizes
FrontFront
Front
GS350_250_OM_OM30E16E_(EE).book Page 467 Tuesday, July 8, 201 4 7:11 PM

4686-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)

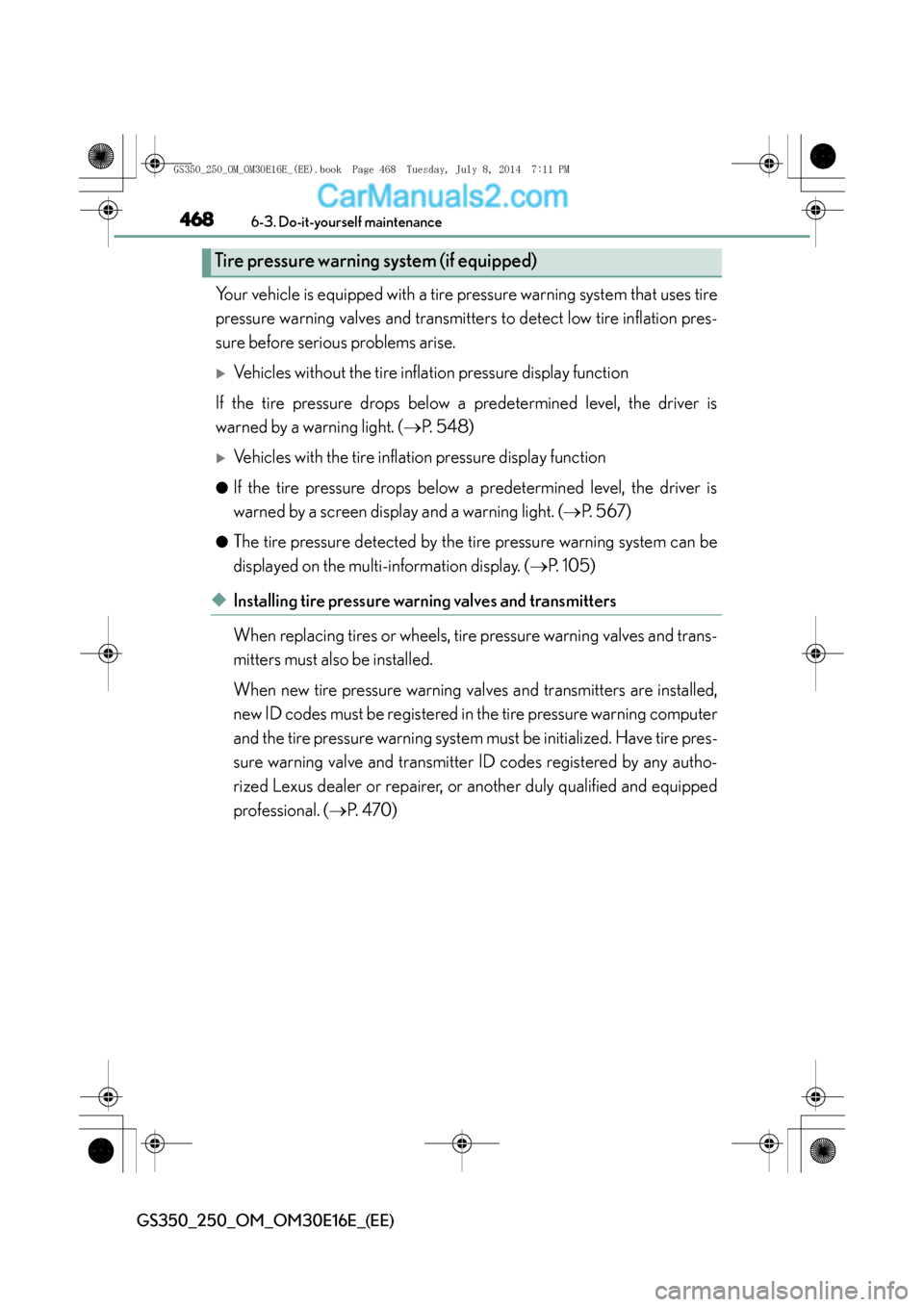

Your vehicle is equipped with a tire pressure warning system that uses tire
pressure warning valves and transmitters to detect low tire inflation pres-
sure before serious problems arise.
XVehicles without the tire inflation pressure display function
If the tire pressure drops below a predetermined level, the driver is
warned by a warning light. ( →P. 548)
XVehicles with the tire inflation pressure display function
●If the tire pressure drops below a predetermined level, the driver is
warned by a screen display and a warning light. ( →P. 567)
●The tire pressure detected by the tire pressure warning system can be
displayed on the multi-information display. ( →P. 105)
◆Installing tire pressure wa rning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and trans-
mitters must also be installed.
When new tire pressure warning valves and transmitters are installed,
new ID codes must be registered in the tire pressure warning computer
and the tire pressure warning system must be initialized. Have tire pres-
sure warning valve and transmitter ID codes registered by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped
professional. ( →P. 4 7 0 )
Tire pressure warning system (if equipped)
GS350_250_OM_OM30E16E_(EE).book Page 468 Tuesday, July 8, 201 4 7:11 PM

469 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)

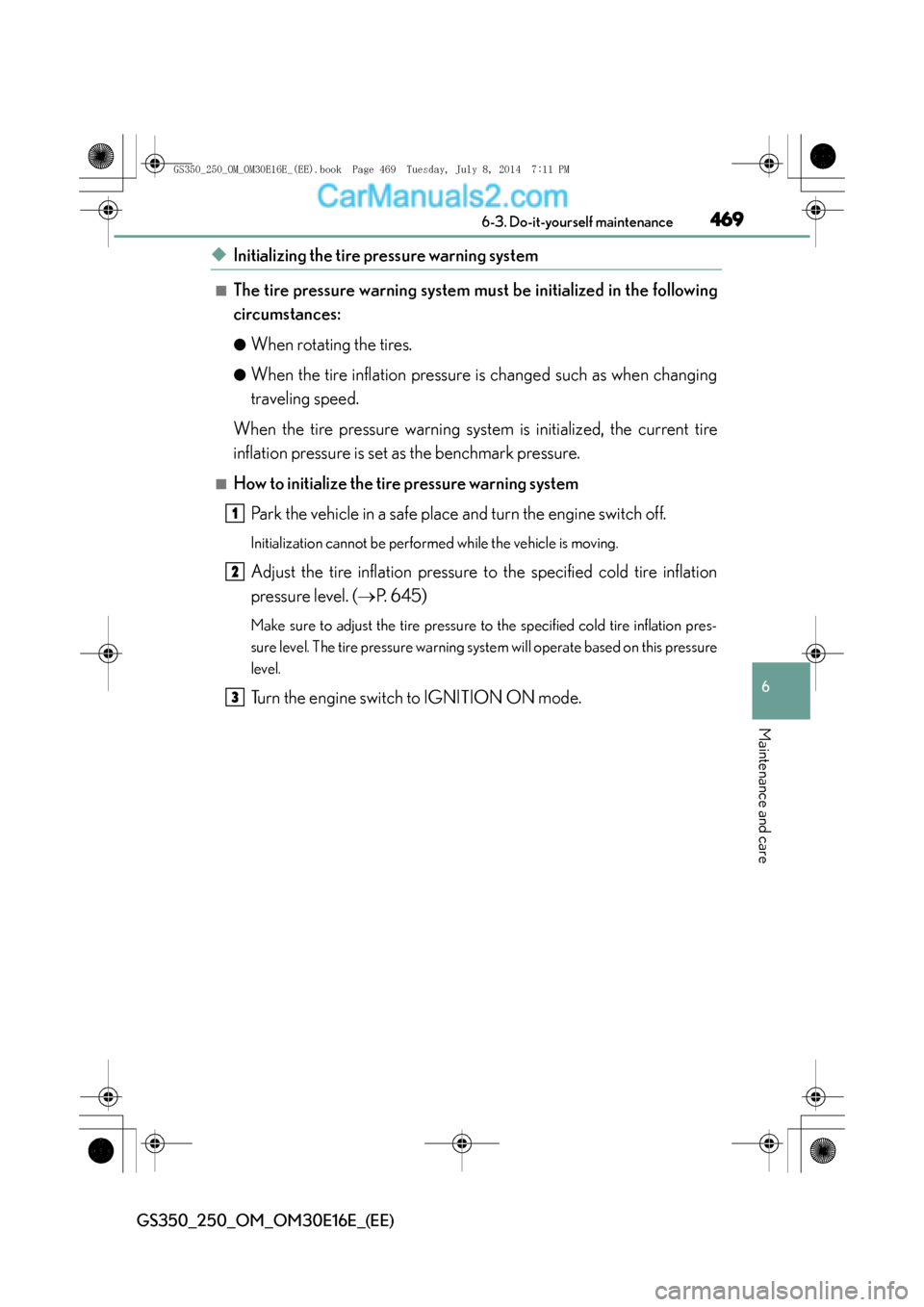

◆Initializing the tire pressure warning system
■The tire pressure warning system must be initialized in the following
circumstances:
●When rotating the tires.
●When the tire inflation pressure is changed such as when changing
traveling speed.
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
■How to initialize the tire pressure warning system Park the vehicle in a safe place and turn the engine switch off.
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. ( →P. 645)
Make sure to adjust the tire pressure to the specified cold tire inflation pres-
sure level. The tire pressure warning system will operate based on this pressure
level.
Turn the engine switch to IGNITION ON mode.
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 469 Tuesday, July 8, 201 4 7:11 PM

4706-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)

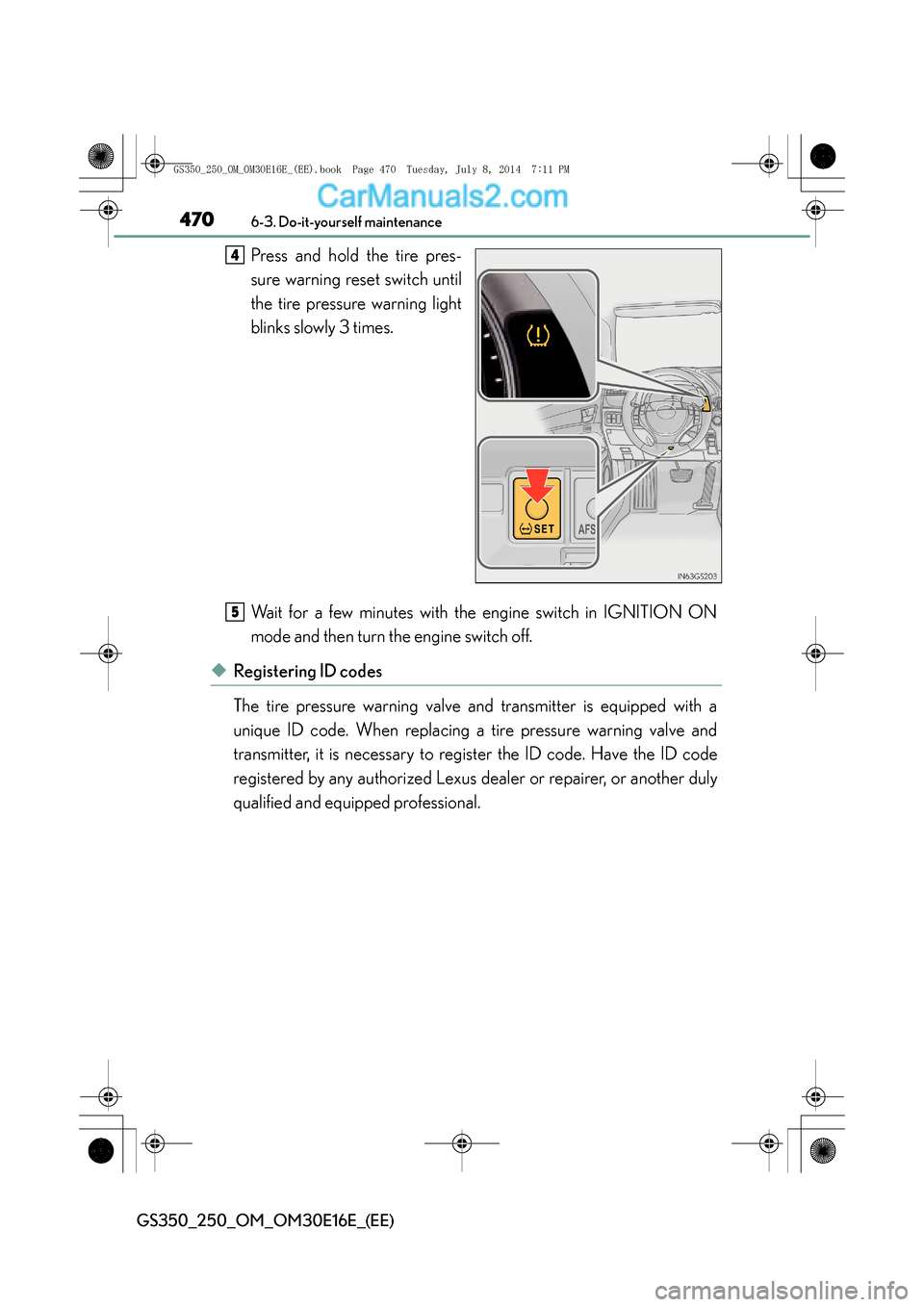

Press and hold the tire pres-
sure warning reset switch until
the tire pressure warning light
blinks slowly 3 times.
Wait for a few minutes with the engine switch in IGNITION ON
mode and then turn the engine switch off.
◆Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
4
5
