Lexus GS250 2014 Owner's Manual

431
5
5-5. Other interior features
Interior features
GS350_250_OM_OM30E16E_(EE)

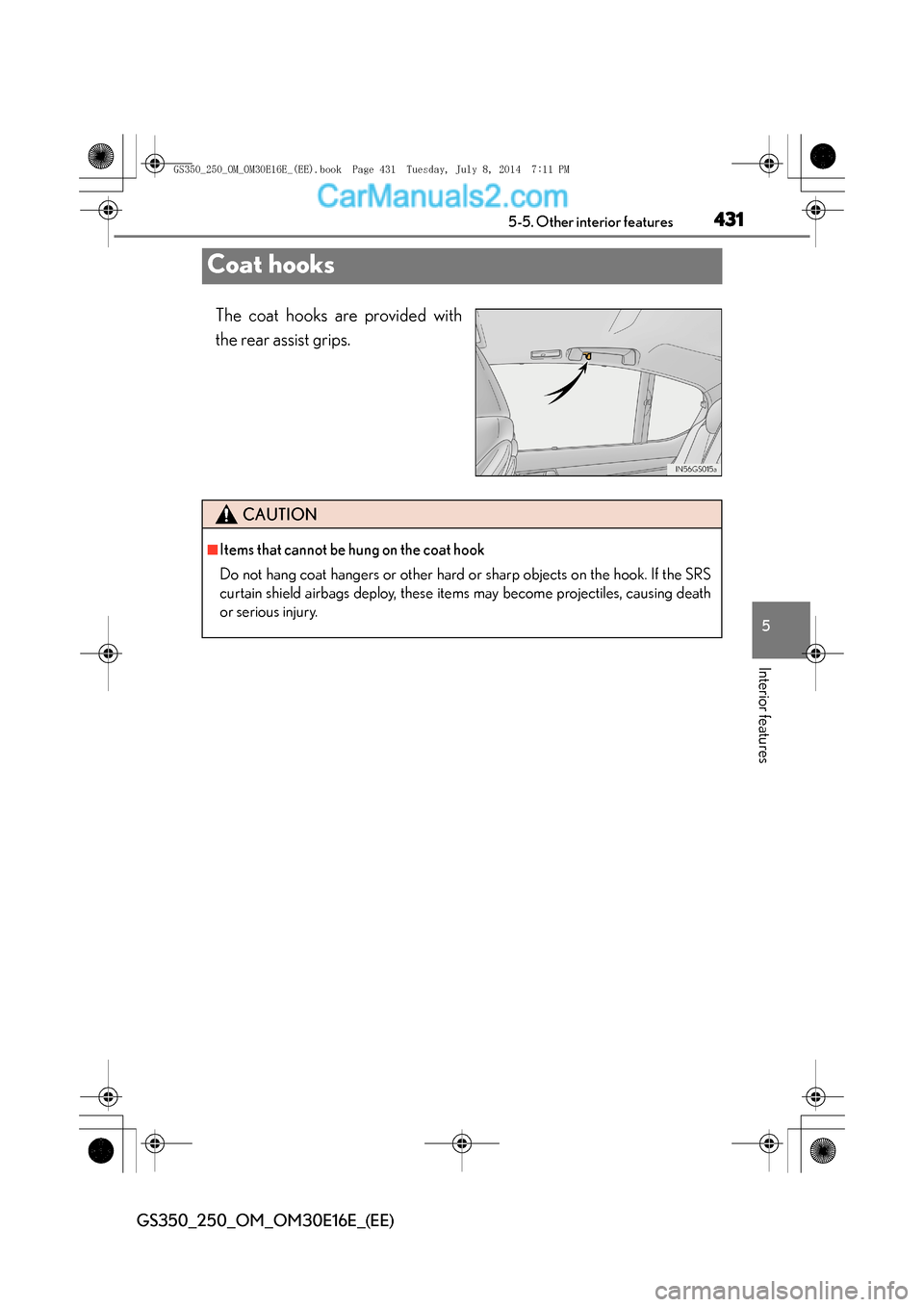

Coat hooks
The coat hooks are provided with
the rear assist grips.
CAUTION
■Items that cannot be hung on the coat hook
Do not hang coat hangers or other hard
or sharp objects on the hook. If the SRS
curtain shield airbags deploy, these items may become projectiles, causing death
or serious injury.
GS350_250_OM_OM30E16E_(EE).book Page 431 Tuesday, July 8, 201 4 7:11 PM

4325-5. Other interior features
GS350_250_OM_OM30E16E_(EE)

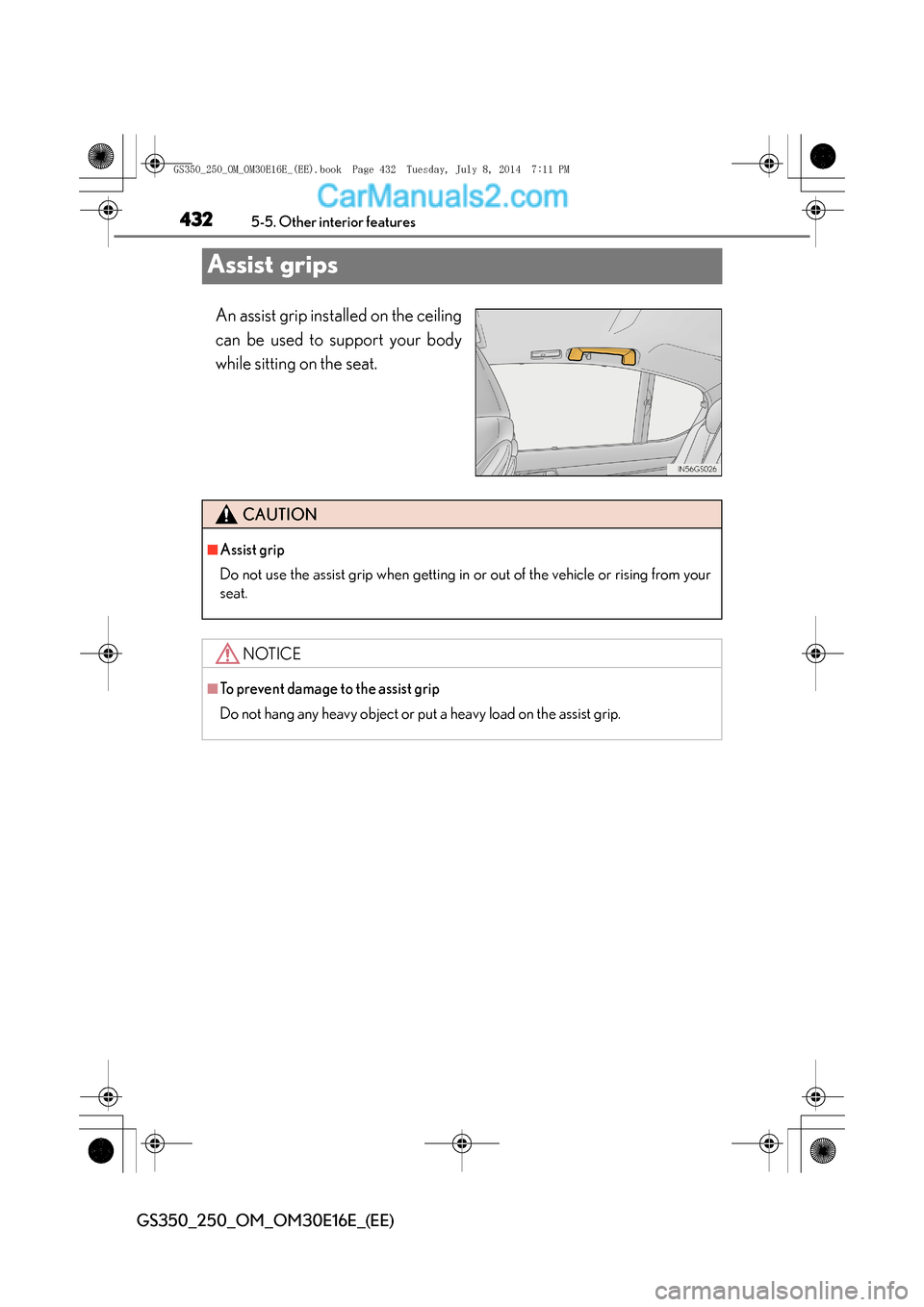

Assist grips
An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from your
seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
GS350_250_OM_OM30E16E_(EE).book Page 432 Tuesday, July 8, 201 4 7:11 PM

433
5
5-5. Other interior features
Interior features
GS350_250_OM_OM30E16E_(EE)

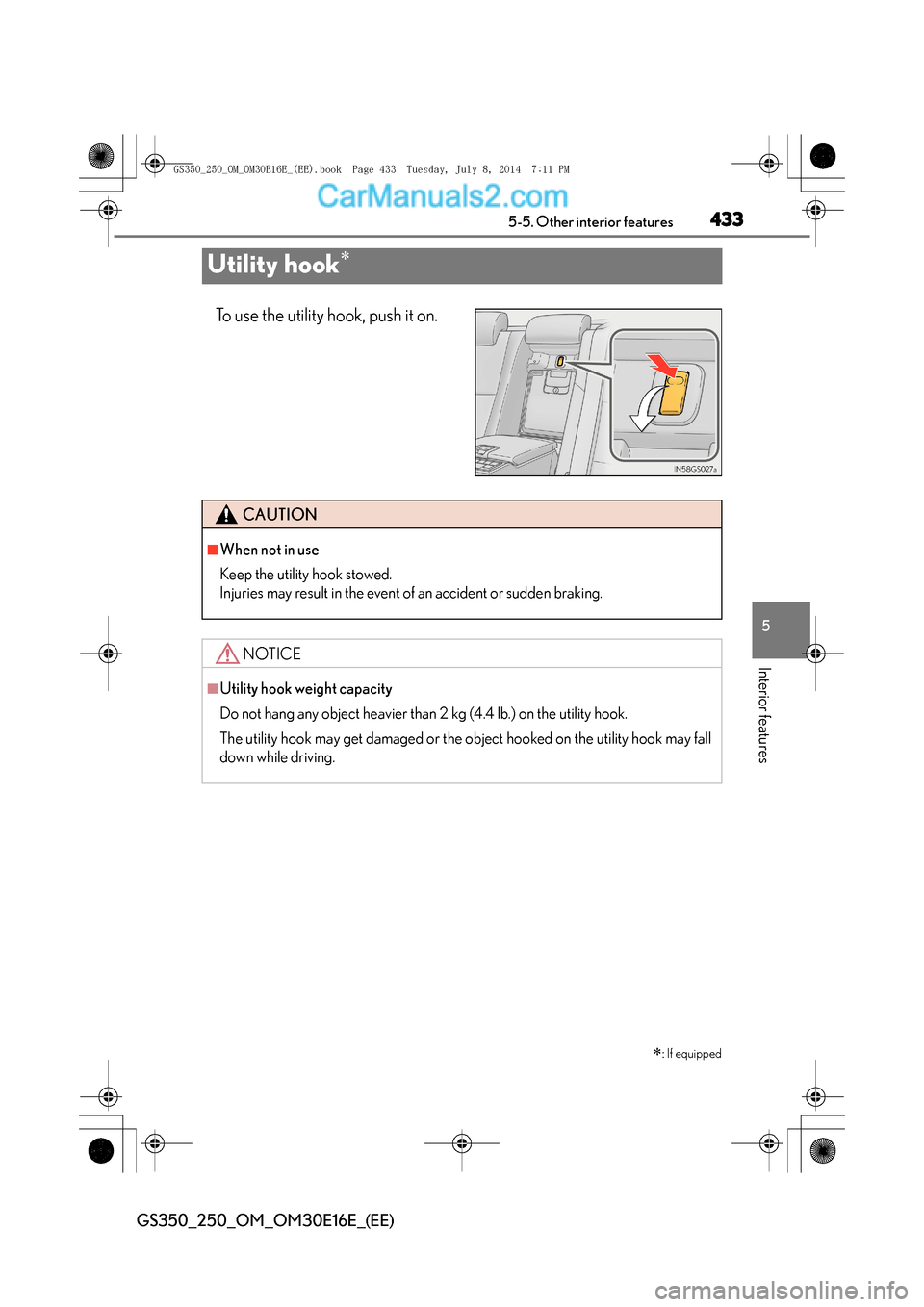

Utility hook∗
To use the utility hook, push it on.
∗
: If equipped
CAUTION
■When not in use
Keep the utility hook stowed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■Utility hook weight capacity
Do not hang any object heavier than 2 kg (4.4 lb.) on the utility hook.
The utility hook may get damaged or the object hooked on the utility hook may fall
down while driving.
GS350_250_OM_OM30E16E_(EE).book Page 433 Tuesday, July 8, 201 4 7:11 PM

4345-5. Other interior features
GS350_250_OM_OM30E16E_(EE)
GS350_250_OM_OM30E16E_(EE).book Page 434 Tuesday, July 8, 2014 7:11 PM

435
6Maintenance and care
GS350_250_OM_OM30E16E_(EE)
6-1. Maintenance and careCleaning and protecting the vehicle exterior................. 436
Cleaning and protecting the vehicle interior.................. 440
6-2. Maintenance Maintenance requirements............................. 444
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................447
Hood ............................................... 450
Positioning a floor jack...............451
Engine compartment ............... 454
Tires.................................................. 466
Tire inflation pressure ...............483
Wheels ...........................................485
Air conditioning filter ............... 487
Electronic key battery ..............489
Checking and replacing fuses.............................................. 492
Light bulbs.......................................514
GS350_250_OM_OM30E16E_(EE).book Page 435 Tuesday, July 8, 201 4 7:11 PM

4366-1. Maintenance and care
GS350_250_OM_OM30E16E_(EE)

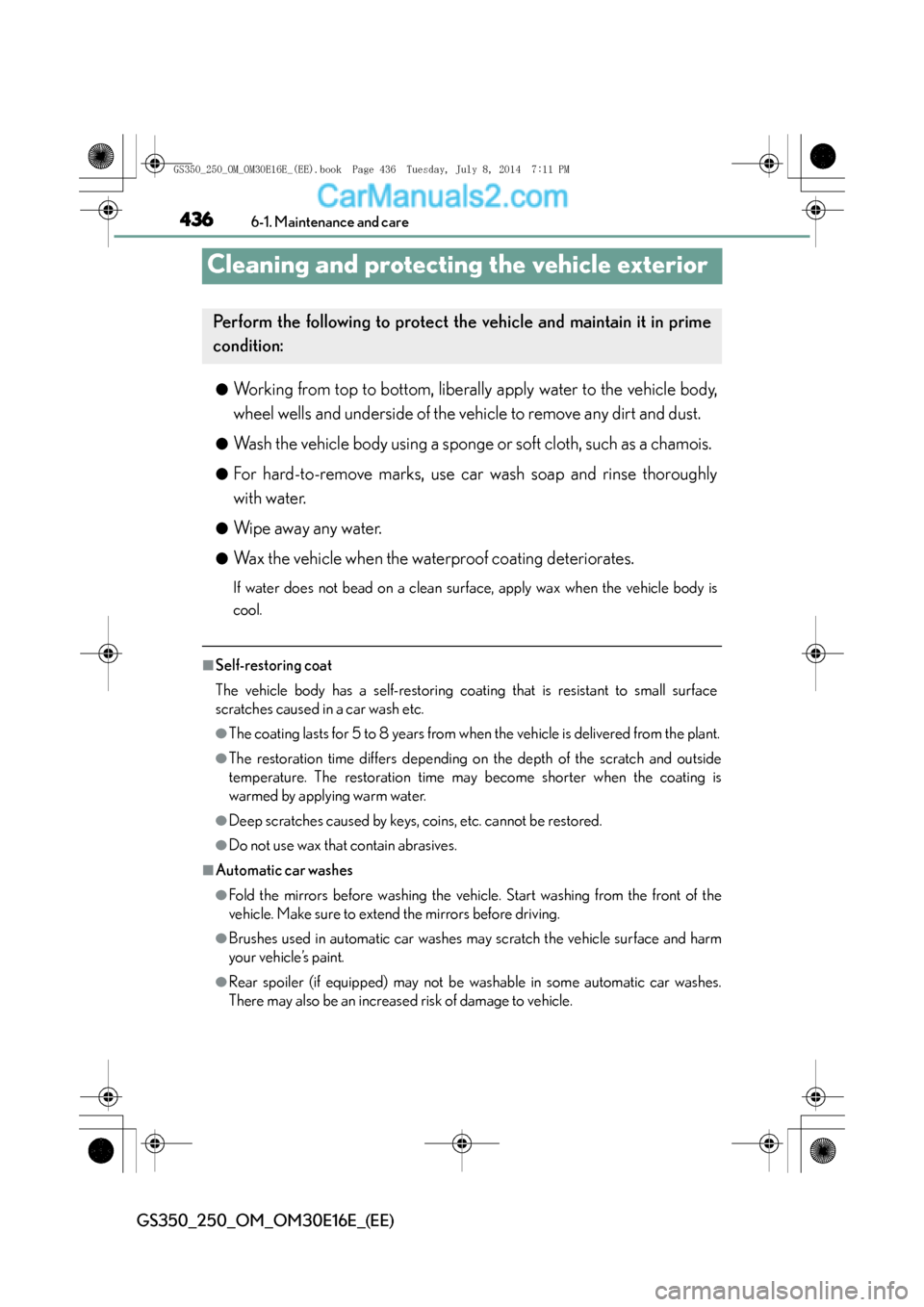

Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle body,
wheel wells and underside of the vehicle to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is
cool.
■Self-restoring coat
The vehicle body has a self-restoring coating that is resistant to small surface
scratches caused in a car wash etc.
●The coating lasts for 5 to 8 years from when the vehicle is delivered from the plant.
●The restoration time differs depending on the depth of the scratch and outside
temperature. The restoration time may become shorter when the coating is
warmed by applying warm water.
●Deep scratches caused by keys, coins, etc. cannot be restored.
●Do not use wax that contain abrasives.
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front of the
vehicle. Make sure to extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm
your vehicle’s paint.
●Rear spoiler (if equipped) may not be washable in some automatic car washes.
There may also be an increased risk of damage to vehicle.
Perform the following to protect the vehicle and maintain it in prime
condition:
GS350_250_OM_OM30E16E_(EE).book Page 436 Tuesday, July 8, 201 4 7:11 PM

4376-1. Maintenance and care
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)

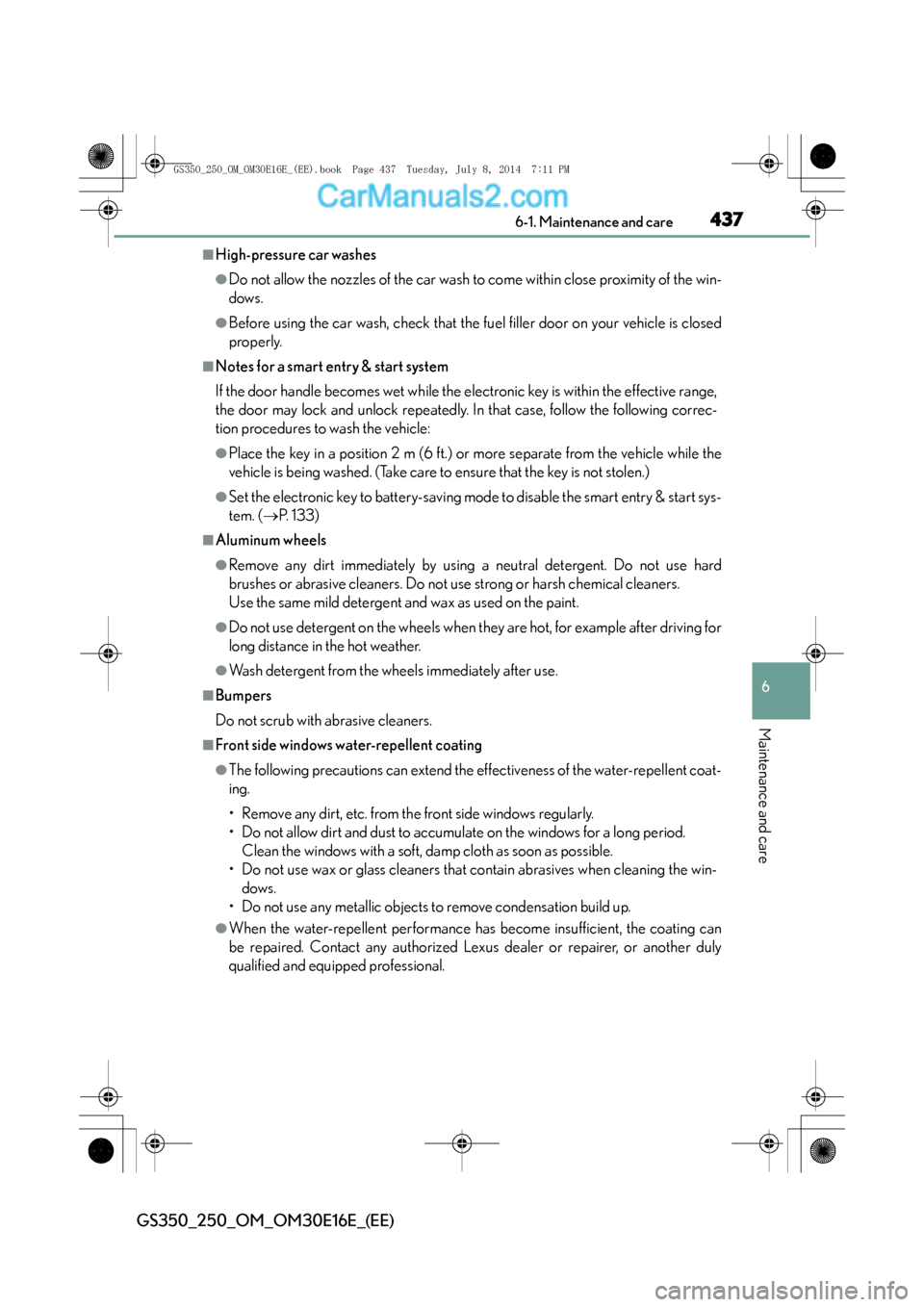

■High-pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the win-
dows.
●Before using the car wash, check that the fuel filler door on your vehicle is closed
properly.
■Notes for a smart entry & start system
If the door handle becomes wet while the electronic key is within the effective range,
the door may lock and unlock repeatedly. In that case, follow the following correc-
tion procedures to wash the vehicle:
●Place the key in a position 2 m (6 ft.) or more separate from the vehicle while the
vehicle is being washed. (Take care to ensure that the key is not stolen.)
●Set the electronic key to battery-saving mode to disable the smart entry & start sys-
tem. (→P. 1 3 3 )
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving for
long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repellent coating
●The following precautions can extend the effectiveness of the water-repellent coat-
ing.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period.
Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the win- dows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating can
be repaired. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
GS350_250_OM_OM30E16E_(EE).book Page 437 Tuesday, July 8, 201 4 7:11 PM

4386-1. Maintenance and care
GS350_250_OM_OM30E16E_(EE)
■Outside rear view mirror rain-clearing coating (if equipped)
Observe the following precautions in order to retain the rain-clearing properties of
the mirrors:
●Clean the mirrors using a car shampoo or glass cleaner that does not contain sili-
cone or an abrasive compound, and rinse thoroughly with water.
●Allow the mirrors to be exposed to direct sunlight for 1 to 2 days.
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause
the electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Precautions regarding the exhaust pipes and rear bumper diffusers
Exhaust gases cause the exhaust pipes and rear bumper diffusers to become quite
hot.
When washing the vehicle, be careful not to touch the pipes and diffusers until they
have cooled sufficiently, as touching hot exhaust pipes and rear bumper diffusers
can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunc-
tion. If this occurs, consult any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Turn off AUTO mode of the wiper to prevent
the wiper from operating. ( →P. 2 7 2 )
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught
or other serious injuries and cause damage
to the wiper blades.
GS350_250_OM_OM30E16E_(EE).book Page 438 Tuesday, July 8, 201 4 7:11 PM

4396-1. Maintenance and care
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)

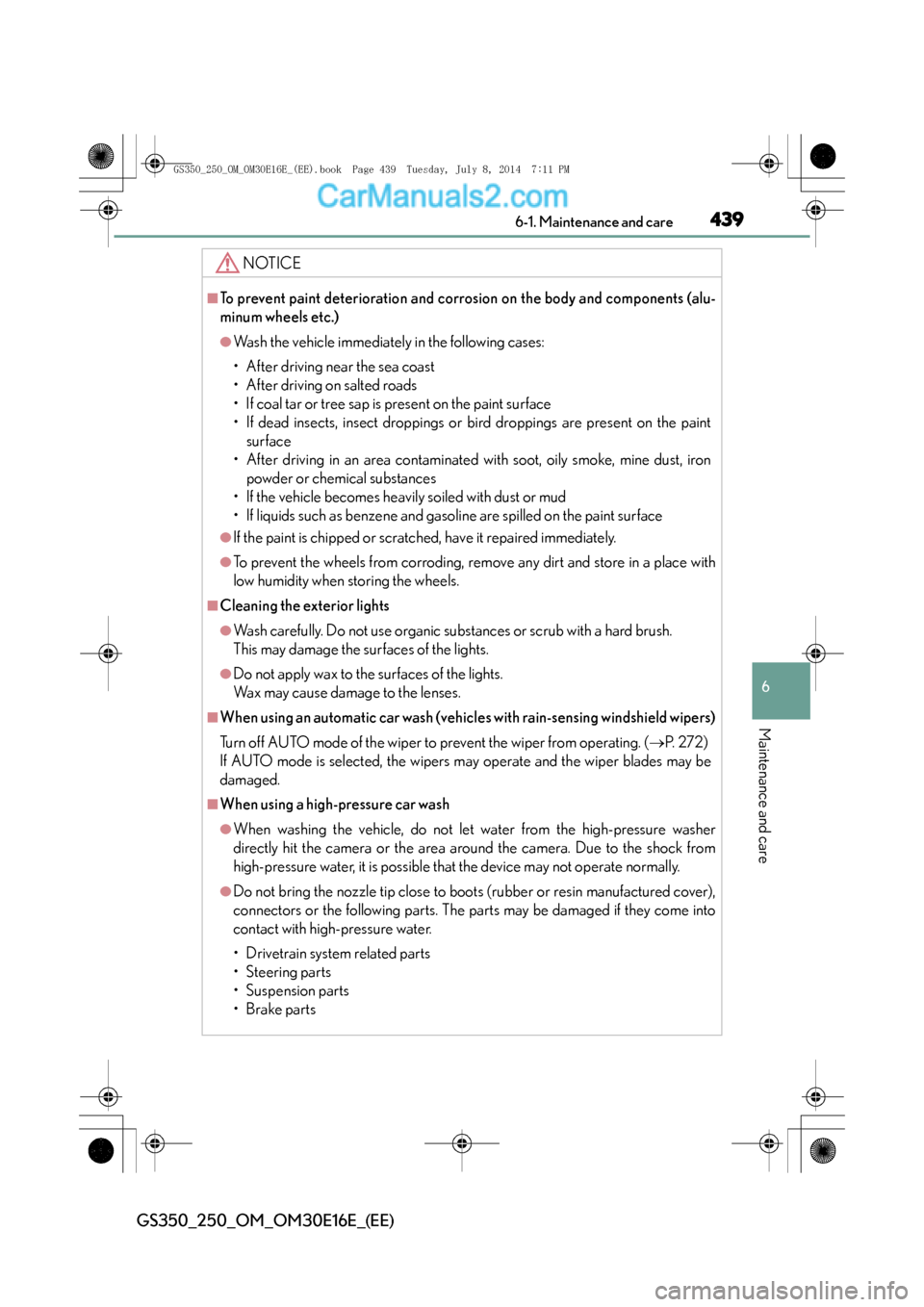

NOTICE
■To prevent paint deterioration and corrosion on the body and components (alu-
minum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paintsurface
• After driving in an area contaminated with soot, oily smoke, mine dust, iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with
low humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■When using an automatic car wash (vehicle s with rain-sensing windshield wipers)
Turn off AUTO mode of the wiper to prevent the wiper from operating. ( →P. 2 7 2 )
If AUTO mode is selected, the wipers may operate and the wiper blades may be
damaged.
■When using a high-pressure car wash
●When washing the vehicle, do not let water from the high-pressure washer
directly hit the camera or the area around the camera. Due to the shock from
high-pressure water, it is possible that the device may not operate normally.
●Do not bring the nozzle tip close to boot s (rubber or resin manufactured cover),
connectors or the following parts. The parts may be damaged if they come into
contact with high-pressure water.
• Drivetrain system related parts
• Steering parts
• Suspension parts
•Brake parts
GS350_250_OM_OM30E16E_(EE).book Page 439 Tuesday, July 8, 201 4 7:11 PM

4406-1. Maintenance and care
GS350_250_OM_OM30E16E_(EE)

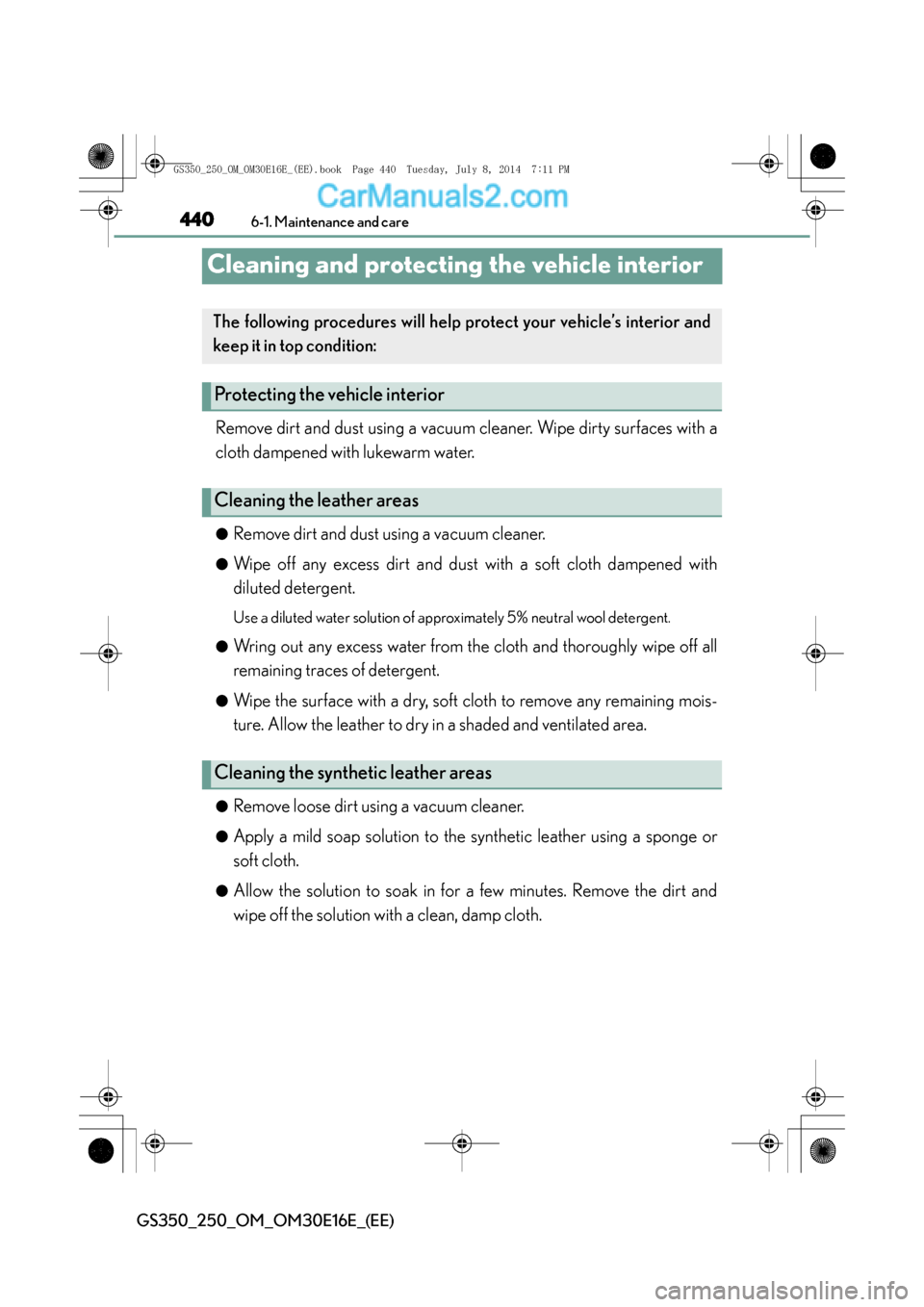

Cleaning and protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a
cloth dampened with lukewarm water.
●Remove dirt and dust using a vacuum cleaner.
●Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
●
Wring out any excess water from the cloth and thoroughly wipe off all
remaining traces of detergent.
●Wipe the surface with a dry, soft cloth to remove any remaining mois-
ture. Allow the leather to dry in a shaded and ventilated area.
●Remove loose dirt using a vacuum cleaner.
●Apply a mild soap solution to the synthetic leather using a sponge or
soft cloth.
●Allow the solution to soak in for a few minutes. Remove the dirt and
wipe off the solution with a clean, damp cloth.
The following procedures will help protect your vehicle’s interior and
keep it in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas
GS350_250_OM_OM30E16E_(EE).book Page 440 Tuesday, July 8, 201 4 7:11 PM
